MACHINERY, TOOLS AND INSPECTION EQUIPMENT OF PRECISION ENGINEERING BUSINESS IN HERTFORDSHIRE
Starts: 19 June 2025 at 09:00 BST
Ends: 03 September 2025 at 15:00 BST
Featuring a Bridgeport Interact 412 CNC Vertical Machining Centre, Romi Bridgeport CNC Semi-Auto Straight Bed Lathe, Bridgeport BRJ Turret Milling Machine, a selection of grinders, compressors, inspection equipment, tooling, and more. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 128 of 128 lots
- LOT 1
![site]()
Bridgeport Interact 412 CNC Vertical Machining Centre With Heidenhain TNC 2500 Control
Table Dimension 840 x 320mm (3 'T' Slots). Maximum Table Load 250kg. Axis Travel 'X'=450mm, 'Y'=310mm, 'Z'=300mm. Distance From Column To Machine Centre 410mm. Speed Range 40-4,000rpm (5.5kW Motor). 12 Station ATC. Spindle Taper BT40. S/No. 76064 (1990). - LOT 2
![site]()
Romi Bridgeport CNC Semi-Auto Straight Bed Lathe With EZ Path Control
Ø200mm 3 Jaw Chuck. Swing Over Bed Ø419mm. Swing Over Cross Slide Ø203mm. Centre Height 203.2mm. Distance Between Centres 1,016mm. Speed Range 67.5-3,000rpm (6kW Motor). Rapid Feedrate 10m/min. Tailstock Quill Ø50.8mm, Quill Travel 160mm, MT4. QTC. S/No. 080280 325 0196 (1996). - LOT 3
![site]()
Bridgeport BRJ Turret Milling Machine With Heidenhain 2 Axis DRO
Longitudinal Table Travel Approx 736mm. Cross Travel Approx 304mm. Vertical Travel (Knee) Approx 400mm. Quill Travel 125mm. Ram Travel Approx 315mm. Spindle Centre to Column Face: Minimum Distance Approx 170mm - Max Approx 476mm. Spindle To Table Approx 64mm Min - 470mm Max. Table to Spindle Nose Gauge Line Approx 55mm. Max Workpiece Weight Approx 340kg. Table Dimension Approx 1,067mm x 227mm (3 'T' Slots). R8 Taper. High Range/Low Range Switch 67-4,500rpm. Right Hand & Left Hand Head Tilt = 90° Forward & Backward Head Tilt = 45°. Longitudinal Power Feed. - LOT 4
![site]()
MYFORD CYLINDRICAL GRINDER WITH INTERNAL GRINDING ATTACHMENT
Max Swing Over Bed Ø125mm. Centre Height 65mm. Table Dimension 700 x 108mm. Headstock Speed Range 75-780rpm. With Coolant System & Wheel Dresser. S/No. S57598. - LOT 5
![site]()
Elliott 618 Precision Toolroom Surface Grinder
Eclipse Magnetic Chuck Dimension 450 x 150mm. Maximum Longitudinal Table Travel (Auto & Hand) 480mm. Maximum Cross Table Travel (Auto & Hand) 170mm. Maximum Vertical Head Travel (Auto & Hand) 330mm. Maximum Distance Centre Of Spindle To Table 394mm. Table Feed 1.5-18m/min. Wheel Dimension Ø178 x 12.7 x 32mm. Wheel Speed 2,700rpm. S/No. 103087714. - LOT 6
![site]()

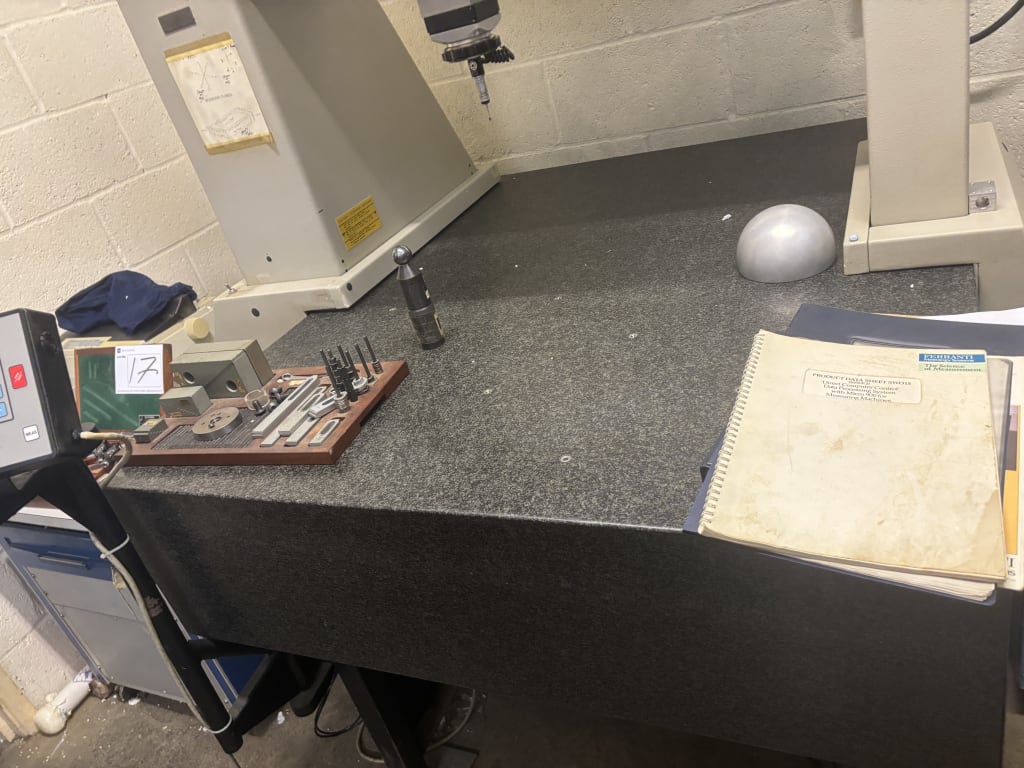

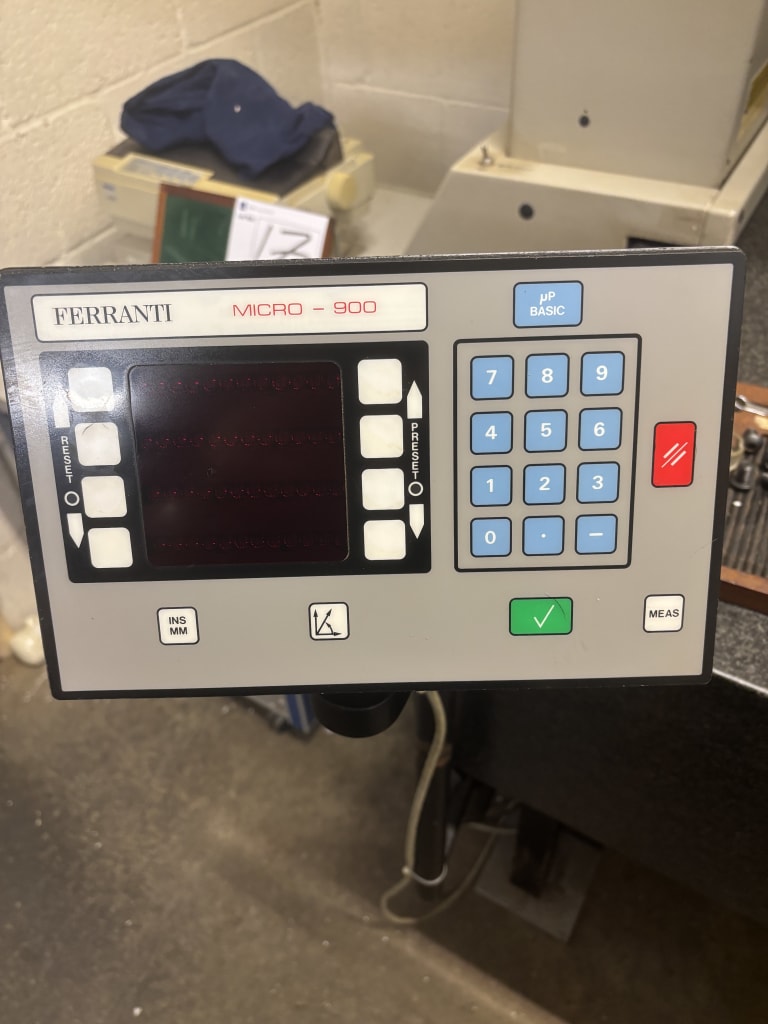

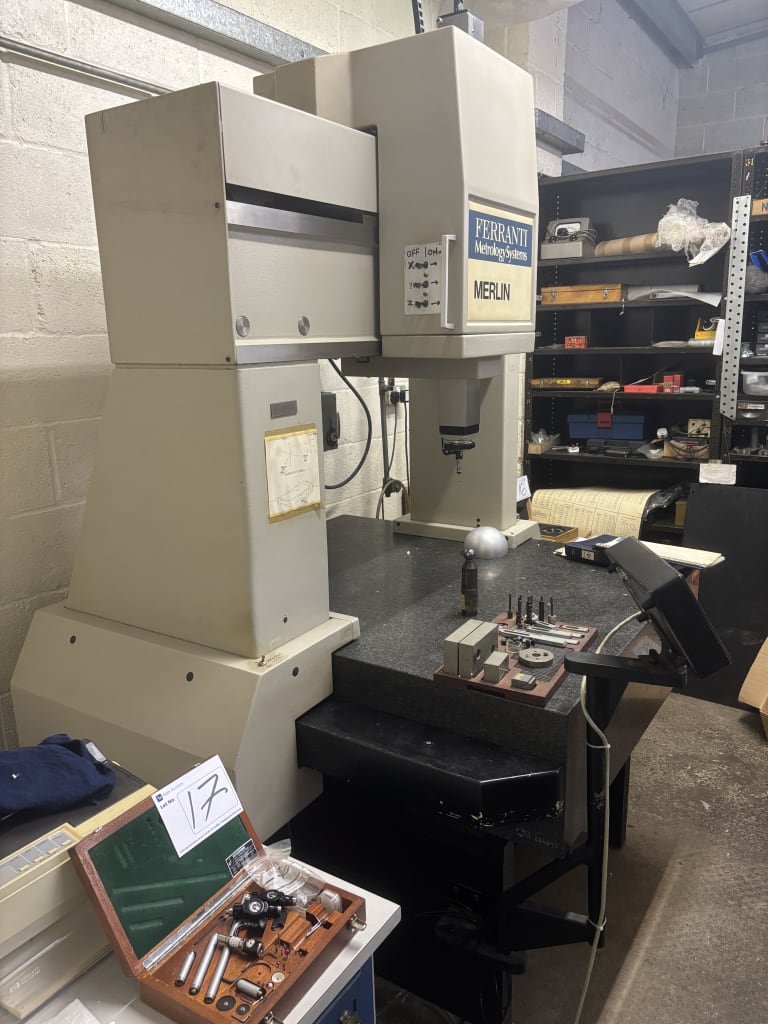

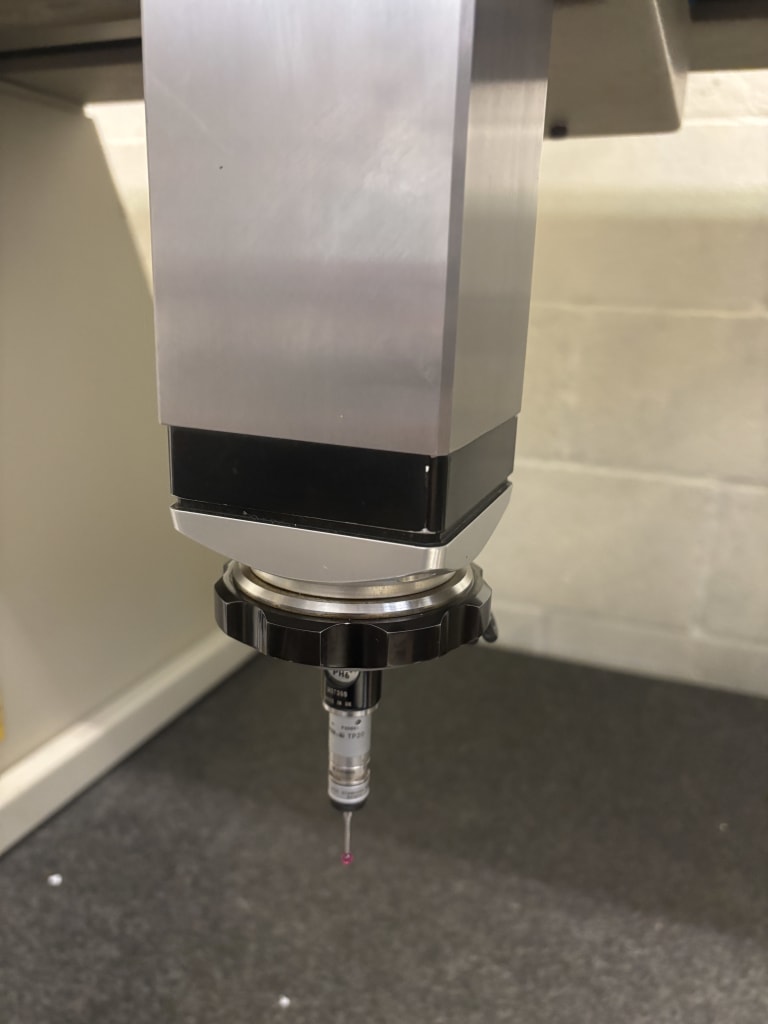

Ferranti Merlin 3 Axis CMM With Micro-900 Control

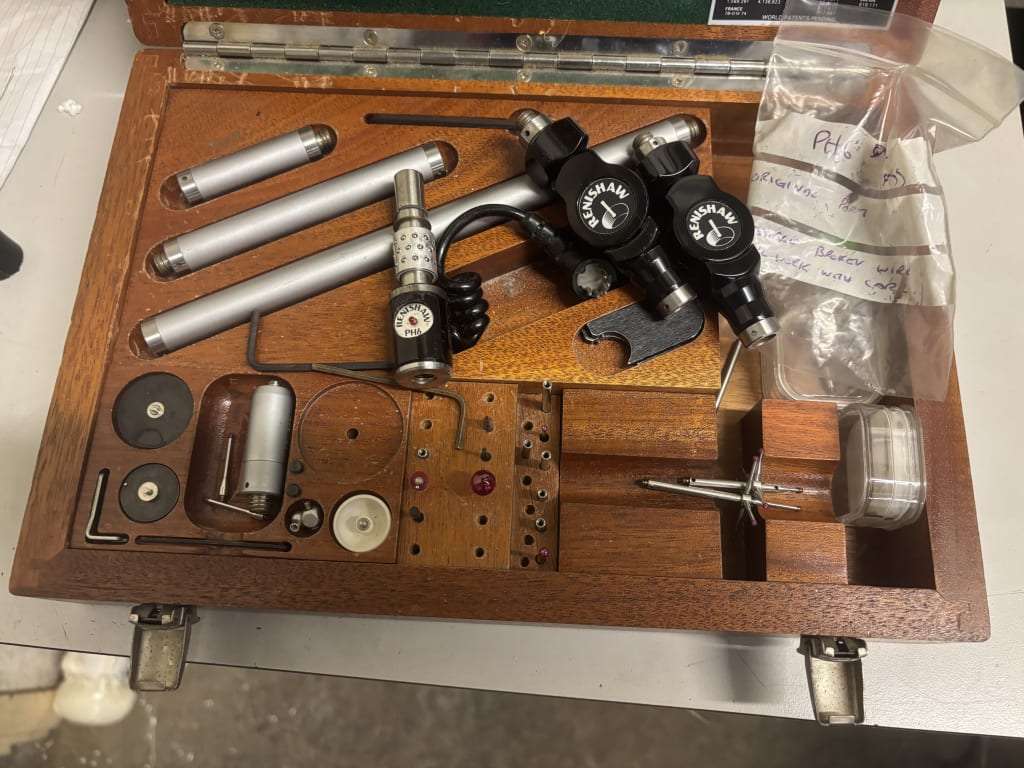

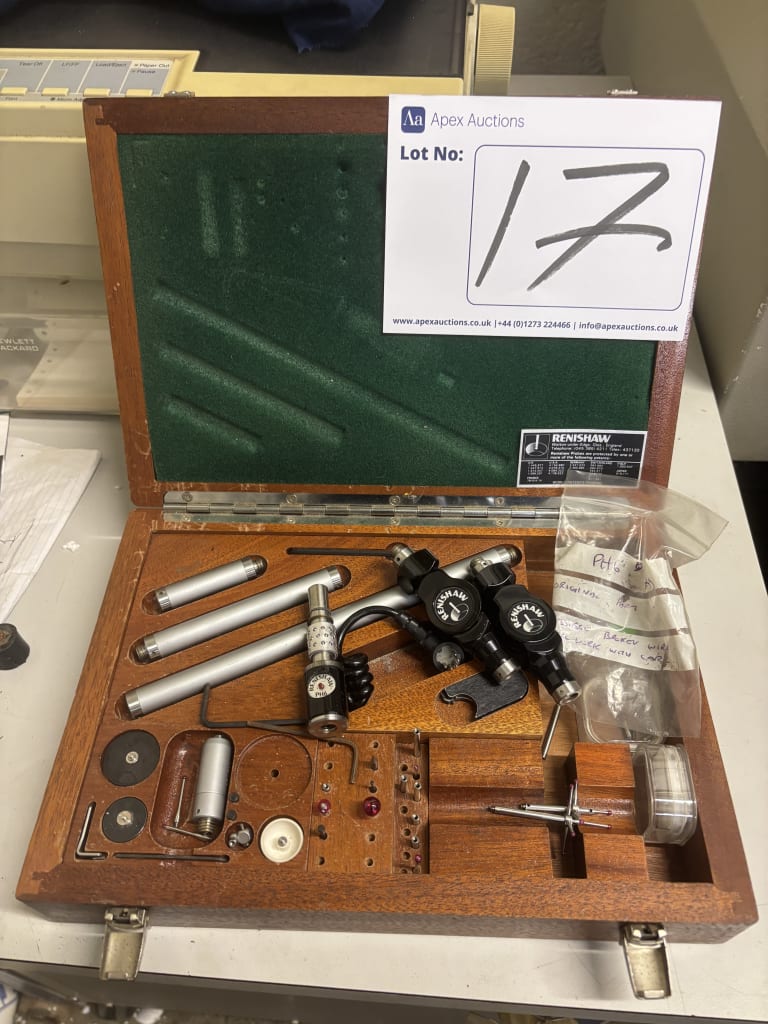

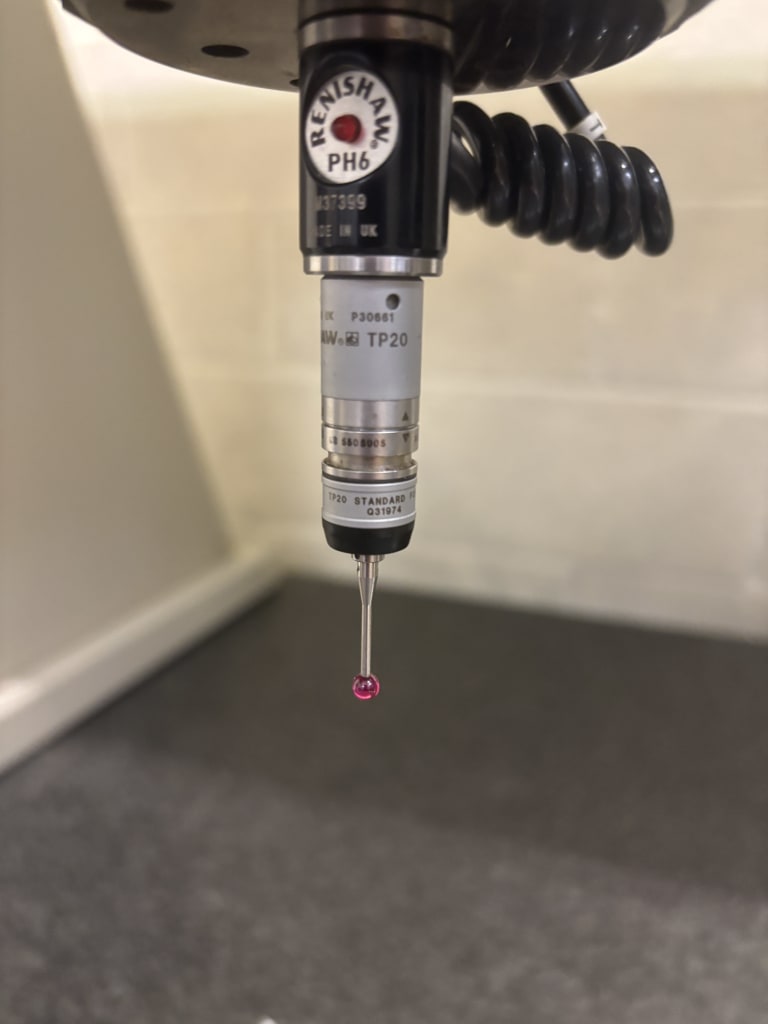

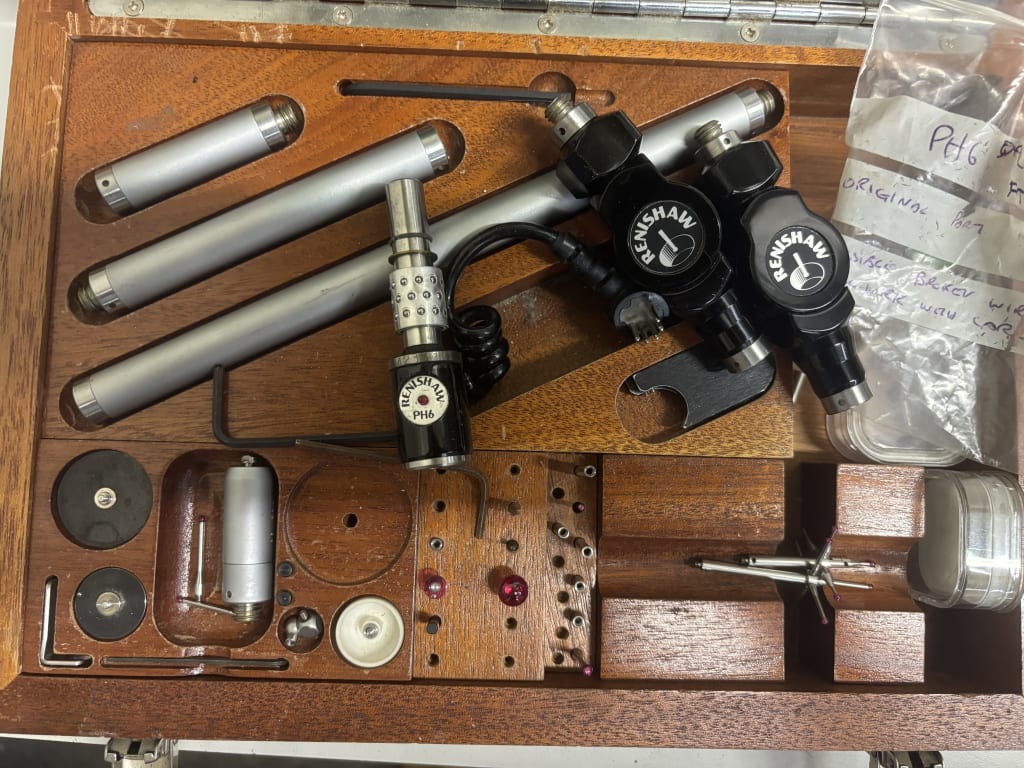

With Renishaw Probe Set In Wooden Box. Table Dimension 1,300 x 1,100mm. Distance Between Columns 850mm. Distance Under Bridge 570mm. Ram 80 x 80mm. With Renishaw PH6 Probe, Renishaw TP 20 Stylus. Including Renishaw PH6 Probe, Renishaw Manual Angular Probes, Styluses, Extensions & Tooling (shown in photos as Lot 17). - LOT 7
![site]()
Prosaw Procut VBS12 Vertical Bandsaw With Blade Welder/Cutter
Swivel Table Dimension 400 x 500mm. Throat 320mm. Blade Dimension 2-13mm. S/No.120086. - LOT 8
![site]()
ERP A23 Compressor With Rednal Welded Pressure Vessel
Rednal Capacity 210 Litres. Voltage 400v. (2008). - LOT 9
![site]()
- LOT 10
![site]()
Wolf 8889 Double Ended Pedestal Grinder
Wheel Dimension Ø200 x 25 x Ø20mm. Wheel Speed 3,000rpm (0.55kW Motor). Voltage 400v. - LOT 11
![site]()
Osaki BD350 Bench Drill
Rise & Fall Table Dimension 160 x 160mm. Throat 105mm. Spindle Speed Range (5) 600-2,600rpm. Drill Range Ø1.5-13mm. Power 350W. Voltage 240v. - LOT 14
![site]()
- LOT 20
![site]()
- LOT 21
![site]()
1 Lot Assorted Measuring Tools
Including: (1) Hamel Cylindrical Square & Small Hole Gauge Set; - LOT 22
![site]()
1 Lot Assorted Measuring Tools
Including: (1) Mitutoyo 0-300mm/12" Height Gauge; (1) Adjustable Sine Table; (1) Moore & Wright 1066m Drill Gauge - LOT 25
![site]()
- LOT 26
![site]()
1 Lot Assorted Precision Measuring Tools
Comprising: (1) Linear LNR 66621L (10 piece) Angle block set; (1) 0-12" (4 piece) Protractor Set - LOT 27
![site]()
1 Lot Assorted Precision Measuring Tools
Comprising: (1 Set) SPI Inspection Gauge Balls 1/8" - 1" Dia. Range; (1 Set) Inspection Gauge Balls 1mm - 25mm Dia. Range; - LOT 28
![site]()
(3) Bowers 3-Point Analogue Bore Micrometer Sets
Comprising: (1 Set) Bowers 12.5mm - 16mm complete with setting ring; (1 Set) Bowers 25mm - 35mm complete with setting ring; (1 Set) Bowers 35mm - 50mm complete with setting ring - LOT 29
![site]()
1 Lot Assorted Precision Measuring Tools
Comprising: (1) Oxford 6" Engineer's Square; (1) 0-12" Try Square; (1) Mitutoyo 951144 Centre Probe - LOT 31
![site]()
1 Lot Assorted Precision Measuring Tools
Comprising: (1) Oxford Electronic Depth Caliper 0-150mm Range; (1) Profitexx 0-300mm Range Digital Cliper - LOT 32
![site]()
- LOT 34
![site]()
- LOT 36
![site]()
1 Lot Assorted Precision Measuring Tools
Comprising: (1) Moore & Wright Depth Micrometer with interchangeable rods; (1) Moore & Wright Internal Micrometer Set; (1) Mitutoyo 187-908 Universal Bevel Protractor Set with 12" Blade - LOT 37
![site]()
1 Lot Assorted Precision Measuring Tools
Comprising: (1) Oxford Dial Bore Gauge 18mm-35mm Range; (1) Oxford Dial Bore Gauge 50mm-150mm Range - LOT 38
![site]()
(4) Bowers 3-Point Analogue Bore Micrometer Sets
Comprising: (1 Set) Bowers 8mm - 10mm Range Bore Micrometer complete with setting ring; (1 Set) Bowers 10mm - 12.5mm Range Bore Micrometer complete with setting ring; (1 Set) Bowers 16mm - 20mm Range Bore Micrometer complete with setting ring; (1 Set) Bowers 20mm-25mm Range Bore Micrometer with setting ring; - LOT 41
![site]()
1 Lot Assorted Inspection Tooling
Comprising: (1 Set) SPI Pairs of Steel Parallels; (1) Compact Microprocessor Tachometer; - LOT 42
![site]()
1 Lot Assorted Tooling
Including: (3) Kennametal BT40 TB1 097C Tapping Chuck Arbors & Assorted Tapping Collets to suit - LOT 47
![site]()
(2) Machine Vices
Comprising: (1) Drill Vice 100mm Width of Jaws; (1) 80mm Width of Jaw Bench Vice - LOT 48
![site]()
1 Lot Assorted Hand Tools
Including: Assorted Engineer's Files; (1) 240 volt Electric Drill; Junior Hacksaw; 9" Engineer's Square; - LOT 50
![site]()
1 Lot Assorted Tapping Attachments
Comprising: (1) Tapmatic SPD-5 Tapping Attachment; (1) Tapmatic 30X Tapping Attachment; 1 Lot assorted HSS Threading Taps - LOT 51
![site]()
(3) Multi Draw Small Tool Cabinets with Contents
Including: Screw Plug Gauges; Screw Ring Gauges; HSS Threading Taps; HSS Circular Split Dies. - LOT 52
![site]()
(2) 2-Door Steel Cupboards with Contents
Dimensions of each Cupboards approx 900mm x 460mm x 1800mm; Contents include Abrasives - LOT 53
![site]()
(1) Bisley 4-Drawer Steel Cabinet with Contents
Dimensions of Cabinet approx 400mm x 470mm x 700mm; Contents include HSS Threading Taps, HSS Reamers, HSS & Cobalt Milling Cutters - LOT 54
![site]()
(2) Open Front Bay Dismountable Shelving with Contents
Dimensions of each Unit Approx 900mm 300mm x 2300mm; Contents include Helicoils & Inserting Tools; Hellerman Cable Ties; Adhesives; Cable; HSS Circular Split Dies; Pryor Number & Letter Stamps; - LOT 61
![site]()
(3) Starrett 436M Type Outside Micrometers
Comprising: (1) 75mm-100mm Capacity; (1) 100mm-125mm Capacity; (1) 125mm-150mm Capacity; In Wooden Box - LOT 62
![site]()
(2) Oxford Magnetic Dial Gauge Stands (Unused)
Comprising: (1) Oxford OXD 333 7030K Magnetic Stand & (1) Oxford OXD 333 7050K Magnetic Stand - LOT 67
![site]()

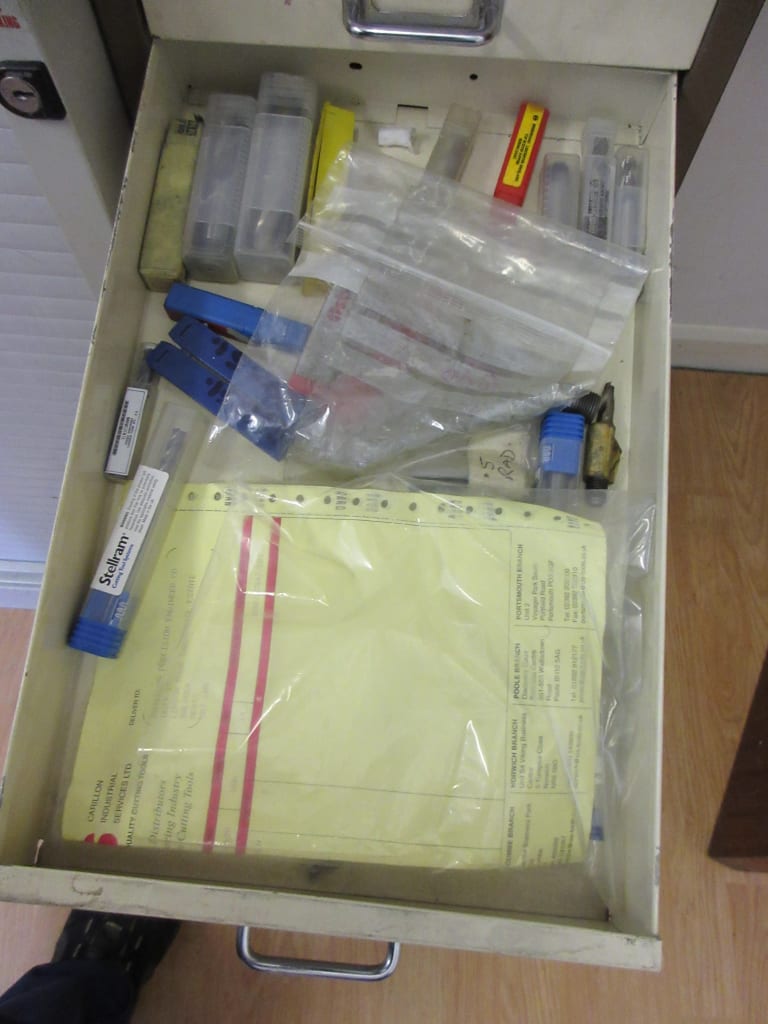

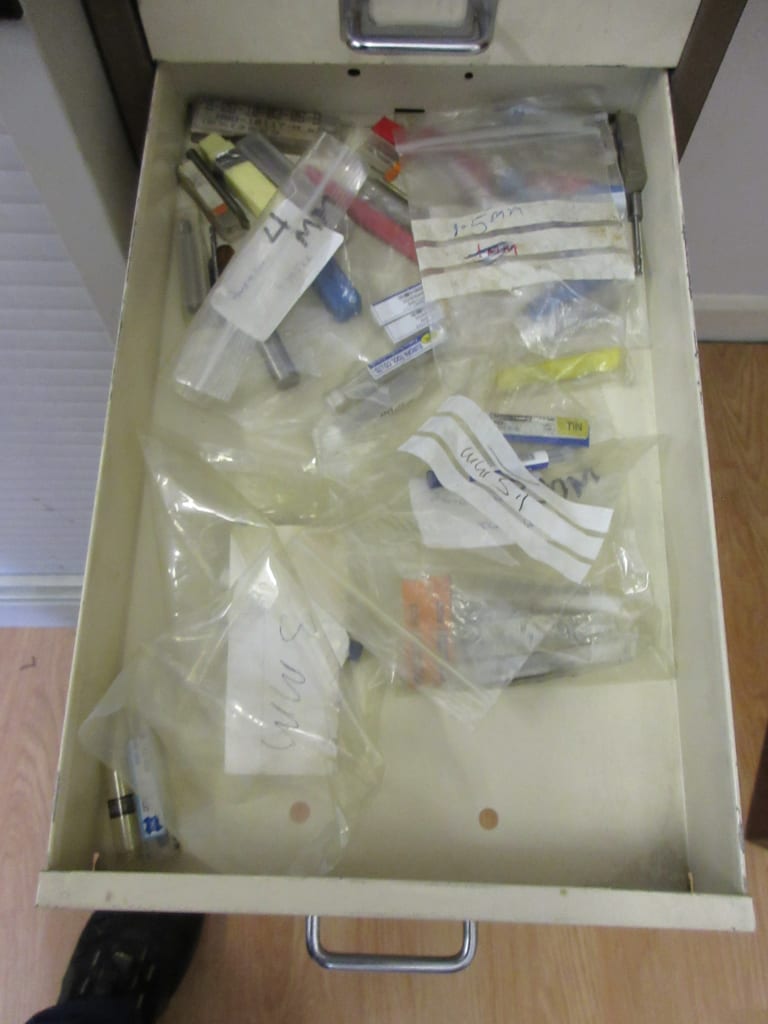

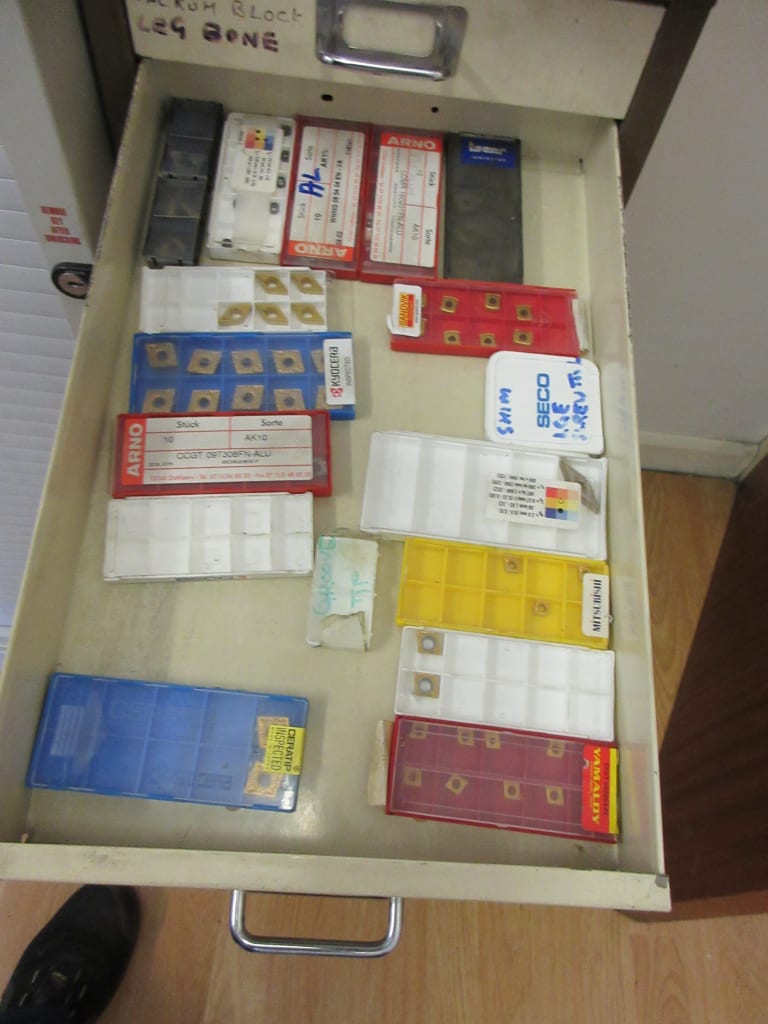

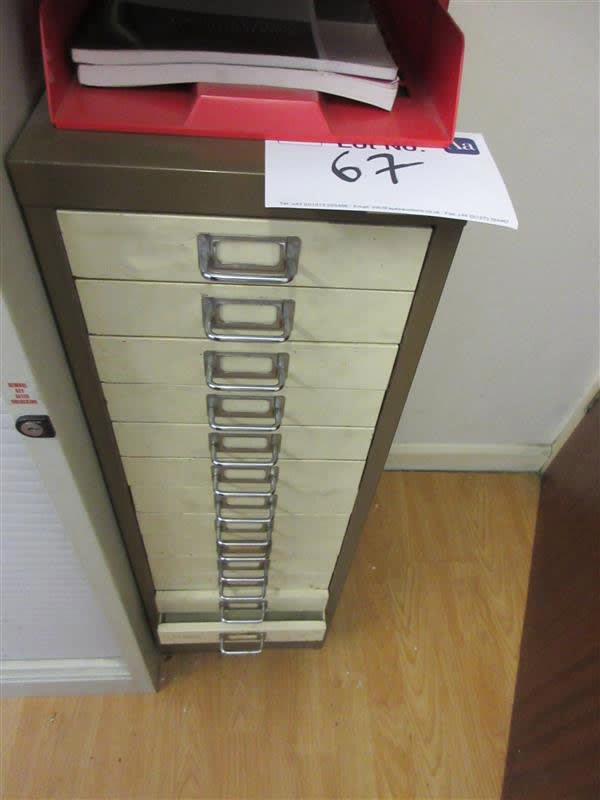

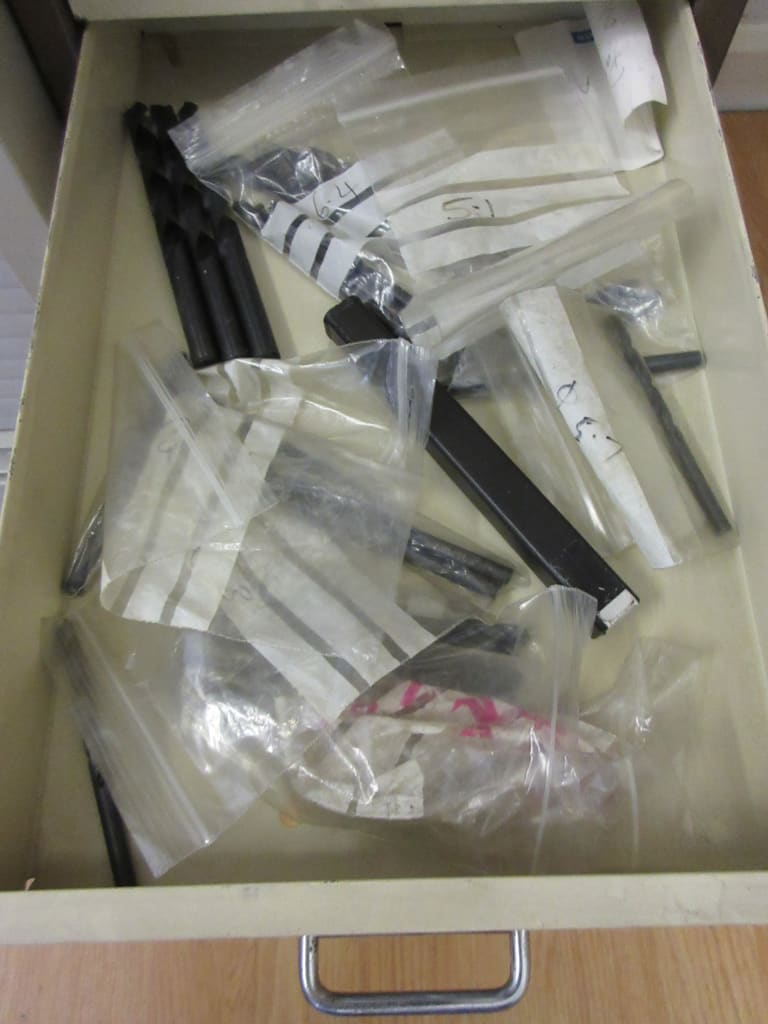

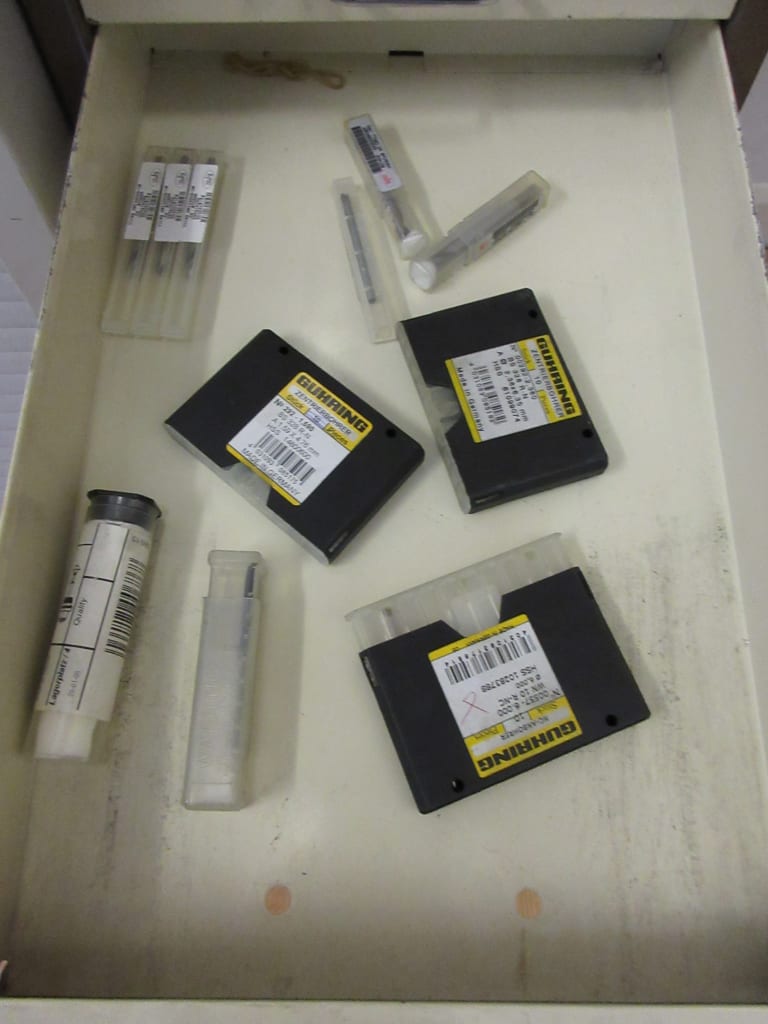

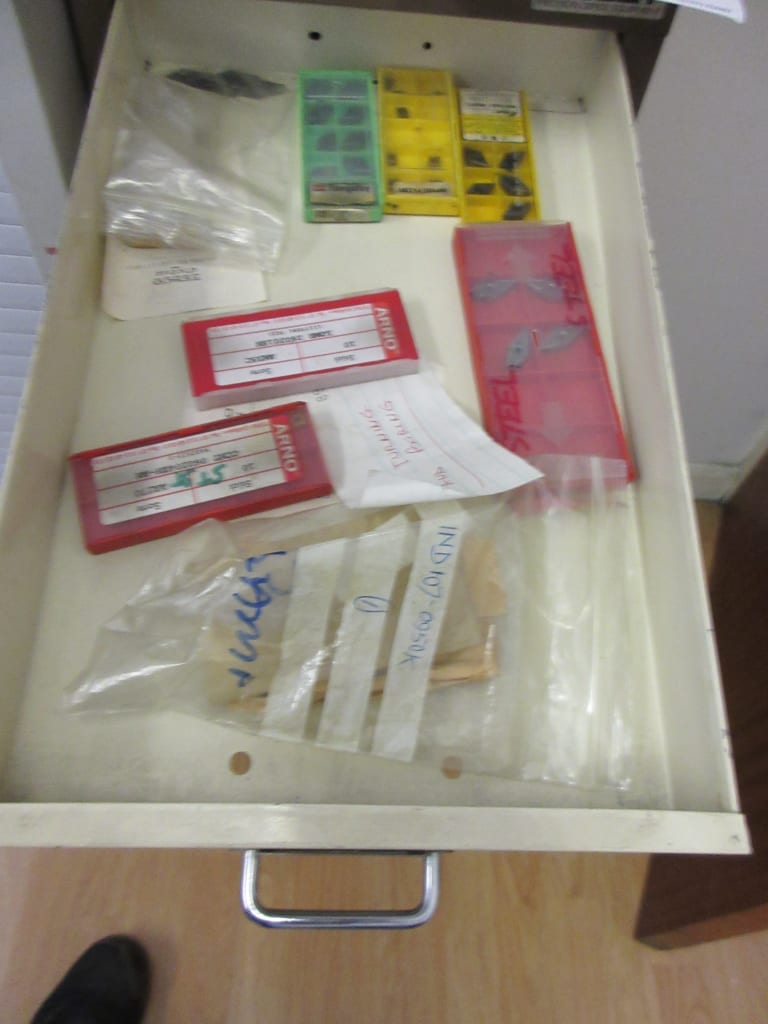

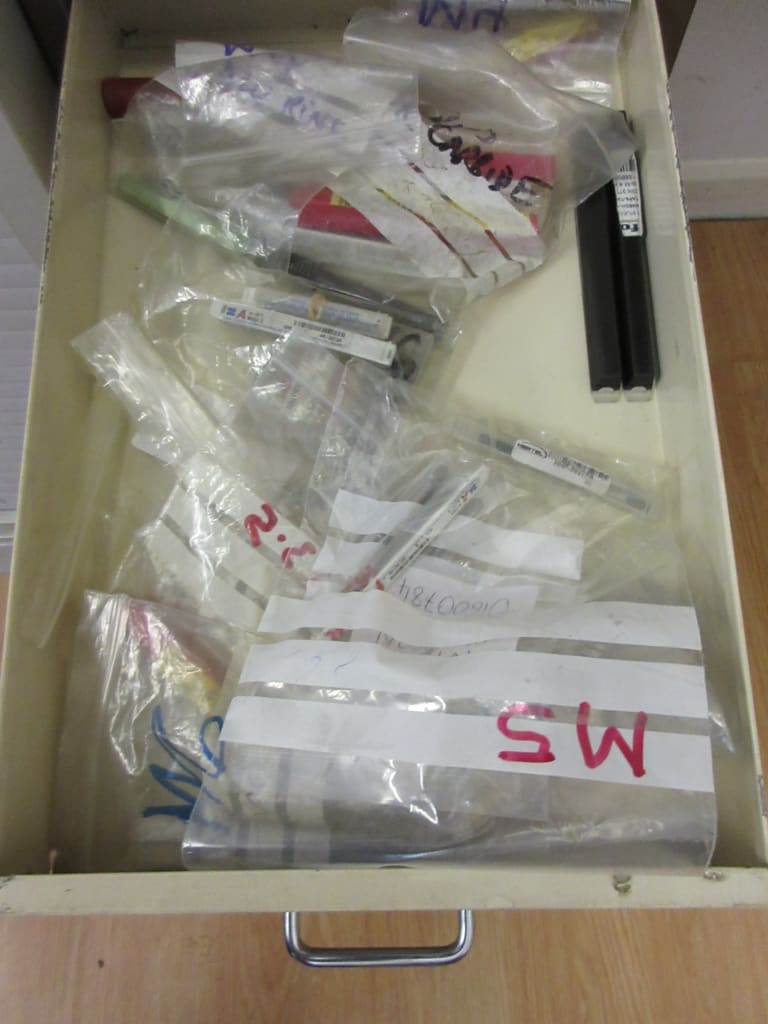

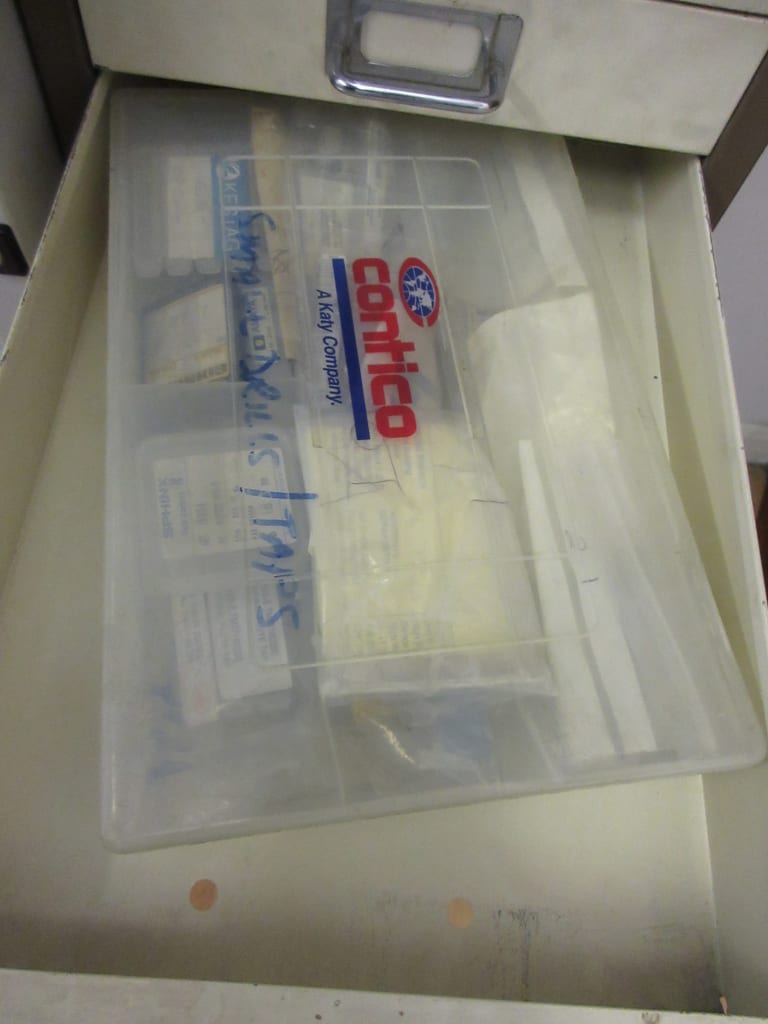

(1) Bisley (13 Drawer) Cabinet with Unused Cutting Tools

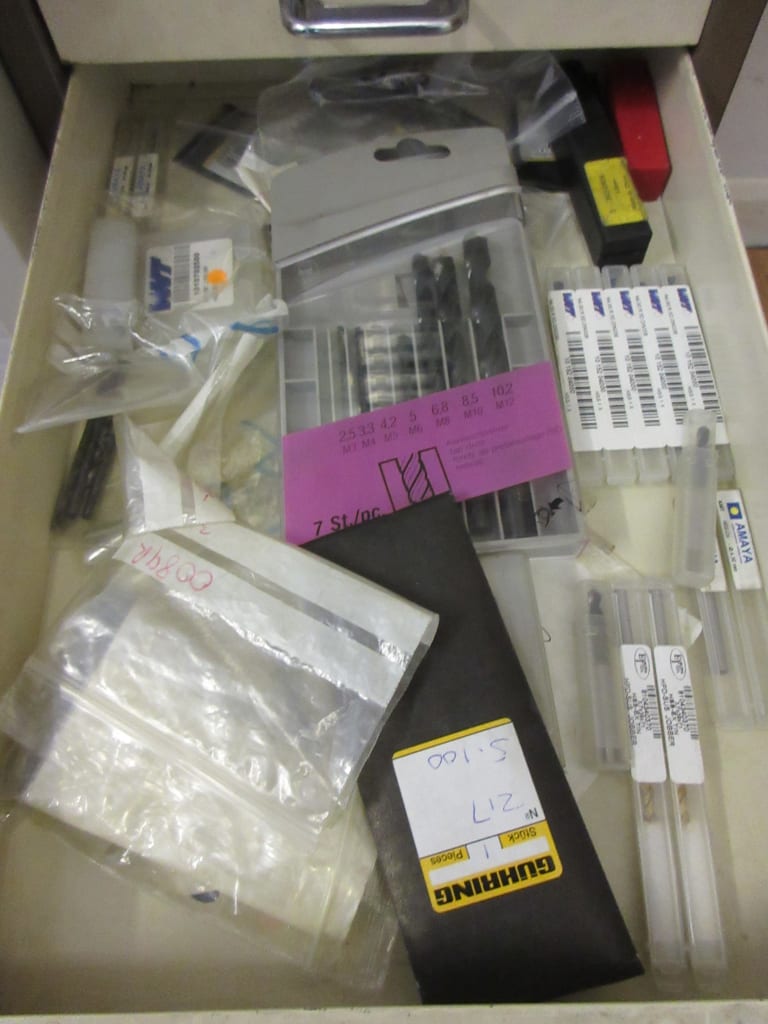

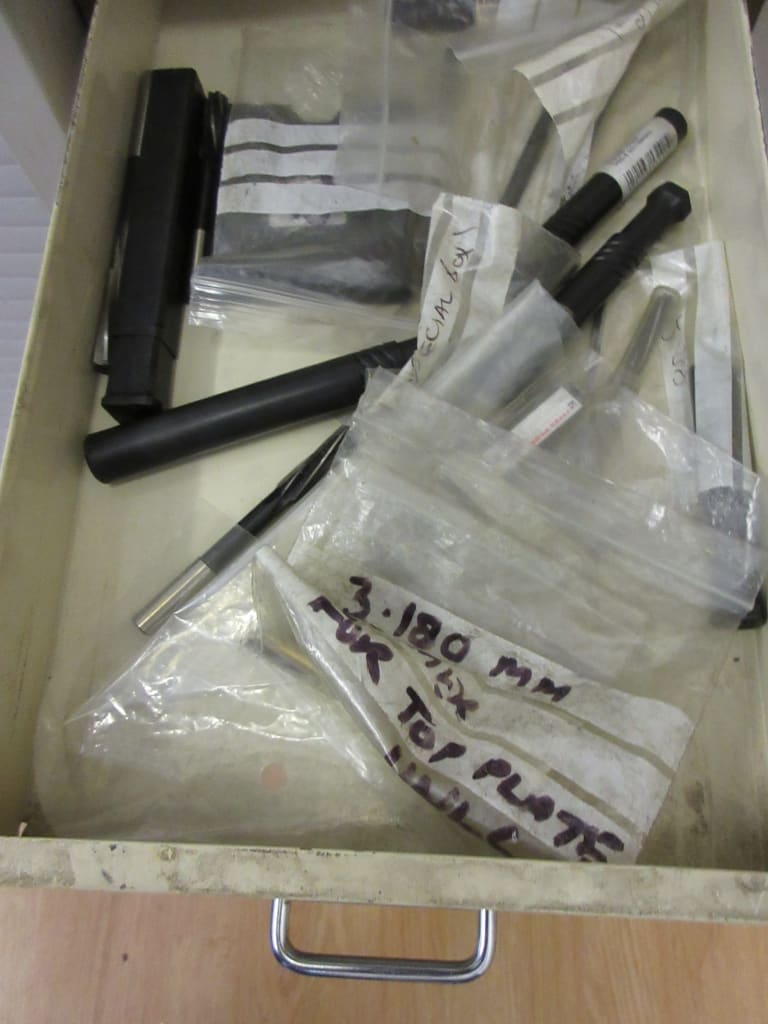

Dimensions Approx 280mm x 400mm x 900mm; Contents include Indexable Carbide Inserts; Cobalt, Carbide & HSS Milling Cutters; Cobalt Reamers; HSS, Cobalt & Carbide Drills; (Dormer, Guhring & Titex) - LOT 68
![site]()

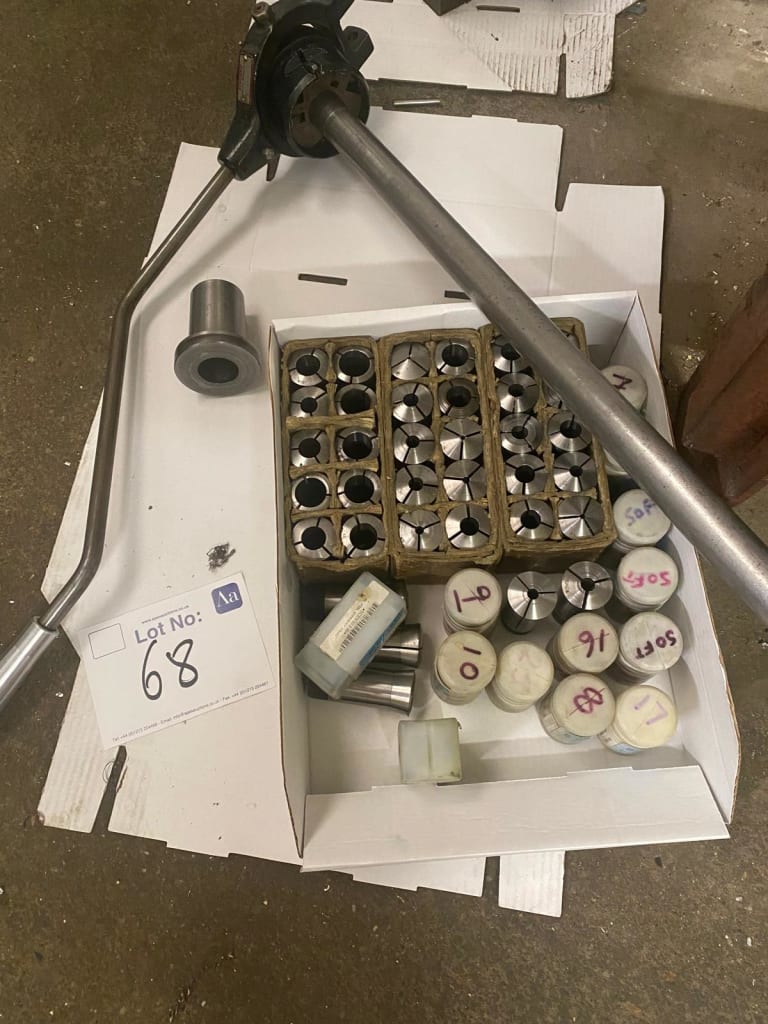

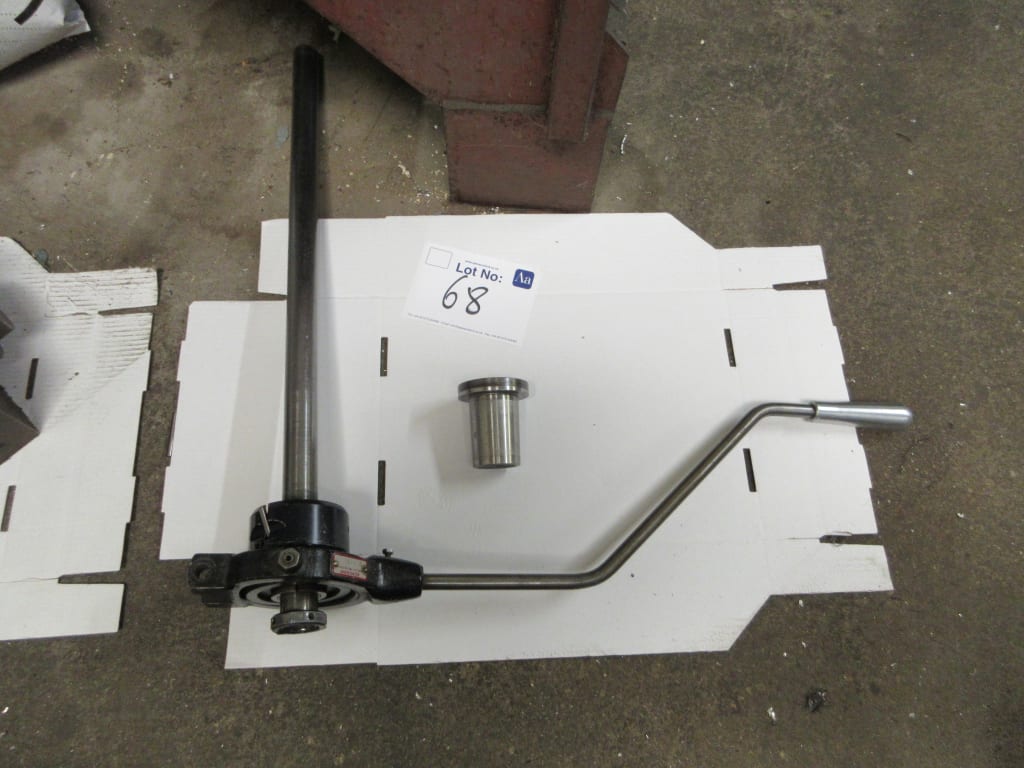

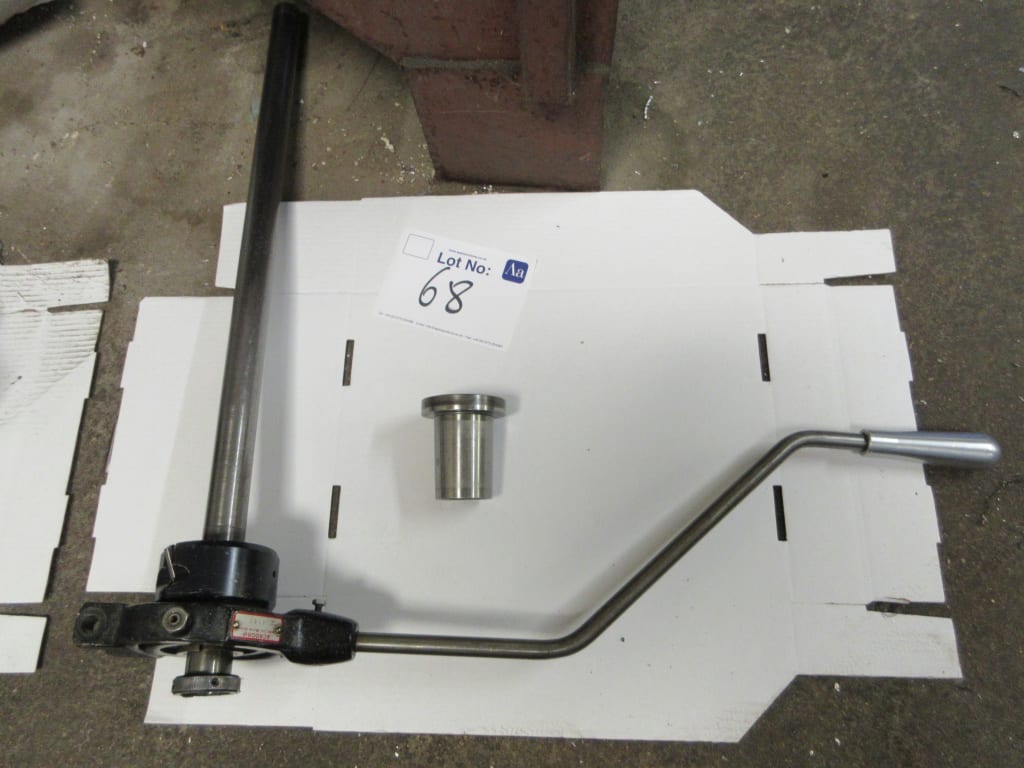

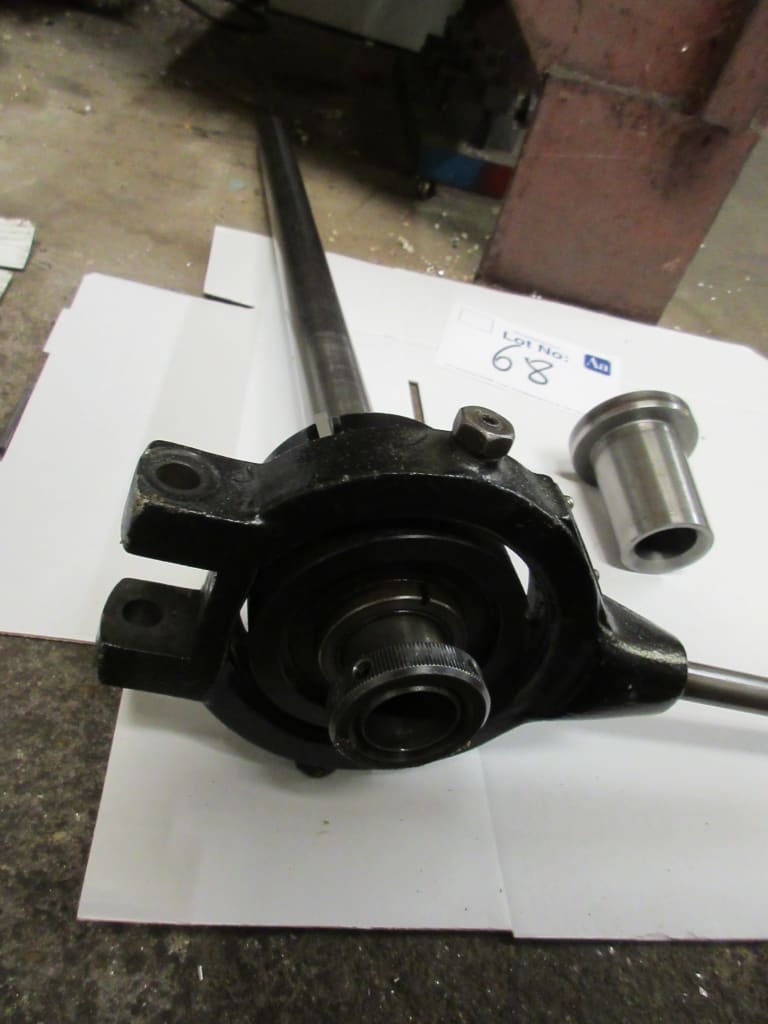

5C COLLET ATTACHMENT FOR EZ PATH ROMI LATHE
To suit Lot 2 Bridgeport Lathe; Includes range of metric and imperial collets. - LOT 70
![site]()
- LOT 76
![site]()
- LOT 78
![site]()
- LOT 79
![site]()
- LOT 84
![site]()
- LOT 85
![site]()
- LOT 86
![site]()
- LOT 91
![site]()
- LOT 92
![site]()
- LOT 93
![site]()
(1) Bridgeport Pfander BT40 CNC Bench Mounted Storage Rack Including Arbors
Includes (Approx 30) BT40 Arbors & Some Cutters - LOT 95
![site]()
(1) Workshop 2-Door Work Cabinet with Record No.4 Vice, Assorted Plastic Storage Bins & Machine Spares
Dimensions Approx 1200mm x 600mm x 750mm High - LOT 97
![site]()
- LOT 98
![site]()
(1) Workshop Work Table with No. 4 Record Vice
Dimensions Approx 1200mm x 600mm x 960mm High - LOT 100
![site]()
- LOT 101
![site]()
- LOT 104
![site]()
- LOT 105
![site]()
- LOT 106
![site]()
(2) Tadco Autogard Micro Tapping Attachments
Comprising: (1) Tadco Autogard No. 75 Tapping Attachment & (1) Tadco Autogard No. 250 Tapping Attachment - LOT 107
![site]()
(2) Machine Tooling Attachments
Comprising: (1) Boring Head & (1) SM4 Tapmatic Tapping Attachment - LOT 110
![site]()
- LOT 112
![site]()
(2) Open Ended Angle Plates
Comprising: (1) Adjustable Angle Plate, Dimensions Approx 250mm x 200mm x 220mm; (1) Open Ended Angle Plate, Dimensions Approx 130mm x 120mm x 120mm; - LOT 113
![site]()
- LOT 114
![site]()
(3) Machine Tooling Aids
Comprising: (1) Angle Plate 250mm x 200mm x 240mm; (1) Angle Plate 200mm x 160mm x 120mm; (1) Engineer's Slotted Steel Cube, 230mm x 150mm x 180mm; - LOT 116
![site]()
(1) Crown Granite Surface Plate Grade 'A' with Stand
Dimensions of Granite Surface Plate Approx 900mm x 600mm x 35mm; Table to Suit, Dimensions Approx 900mm x 600mm x 900mm High - LOT 118
![site]()
- LOT 119
![site]()
- LOT 120
![site]()
- LOT 126
![site]()
- LOT 8A
![site]()
- LOT 124
![site]()
