Machinery & Equipment Available Due to Machining Division Closure of a Leading UK Fabricator
Starts: 05 August 2025 at 09:00 BST
Ends: 17 September 2025 at 15:00 BST
Featuring a Hurco VMX60M CNC Vertical Machining Centre with Hurco 4th Axis Unit, Hurco TMM8 CNC Slant Bed Lathe, Hurco VM10G CNC Vertical Machining Centre, XYZ Proturn SLX 425 CNC Straight Bed Lathe, Trumpf Trumatic L3050 Laser Cutting Machine With TLF600TM Laser, Tooling & Workshop Equipment. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 95 of 95 lots
- LOT 1
![site]()

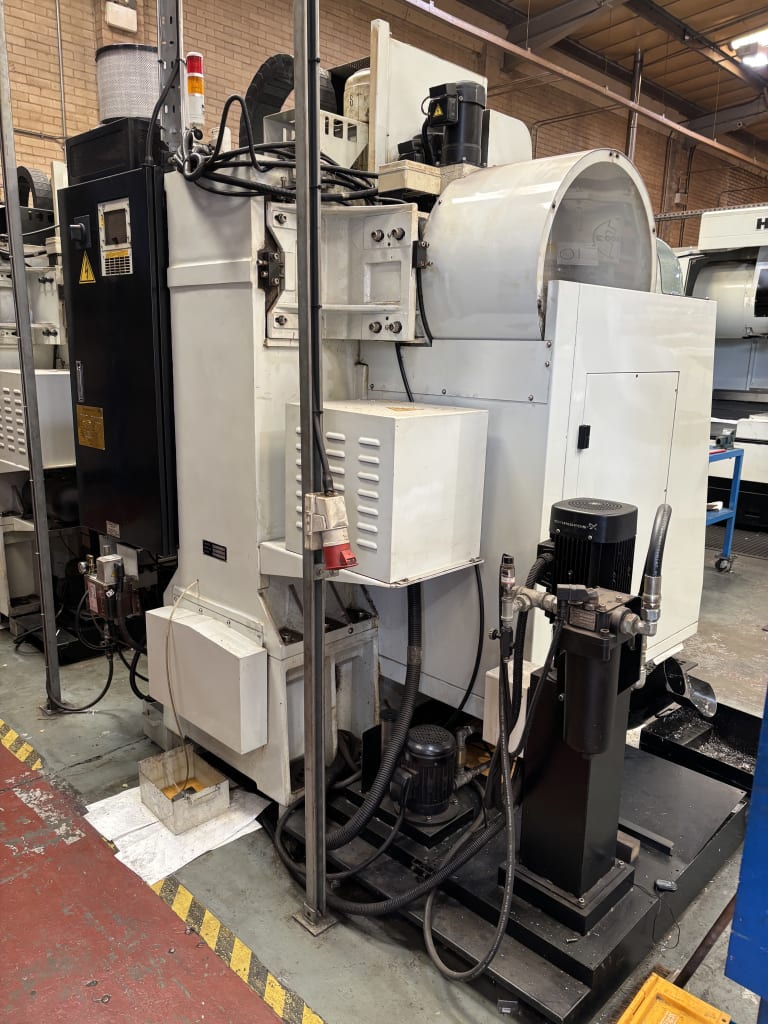

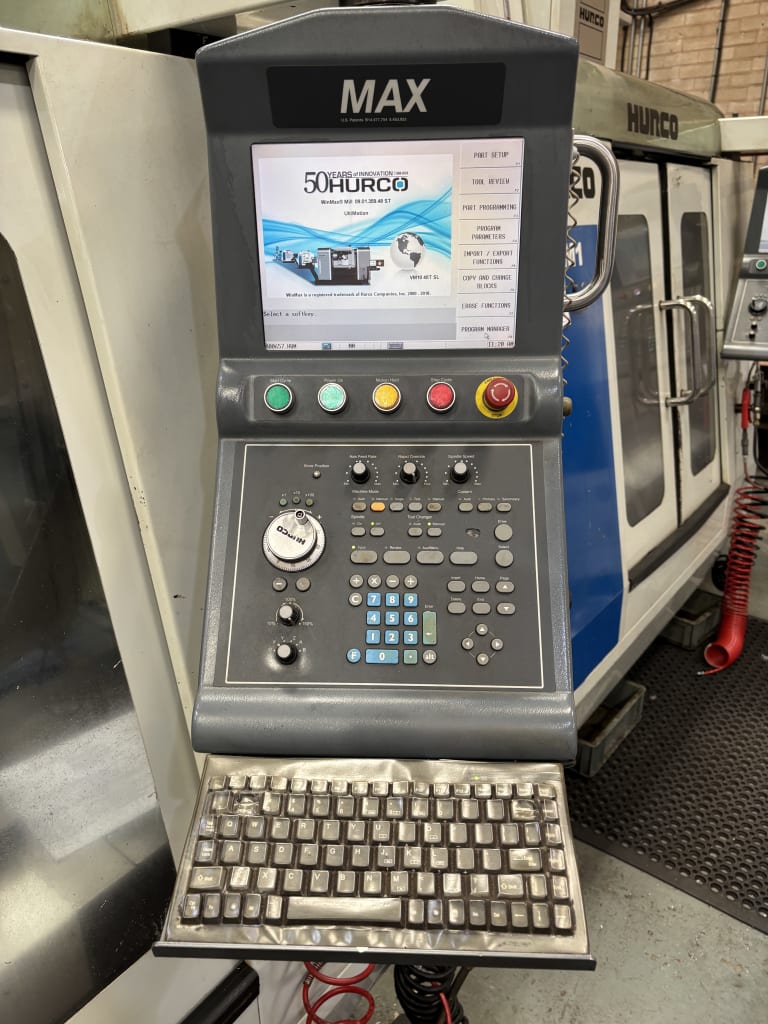

Hurco VMX60M CNC Vertical Machining Centre With Winmax Control & Hurco 4th Axis Unit
Table Dimension 1,675 x 660mm (6 'T' Slots). Maximum Table Load 1,360kg. Axis Travel 'X'=1,524mm, 'Y'=660mm, 'Z'=610mm. Maximum Spindle Speed 10,000rpm. Spindle Taper SK40. 24 Position ATC. Hurco 4th Axis Ø200mm 3 Jaw Chuck, Centre Height 145mm. S/No. H-S6059 (2012). - LOT 2
![site]()

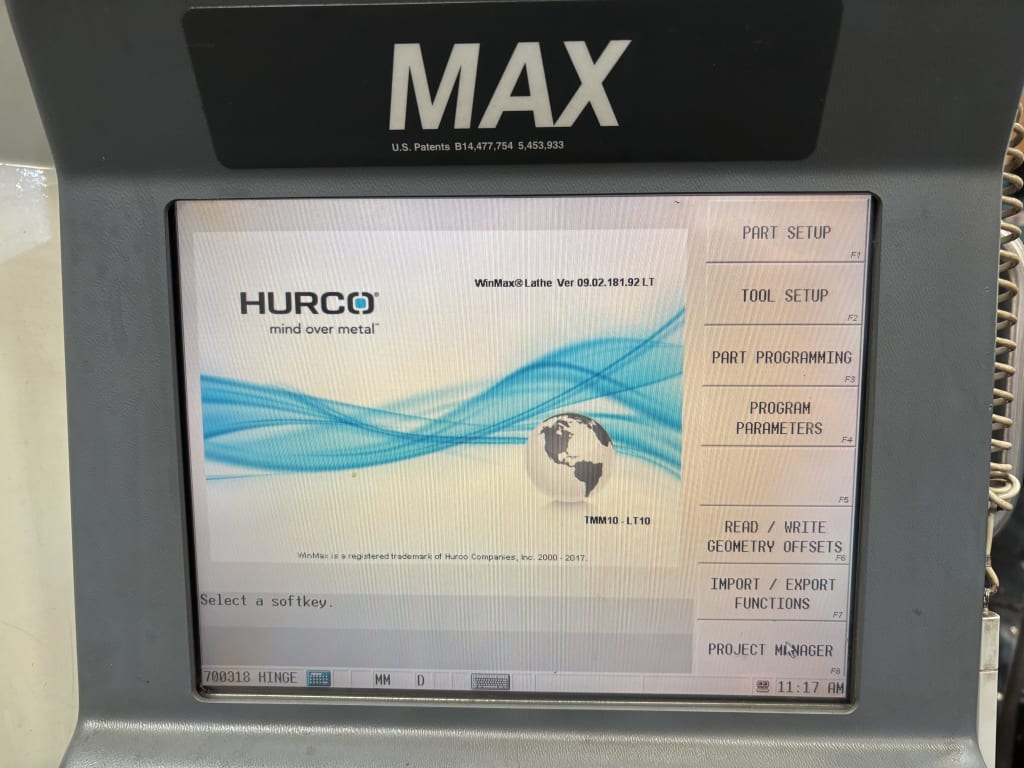

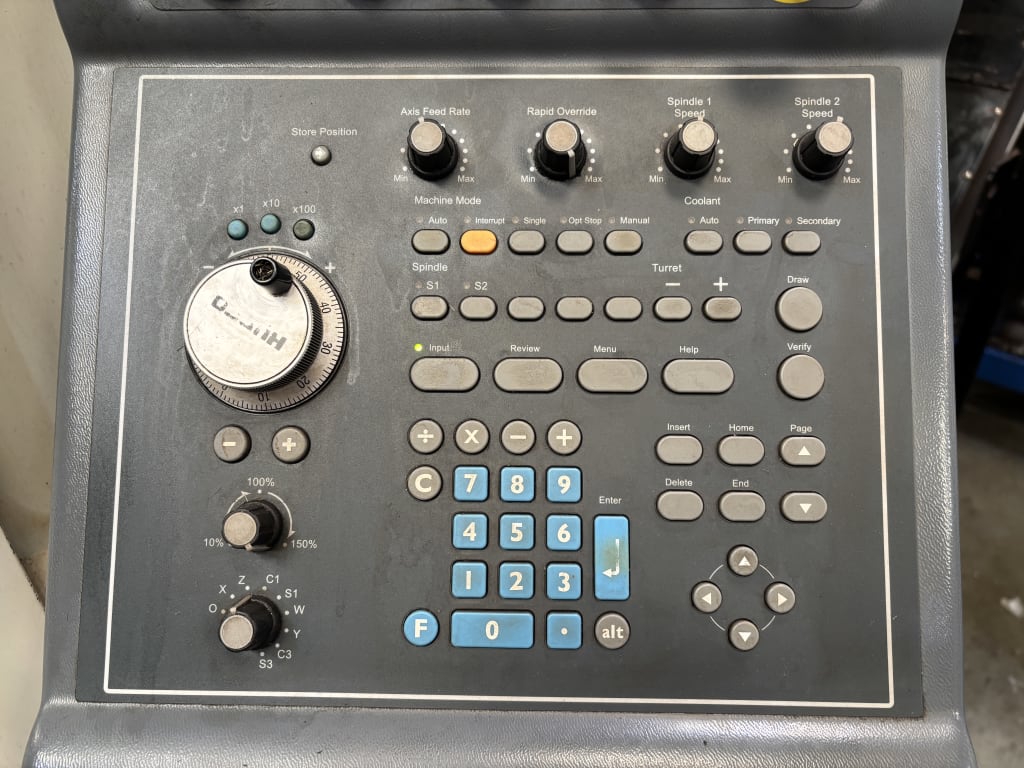

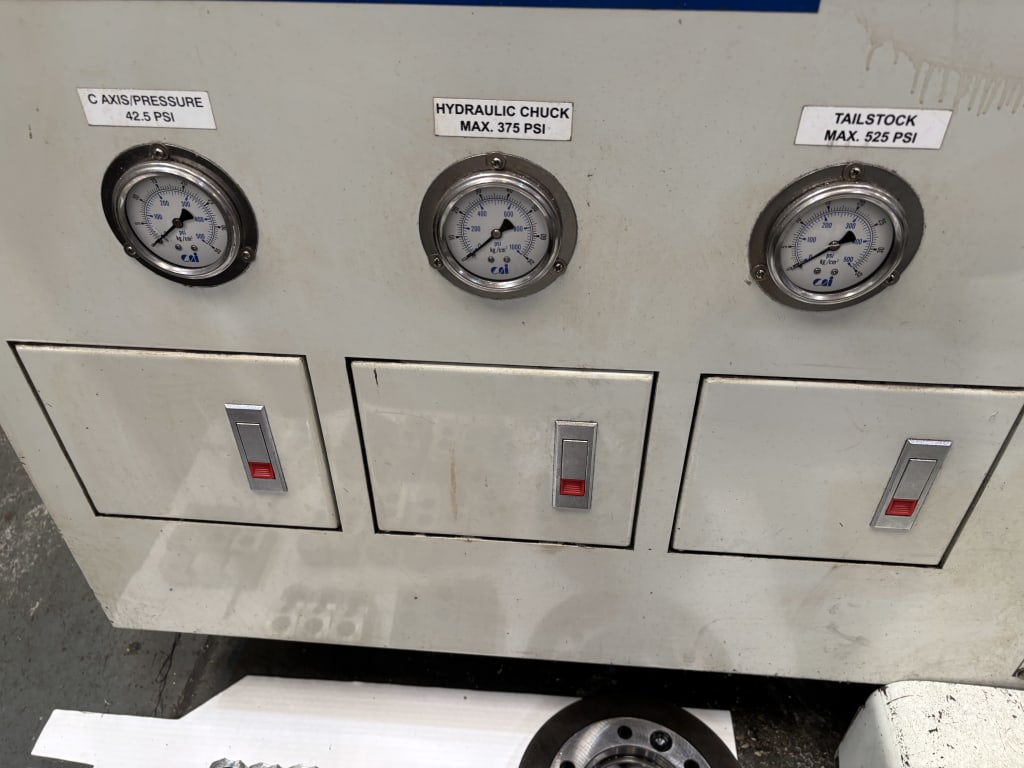

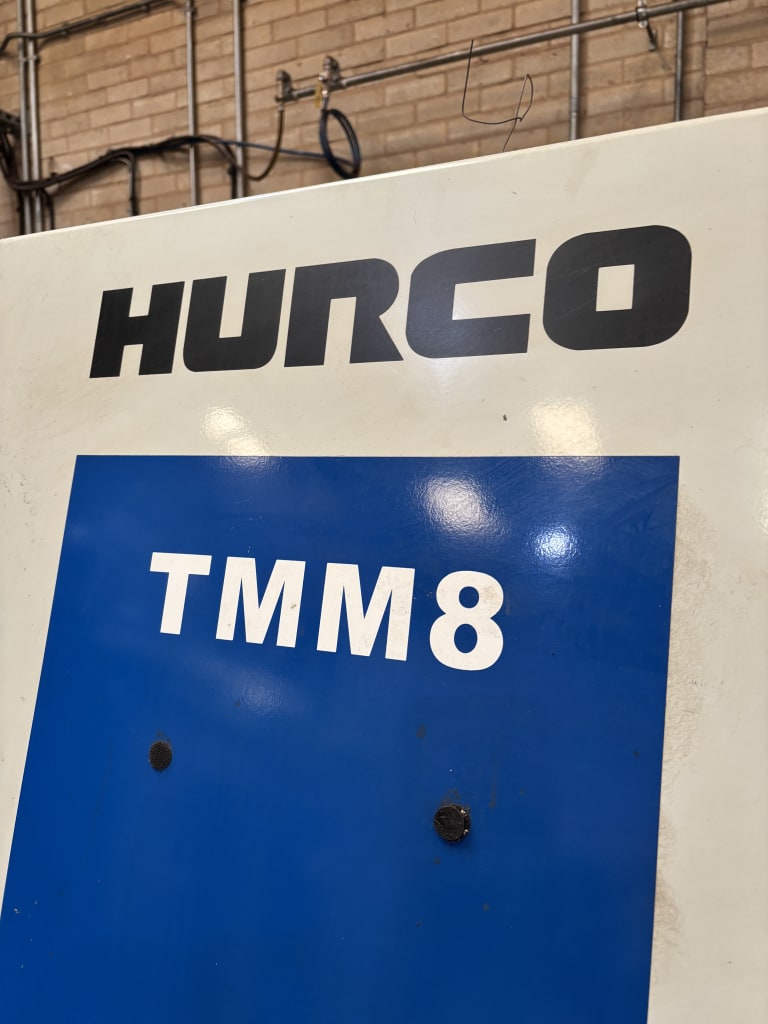

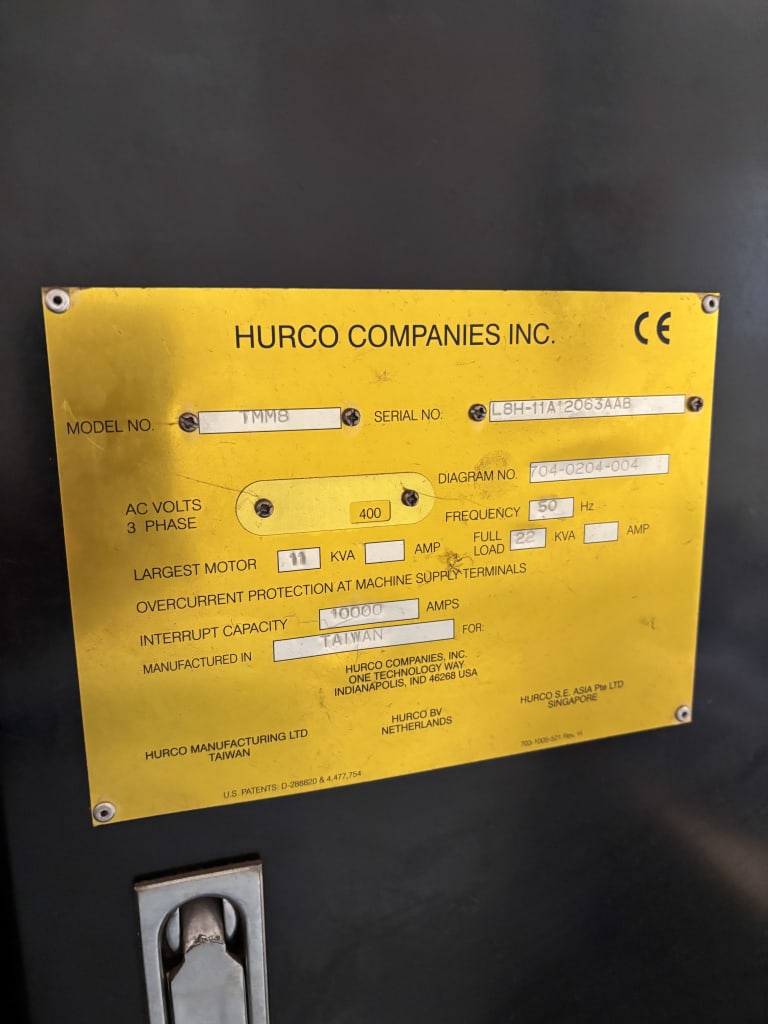

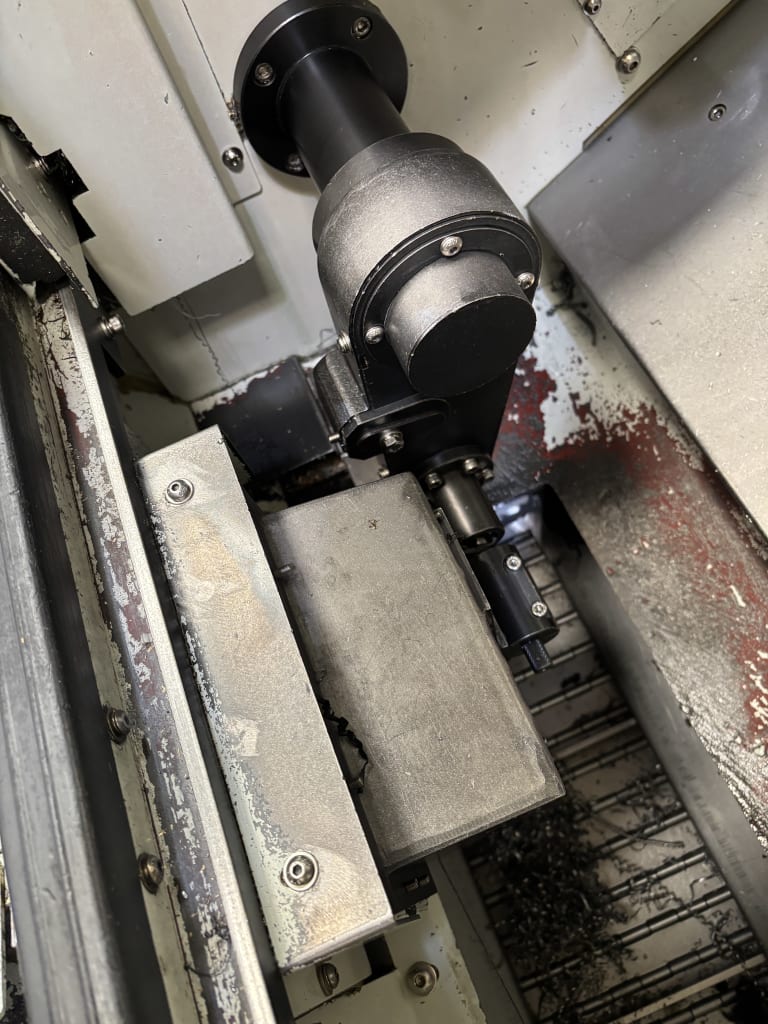

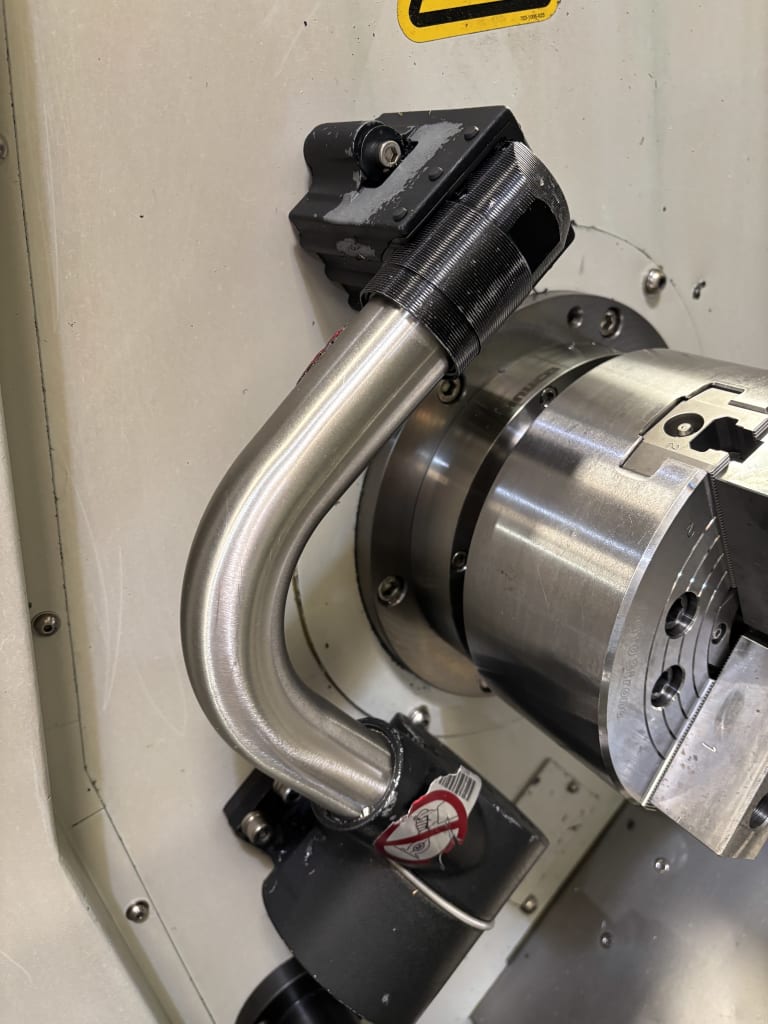

Hurco TMM8 CNC Slant Bed Lathe With Winmax Control

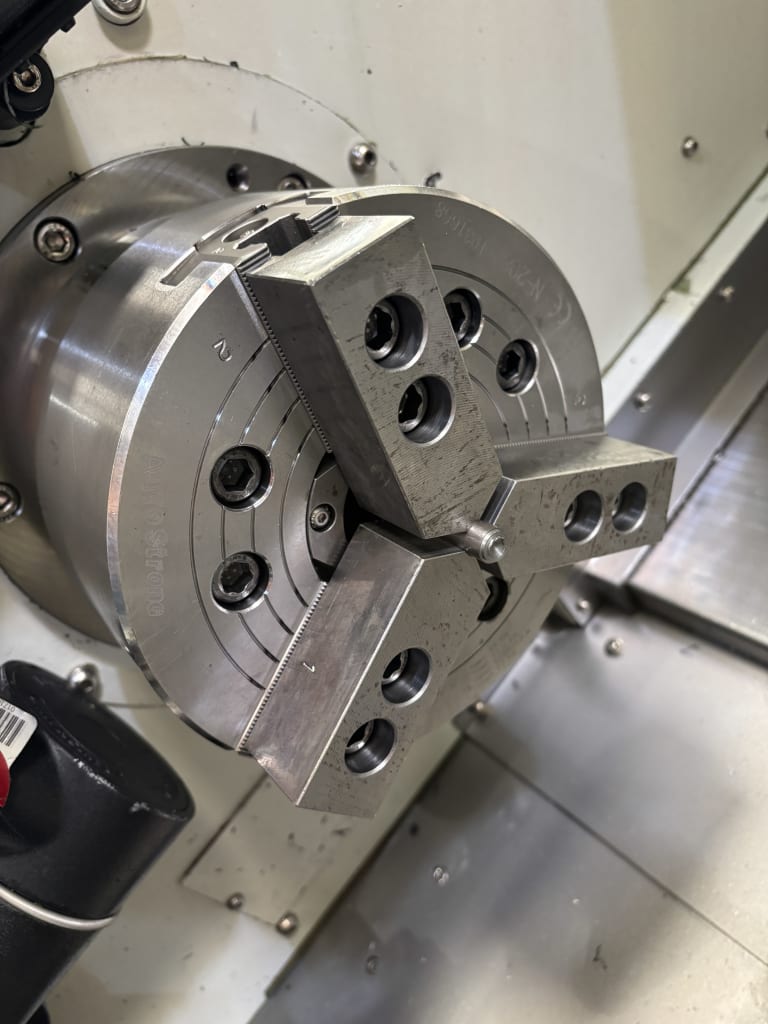

Auto Strong Ø210mm 3 Jaw Power Chuck. Turning Ø256mm. Turning Length 483mm. Swing Over Bed Ø548mm. Swing Over Cross Slide Ø320mm. Distance Between Centres 584mm. Axis Travel 'X'=210mm, 'Z'=510mm. Spindle Bore Ø55mm. 12 Station Turret. Turning Tool VDI 30. Maximum Main Spindle Speed 4,800rpm (13.4kW Motor), Maximum Driven Spindle Speed 5,000rpm. S/No. L8H-11A12063AAB (2013). - LOT 3
![site]()

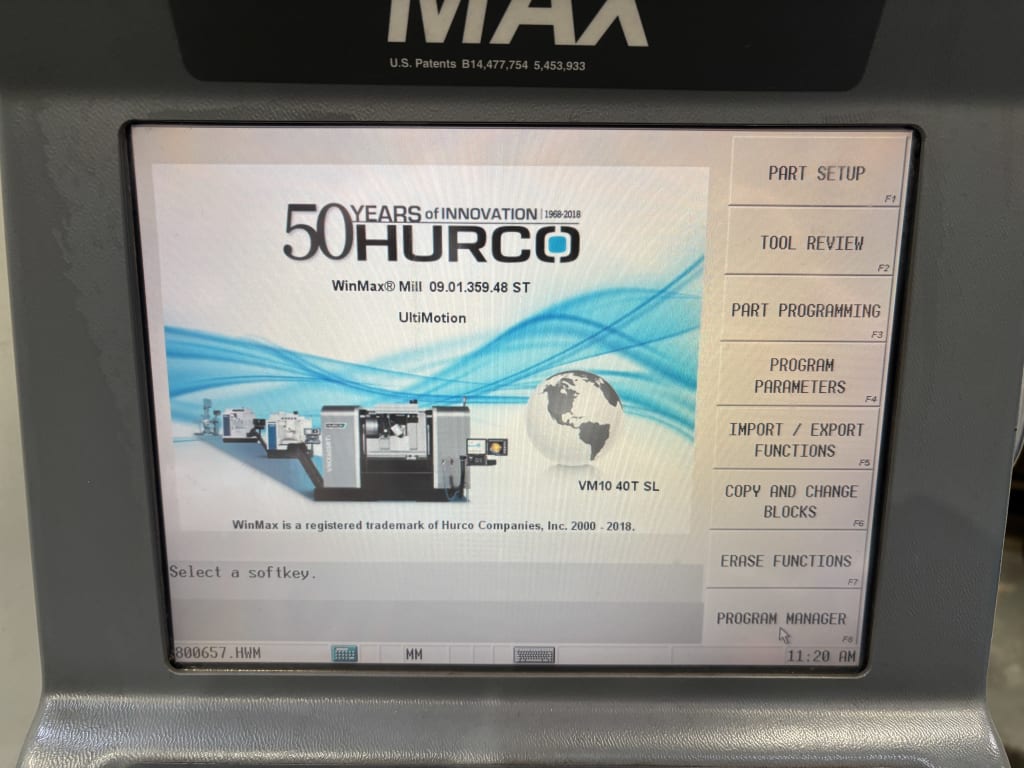

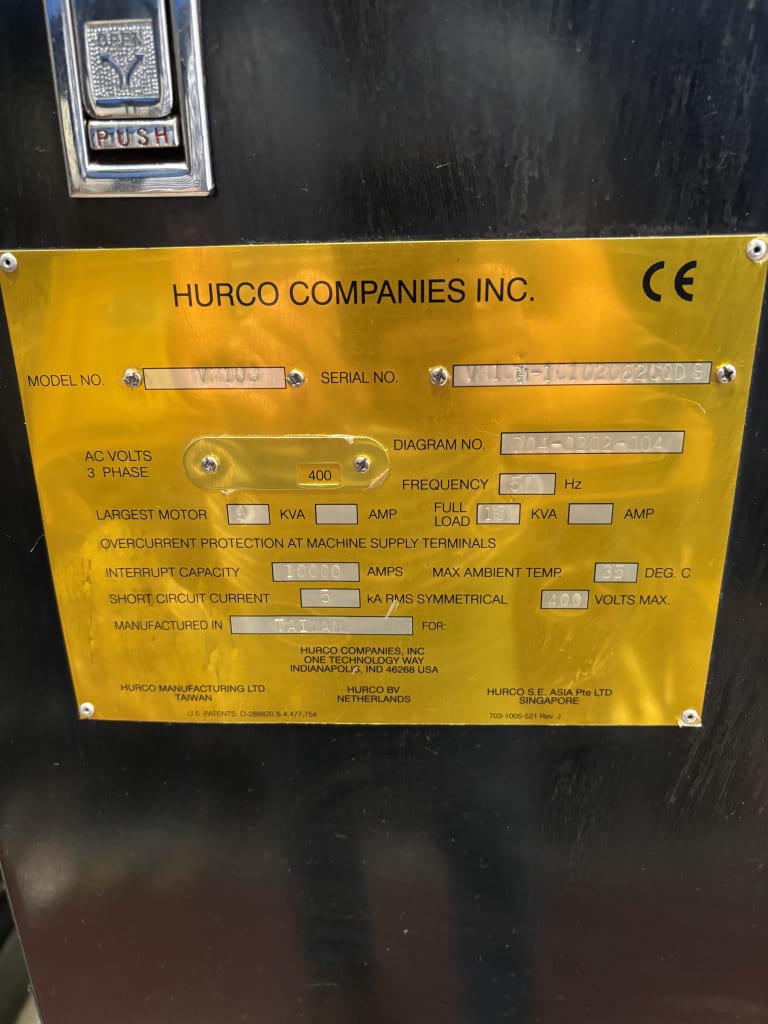

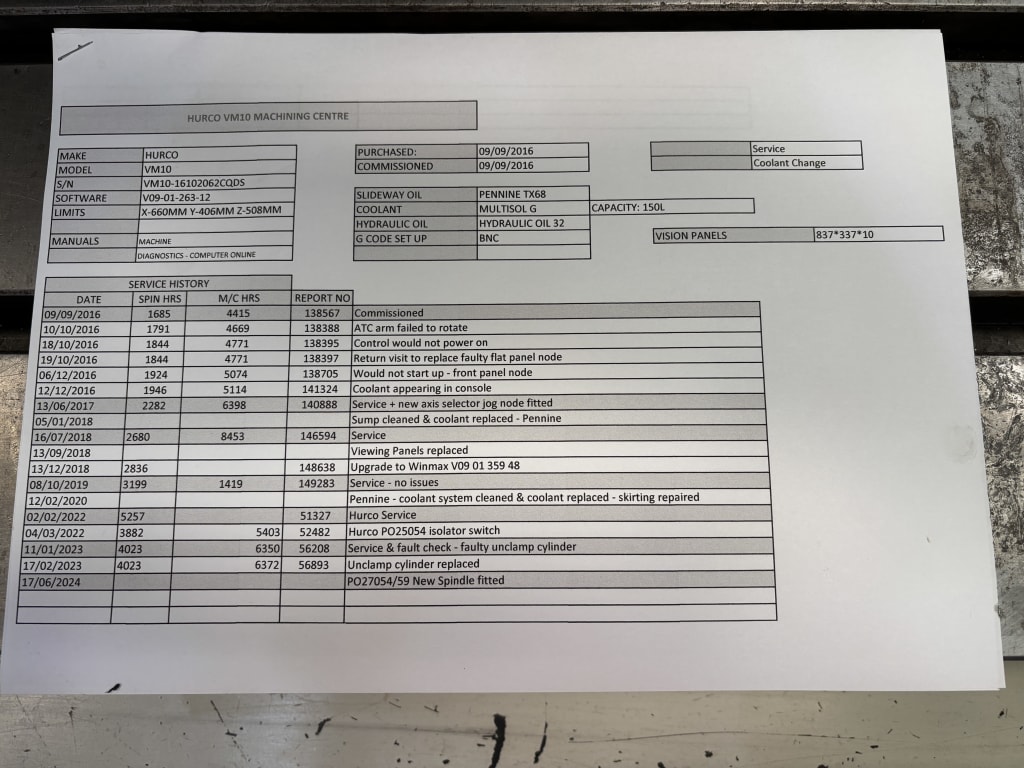

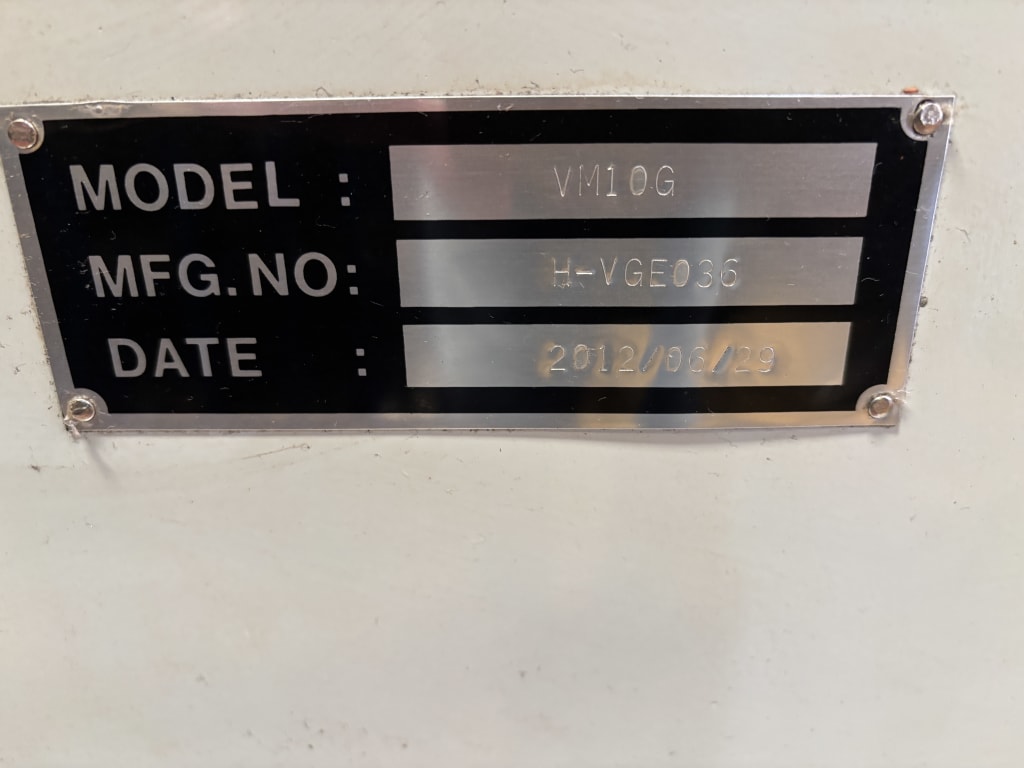

Hurco VM10G CNC Vertical Machining Centre With Winmax Control
Table Dimension 762 x 405mm (3 'T' Slots). Maximum Table Load 340kg. Axis Travel 'X'=660mm, 'Y'=406mm, 'Z'=508mm. Rapid Traverse 'X'=24m/min, 'Y'=24m/min, 'Z'=19m/min. Spindle Table To Spindle Nose Min/Max 102-610mm. Maximum Spindle Speed 10,000rpm. Spindle Taper SK40. 20 Position ATC. S/No. H-VGE036 (2012). - LOT 4
![site]()

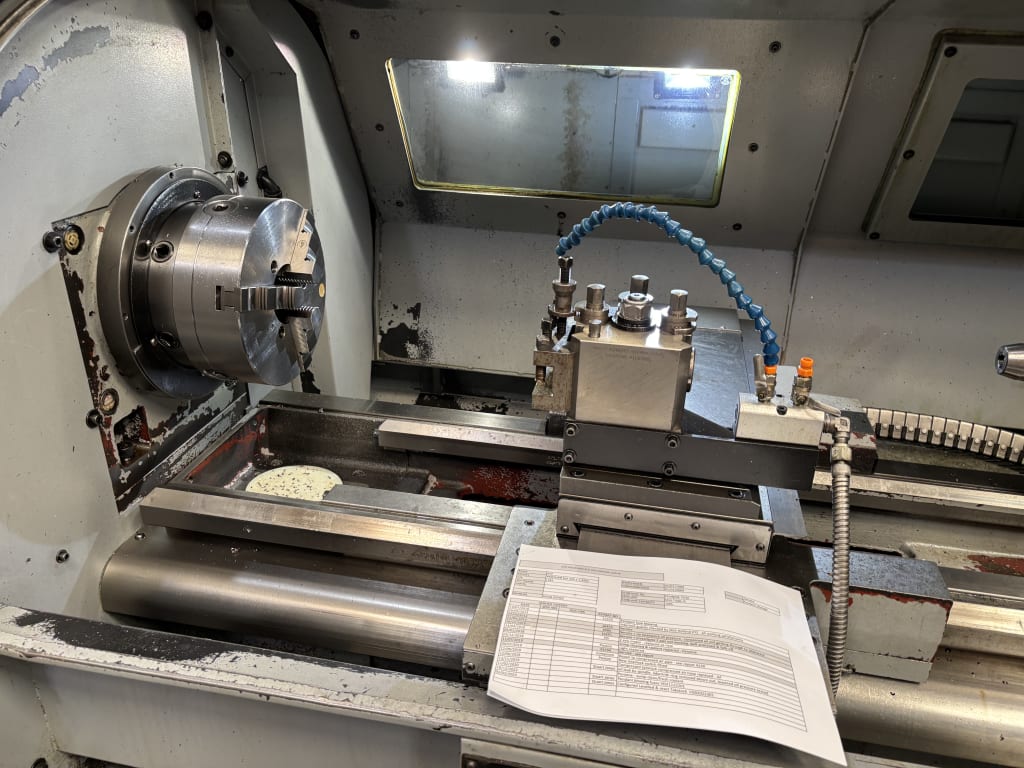

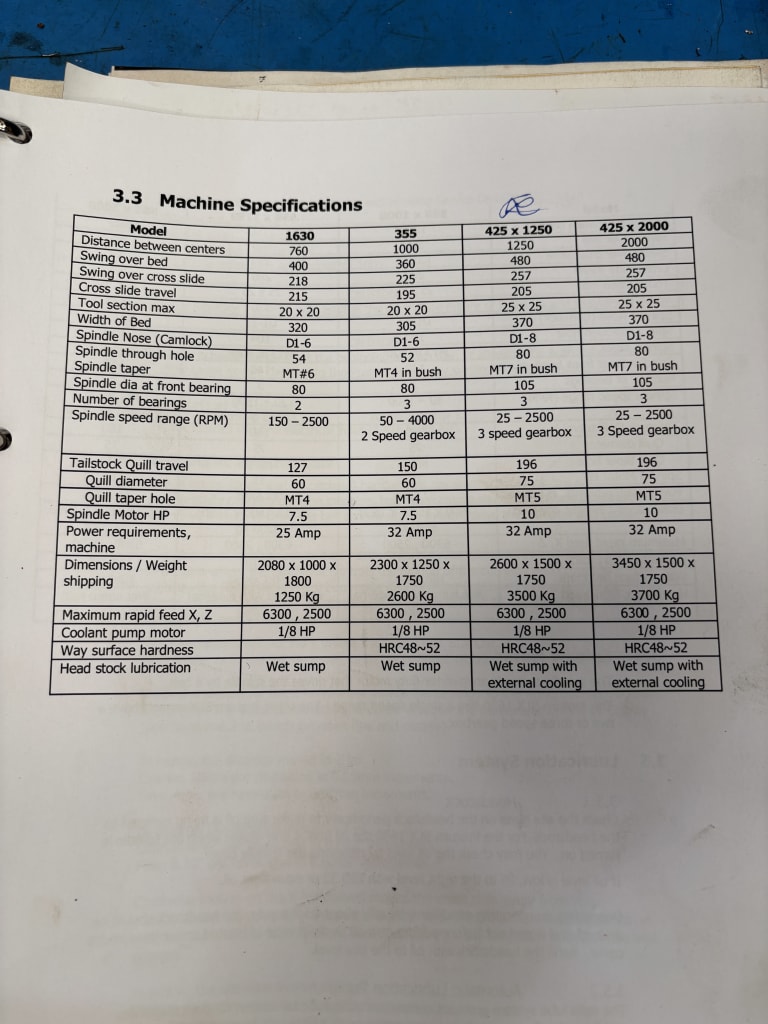

XYZ Proturn SLX 425 CNC Straight Bed Lathe With Prototrak SLX Control
Bison Ø255mm 3 Jaw Manual Chuck. Swing Over Bed Ø532mm. Swing Over Cross Slide Ø257mm. Distance Between Centres 1,250mm. Spindle Bore Ø80mm. Speed Range Low 25-300rpm, Medium 50-850rpm, High 14-2,500rpm (7.5kW Motor). Bison QTC Tool Post. S/No. L422 (2008). - LOT 5
![site]()

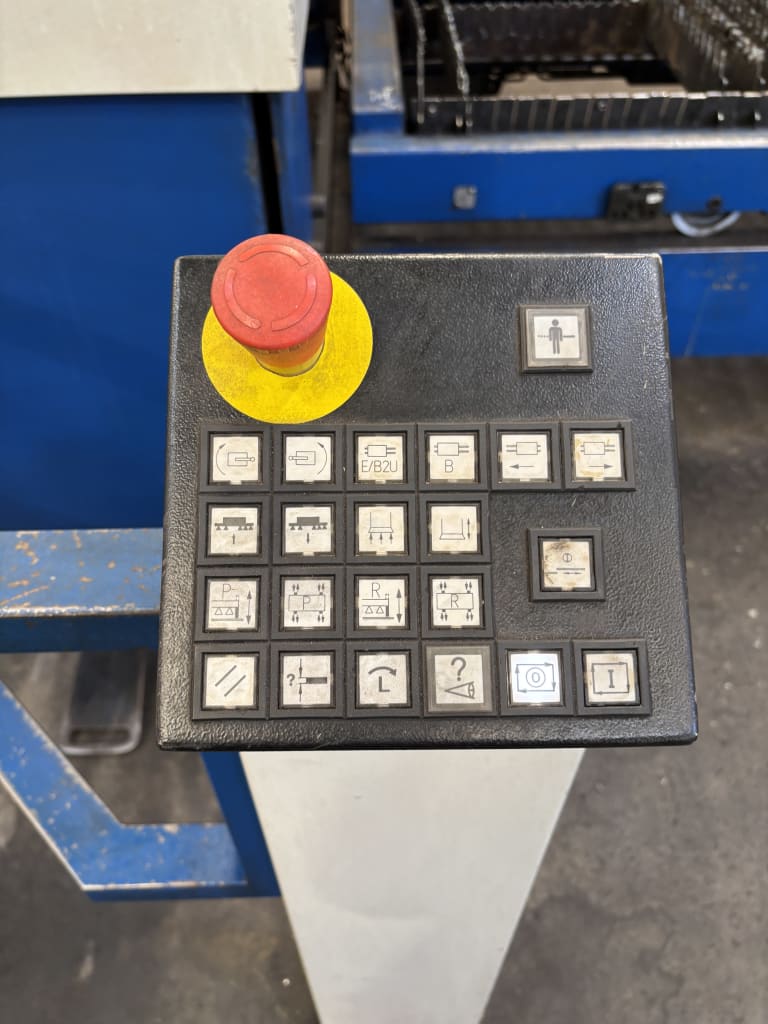

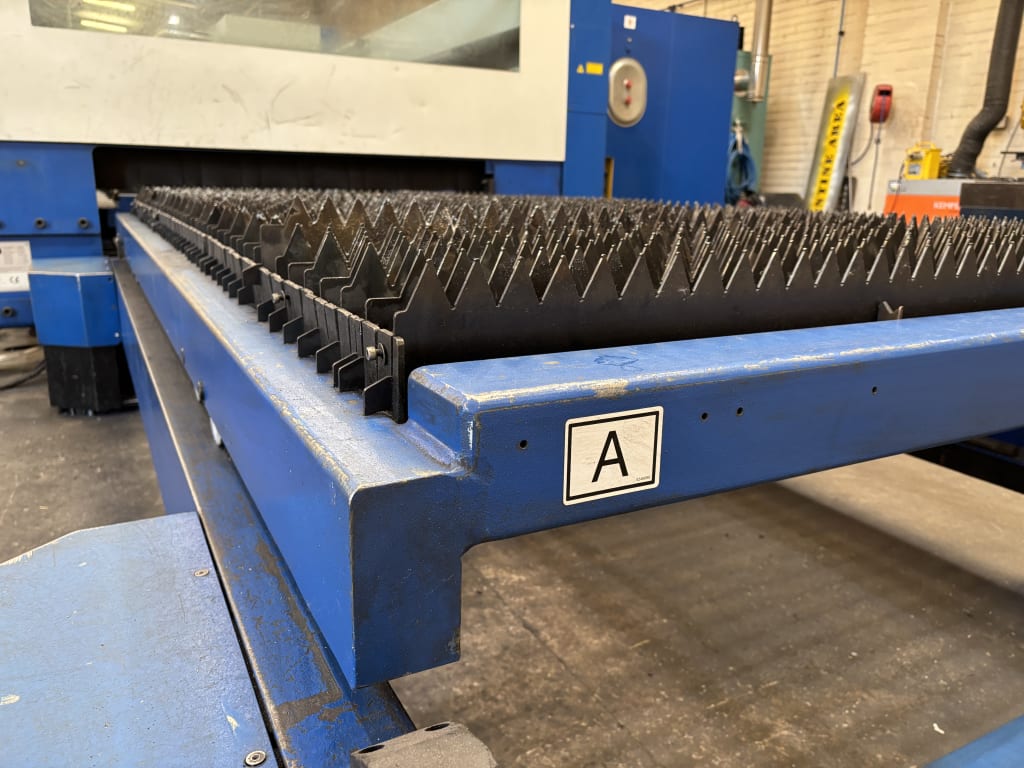

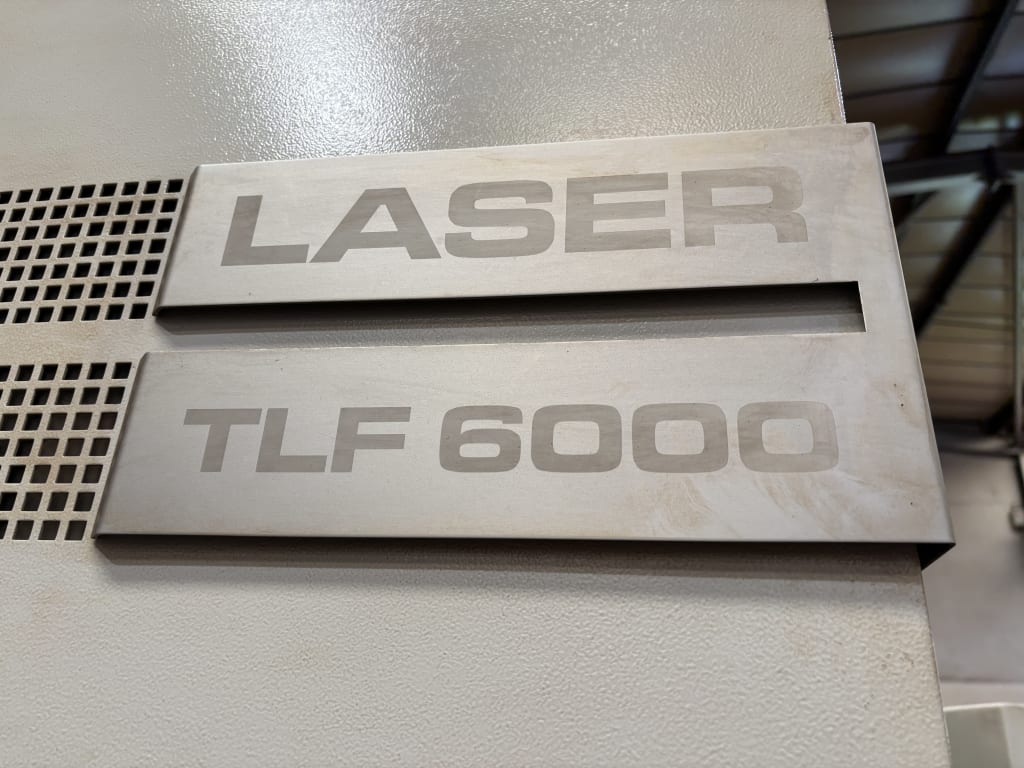

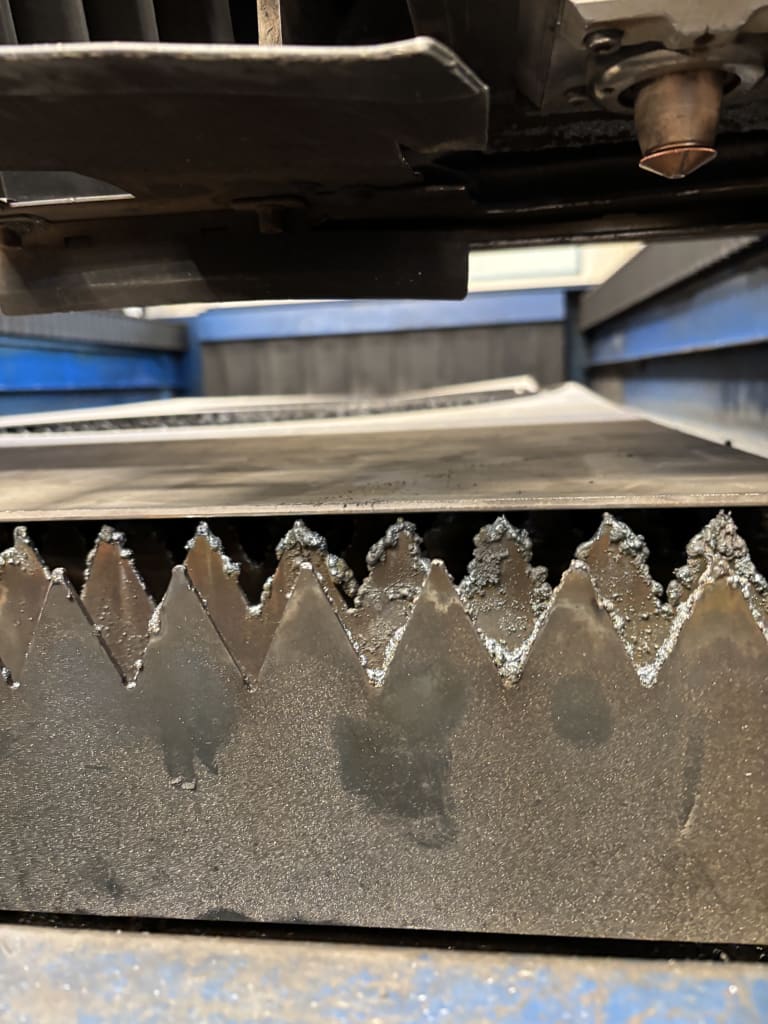

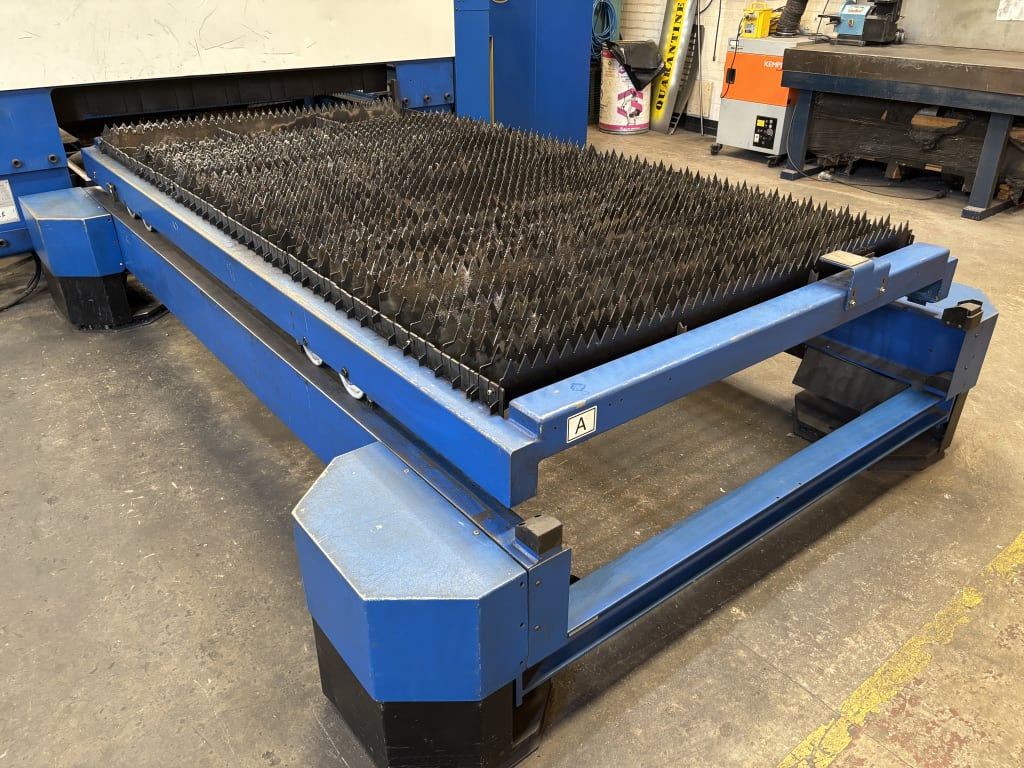

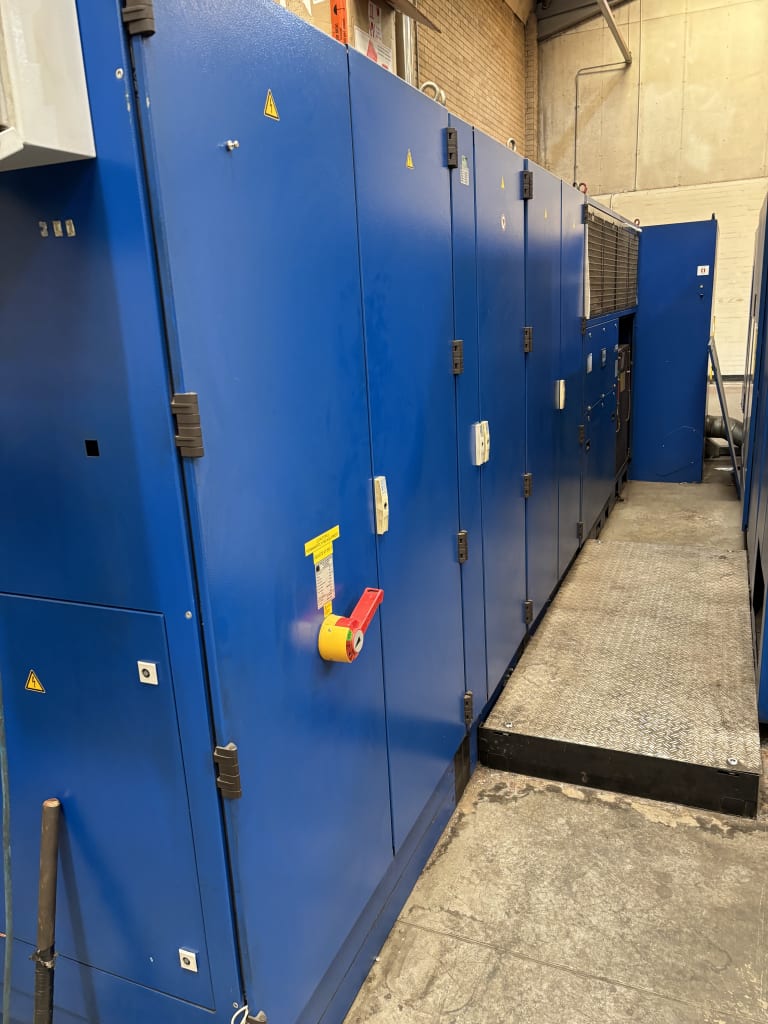

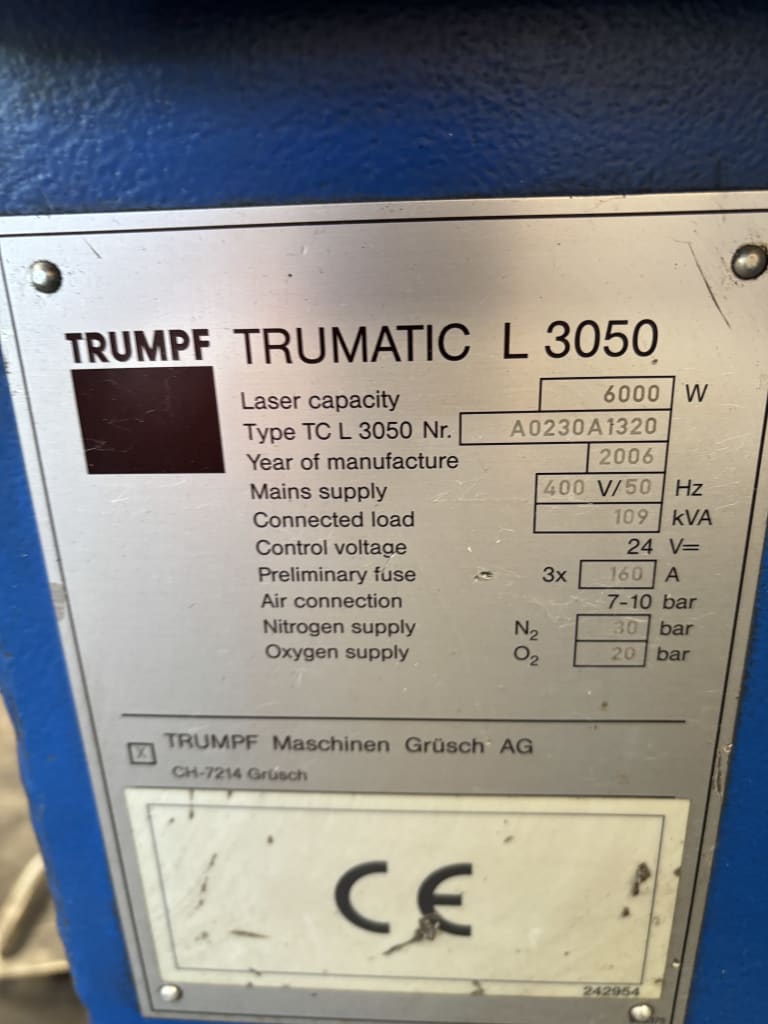

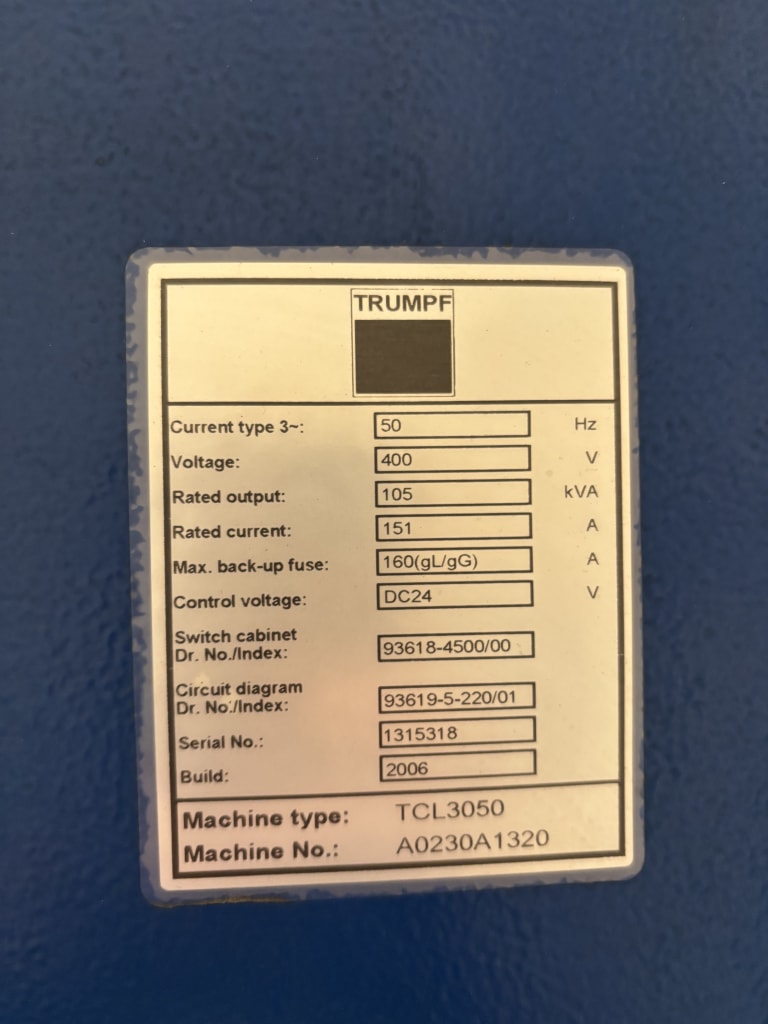

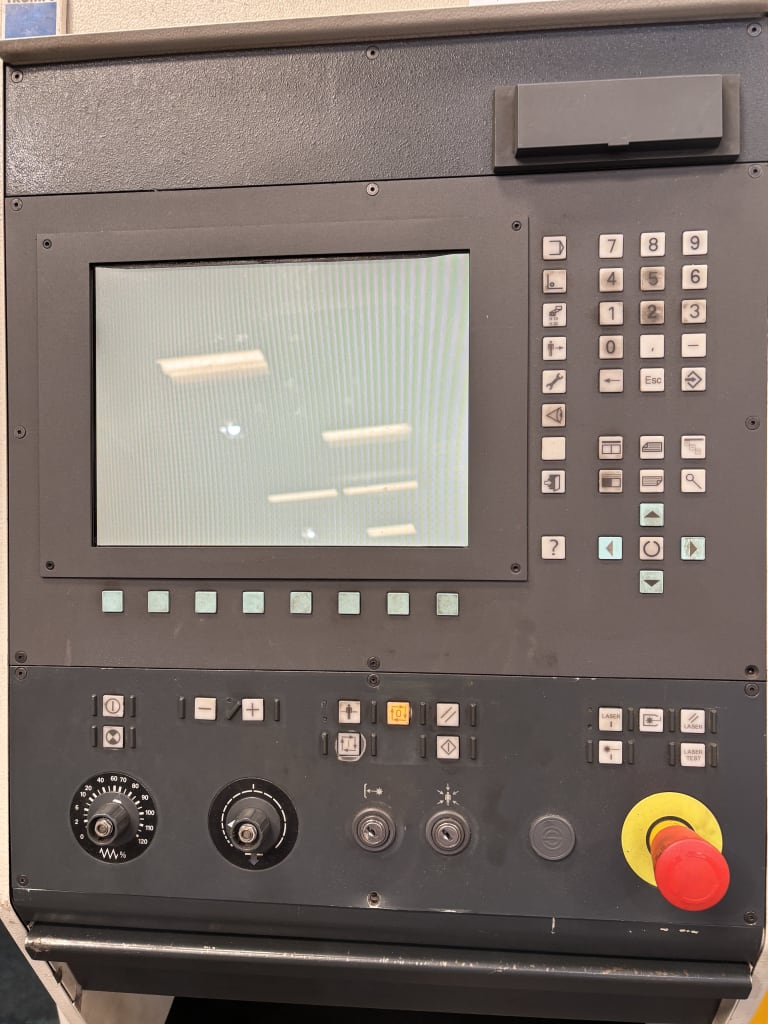

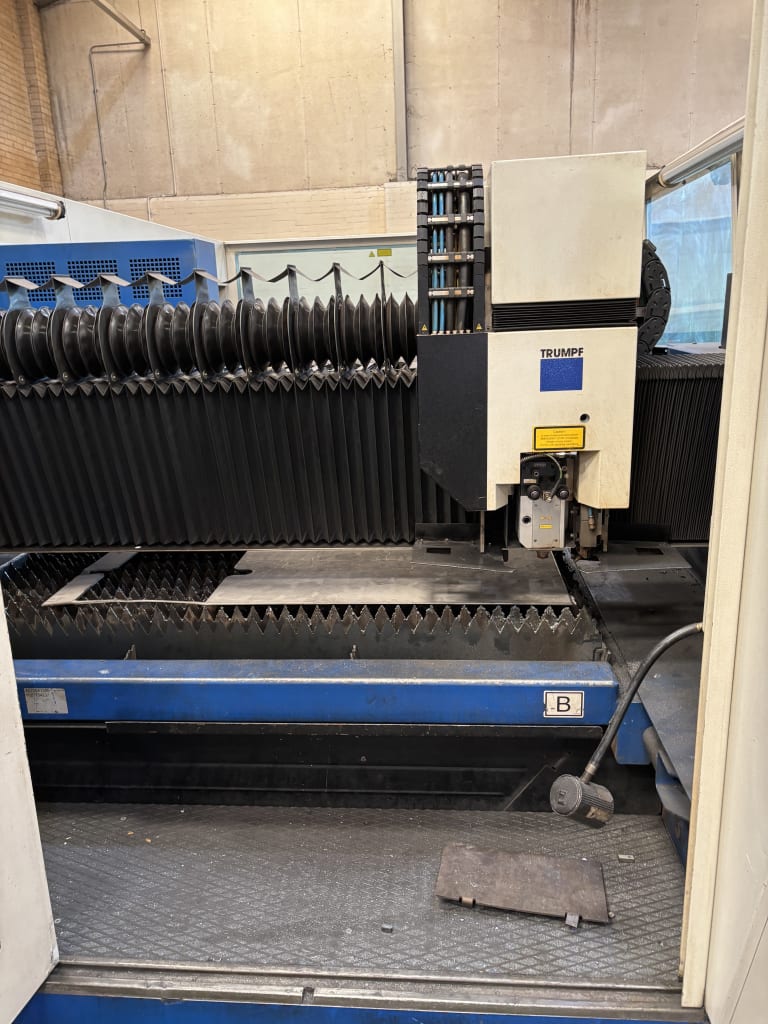

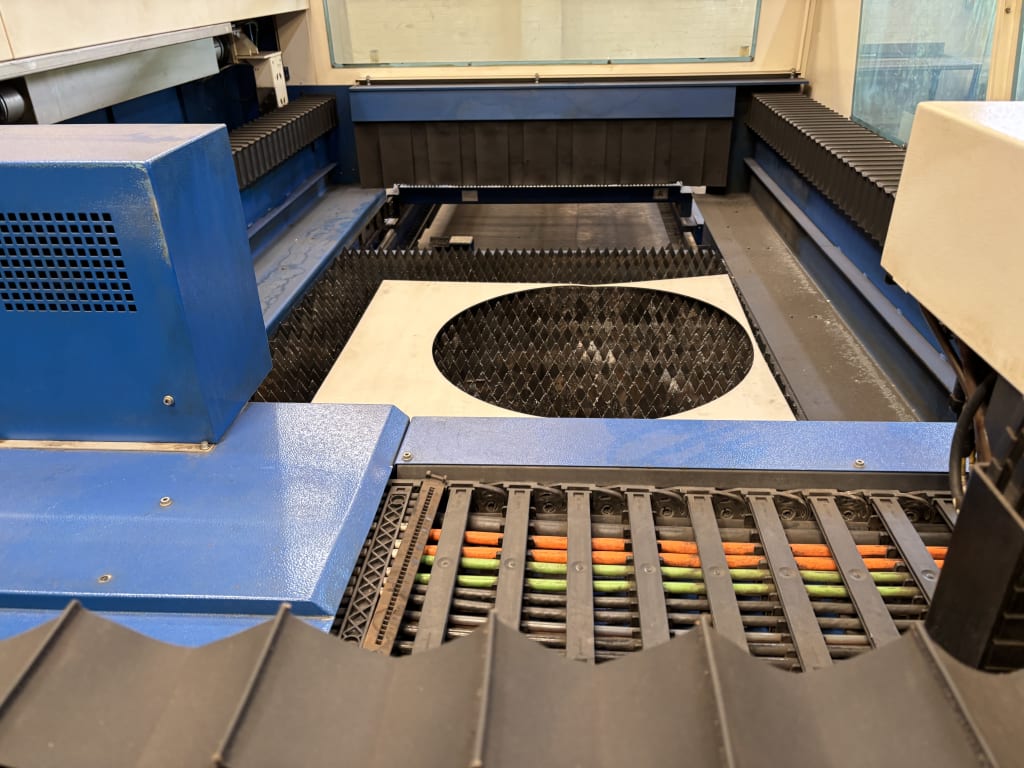

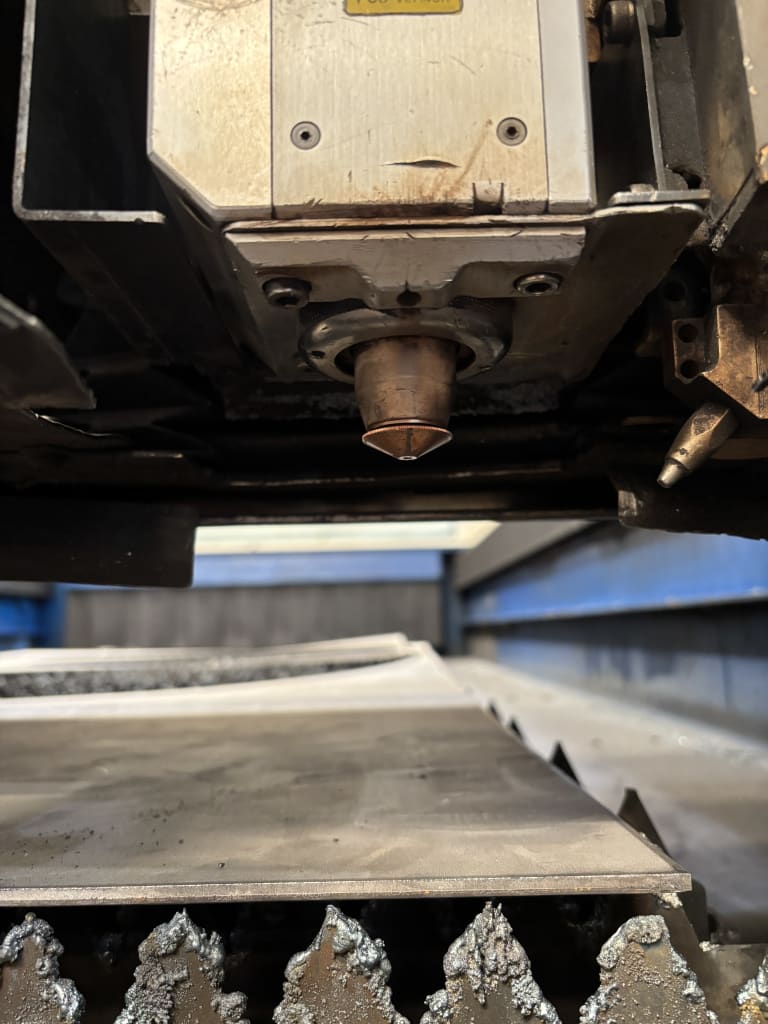

Trumpf Trumatic L3050 Laser Cutting Machine With TLF600TM Laser
Laser Power 6kW. Working Range 'X'=3,000mm, 'Y'=1,500mm, 'Z'=115mm. Maximum Workpiece Weight 590kg. Maximum Cutting Thickness Mild Steel 25mm, Stainless Steel 20mm, Aluminium 12mm. Maximum Sheet Thickness With Automation 15mm. Maximum Axis Speed In Axis Parallel 200m/min. Accuracy Smallest Programmable Increment 0.001mm, Positioning Accuracy ±0.1mm, Repeatability ±0.03mm. S/No. A0230A1320 (2006). - LOT 6
![site]()

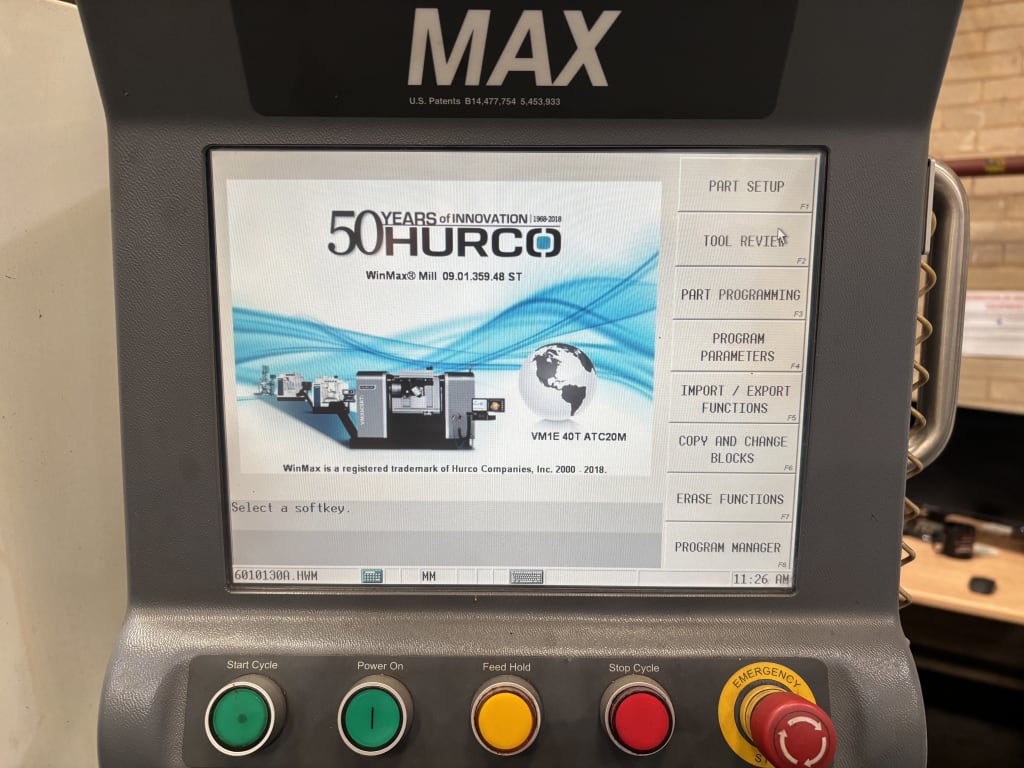

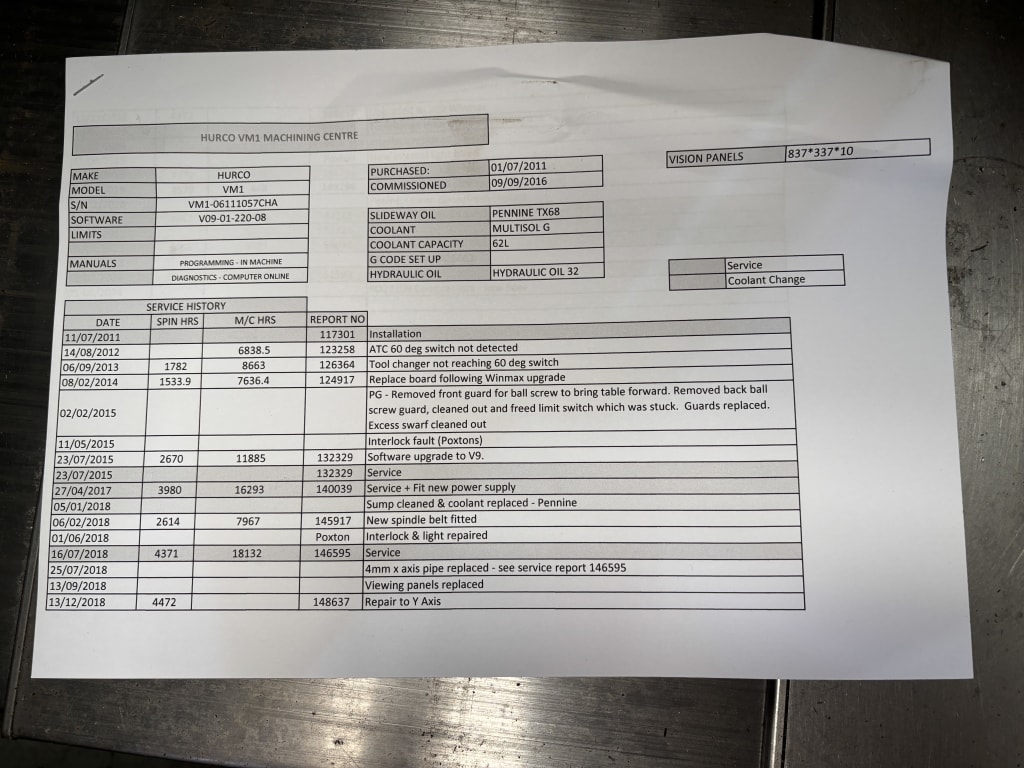

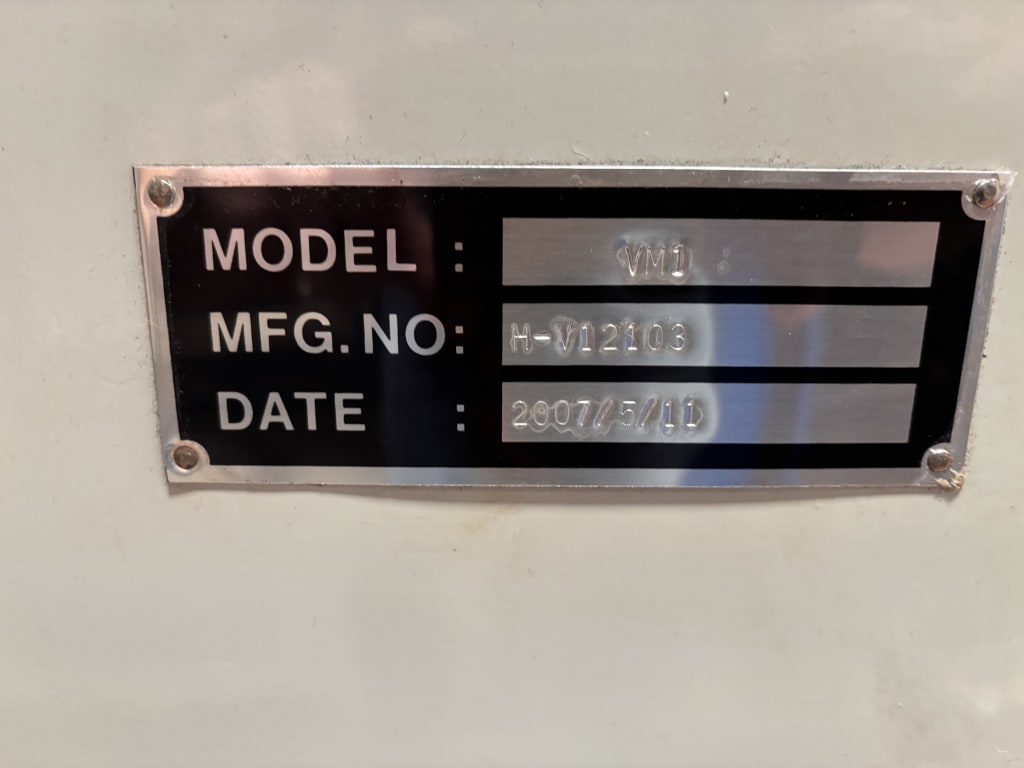

Hurco VM1 CNC Vertical Machining Centre With Winmax Control
Table Dimension 760 x 355mm (3 'T' Slots). Maximum Table Load 340kg. Axis Travel 'X'=660mm, 'Y'=356mm, 'Z'=457mm. Maximum Spindle Speed 8,000rpm (11kW Motor). Spindle Taper SK40. 20 Position ATC. S/No. H/V 12103 (2011). - LOT 7
![site]()

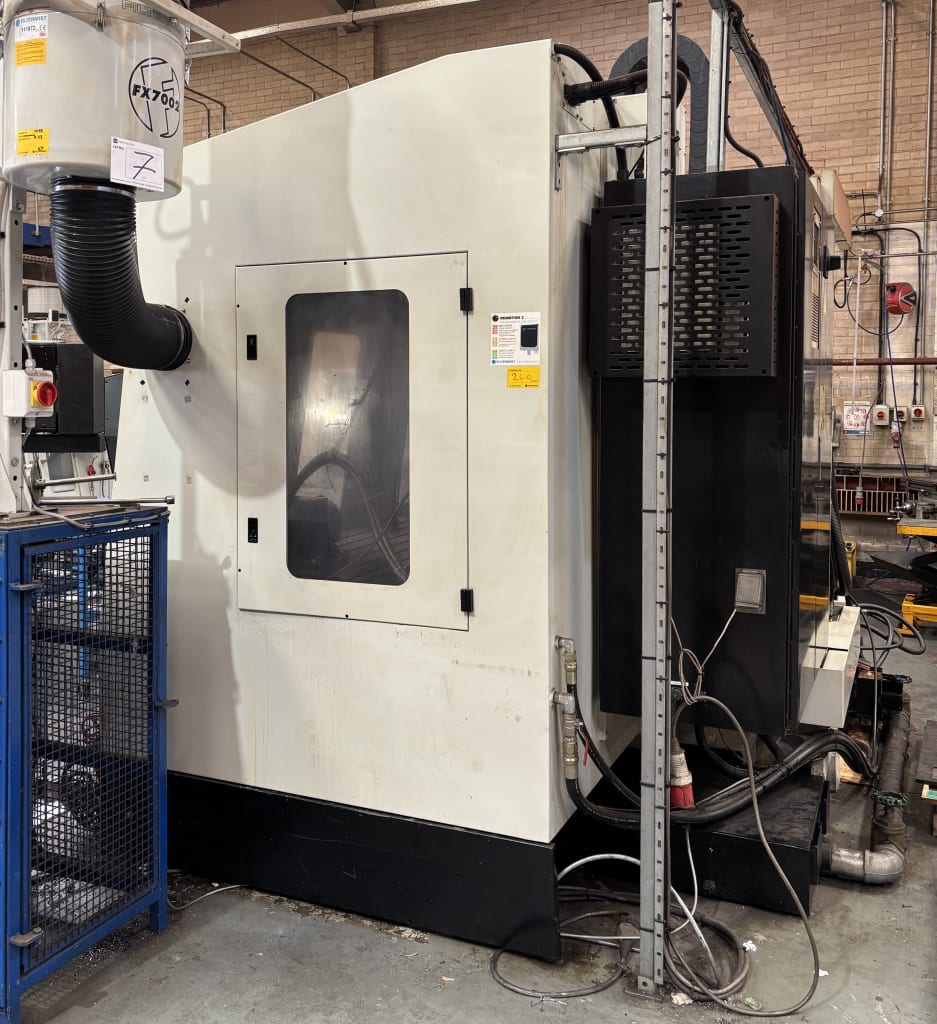

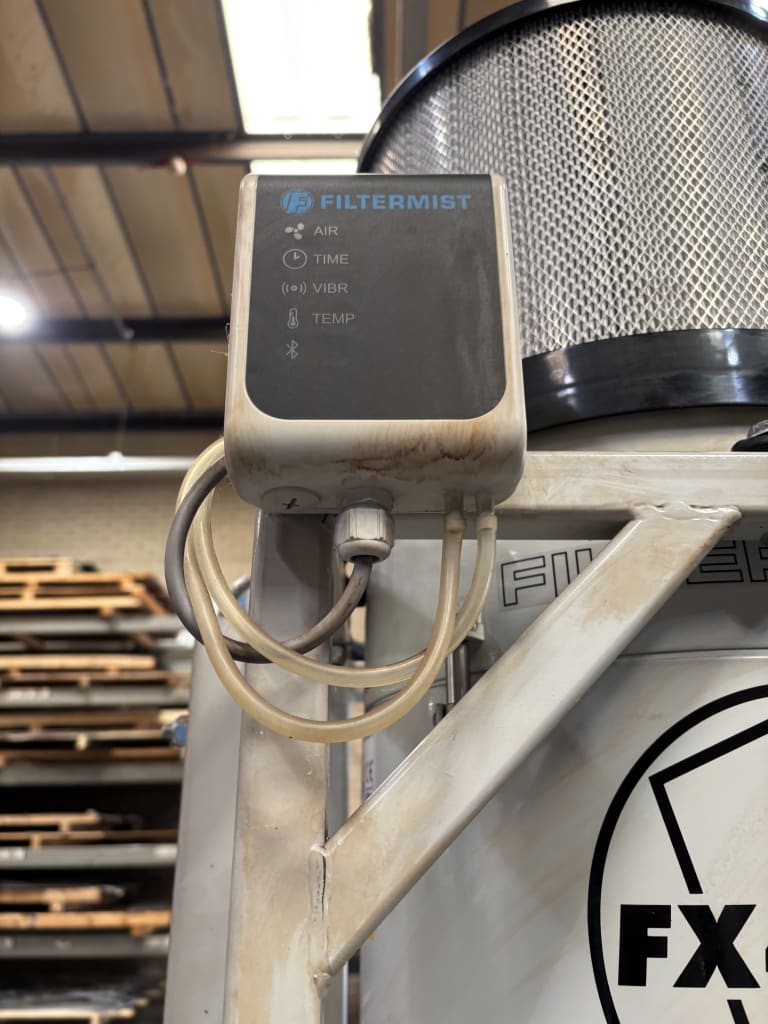

Filtermist FX7002 Oil Mist Extraction Unit With Filtermist Monitor
Air Flow 2750 @ 50Hz. Motor 2.2kW 50Hz 200v, 220v, 380v, 400v. - LOT 8
![site]()

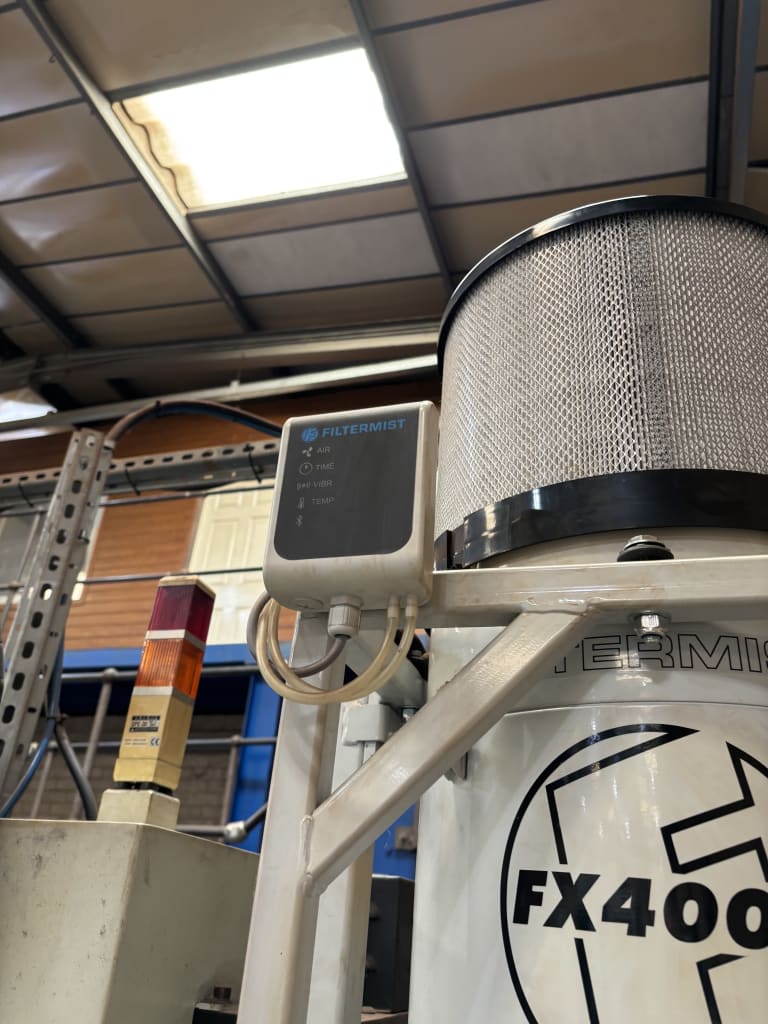

Filtermist FX4002 Oil Mist Extraction Unit With Filtermist Monitor
Air Flow 1250 @ 50Hz. Motor 1.1kW 50Hz 200v, 220v, 380v, 400v. - LOT 9
![site]()

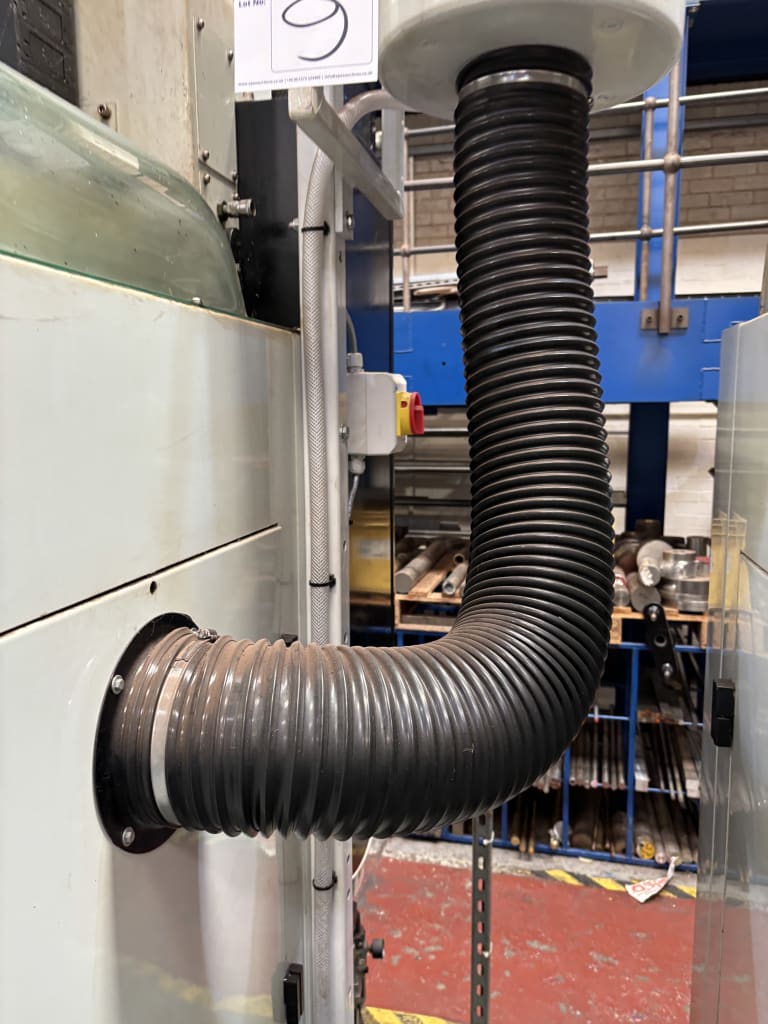

Filtermist FX4002 Oil Mist Extraction Unit With Filtermist Monitor
Air Flow 1250 @ 50Hz. Motor 1.1kW 50Hz 200v, 220v, 380v, 400v. - LOT 10
![site]()
Filtermist FX4002 Oil Mist Extraction Unit With Filtermist Monitor
Air Flow 1250 @ 50Hz. Motor 1.1kW 50Hz 200v, 220v, 380v, 400v. - LOT 11
![site]()

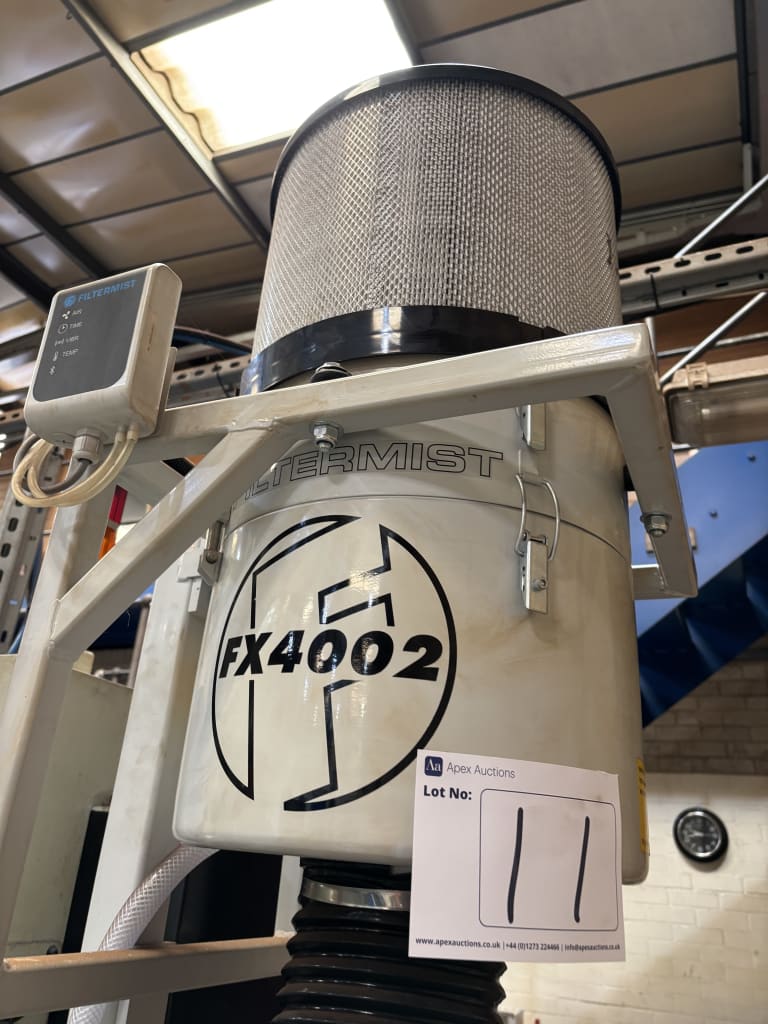

Filtermist FX4002 Oil Mist Extraction Unit With Filtermist Monitor
Air Flow 1250 @ 50Hz. Motor 1.1kW 50Hz 200v, 220v, 380v, 400v. - LOT 19
![site]()

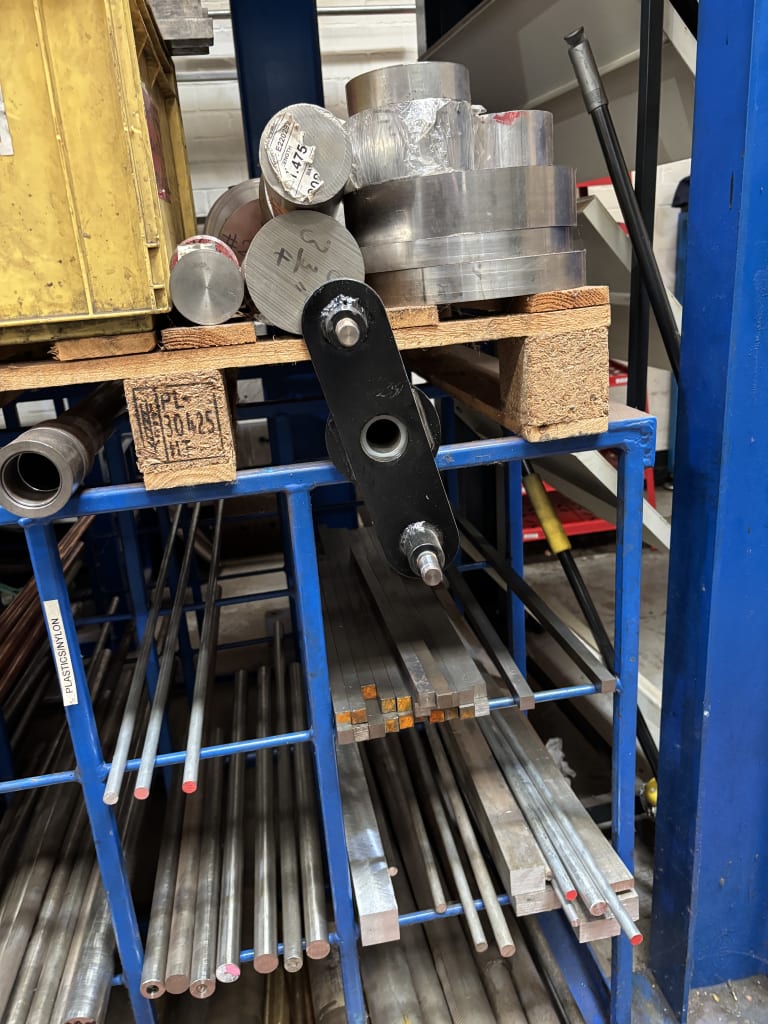

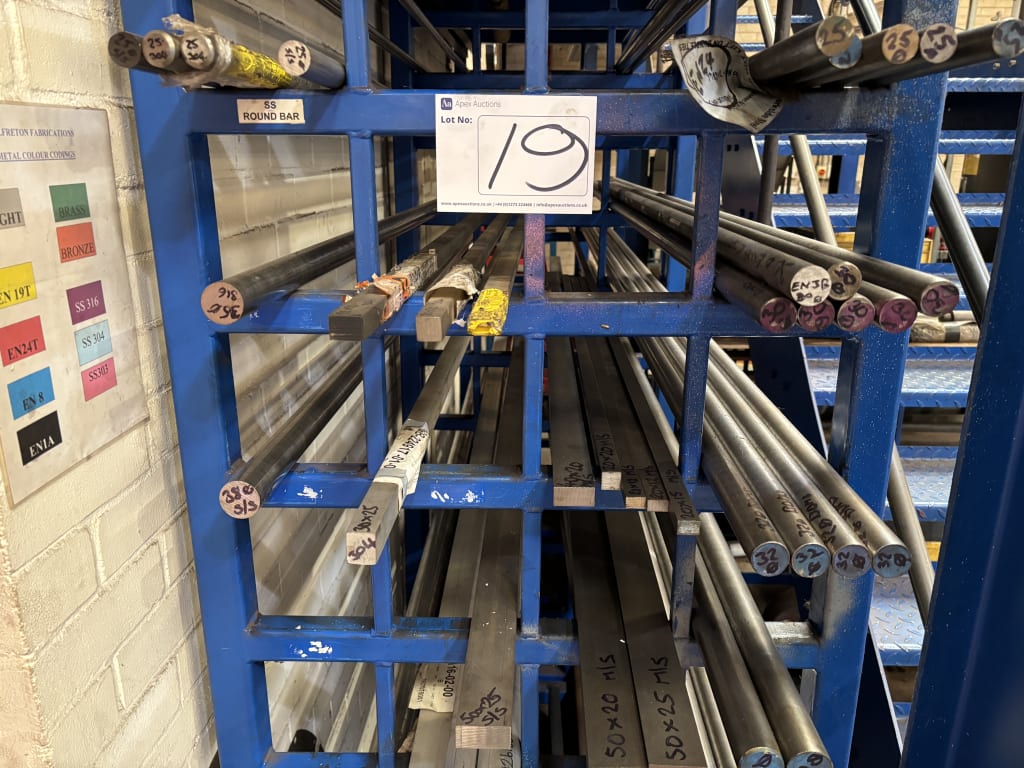

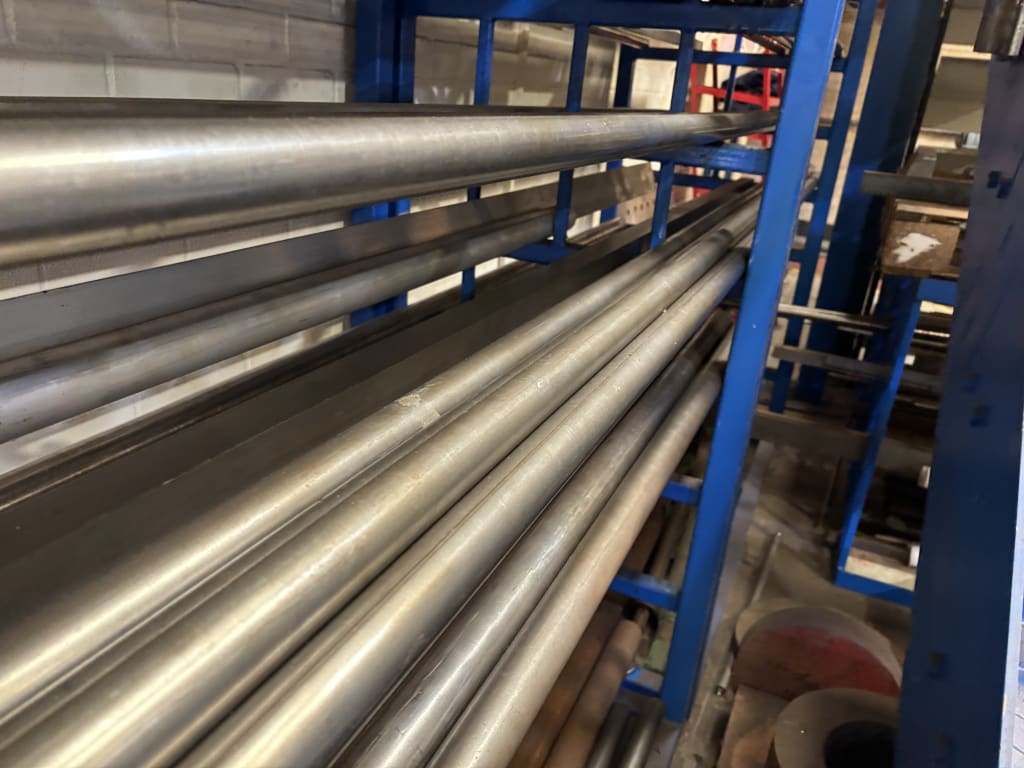

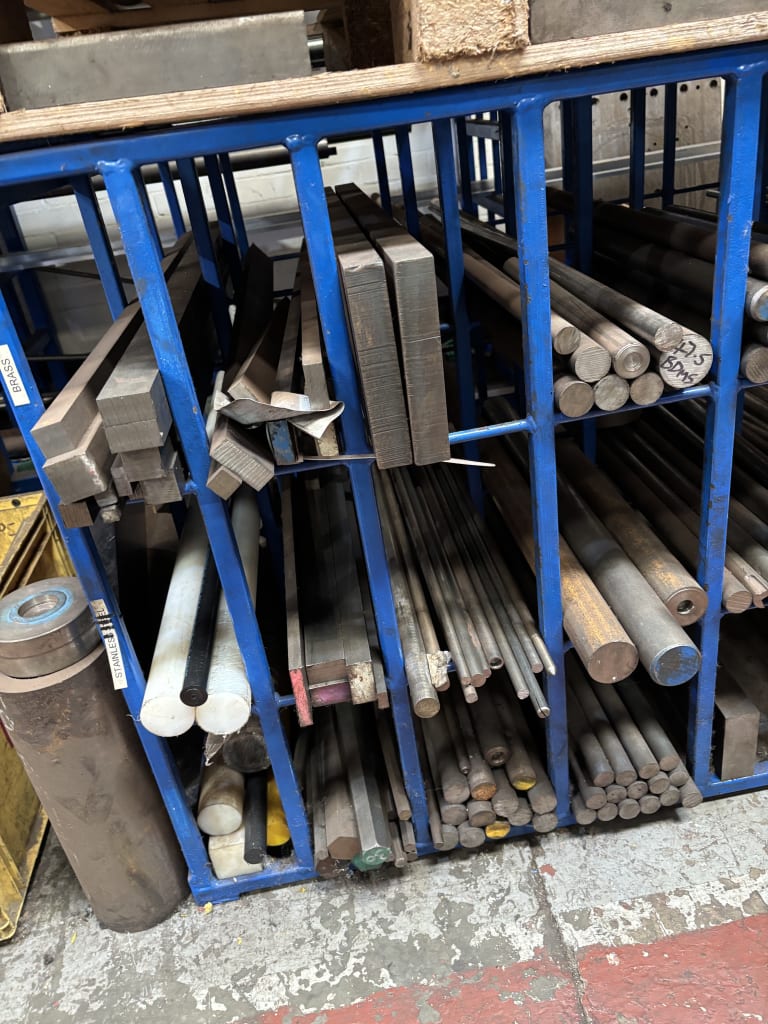

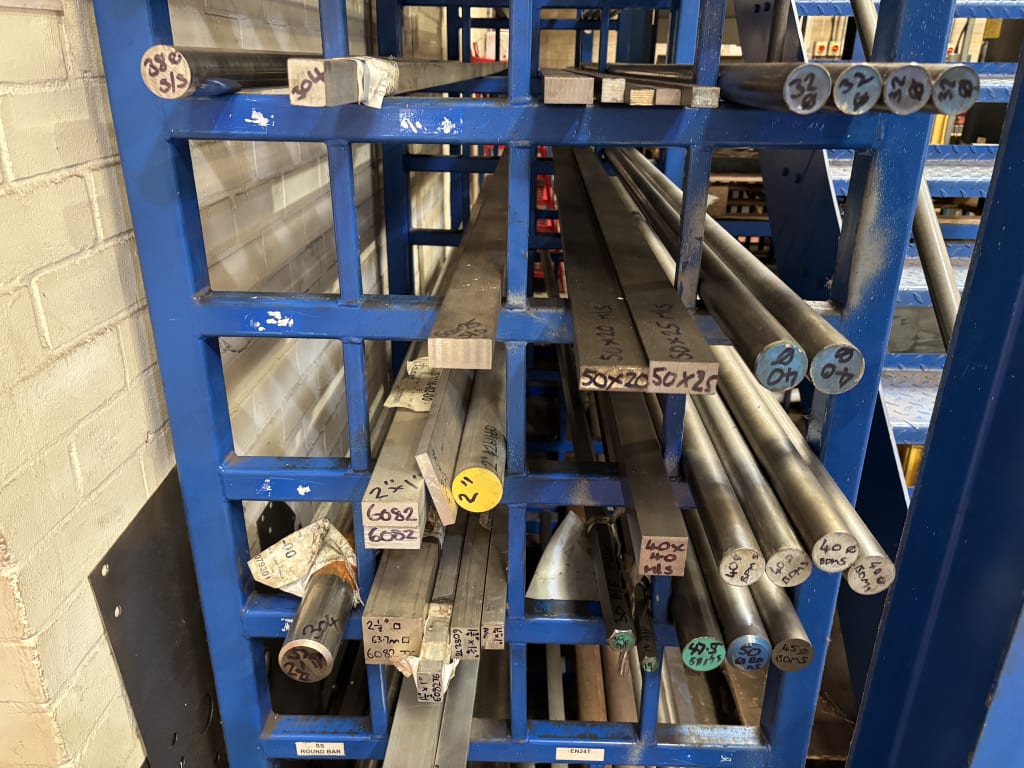

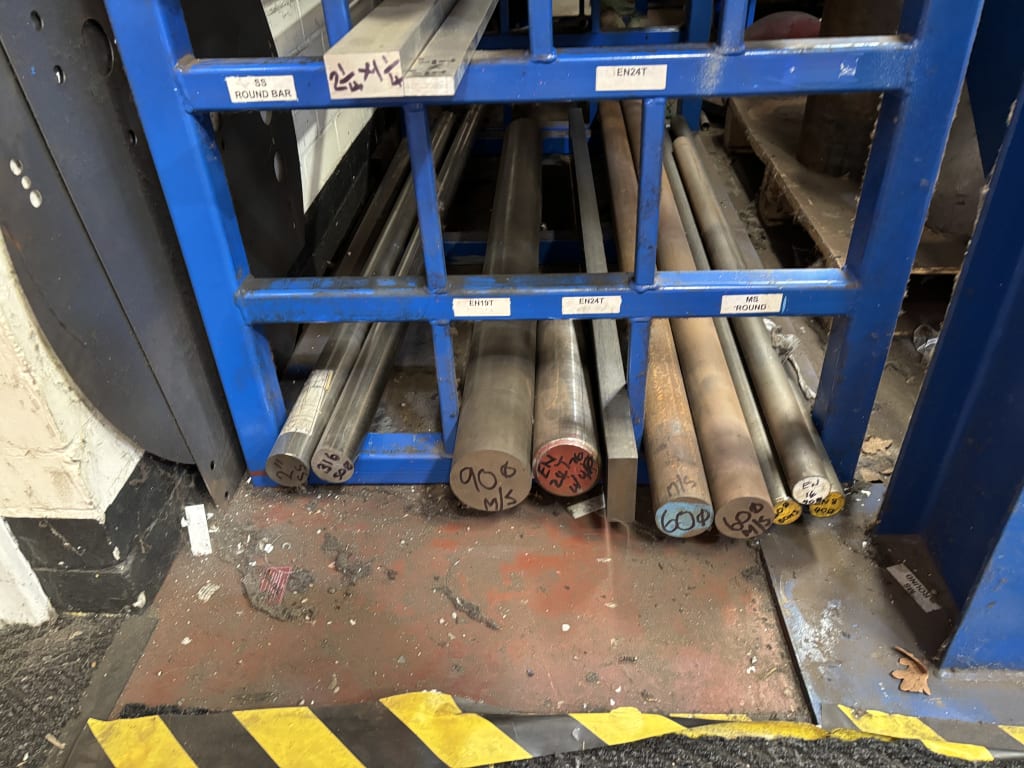

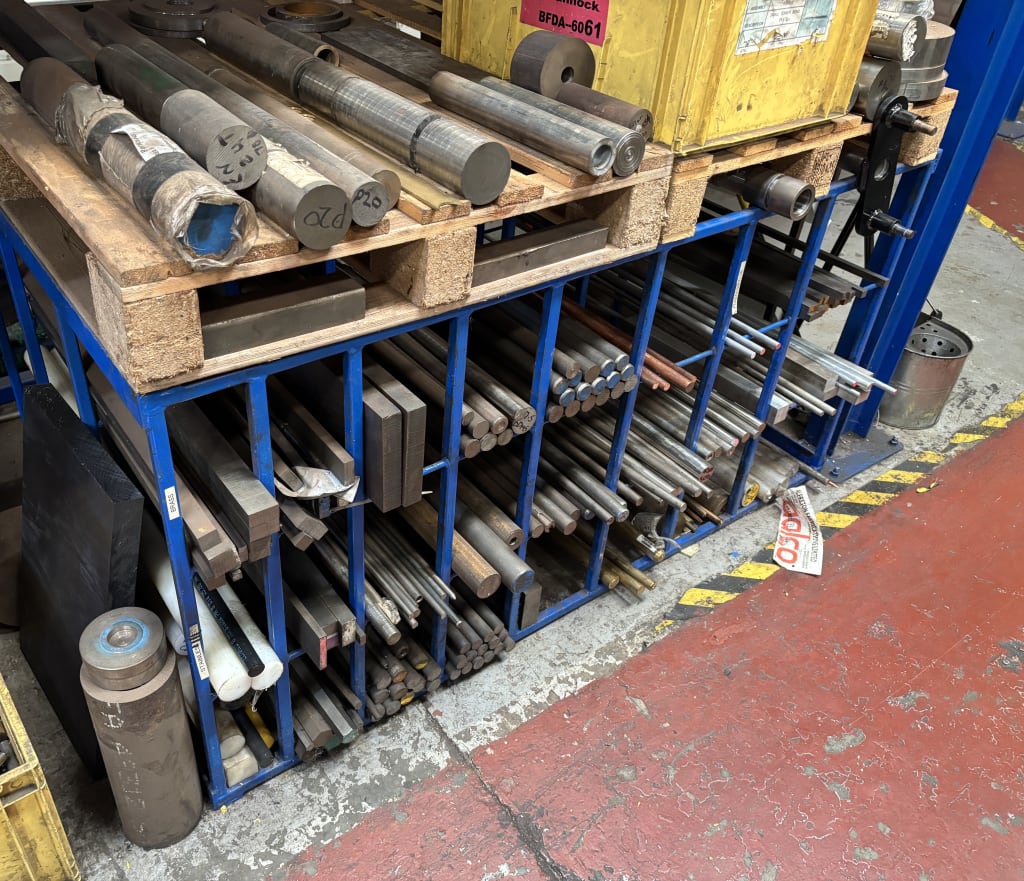

Quantity Of Assorted Bar Stock
Including Round/Square Bar Lengths In Stainless Steel, Various Steels, Aluminium, Brass, Copper & Nylon. - LOT 21
![site]()

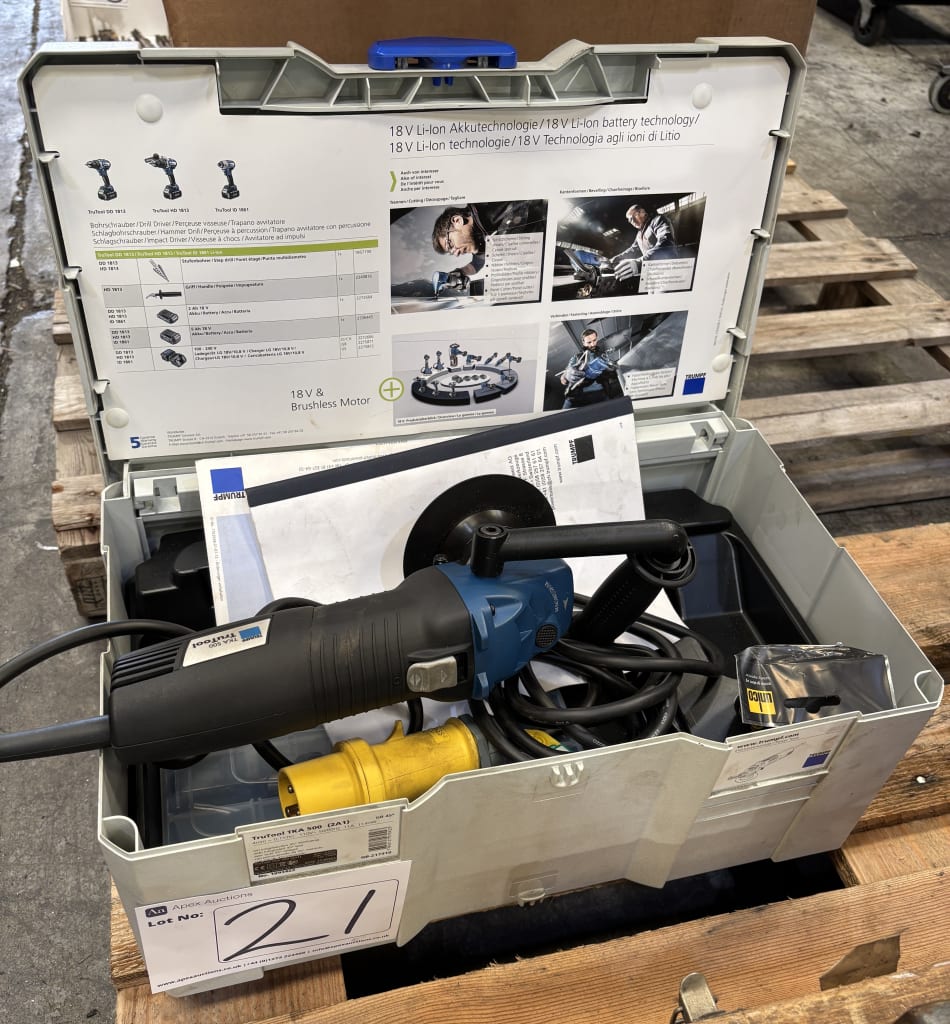

Trumpf Trutool TKA 500 Electric Edge Trimmer/Bevel Hand Tool In Plastic Carry Case
Power 1,140W. Voltage 110V. - LOT 43
![site]()

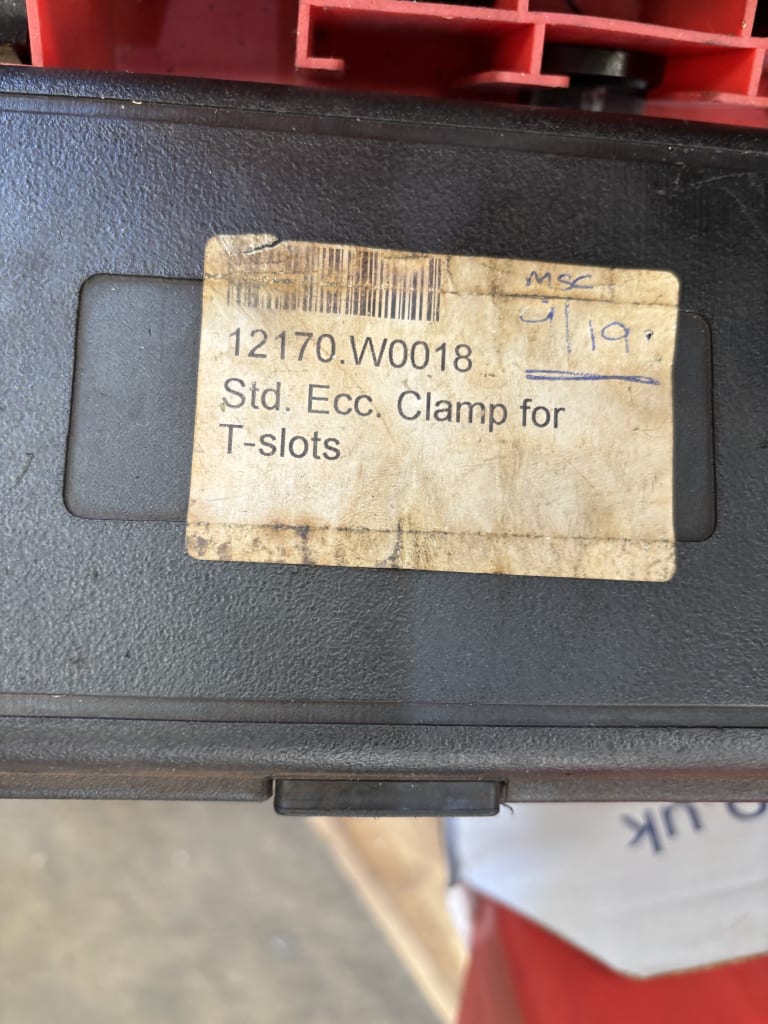

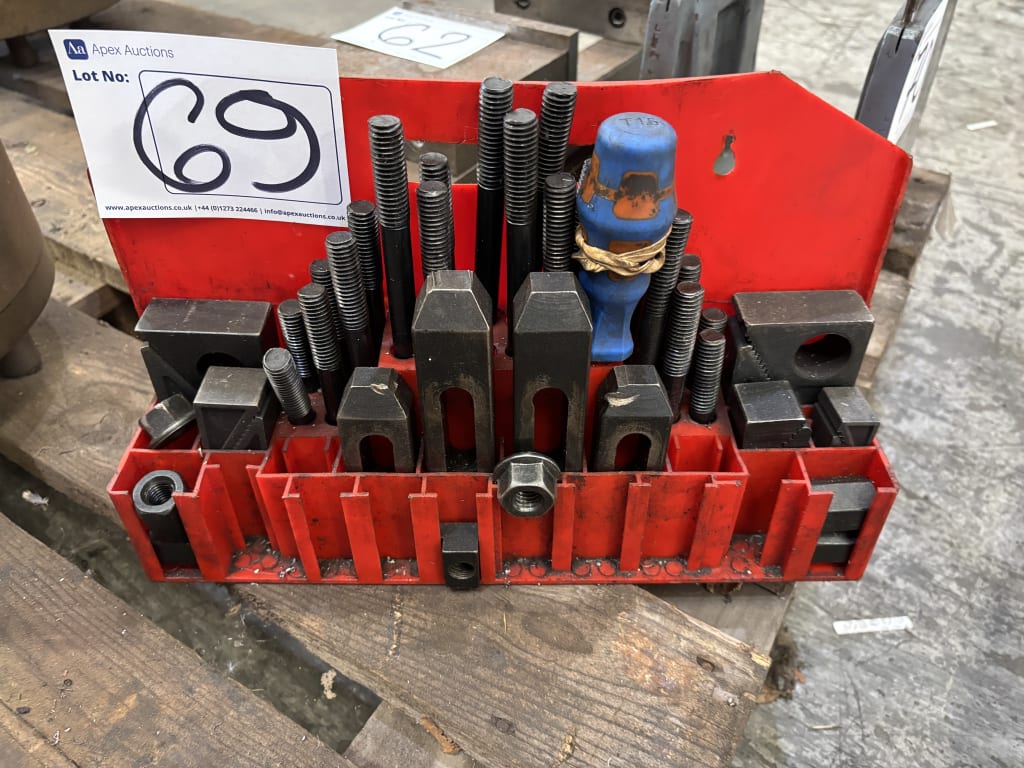

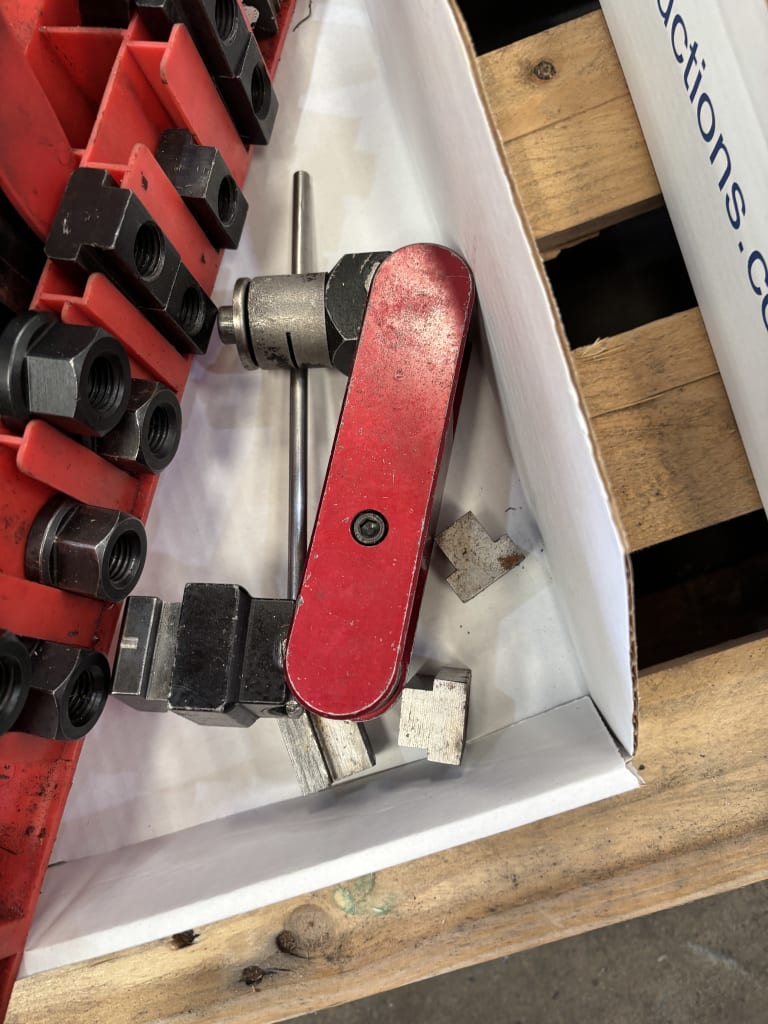

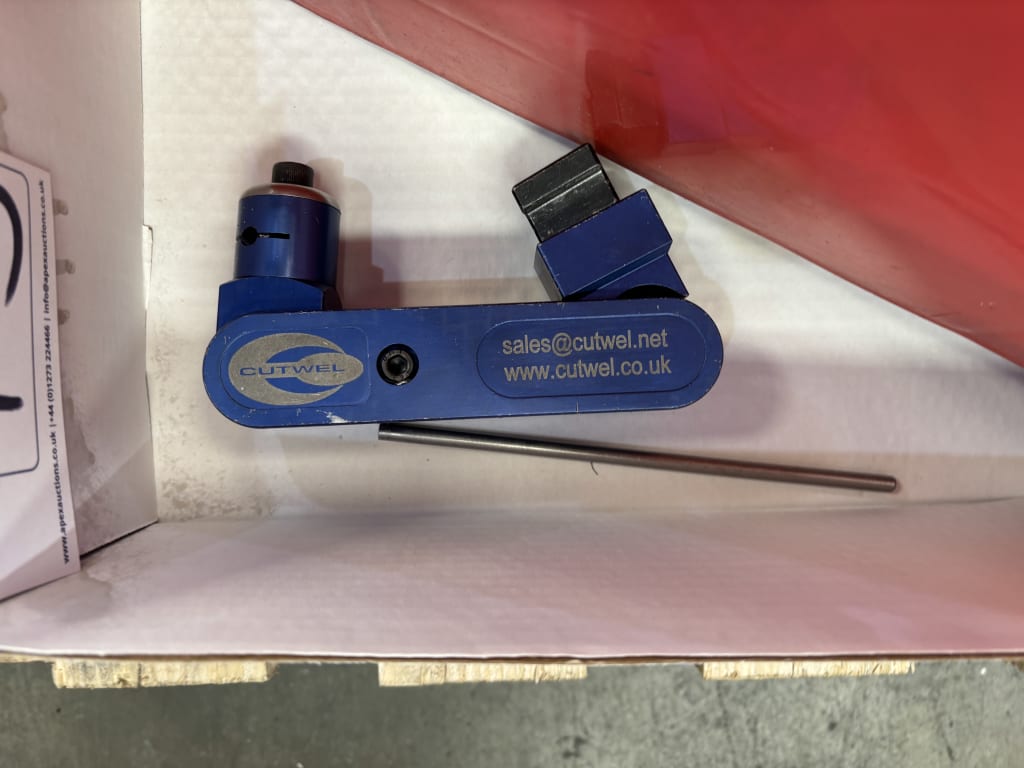

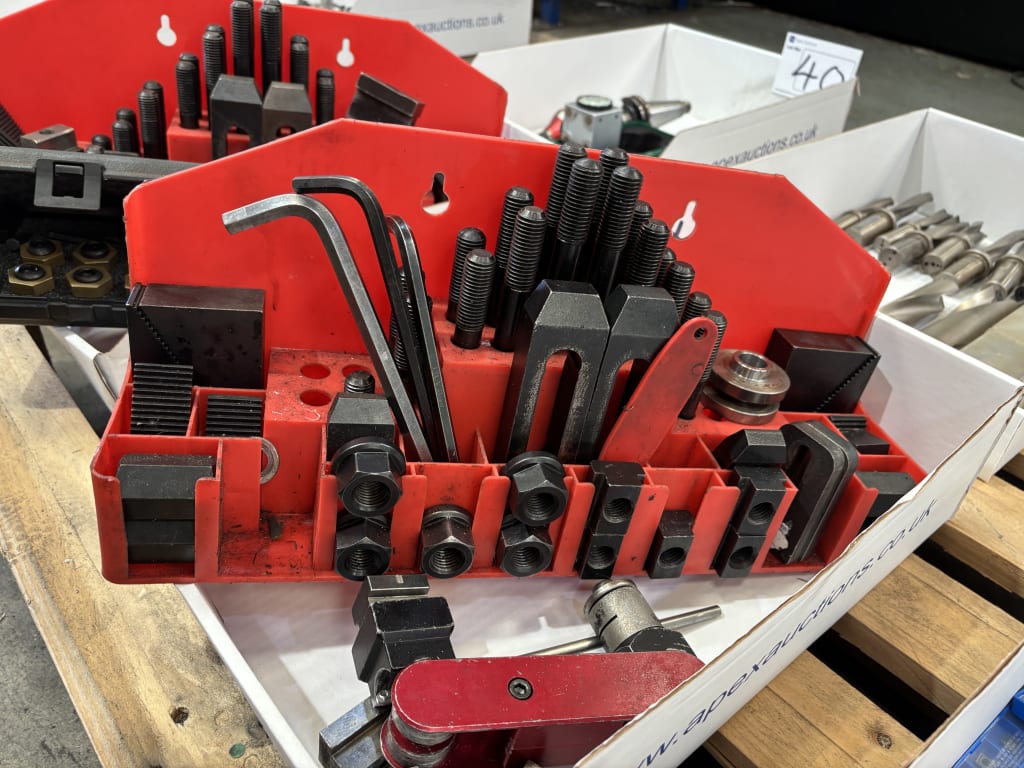

Clamp Sets With Cutwell End Stop
Including Clamps, Step Blocks, HTS Studs, Extension Nuts, Flanged Nuts 'T' Slot Nuts. - LOT 44
![site]()
Clamp Sets With Cutwell End Stop

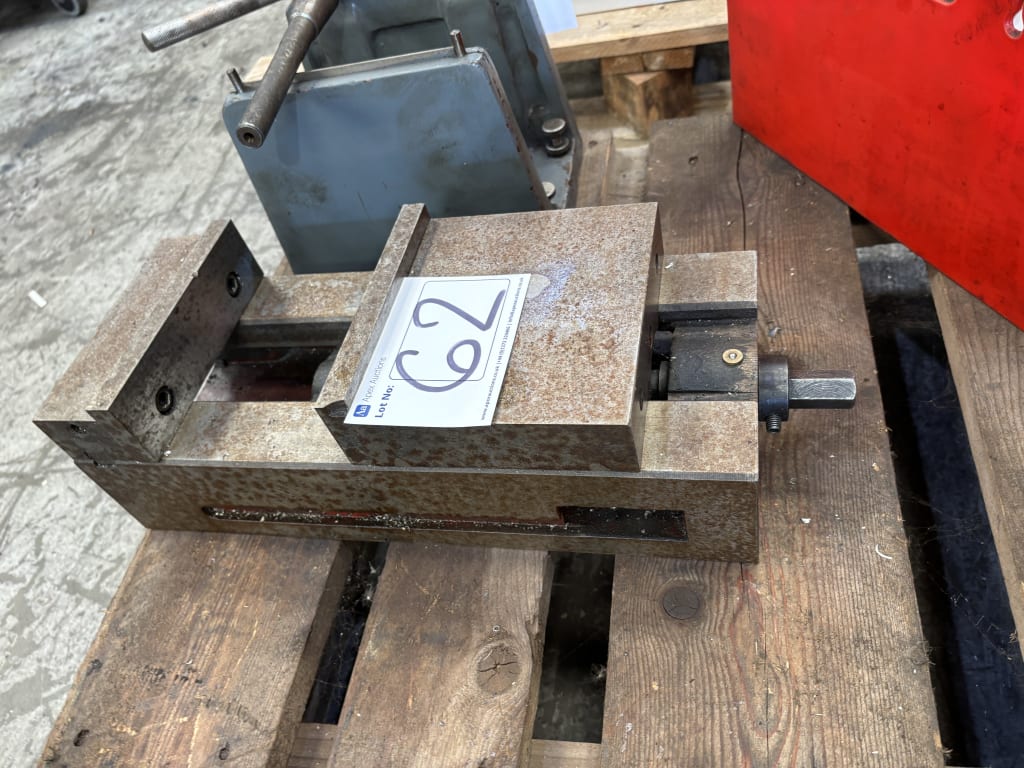

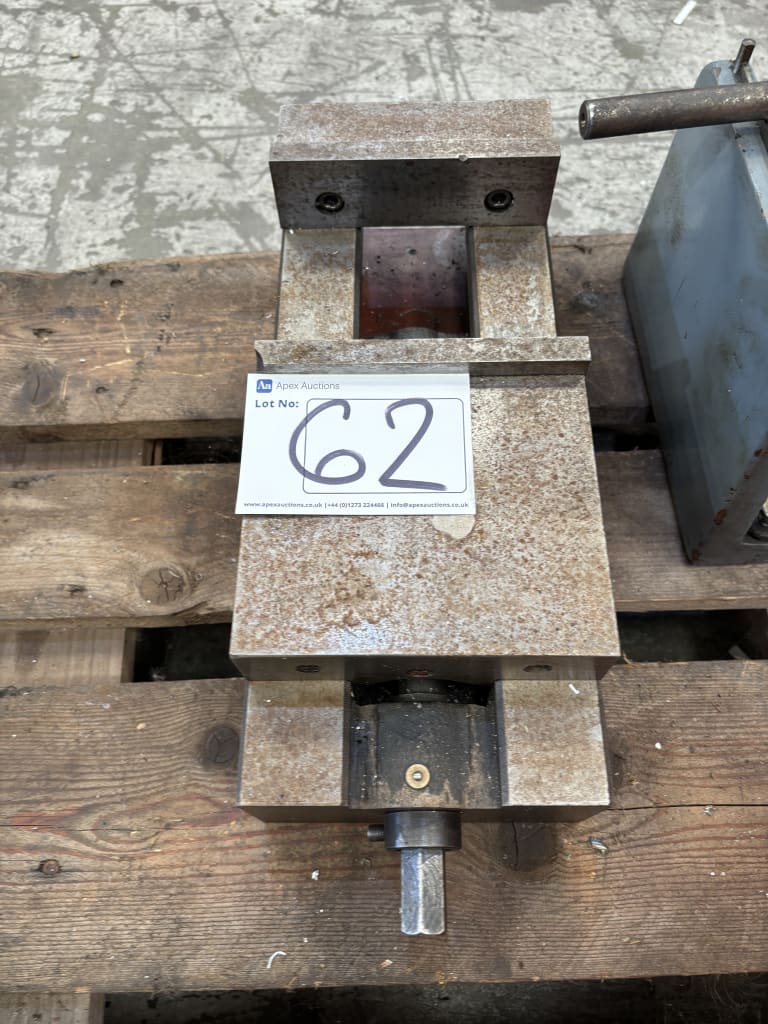

Including Clamps, Step Blocks, HTS Studs, Extension Nuts, Flanged Nuts 'T' Slot Nuts. - LOT 62
![site]()

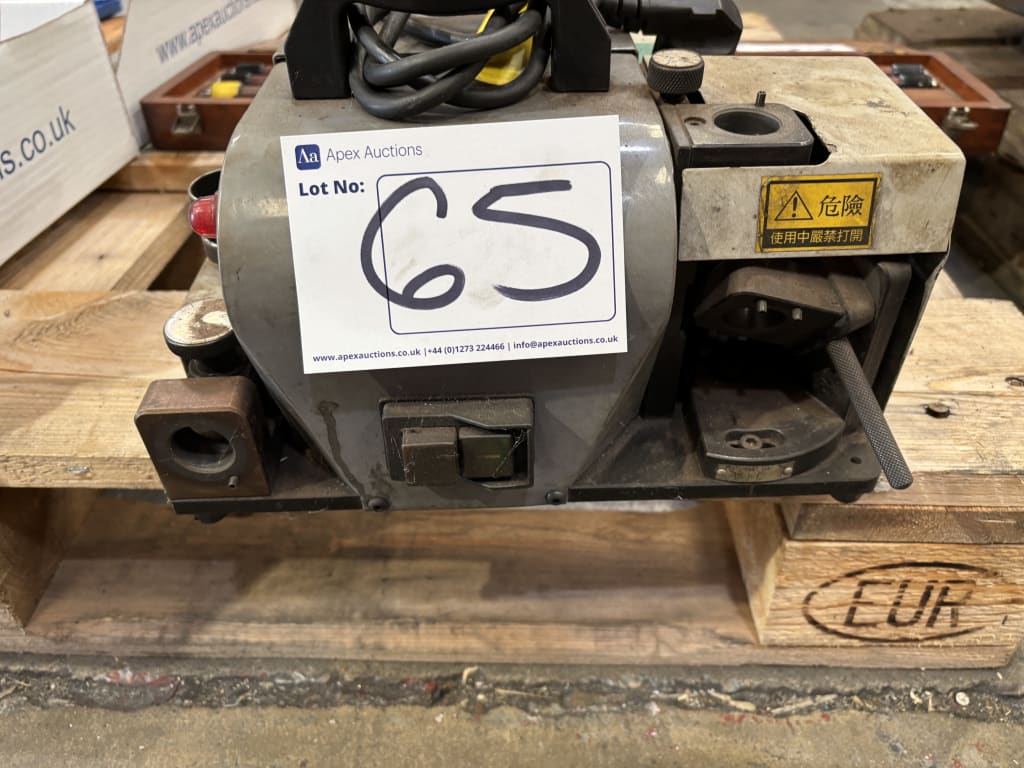

- LOT 65
![site]()
- LOT 70
![site]()
- LOT 72
![site]()
- LOT 84
![site]()

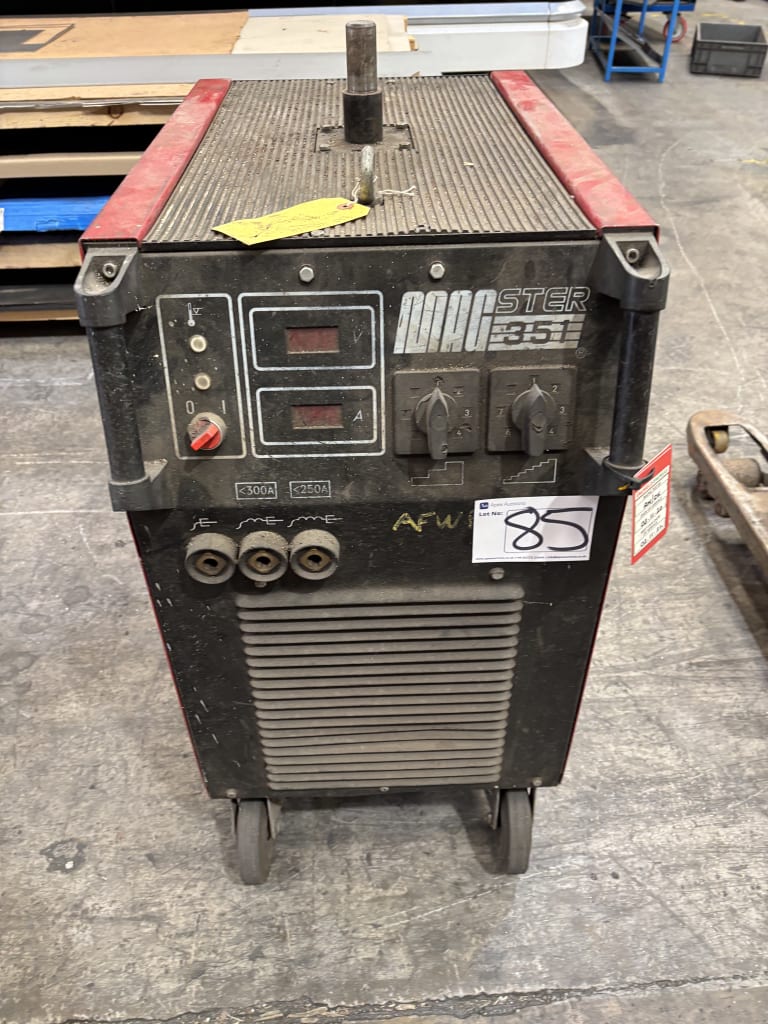

- LOT 85
![site]()
- LOT 86
![site]()
- LOT 74
![site]()
- LOT 87
![site]()

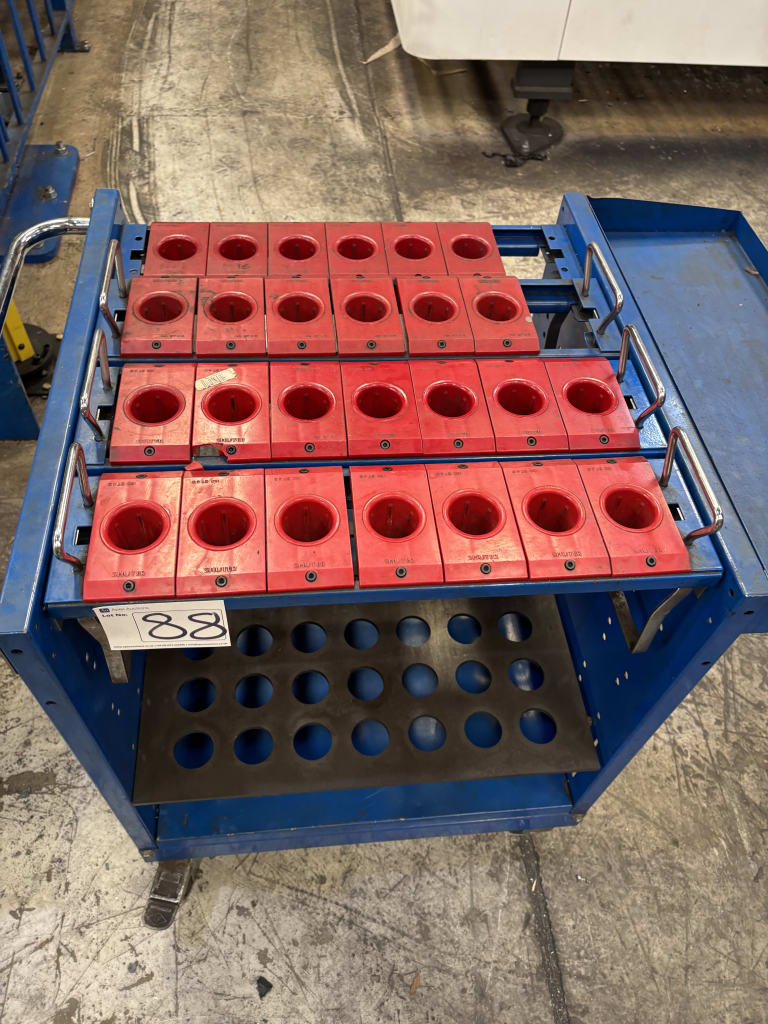

- LOT 88
![site]()
- LOT 89
![site]()

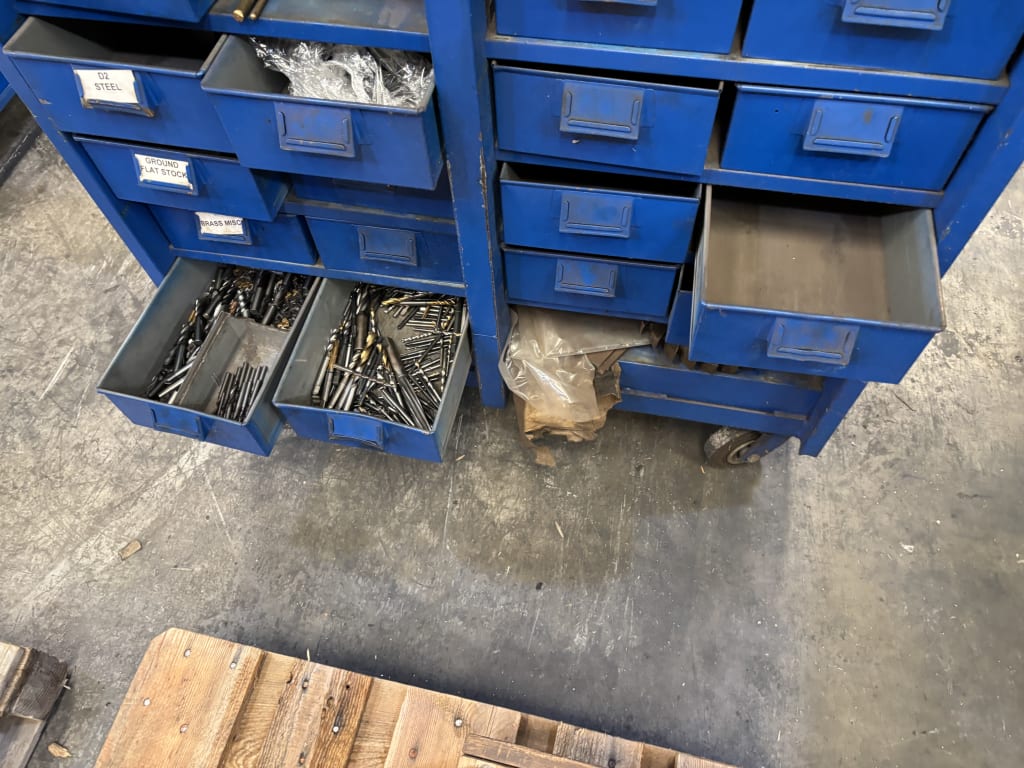

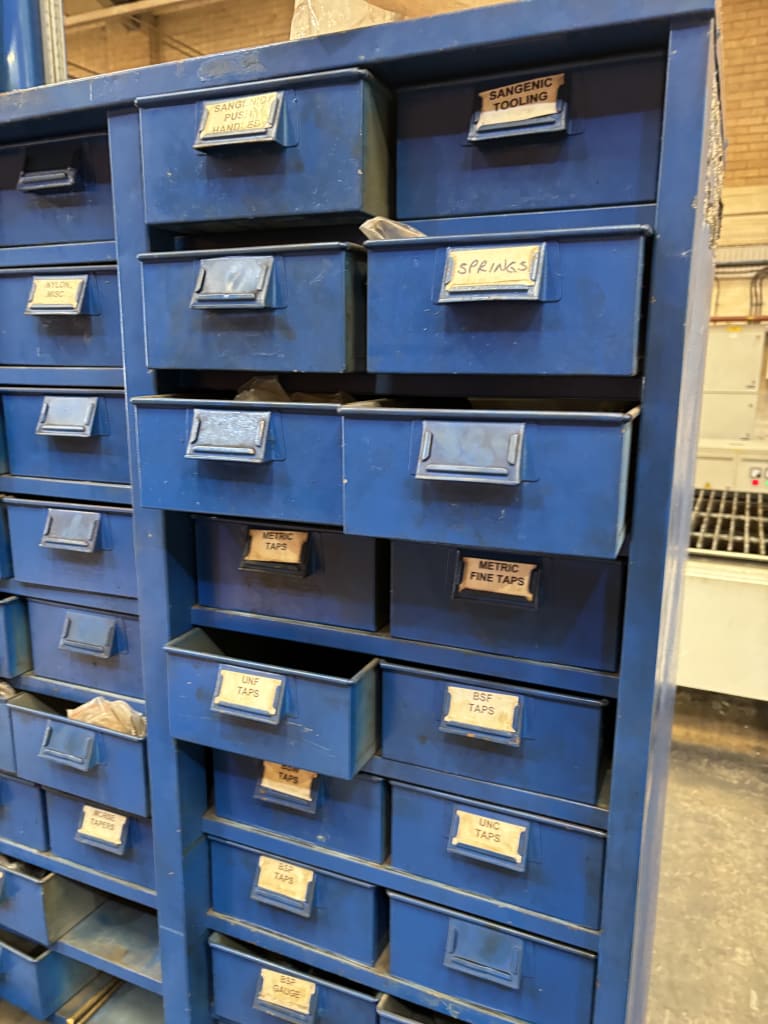

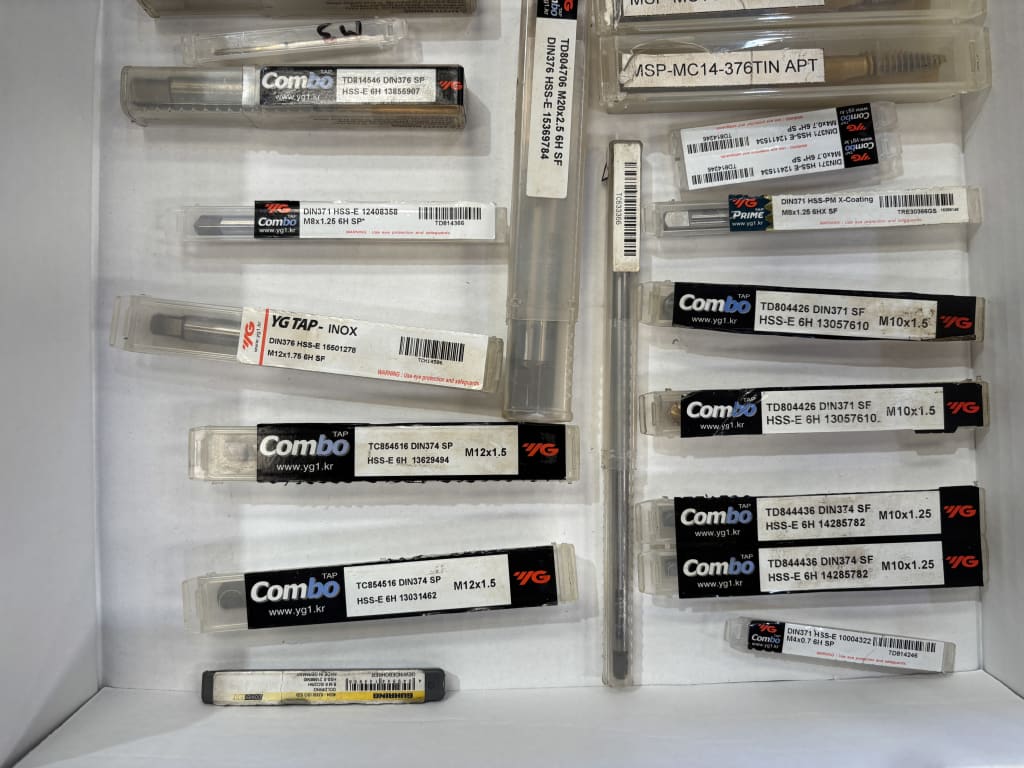

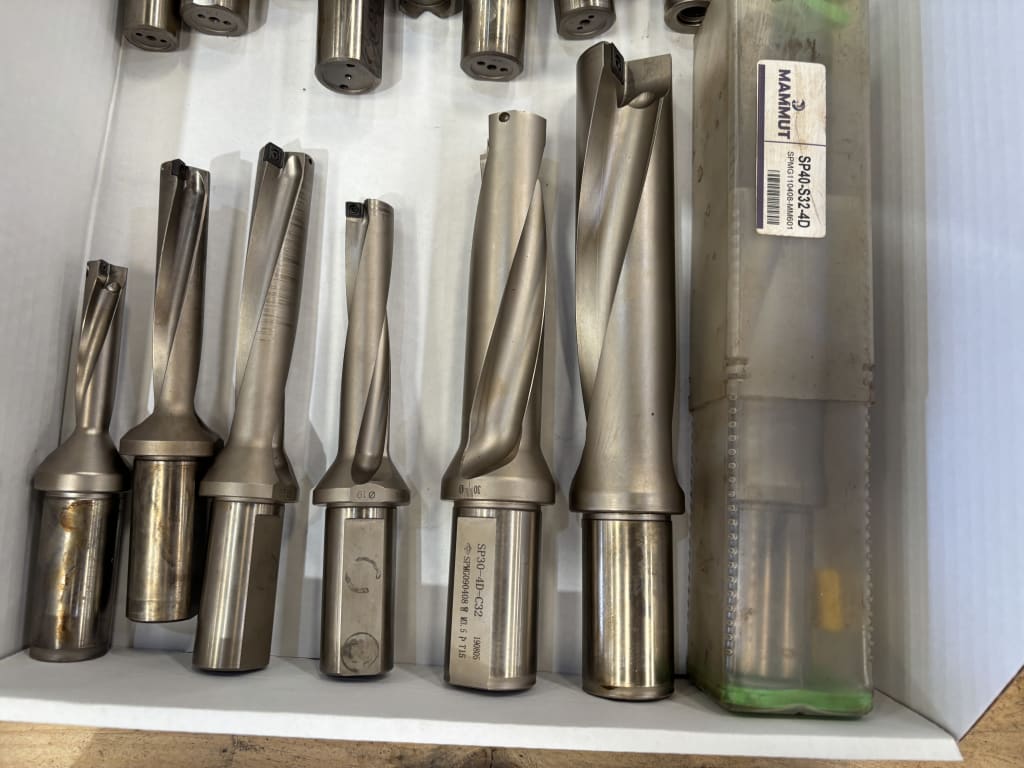

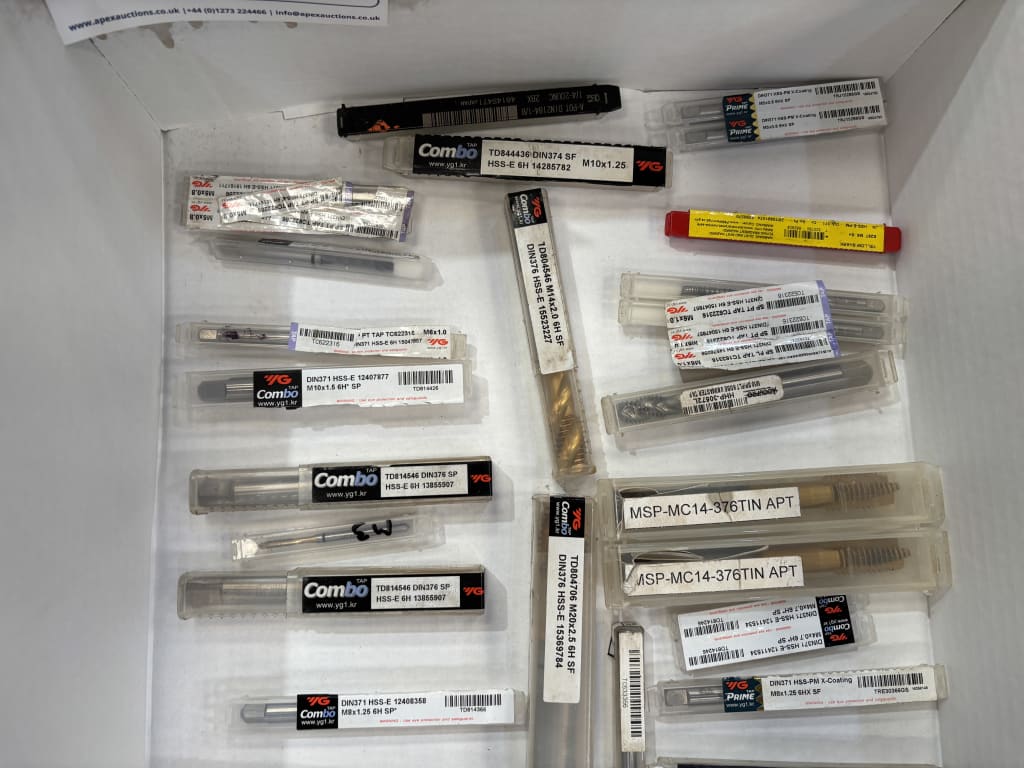

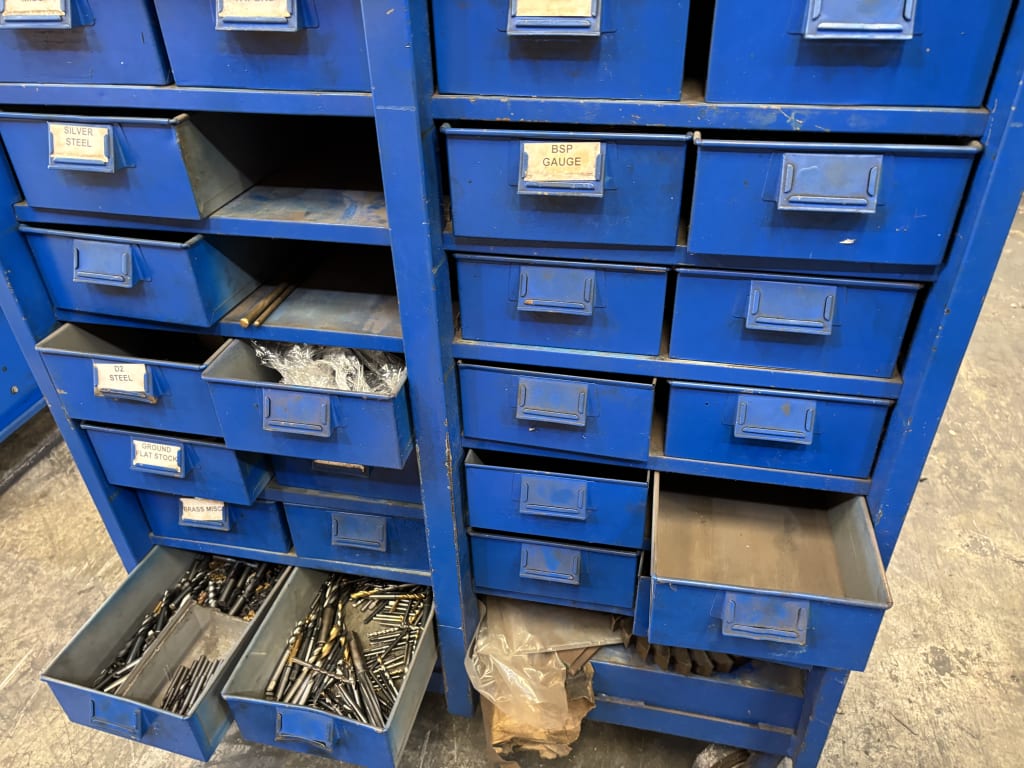

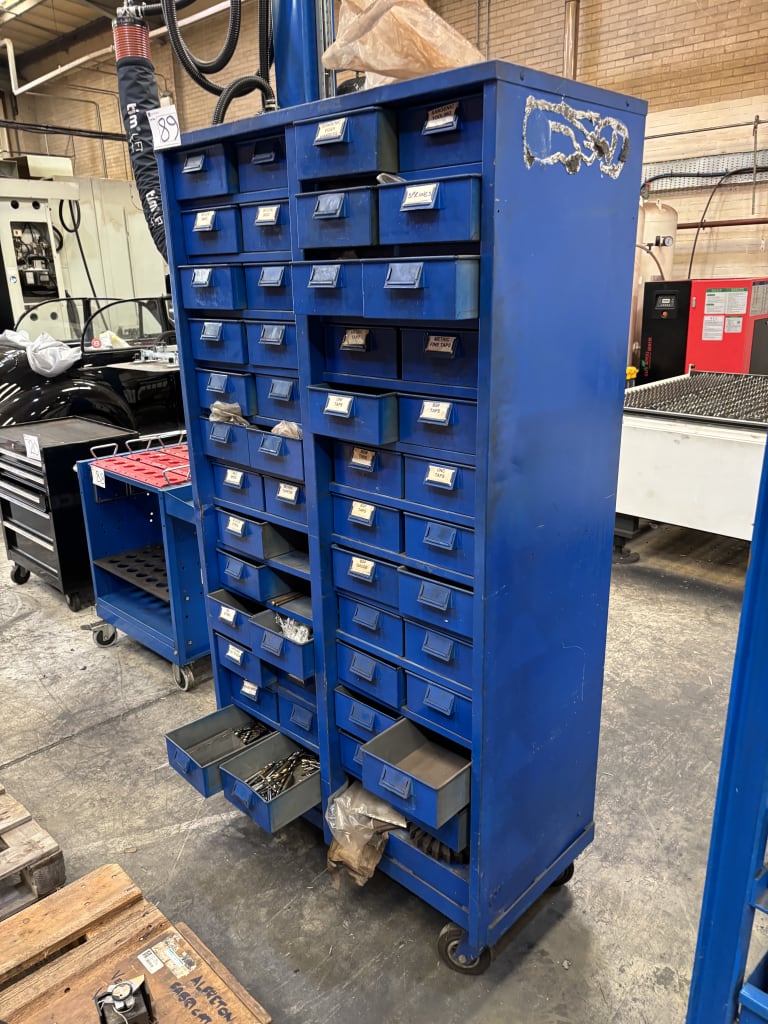

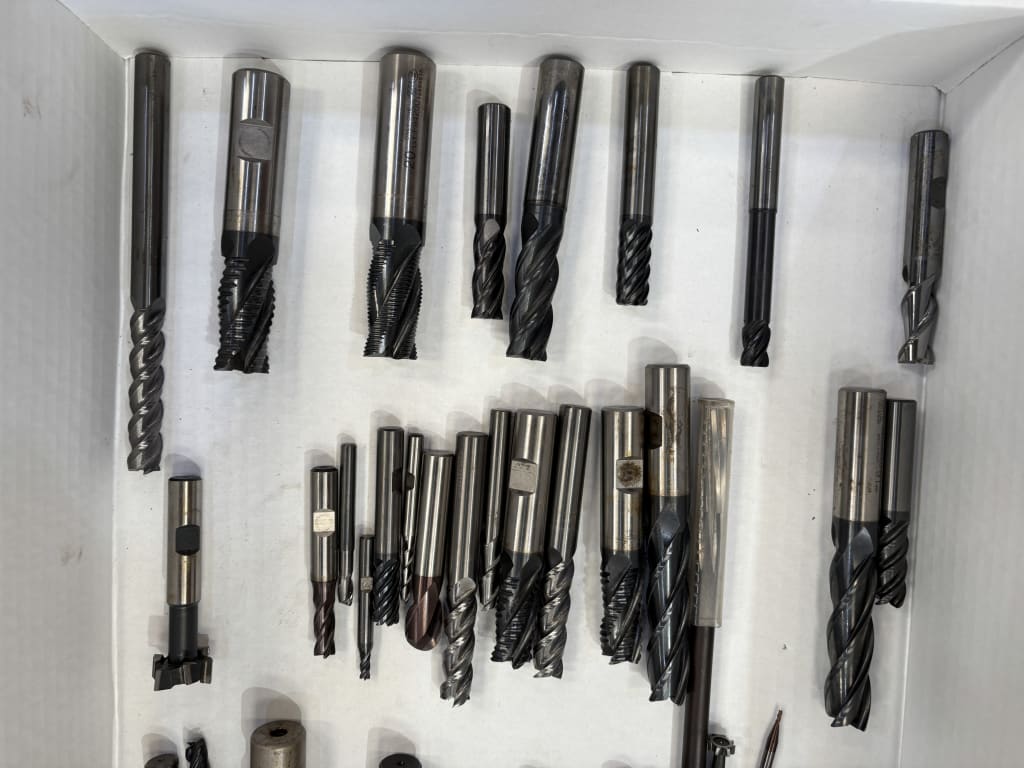

Tray Storage Unit With Contents Of Cutting Tools, Taps, Dowels, Springs & Miscellaneous Tooling
Overall Dimensions L915 x W470 x H1,800mm. - LOT 91
![site]()
- LOT 71
![site]()
- LOT 73
![site]()
- LOT 90
![site]()

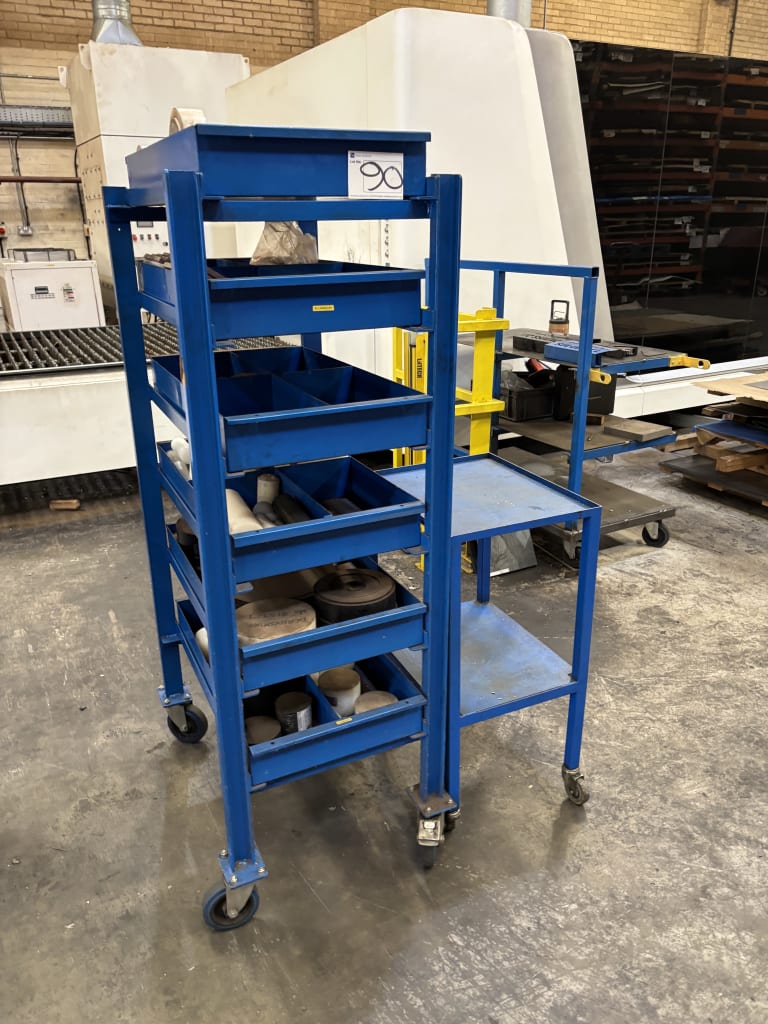

Mobile Storage Unit With Contents Of Nylon & Aluminium & Mobile 2 Shelf Steel Table
Overall Dimensions L760 x W530 x H1,550mm & L500 x 530 x 860mm. - LOT 92
![site]()
- LOT 93
![site]()
- LOT 95
![site]()

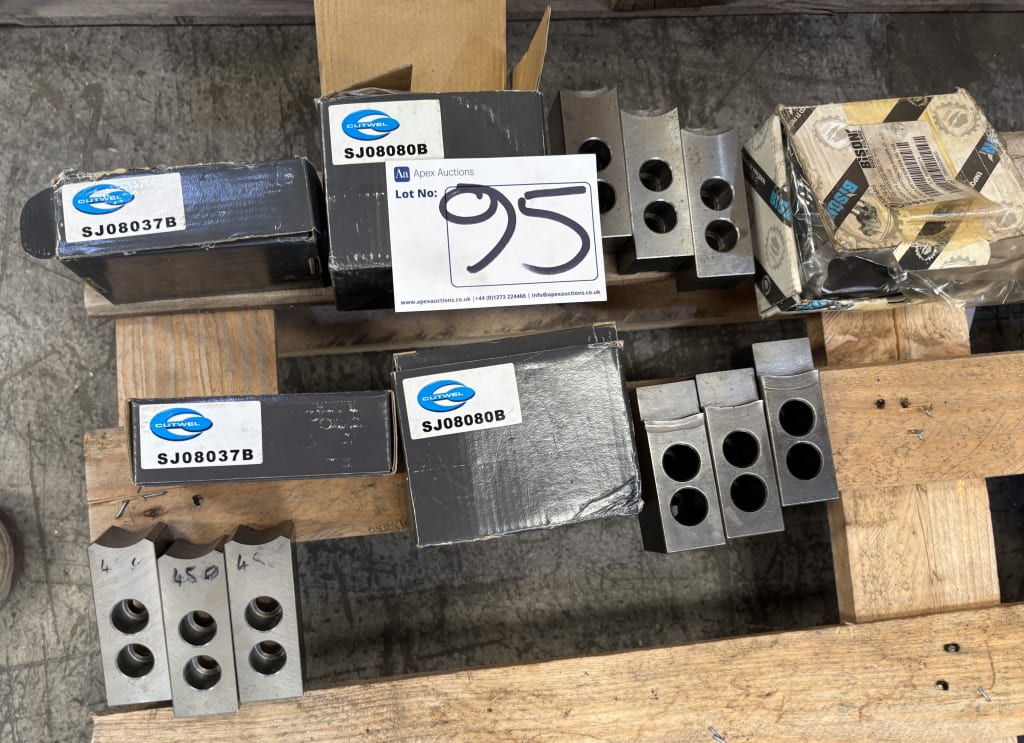

Quantity Of Assorted Cutwell Soft Jaws
Table Dimension 1,675 x 660mm (6 'T' Slots). Maximum Table Load 1,360kg. Axis Travel 'X'=1,524mm, 'Y'=660mm, 'Z'=610mm. Maximum Spindle Speed 10,000rpm. Spindle Taper SK40. 24 Position ATC. Hurco 4th Axis Ø200mm 3 Jaw Chuck, Centre Height 145mm. S/No. H-S6059 (2012). - LOT 11A
![site]()

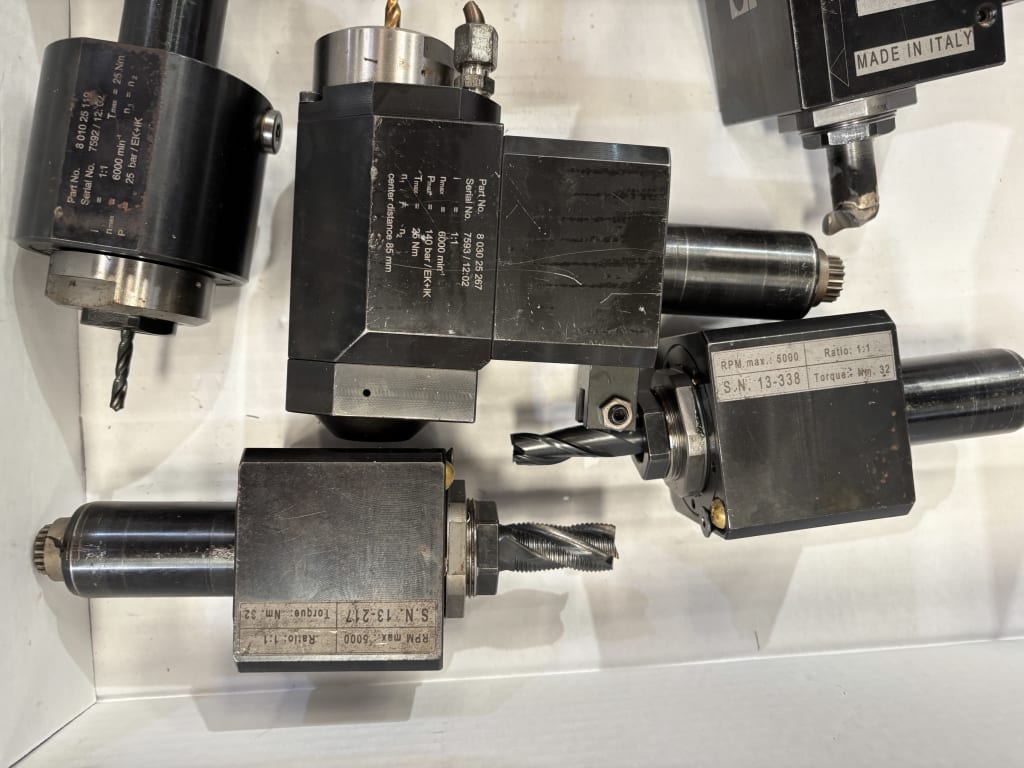

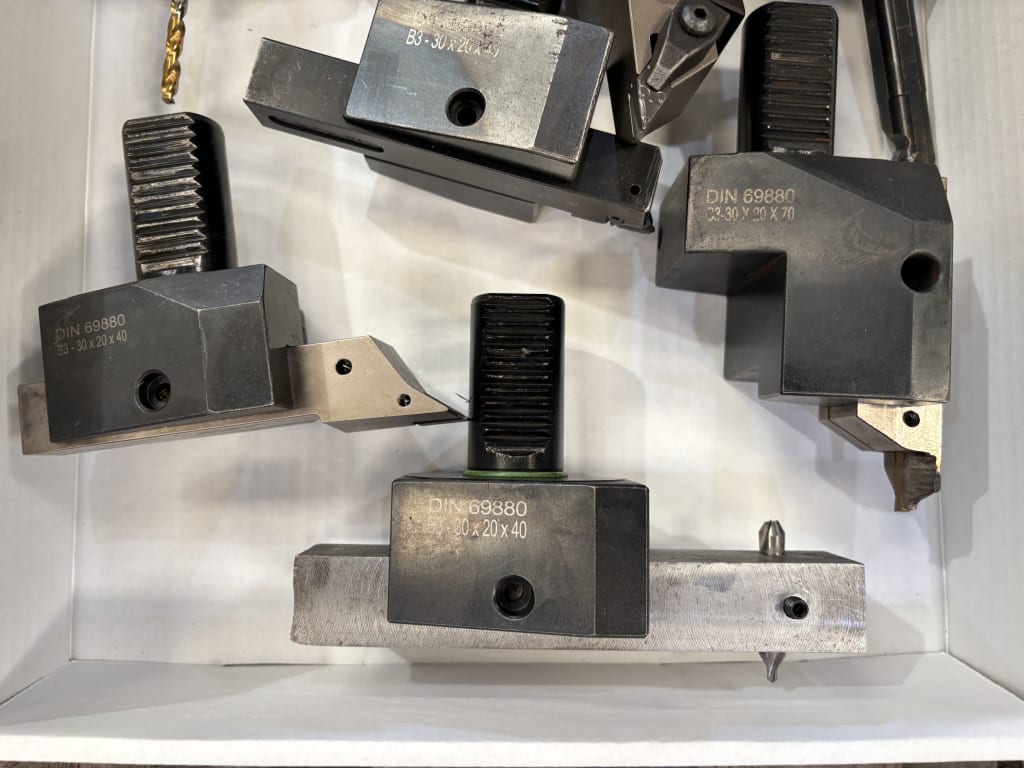

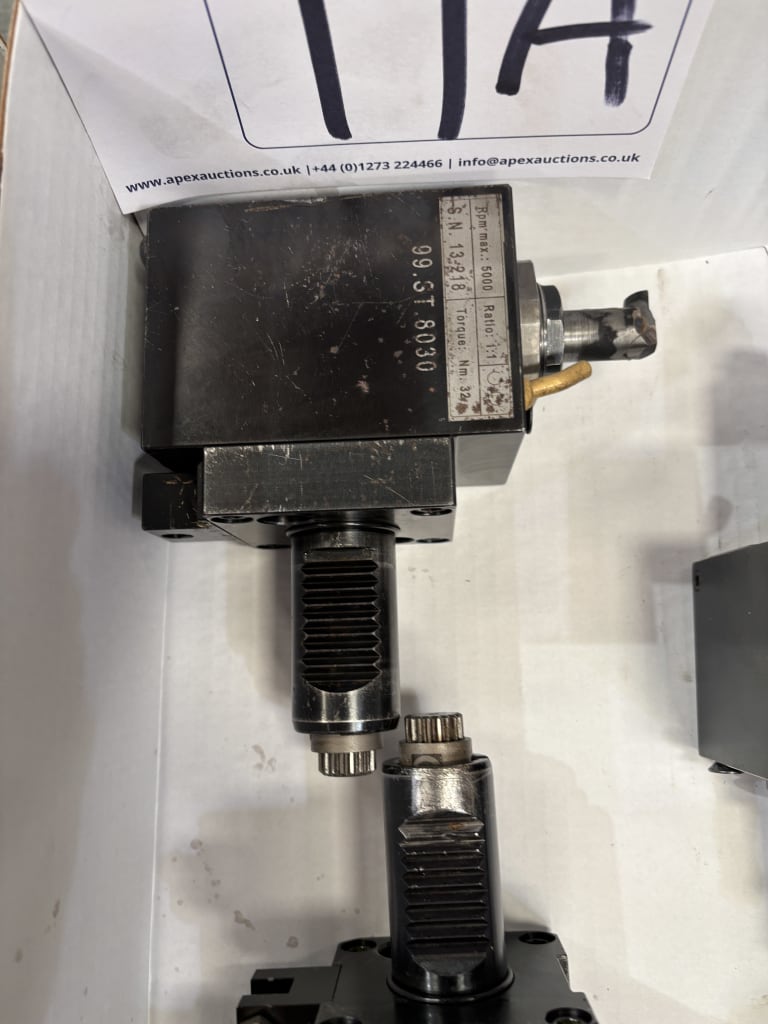

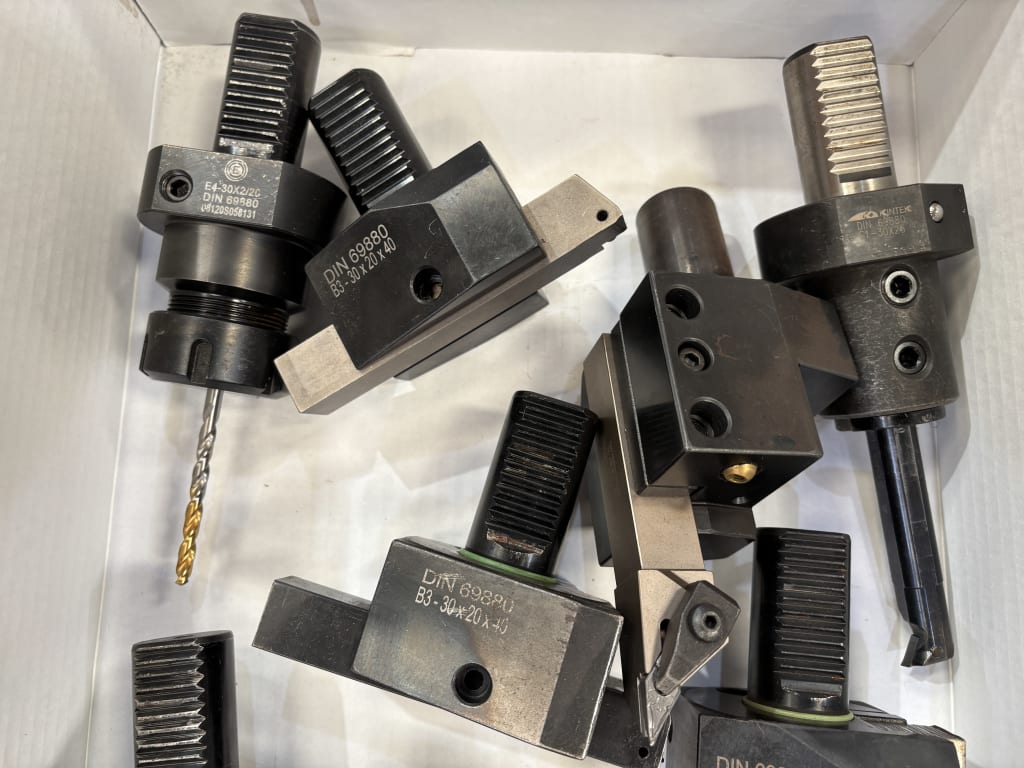

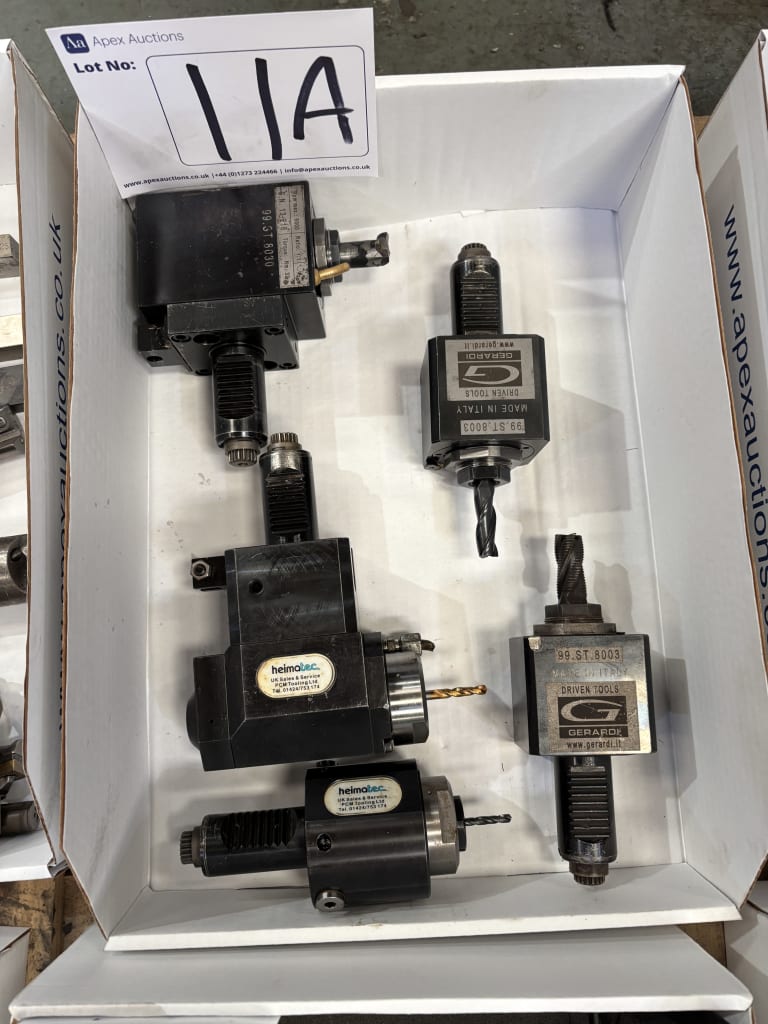

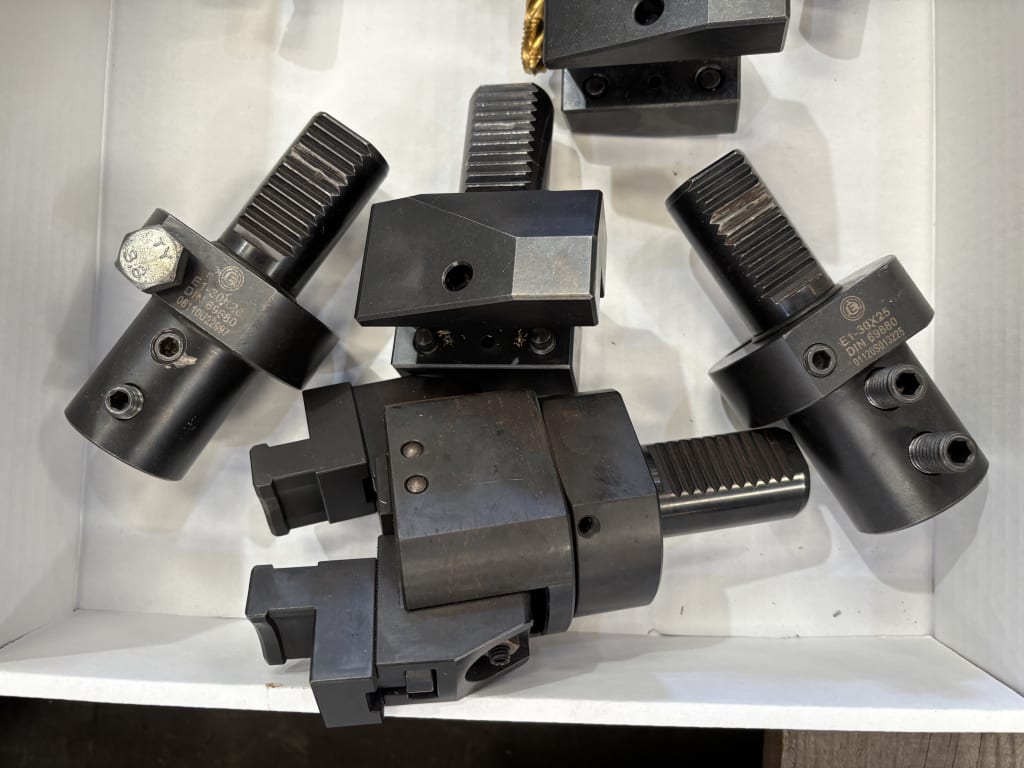

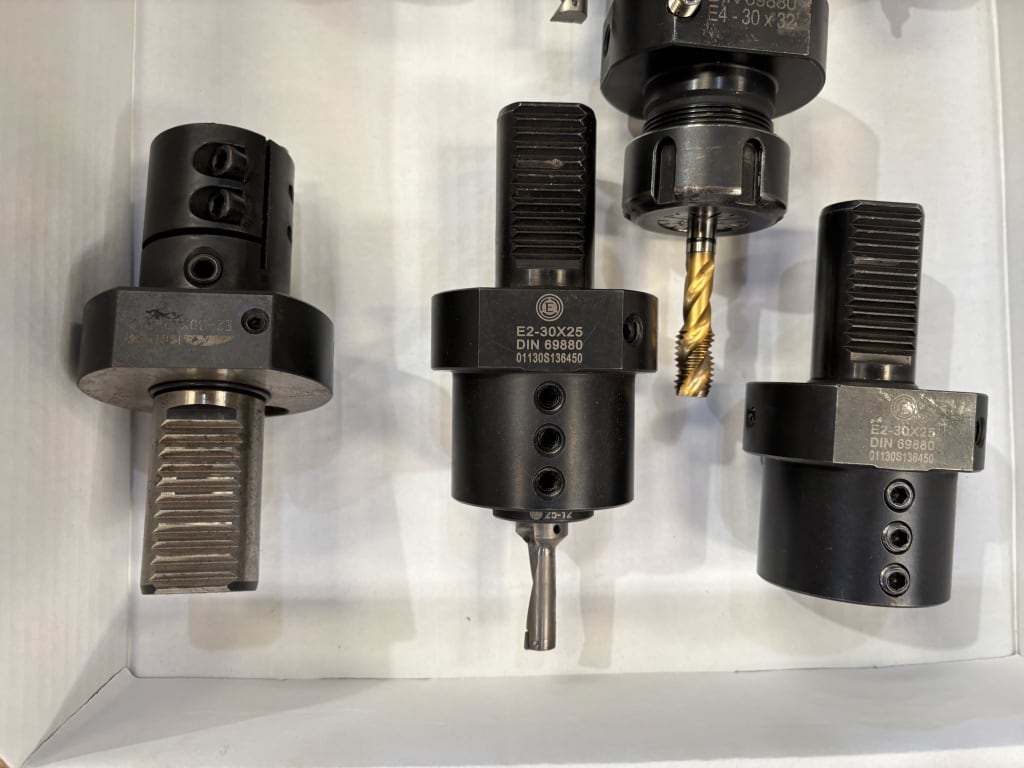

Quantity Of Assorted VDI 30 Driven Radial & Axial Including Gerardi & Heimatic
Speeds 5,000 & 6,000rpm. Ratio 1:1. - LOT 20A
![site]()
- LOT 5A
![site]()

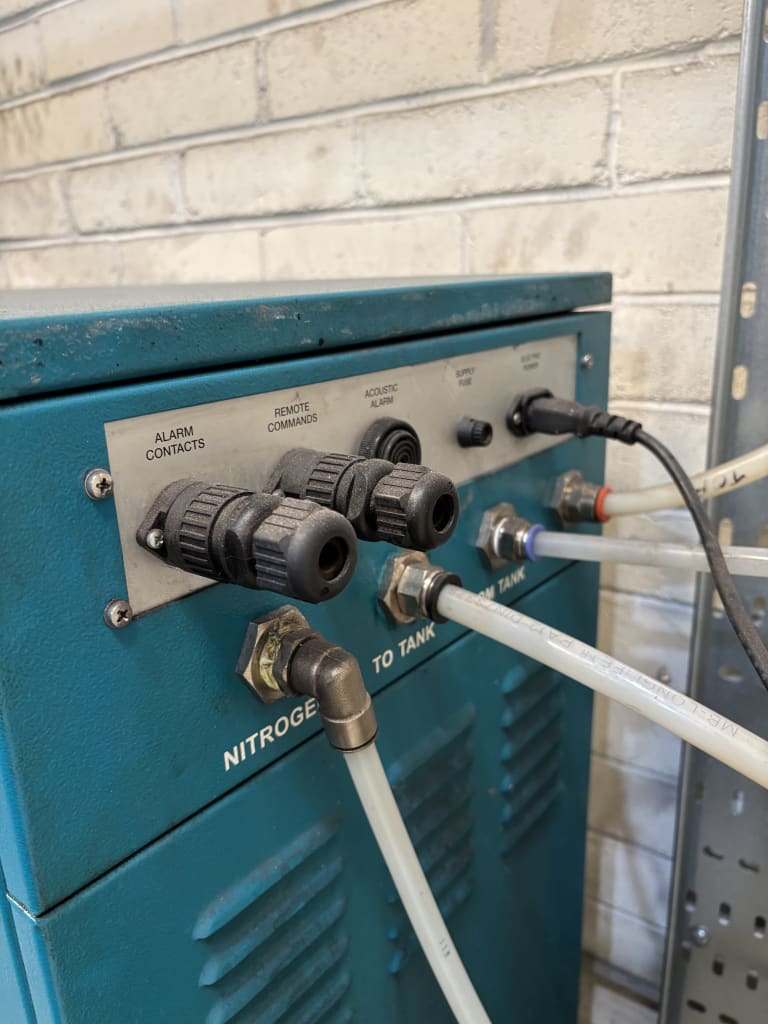

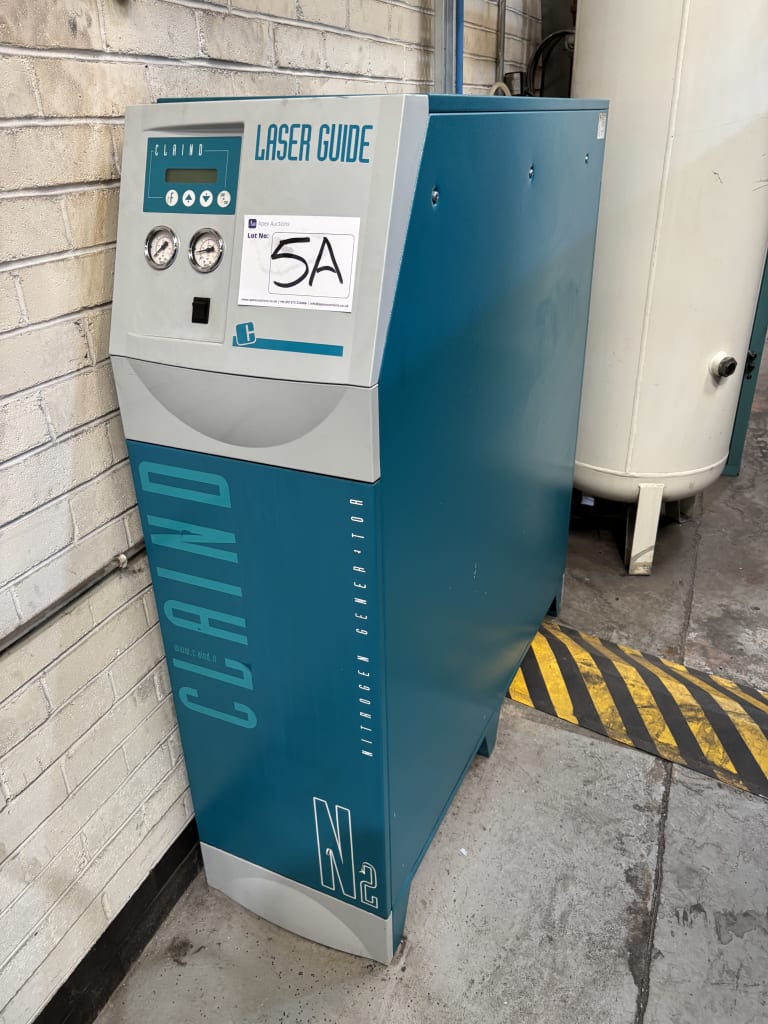

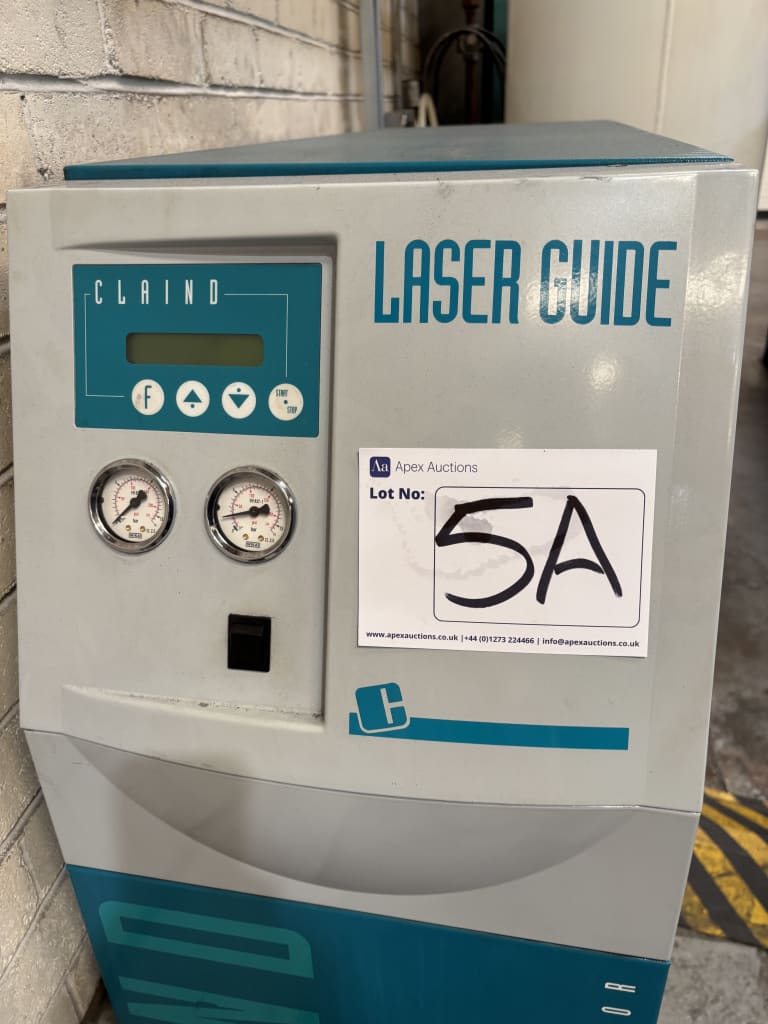

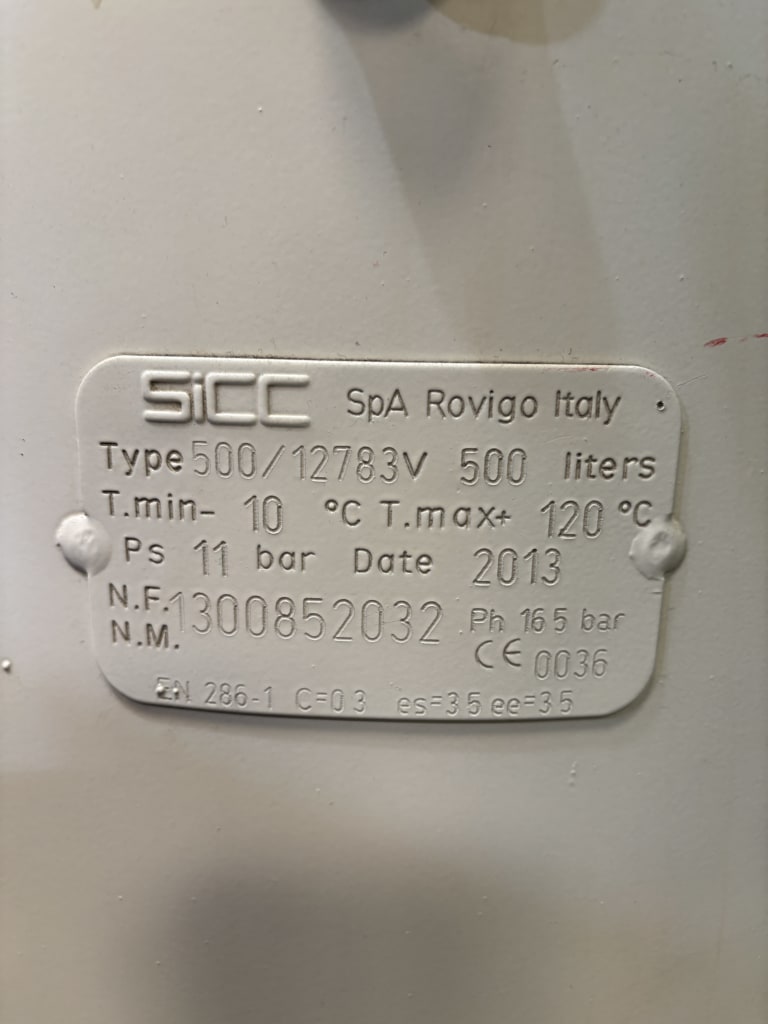

Claind N2PICO3N Nitrogen Generator With Sicc Air Receiver
Sicc Capacity 500 Litre. S/No. 18860.
