Kinetic Machine Tool Service - Sale of CNC Machinery & Equipment (Scotland)
Starts: 05 June 2025 at 09:00 BST
Ends: 17 July 2025 at 15:00 BST
Sale features a Hankook Protec-9NC CNC Heavy Duty Lathe With Fanuc 21i-TB Control, Haas TM-3PCE CNC Vertical Machining Centre, Kearns - Richards SH75 Horizontal Boring Machine with Newall E70-M Digital Read Out, Taurus CNC\260 CNC Lathe With Fagor Control, Jones & Shipman 1300 Cylindrical Grinder and more. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 63 of 63 lots
- LOT 13

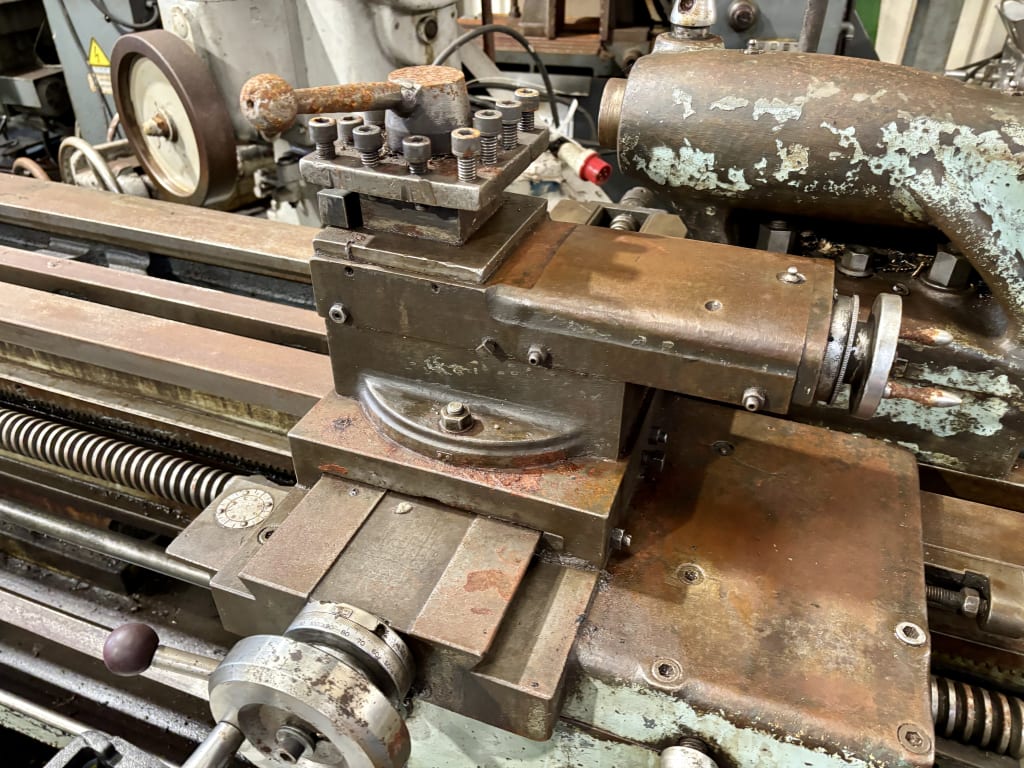

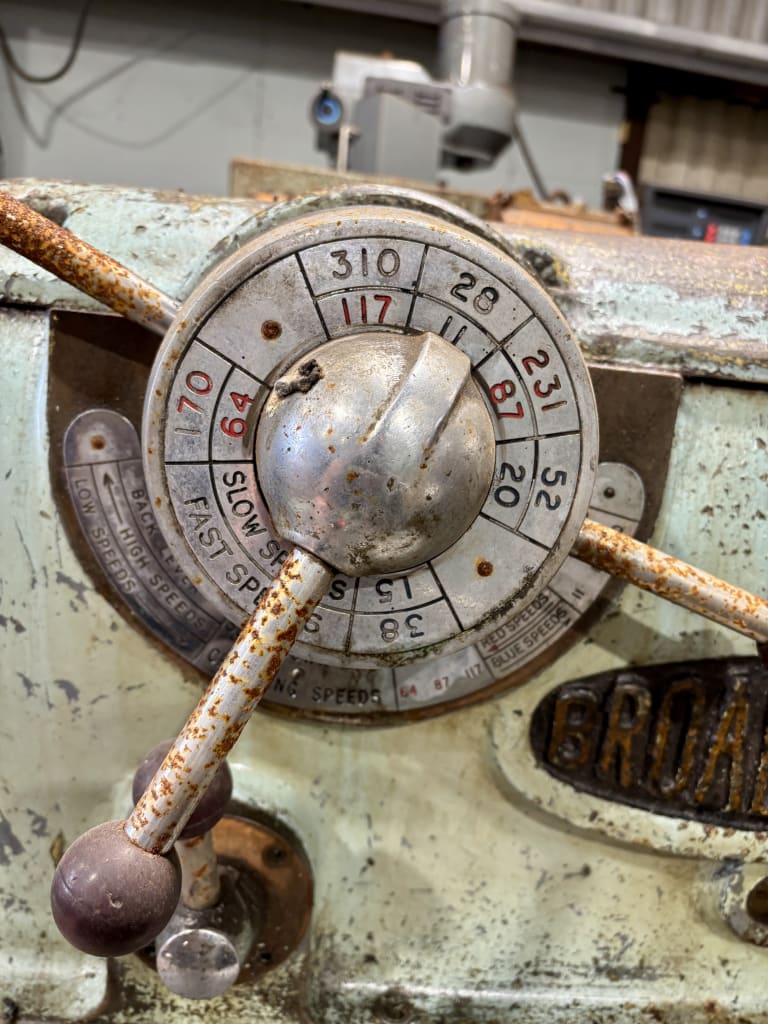

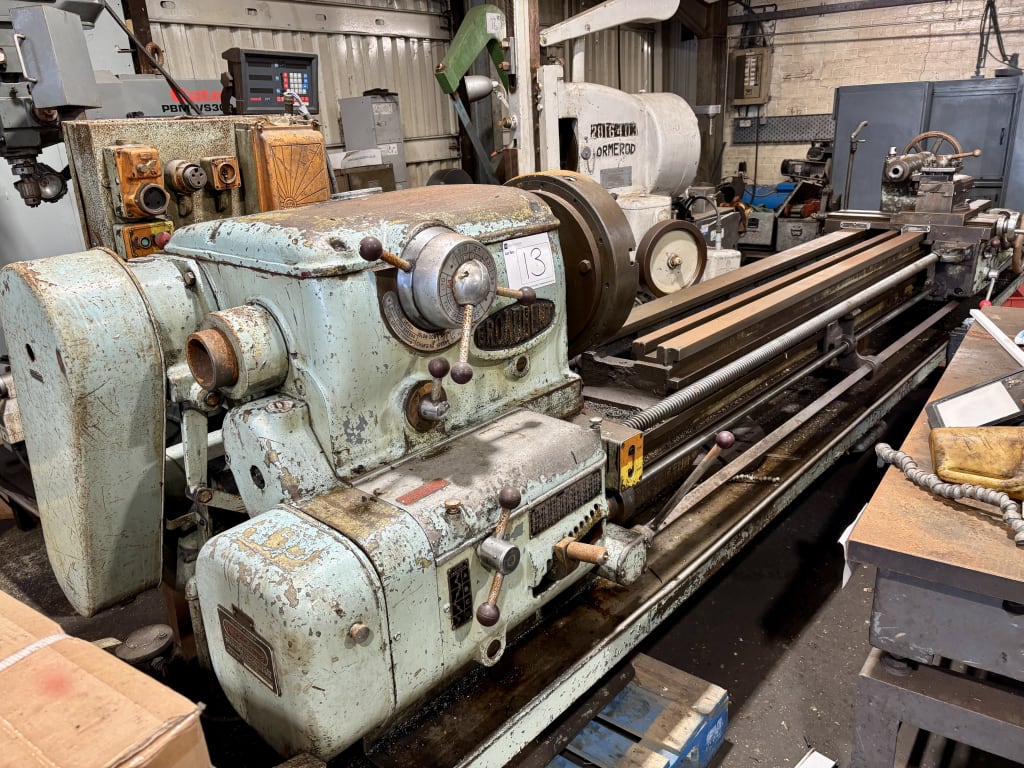

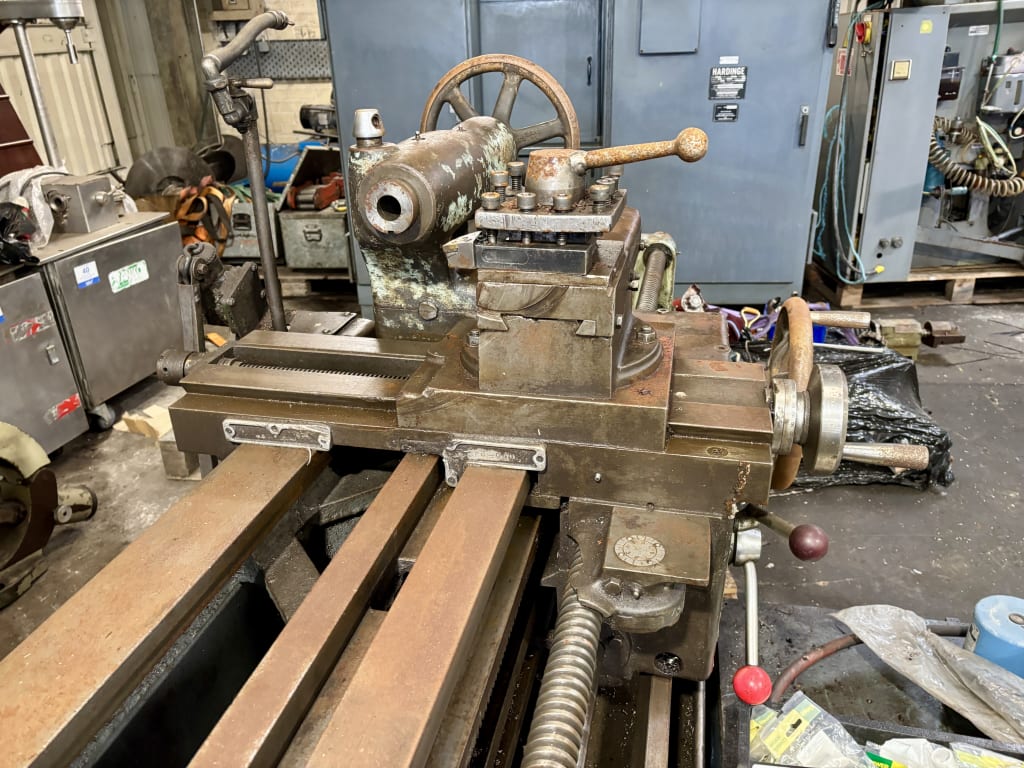

Broadbent Heavy Duty Lathe
Pratt Burnerd Ø415mm 3 Jaw Chuck. Approx Swing Over Bed Ø520mm. Approx Swing Over Gap Ø870mm. Approx Swing Over Cross Slide Ø340mm. Distance Between Centres 3,000mm. Speed Range 20-310rpm. - LOT 2A

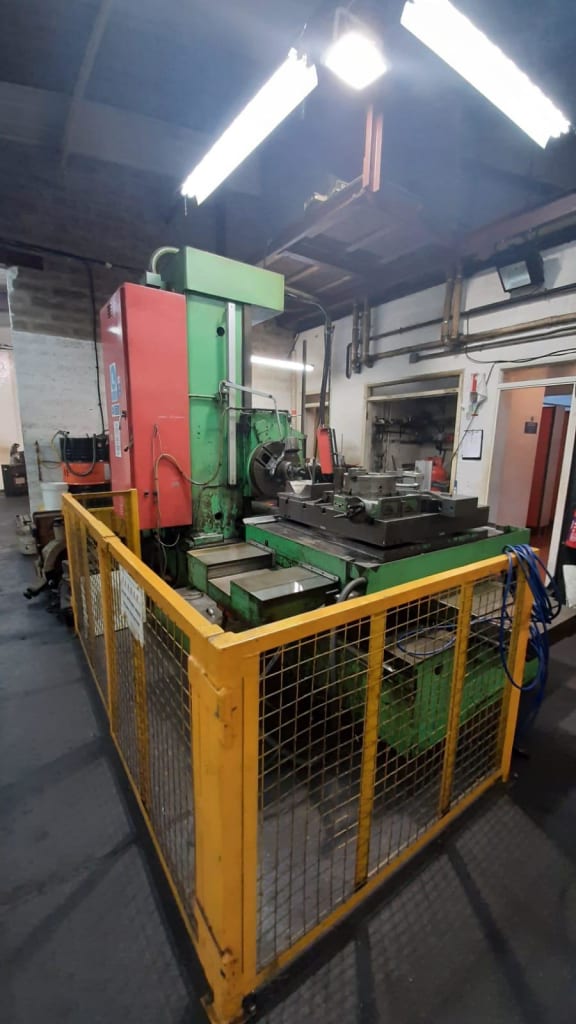

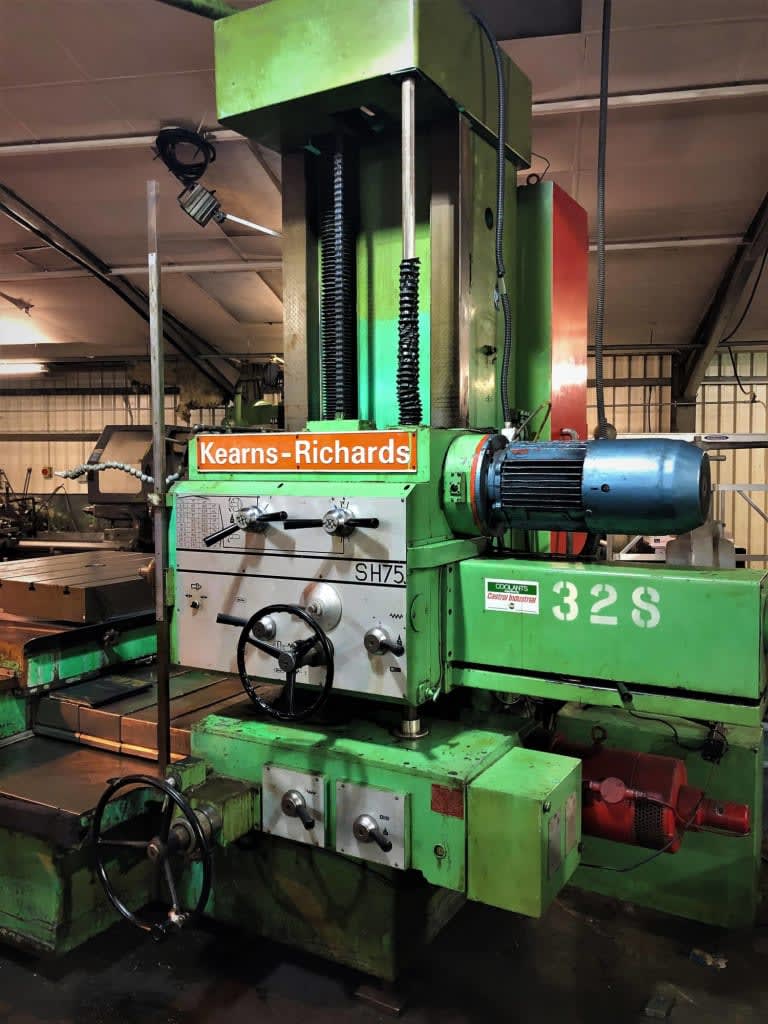

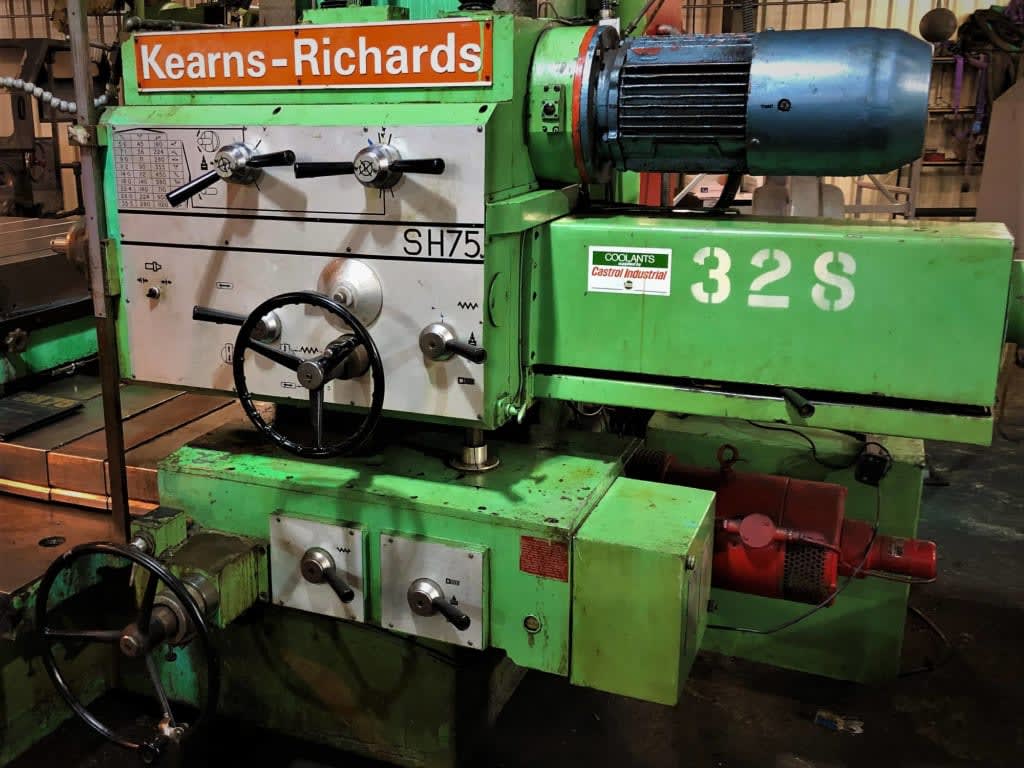

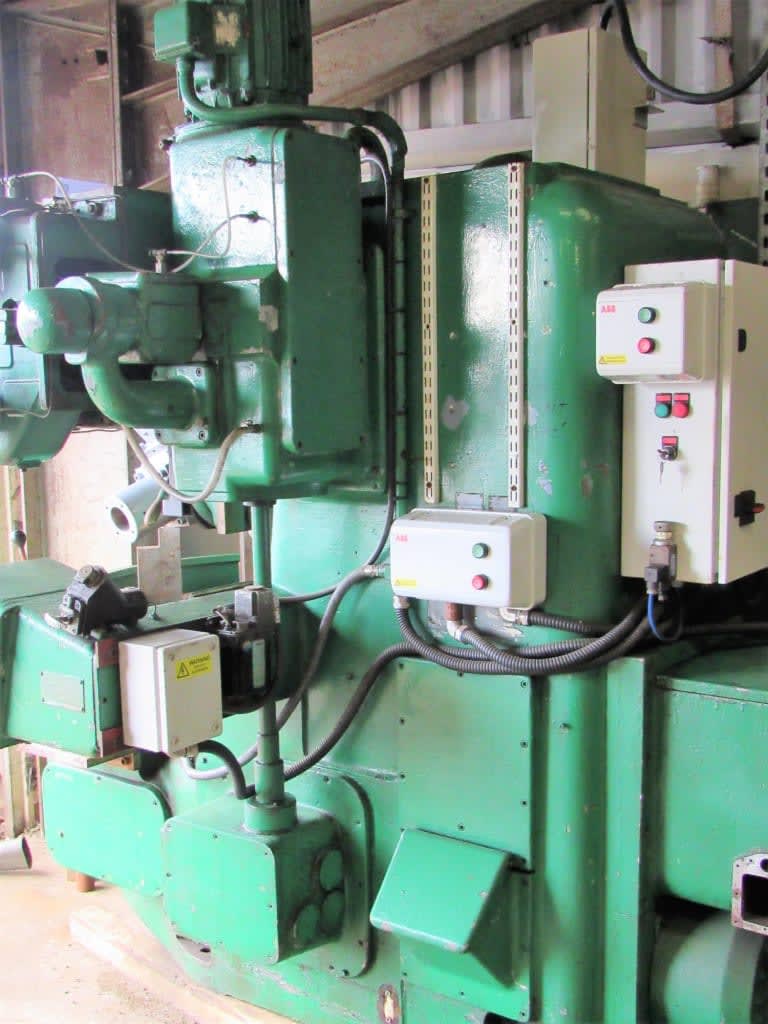

Kearns - Richards SH75 Horizontal Boring Machine with Newall E70-M Digital Read Out

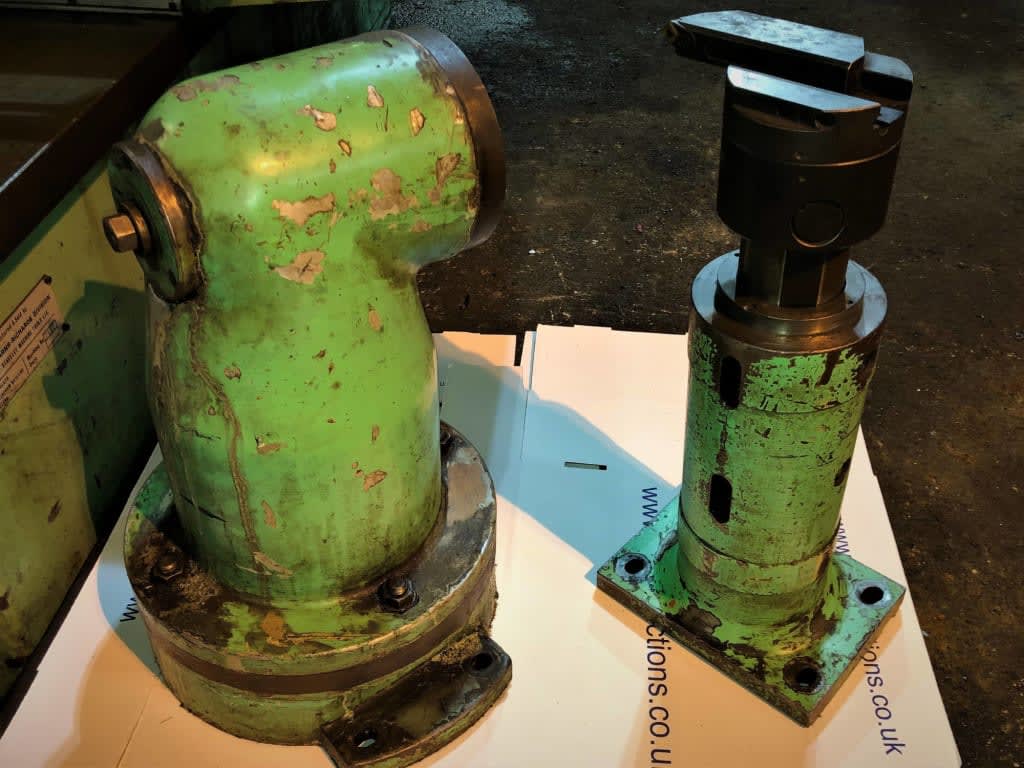

Serial No 7117. Built in Rotary Table Approx Dimensions 1000mm x 1000mm (5 Slots). Table Load Capacity 2000kg. Approx Travel - X axis Cross 1200mm: Y axis Vertical 1000mm: Z axis Spindle 500 mm: W axis Longitudinal 1000mm. Threading Capability. Hydraulic Clamping. Spindle Approx Ø75mm. Spindle Nose ISO 40. Power Draw Bolt. Facing Slide Approx Ø508mm. Facing Slide Capacity Approx Ø868mm. Spindle Speed Range 5.6 to 1120 rpm (27 Steps). Facing Head Speeds 5.6 to 280rpm. Variable Feed Drive - 0.72mm to 3800mm/min. Includes Right Angled head and Spindle Support Sleeves 210mm & 370mm Long - LOT 1

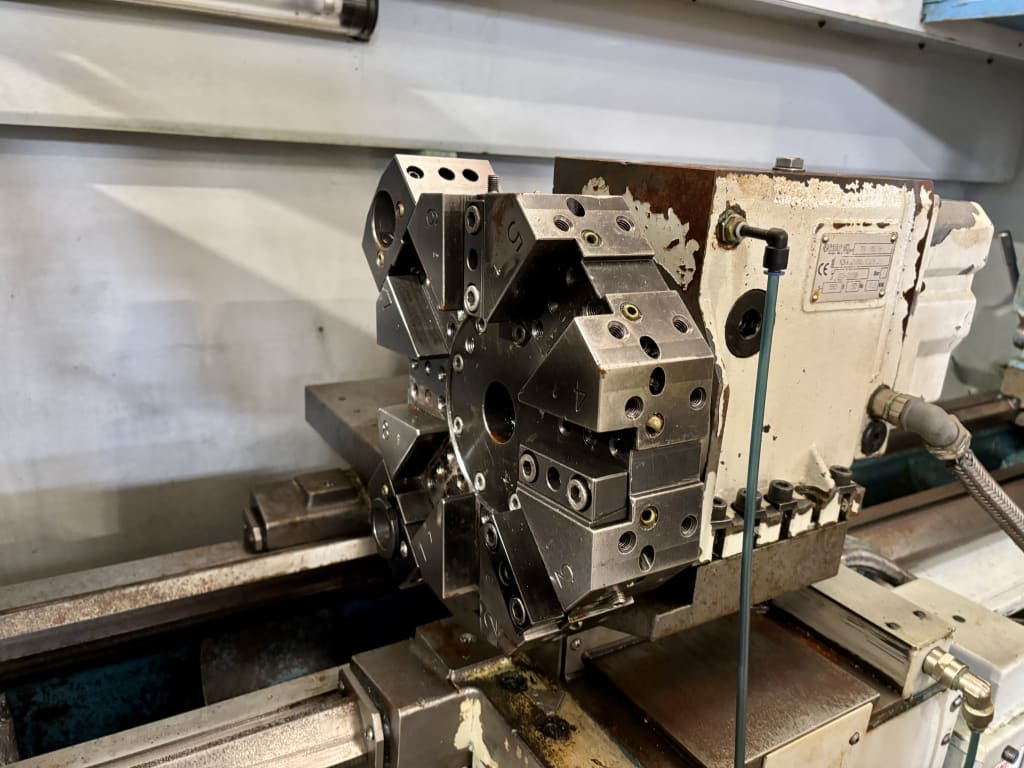

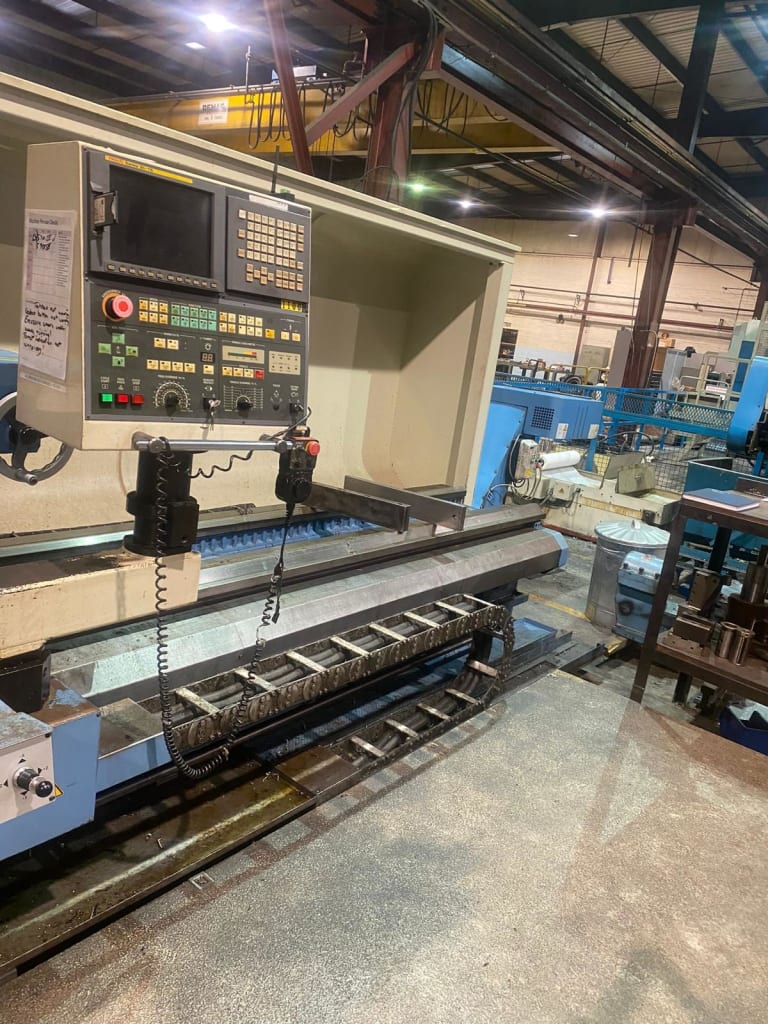

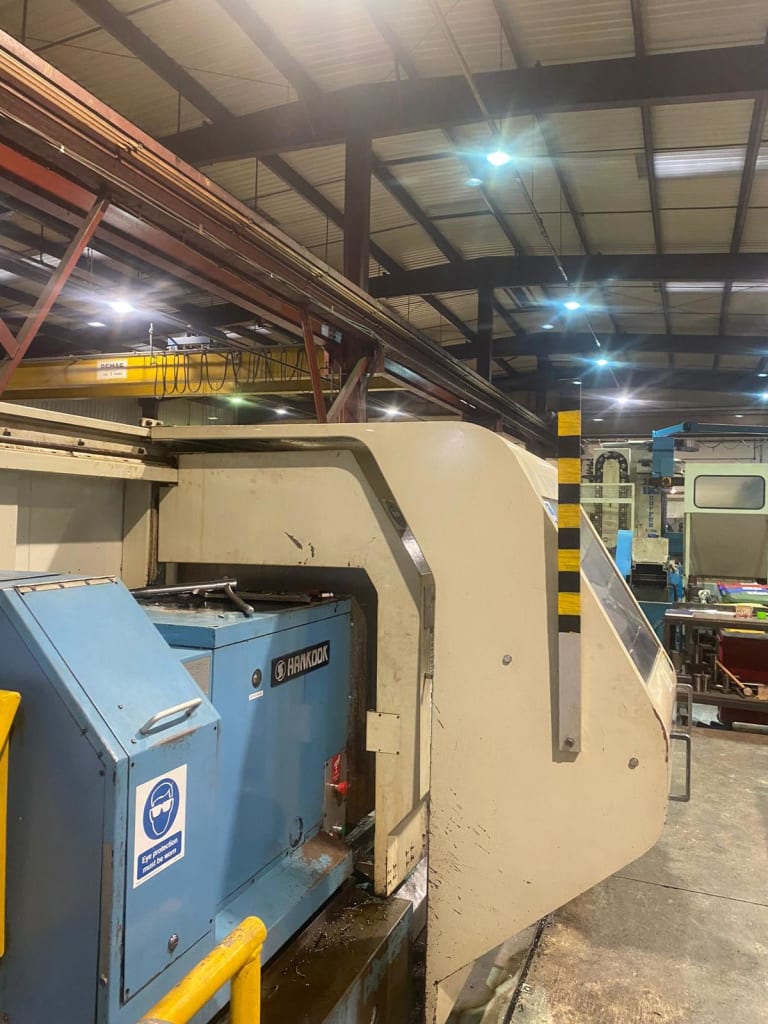

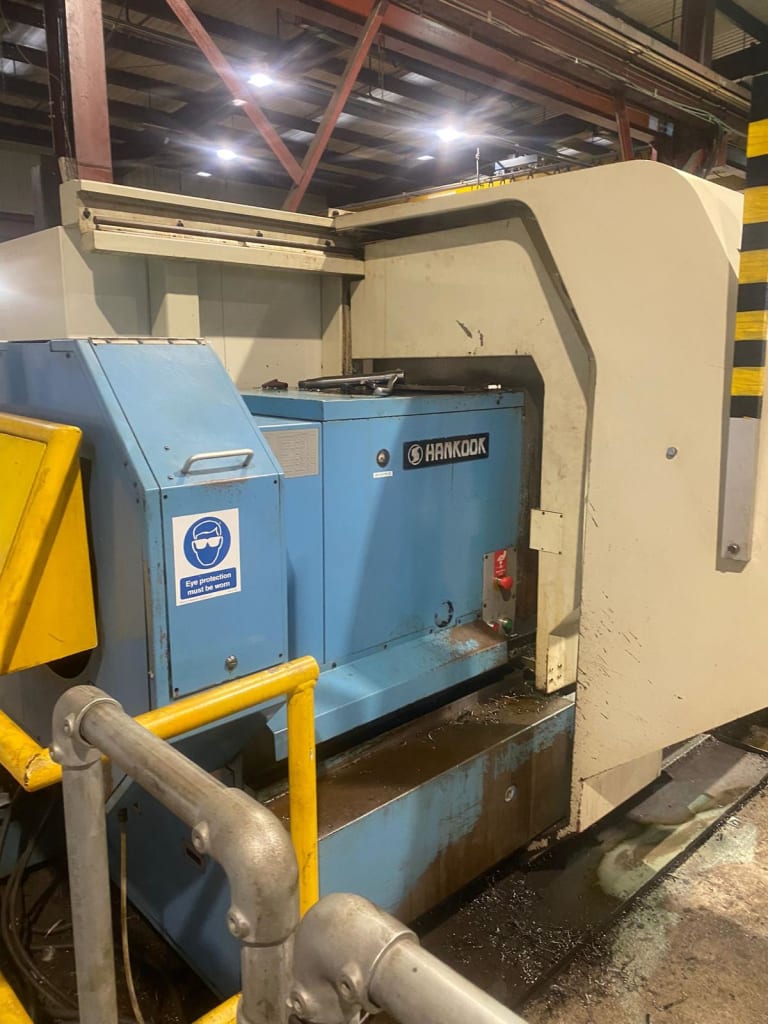

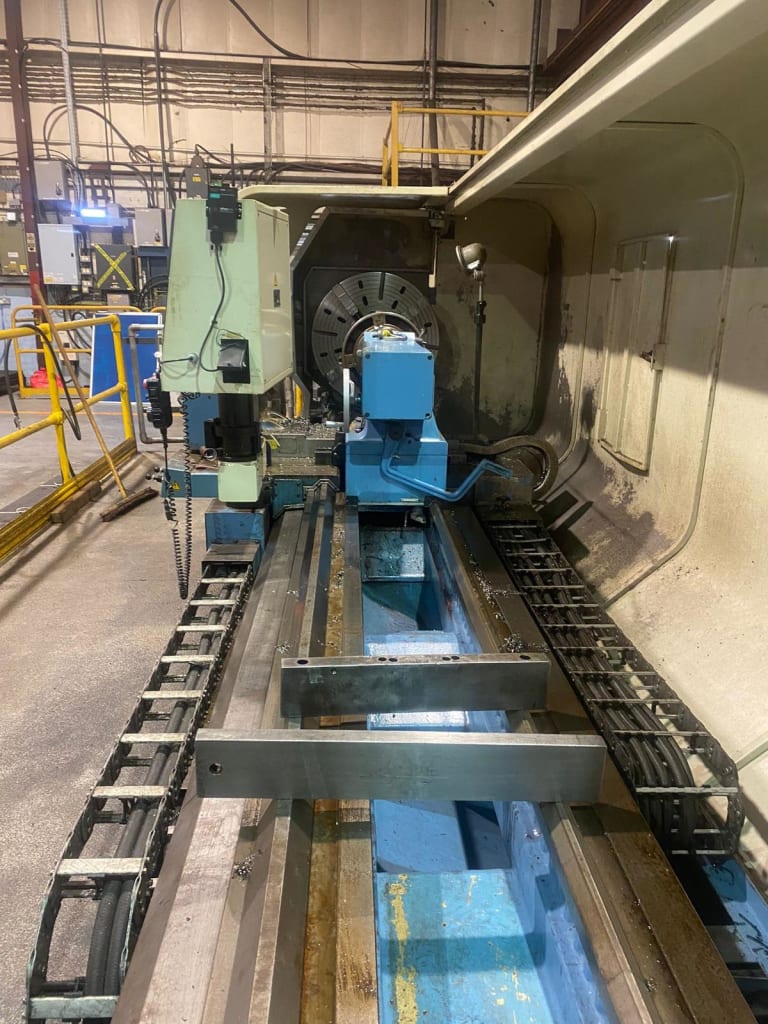

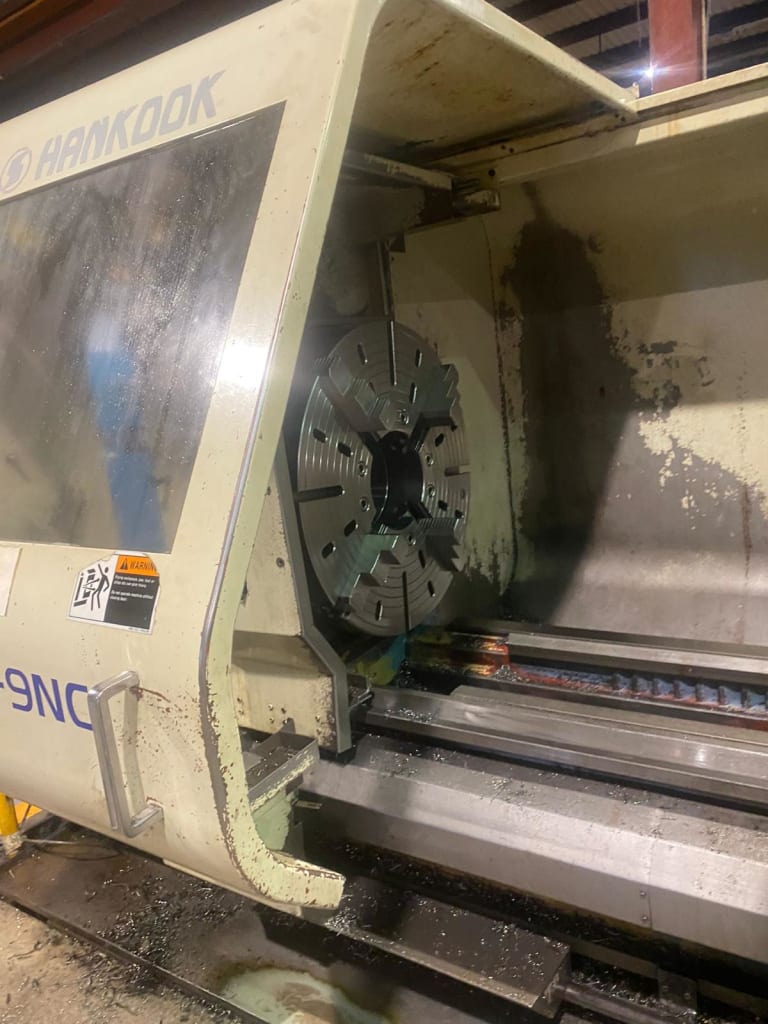

Hankook Protec-9NC CNC Heavy Duty Lathe With Fanuc 21i-TB Control
Ø800mm 4 Jaw Independent Chuck/Rear Ø800mm 4 Jaw Independent Chuck. Swing Over Bed Ø950mm. Swing Over Cross Slide Ø630mm. Maximum Turning Ø950mm. Maximum Turning Length 3,800mm. Maximum Load Between Centres 5,000kg. Bed Length 4,700mm. Axis Travel 'X'=535mm, 'Z'=3,845mm. Rapid Traverse 'X'=4m/min, 'Z'=6m/min. Spindle Bore Ø254mm. Spindle Nose Type A2-11". Speed Range 2-630rpm (Motor 22/26kW). Duplomatic 8 Station Turret. Tailstock Quill Ø160mm, Quill Stroke 250mm, Tailstock Taper MT6. Bed Width 630mm. - LOT 2

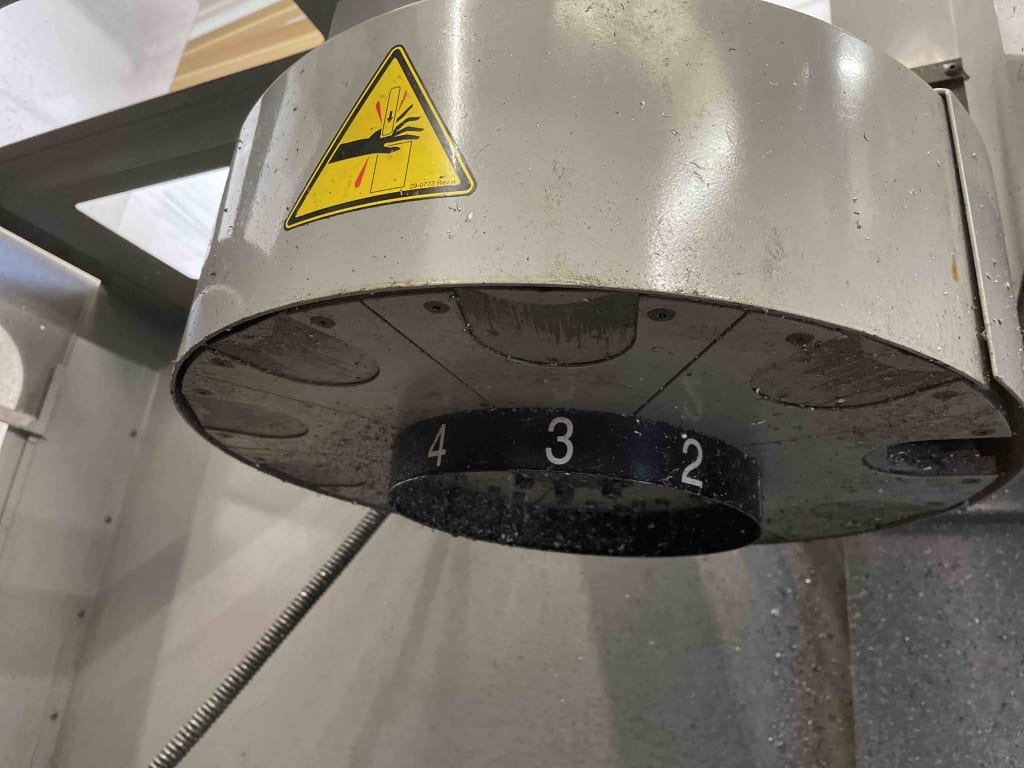

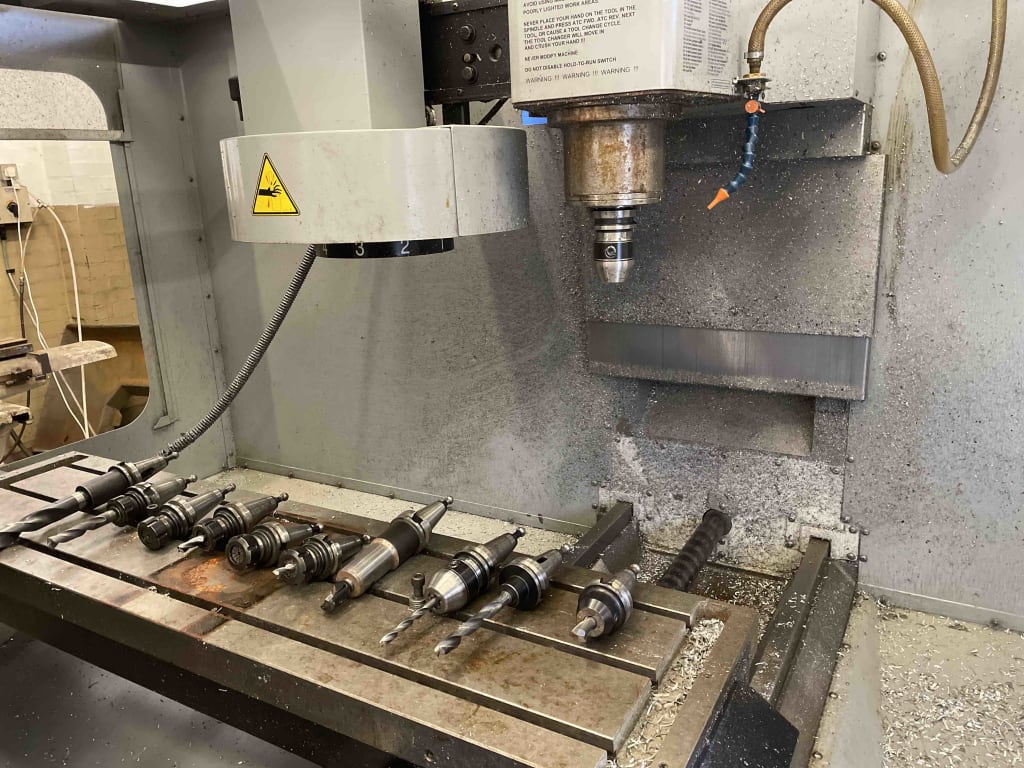

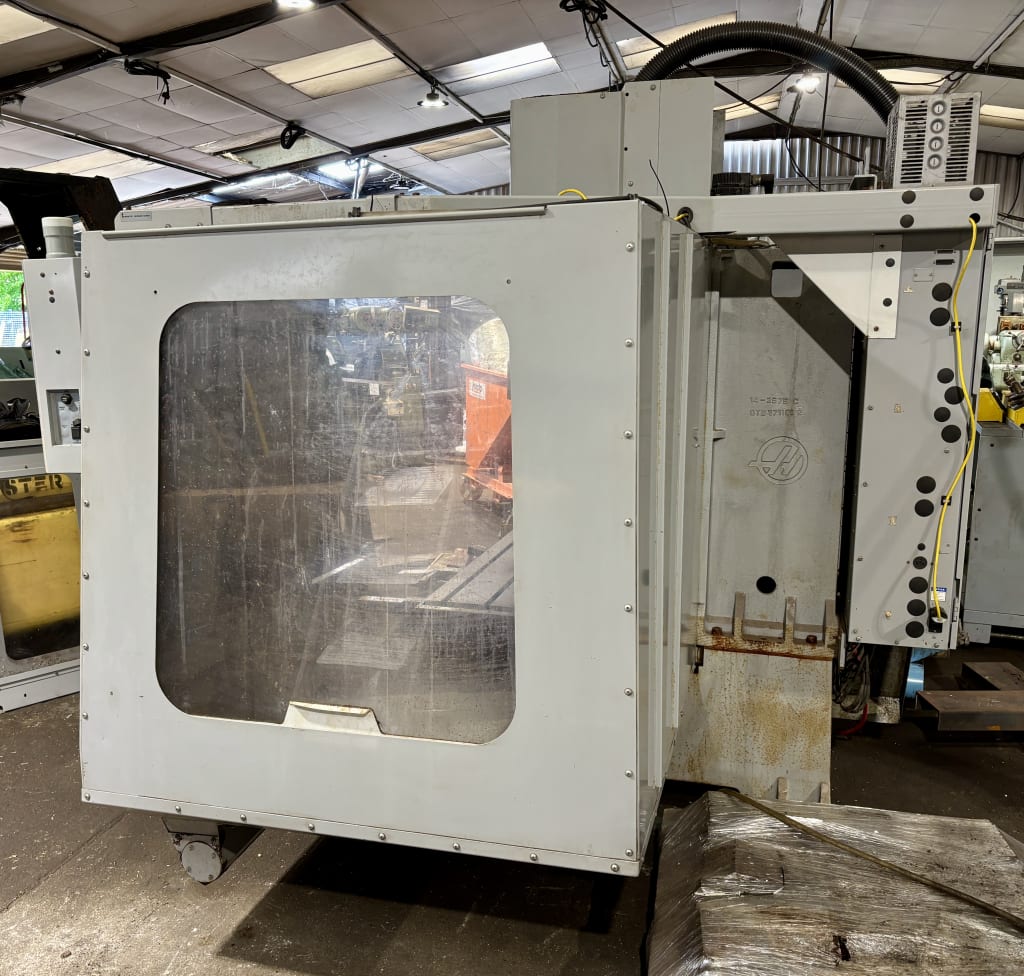

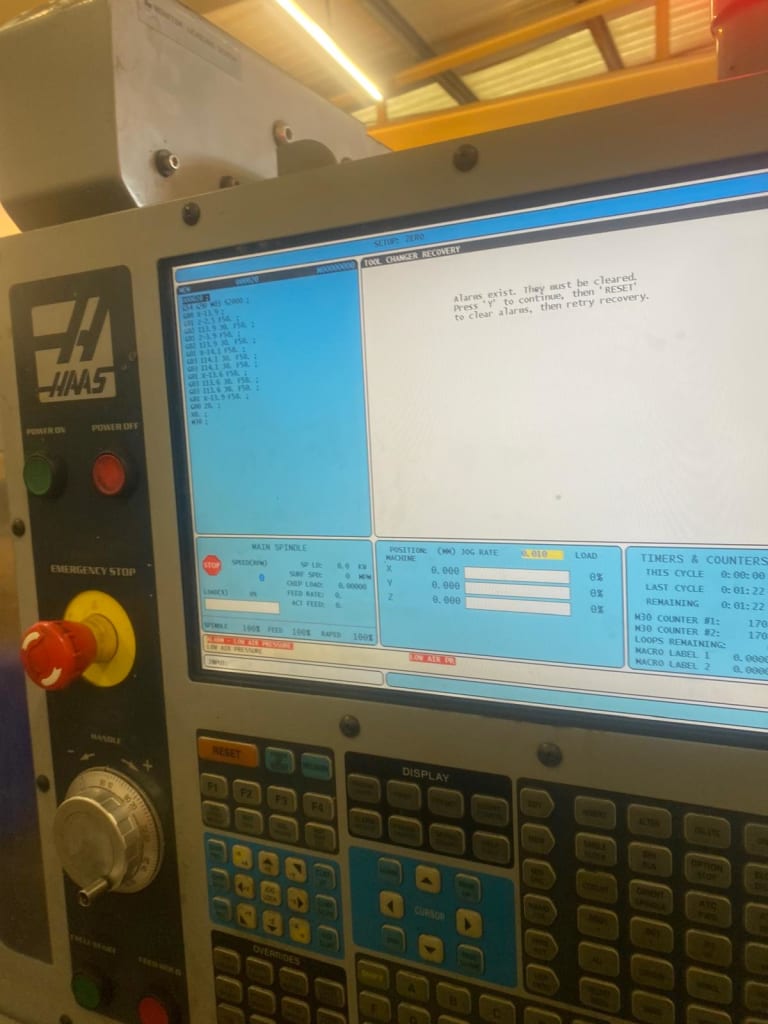

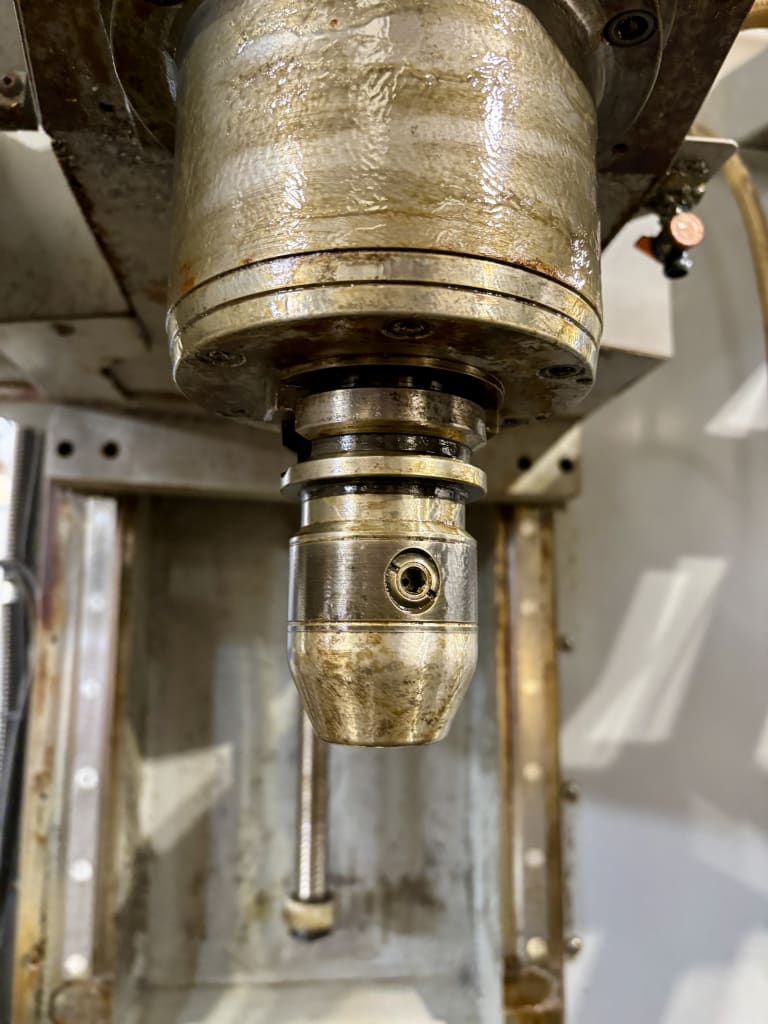

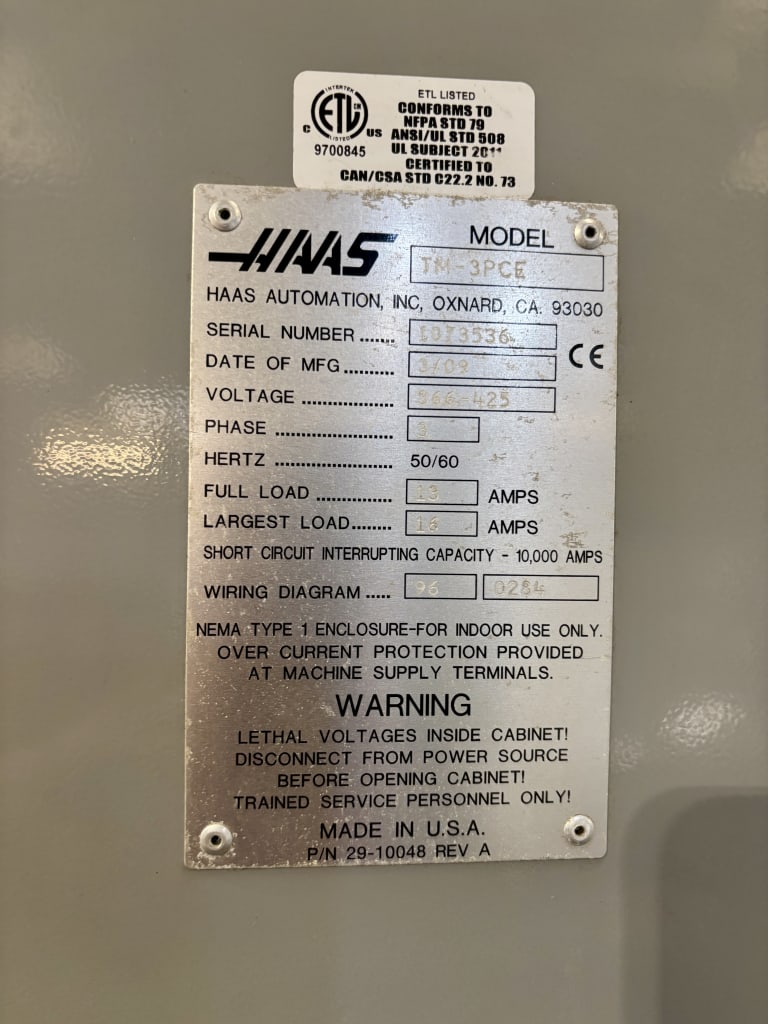

Haas TM-3 CNC Vertical Machining Centre
Table Dimension 1,470 x 370mm (3 'T' Slots). Axis Travel 'X'=1,016mm, 'Y'=508mm, 'Z'=406mm. Min–Maximum Height Under Spindle 102–508mm. Maximum Spindle Speed 6,000rpm (5.6kW Motor). Spindle Taper BT 40. 10 Position ATC. Maximum Tool Ø89mm, Maximum Tool Weight 5.4kg. S/No. 1073536 (2009). - LOT 3

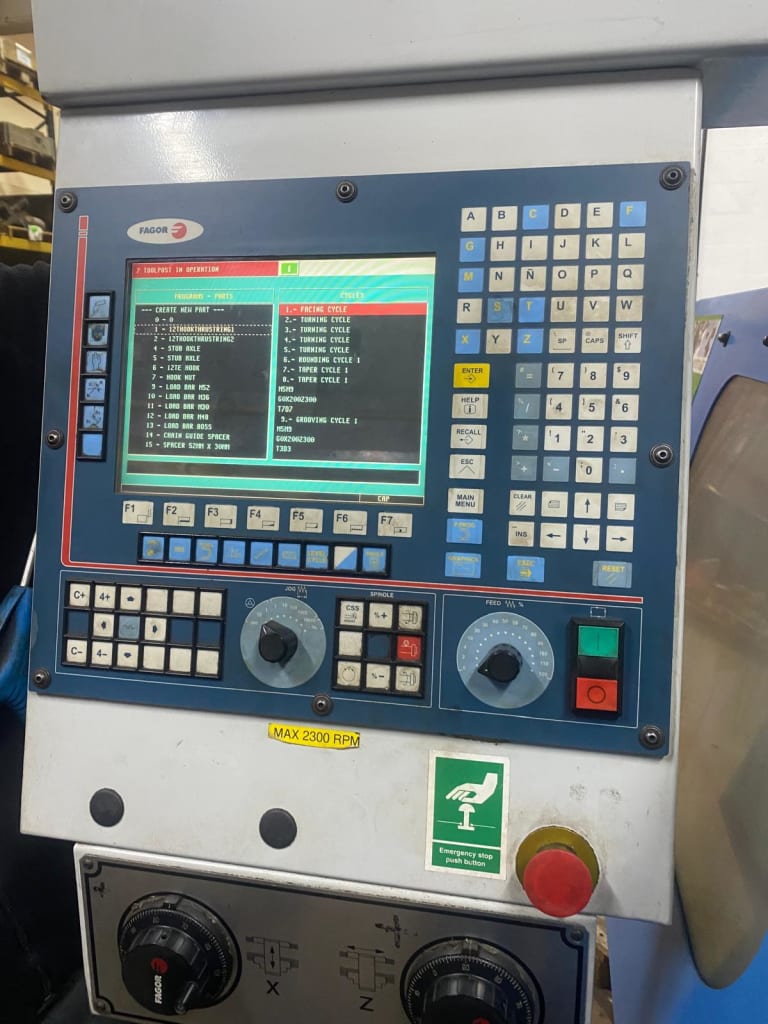

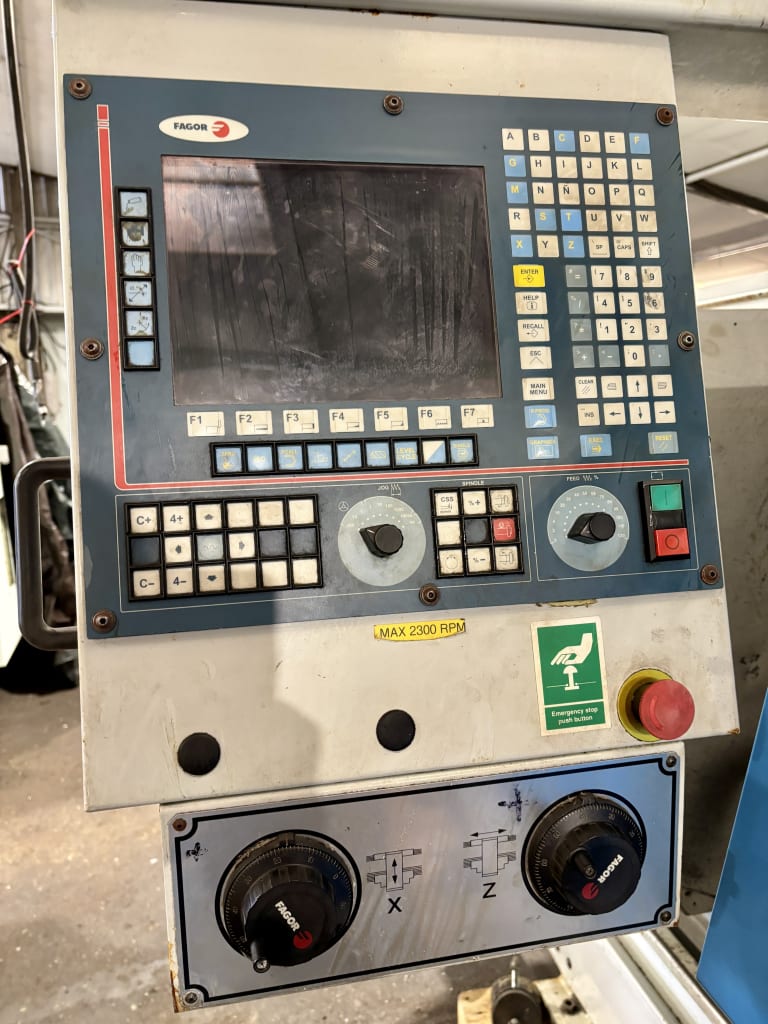

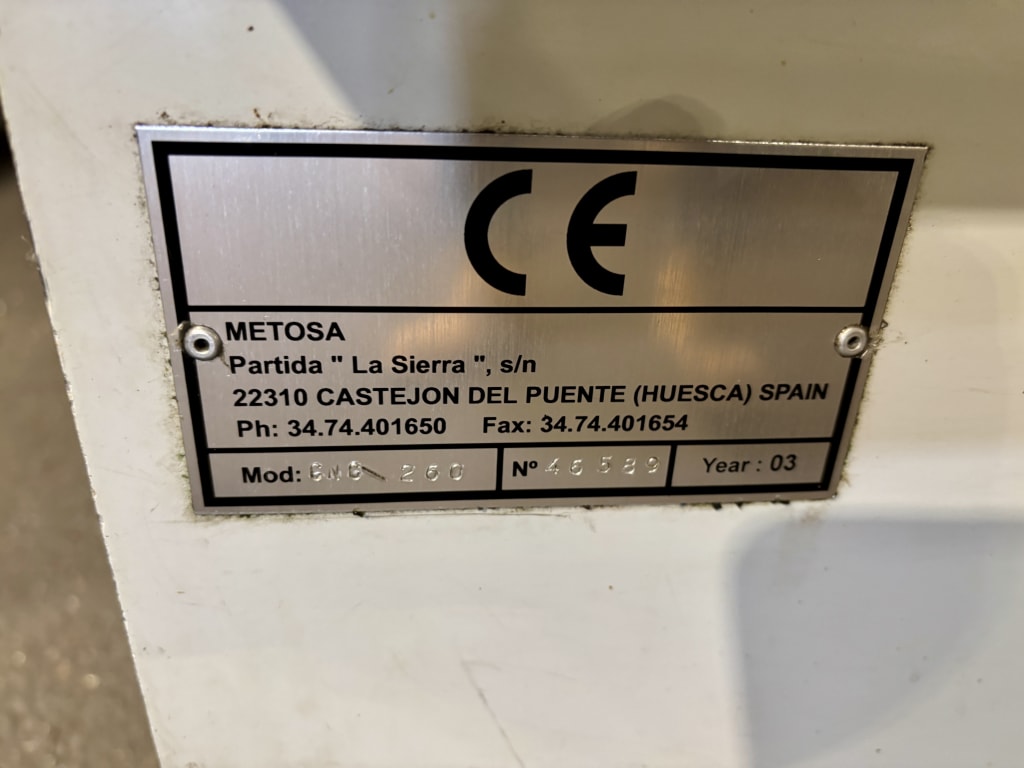

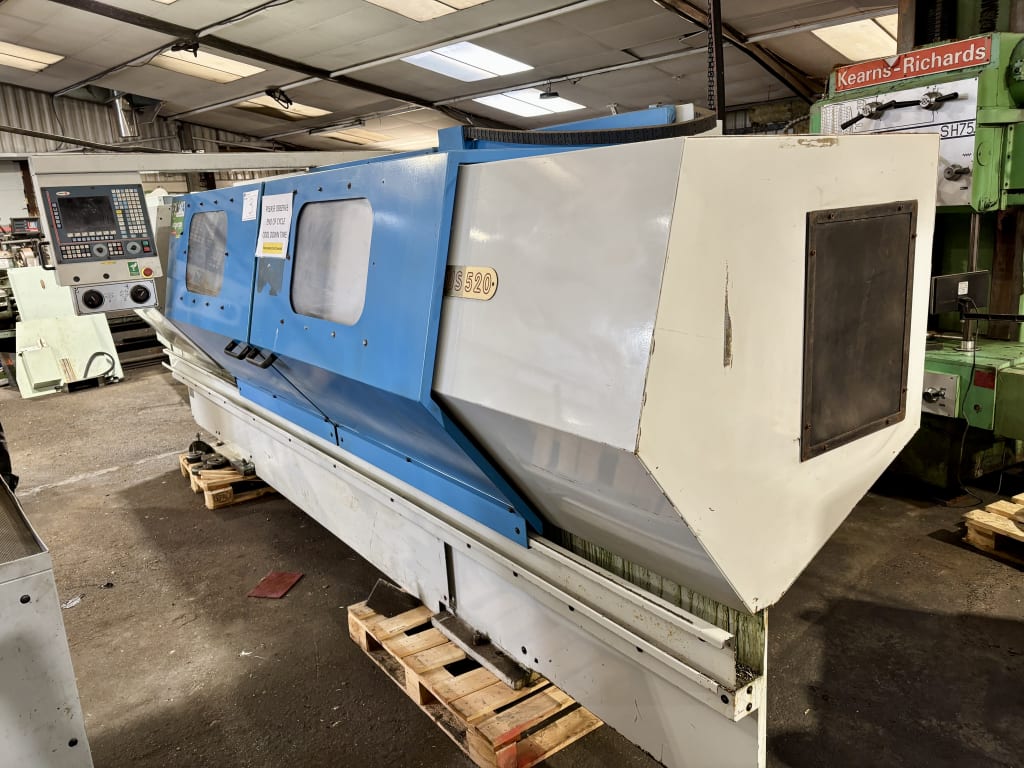

Taurus CNC\260 CNC Lathe With Fagor Control
Ø315mm 3 Jaw Manual Chuck. Maximum Swing Ø530mm. Maximum Swing Above Cross Slide Ø315mm. Maximum Spindle Speed 2,300rpm. 8 Position Turret. Spindle Bore Ø80mm. S/No. 46589 (2003). - LOT 4

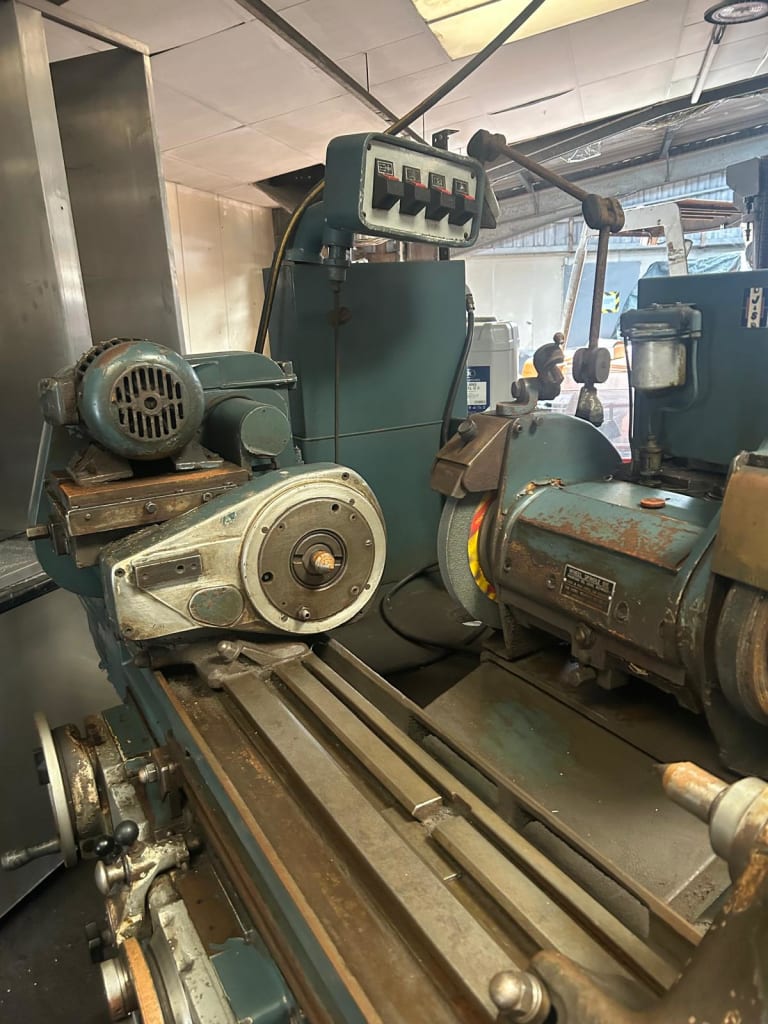

Jones & Shipman 1300 Cylindrical Grinder
Axis Travel 'X'=686mm, 'Y'=254mm, Table rotation 20 to -18 degrees. Centre Height 127mm. Spindle 5 Morse Taper. Grinding Wheel Size Ø305mm x 25mm. Maximum Weight Between Centres 100kg. Spindle Speed Range 40-2,300rpm. - LOT 5

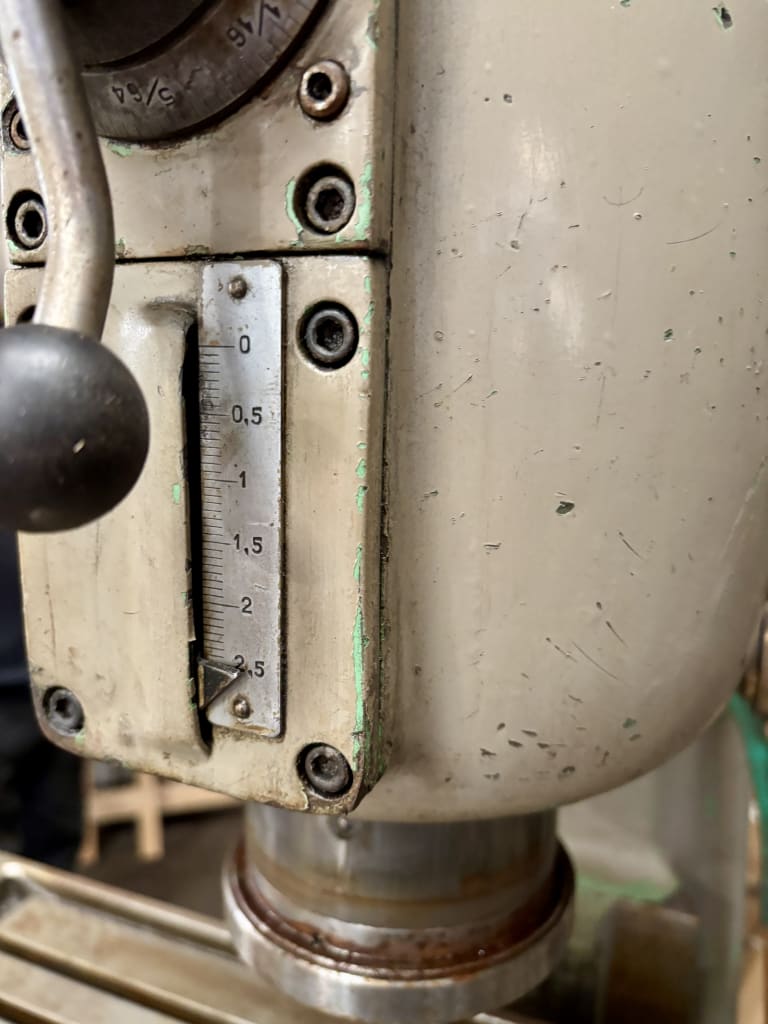

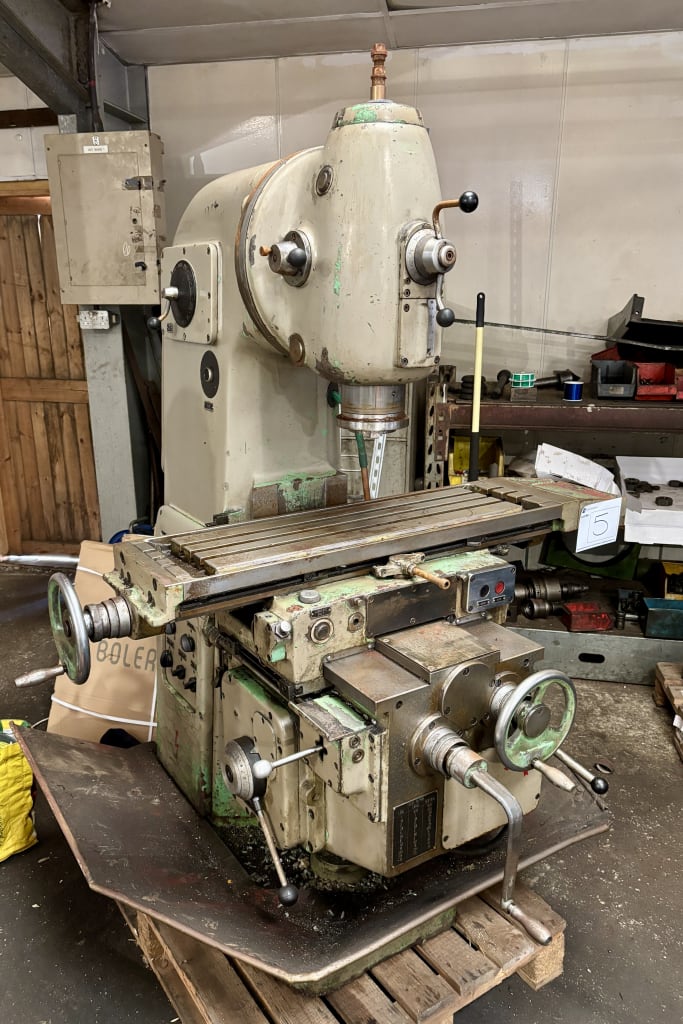

Vertical Milling Machine
Table Dimension 870 x 260mm (3 'T' Slots). Speed Range 71-2,240rpm. Spindle Taper ISO 40. - LOT 6

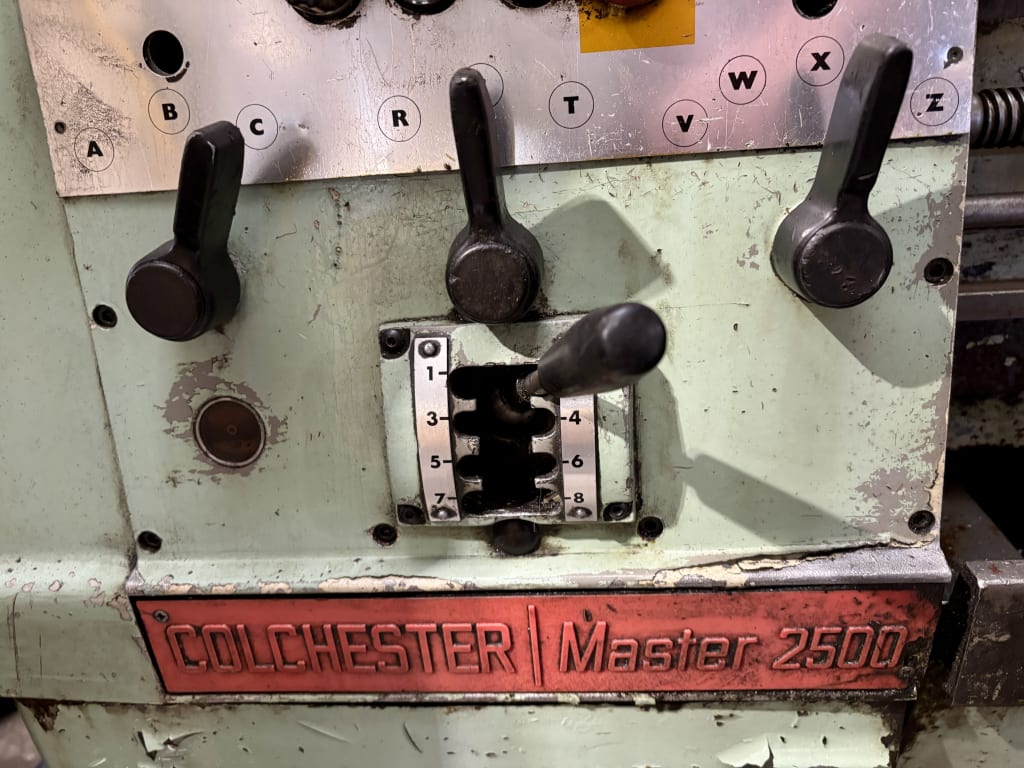

Colchester Master 2500 Straight Bed Centre Lathe
Ø205mm 3 Jaw Chuck. Approx Swing Over Bed Ø330mm. Approx Swing Over Cross slide Ø220mm. Distance Between Centres 750mm. Spindle Through Bore Ø42mm. Speed Range 30-2,500rpm. QTC. - LOT 7

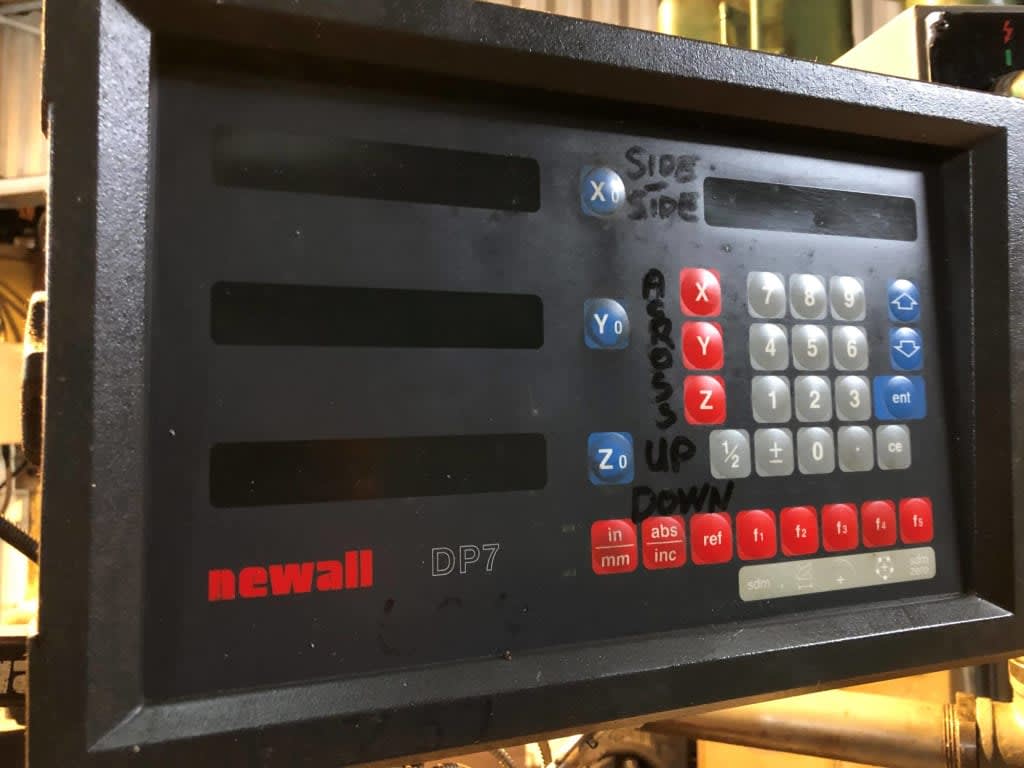

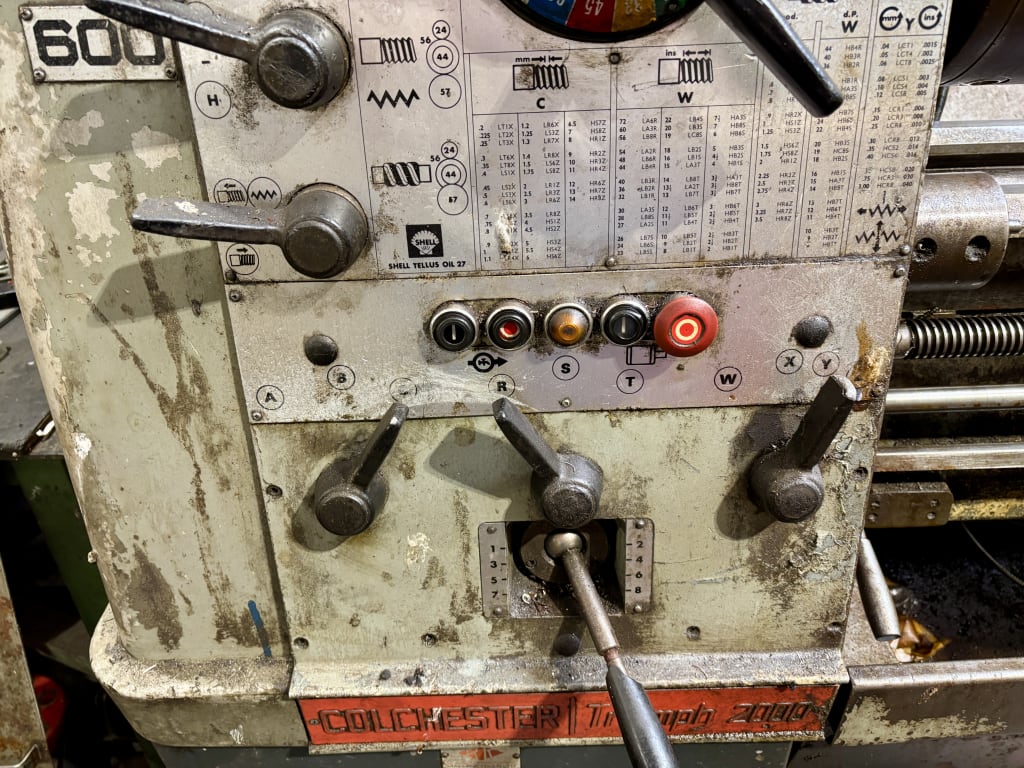

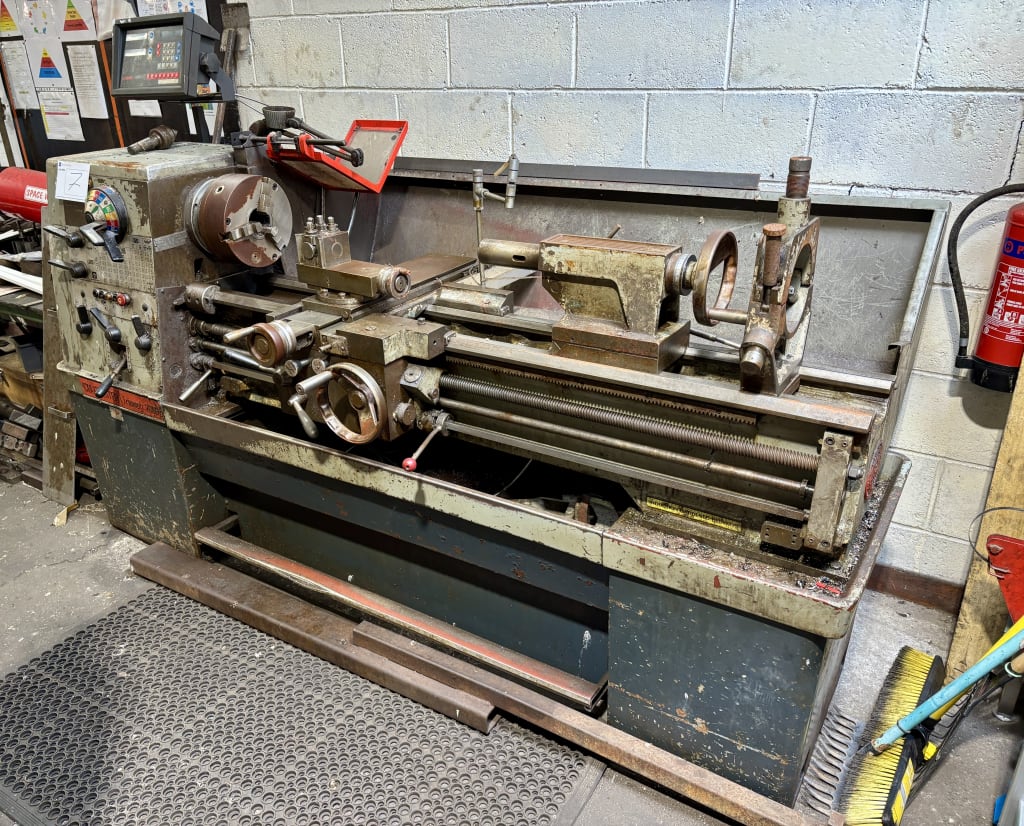

Colchester Triumph 2000 Straight Bed Centre Lathe With Newall DP7 DRO
With 3 Jaw Ø250mm Chuck. Swing Over Bed Ø381mm, Swing Over Cross Slide Ø229mm, Swing In Gap Ø584 x 152mm. Distance Between Centres 1,000mm. Spindle Bore Ø54mm. (16) Speed Range 25-2,000rpm. QTC. Tailstock MT 5. - LOT 8
Bumen Lumsden Vertical Grinder
Magnetic Table Dimension Ø500mm. Wheel Dimension Ø310mm. With Coolant System. - LOT 9

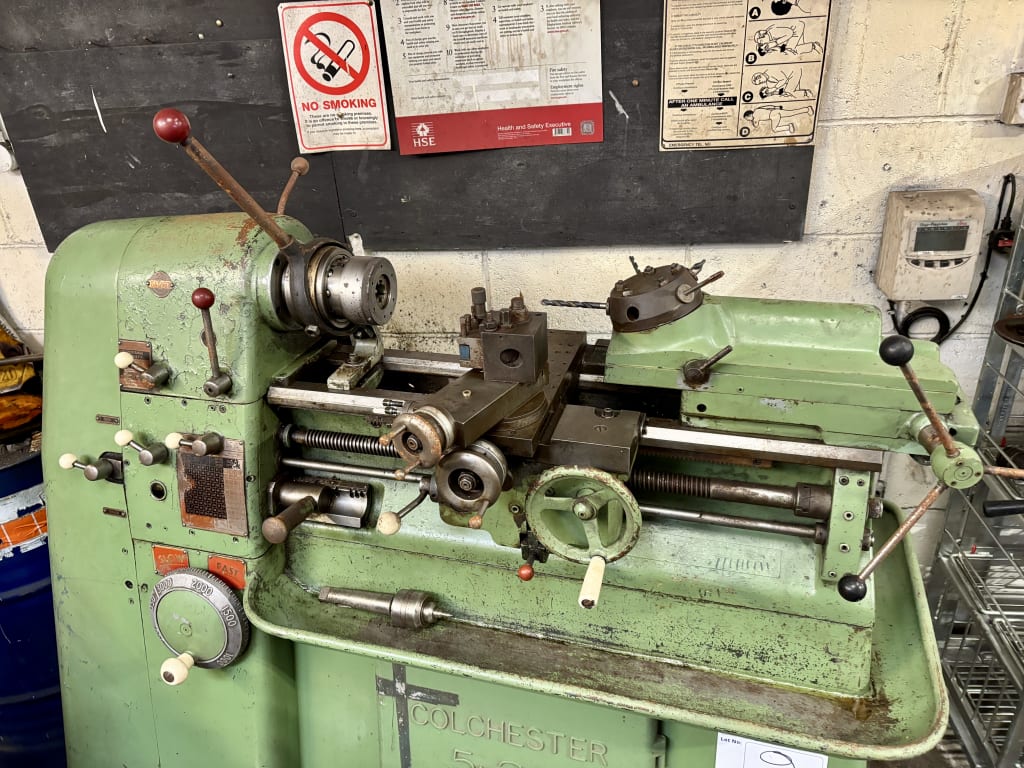

Colchester 5 x 20" Chipmaster Lathe
With Collet Chuck. Maximum Swing Ø254mm x 508mm Between Centres. Variable Speeds 35 to 3,000rpm. 5 Station Turret. QTC. - LOT 10

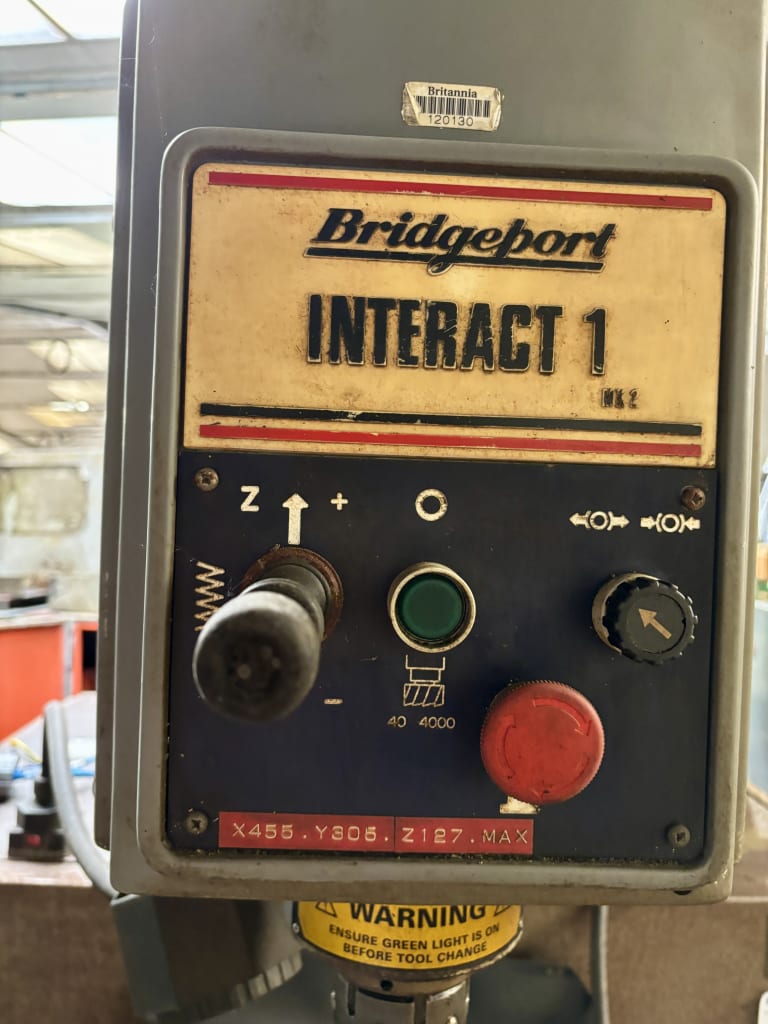

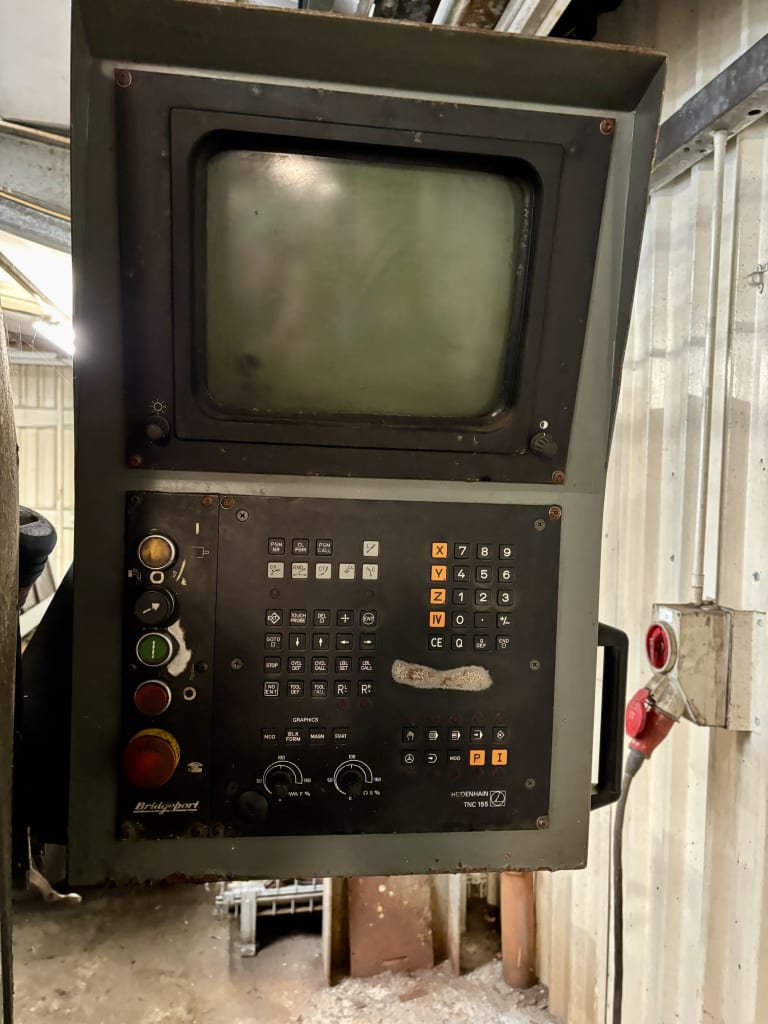

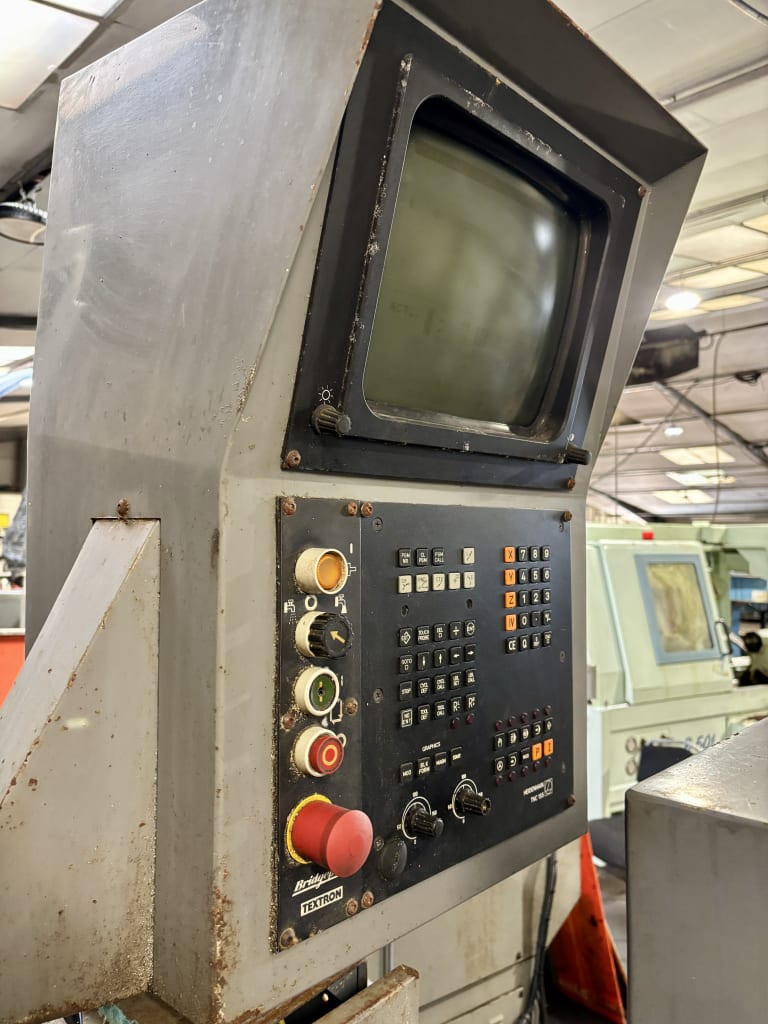

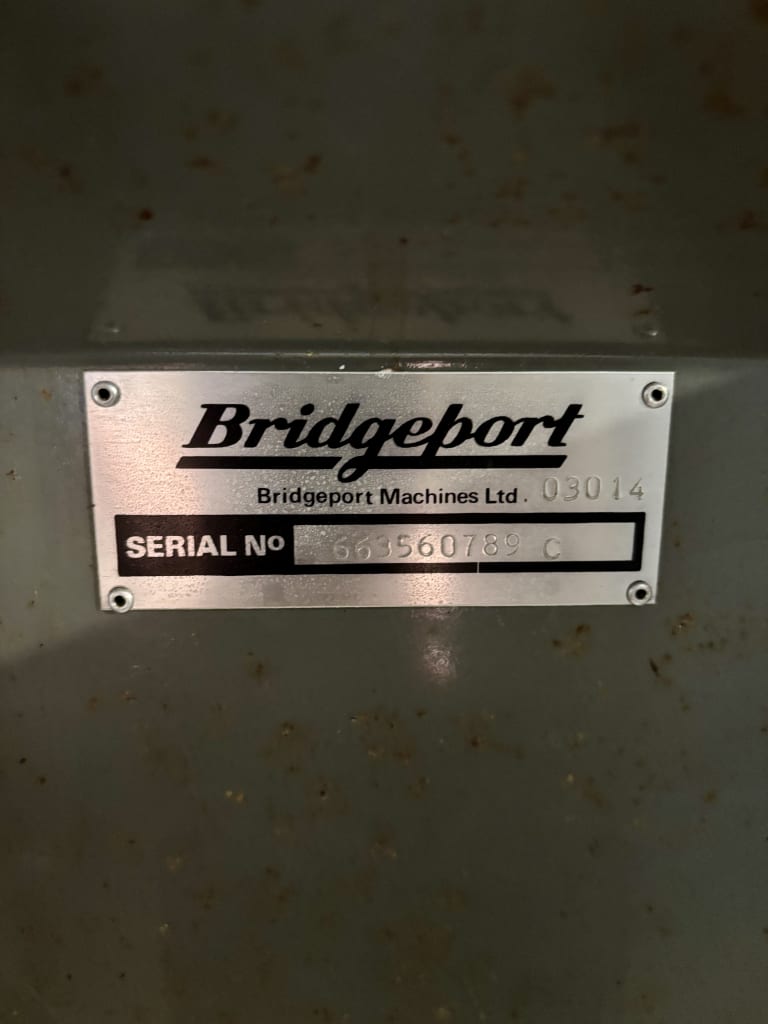

Bridgeport Interact 1 MkII CNC Vertical Machining Centre With Heidenhain TNC 155 Control
Table Dimension 1,066 x 307mm (3 'T' Slots). Axis Traverses 'X'=457mm, 'Y'=305mm, 'Z'=125mm. Spindle Speed Range 40-4,000rpm (Motor 6.9kW). 30 ISO Taper. S/No.663560789C. - LOT 11
Bridgeport Interact 1 MkII CNC Vertical Machining Centre With Heidenhain TNC 155 Control
Table Dimension 1,066 x 307mm (3 'T' Slots). Axis Traverses 'X'=457mm, 'Y'=305mm, 'Z'=125mm. Spindle Speed Range 40-4,000rpm (Motor 6.9kW). 30 ISO Taper. S/No. 644520286A. - LOT 12

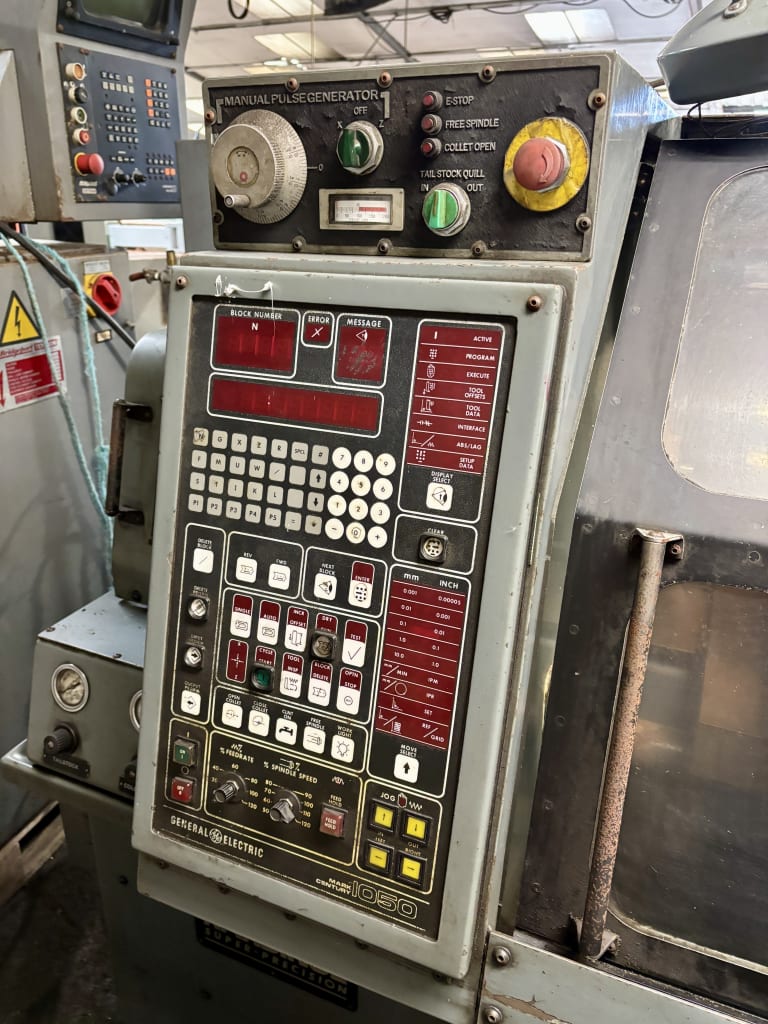

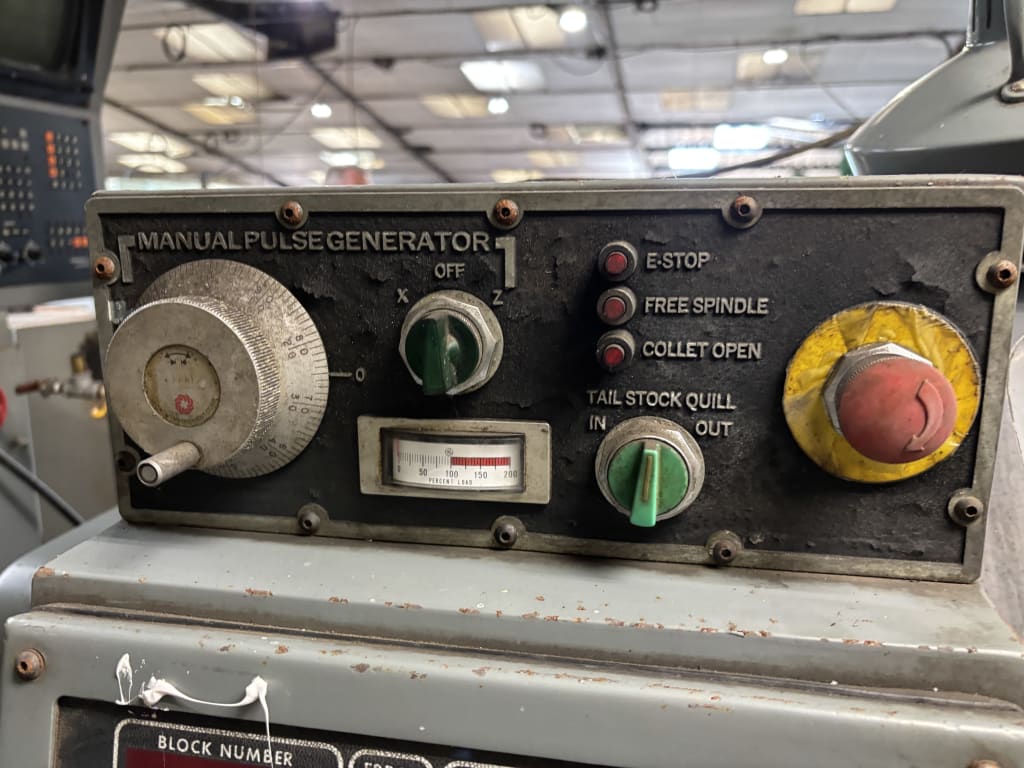

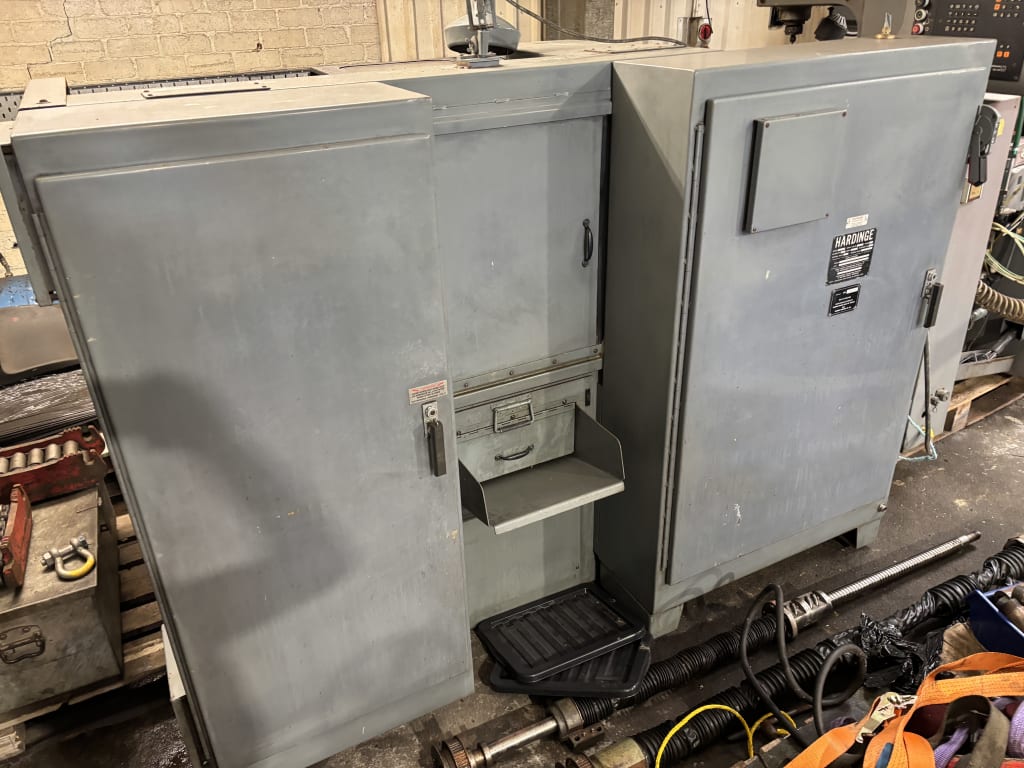

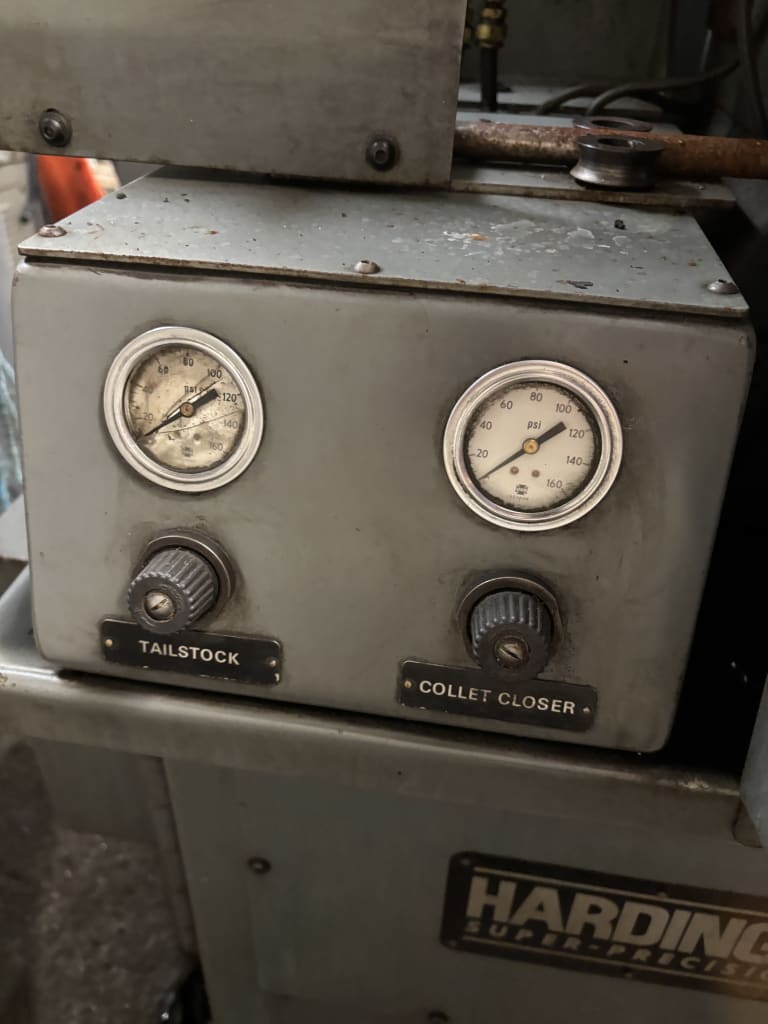

Hardinge Super Precision HXL CNC Lathe With General Electric Mark Century 1050 Control
Collet Chuck. 500mm Between Centres. 5kW Motor. S/No. 233/1304. - LOT 14
- LOT 15

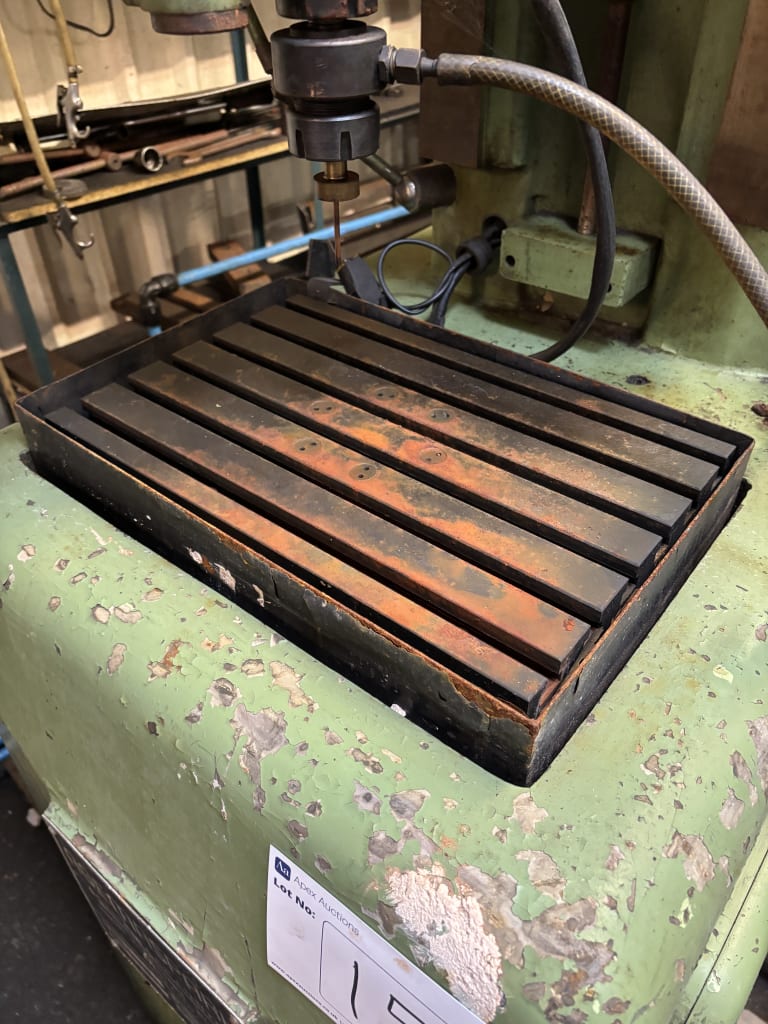

Eurospark F400 RP EDM
Table Dimension 405 x 270mm (6 'T' Slots). Tank Dimension 445 x 290mm. Power 1.5kW. Collet Chuck. S/No. 303. - LOT 16

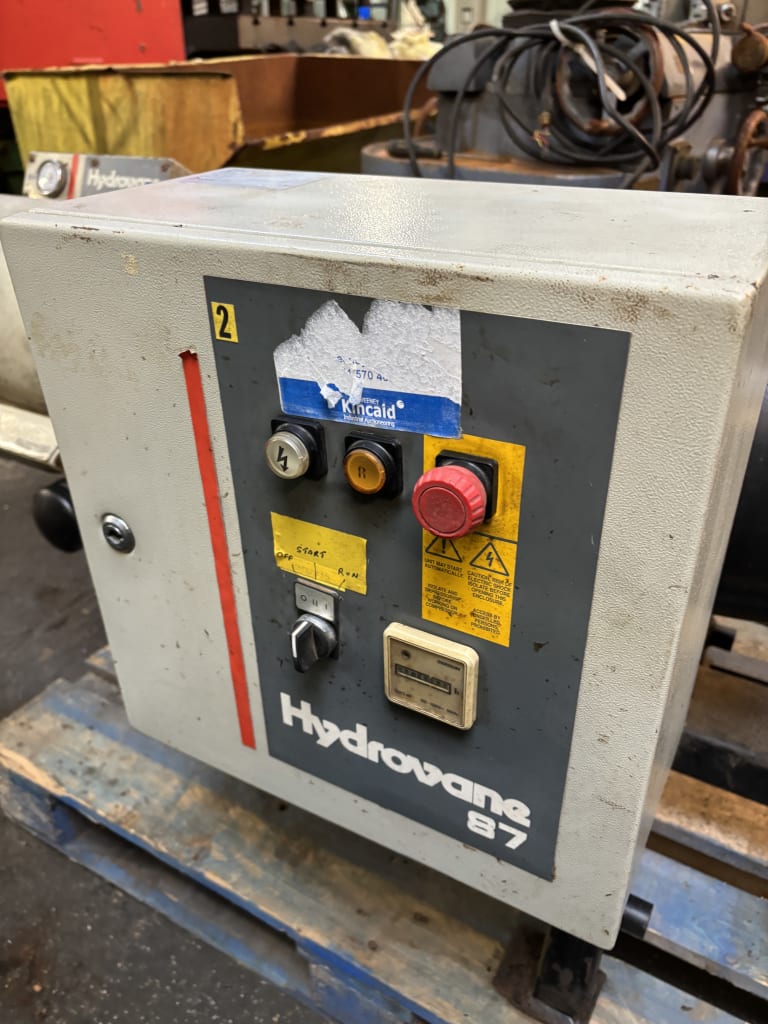

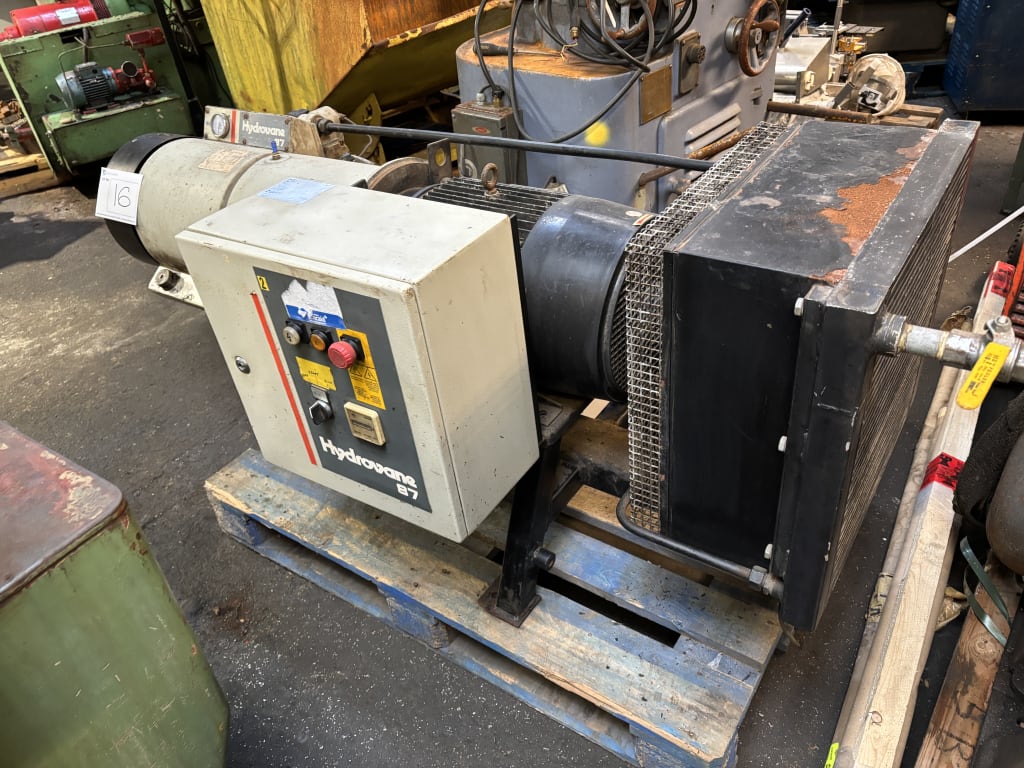

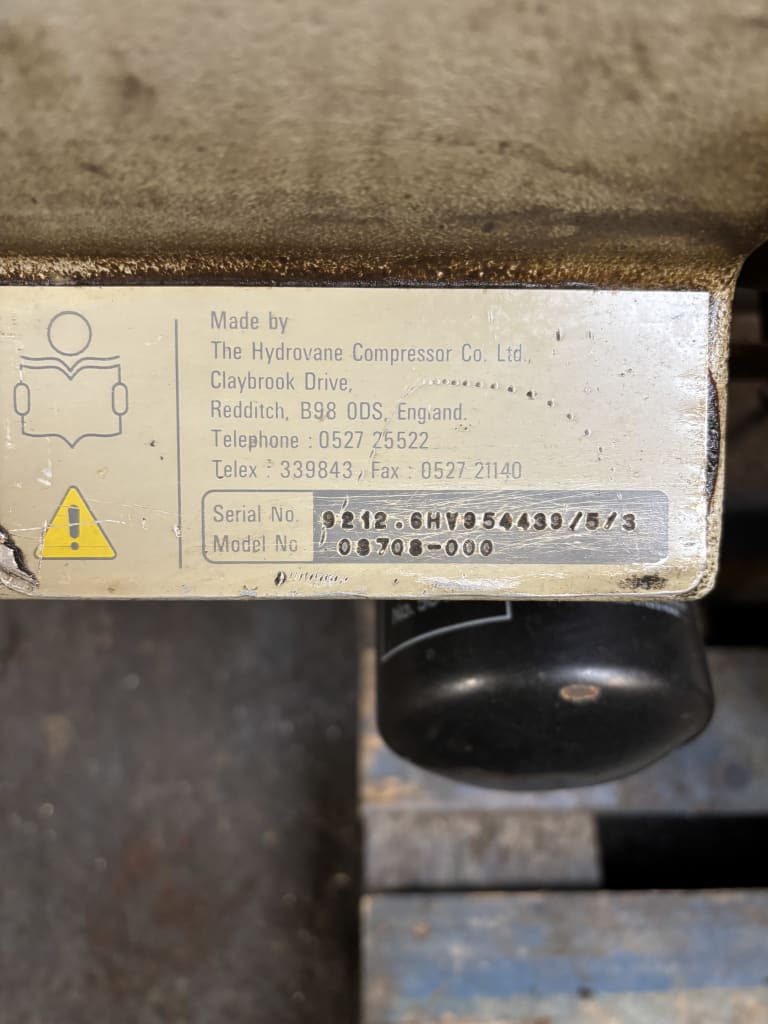

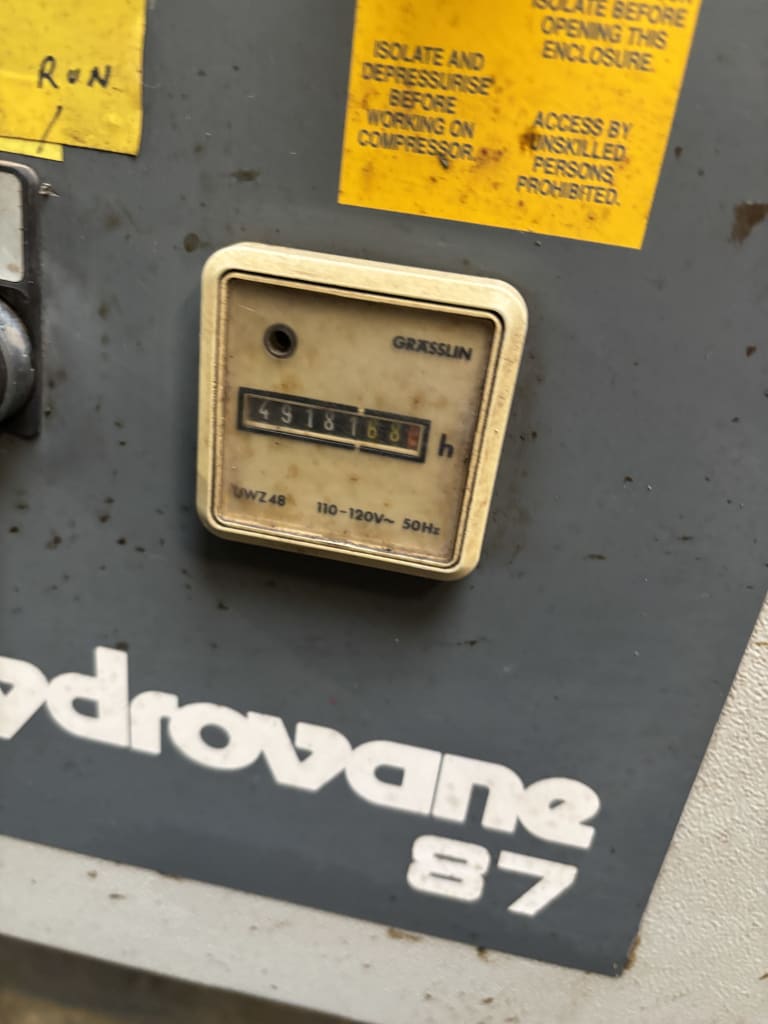

Hydrovave 87 Rotary Vane Compressor and After Cooler
Maximum Working Pressure 6 bar. Power 11kW. - LOT 17
- LOT 19

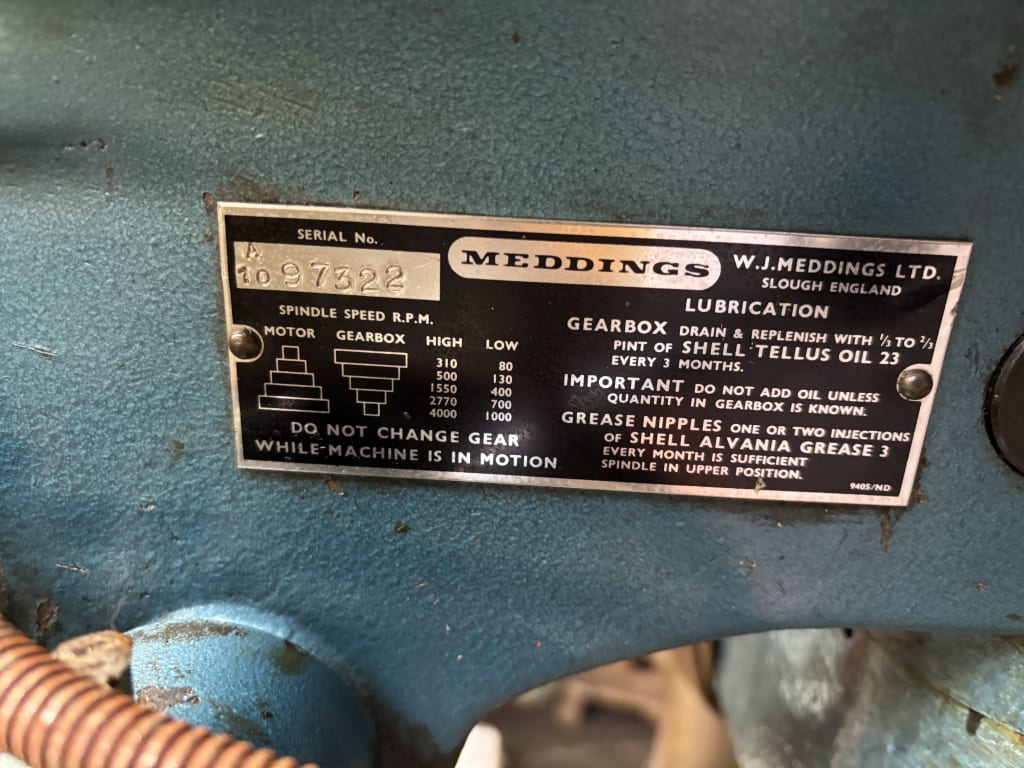

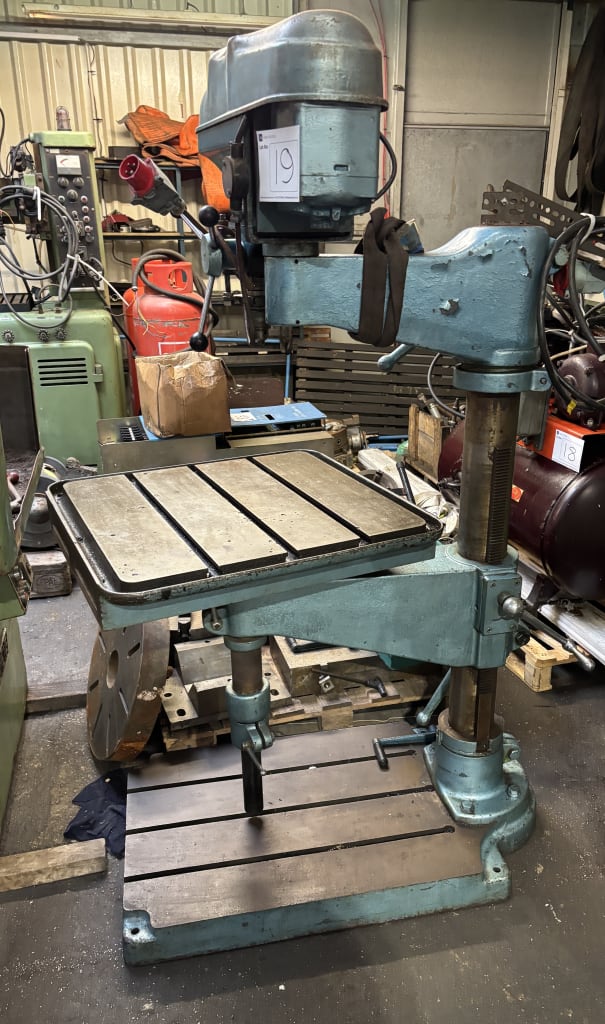

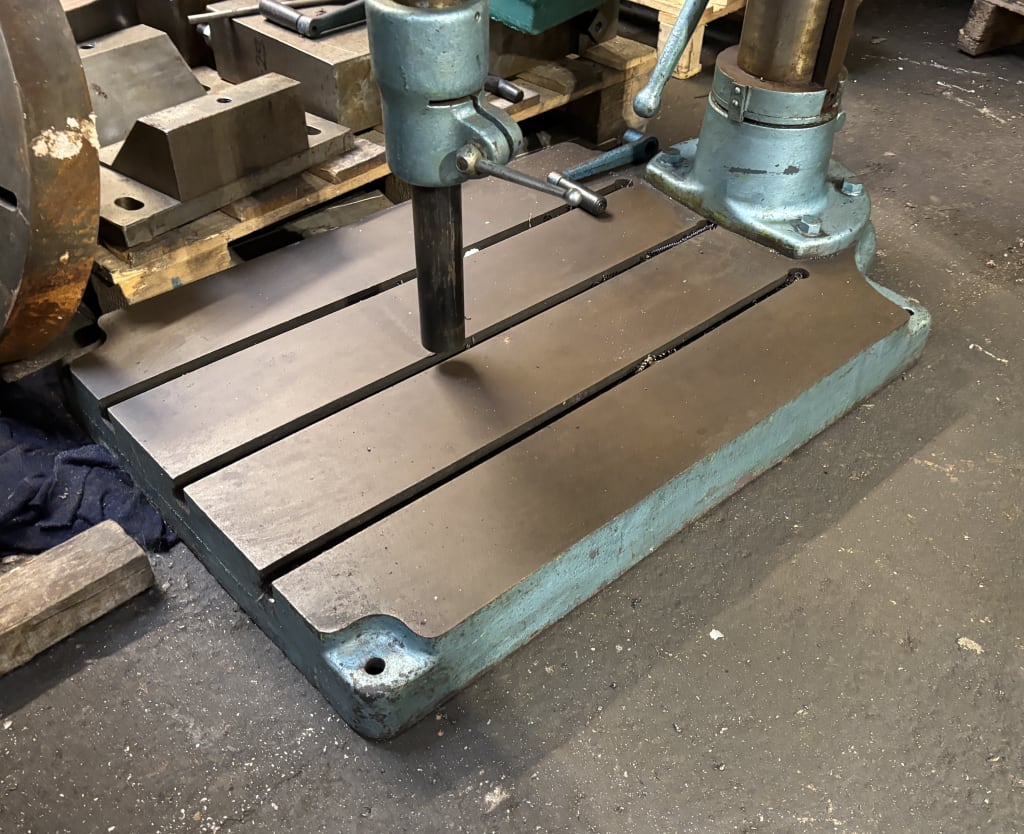

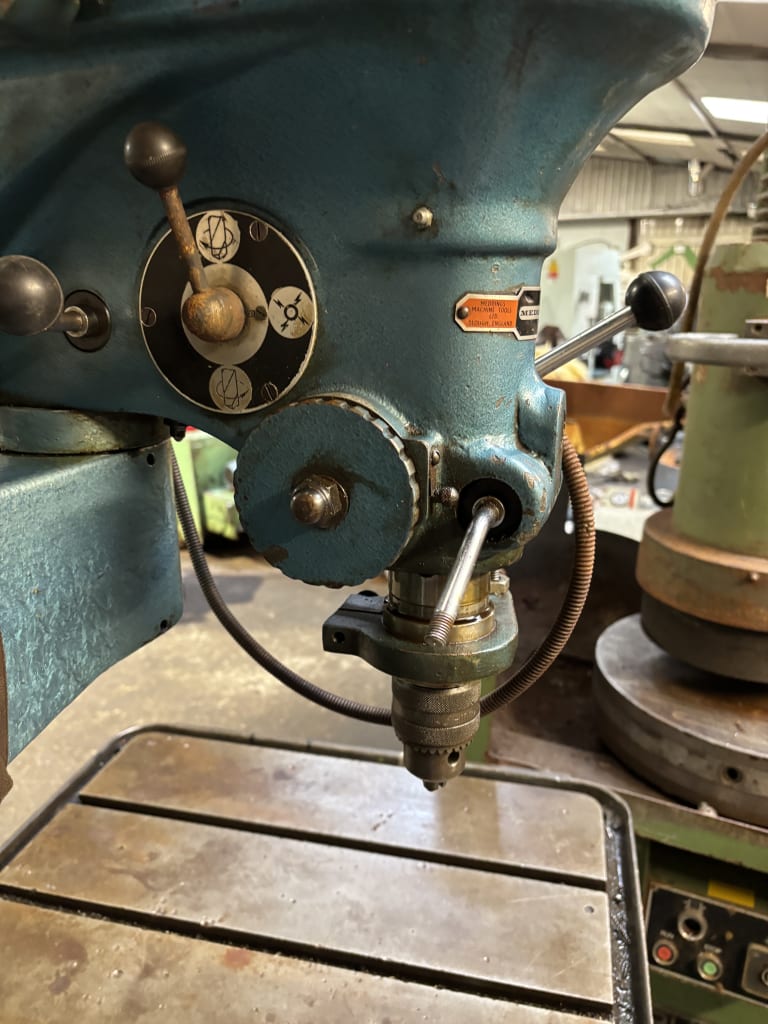

Meddings Radial Arm Drill
Rise & Fall Table Dimension 615 x 615mm (3 'T' Slots). Speed Range 80-4,000rpm. S/No. A1097322. - LOT 20

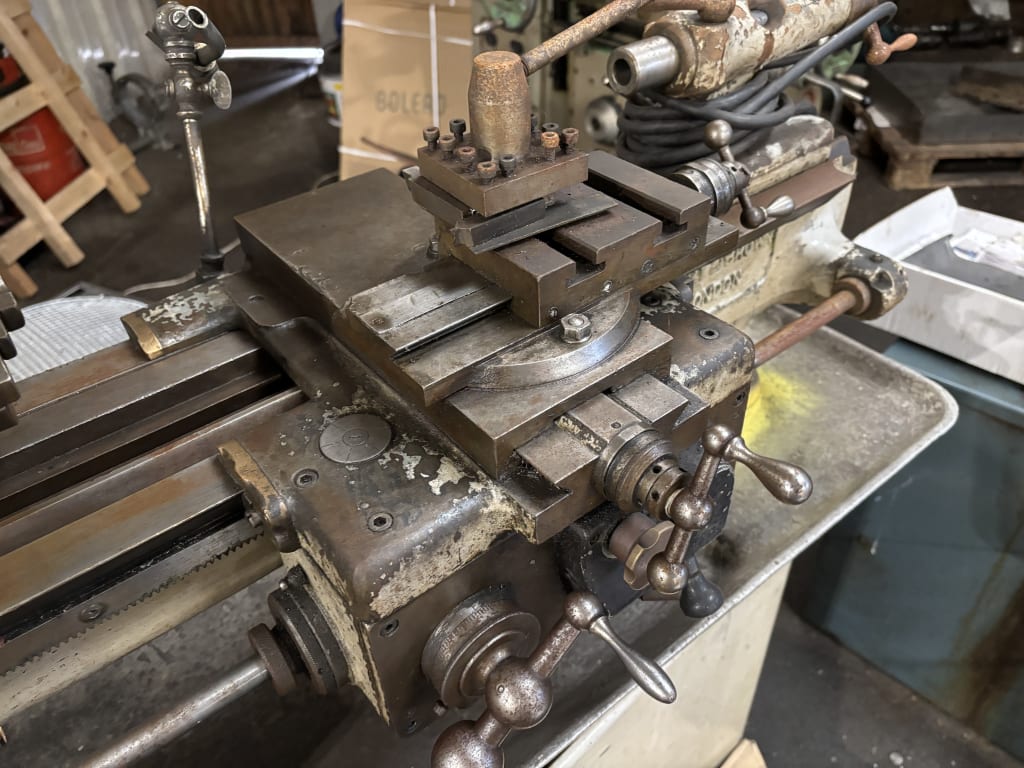

Smart & Brown Lathe
Ø125mm 3 Jaw Chuck. Approx Swing Ø200mm. Approx Swing Over Cross Slide Ø130mm. Distance Between Centres 420mm. - LOT 21

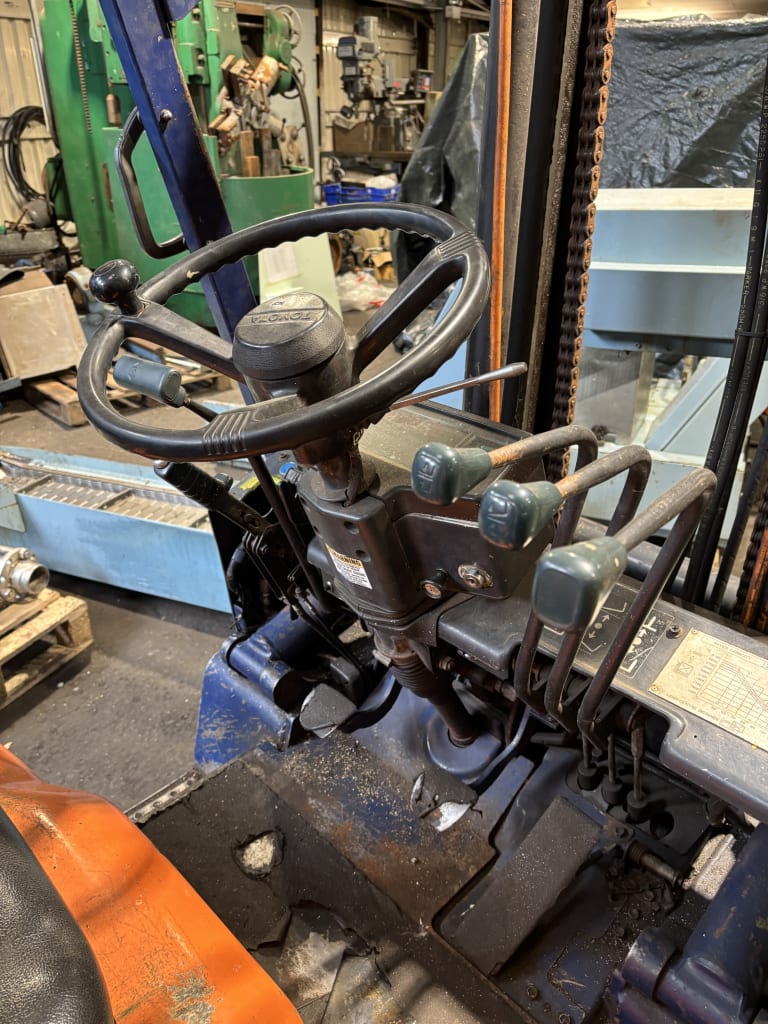

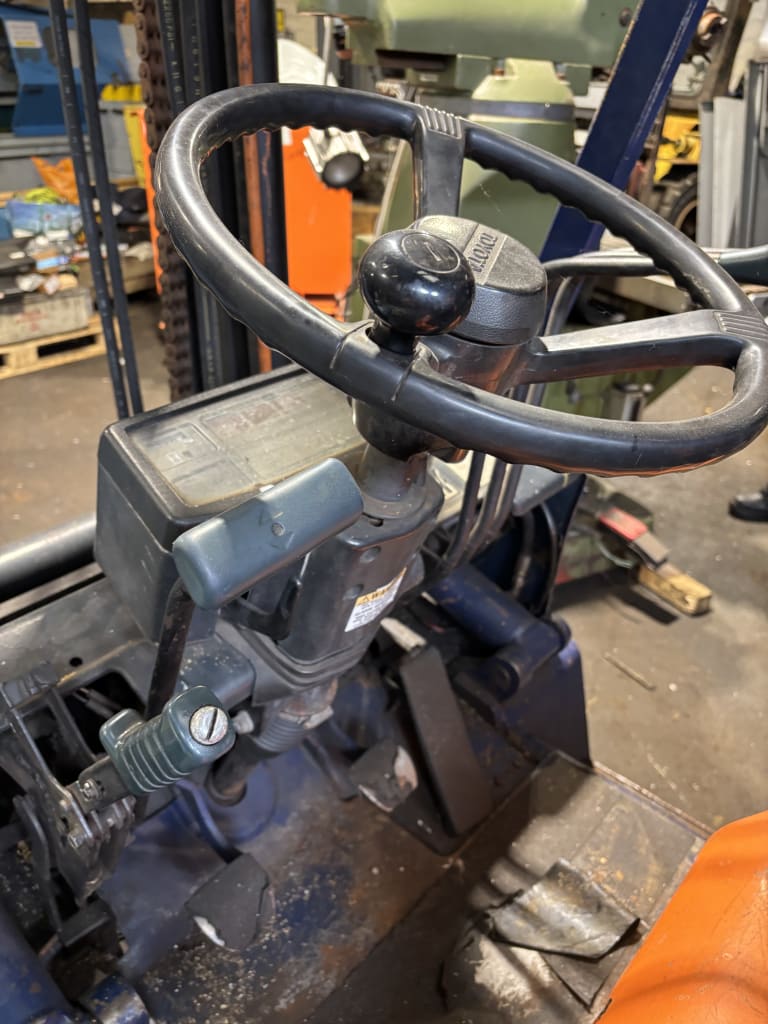

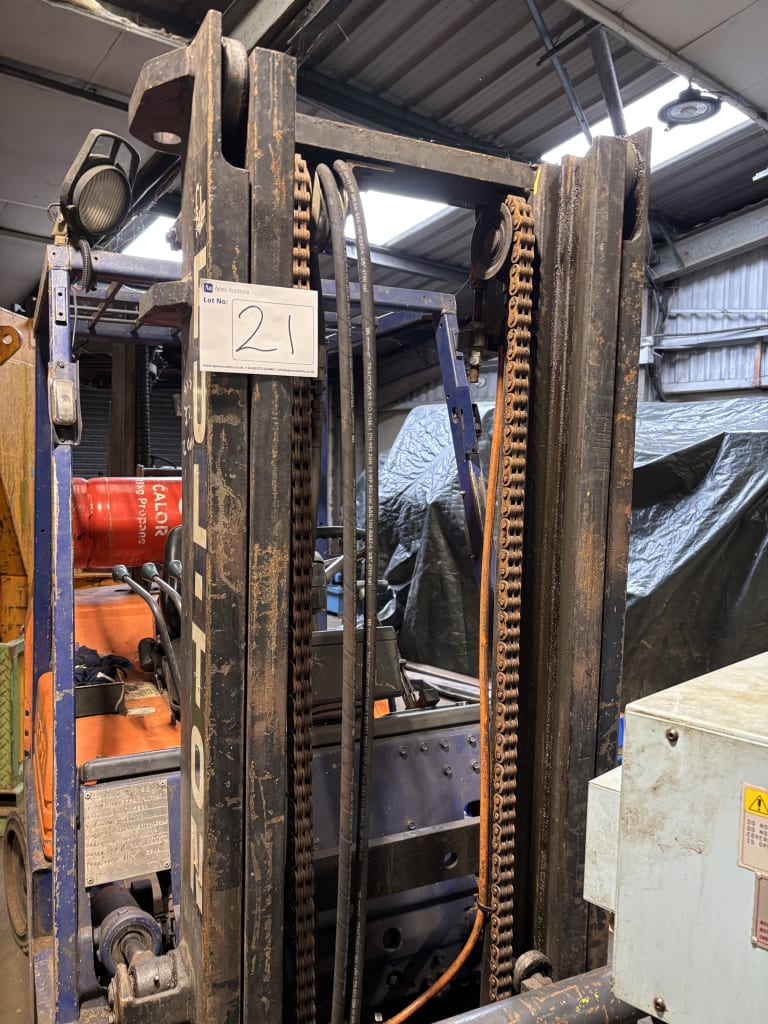

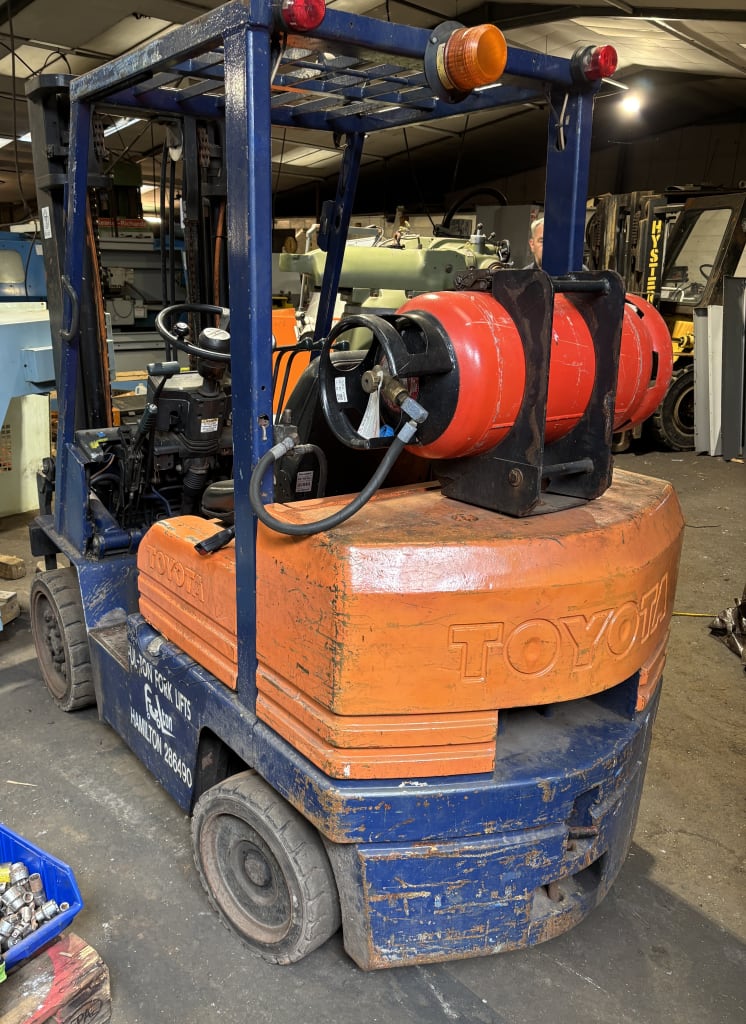

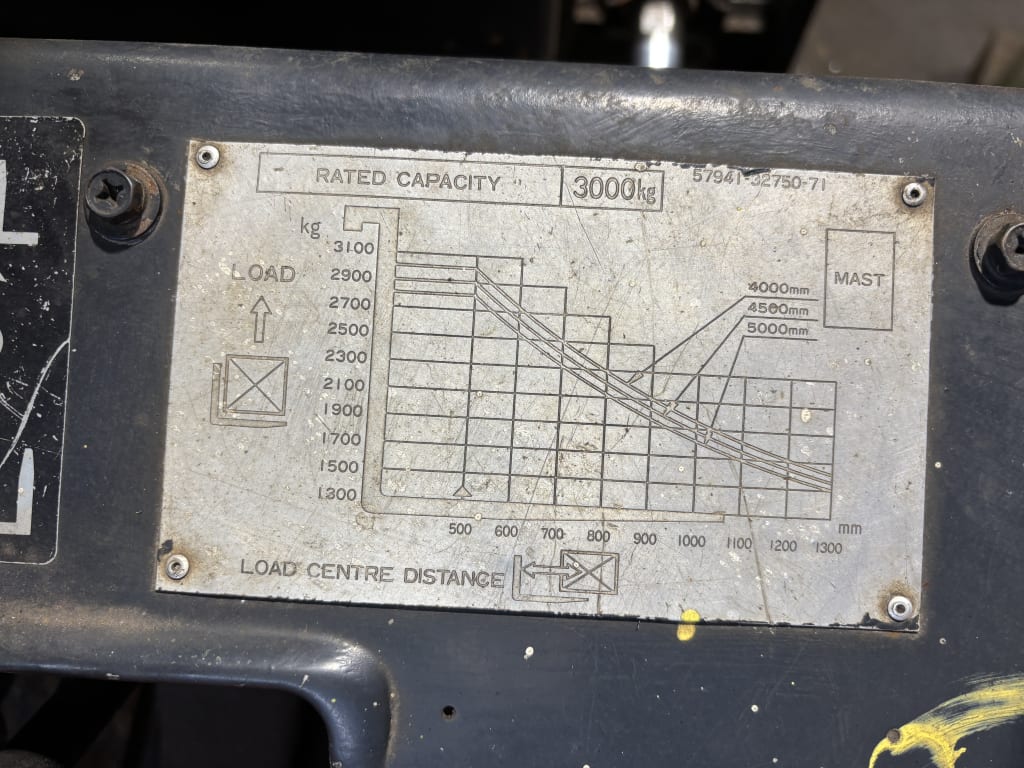

Toyota Gas Powered Forklift Truck Model SFGC-30
Capacity 3,000kg. Lifting Height 3,300mm. Rubber Tyres. (1992). - LOT 22

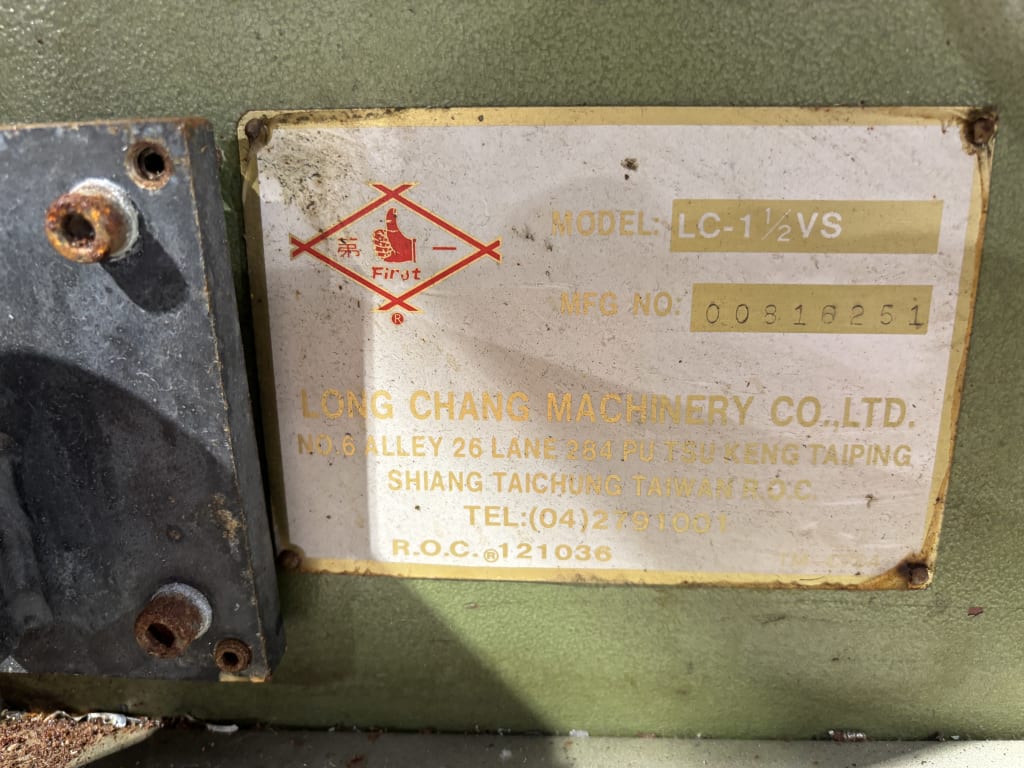

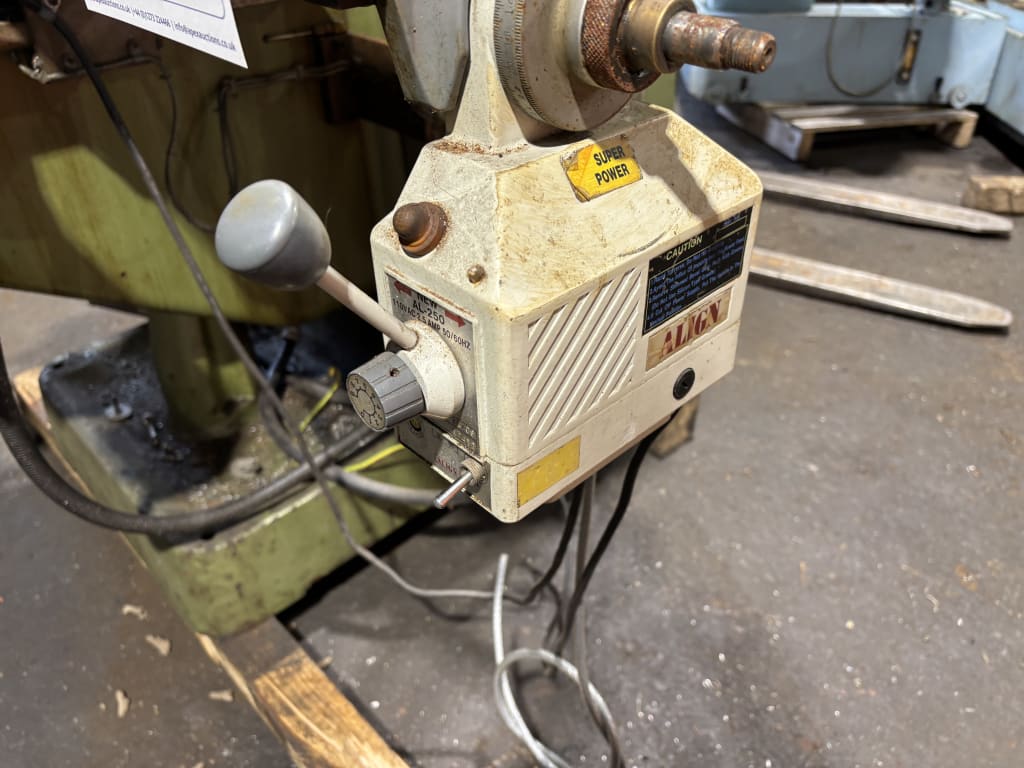

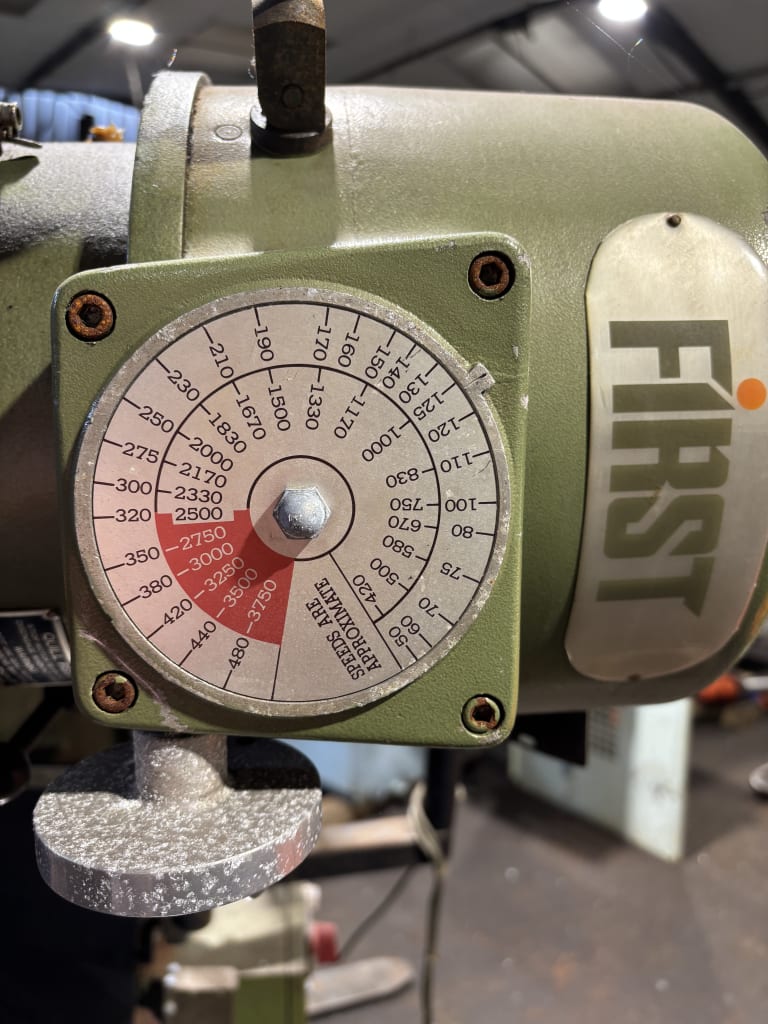

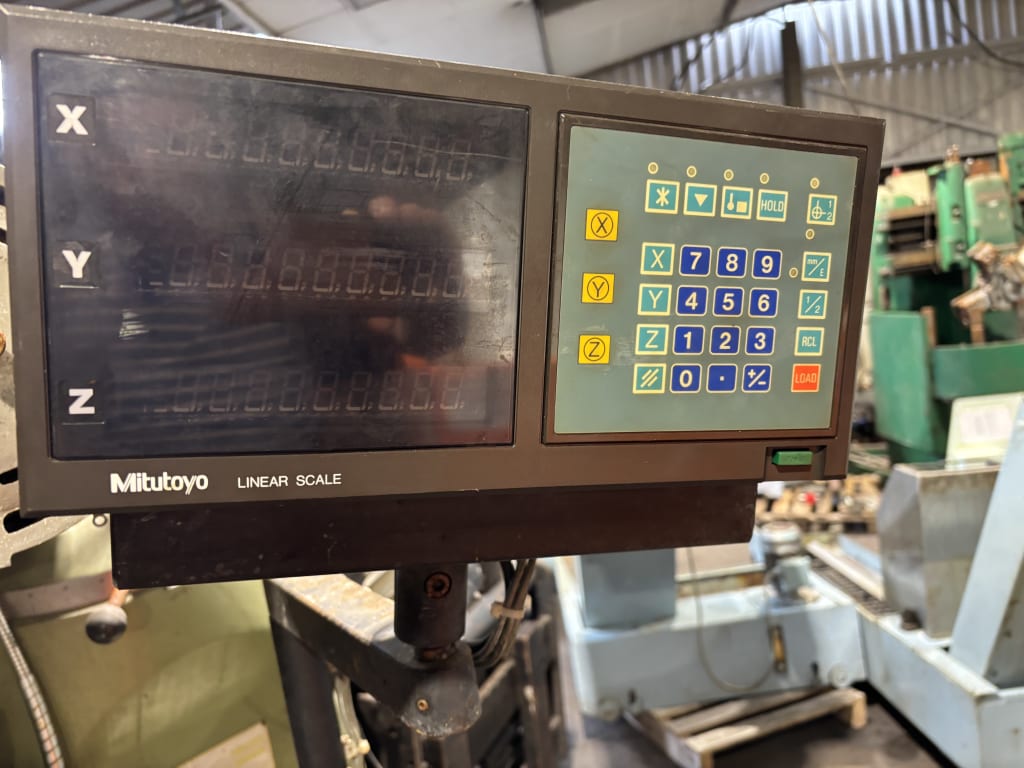

First LC-1 1/2 VS Vertical Turret Milling Machine With Mitutoyo 2 Axis DRO
Table Dimension 1,270 x 227mm (3 'T' Slots). Speed Range Low 50-480rpm, High 420-3,750rpm. Spindle Taper ISO 30. Longitudinal Power Feed. S/No. 00816251. - LOT 23

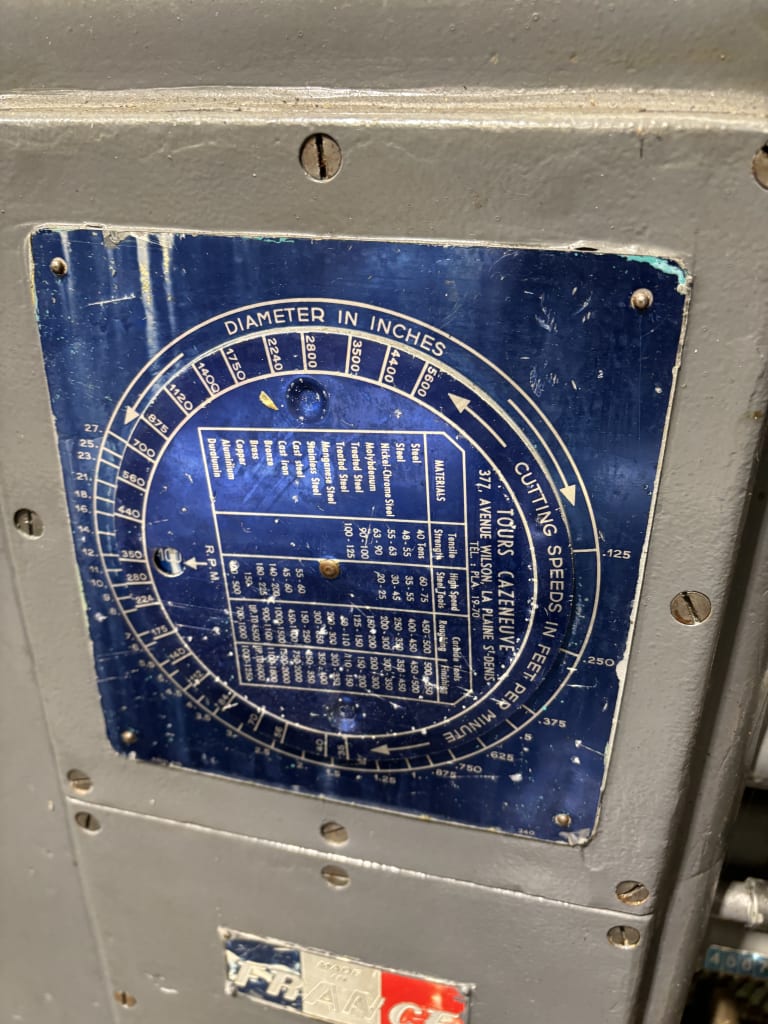

Cazeneuve Gap Bed Centre Lathe
Distance Between Centres 1,400mm. Speed Range (18) 16-1,250rpm. - LOT 29
2 - Quick Release Tool Holders & 1 Tapper
Tool Holder - Jahrl 80-4 on Morse Taper No4. Tapper Type - SPVSA2E on Morse Taper 4 with Quantity of Inserts. - LOT 34

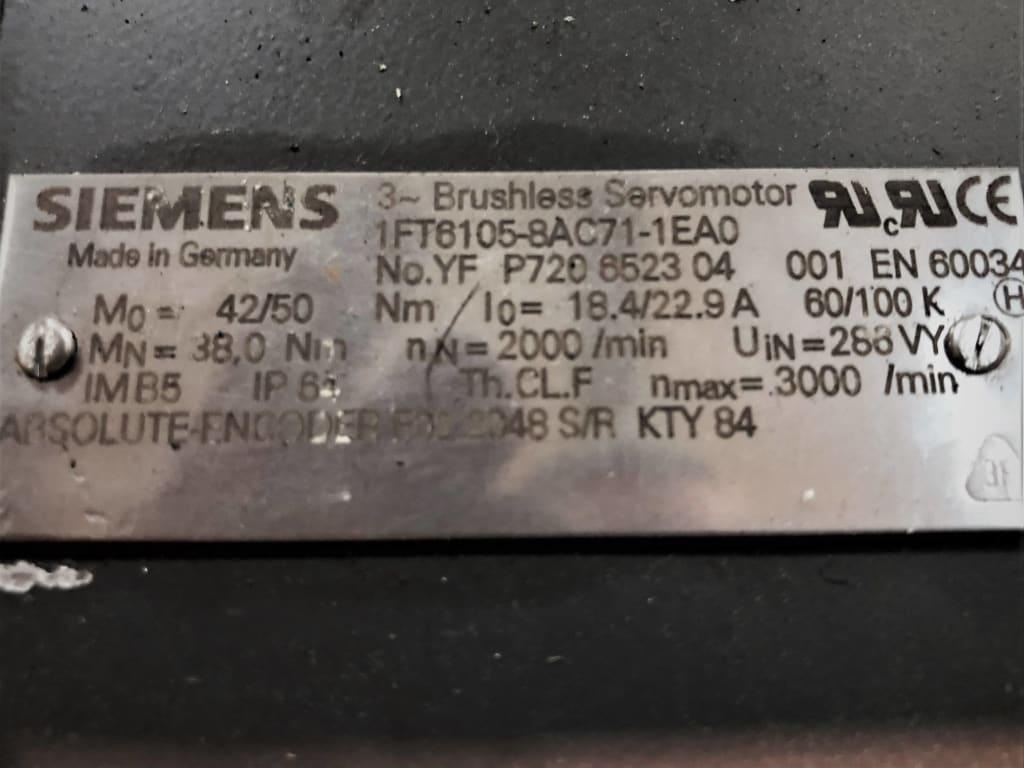

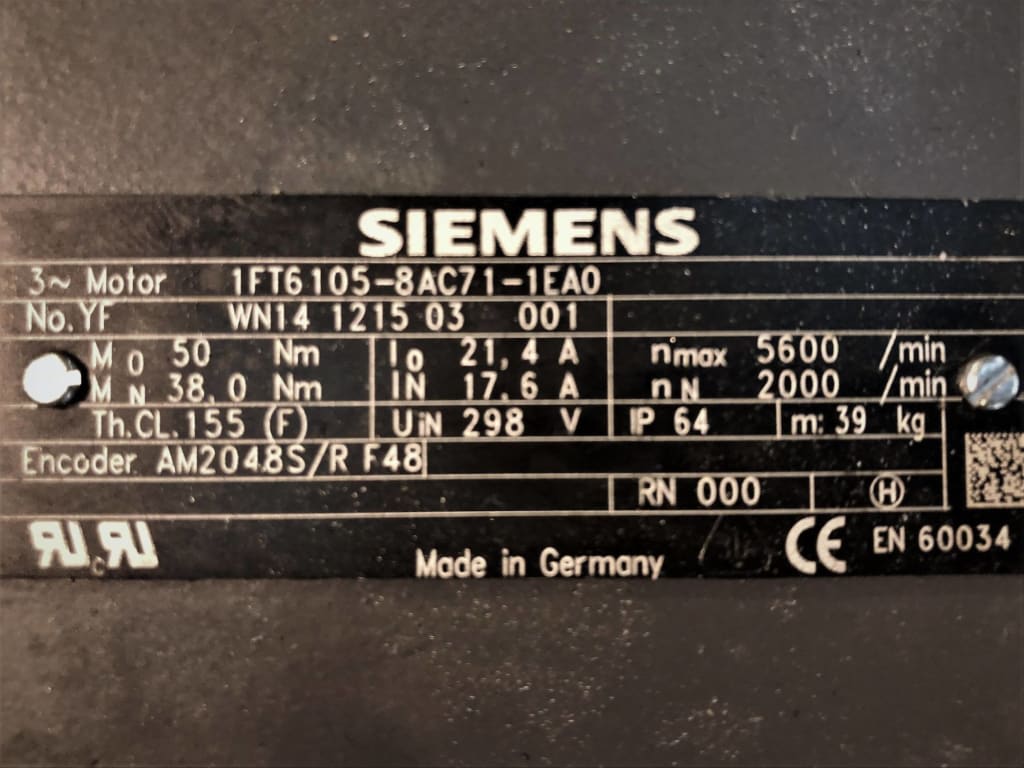

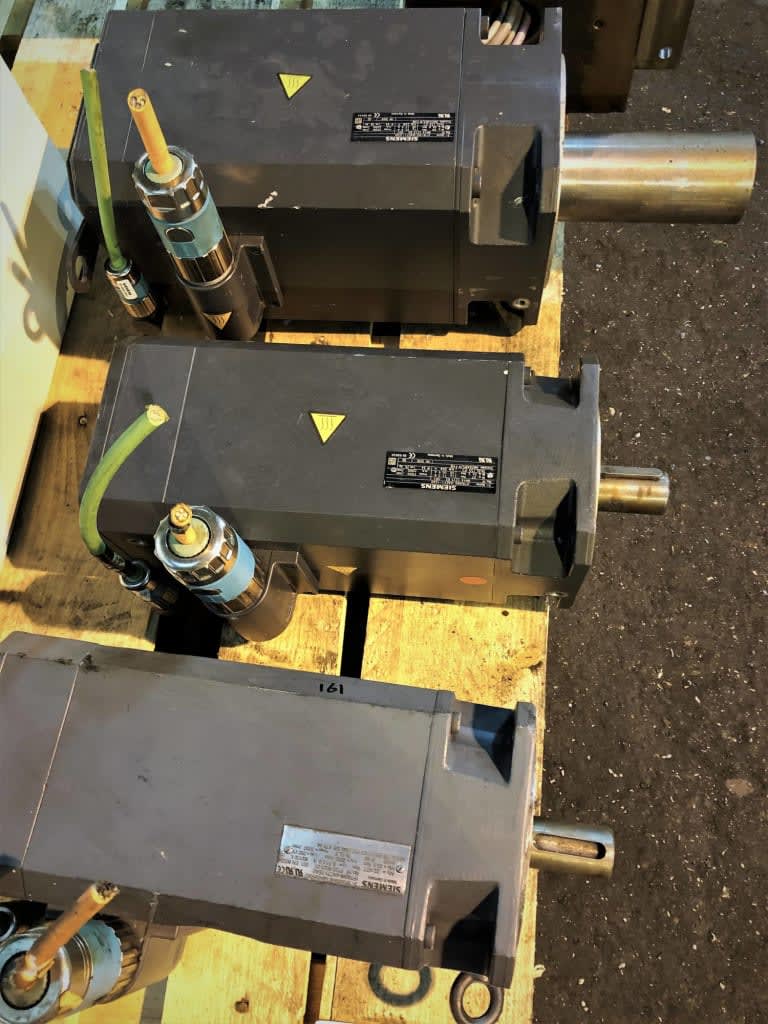

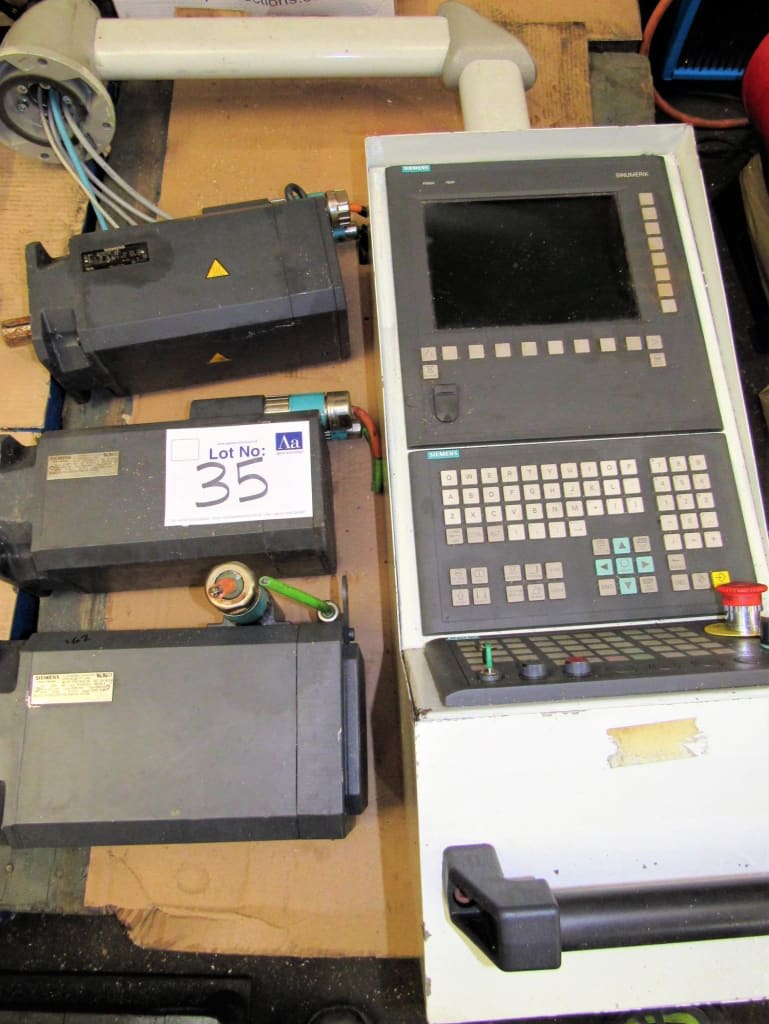

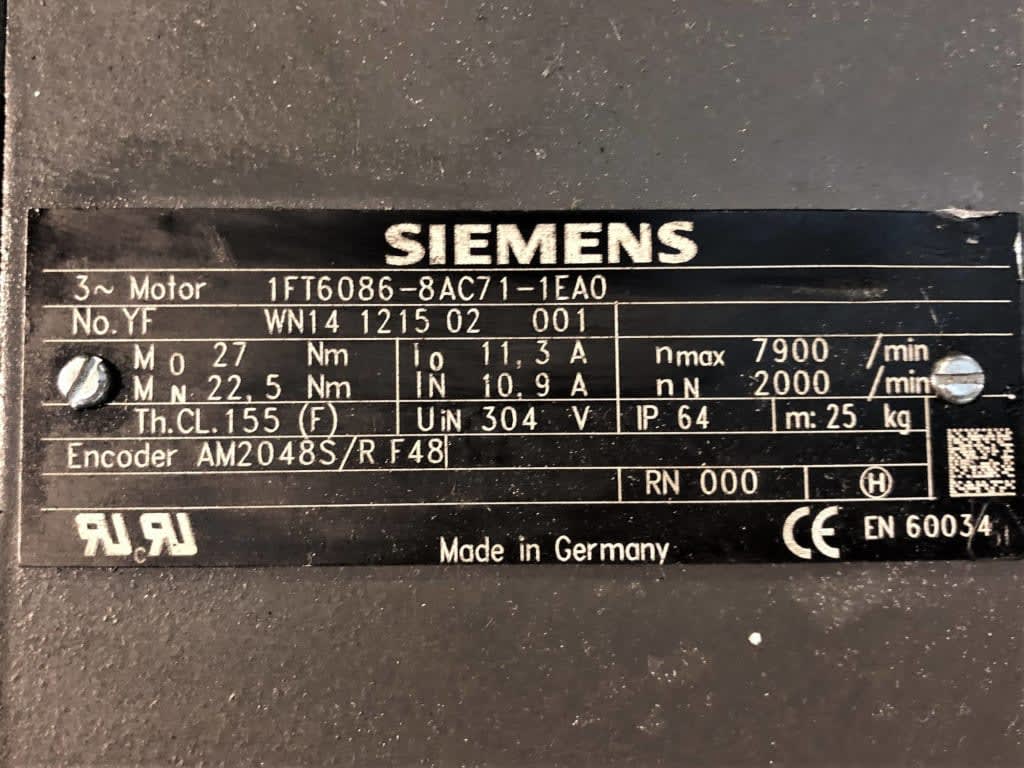

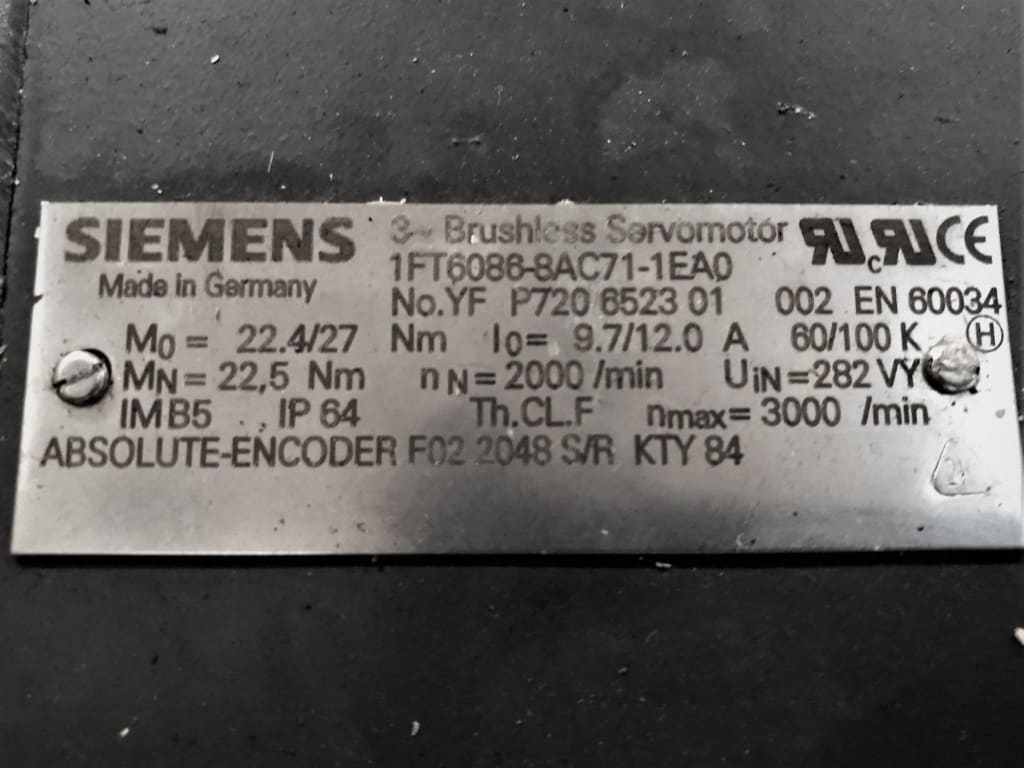

Siemens OP Station - Keyboard, Monitor Display. With 3 - Axis Servo Motors
Motor Types - 2x IFT6086-8AC71-1EOA (22.5Nm): IFT6105-8AC71-1EOA (38Nm) - LOT 35
Siemens OP Station - Keyboard, Monitor Display. With 3 - Axis Servo Motors
Motor Types - 2x IFT6086-8AC71-1EOA (22.5Nm): IFT6105-8AC71-1EOA (38Nm) - LOT 39
- LOT 41
- LOT 42

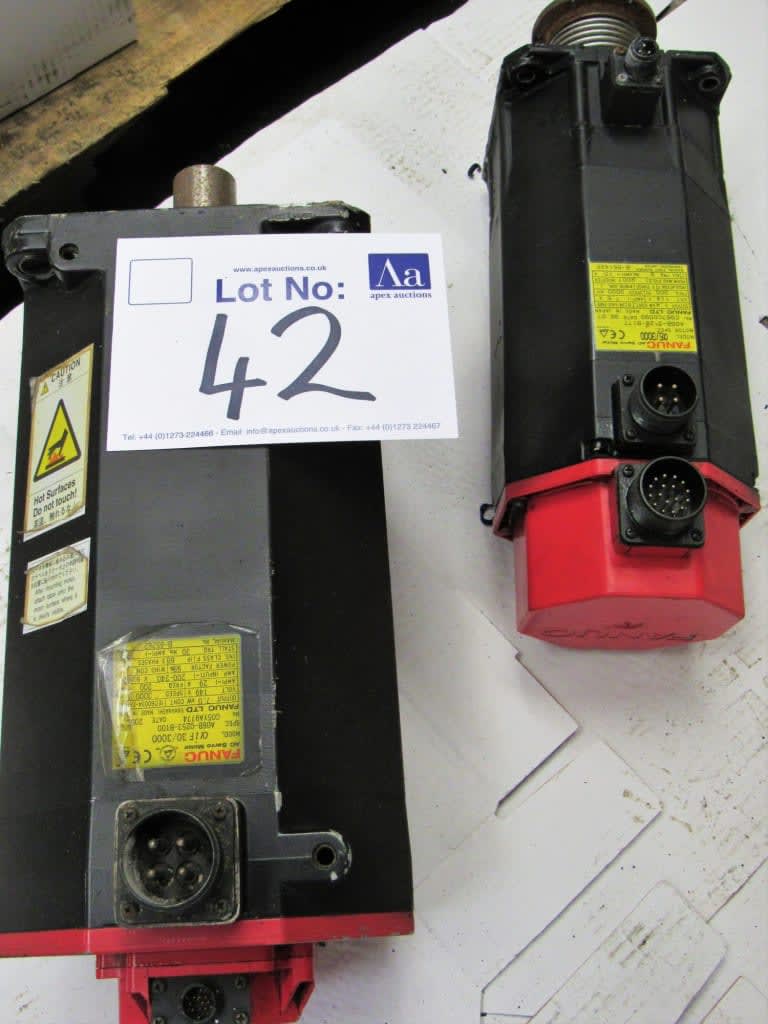

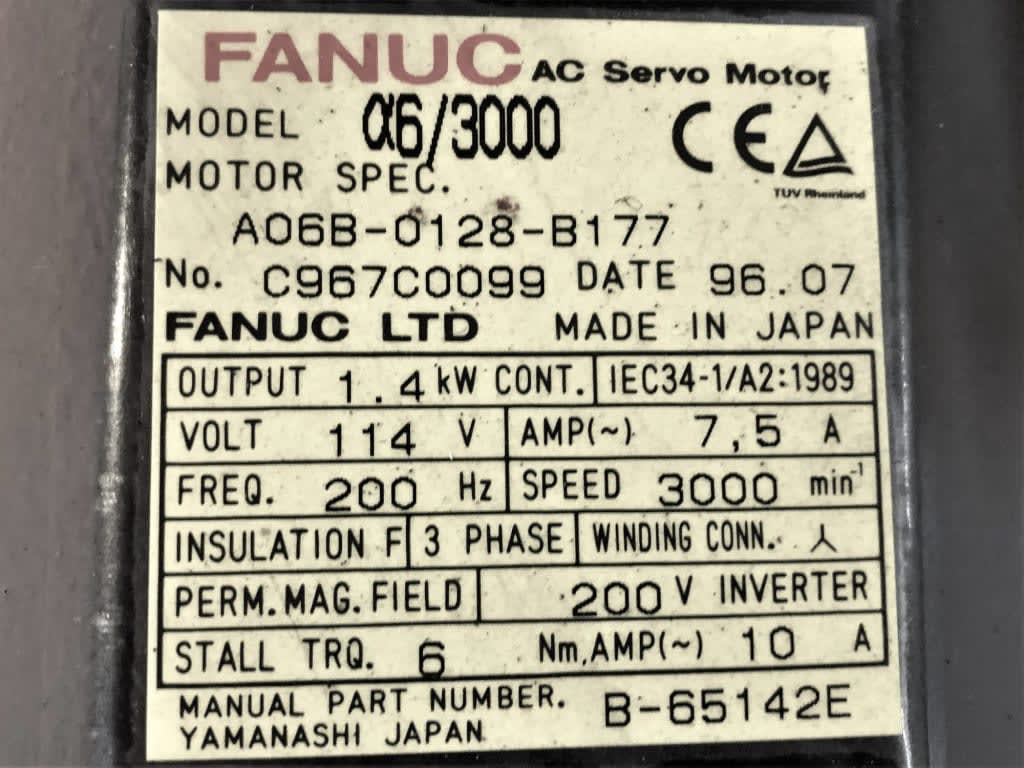

2 - Fanuc AC Axis Servo Motors. Models 6/3000, F30/3000
Type AO6B-0128-B177 & Type AO6B-0253-B100 - LOT 44
- LOT 49
- LOT 53
- LOT 10A
Ford Transit Connect Van 2015
Vehicle make FORD. Date Of First Registration December 2015. Year Of Manufacture 2015. Cylinder Capacity 1,560cc. CO₂ Emissions 124 g/km. Fuel Type DIESEL. Euro Status Not Available. Real Driving Emissions (RDE) Not available. Export Marker No. Vehicle Status Taxed. Vehicle Colour WHITE. Vehicle Type Approval N1. Wheelplan 2 AXLE RIGID BODY. Revenue Weight 2,125kg. Date Of Last V5C (logbook) Issued15 June 2020. Mileage 170,879 Miles - MOT Expires 01.03.26. Taxed Until 1 December 2025. 9 months MOT left , single key , new tyres all round and timing belt replaced 3 months prior. - LOT 11A

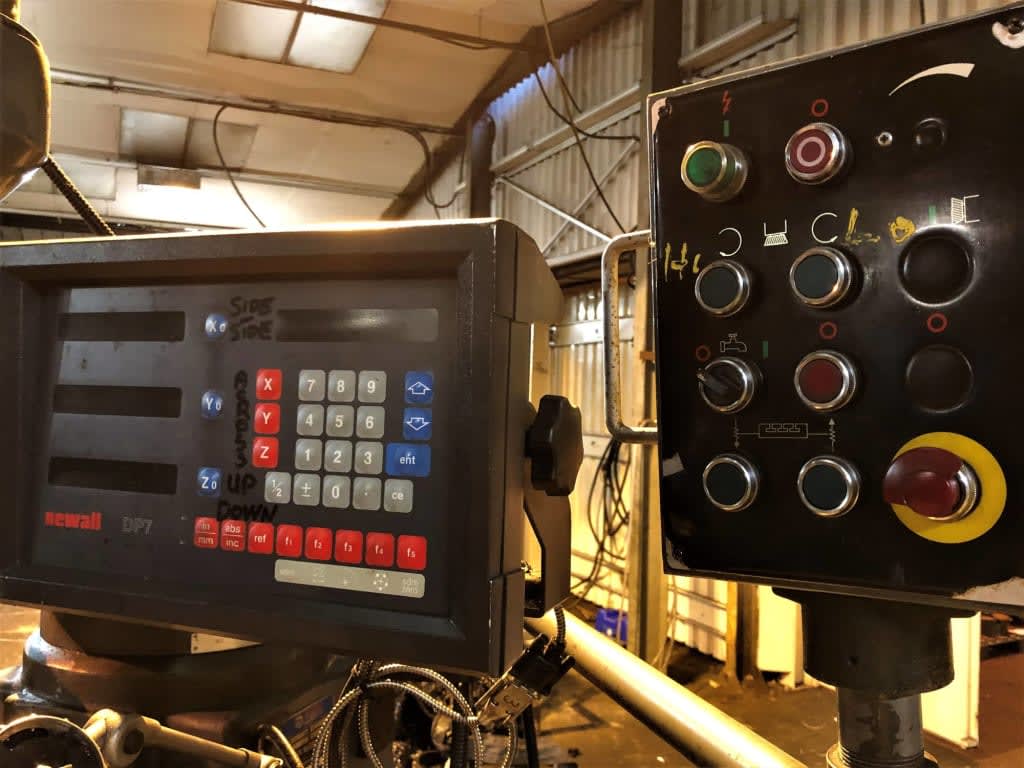

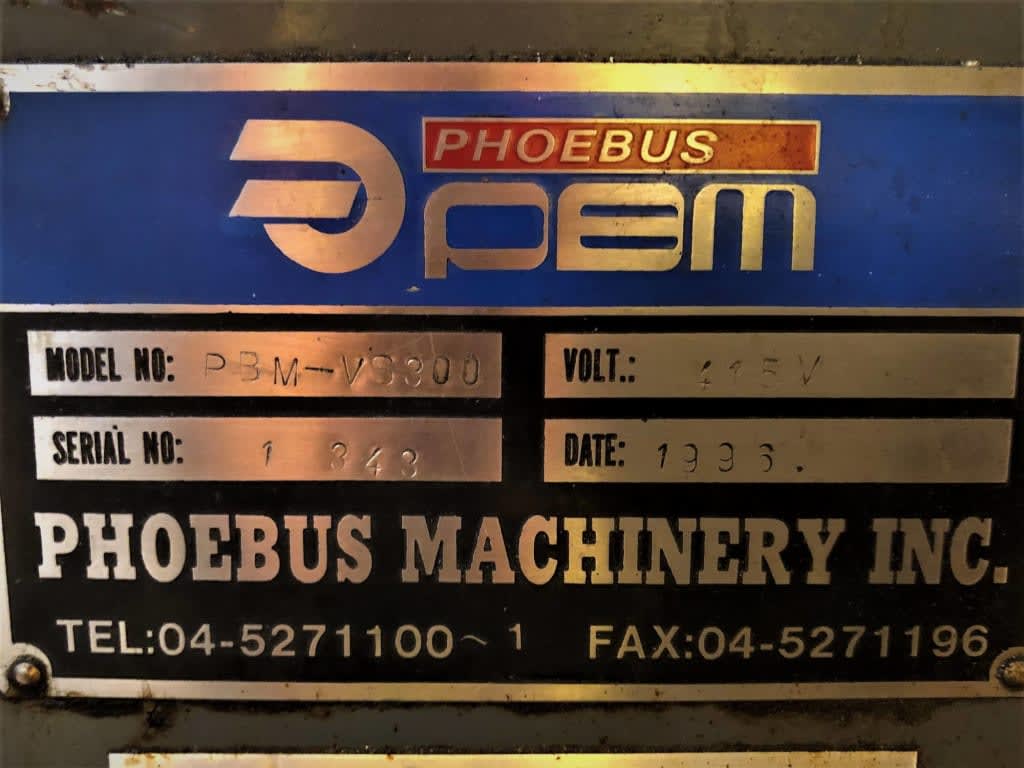

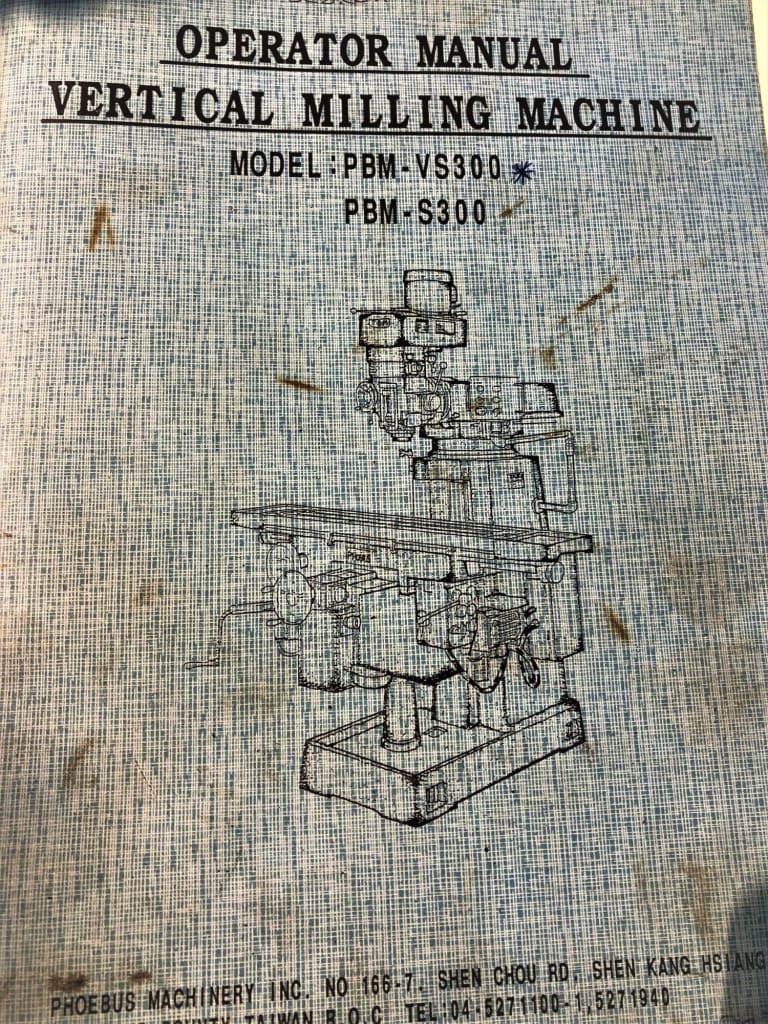

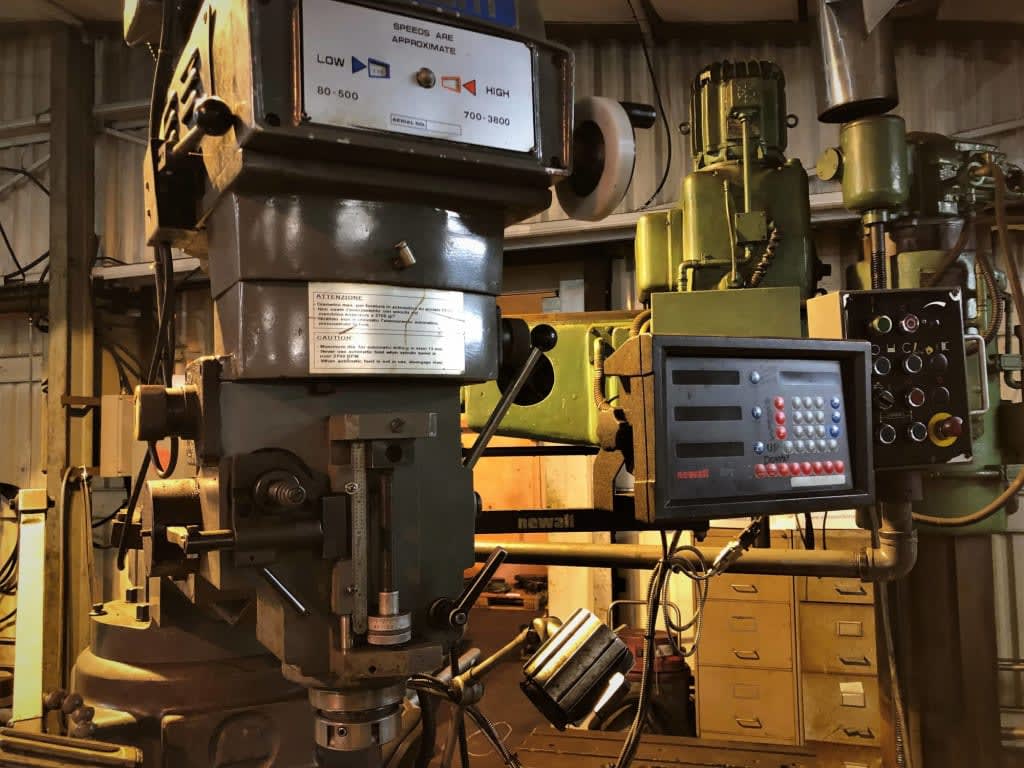

Gate Turret Mill. Model PBM VS300 (1996). With Newall DP7 DRO
Serial No - 1343. 3 Slot Table Approx Dimensions 1270mm x 300mm. Travel Capacity Approx – X axis Long Travel 800mm: Y axis cross 400 mm: Z axis 455mm. Swing Head - 40 Degs Left / Right. Spindle Nose NST No 40 Spindle Speeds 80 to 3800rpm Power feed X & Y axis. - LOT 12A

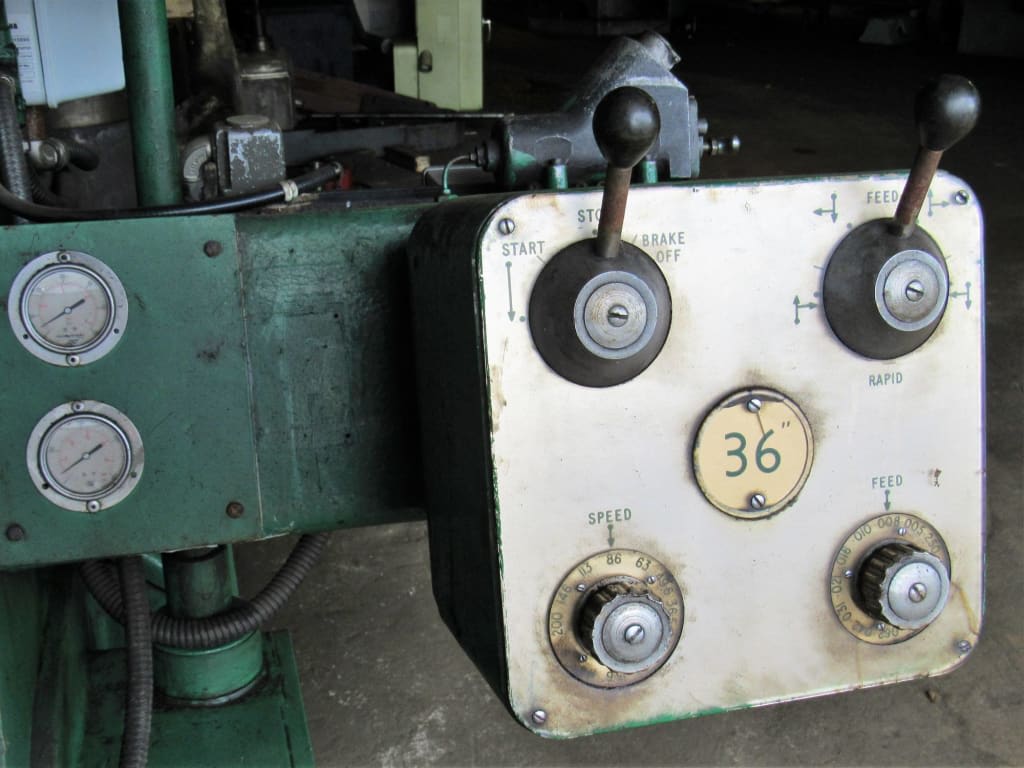

Webster & Bennet Fixed Rail 36 " Vertical Turret Lathe
4 Jaw Chuck Approx Ø 36". Speed Range 9 to 200rpm. Feeds 0.005 to 0.250. Maximum Clearance Table to Saddle Approx 24". Maximum Swing Approx XXXXX. Manual Indexed 5 Station Turret. - LOT 16A
- LOT 19A
Pieseler CNC 4th Axis Motor Driven Rotary Table (1981). Type ATU 800
Item Can be Interfaced with Siemens 840D Control. Height Approx 255mm x Ø800mm. - LOT 4A

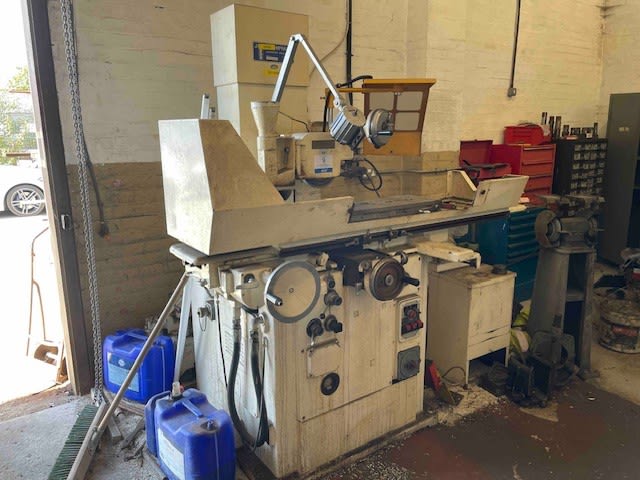

Jones & Shipman 1011 Surface Grinder
Approx Table Dimensions 685 x 280mm. Eclipse Magnetic Chuck 600 x 250mm. Table Travel Longitudinal 685mm, Cross Travel 305mm, Vertical Wheelhead 310mm. Wheel Speed 2,100-2,700rpm. - LOT 7A

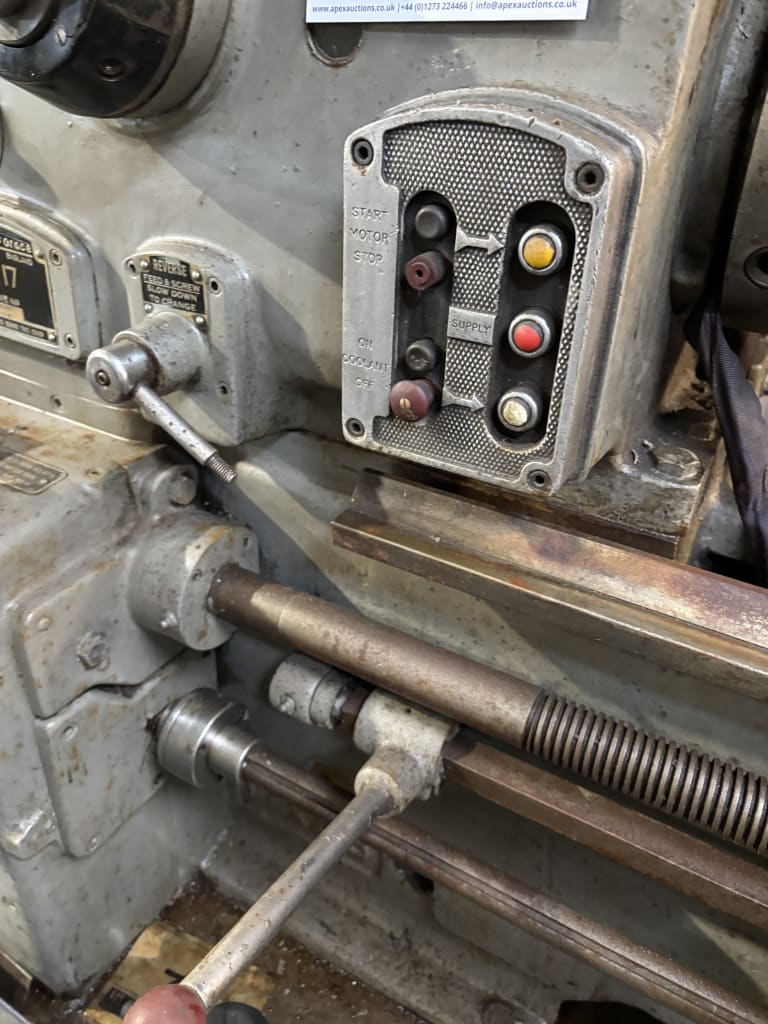

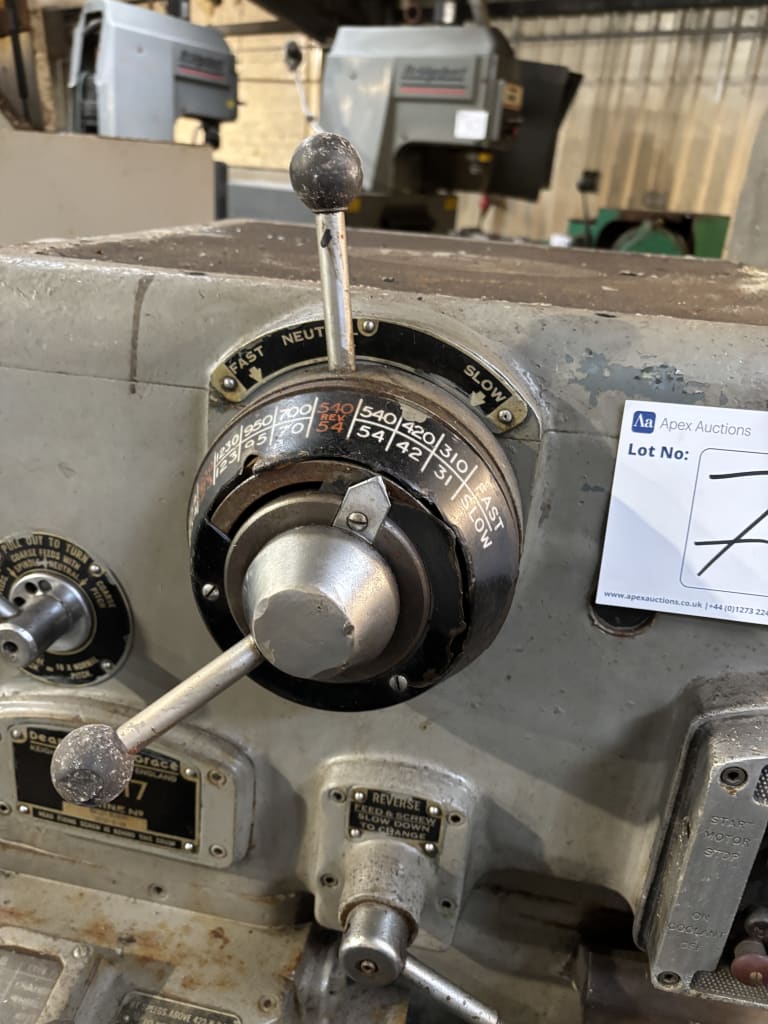

Dean Smith & Grace Type 17 Gap Bed Centre Lathe
Maximum Swing Over Bed Approx Ø230mm. Maximum Swing Over Slide Approx Ø165mm. Distance Between Centres Approx 1,150mm. Spindle Speed Range 33-1,230rpm. Taper Turning Attachment. 3 Jaw Camlock Chuck Approx Ø200mm. Through Spindle Bore Approx Ø62mm. Swing Over Bed Ø445mm. Maximum Turning Over Cross Slide Ø330mm. Serial No 36132-3-66. - LOT 40
- LOT 43
- LOT 45
- LOT 46

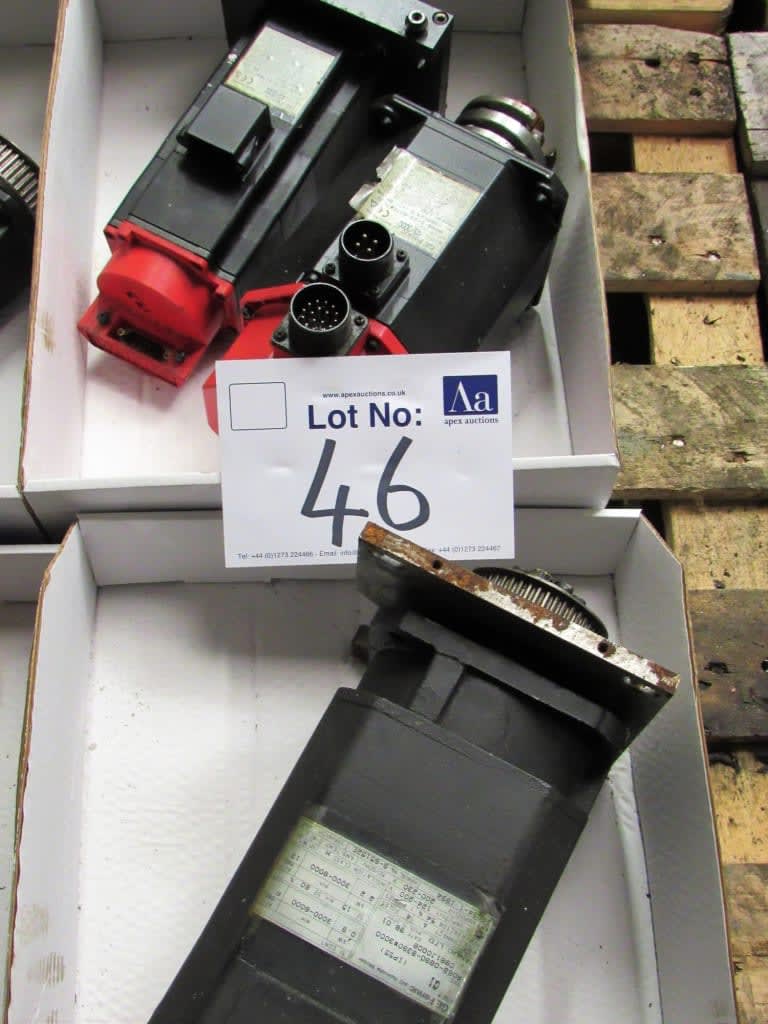

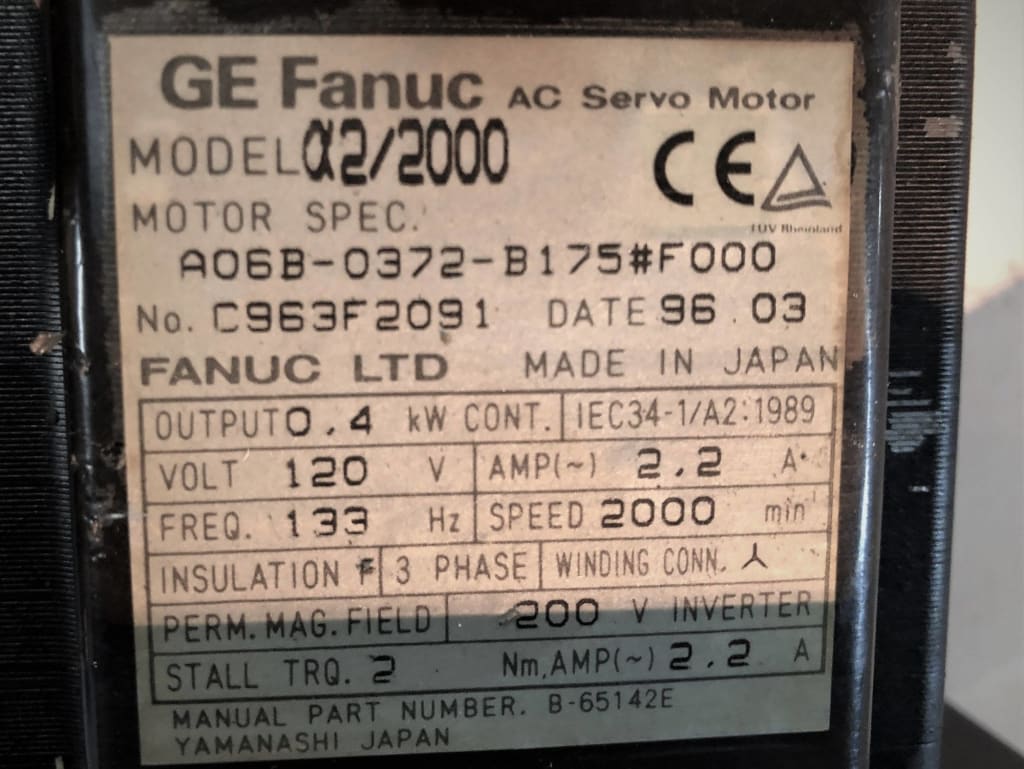

2 -Fanuc AC Axis Servo Motors & 1 - Fanuc Spindle Drive Motor
Types - AO6B-0372-B175 #F000 (Model 2/2000): AO6B-0123-B075 #7000 (Model 3/3000): A06B-0890-B390#3000 - LOT 47

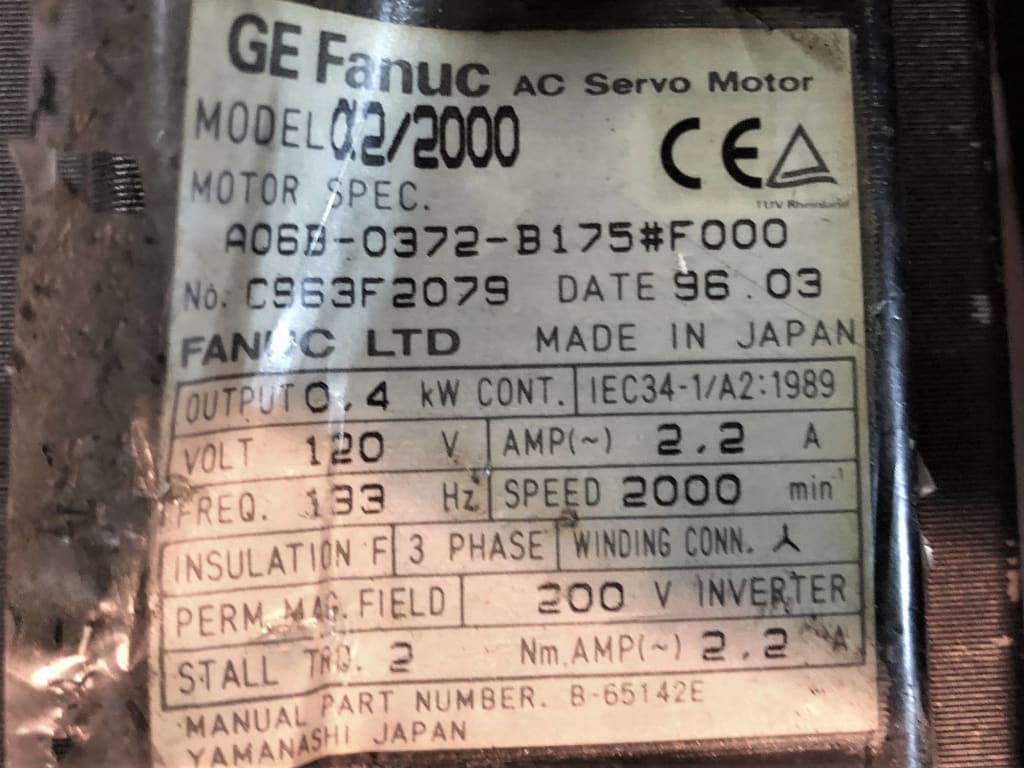

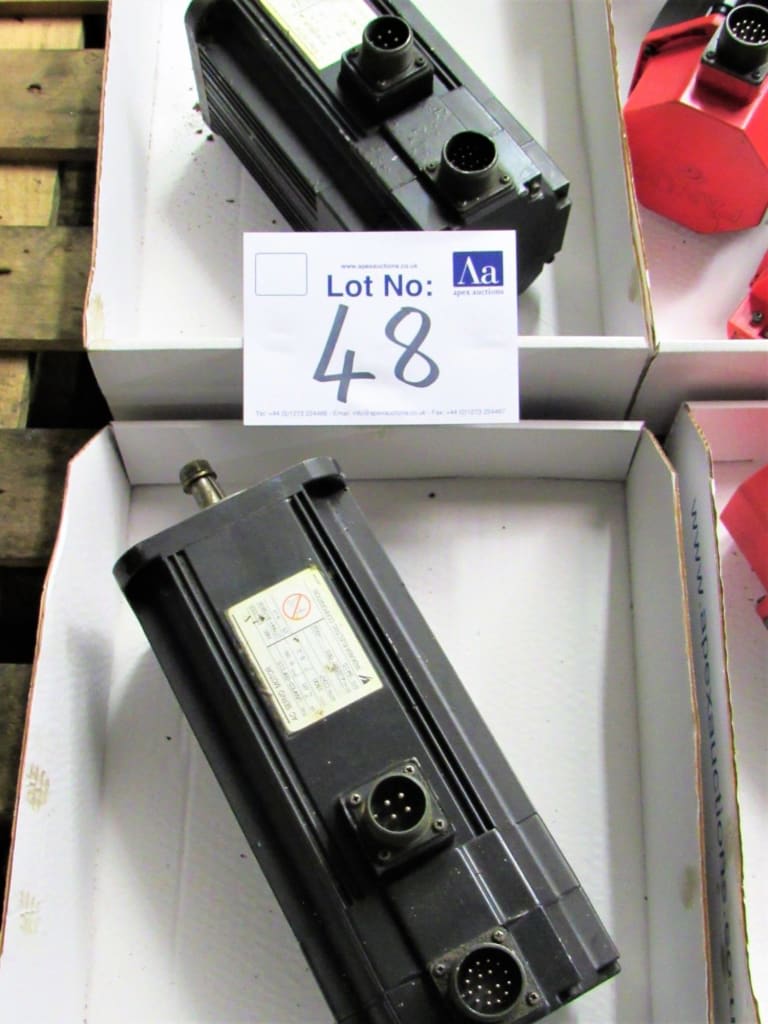

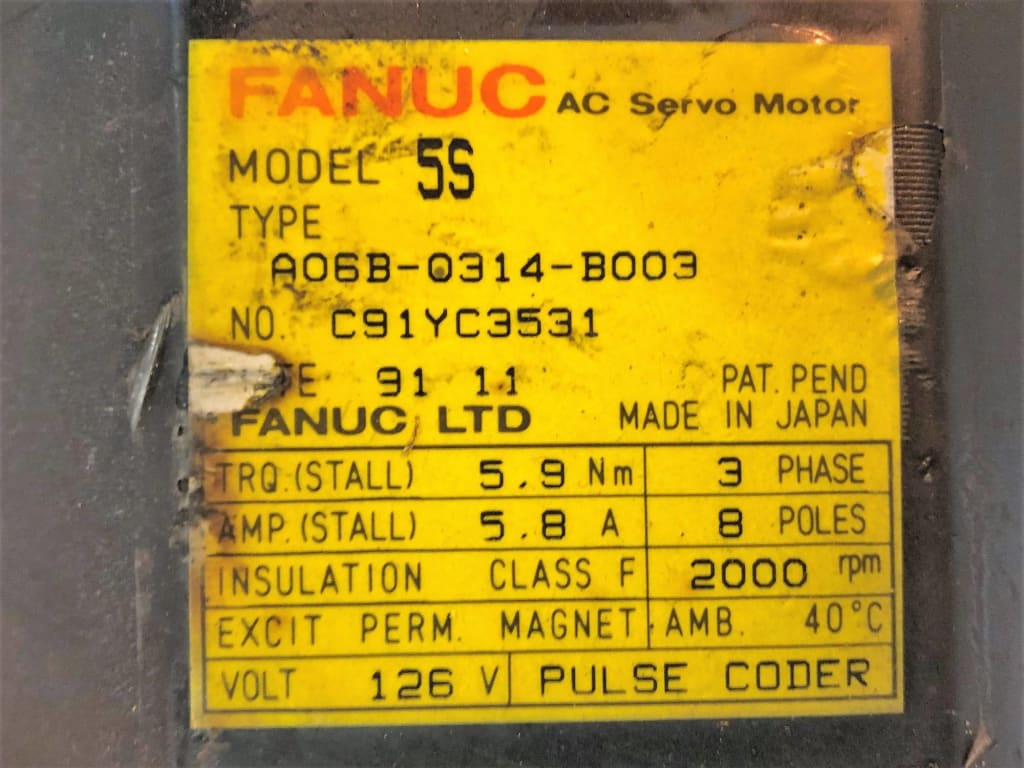

3 - Fanuc AC Servo Motors
Types - AO6B-0314-B003 (Model 5S): A06B-0372-B175#F000 (Model 2/2000): A06B-0123-B075#F000 (Model 3/3000) - LOT 48
- LOT 52
Quantity of Misc Engineering Tools
Comprising of :- Bearing Pullers, Impact Drivers, Nail Gun - LOT 21A
- LOT 23A
