Hydraulic Division Closure - CNC Machinery, Gear Cutting & Precision Engineering & Test Equipment Sale
Starts: 28 October 2026 at 09:00 GMT
Ends: 18 November 2026 at 15:00 GMT
Partial Catalogue full catalogue coming next week. A major hydraulic division closure featuring CNC machinery, precision gear manufacturing equipment, grinding machines, machining centres, and workshop equipment from a manufacturer of world-class hydraulic products used in tractors, excavators, and industrial automation systems. All assets must be sold and removed from site by 18 December 2026. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 15 of 15 lots
- LOT 1
![site]()

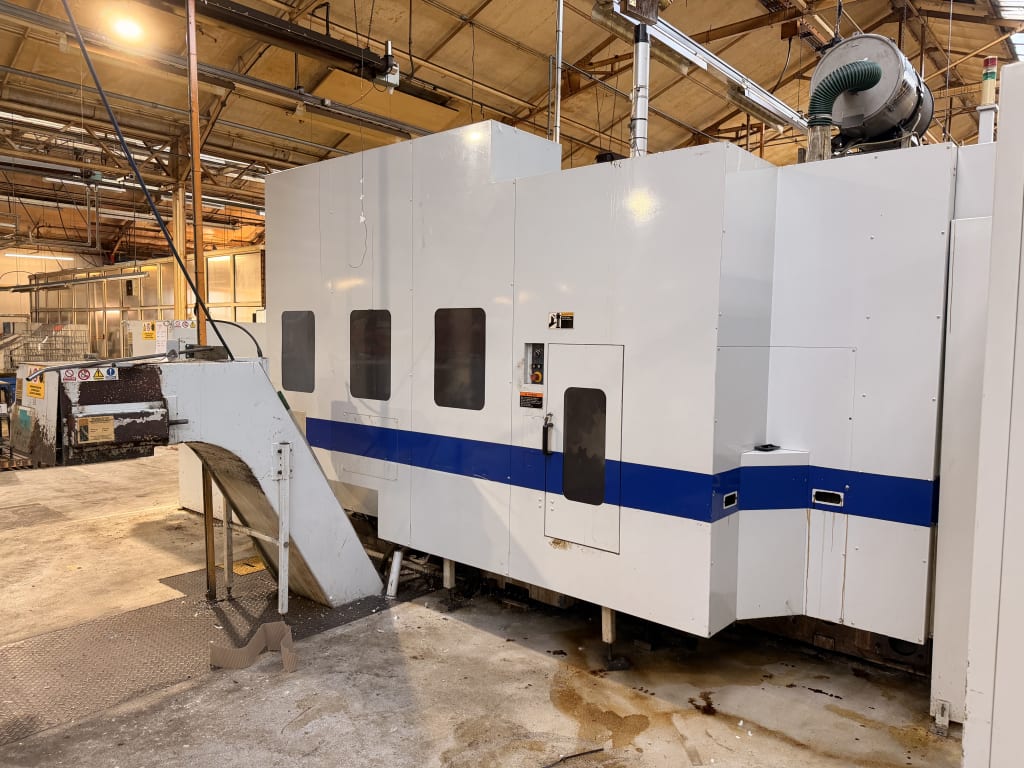

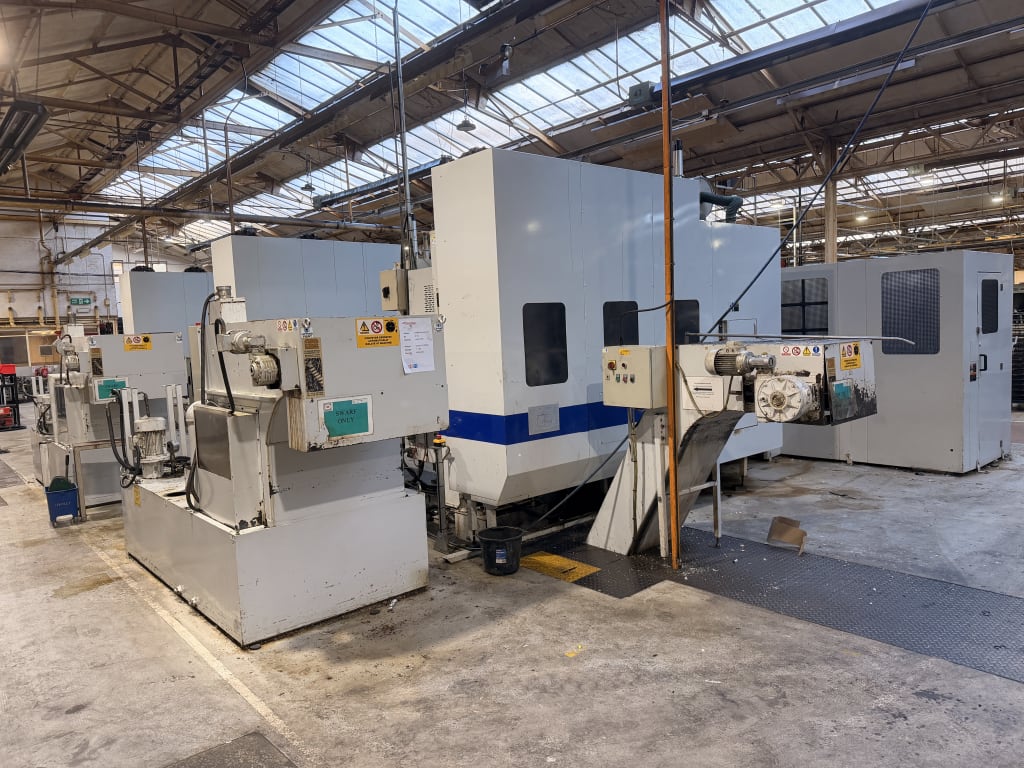

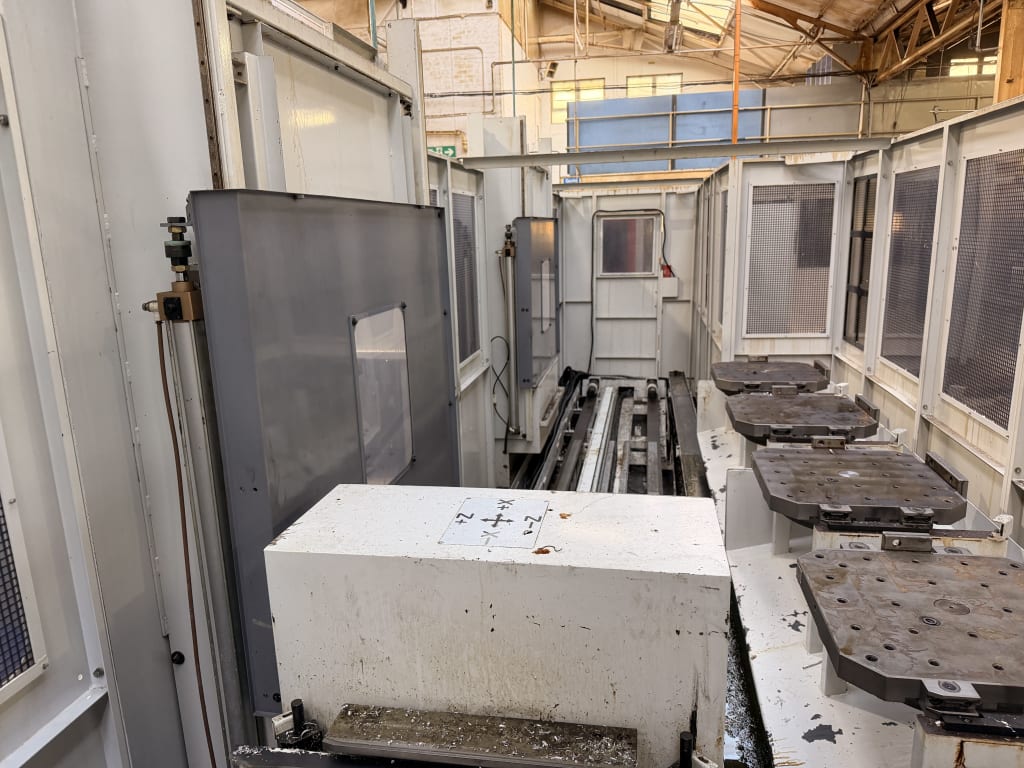

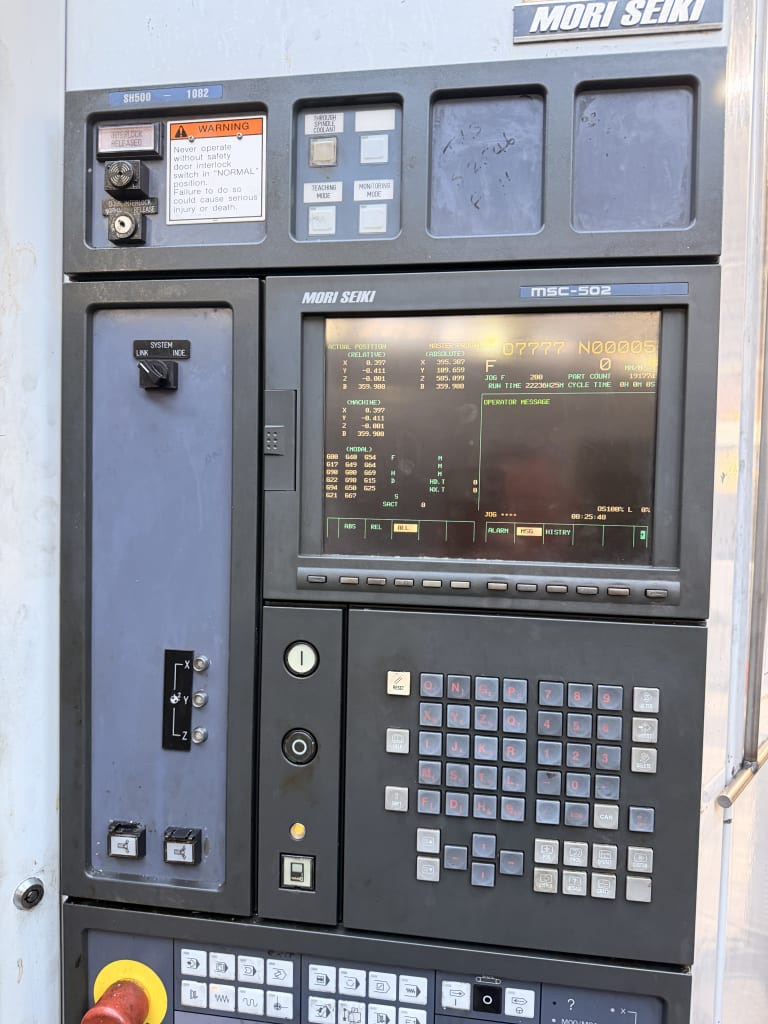

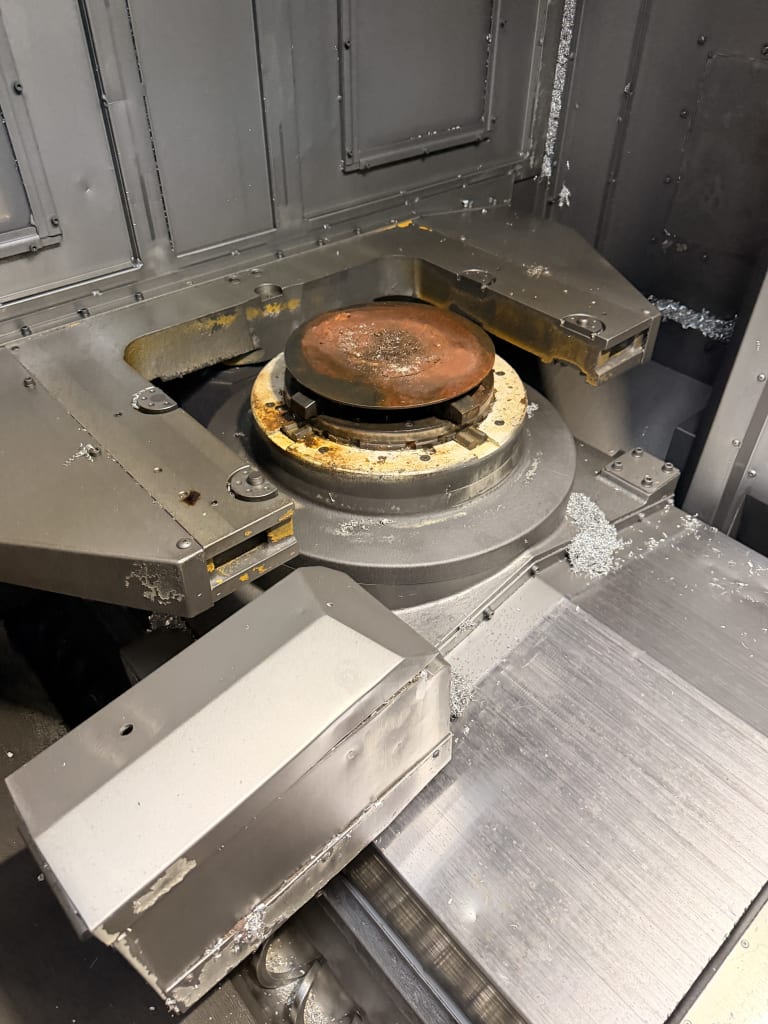

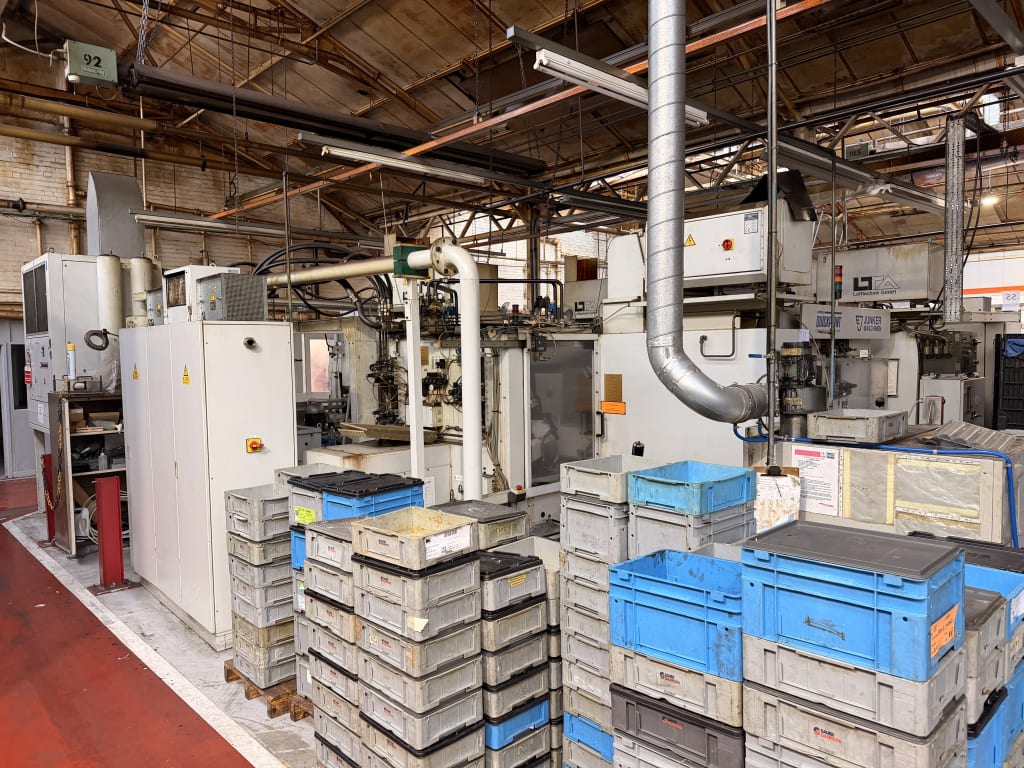

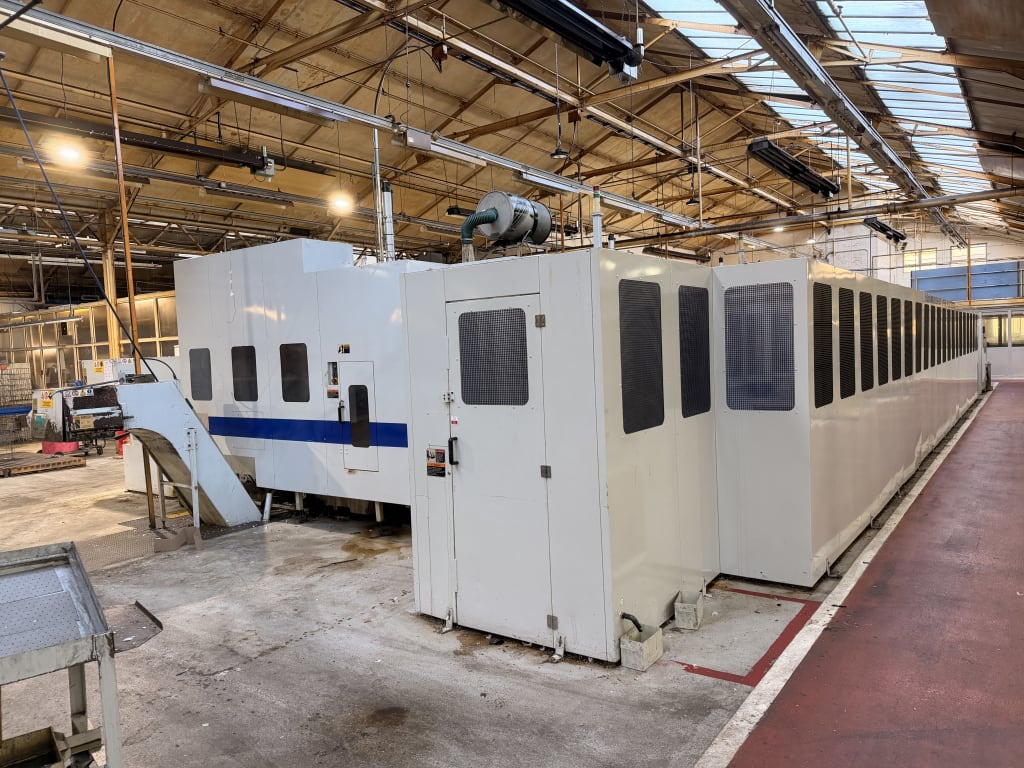

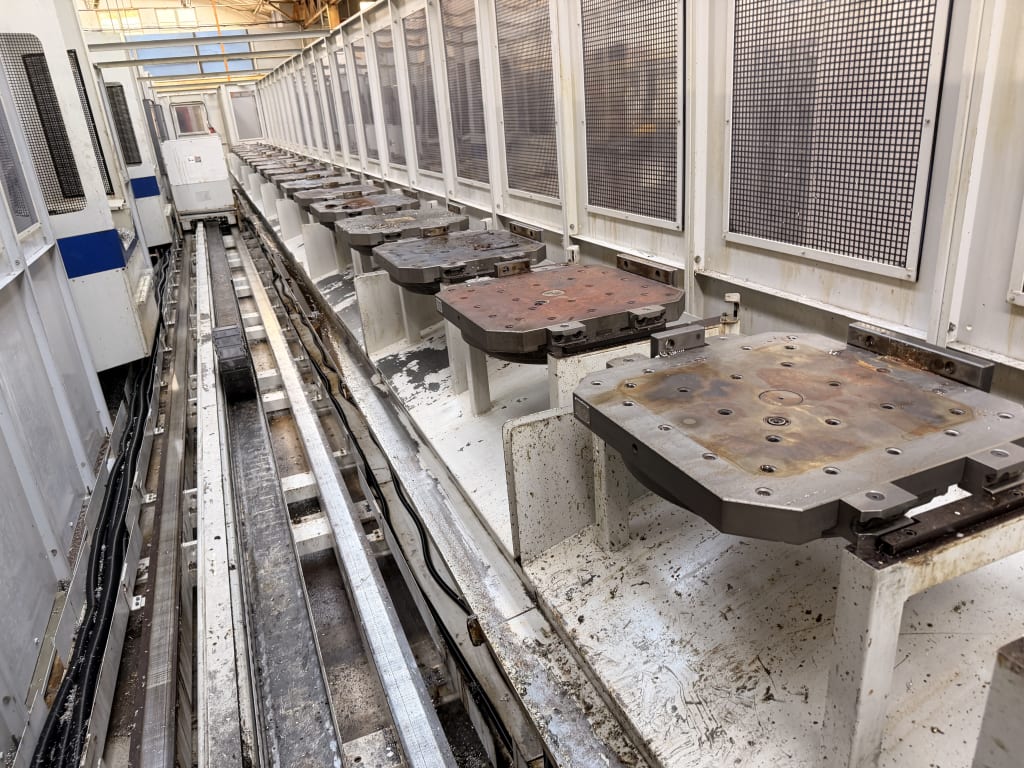

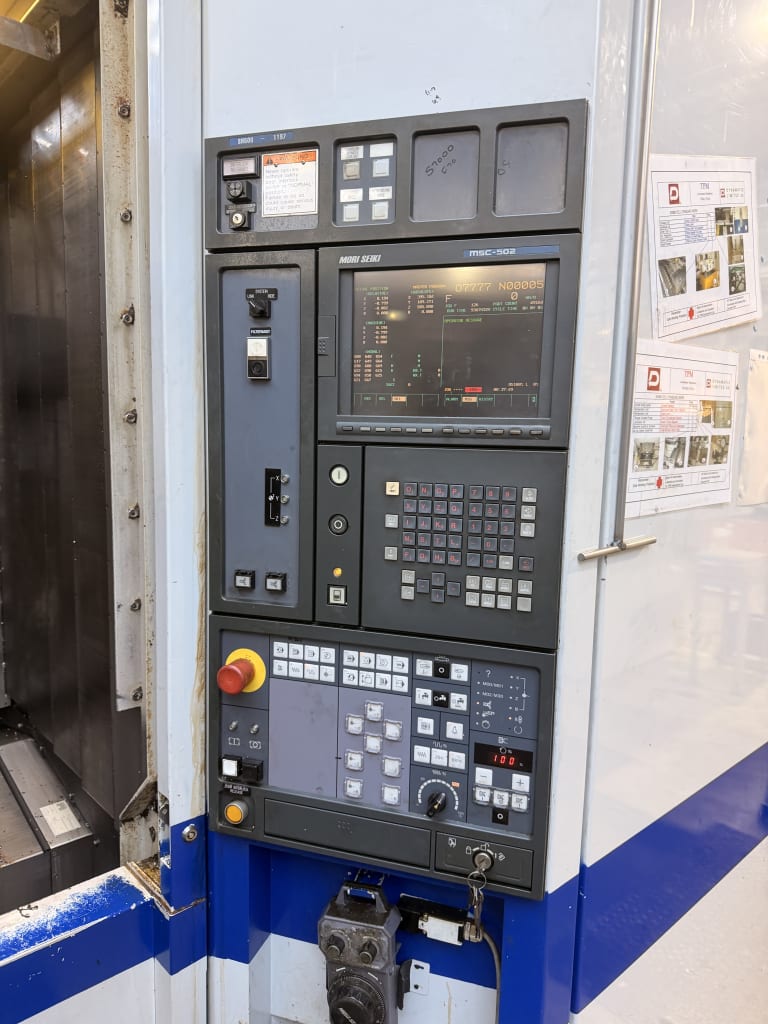

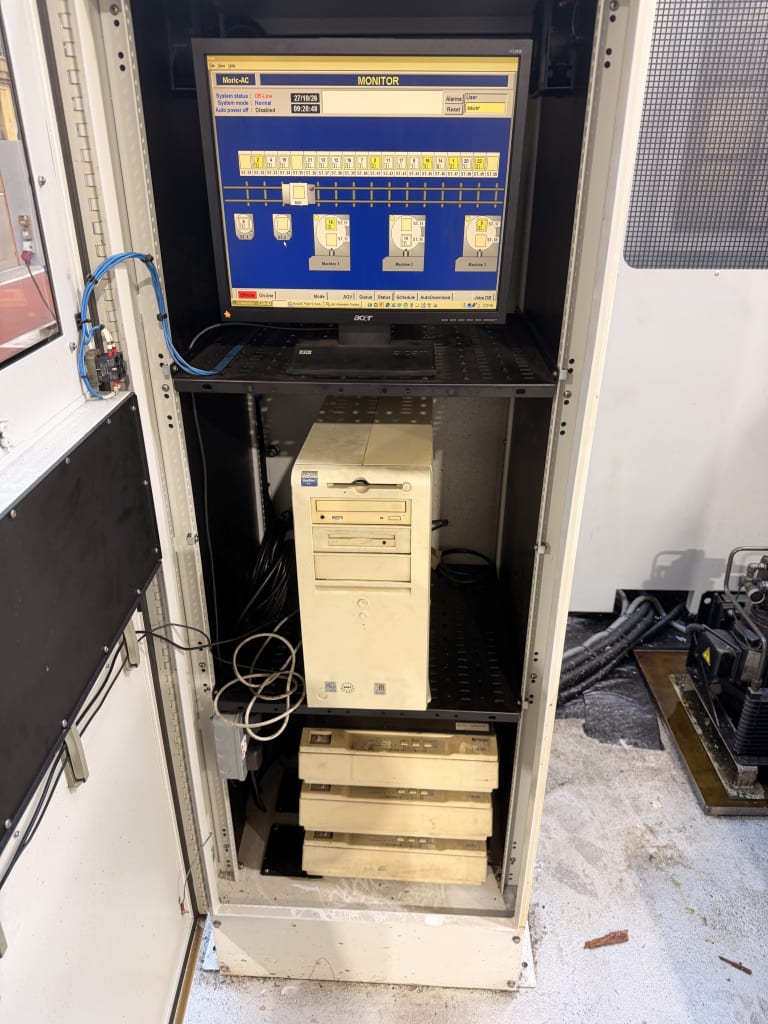

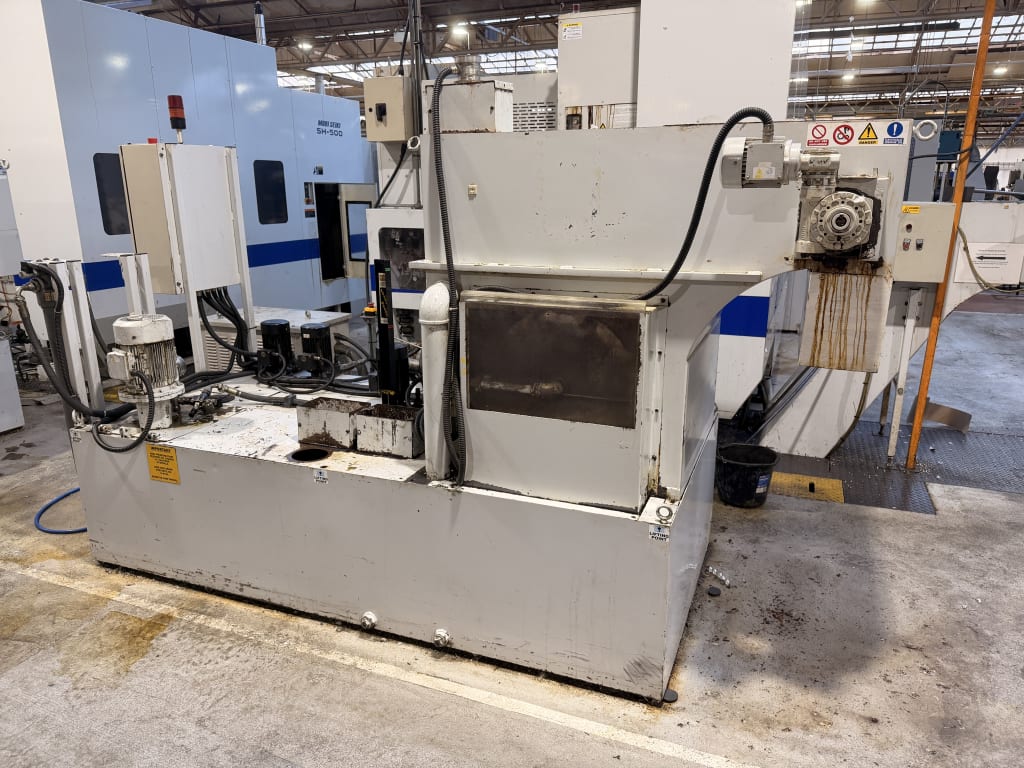

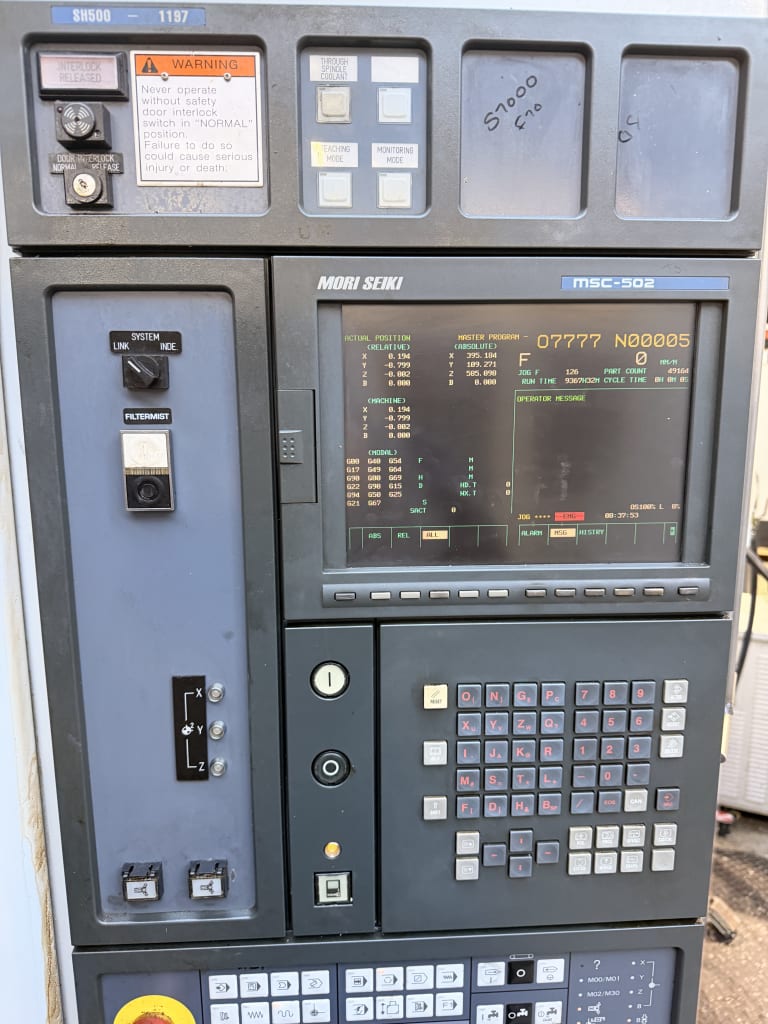

(3) Hitachi Seiki SH-500/40 CNC Twin Pallet Horizontal Machining Cell With 20 Station Pallet Loading System

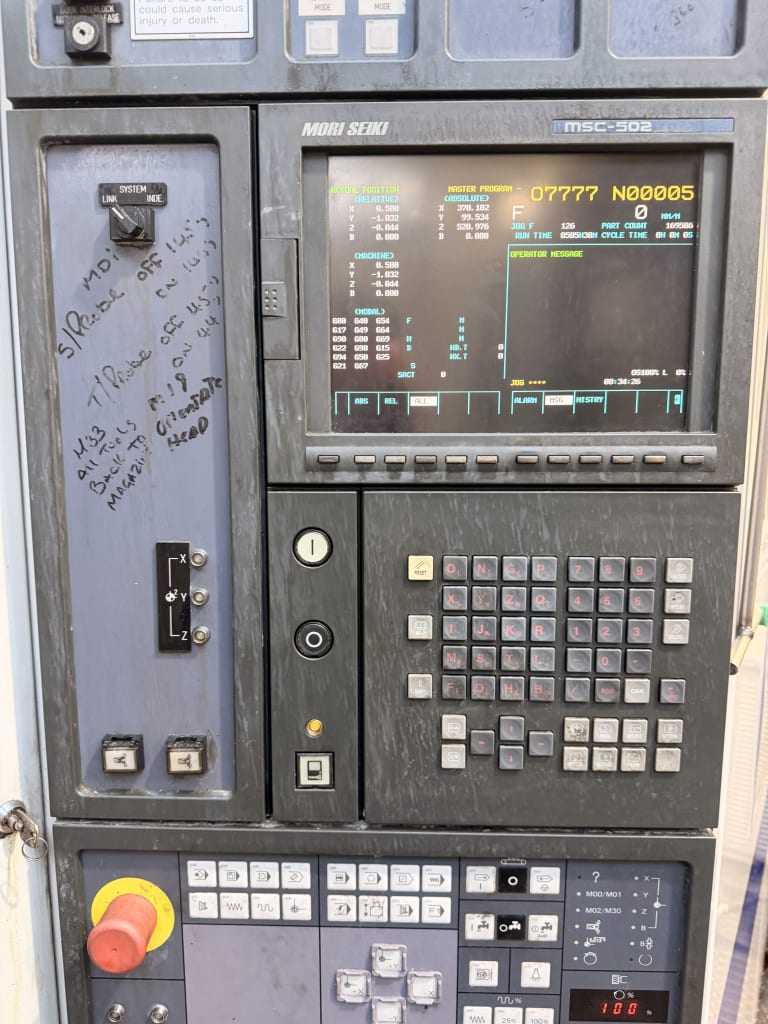

With Mori Seiki MSC-502 CNC Controls. Pallet Dimension 500 x 500mm. Maximum Table Load 500kg. Axis Travel 'X'=630mm, 'Y'=600mm, 'Z'=650mm. Rapid Traverse 45m/min. Maximum Spindle Speed 12,000rpm (15kW Motor). Spindle Taper BT40. 180 Position ATC. Max. Tool Ø150mm, Maximum Tool Length 360mm, Maximum Tool Weight 8–12kg. S/No. 1080 (1999), 1197 (2000) & 1080 (1999). - LOT 2
![site]()

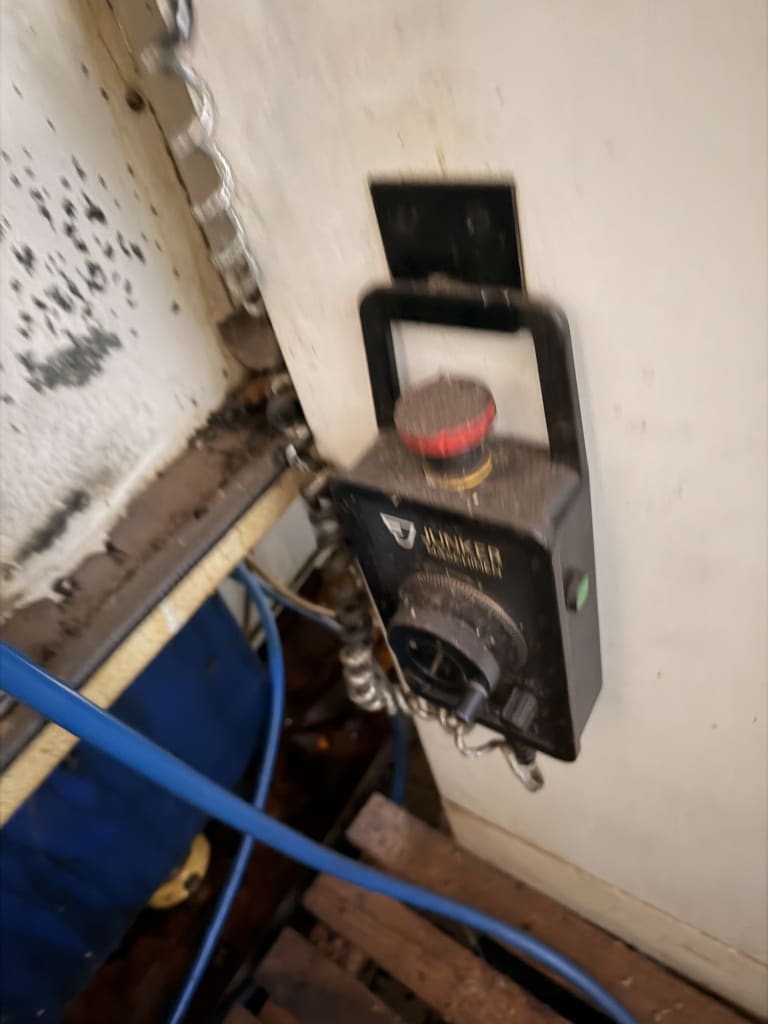

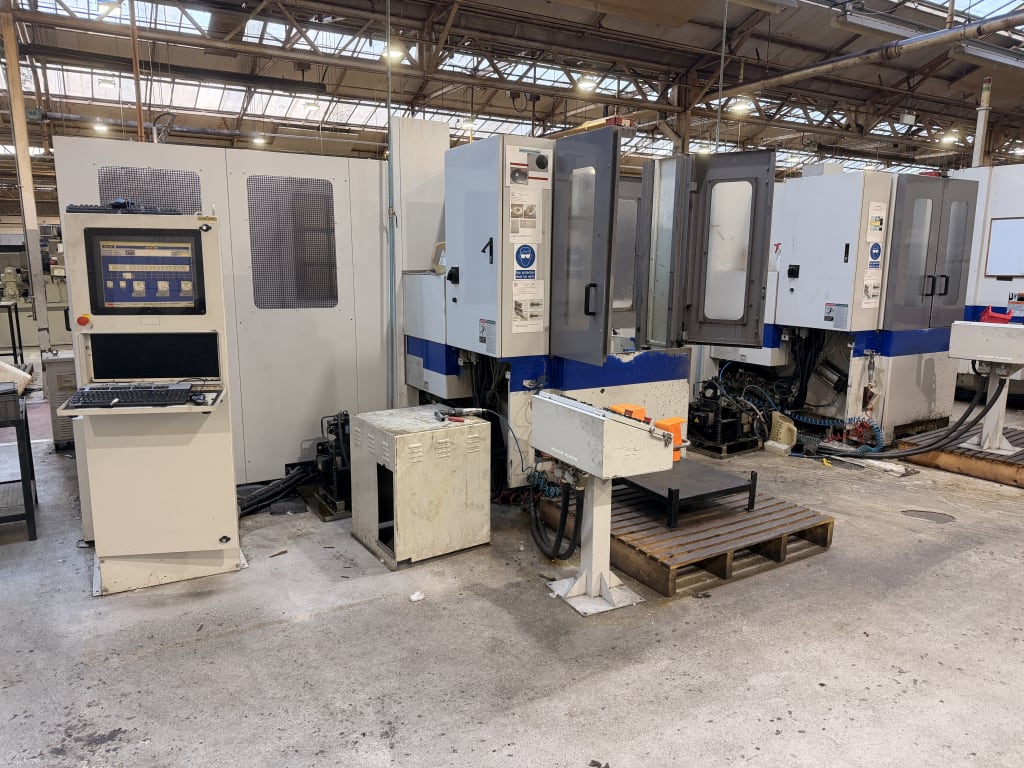

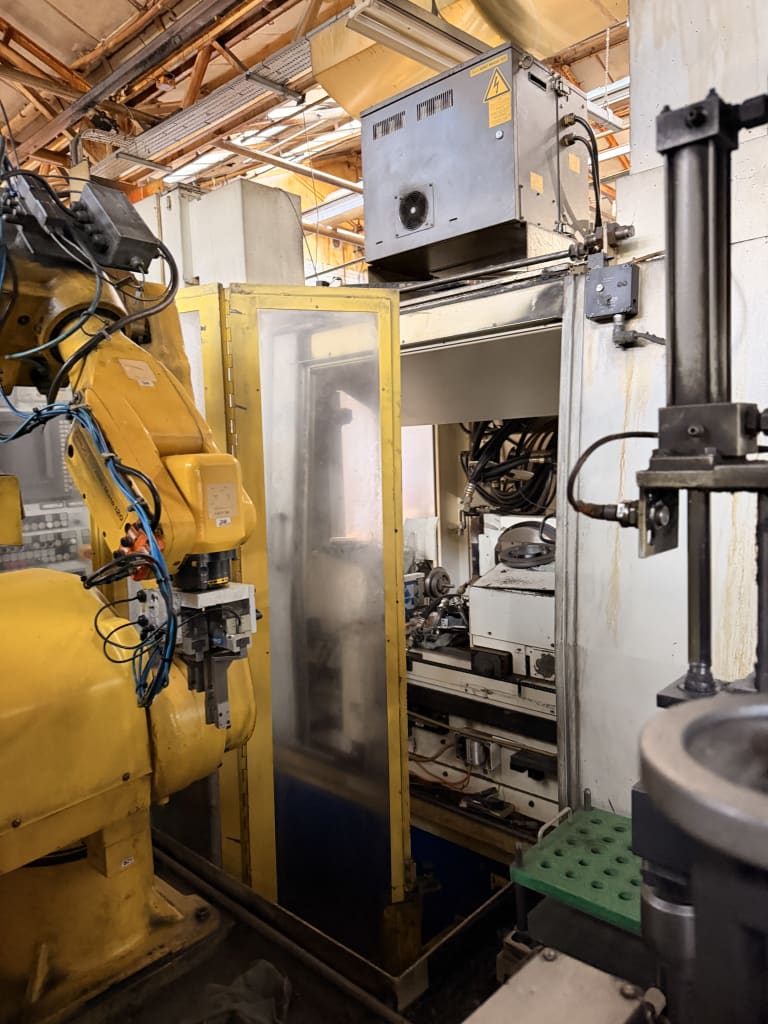

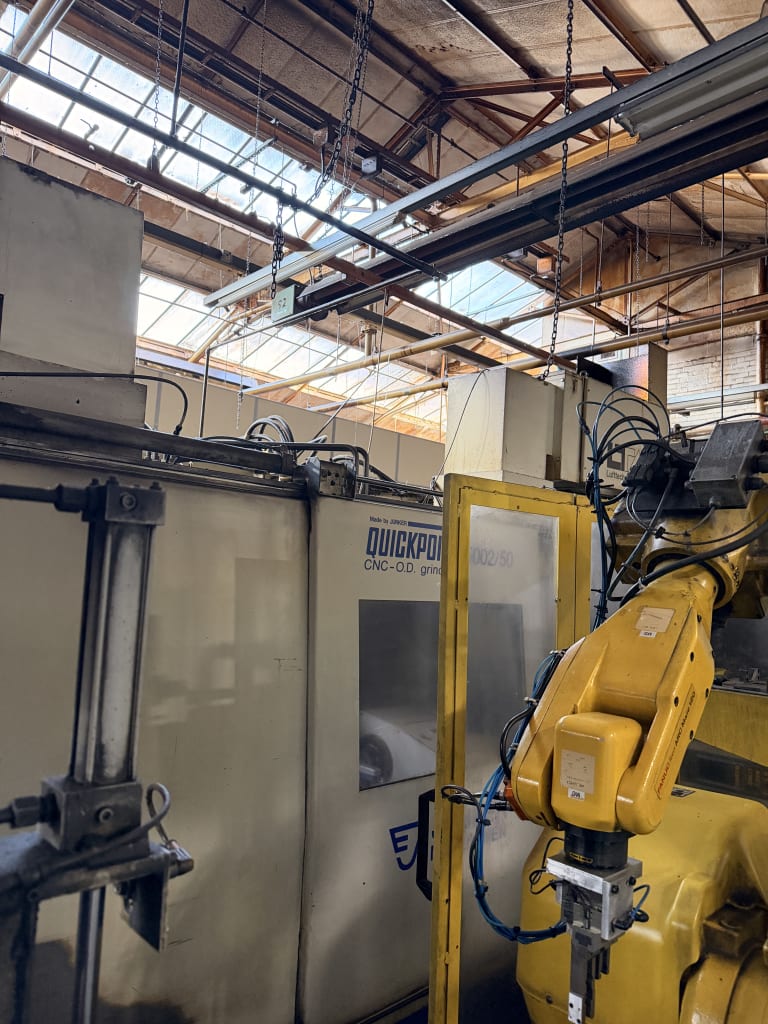

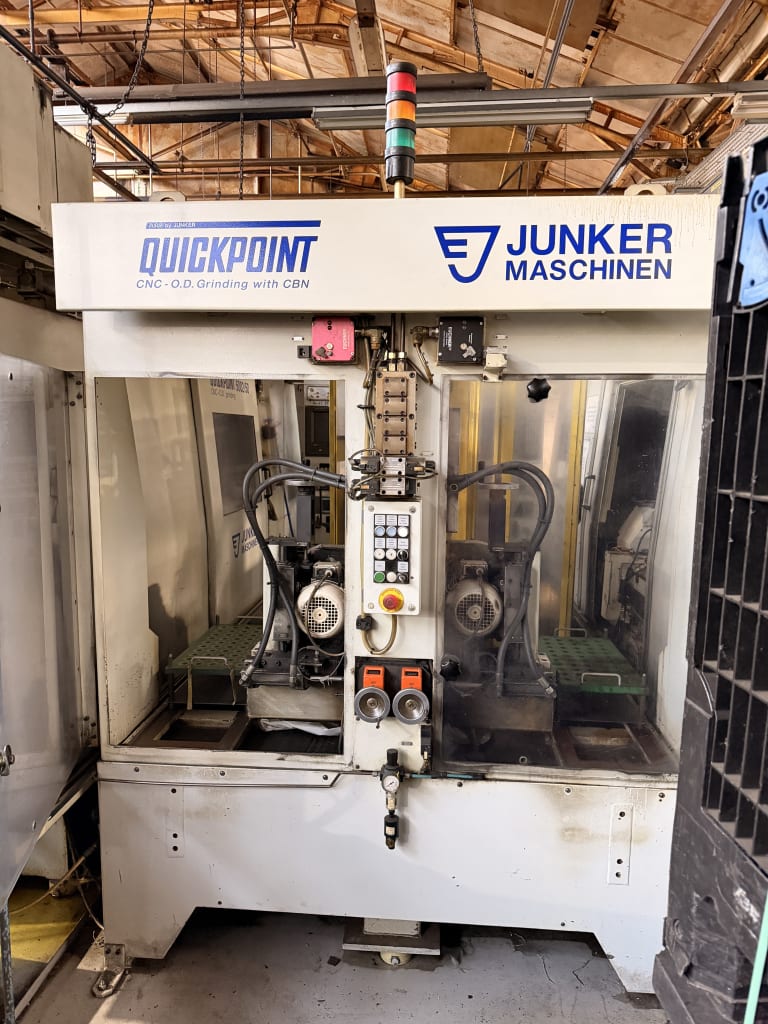

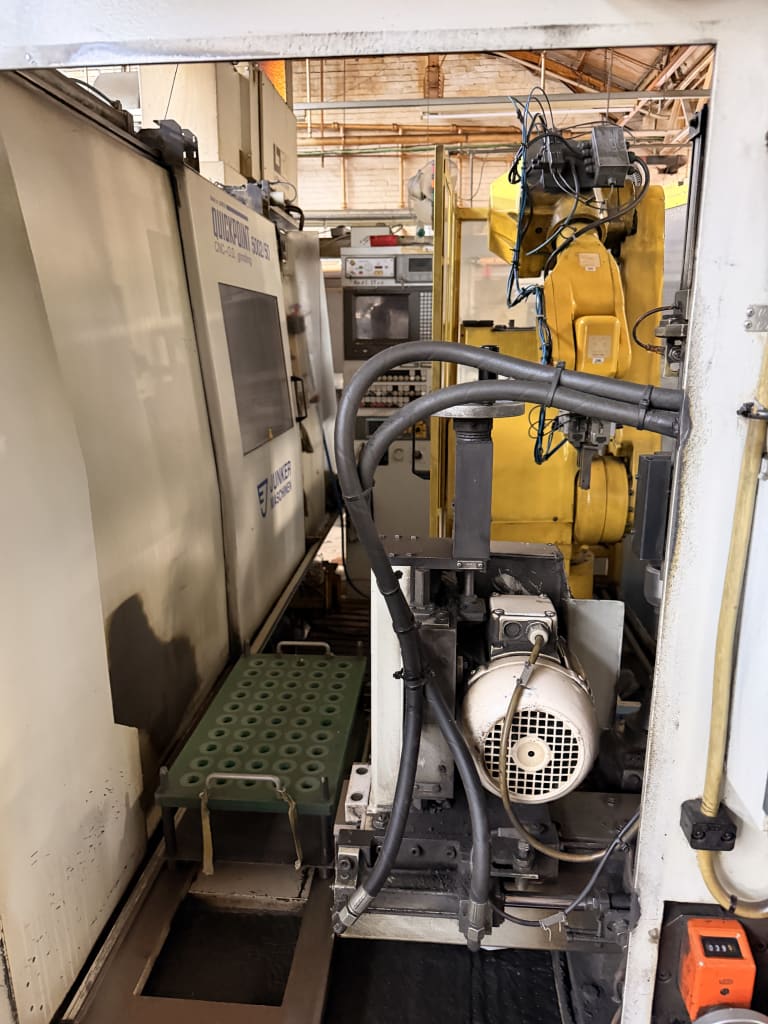

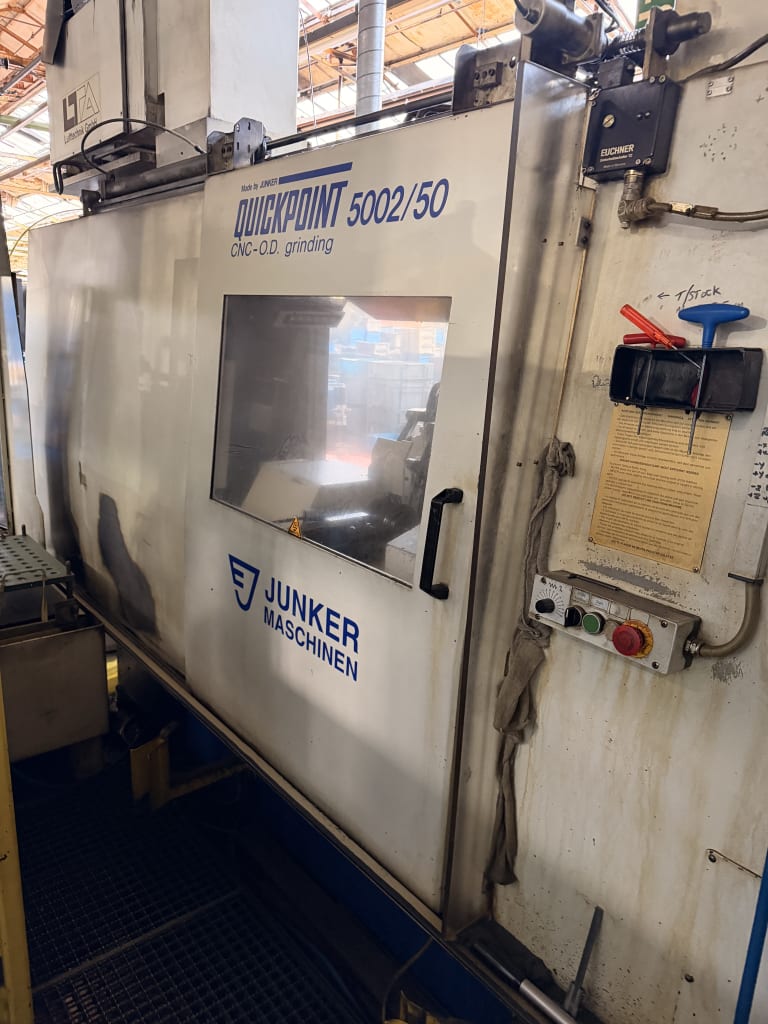

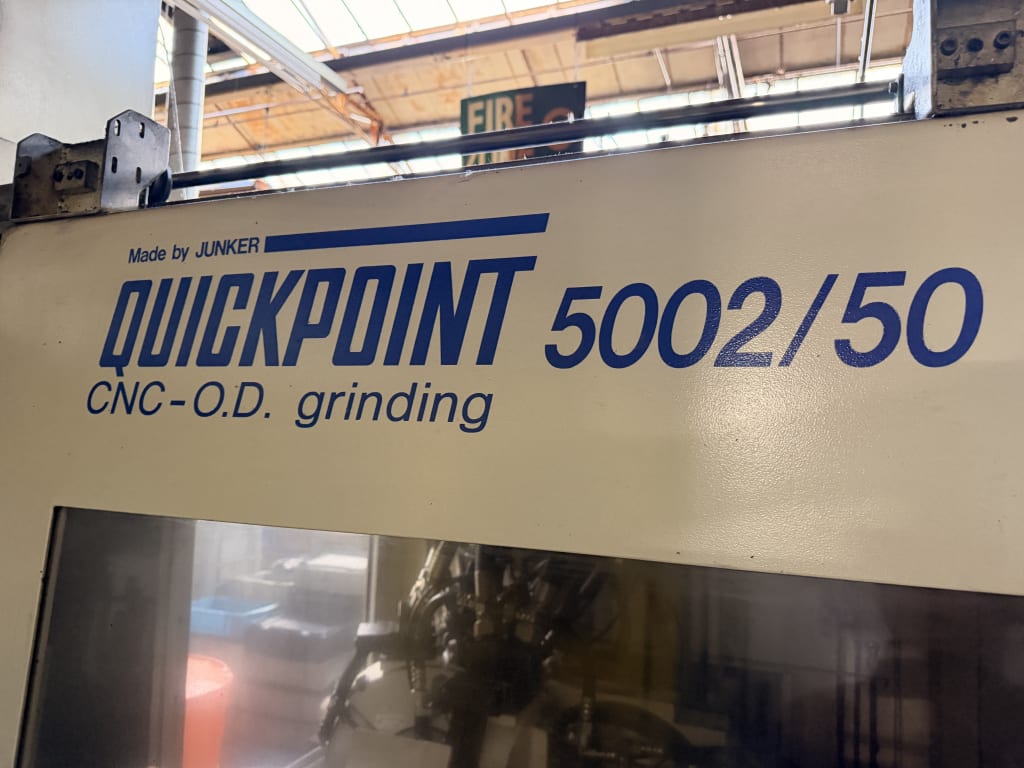

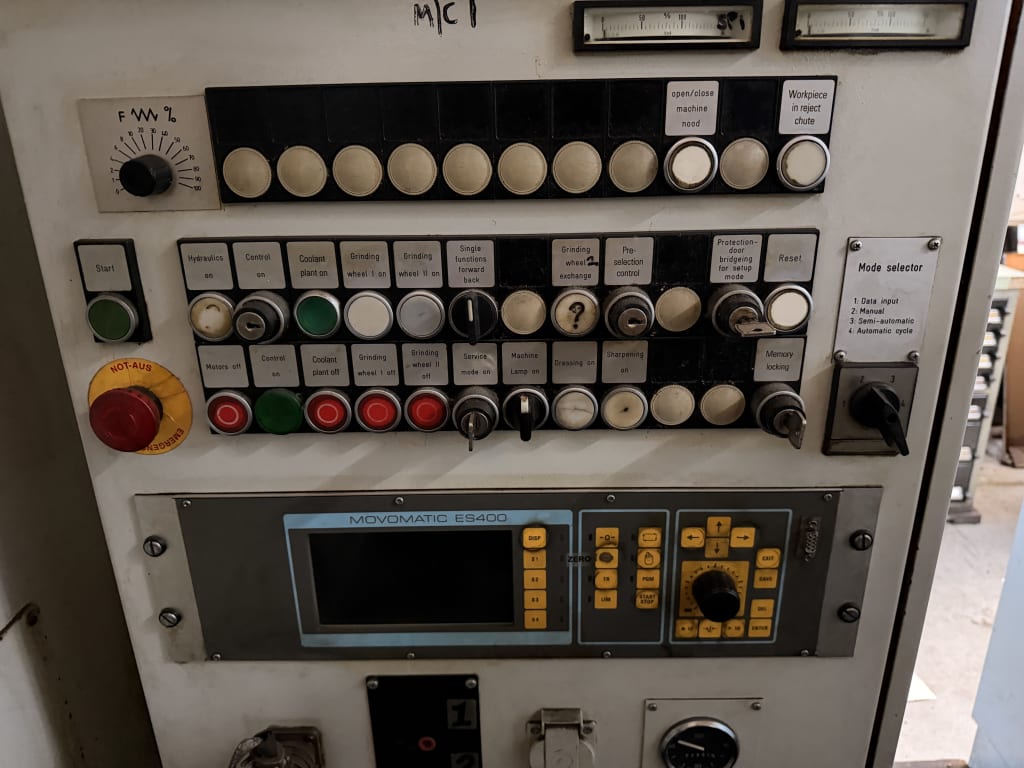

(2) Junker Quickpoint 5002/50 CNC Cylindrical Grinders, Fanuc Arc Mate 120 Robot Loader & Dual Polishing Station

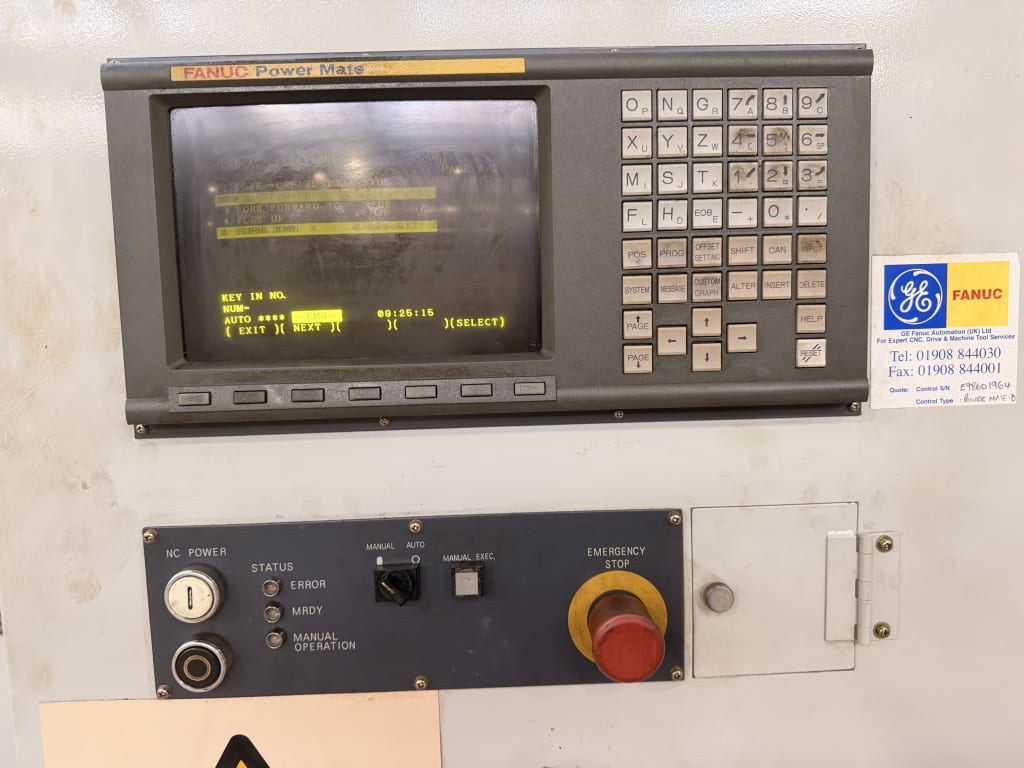

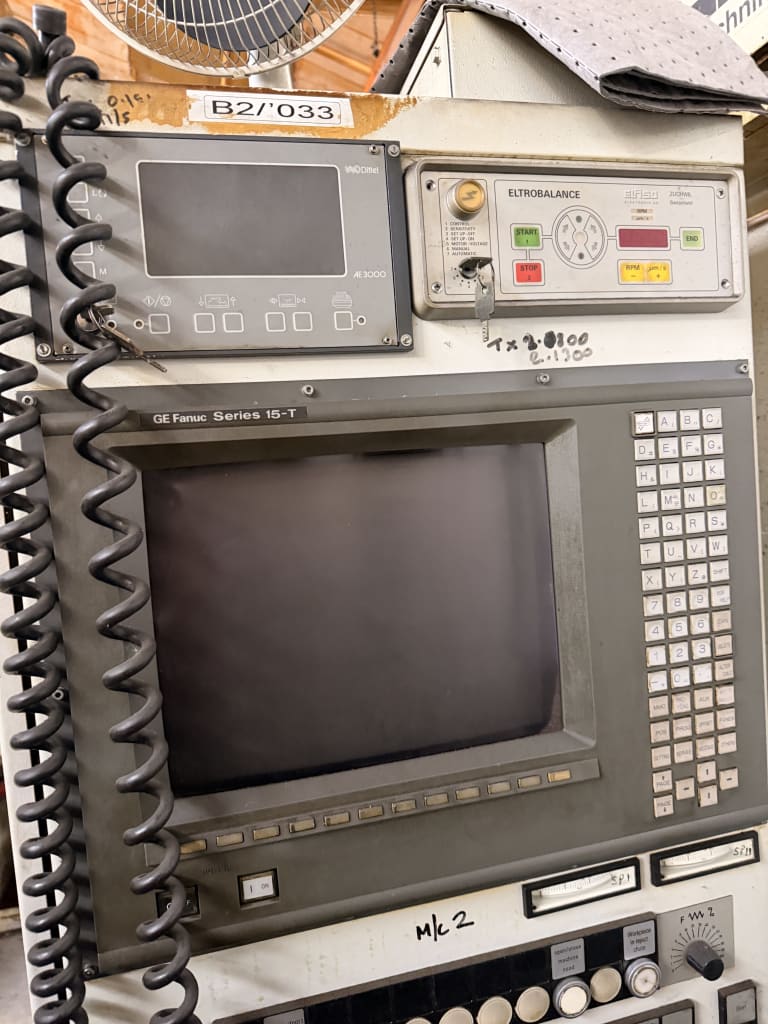

With GE Fanuc Series 15-T Controls, Elaso Digital Balancers & Dittel AE 3000 Digital Inspection Units. Maximum Grinding Ø80mm, Grinding Length 800mm. Maximum 'Z' Axis Travel 1,000mm. Distance Between Centres 500mm. Clamping Length 550mm. Workpiece Swing Ø280mm. Maximum Workpiece Weight 30kg. Maximum Wheel Ø400mm. S/No. 1610 (1995) & 1609 (1995). - LOT 3
![site]()

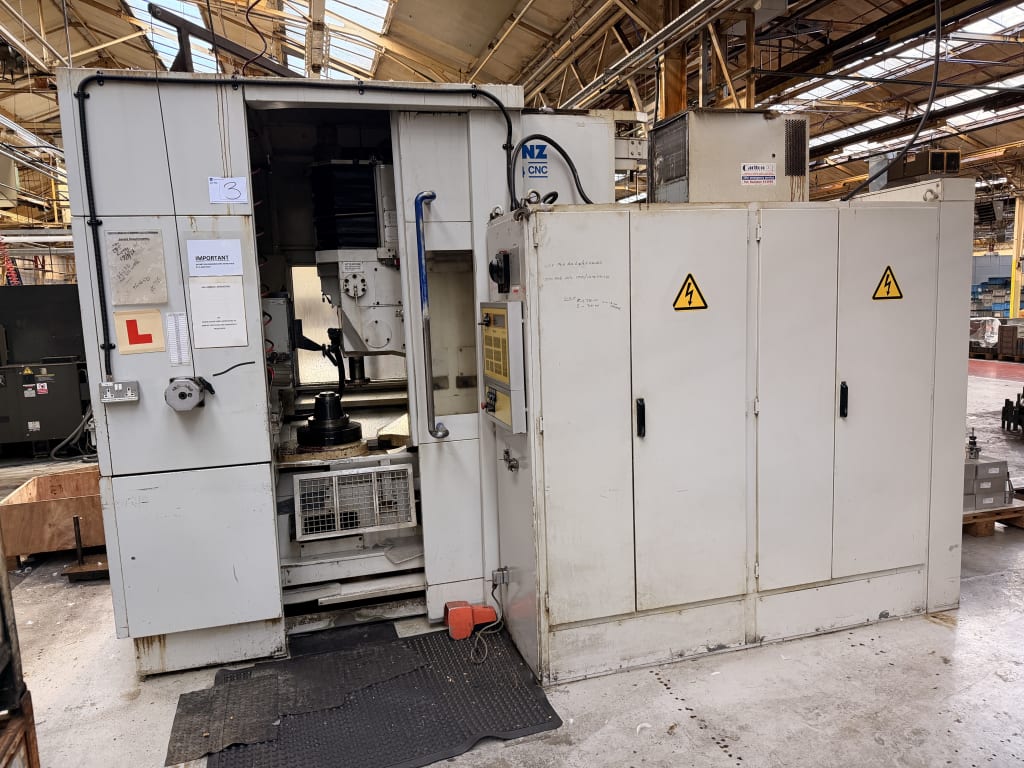

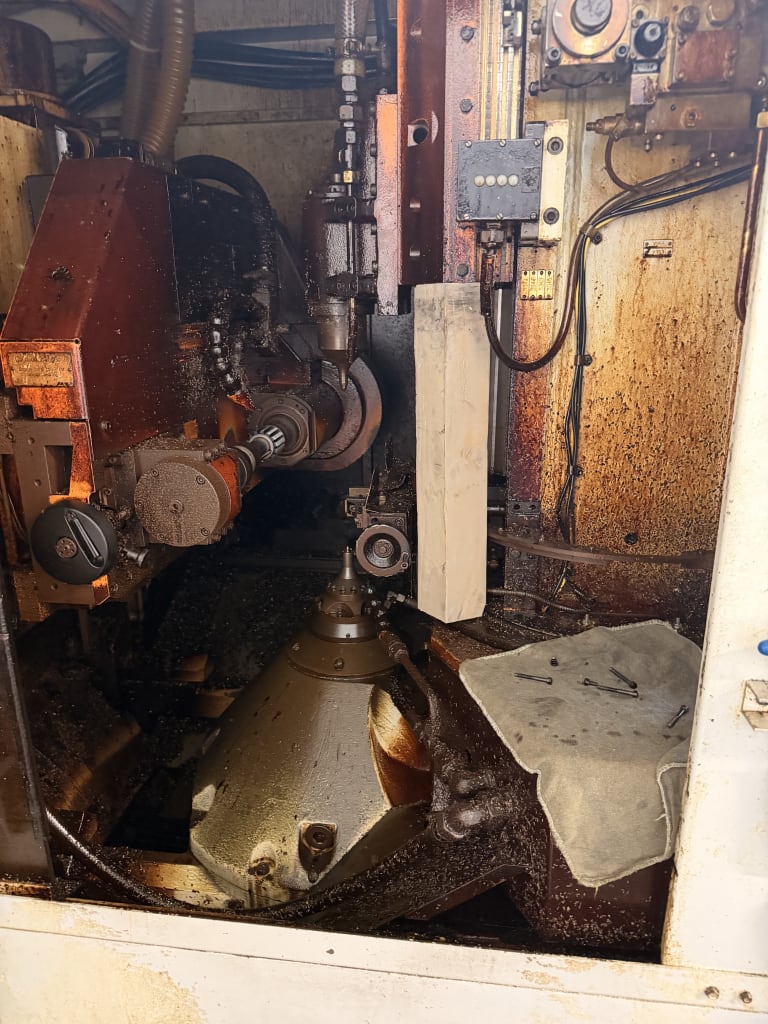

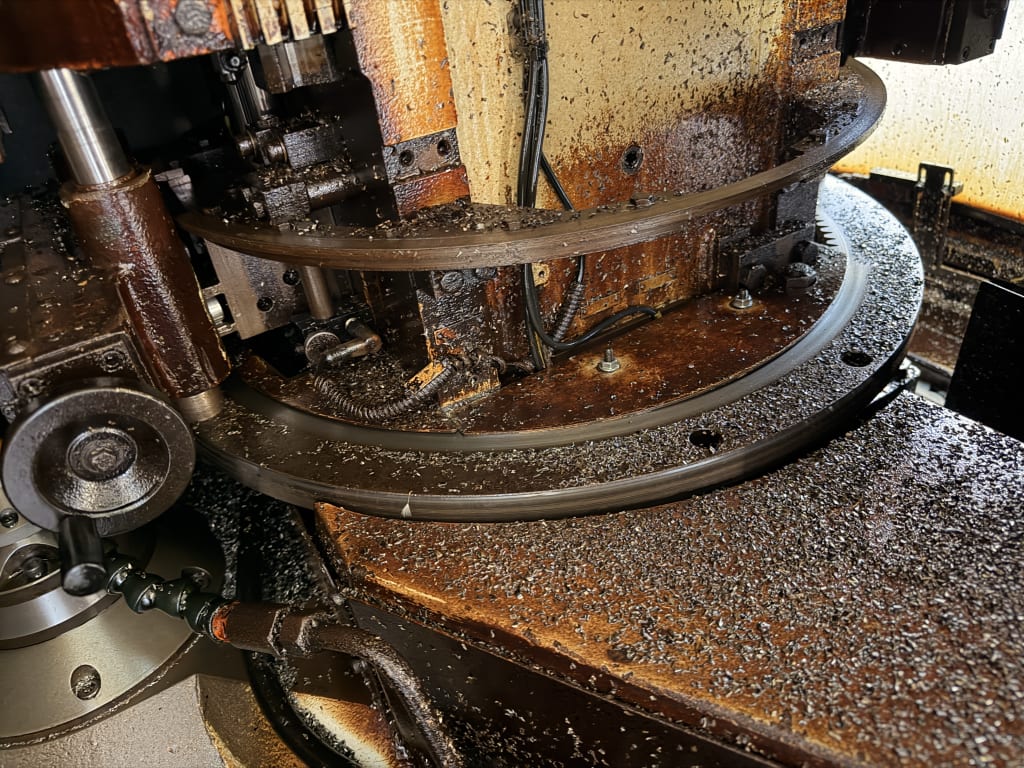

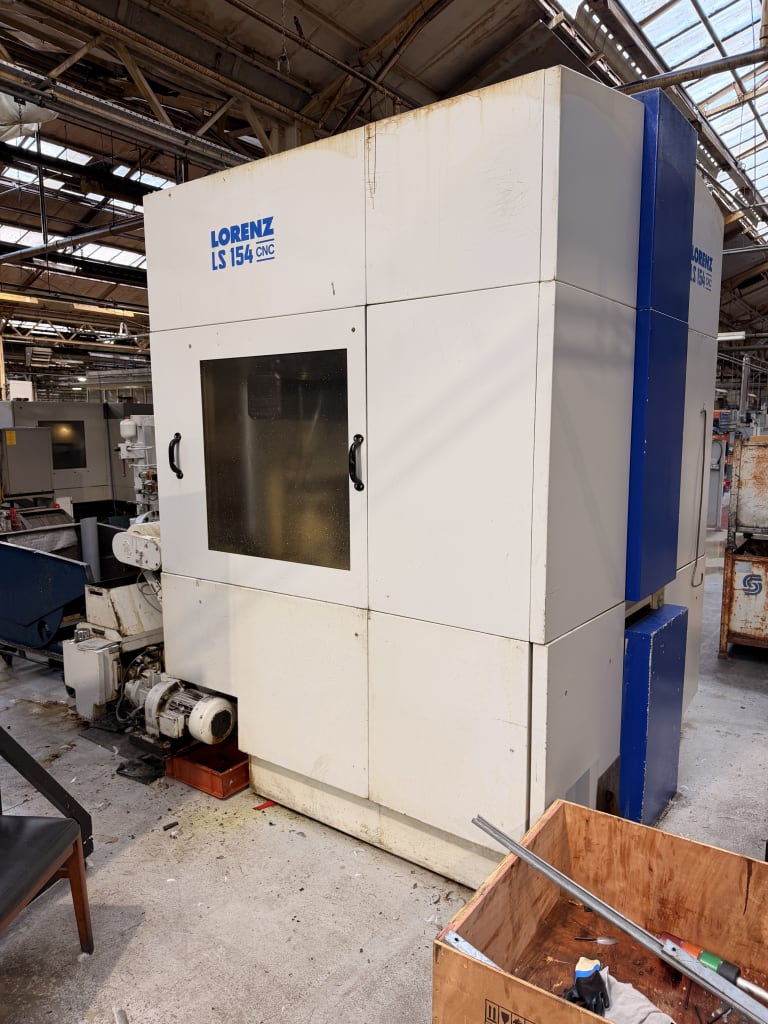

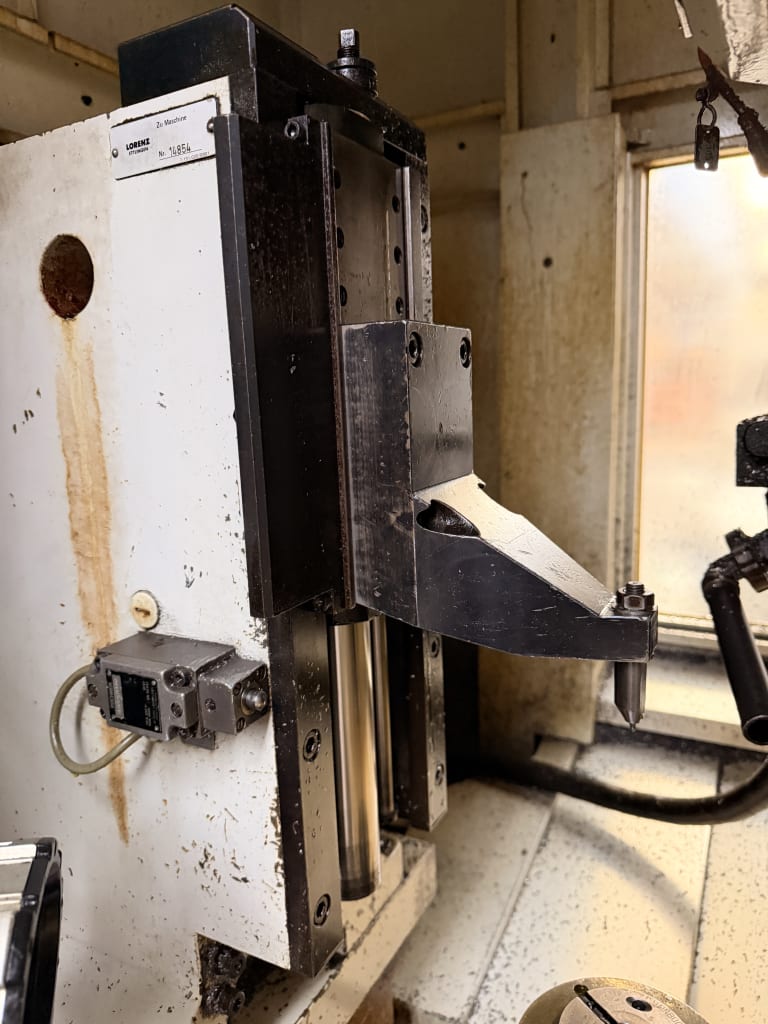

Lorenz LS154 CNC Gear Shaping Machine With Lorenz CNC 783-S Control
Module Range 0.5–5mm (5 DP). Maximum Workpiece External Ø150–152mm. Maximum Workpiece Internal Ø280mm. Maximum Tooth/Face Width 42mm. Table Ø250mm. Stroke Length/Axial Travel 0–50mm (Max Axial Travel Up To 65mm). Stroking Speed Range Infinitely Variable 100–1,250 Strokes Per Minute. Stroking Motor Power 18.5–25kW. S/No. 14854. - LOT 4
![site]()

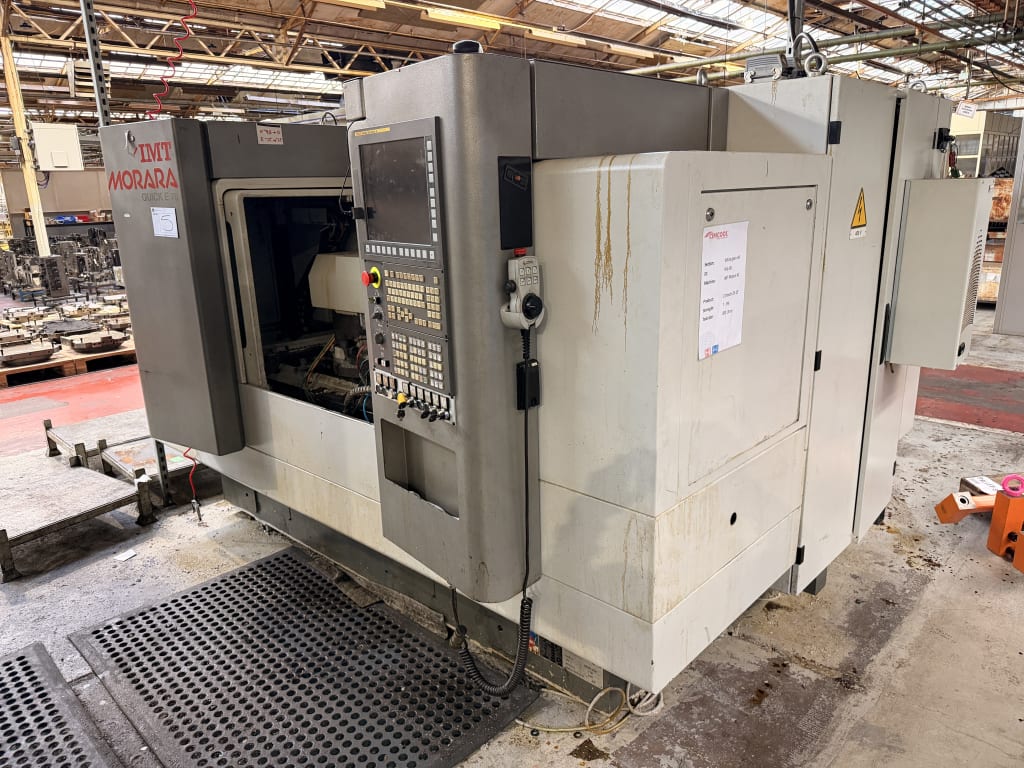

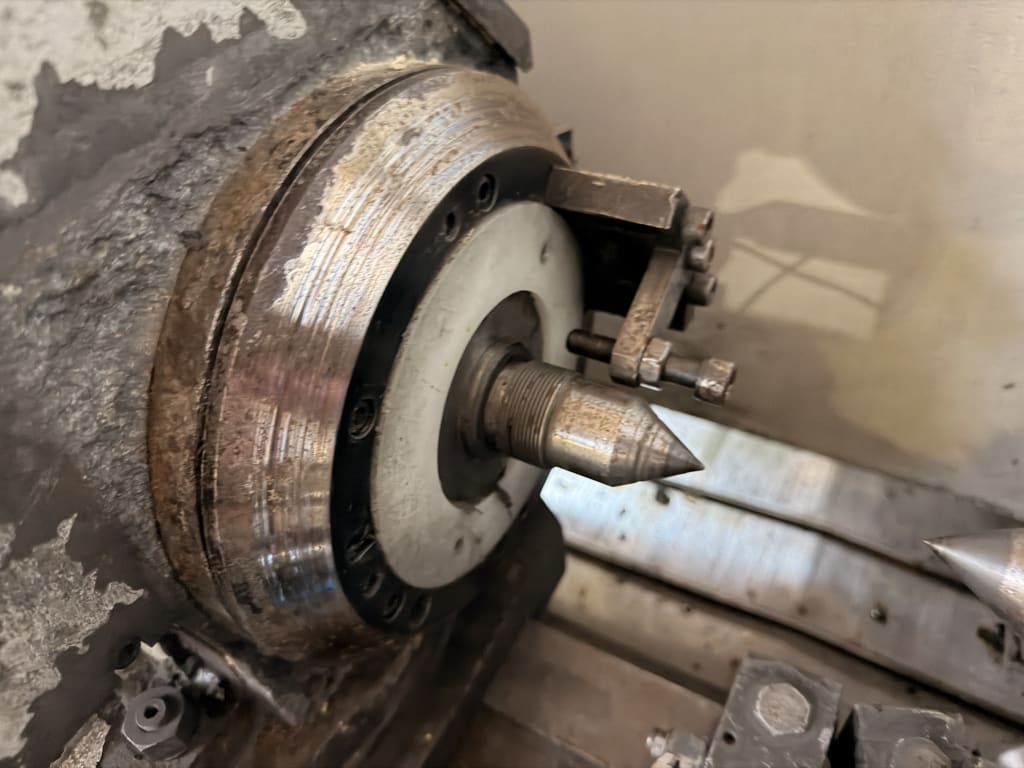

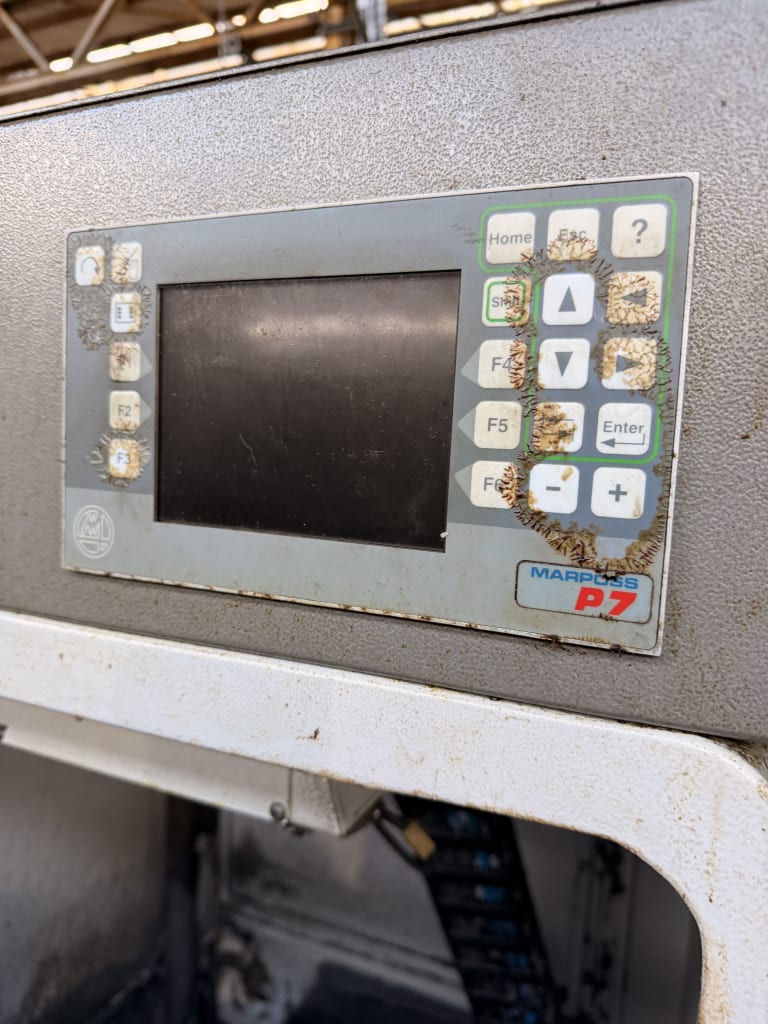

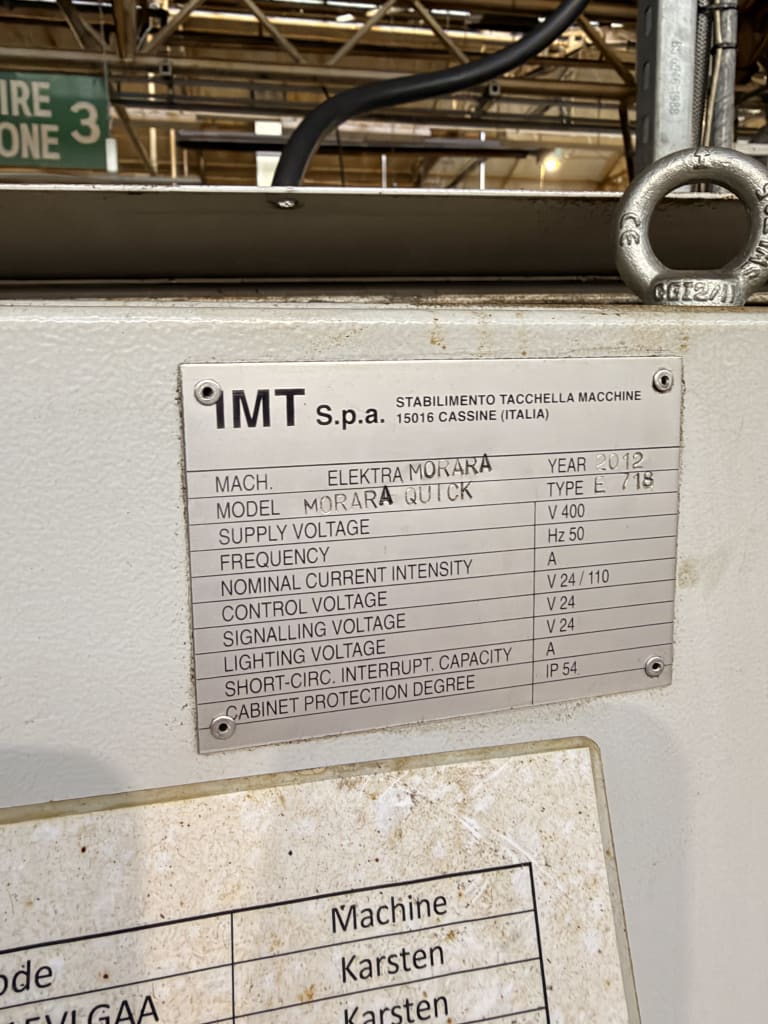

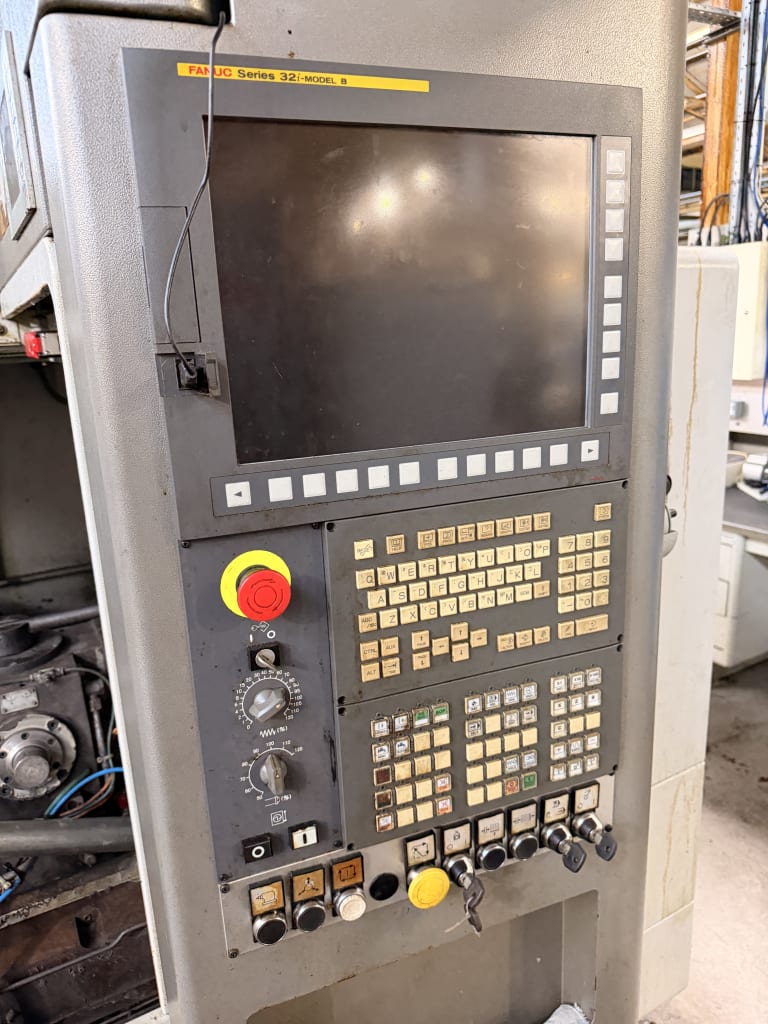

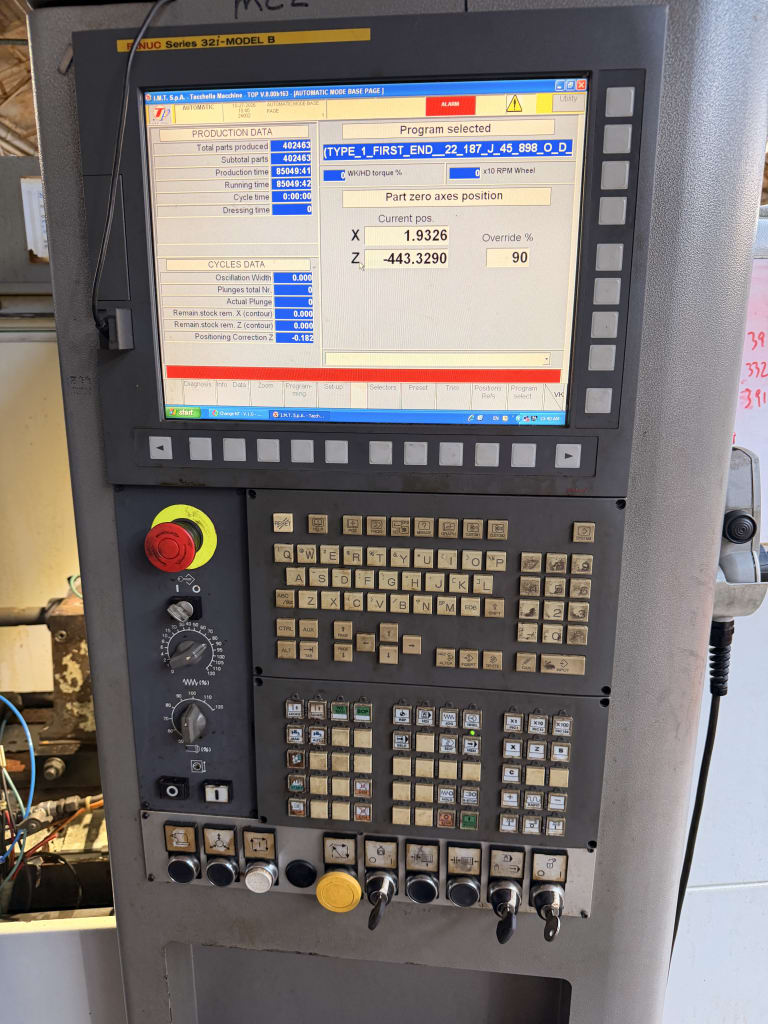

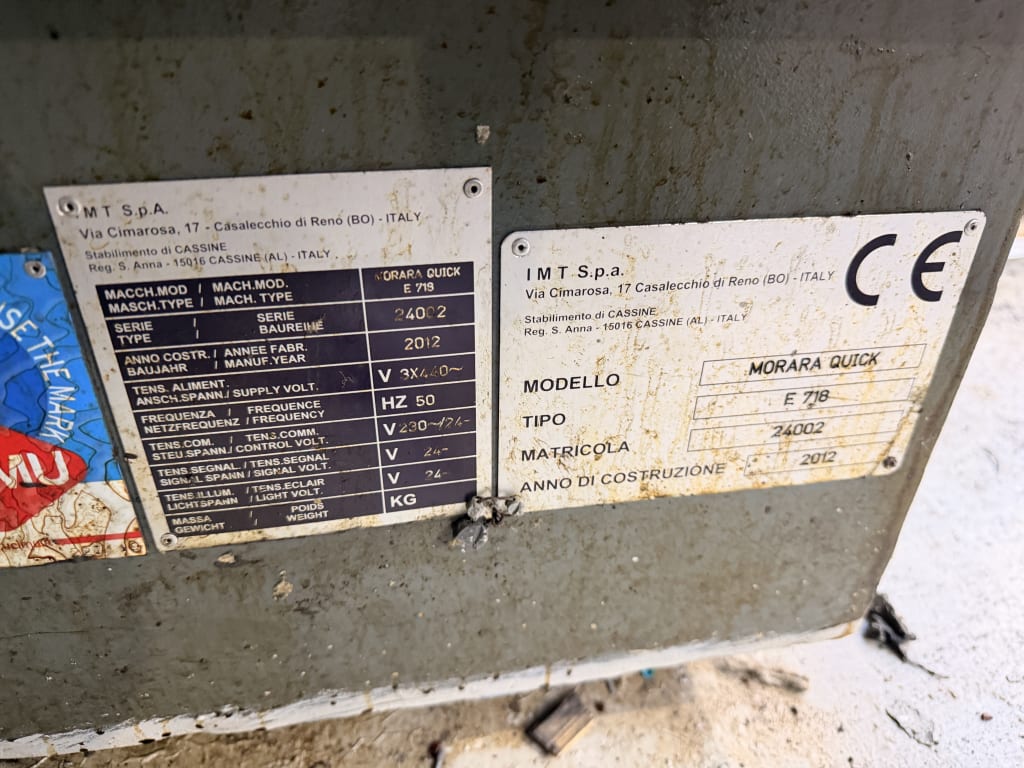

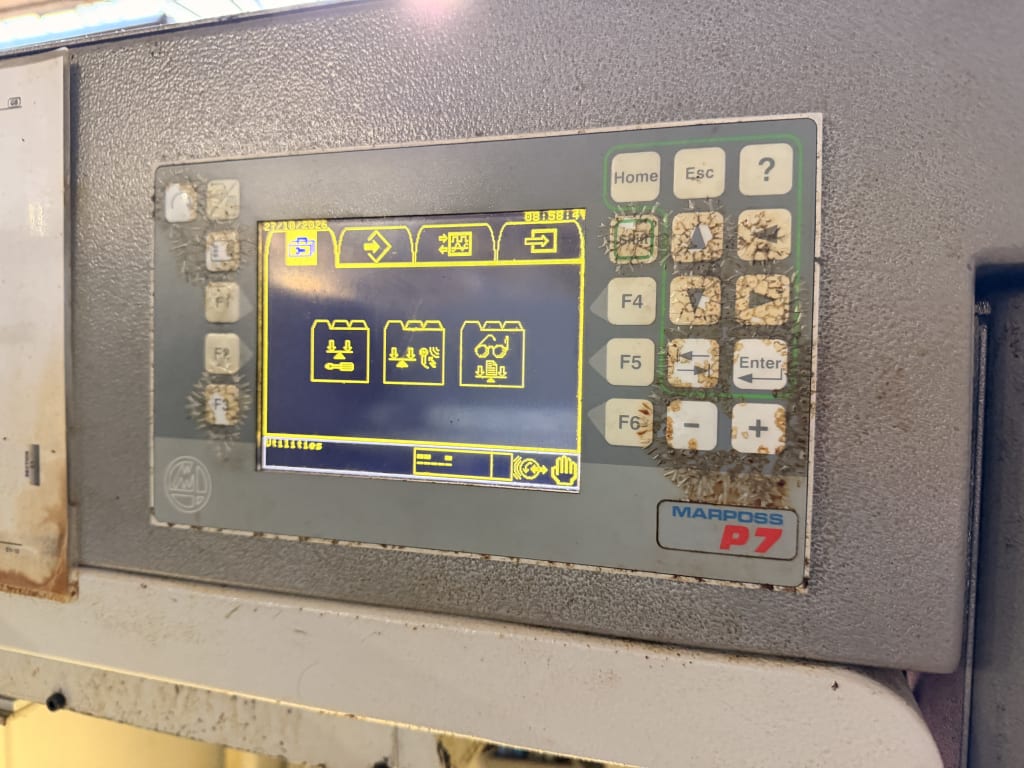

IMT Morara Quick E718 CNC Cylindrical Grinding Machine With Fanuc Series 32i-Model B Control & Marposs P7 Inspection Unit
Maximum Length Between Centres 700mm. Maximum Grinding Length 600mm. Centre Height 180mm. Maximum Swing Ø350mm. Maximum Weight OF Workpiece Between Centres 120kg. Maximum External Grinding Wheel Dimensions Ø508 x 80mm. Spindle Motor Power 11.5kW. Maximum External Wheel Peripheral Speed 50m/sec. 'X'-Axis Maximum Infeed 400mm. 'X'-Axis Maximum Traverse/Slide Speed 12m/min (X & Z Axes). Axis Feedback Resolution 0.0001mm. 'Z'-Axis Maximum Stroke Length 900mm. Workhead Taper Morse 5/ASA 5. Workhead Speed Range (Stepless) 10-800rpm. Workhead Spindle Motor Torque 105 Nm. Tailstock Taper Morse 4. Tailstock Quill Diameter/Stroke 60mm. S/No. 24002 (2012). - LOT 5
![site]()

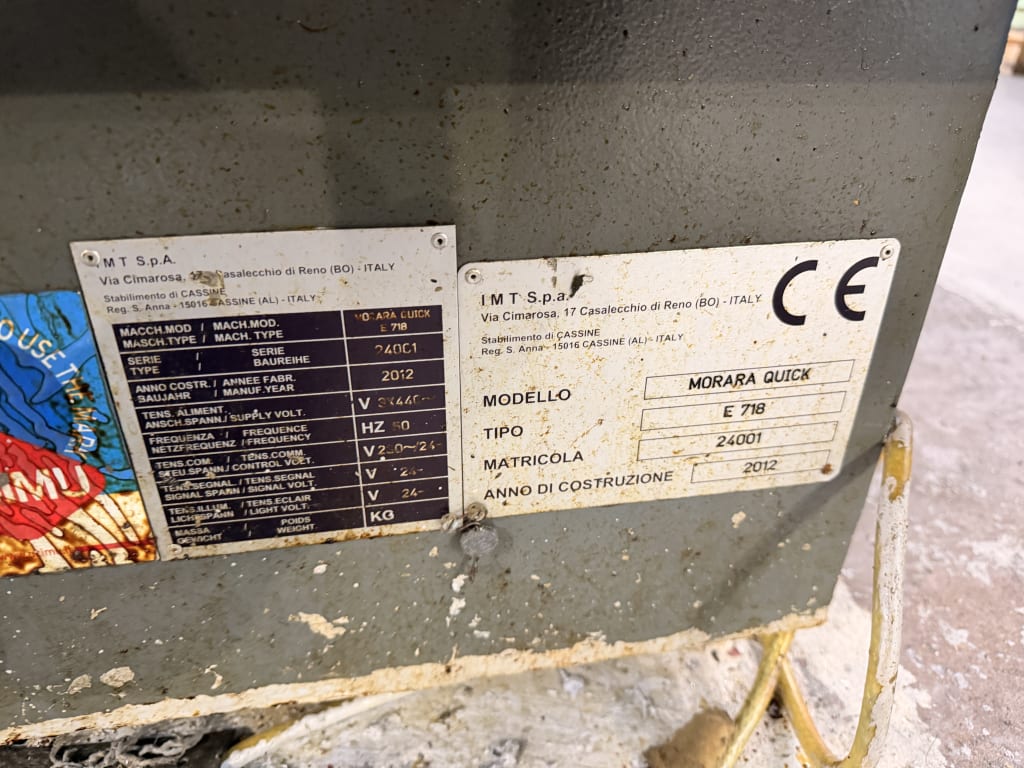

IMT Morara Quick E718 CNC Cylindrical Grinding Machine With Fanuc Series 32i-Model B Control & Marposs P7 Inspection Unit
Maximum Length Between Centres 700mm. Maximum Grinding Length 600mm. Centre Height 180mm. Maximum Swing Ø350mm. Maximum Weight OF Workpiece Between Centres 120kg. Maximum External Grinding Wheel Dimensions Ø508 x 80mm. Spindle Motor Power 11.5kW. Maximum External Wheel Peripheral Speed 50m/sec. 'X'-Axis Maximum Infeed 400mm. 'X'-Axis Maximum Traverse/Slide Speed 12m/min (X & Z Axes). Axis Feedback Resolution 0.0001mm. 'Z'-Axis Maximum Stroke Length 900mm. Workhead Taper Morse 5/ASA 5. Workhead Speed Range (Stepless) 10-800rpm. Workhead Spindle Motor Torque 105 Nm. Tailstock Taper Morse 4. Tailstock Quill Diameter/Stroke 60mm. S/No. 24001 (2012). - LOT 6
![site]()

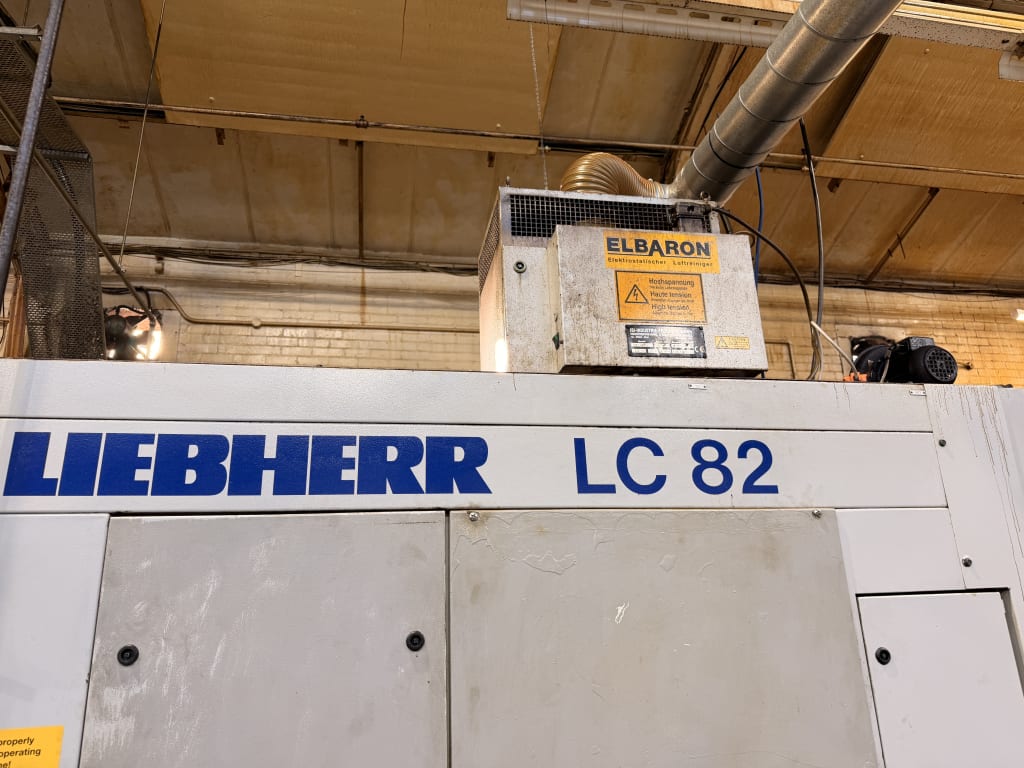

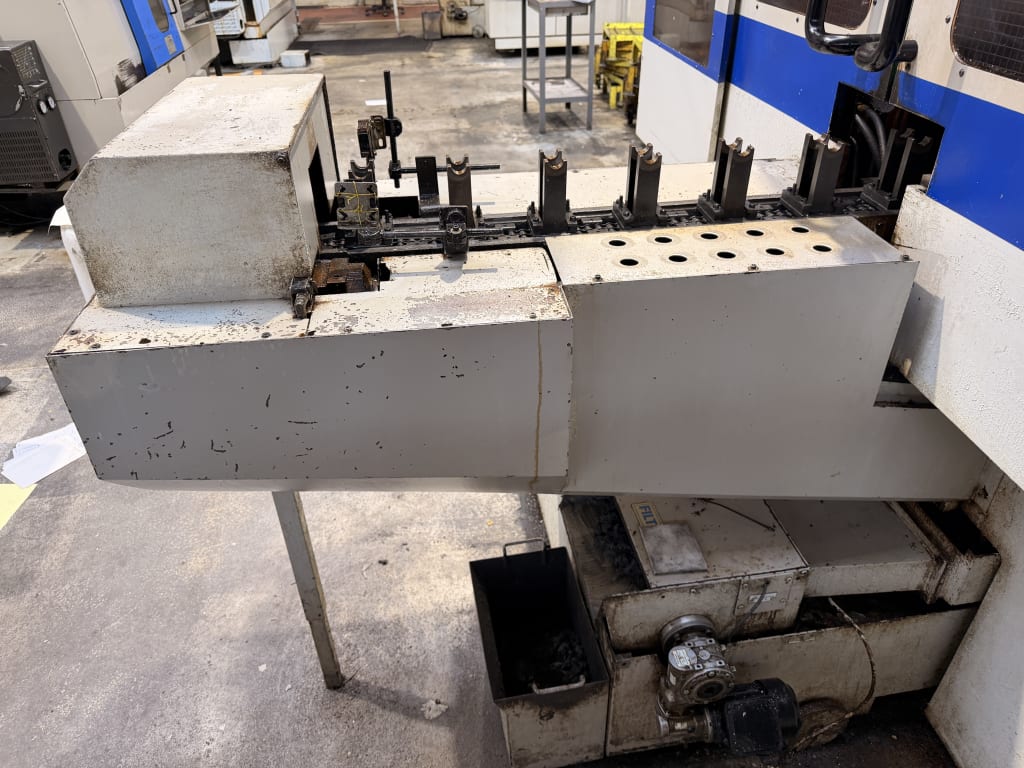

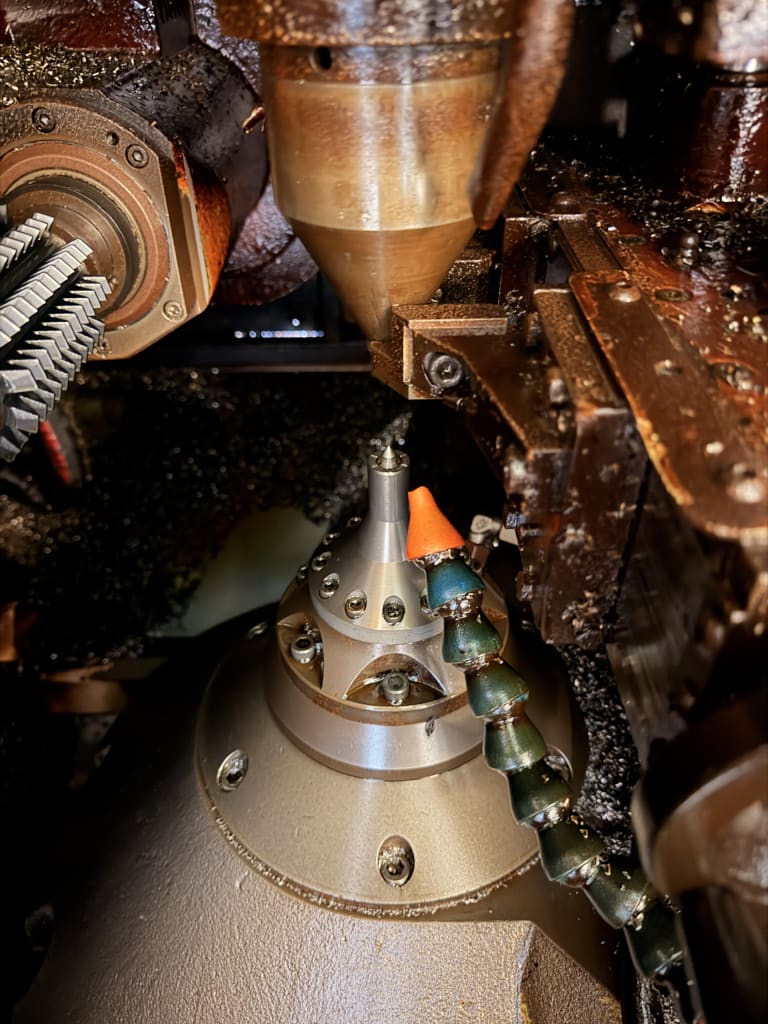

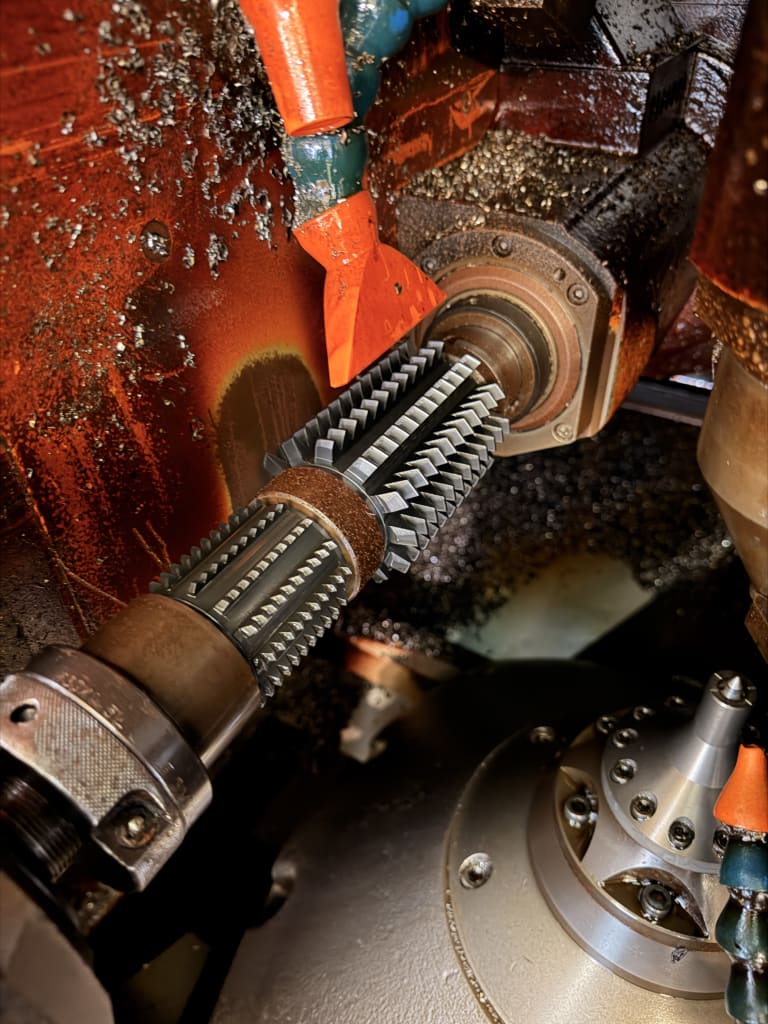

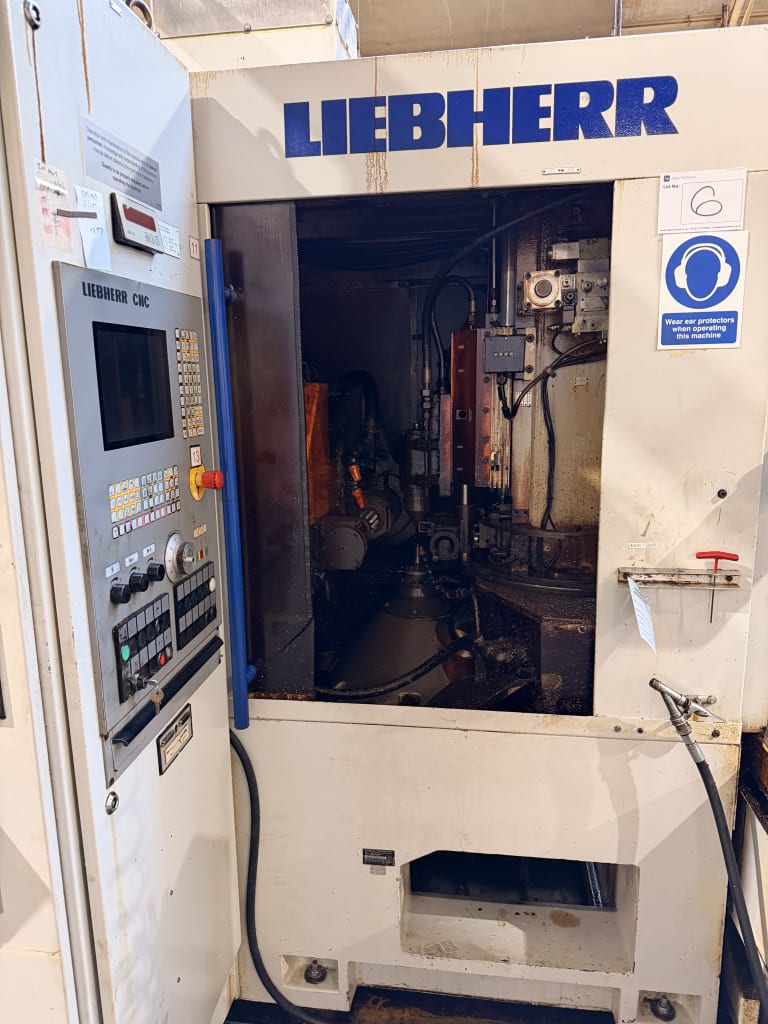

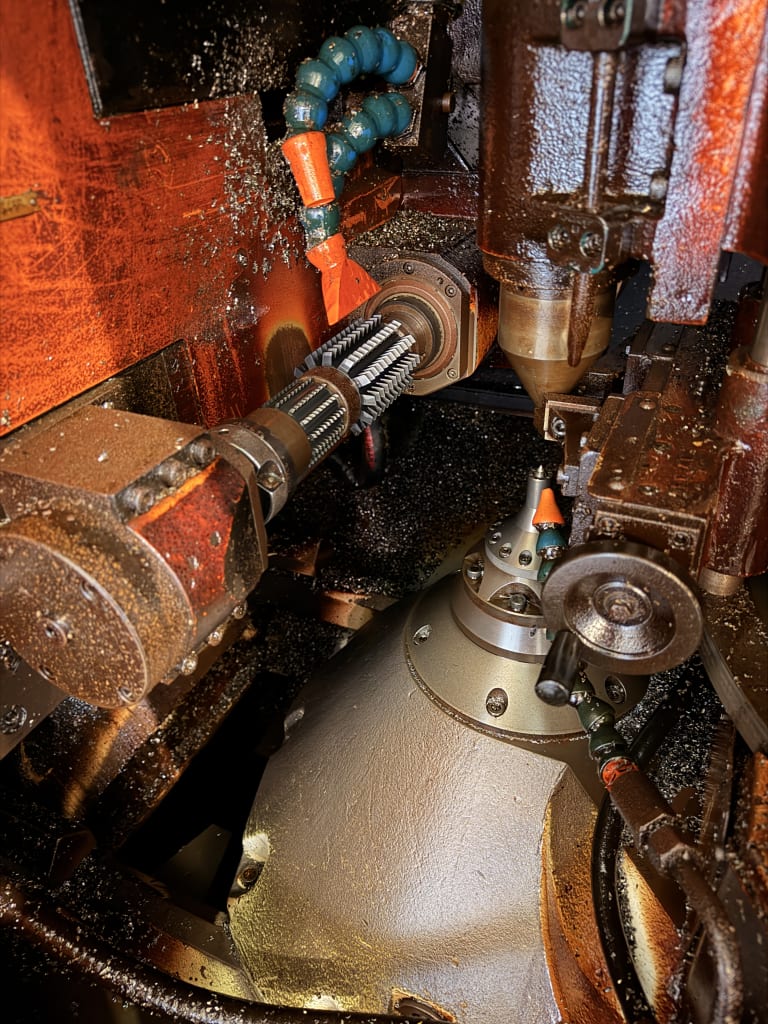

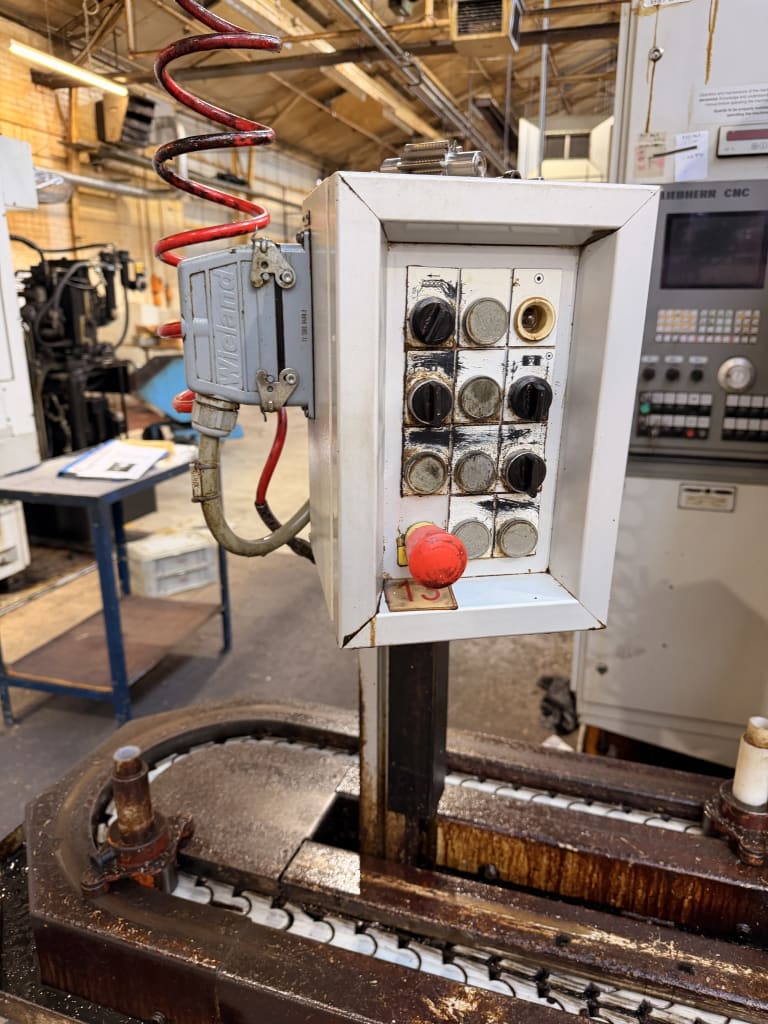

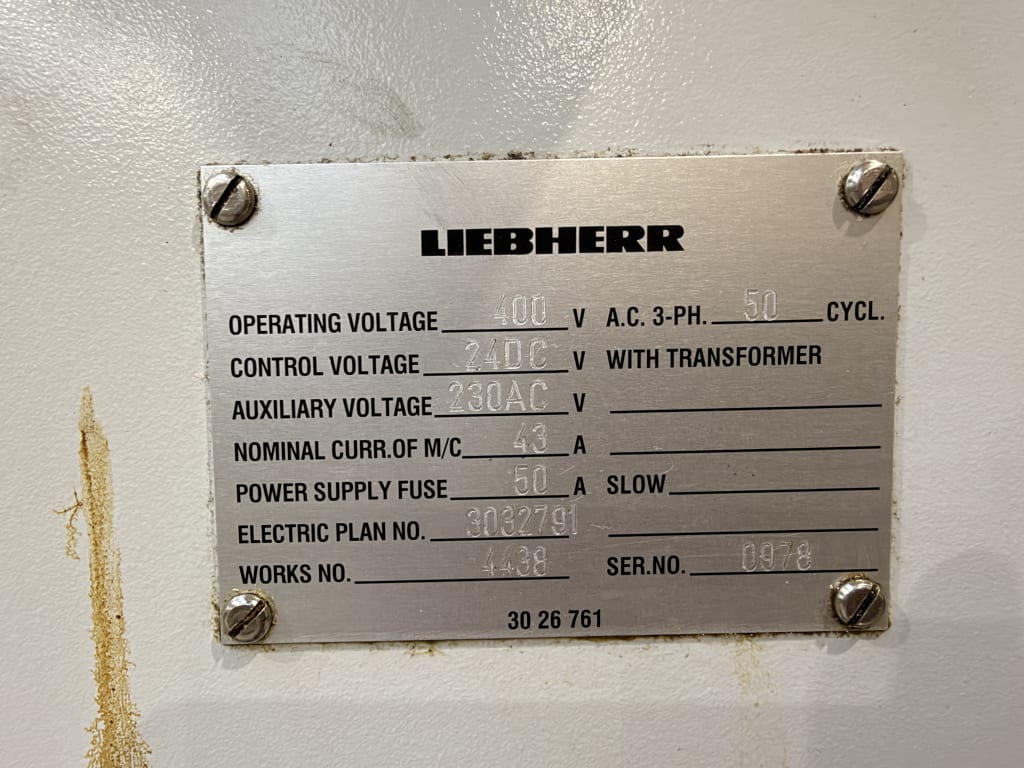

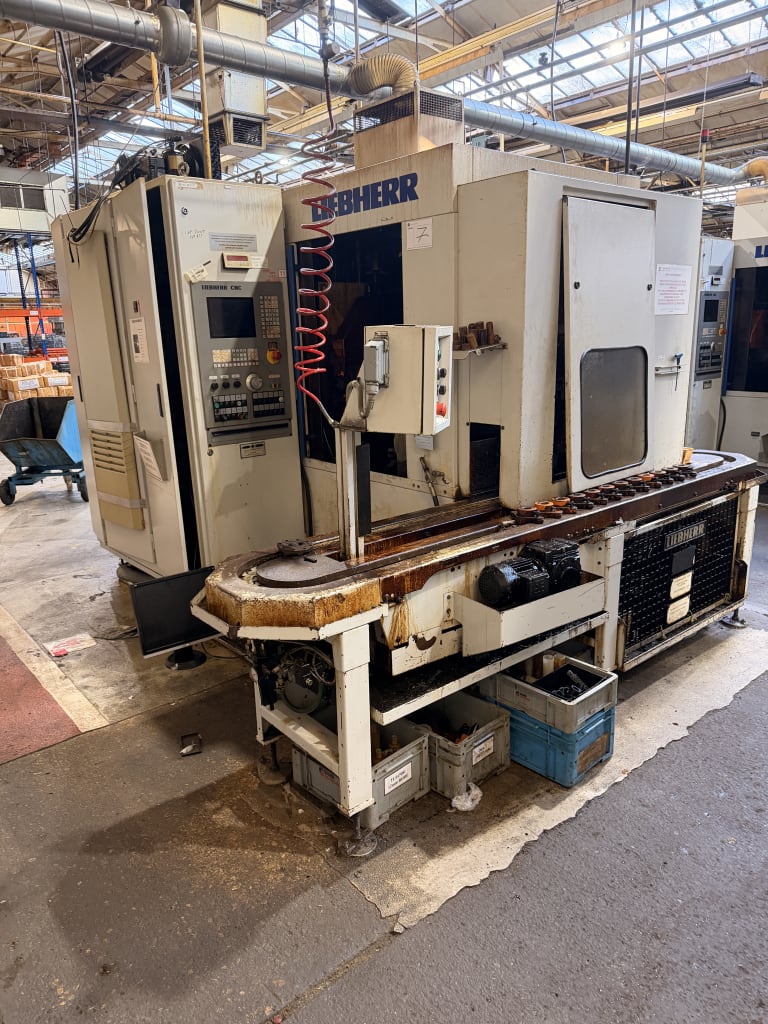

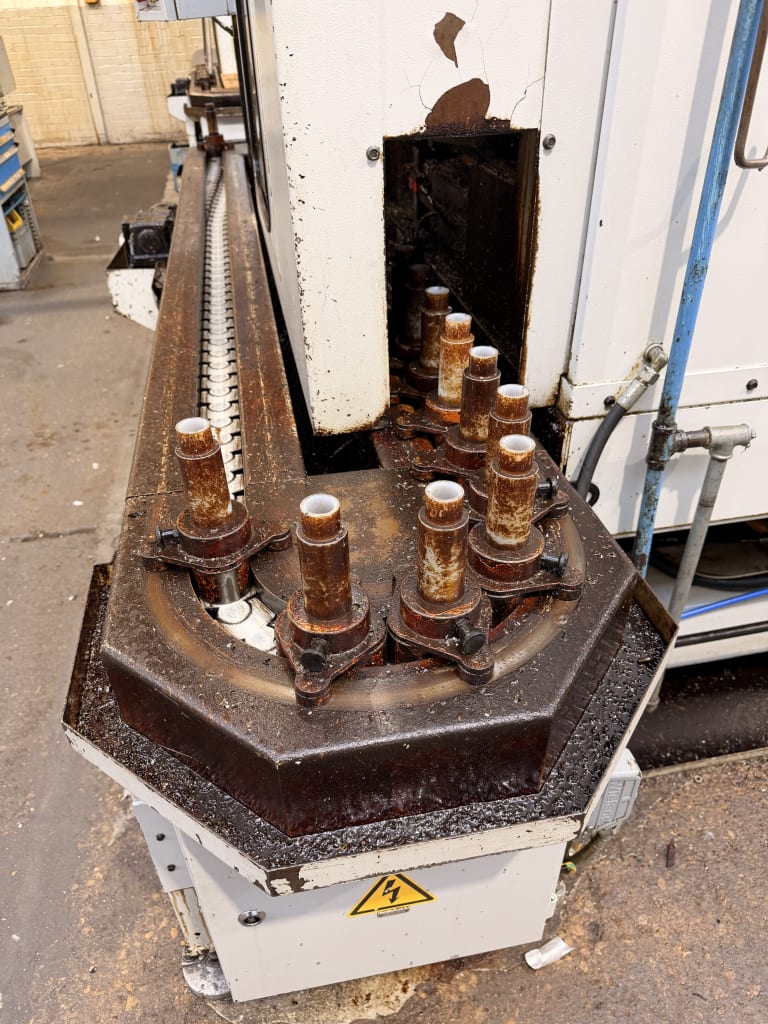

Liebherr LC82 CNC Gear Hobbing Machine With Parts Loading Conveyor
Maximum Gear Ø82mm. Module Range 1-3. Minimum Number Of Teeth 3. Helix Angle ±45°. Gear Width 245 mm. Table Ø125mm. Dividing Plate Ø403mm. Hob Speed 0–800rpm(Steplessly Adjustable). Milling Spindle Drive Power 8kW. Hob Spindle Taper HSK 50 A. Maximum Hob Size Ø90mm × 200mm Length. Vertical Stroke (Hobbing Head Slide) 250mm. Tangential/Shift Travel Of Tool Slide 180mm. Distance Table Centre To Tool Centre 15 To 160mm. Workpiece Clamping Length (Table To Tailstock) 250mm. S/No.0978. - LOT 7
![site]()

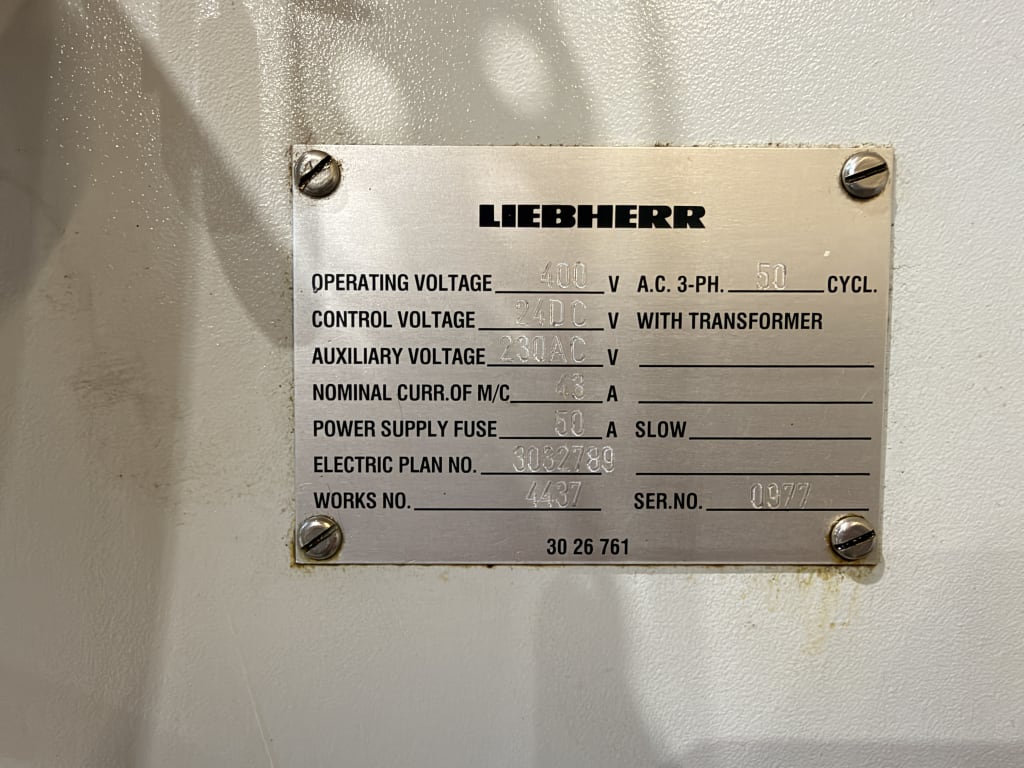

Liebherr LC82 CNC Gear Hobbing Machine With Parts Loading Conveyor
Maximum Gear Ø82mm. Module Range 1-3. Minimum Number Of Teeth 3. Helix Angle ±45°. Gear Width 245 mm. Table Ø125mm. Dividing Plate Ø403mm. Hob Speed 0–800rpm(Steplessly Adjustable). Milling Spindle Drive Power 8kW. Hob Spindle Taper HSK 50 A. Maximum Hob Size Ø90mm × 200mm Length. Vertical Stroke (Hobbing Head Slide) 250mm. Tangential/Shift Travel Of Tool Slide 180mm. Distance Table Centre To Tool Centre 15 To 160mm. Workpiece Clamping Length (Table To Tailstock) 250mm. S/No.0977. - LOT 8
![site]()

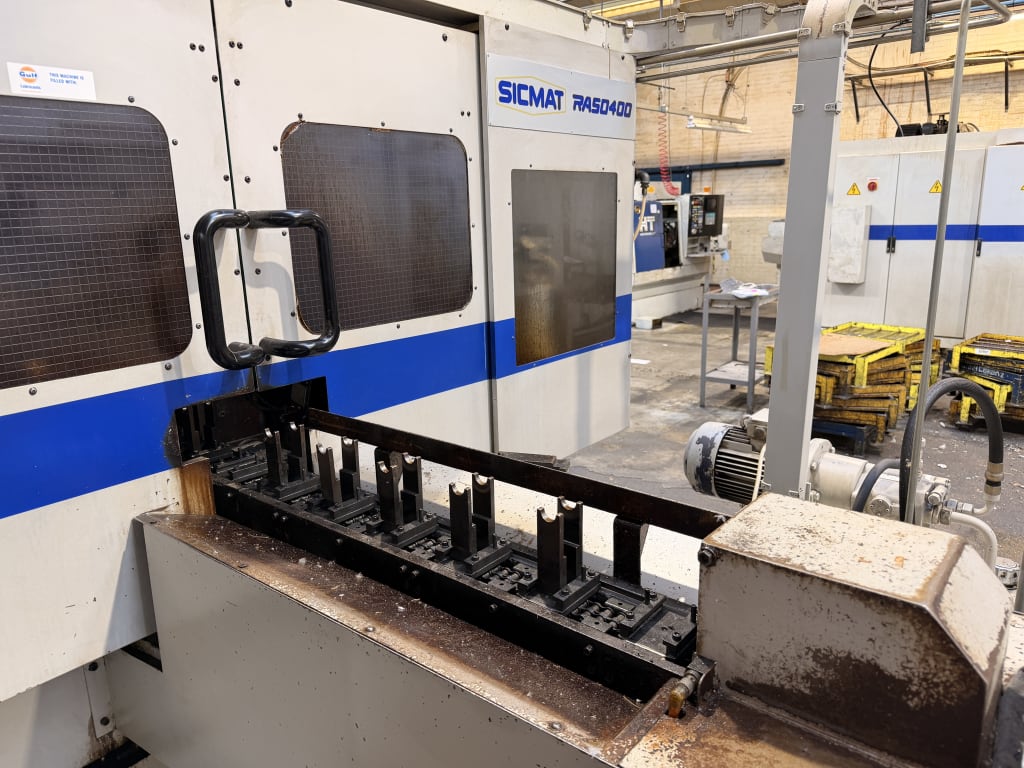

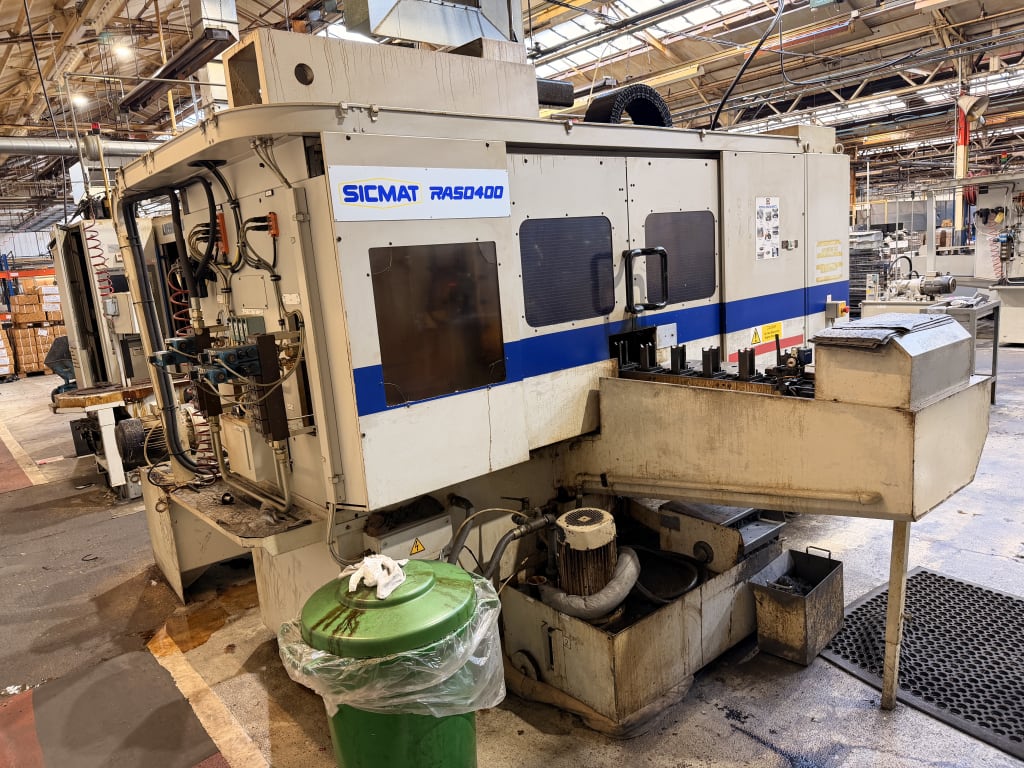

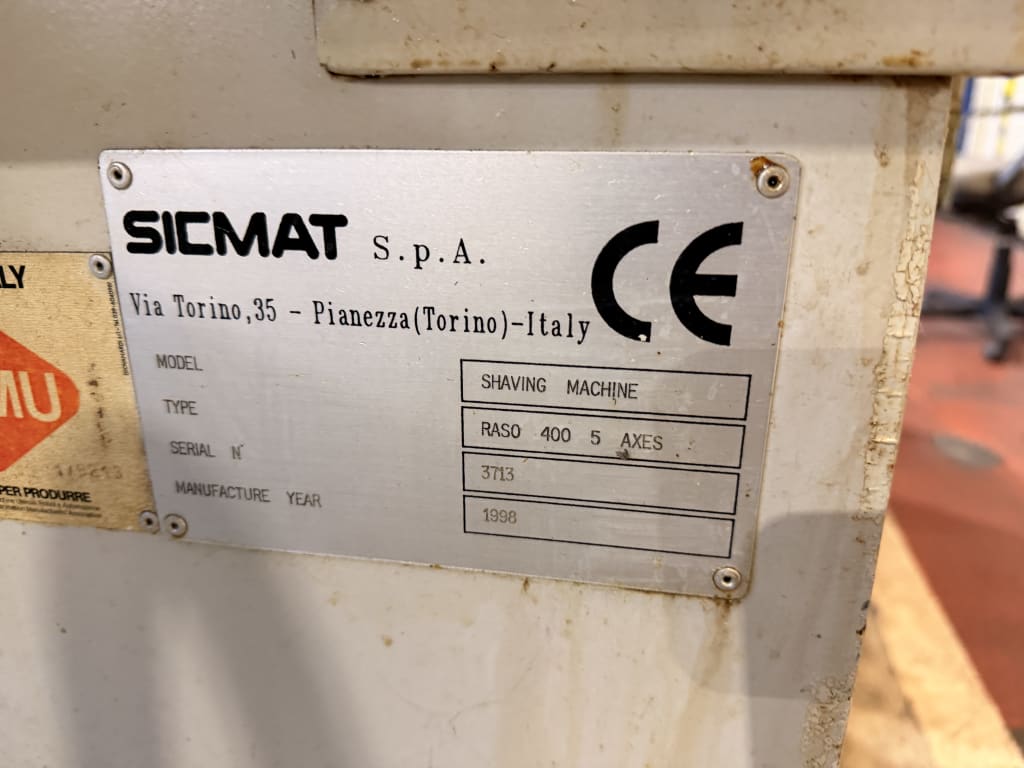

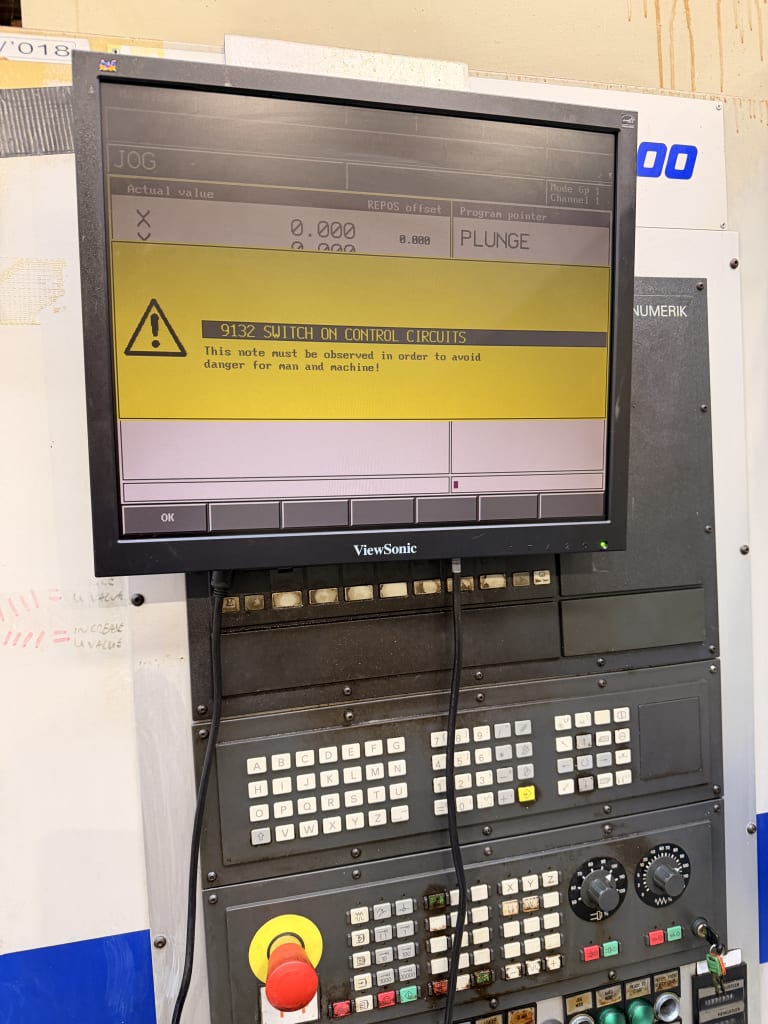

Sicmat Raso 400 5 Axis CNC Gear Shaving Machine With Siemens Sinumerik Control & Parts Loading Conveyor
Module Range 1–8mm. Max. Workpiece Ø400mm. Max. Workpiece Face Width/Length 160mm. Shaving Cutter Ø178–254mm. Shaving Cutter Width 19–50.8mm. Cutter Centering / Bore Ø63.5mm. Cutter Spindle Speed 10–400rpm. Centre Distance (Tool To Workpiece) 119– 329mm. S/No. 3713 (1998). - LOT 9
![site]()
Sicmat Raso 400 5 Axis CNC Gear Shaving Machine With Siemens Sinumerik Control & Parts Loading Conveyor
Module Range 1–8mm. Max. Workpiece Ø400mm. Max. Workpiece Face Width/Length 160mm. Shaving Cutter Ø178–254mm. Shaving Cutter Width 19–50.8mm. Cutter Centering / Bore Ø63.5mm. Cutter Spindle Speed 10–400rpm. Centre Distance (Tool To Workpiece) 119– 329mm. S/No. 3696 (1997). - LOT 10
![site]()

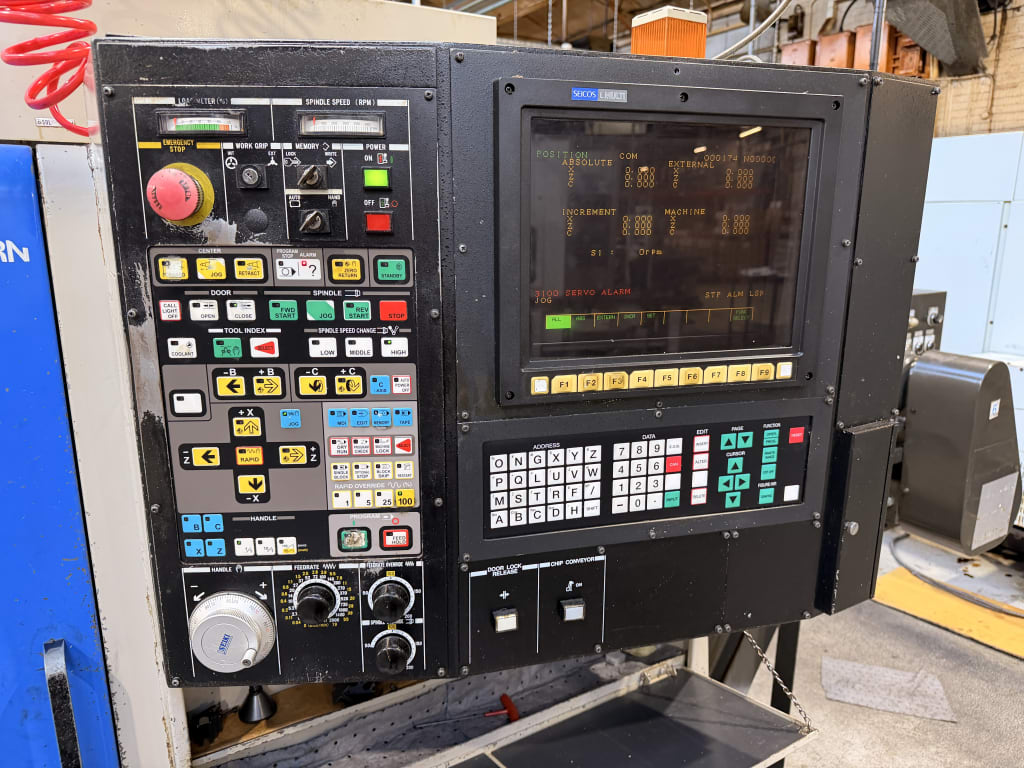

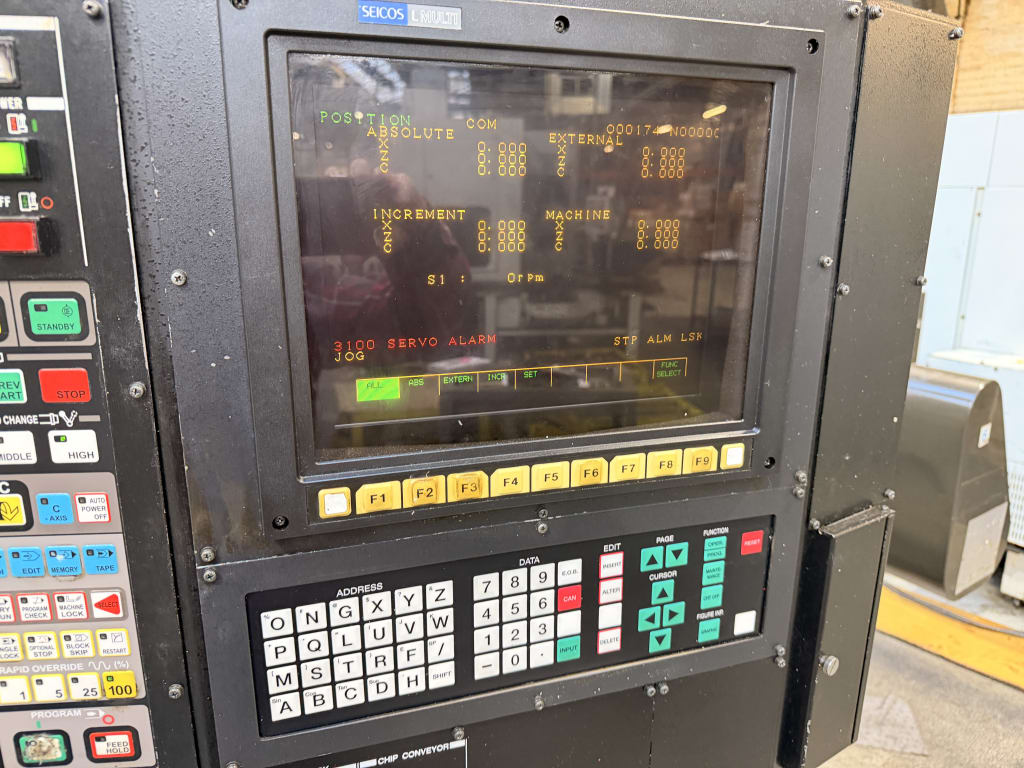

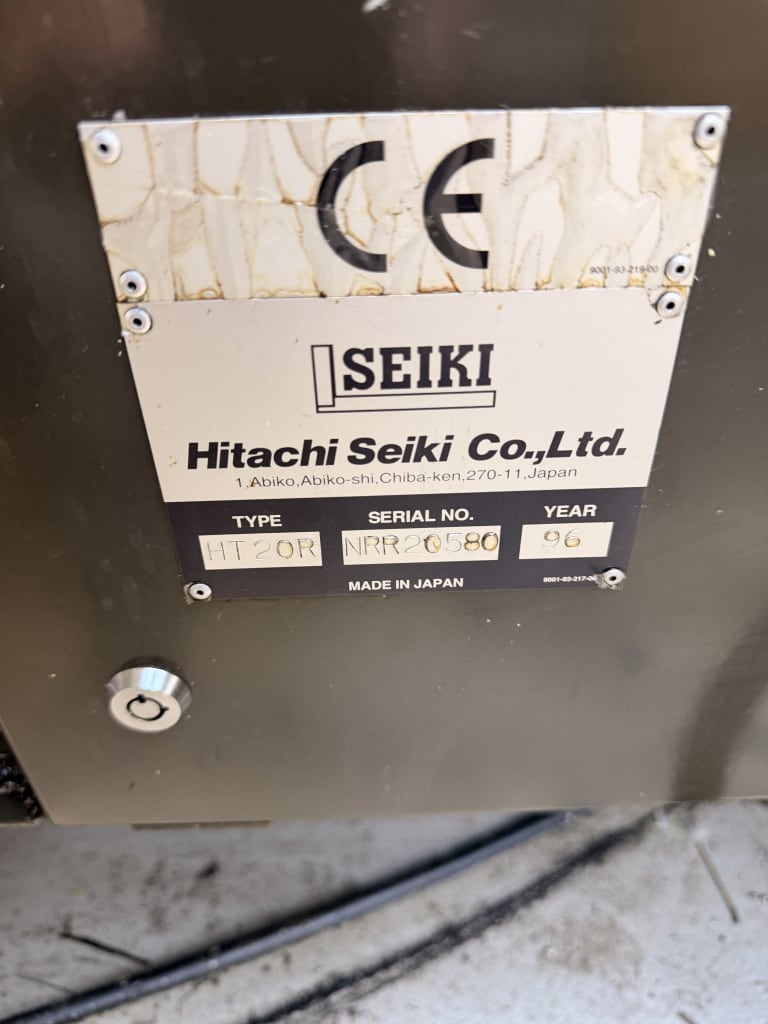

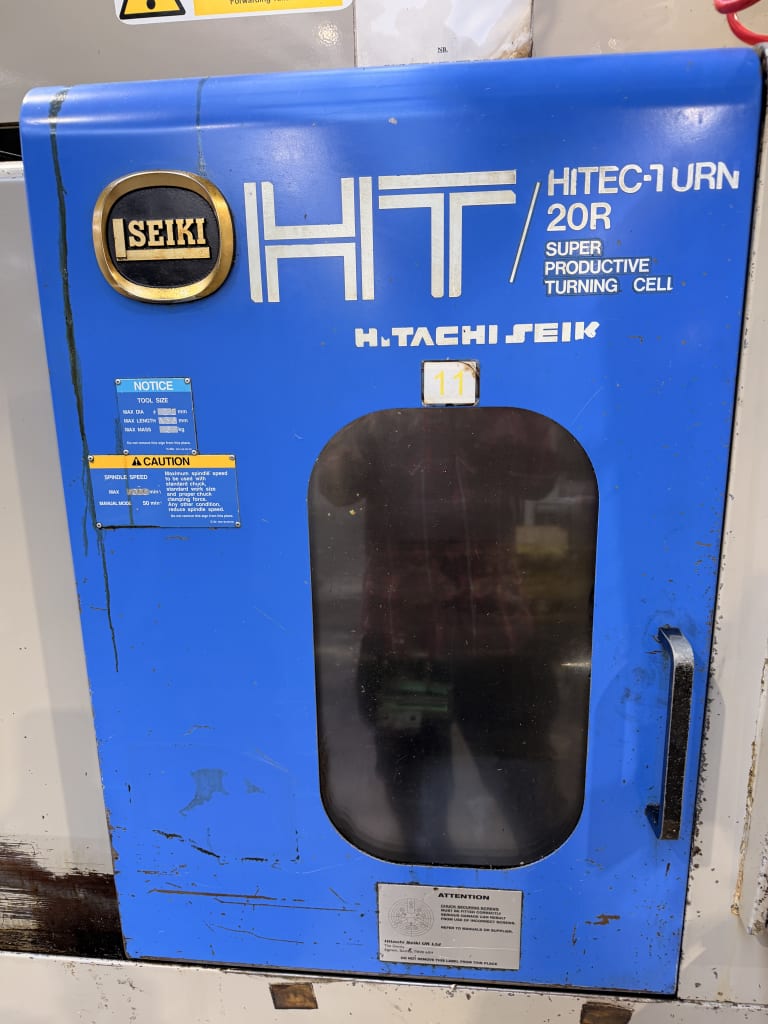

Hitachi Seiki Hitec-Turn 20R Multitasking CNC Lathe With Seicos L Multi Control
Maximum Swing Ø380mm. Maximum Turning Ø210mm. Maximum Turning Length 400mm. Axis Travel 'X'=200mm, 'Z'=400mm. Spindle Speed Range 30-5,000rpm (11kW Motor). 16 Station Turret. S/No. NRR20580 (1996). - LOT 11
![site]()

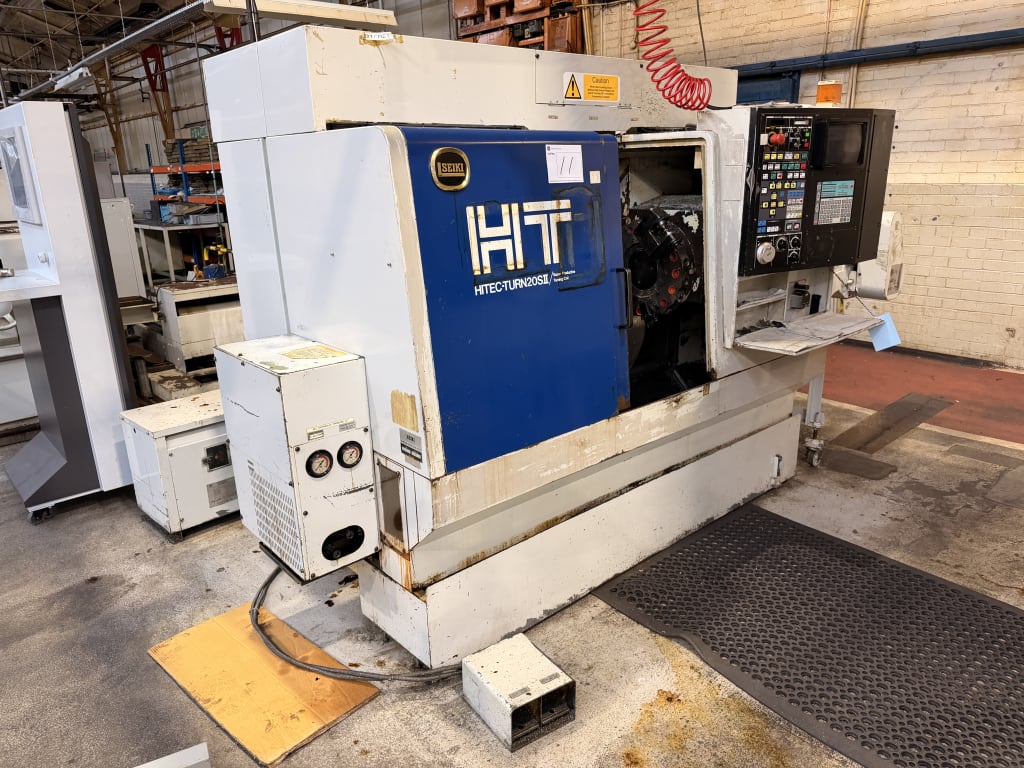

Hitachi Seiki Hitec-Turn 20SII Multitasking CNC Lathe With Seicos L Multi Control
Maximum Swing Ø380mm. Maximum Turning Ø210mm. Maximum Turning Length 400mm. Axis Travel 'X'=200mm, 'Z'=400mm. Spindle Speed Range 30-5,000rpm (11kW Motor). 16 Station Turret. S/No. HTS24361. - LOT 12
![site]()

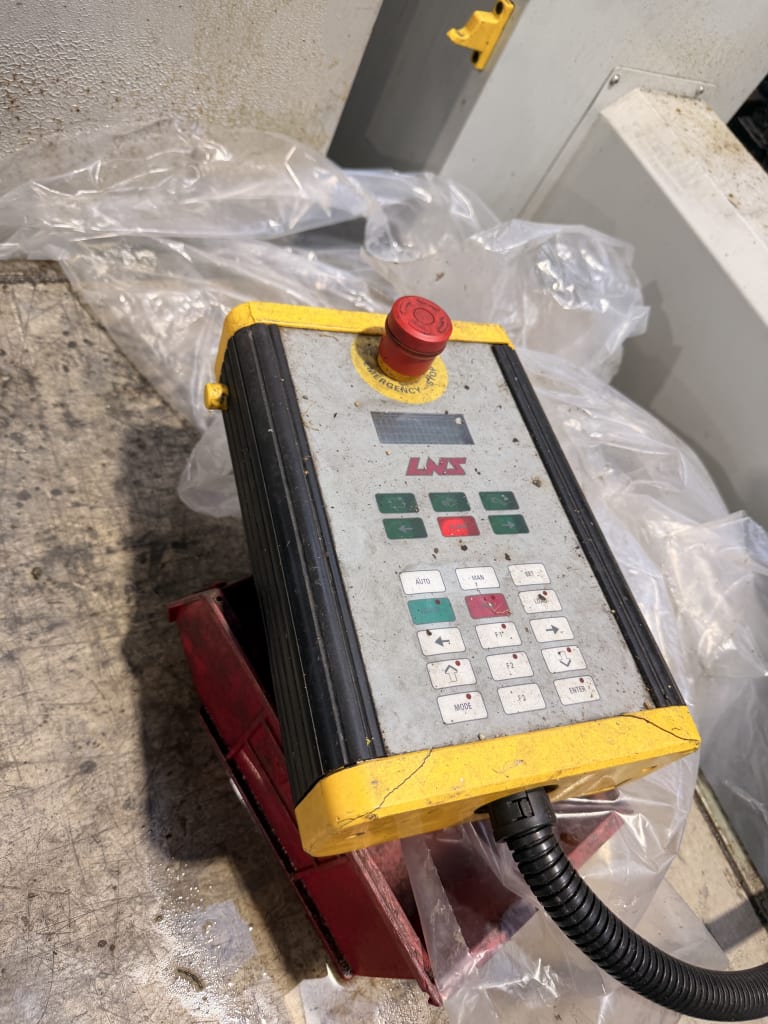

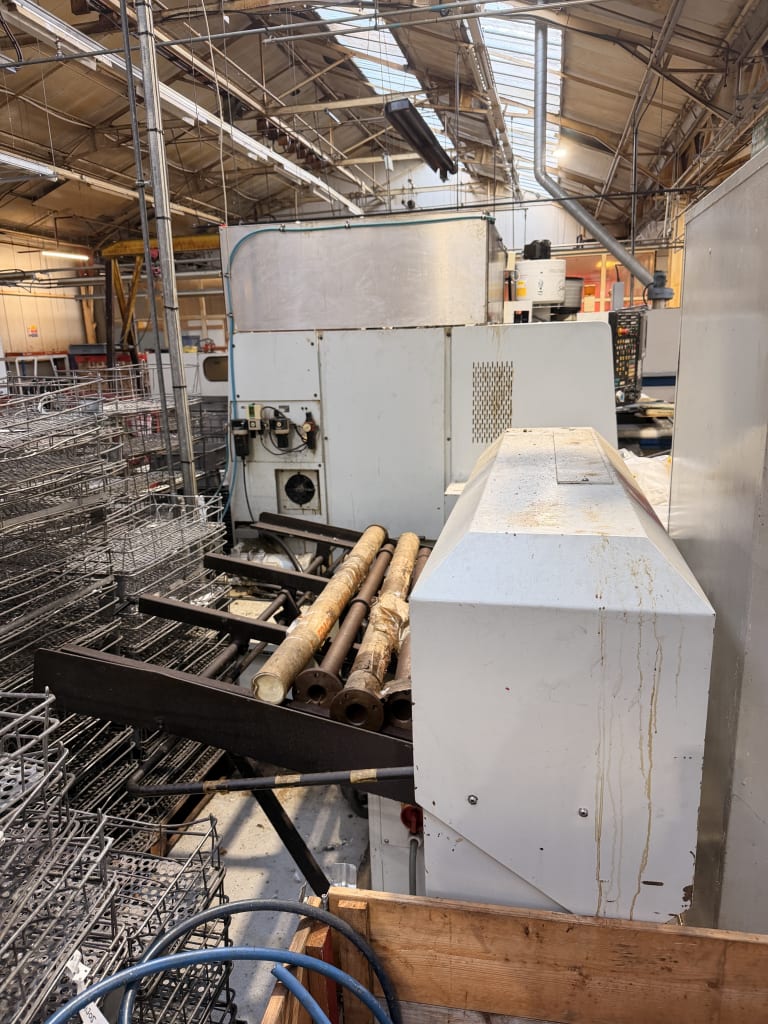

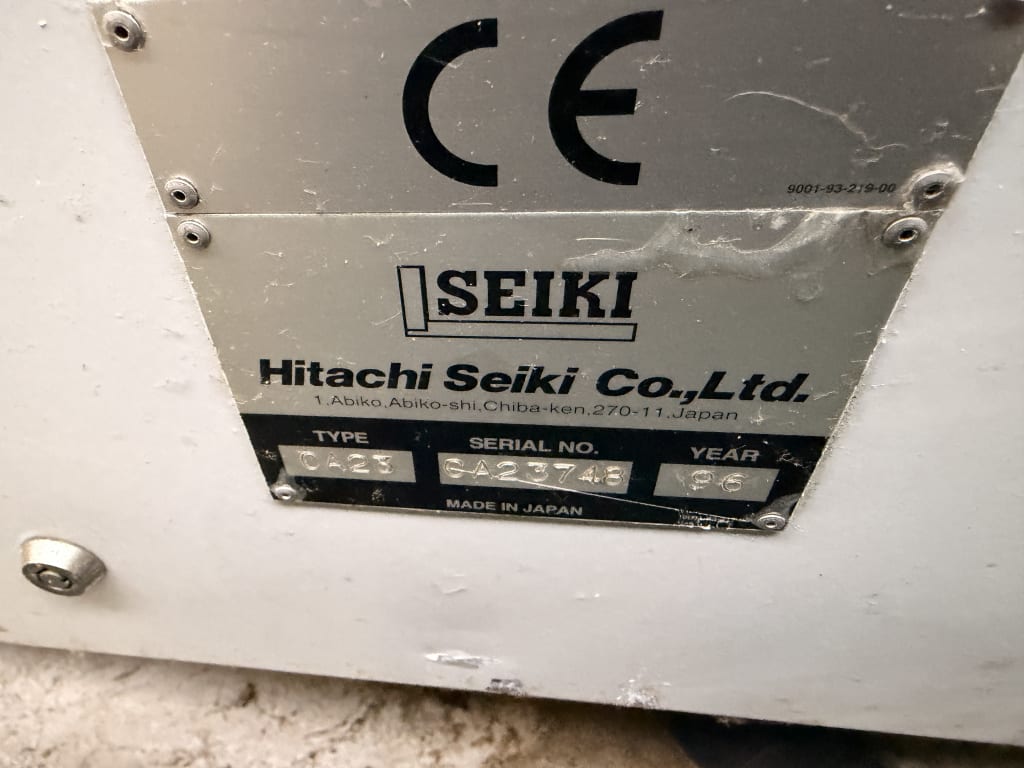

Hitachi Seiki HiCell 23 Multitasking CNC Lathe With LNS Quickload Bar Feeder
Maximum Swing Ø400mm. Maximum Turning Ø350mm. Maximum Turning Length 500mm. Axis Travel 'X'=240mm, 'Y'=±50mm, 'Z'=530mm. Spindle Speed Range 20-3,600rpm (15kW Motor). Maximum Driven Tool Speed 3,000rpm (5.5kW Motor). 10 Station Turret, 14 Position ATC. Bar Feeder Length 1,950mm. S/No. CA23748 (1996). - LOT 13
![site]()

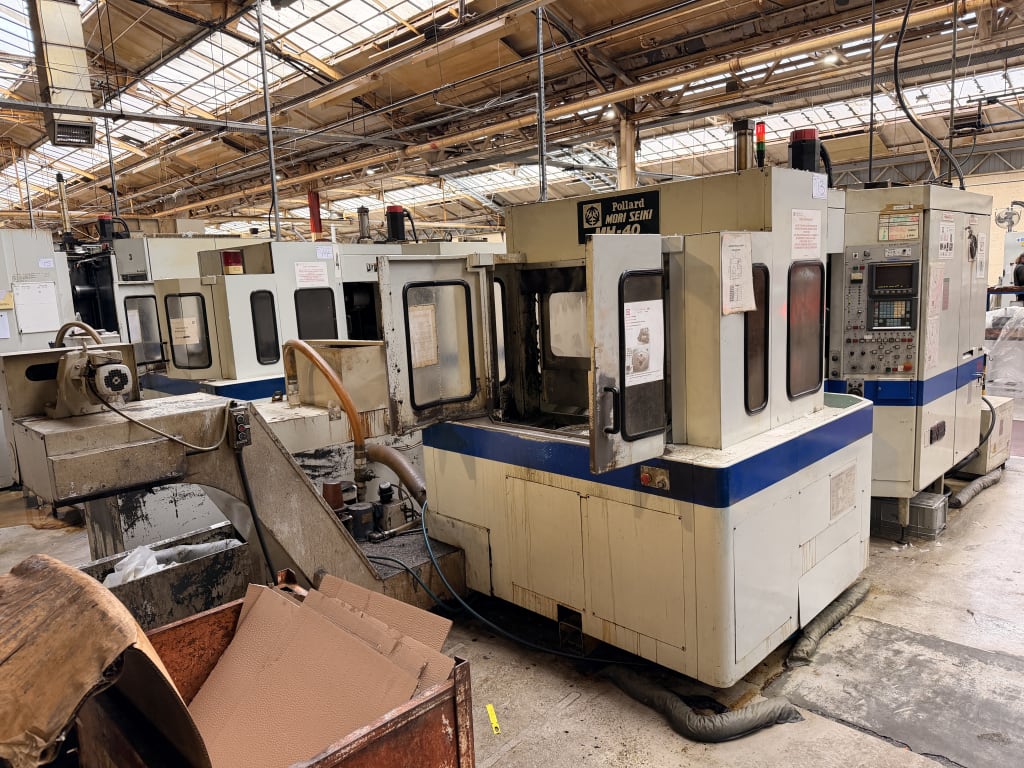

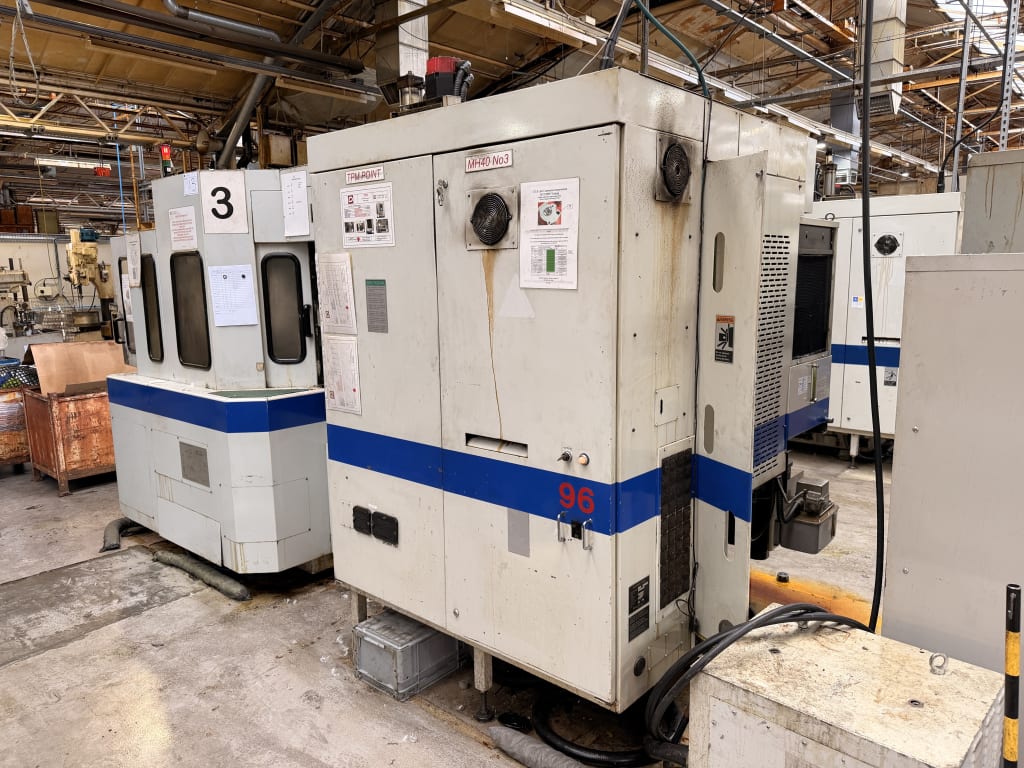

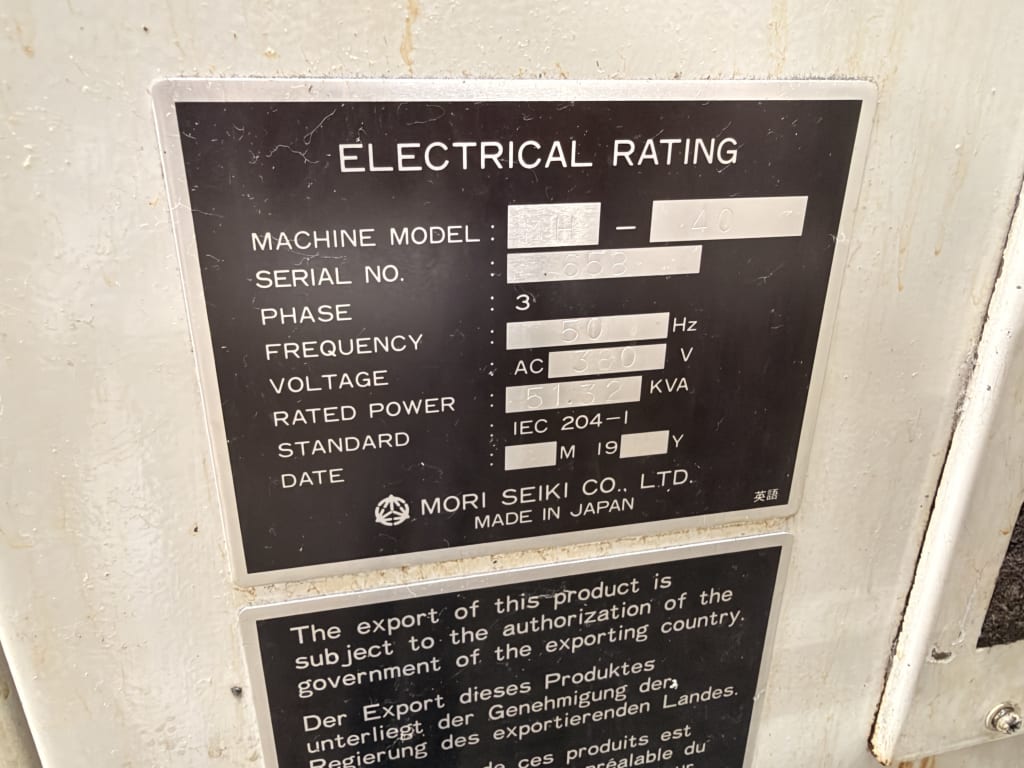

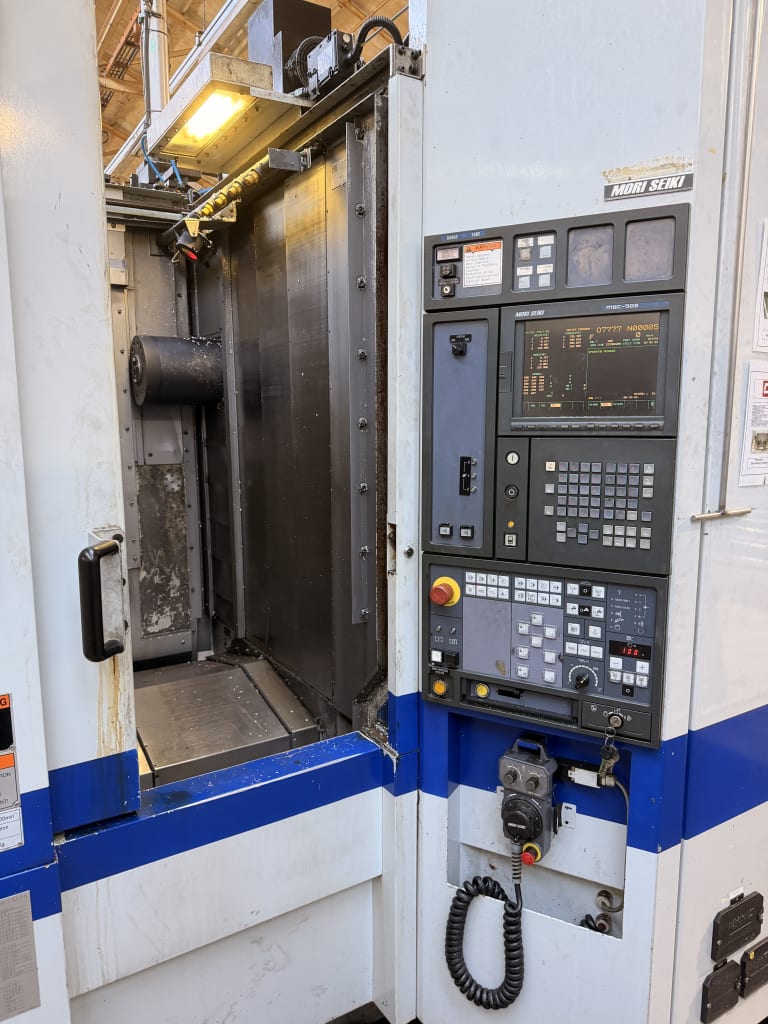

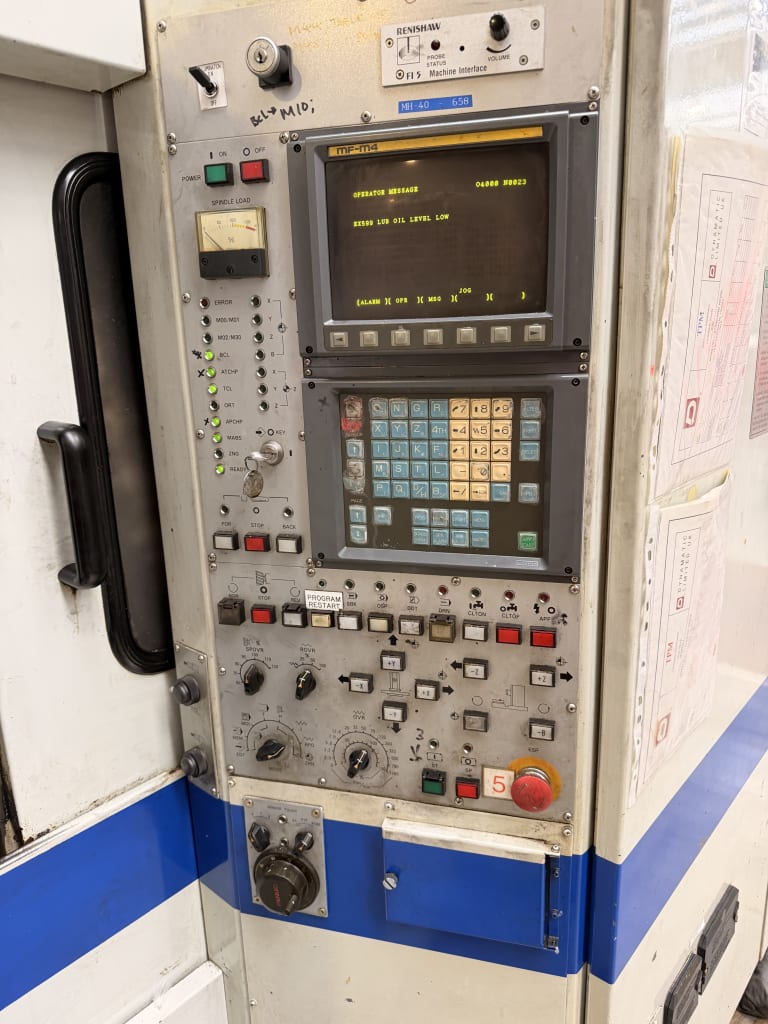

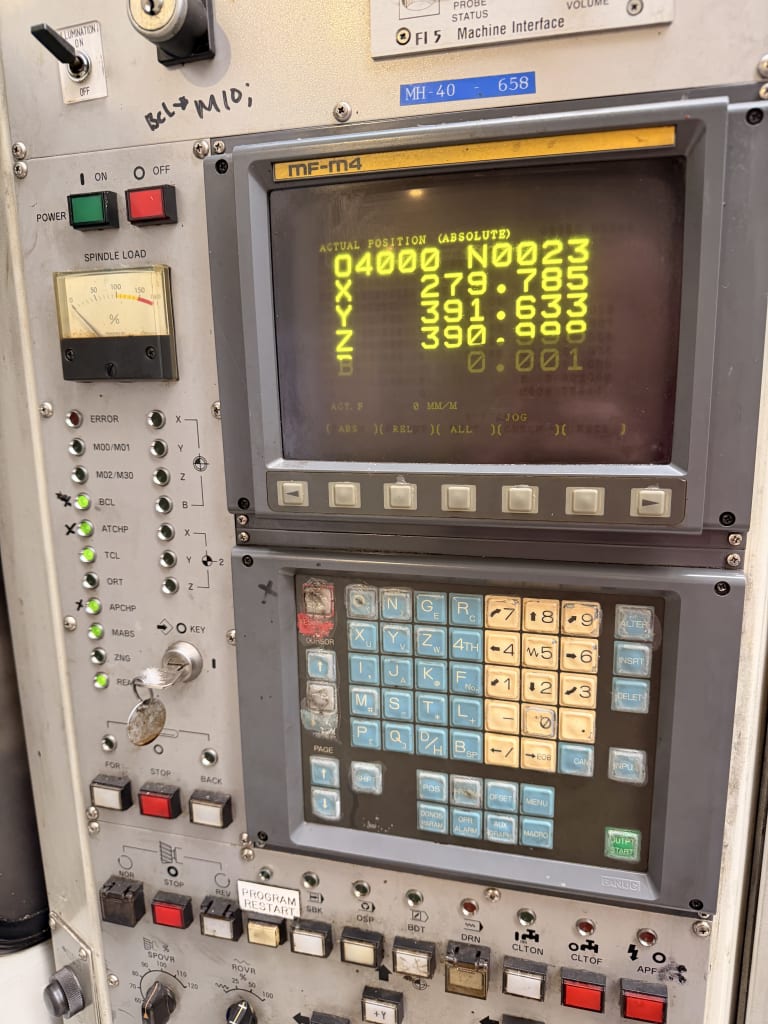

Mori Seiki (Pollard) MH-40 Twin Pallet CNC Horizontal Machining Centre With MF-M4 Control
Pallet Dimension 400 x 400mm. Maximum Table Load 400kg. Axis Travel 'X'=560mm, 'Y'=500mm, 'Z'=510mm. Rapid Traverse 20m/min. Maximum Spindle Speed 7,000rpm (11kW Motor). Spindle Taper BT40. 40 Position ATC. S/No. 658. - LOT 14
![site]()

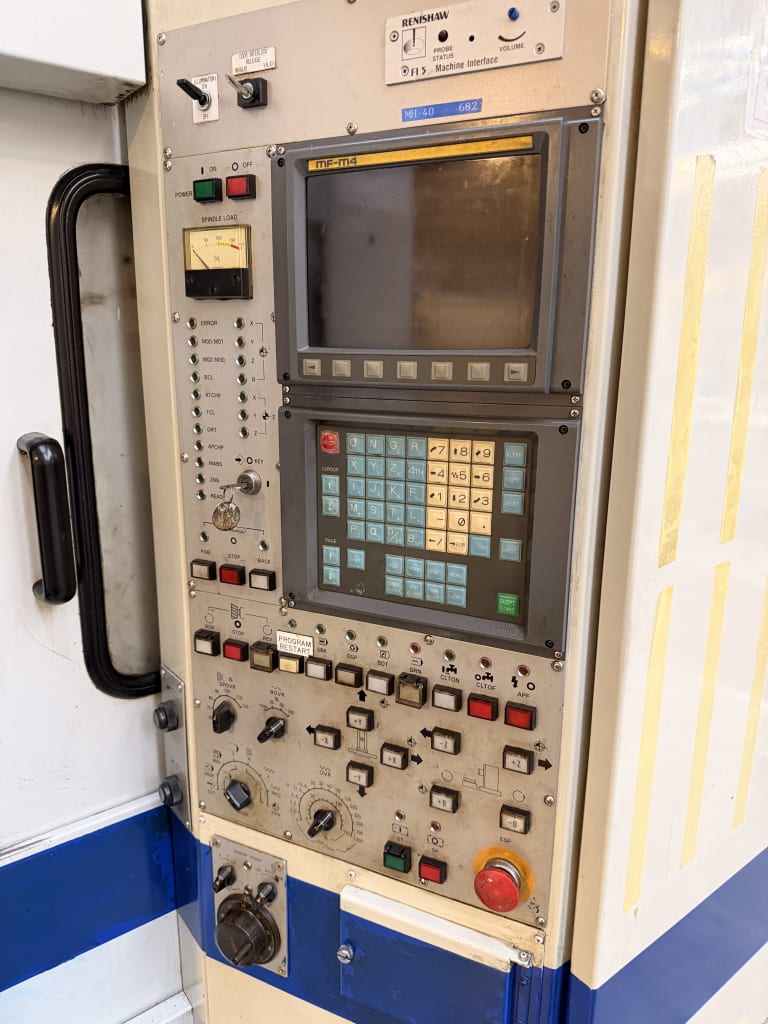

Mori Seiki (Pollard) MH-40 Twin Pallet CNC Horizontal Machining Centre With MF-M4 Control
Pallet Dimension 400 x 400mm. Maximum Table Load 400kg. Axis Travel 'X'=560mm, 'Y'=500mm, 'Z'=510mm. Rapid Traverse 20m/min. Maximum Spindle Speed 7,000rpm (11kW Motor). Spindle Taper BT40. 40 Position ATC. S/No. 682. - LOT 15
![site]()

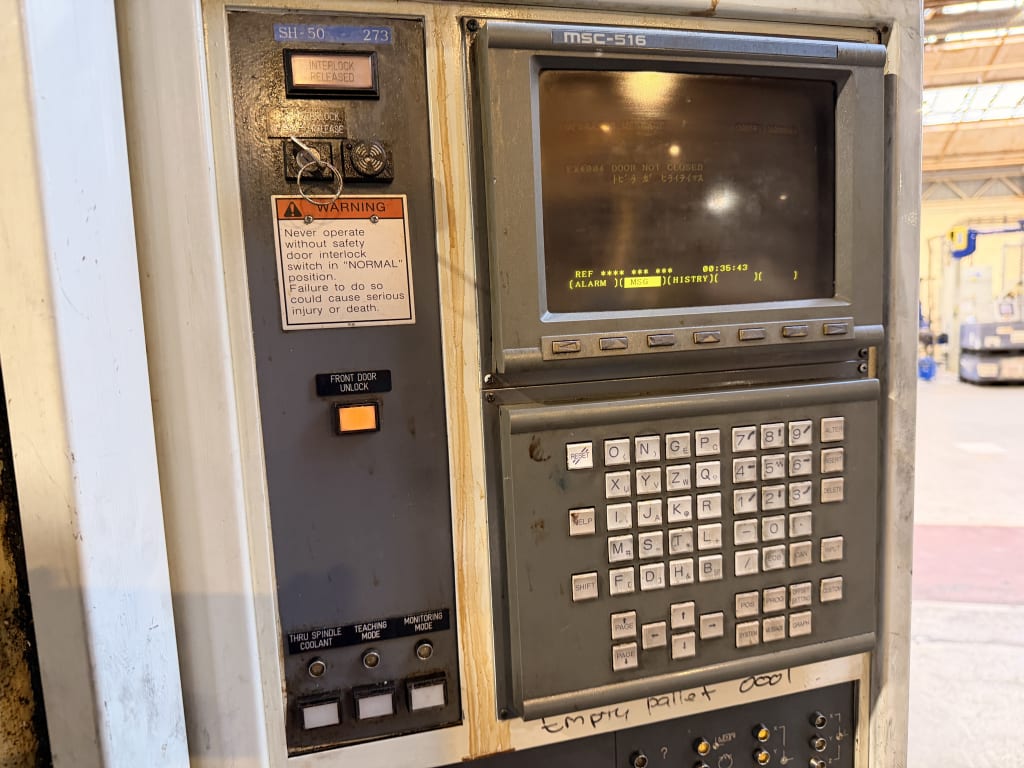

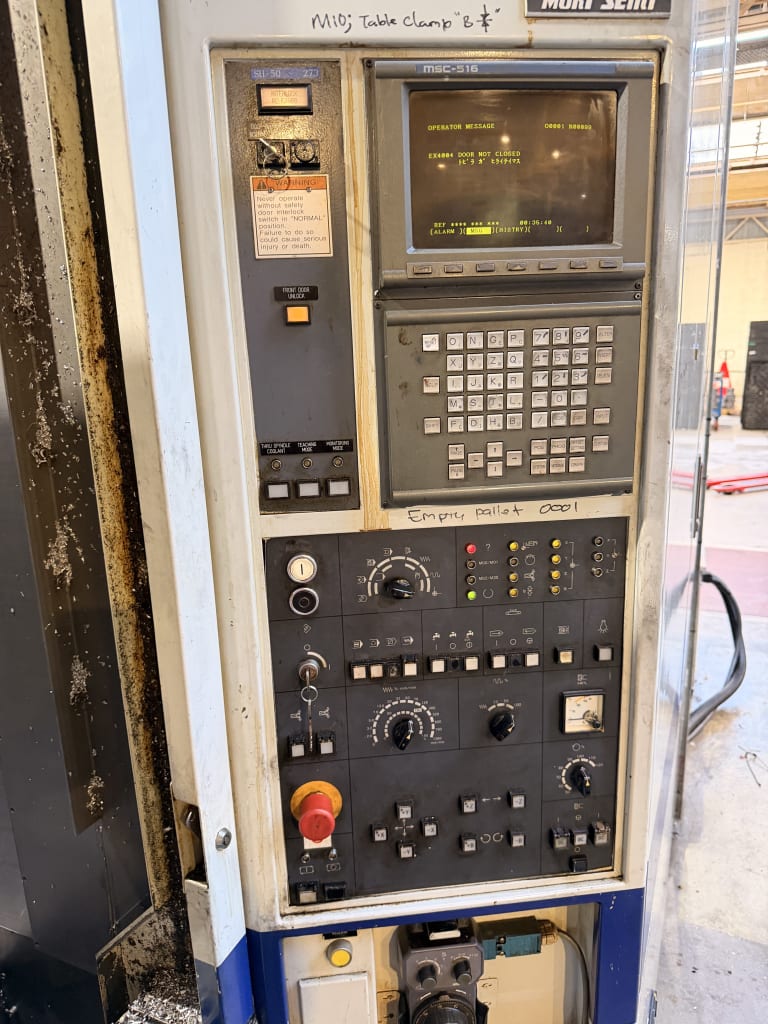

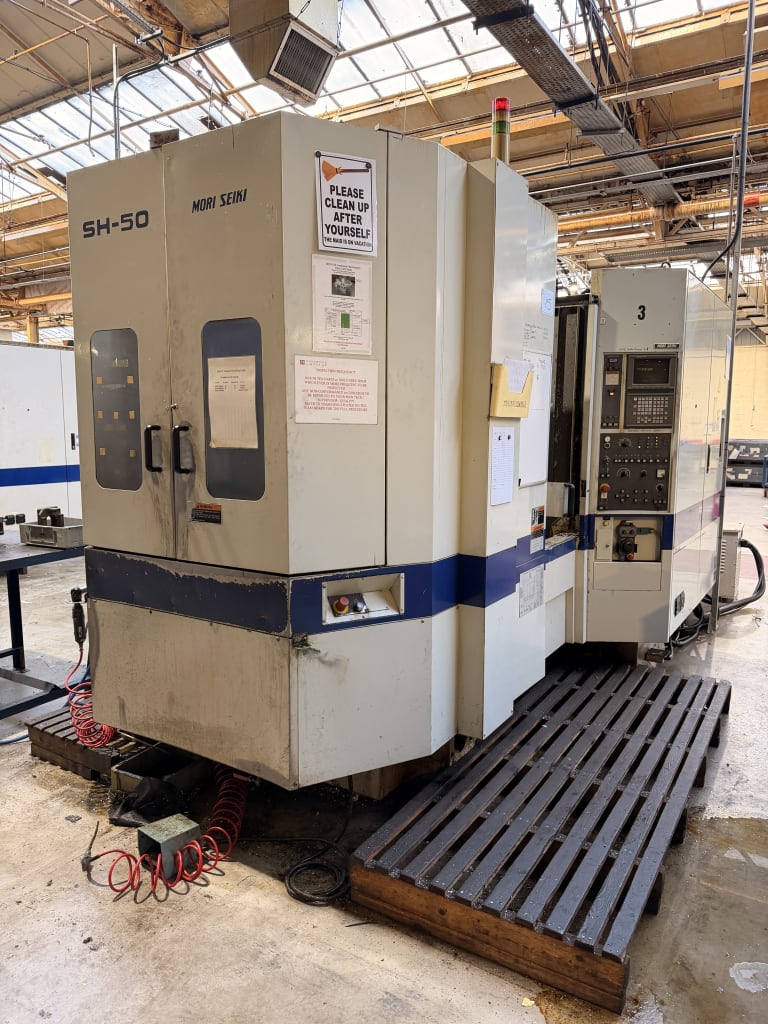

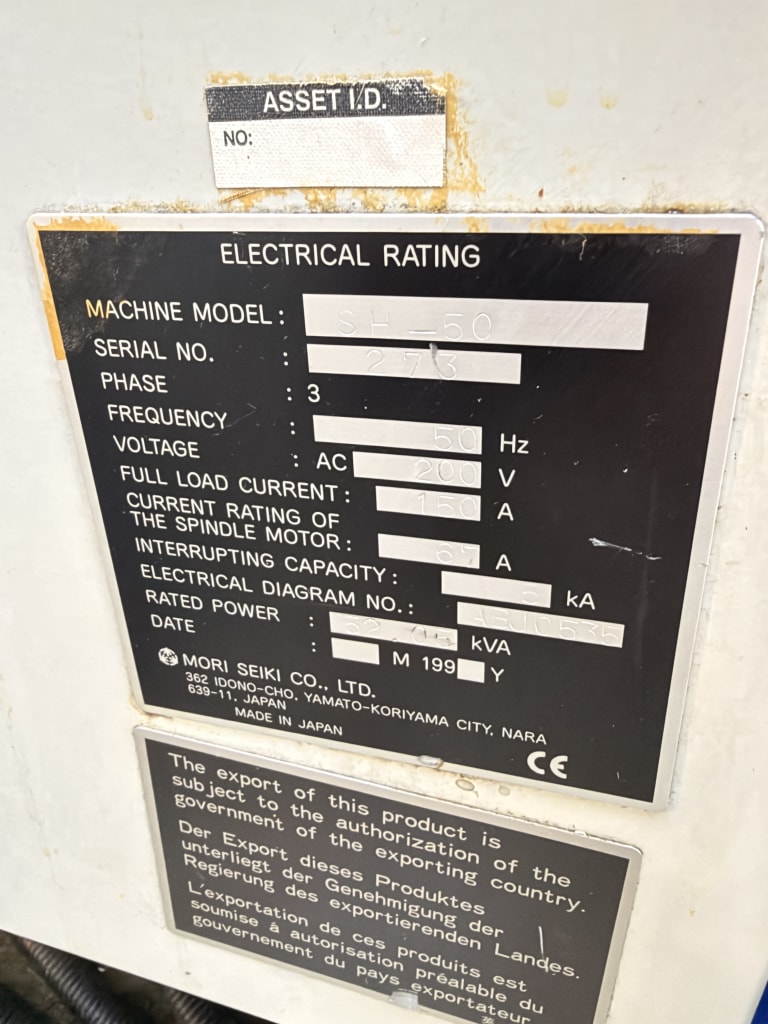

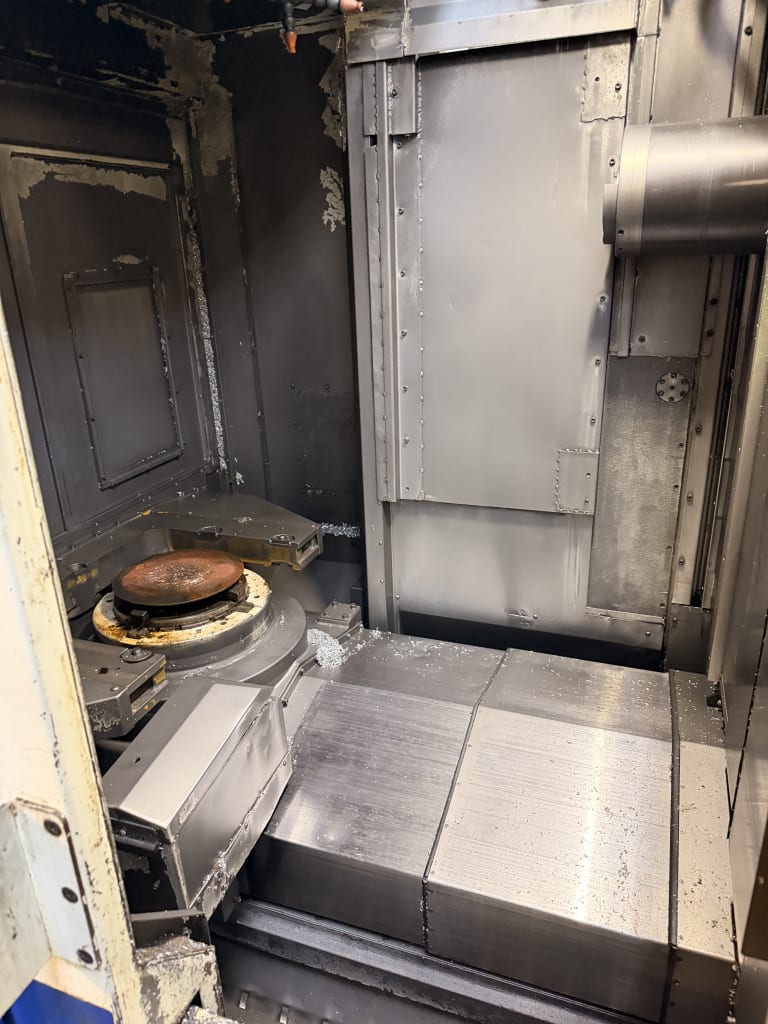

Mori Seiki SH-50 Twin Pallet CNC Horizontal Machining Centre With Mori MSC-516 Control
Pallet Dimension 500 x 500mm. Maximum Table Load 500kg. Axis Travel 'X'=630mm, 'Y'=600mm, 'Z'=650mm. Rapid Traverse 32m/min. Maximum Spindle Speed 12,000rpm (15kW Motor). Spindle Taper BT40. 180 Position ATC. Max. Tool Ø150mm, Max. Tool Length 360mm, Max. Tool Weight 12kg. S/No. 273.
