Global Energy Business – Exclusive Sale of WSPS Line Machinery & Equipment

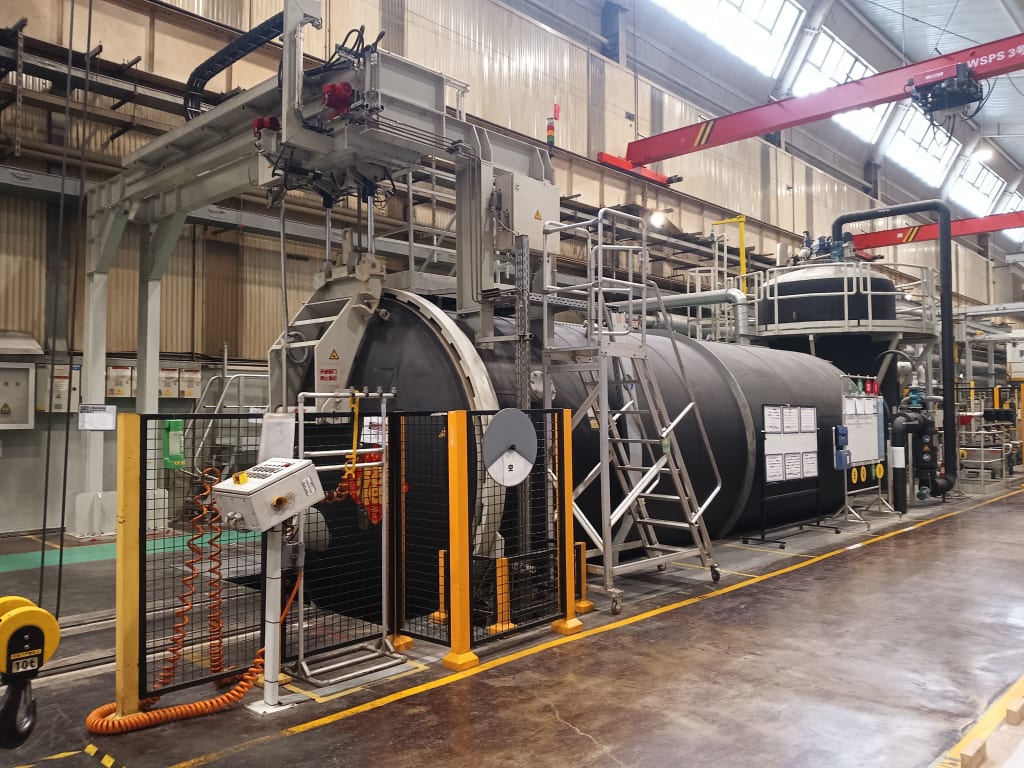

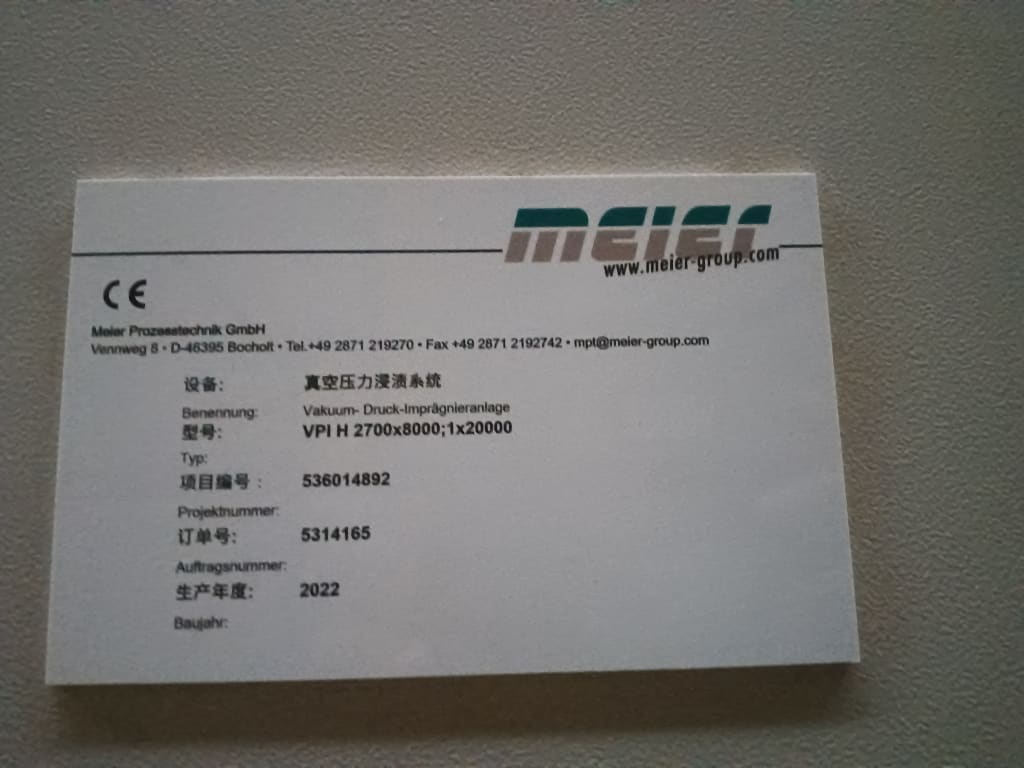

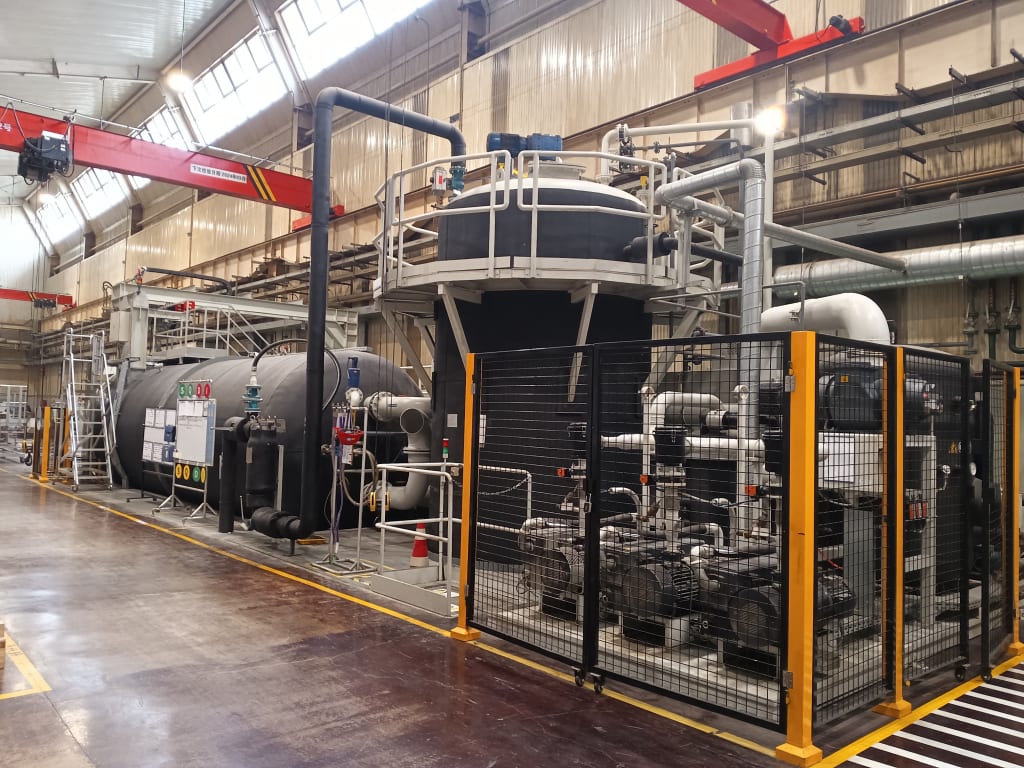

Manufacturer: MEIER PROZESSTECHNIK GmbH. Commissioning year: 2022. Quantity: 1 set. Equipment model: VPI H 2700x8000 1x21000L. VPI Tank inner dimension: L7960 * W1810 * H1580. Current product impregnation support dimension: L 7820 * W 1740 * H 1341 (3 layers). Current VPI tank capacity (Quantity for product): 24 pics * 3 = 72 pics. Impregnation operating vacuum: 0.1 mbar. Impregnation max. operating pressure: 7 bar abs.. Impregnation resin quantity: 110,000 L. Impregnation max. operating Temperature: 60 C°. Storage operating vacuum: 0.1 mbar. Storage max. operating pressure: 1.5 bar abs.. Storage resin quantity: 21,000 L. Storage max. operating temperature: 60 C°. Impregnation tank max. load: 60,000 KG. Walkway max. load: 200 KG. Lifting frame max. Load: 5,500 KG. Permissible workpieces dimension: H 293*W 174*L 1567 mm. Permissible workpieces max. weight: 440 KG

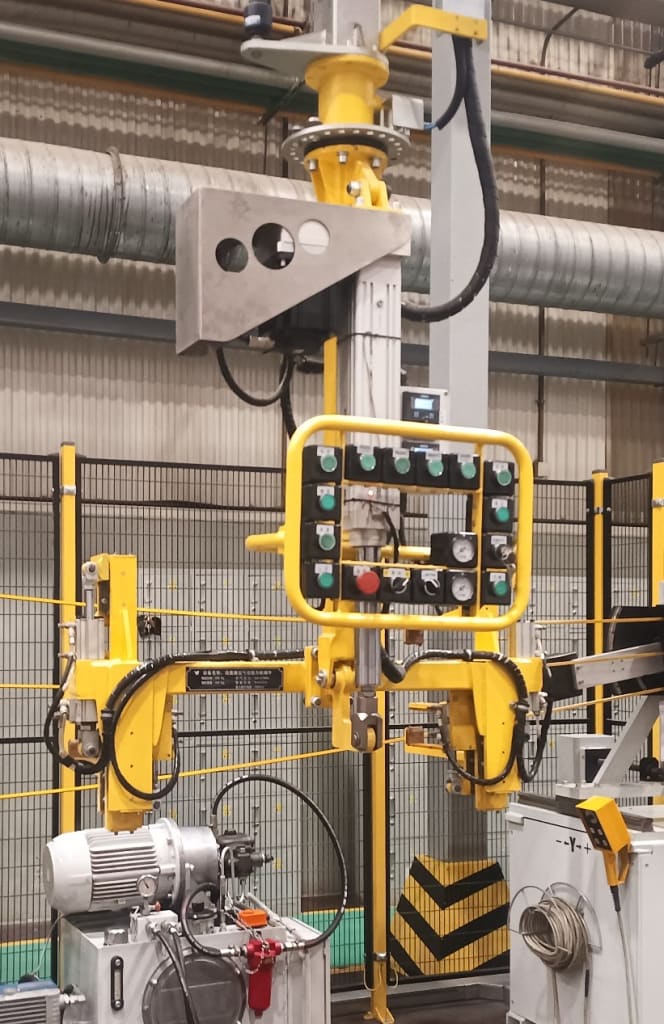

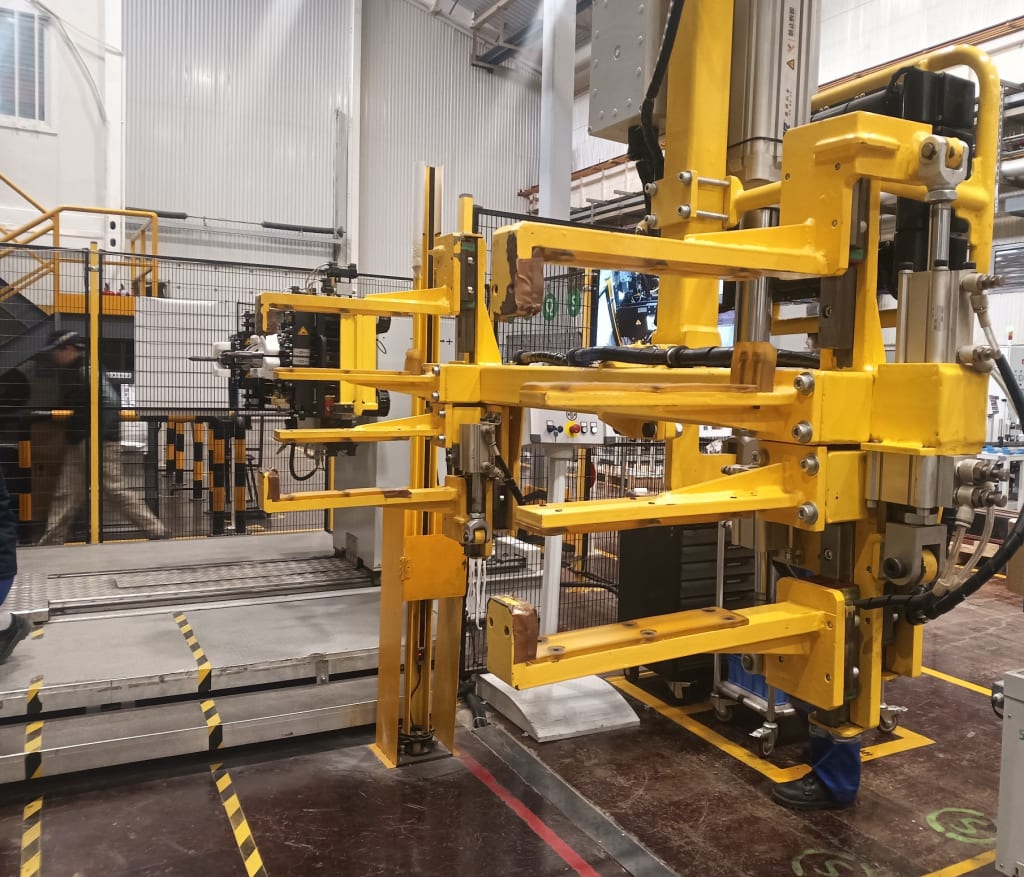

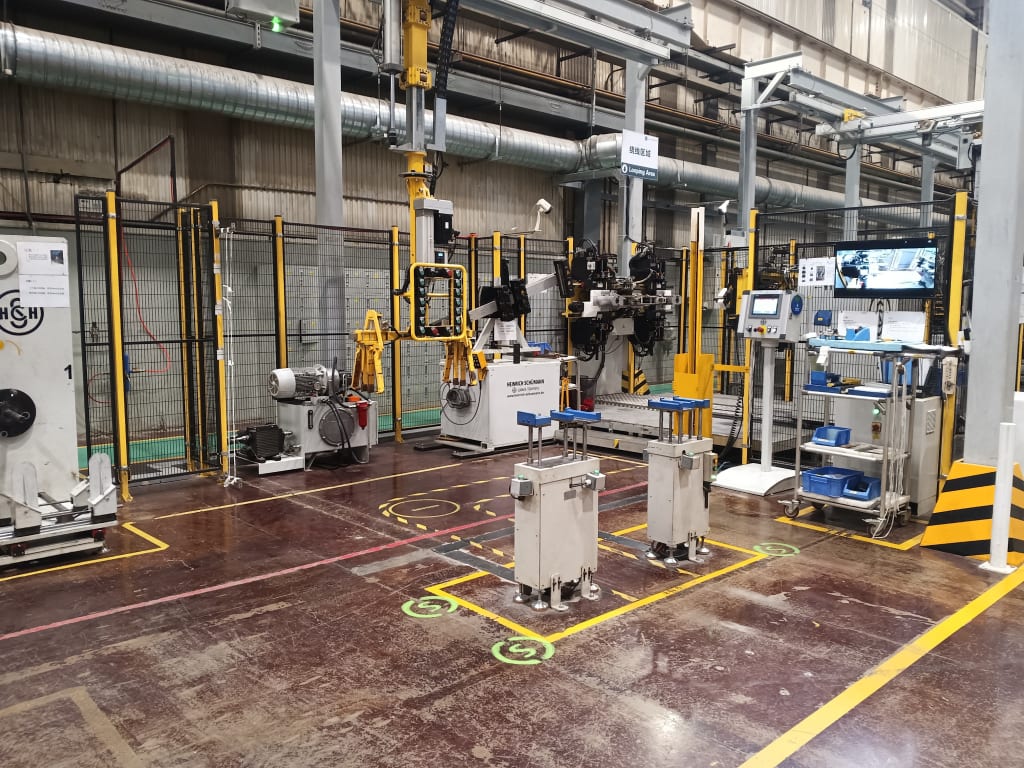

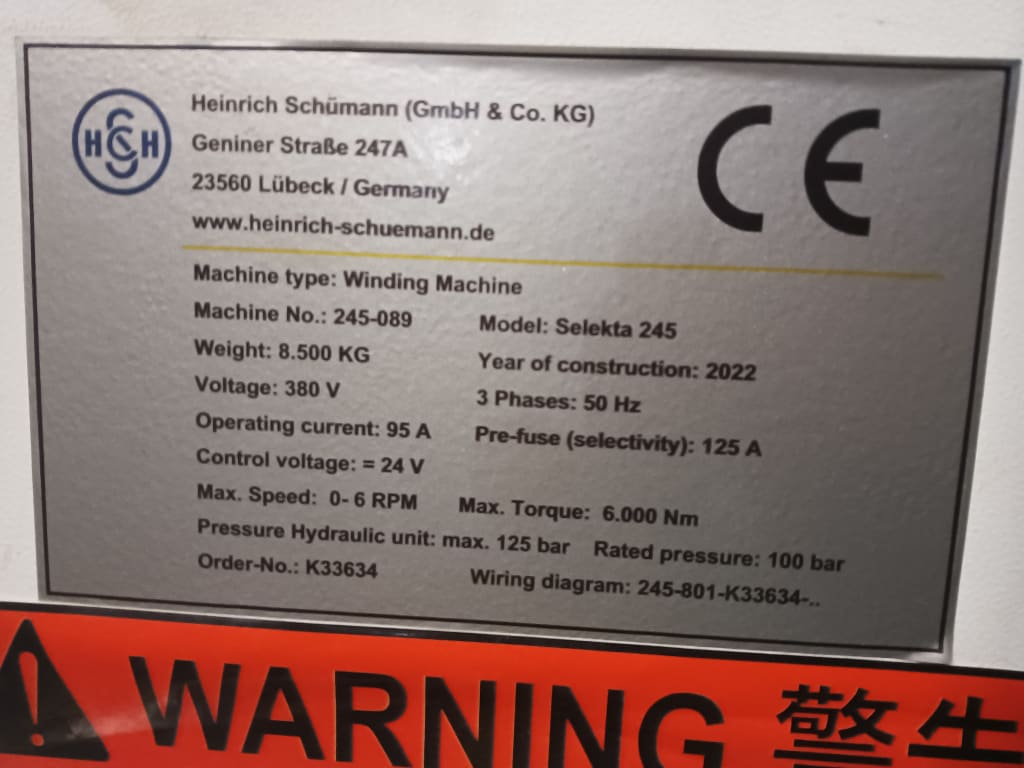

Brand: GERMANY SCHUMANN. Manufacturing year: 2022. Model: Selekta 245. Quantity: 2 sets. Conductor width: 8.3-12 mm. Conductor height: 4.0-6.0 mm. Conductor cross section: 40-60 mm². Straight part length: 1,000-1,400 mm. Coil Length outside-outside: 1,100-1,600 mm. Coil height: 242 mm. Winding diameter-inside (without insulation): 90-120 mm. Winding diameter-outside (without insulation): 140-200 mm. Maximum bobbin diameter: 800 mm. Maximum bobbin width: 270 mm. Bobbin bore diameter: 40 mm. Max. weight of bobbin: approx. 500 KG. Manipulator Specification：Operation scale: 8 * 5 m. Up and down stroke: 500 mm. Coil straight length dimension: ≥1000 mm. Coil inner width: 108 mm. Coil outer width: 170 mm.

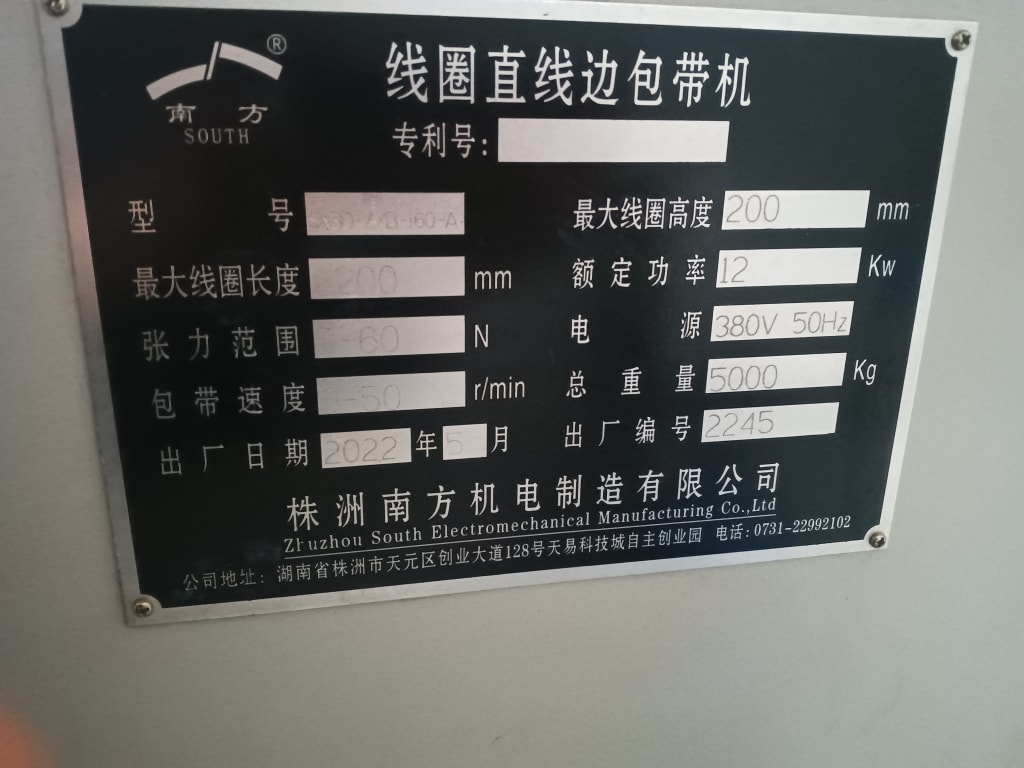

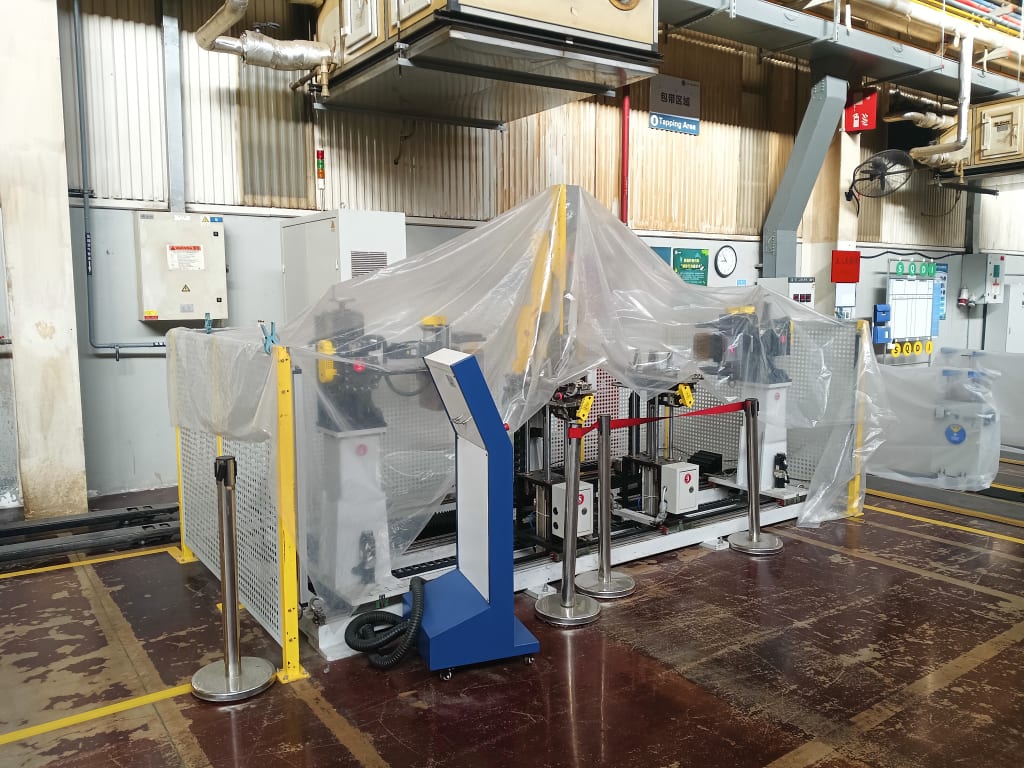

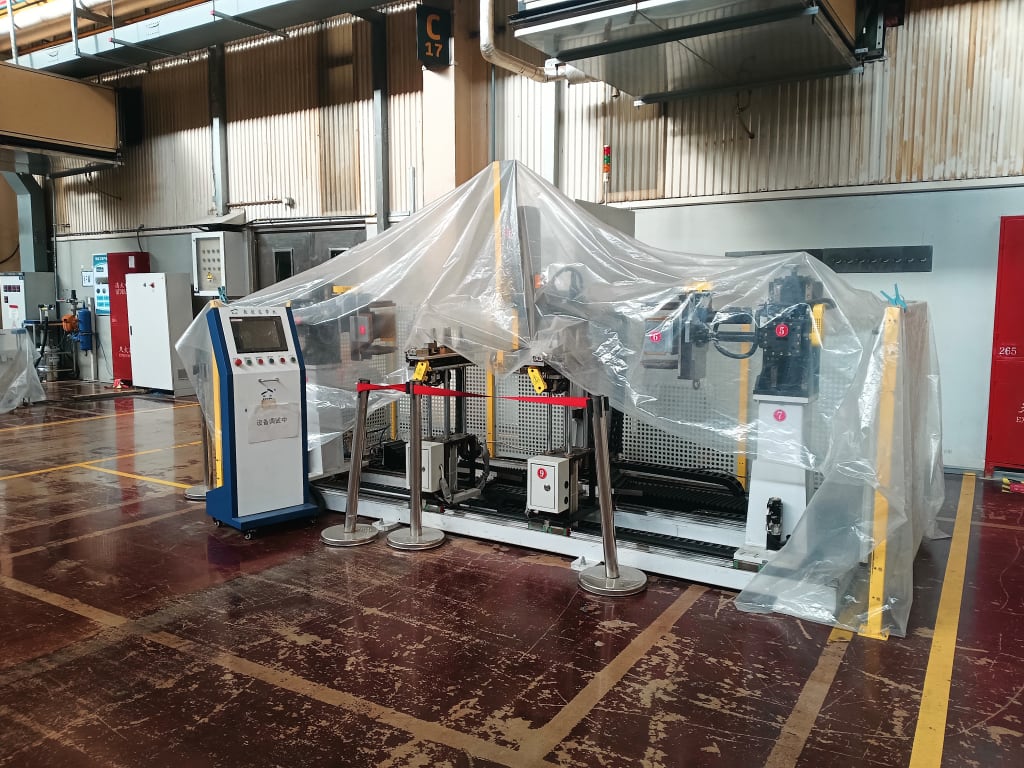

Manufacturer: Zhuzhou South Machinery and Electromotor. Manufacturing year: 2022. Model: SKBD-ZXB-160-A. Quantity: 1 set. Length of coil: 1380±20% mm. Center distance of straight line: 1210±20% mm. Coil cross-section width: 30 mm. Coil cross-section height B: 193 mm. The length of the lead wire on the upper side: 100~300 mm. The length of the lead wire on the bottom side: 100~300 mm

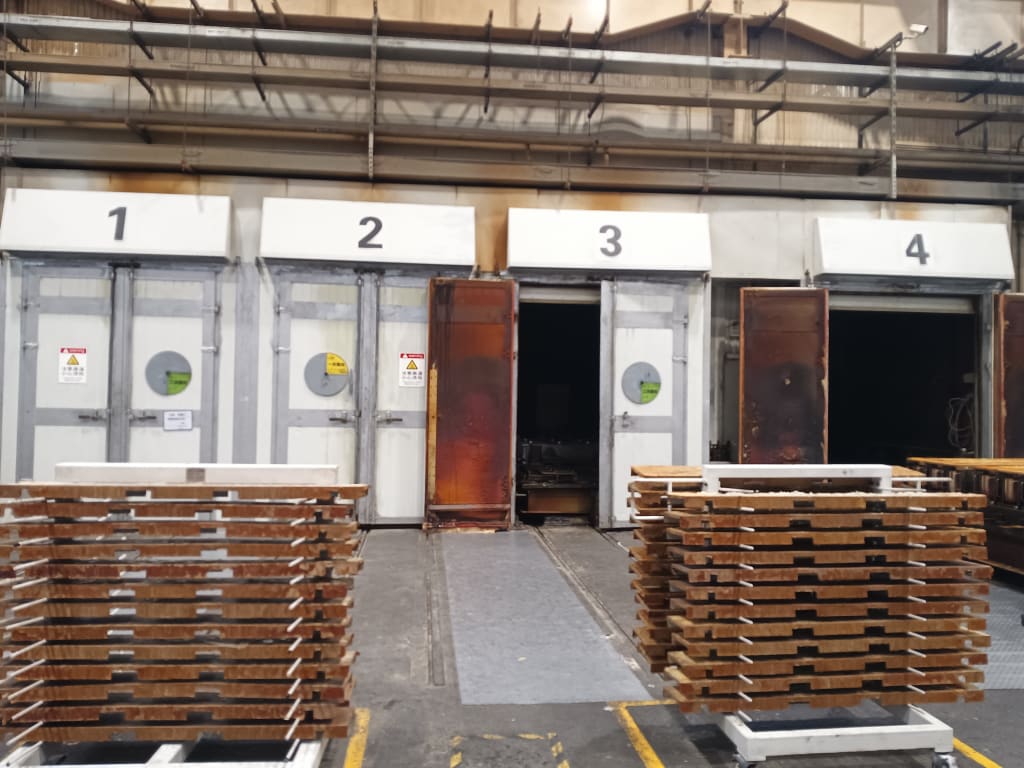

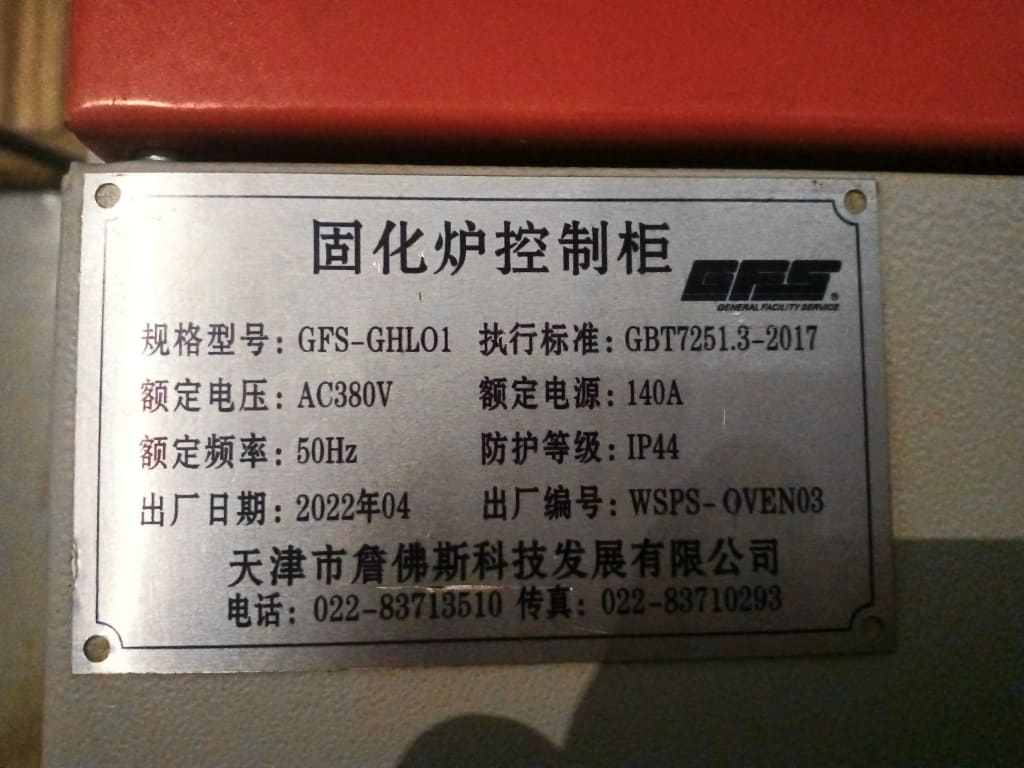

Manufacturing year: 2022. Model: ZFS-GHL01. Place of origin: Tianjin, China. Quantity: 4 sets. Inner dimension of oven: L 4200 * W 2000 * H 2500 mm. Dimension of oven tractor: L 4000 * W 1700 mm. Weight of oven tractor: 30 tons. Rated voltage: AC380. Heating power: 60 kw. Max. Temperature: 200 c°. Heating up speed: 0.1~3 (c°/min). Heating up speed: 0~1 (c°/min). Temperature uniformity: ±4 c°

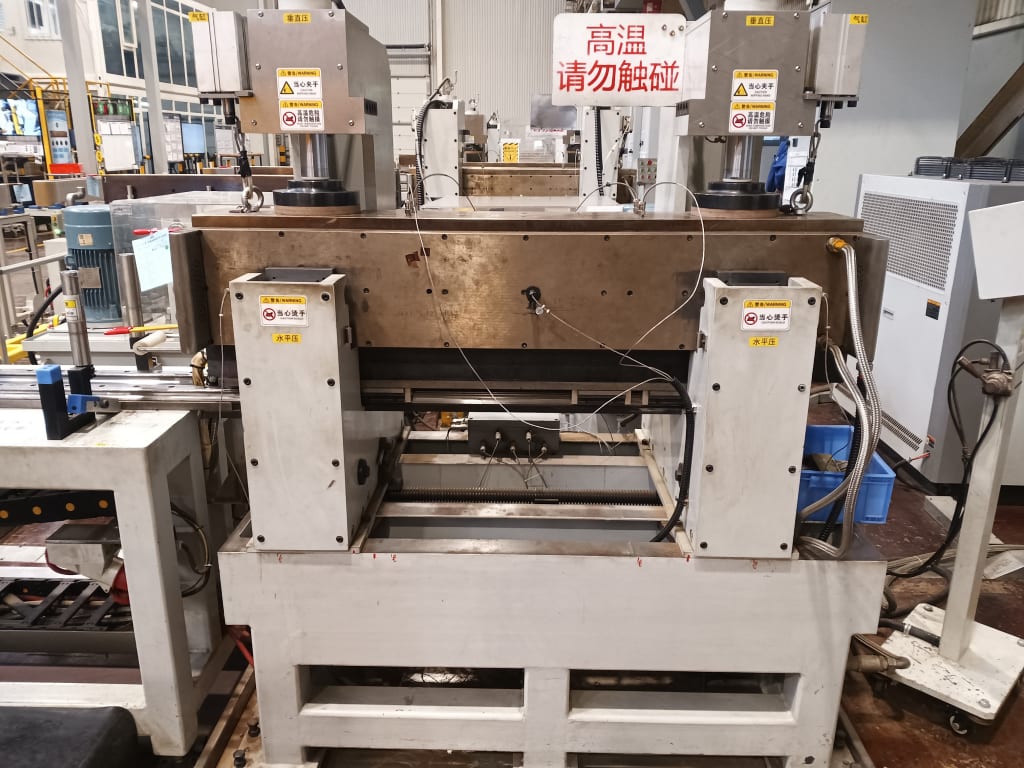

Manufacturing year: 2022. Place of origin: Shanghai, China. Model: ZCN074C-1300-2. Quantity: 7 sets. Coil straight length for consolidation: Product 1: 1325 mm / Product 2: 1210 mm. Coil Inner width for consolidation: 110 mm. Coil outer width for consolidation: 200 mm. Coil height for consolidation: 200 mm. Consolidation temperature : 200 C°. Maximum workpiece weight: 5000 KG. Cooling time : ＞25 minutes. Consolidation pressure - Vertical pressure: 25 Mpa Consolidation pressure - Horizontal pressure: 25 Mpa.

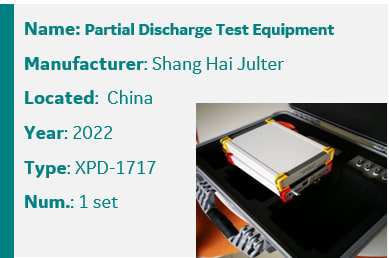

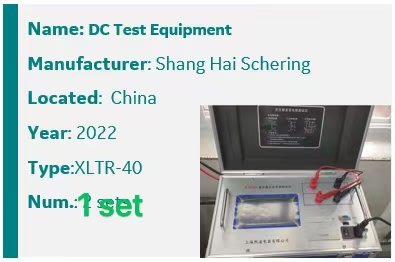

Lot contains (2) 2022 Shang Hai SF Model RZJ-15Z Pulse test equipment. (2) 2022 Shang Hau Schering XLTR-40 DC Test. (1) Fluke 1555 1550C Insulation tester. (1) 2022 Shang Hai Julter XPD-1717 Partial Discharge Test Equipment. (2) 2022 Shang Hai Julter JTJS-NY-15Kv Dielectric Loss HV Test.
