Engineering Business Closure – Star Sliding Head Lathes, Nakamura CNCs & Toolroom Equipment
Starts: 22 July 2025 at 09:00 BST
Ends: 11 September 2025 at 15:00 BST
2019 Nakamura-Tome WT-100 CNC Twin Spindle, Twin Turret CNC Multitasking Lathe, 2015 Nakamura-Tome Super NTY3 CNC Twin Spindle, Triple Turret CNC Multitasking Lathe, 2022 Star SB-20R Type G CNC Sliding Head Machine, 2012 & 2011 Star SB-20 Type E CNC Sliding Head Machine, Manual Mills, Lathes, Grinders, Tooling, Collets, and more. Please see sale information section for additional fees that may be applicable. NOTE: Vendor to approve all closing bids prior to Apex invoicing.
Share:
Showing 92 of 92 lots
- LOT 1

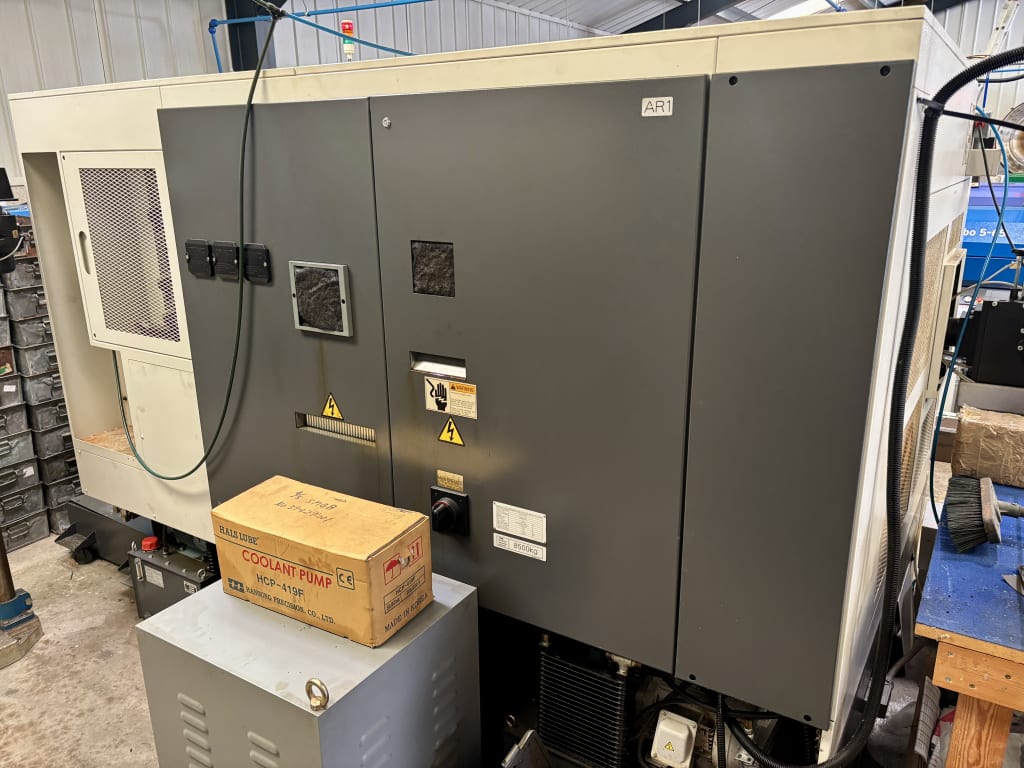

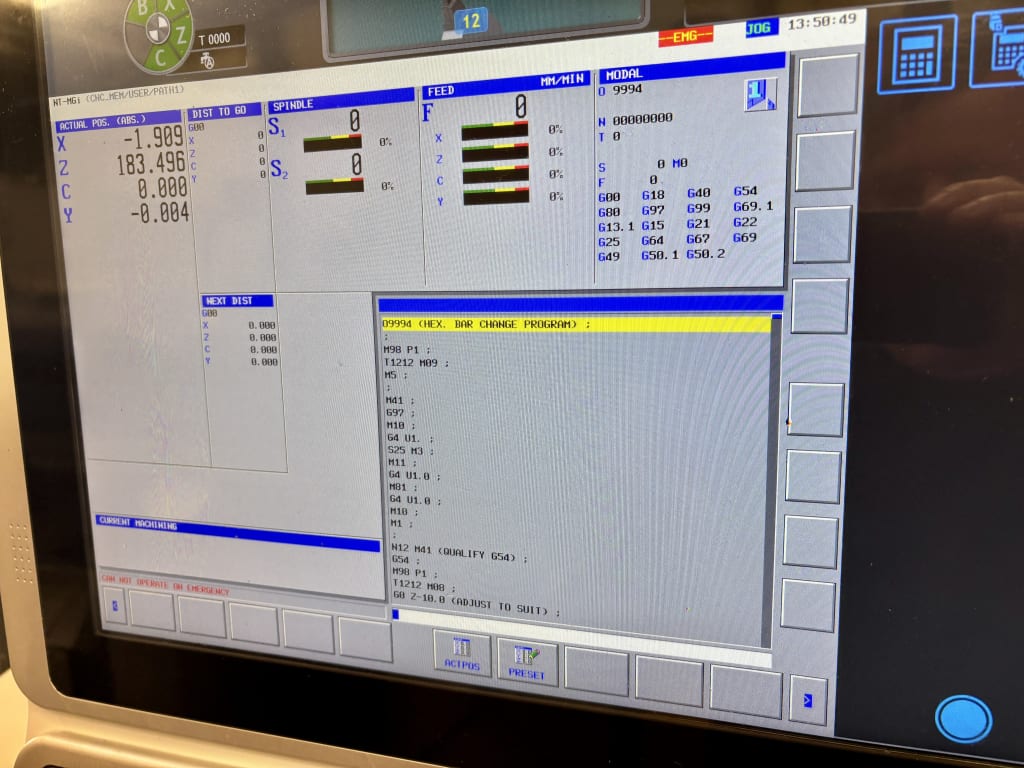

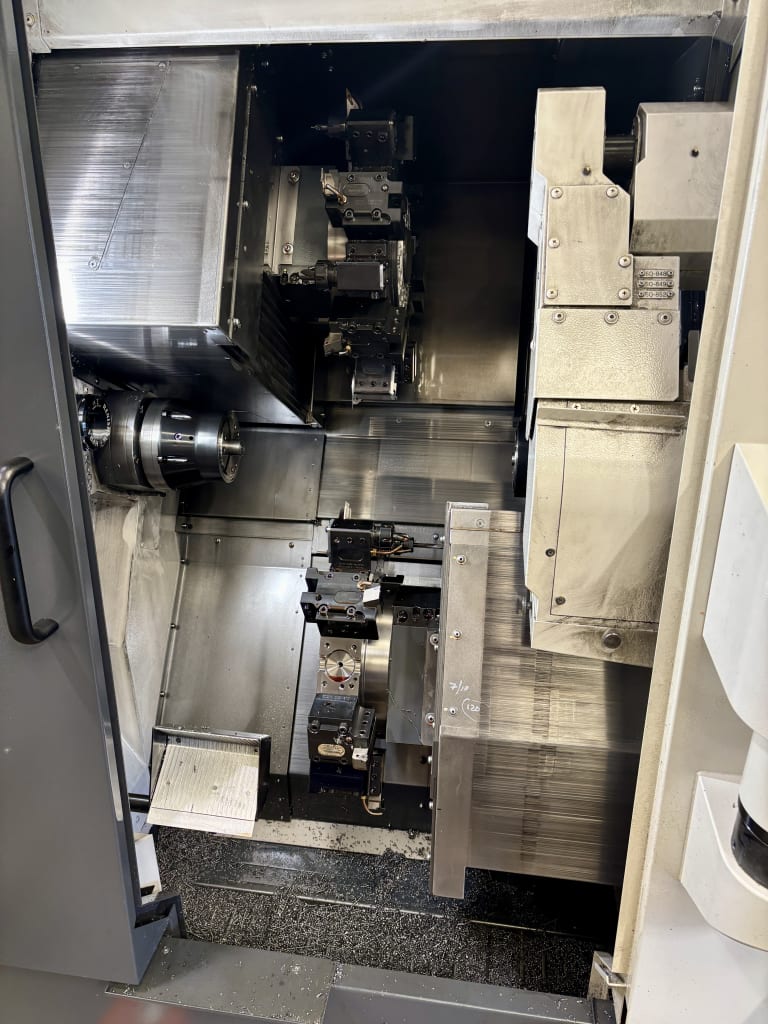

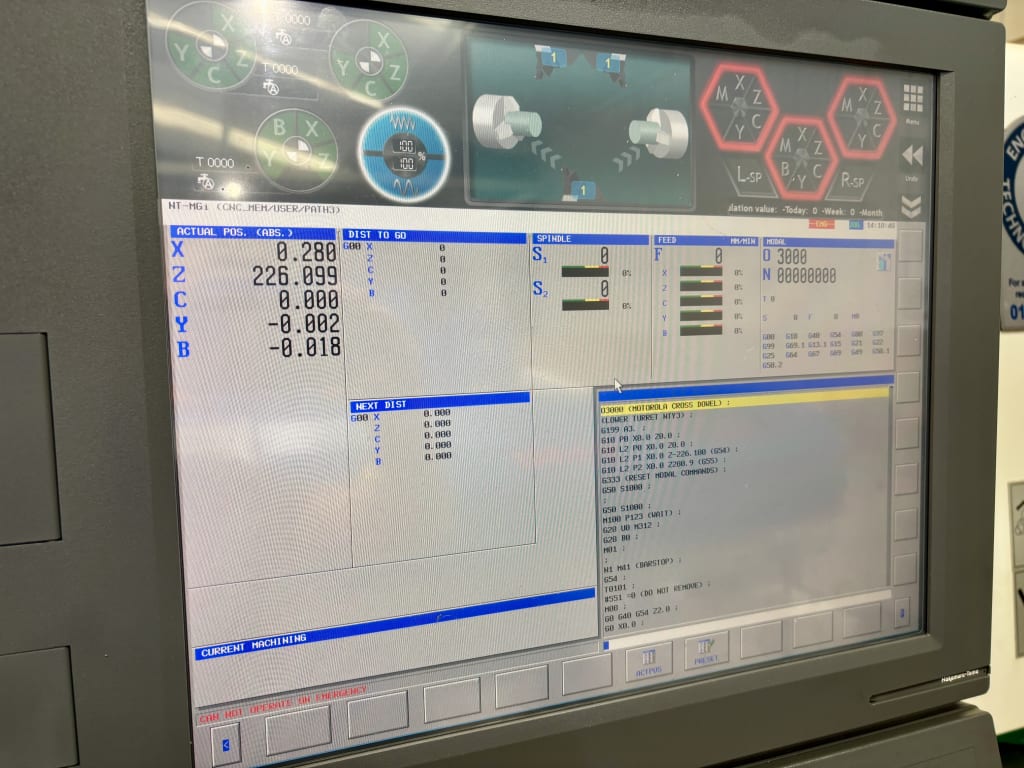

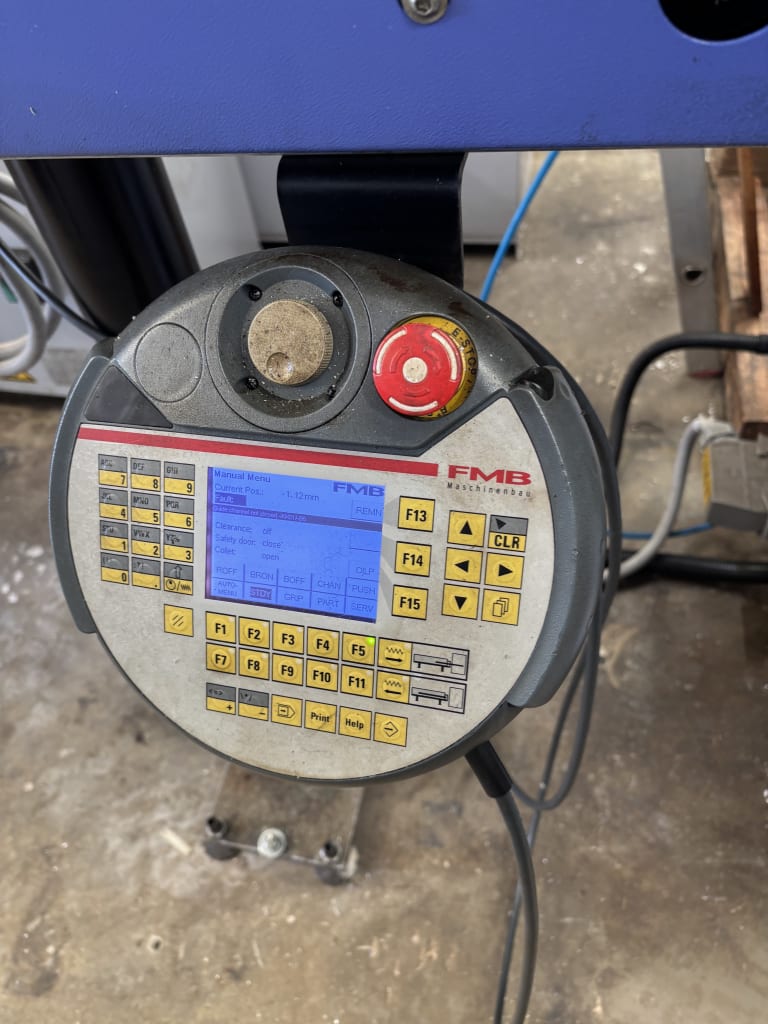

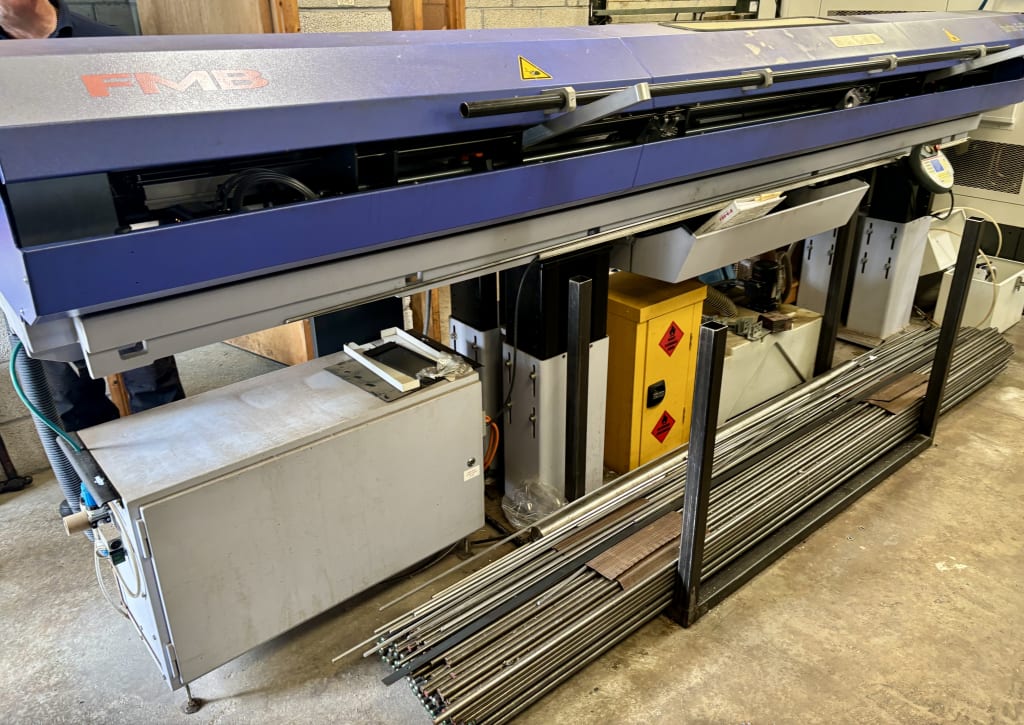

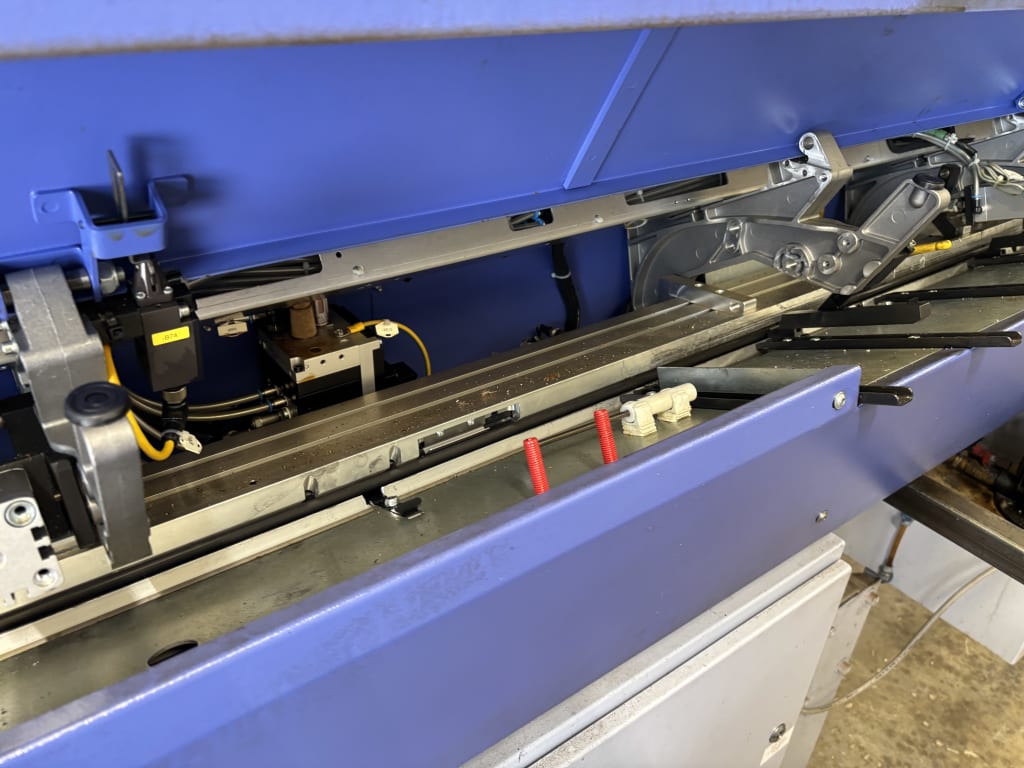

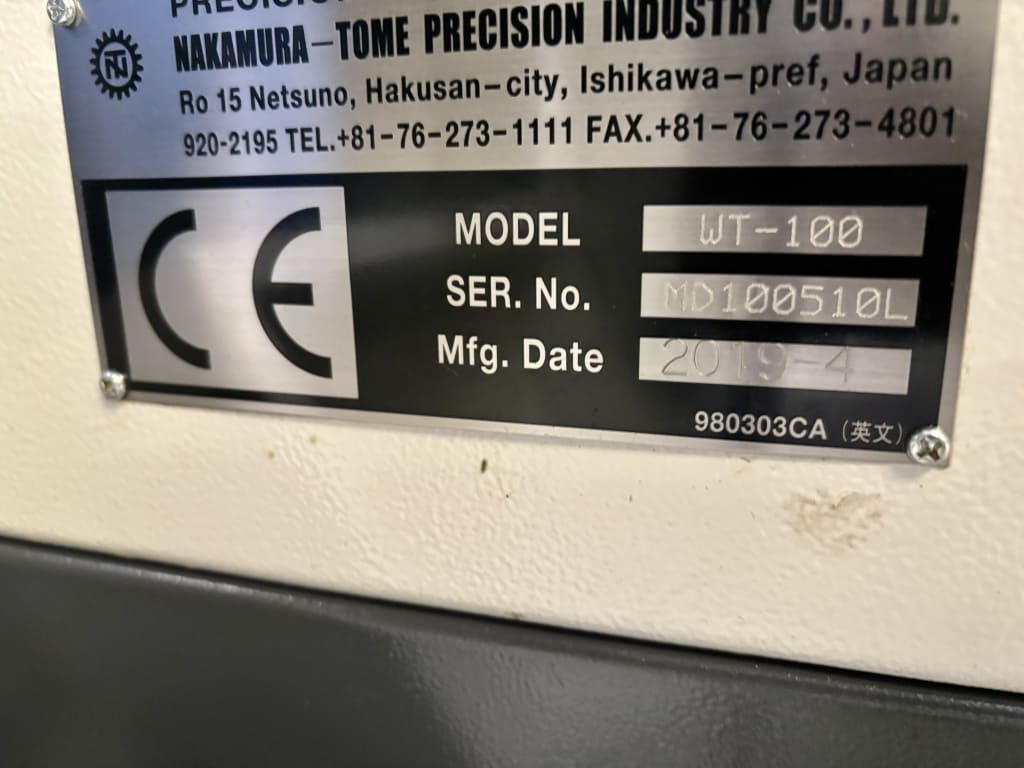

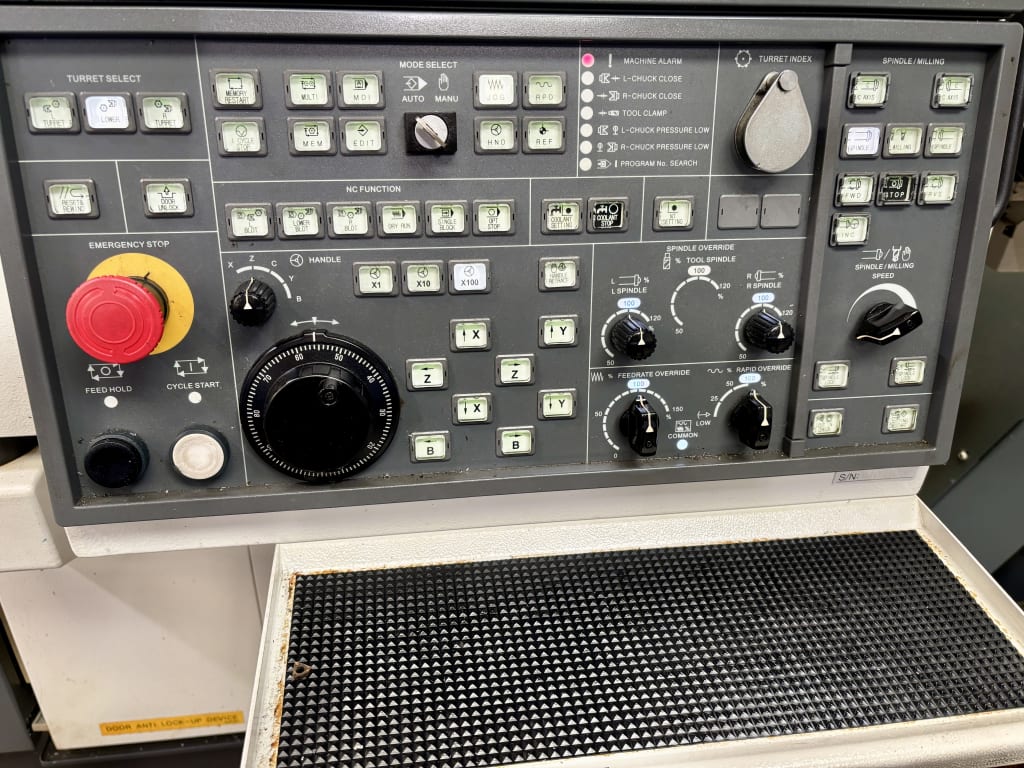

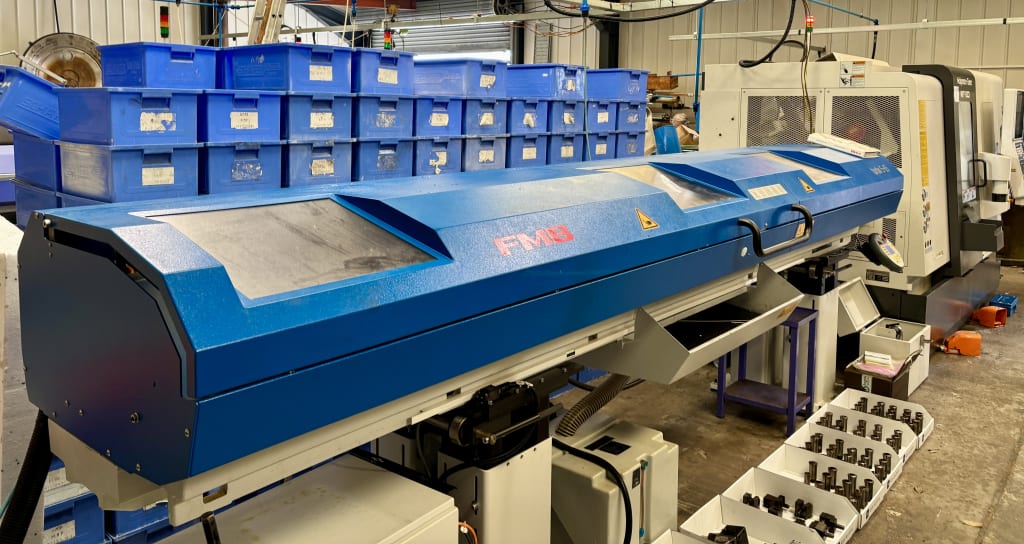

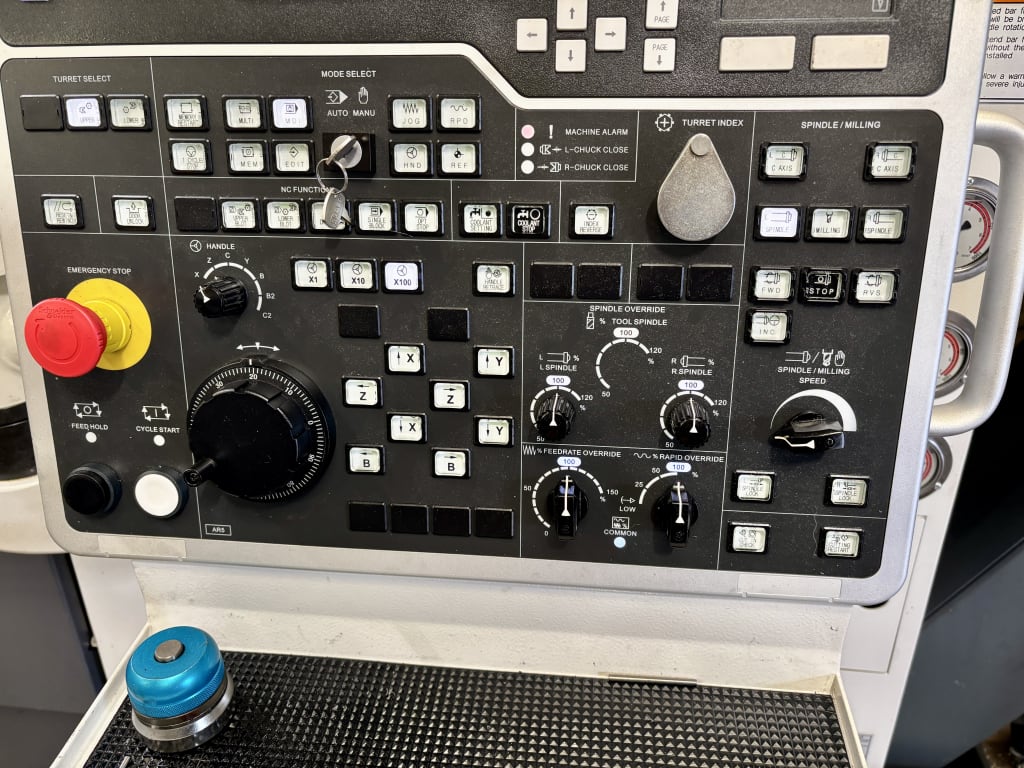

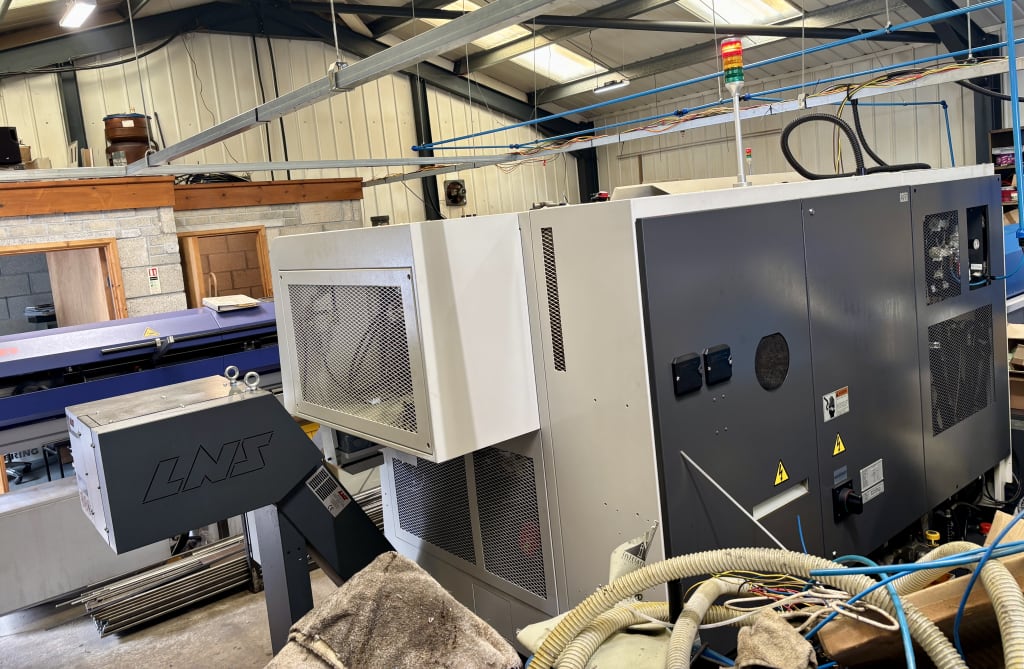

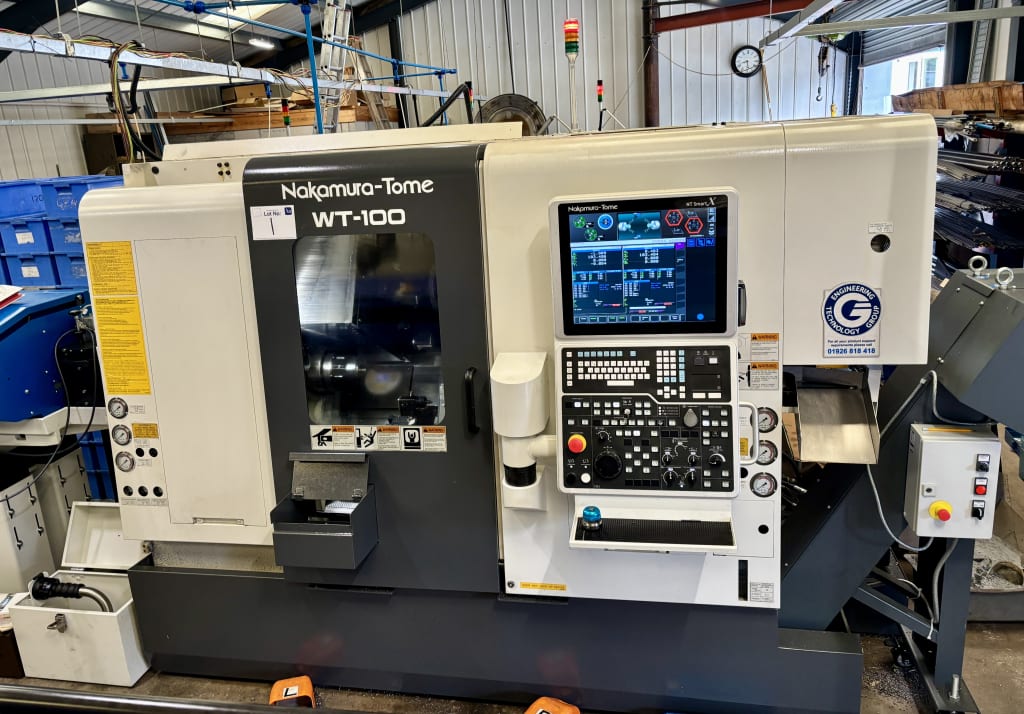

2019 Nakamura-Tome WT-100 CNC Twin Spindle, Twin Turret CNC Multitasking Lathe with NT Smart X Control & FMB Barfeeder

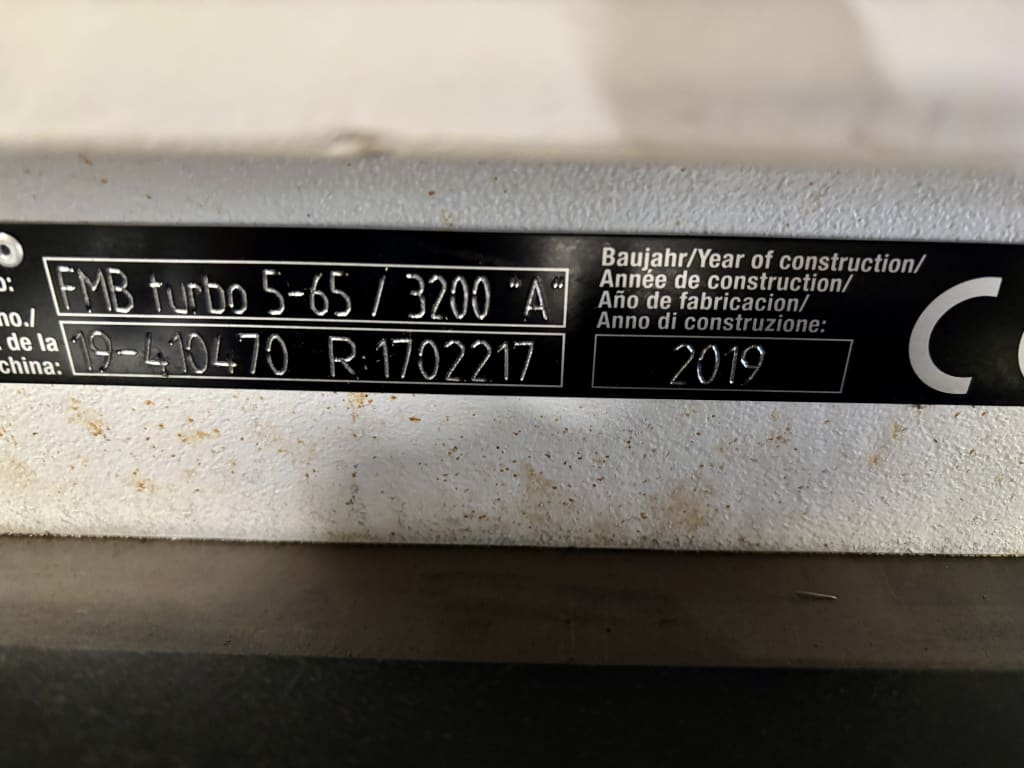

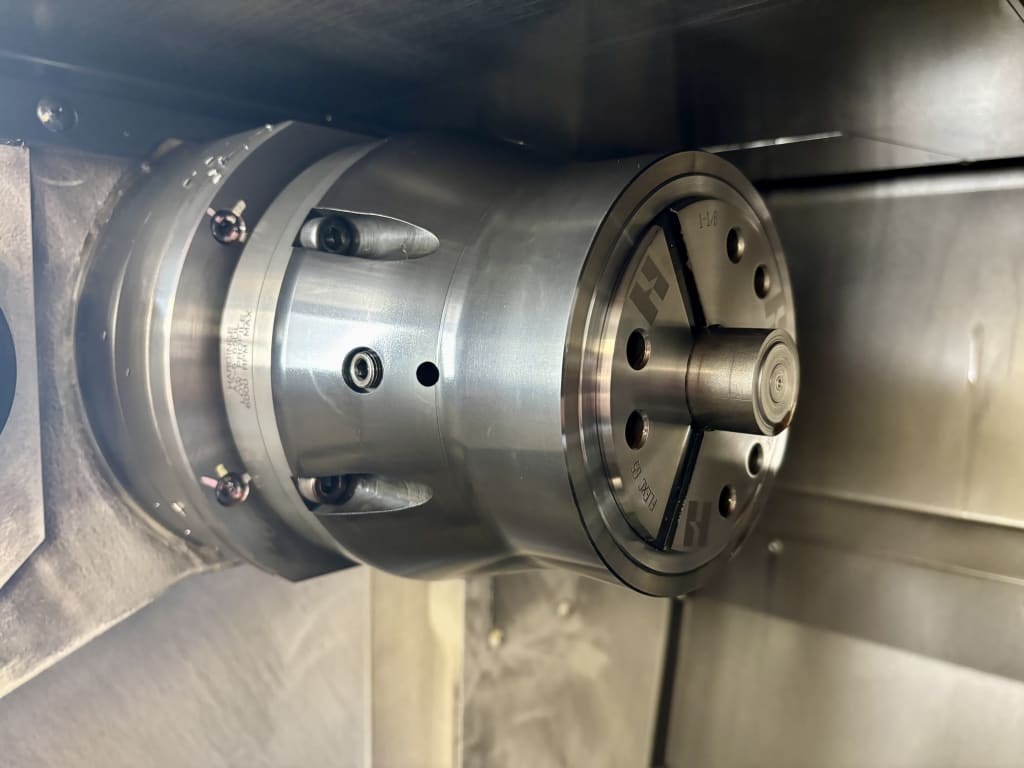

With Hardinge A2-5 65DL Collet Chucks. Maximum Turning Upper/Lower Turrets Ø190mm. Standard Turning Upper/Lower Turrets Ø170mm. Maximum Turning Length 503mm. Bar Capacity Main/Sub Spindle Ø42mm. Distance Between Spindle Noses 735-210mm. Axis Travel 'X1'=135mm, 'X2'=135mm, 'Z1'=503mm, 'Z2'=503mm, 'Y'= ±31mm, 'B'=525mm, 'C'=0.001° (Increment). Rapid Traverse 'X1/X2'=16m/min, 'Z1/Z2'=40m/min, 'Y'=6m/min, 'B'=40m/min, 'C'=600rpm. Maximum Main Spindle Speed 6,000rpm (11/7.5kW Motor), Spindle Nose A2-5, Maximum Sub Spindle Speed 6,000rpm (11/7.5kW Motor), Spindle Nose A2-5. Spindle Through Bores Ø56mm. Maximum Driven Tooling Speed 6,000rpm (7.1/2.2kW Motor). Upper/Lower Dodecagonal Drum Turret Positions 12, No. Of Indexing Positions 24. Turning Tool Shank 20 x 20, Boring Bar Ø25mm. FMB Turbo 5-65/3200A Barfeeder Length 4,400mm. Barfeeder S/No. 19-410470 R1702217 (2019). Machine S/No. MD100510L (2019). - LOT 2

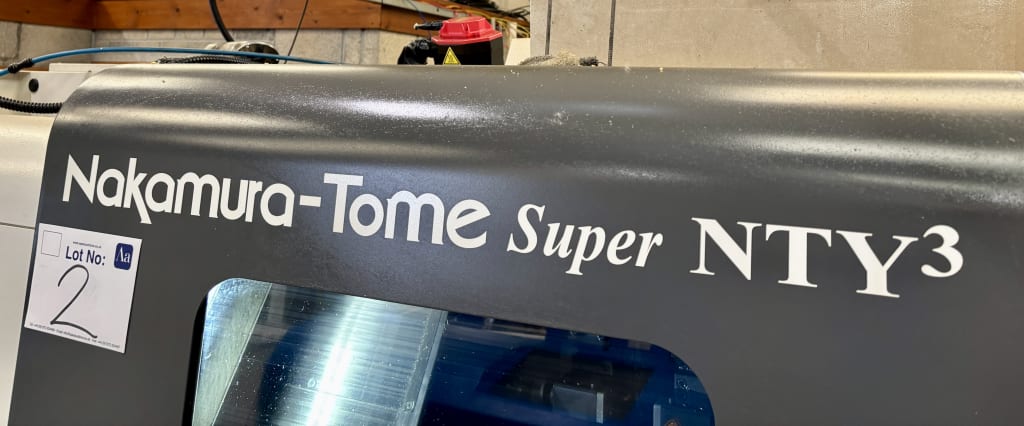

2015 Nakamura-Tome Super NTY3 CNC Twin Spindle CNC Multitasking Lathe with Nakamura Tome Control & FMB Barfeeder

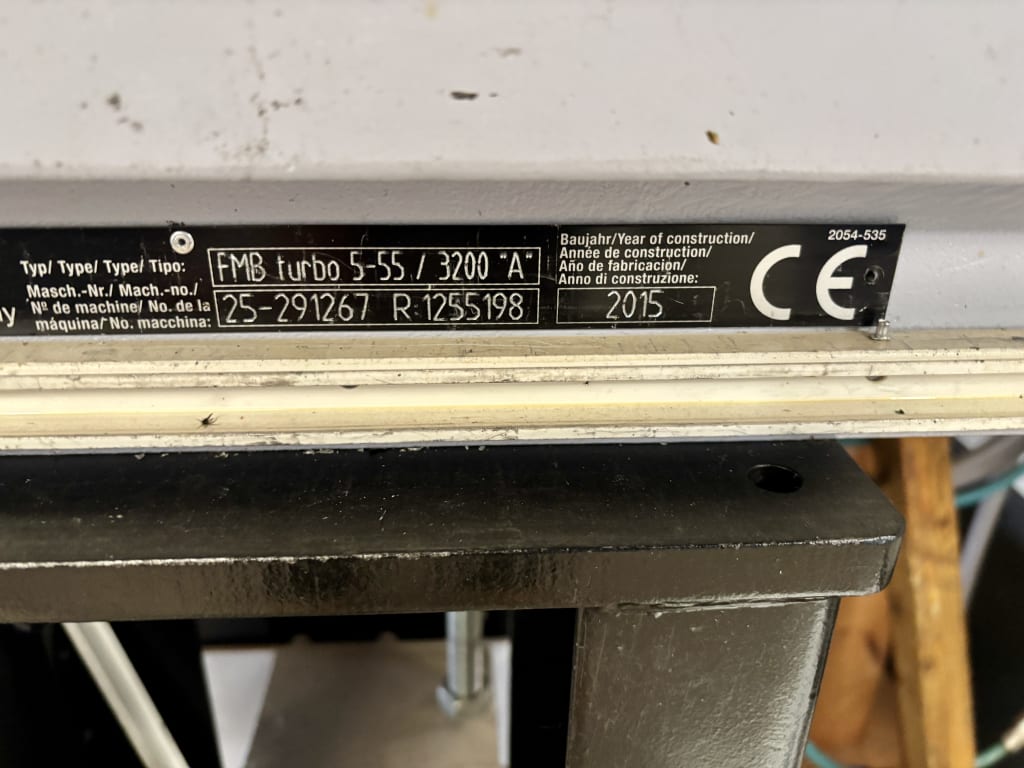

Triple Turret. Hainbuch Aflix 65 Collet Chucks. Maximum Turning Upper/Lower Turrets Ø175mm. Standard Turning Upper/Lower Turrets Ø170mm. Maximum Turning Length 588mm. Bar Capacity Main/Sub Spindle Ø42mm. Distance Between Spindle Noses 820-200mm. Axis Travel 'X1'=135mm, 'X2'=135mm, 'X3'=135mm 'Z1'=245mm, 'Z2'=245mm, 'Z2'=578mm 'Y'= ±31mm, 'B'=620mm, 'C'=0.001° (Increment). Rapid Traverse 'X1/X2'=16m/min, 'Z1/Z2'=40m/min, 'Y'=6m/min, 'B'=40m/min, 'C'=600rpm. Maximum Main Spindle Speed 6,000rpm (11/7.5kW Motor), Spindle Nose A2-5, Maximum Sub Spindle Speed 6,000rpm (11/7.5kW Motor), Spindle Nose A2-5. Spindle Through Bores Ø56mm. Maximum Driven Tooling Speed 6,000rpm (7.1/2.2kW Motor). Upper/Lower Dodecagonal Drum Turret Positions 12, No. Of Indexing Positions 24. Turning Tool Shank 20 x 20, Boring Bar Ø25mm. FMB Turbo 5-55/3200A Barfeeder Length 4,400mm. Barfeeder S/No. 25-291267 R1255198 (2015). Machine S/No. V104105 (2015). - LOT 3

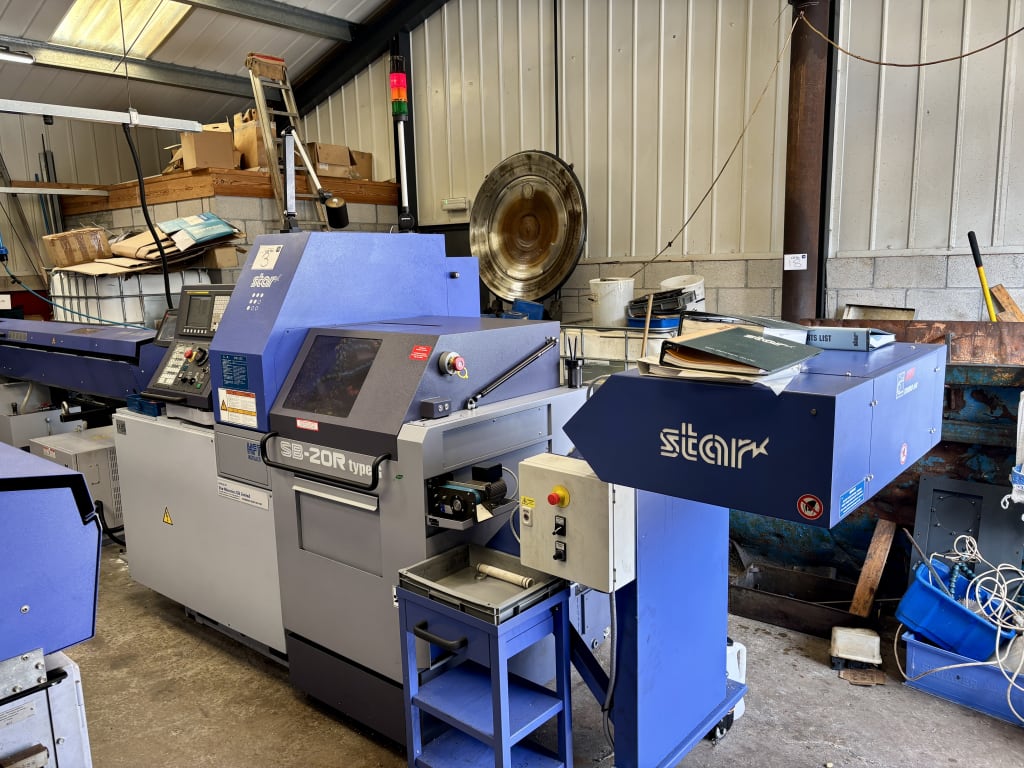

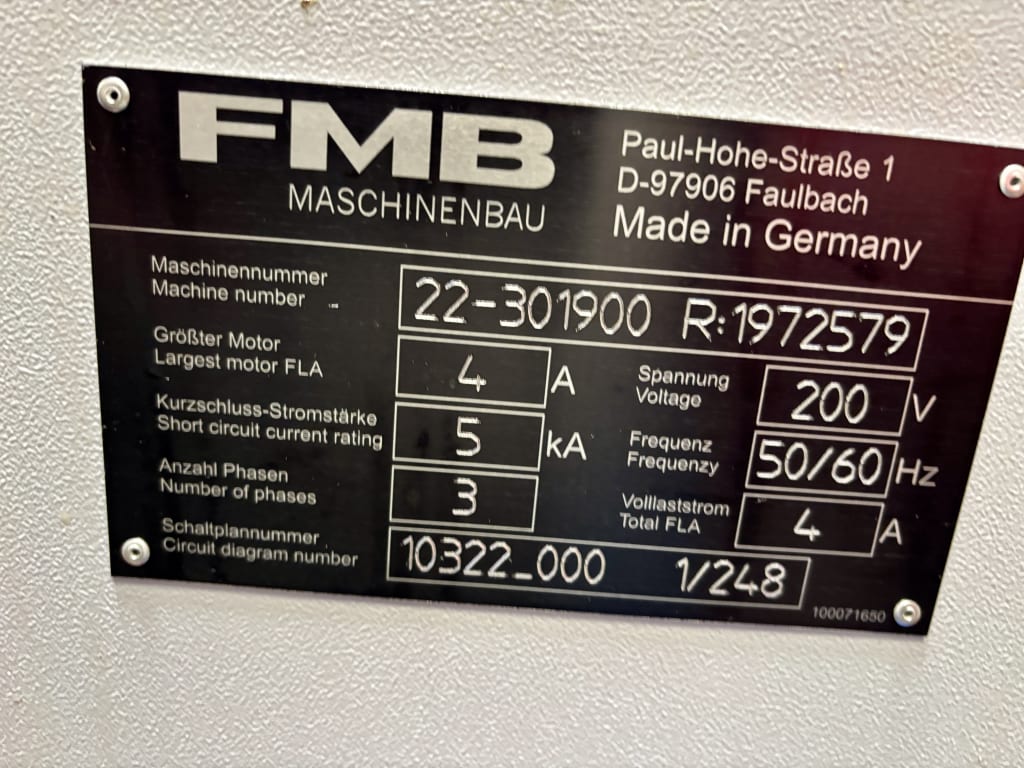

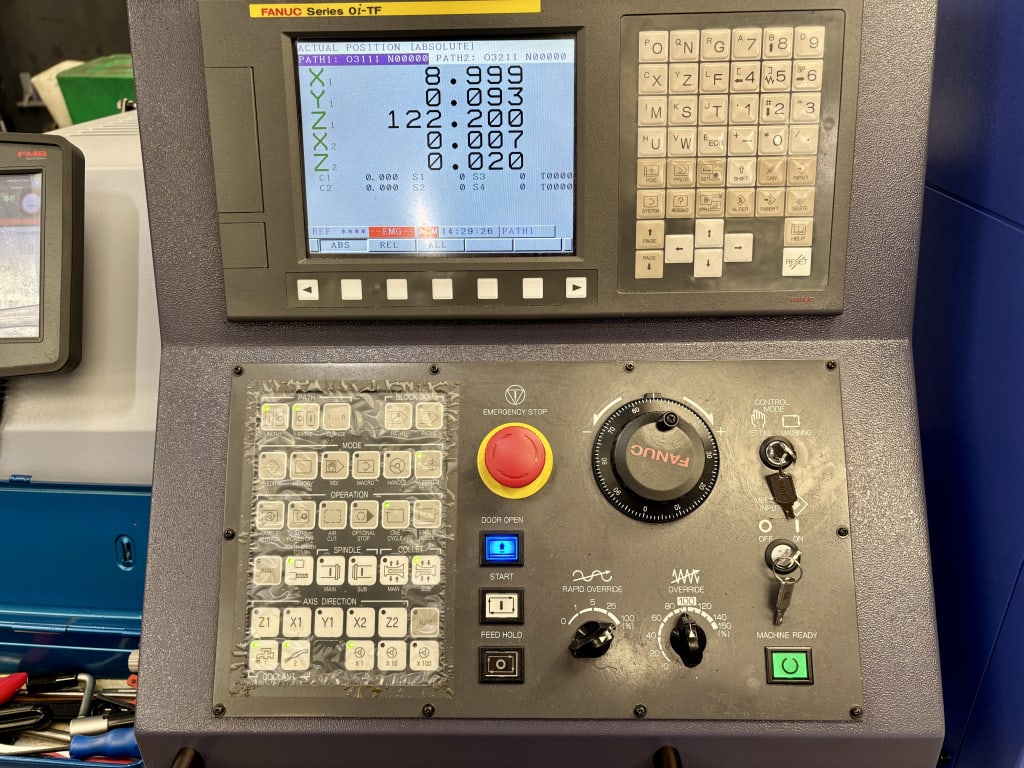

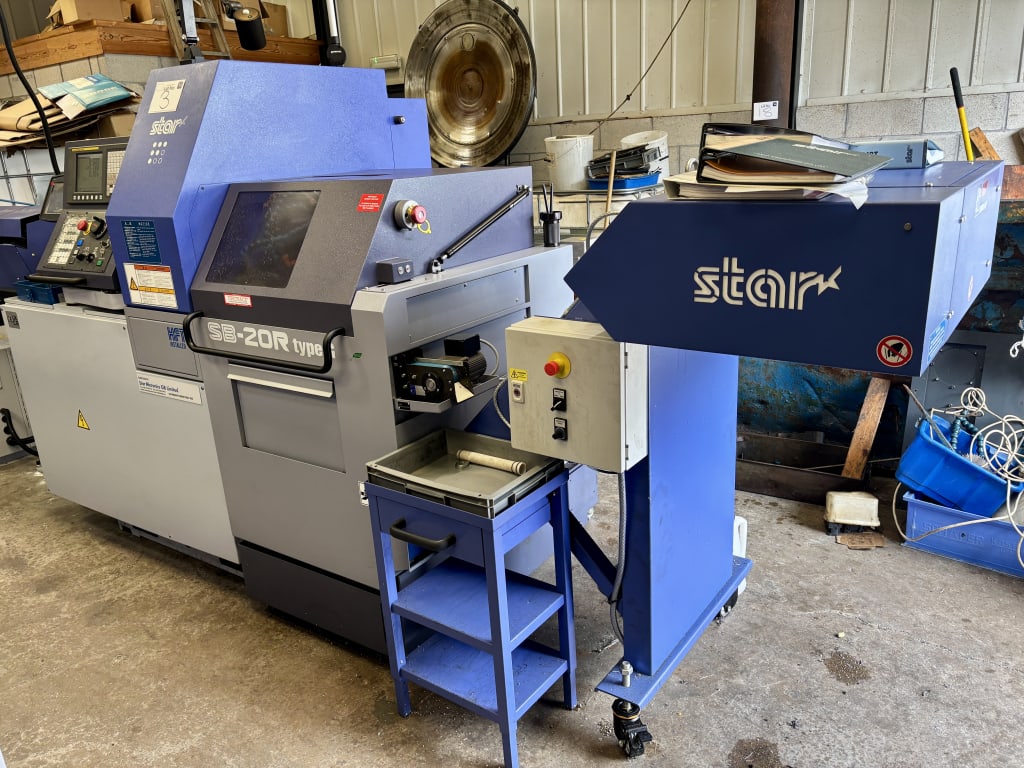

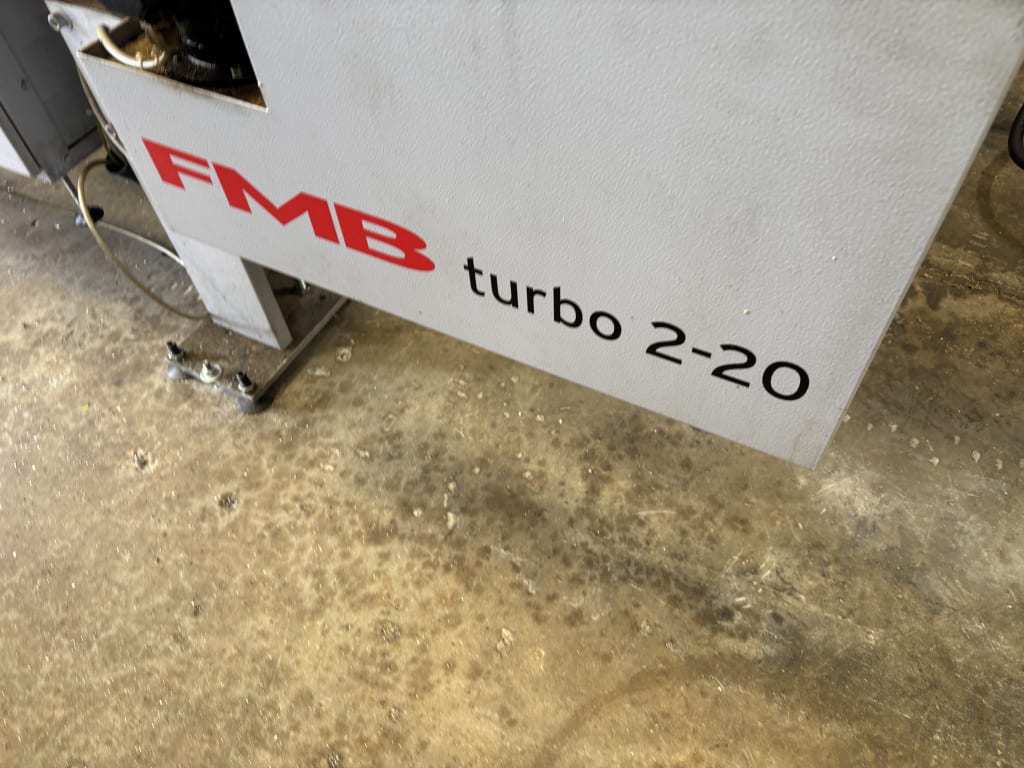

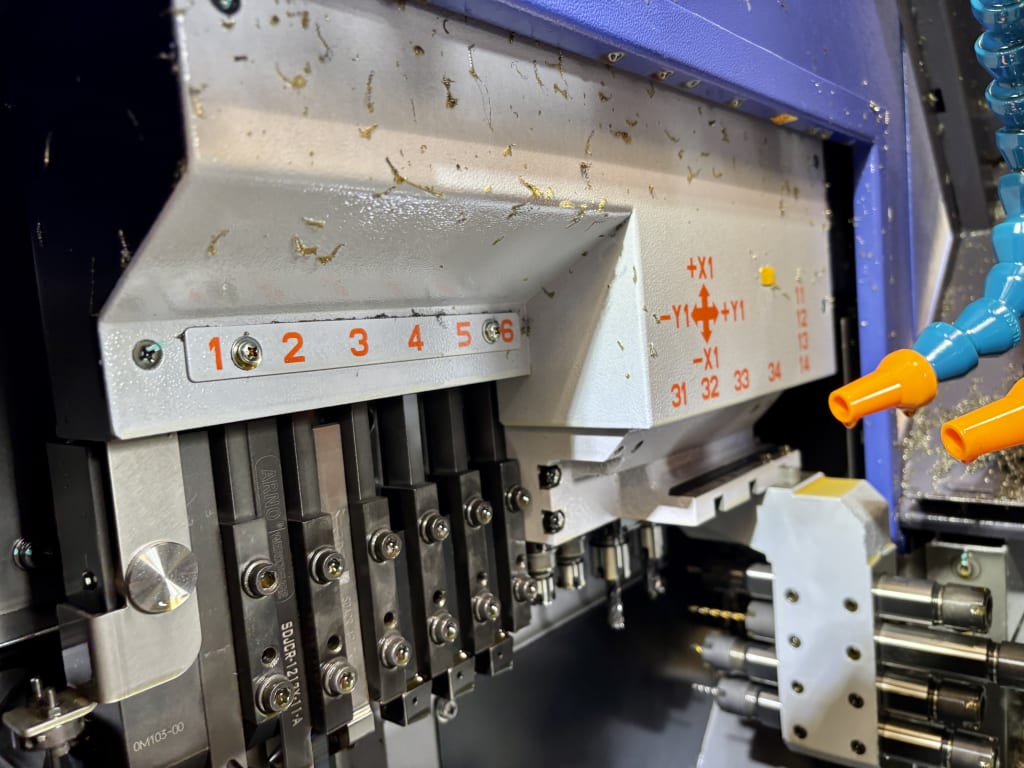

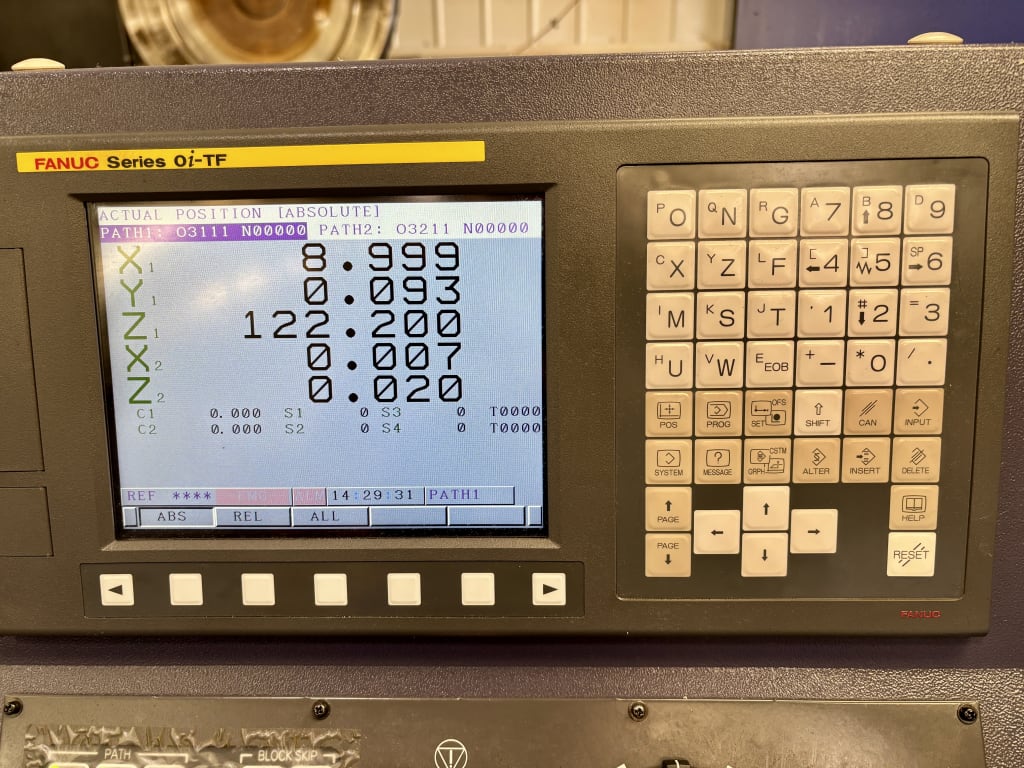

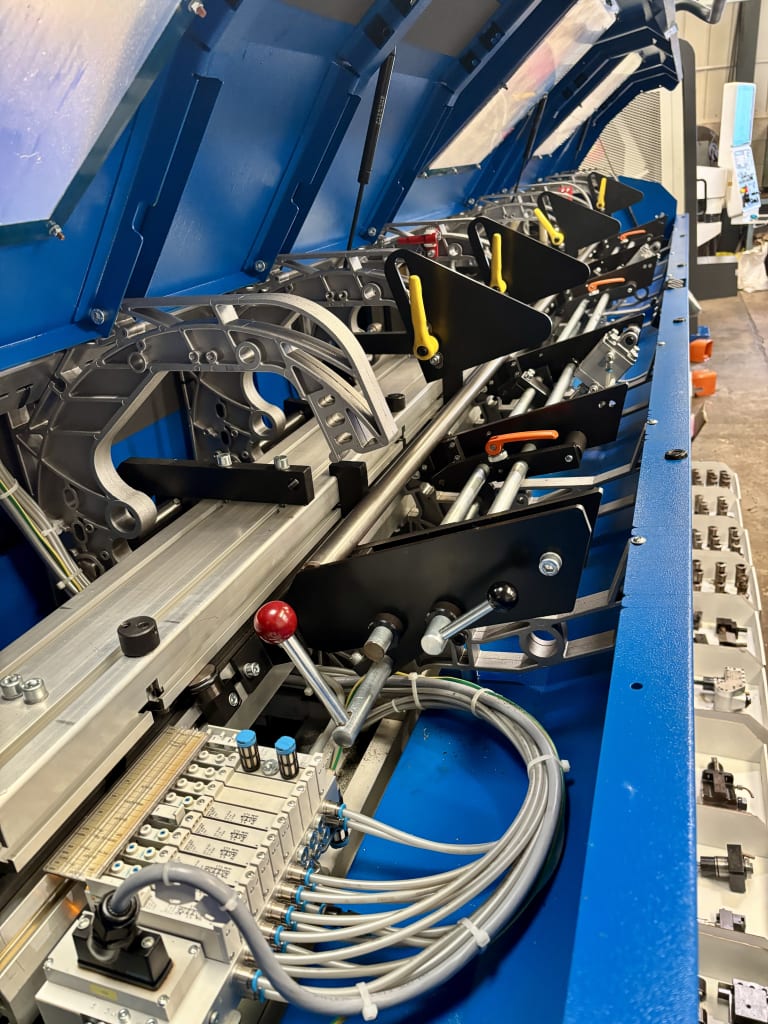

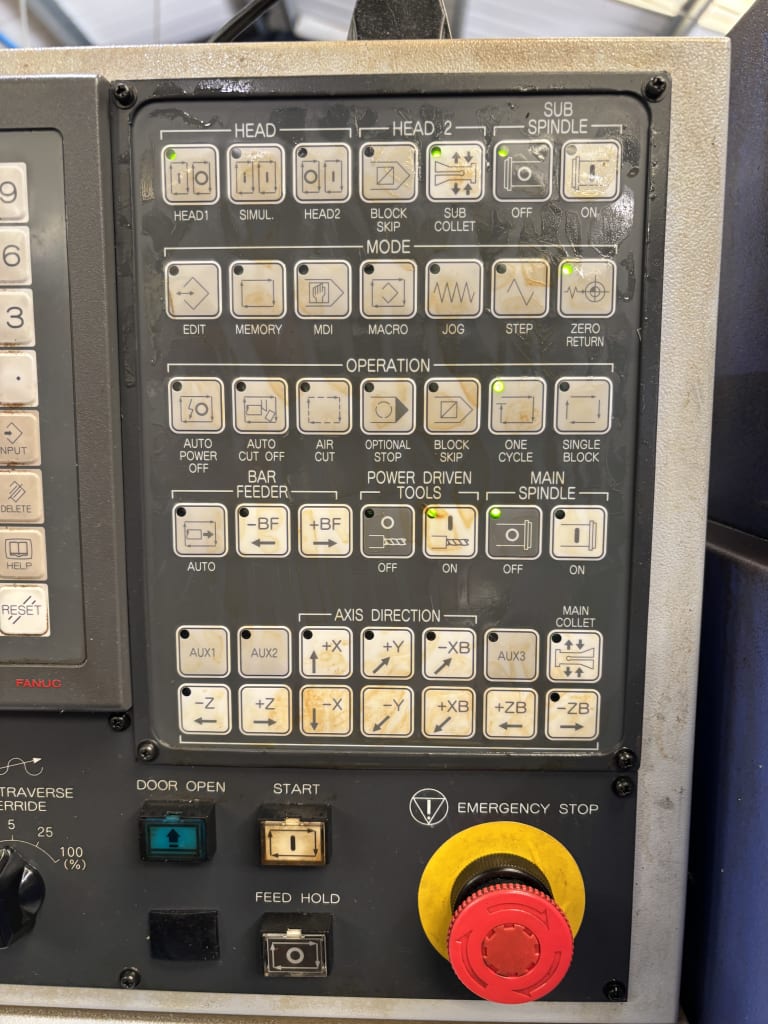

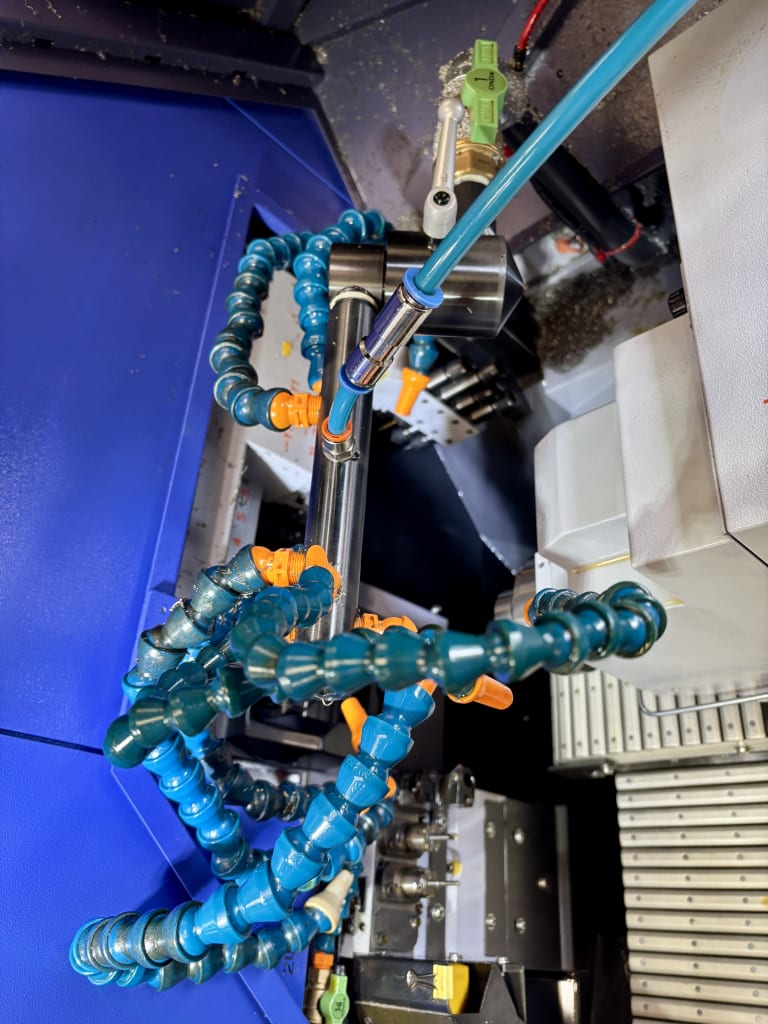

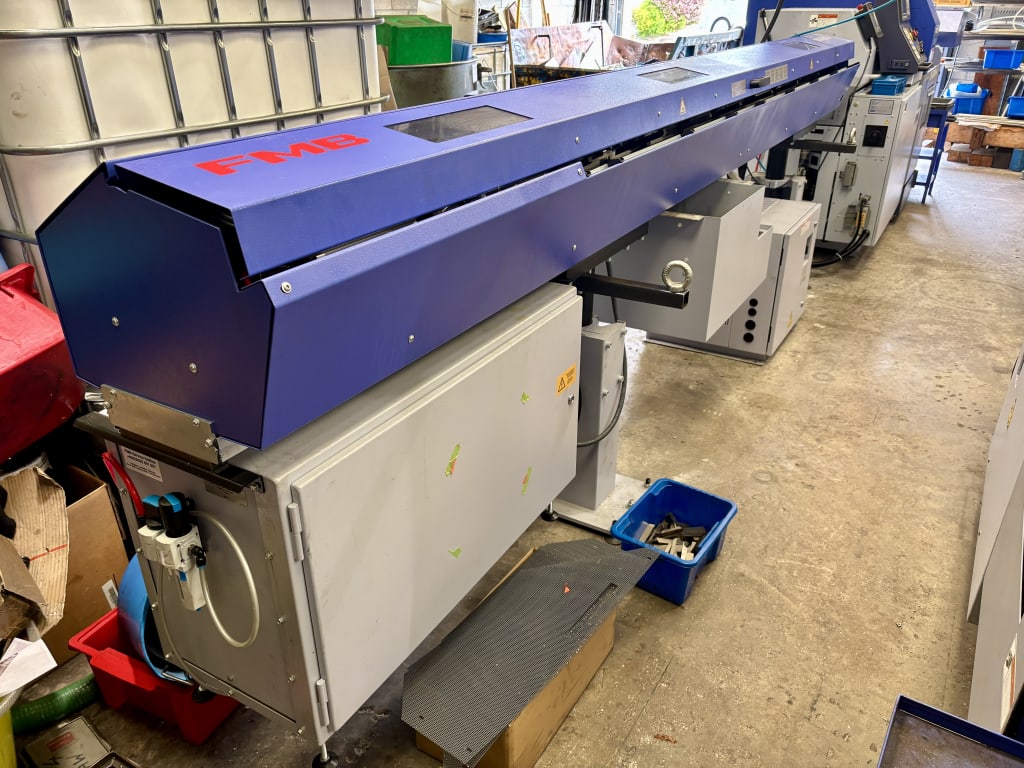

2022 Star SB-20R Type G CNC Sliding Head Machine with Fanuc Series Oi-TF Control & FMB Turbo 2/20/3200A Bar Feeder
Maximum Machining Ø20mm. Maximum Headstock Stroke 205mm. Maximum Main Spindle Speed 10,000rpm (3.7kW Motor). No. Of Turning Tools 6. 4 Spindle Sleeve Holder (4 Front/4 Rear), Maximum Drilling Ø12mm, Maximum Tapping M10. 4 Vertical Cross Driven Tools, Maximum Drilling Ø7mm, Maximum Tapping M6, Maximum Spindle Speed 6,000rpm (1.2kW Motor). Rapid Feedrate 35m/min (X1,Y1,Z1,X2,Z2). Back Working- Maximum Chucking Ø20mm. Maximum Length For Front Ejection 80mm. Maximum Parts Projection Length 30mm. 4 Horizontal Driven Tools, Maximum Drilling Ø6mm, Maximum Tapping M5, Stationary Maximum Drilling Ø8mm, Maximum Tapping M6. Maximum Spindle Speed 8,000rpm (0.75kW Motor). Maximum Sub Spindle Speed 9,000rpm (1.1kW Motor). FMB Turbo 2/20 Barfeeder Length 4,200mm. S/No. 22-301900 R1972579 (2022). Machine S/No. 11291 (2022). - LOT 4

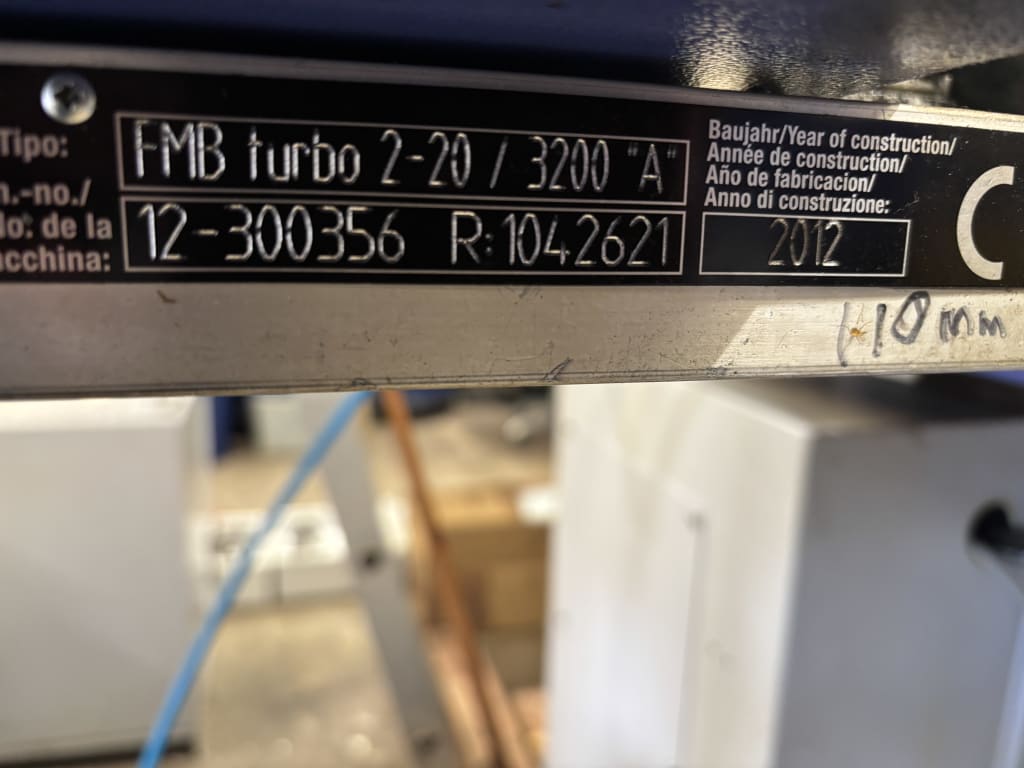

2012 Star SB-20 Type E CNC Sliding Head Machine with Fanuc Series Oi-TD Control & FMB Turbo 2/20/3200A Bar Feeder
Maximum Machining Ø20mm. Maximum Headstock Stroke 183mm. Maximum Main Spindle Speed 10,000rpm (3.7kW Motor). No. Of Turning Tools 6. 4 Spindle Sleeve Holder (4 Front/4 Rear), Maximum Drilling Ø12mm, Maximum Tapping M10. 4 Vertical Cross Driven Tools, Maximum Drilling Ø7mm, Maximum Tapping M6, Maximum Spindle Speed 6,000rpm (1.2kW Motor). Rapid Feedrate 35m/min (X1,Y1,Z1,X2,Z2). Back Working- Maximum Chucking Ø20mm. Maximum Length For Front Ejection 80mm. Maximum Parts Projection Length 30mm. 4 Horizontal Driven Tools, Maximum Drilling Ø6mm, Maximum Tapping M5, Stationary Maximum Drilling Ø8mm, Maximum Tapping M6. Maximum Spindle Speed 8,000rpm (0.75kW Motor). Maximum Sub Spindle Speed 9,000rpm (1.1kW Motor). FMB Turbo 2/20 Barfeeder Length 4,200mm. S/No. 12-300356 R1042621 (2012). Machine S/No. 1077 (2012). - LOT 5

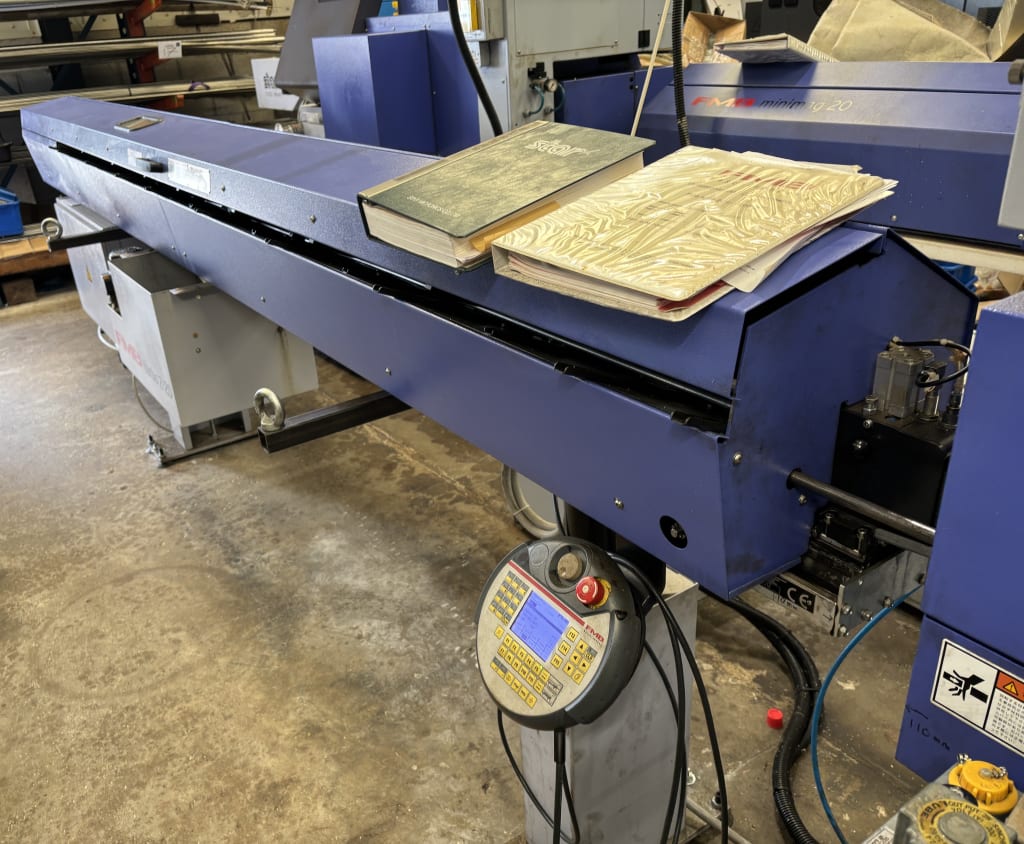

2011 Star SB-20 Type E CNC Sliding Head Machine with Fanuc Series Oi-TD Control & FMB Minimag 20/3200A Bar Feeder
Maximum Machining Ø20mm. Maximum Headstock Stroke 183mm. Maximum Main Spindle Speed 10,000rpm (3.7kW Motor). No. Of Turning Tools 6. 4 Spindle Sleeve Holder (4 Front/4 Rear), Maximum Drilling Ø12mm, Maximum Tapping M10. 4 Vertical Cross Driven Tools, Maximum Drilling Ø7mm, Maximum Tapping M6, Maximum Spindle Speed 6,000rpm (1.2kW Motor). Rapid Feedrate 35m/min (X1,Y1,Z1,X2,Z2). Back Working- Maximum Chucking Ø20mm. Maximum Length For Front Ejection 80mm. Maximum Parts Projection Length 30mm. 4 Horizontal Driven Tools, Maximum Drilling Ø6mm, Maximum Tapping M5, Stationary Maximum Drilling Ø8mm, Maximum Tapping M6. Maximum Spindle Speed 8,000rpm (0.75kW Motor). Maximum Sub Spindle Speed 9,000rpm (1.1kW Motor). FMB Turbo 2/20 Barfeeder Length 4,200mm. S/No. 01-310295 R882846 (2011). Machine S/No. 0220 (2011). - LOT 6

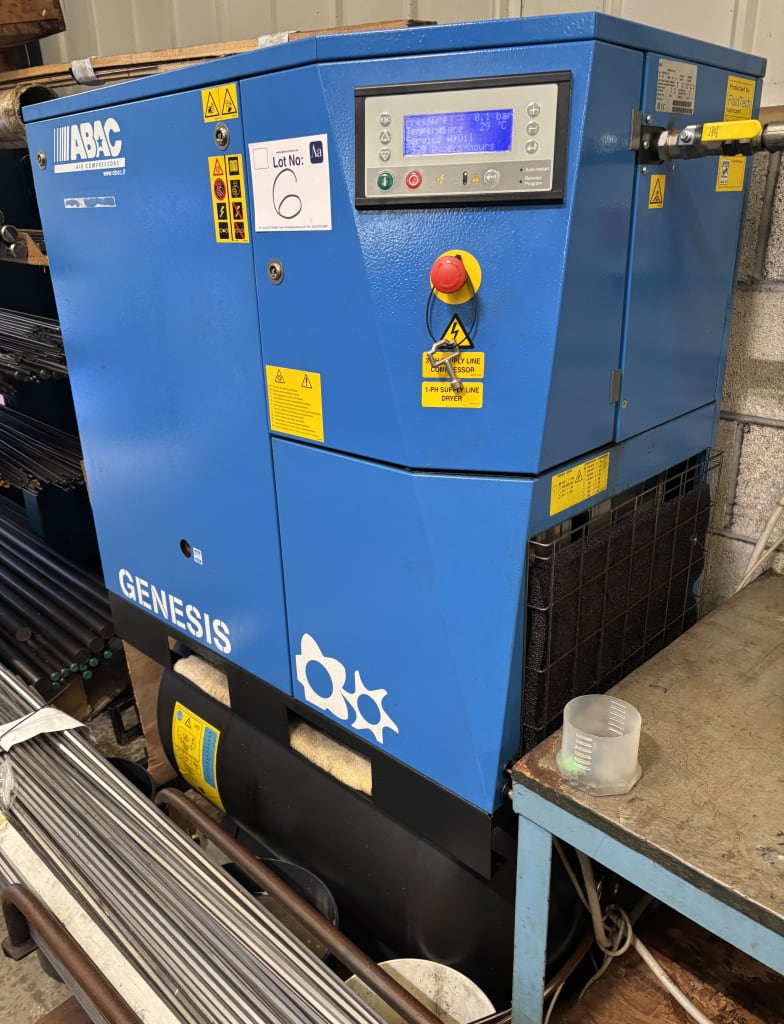

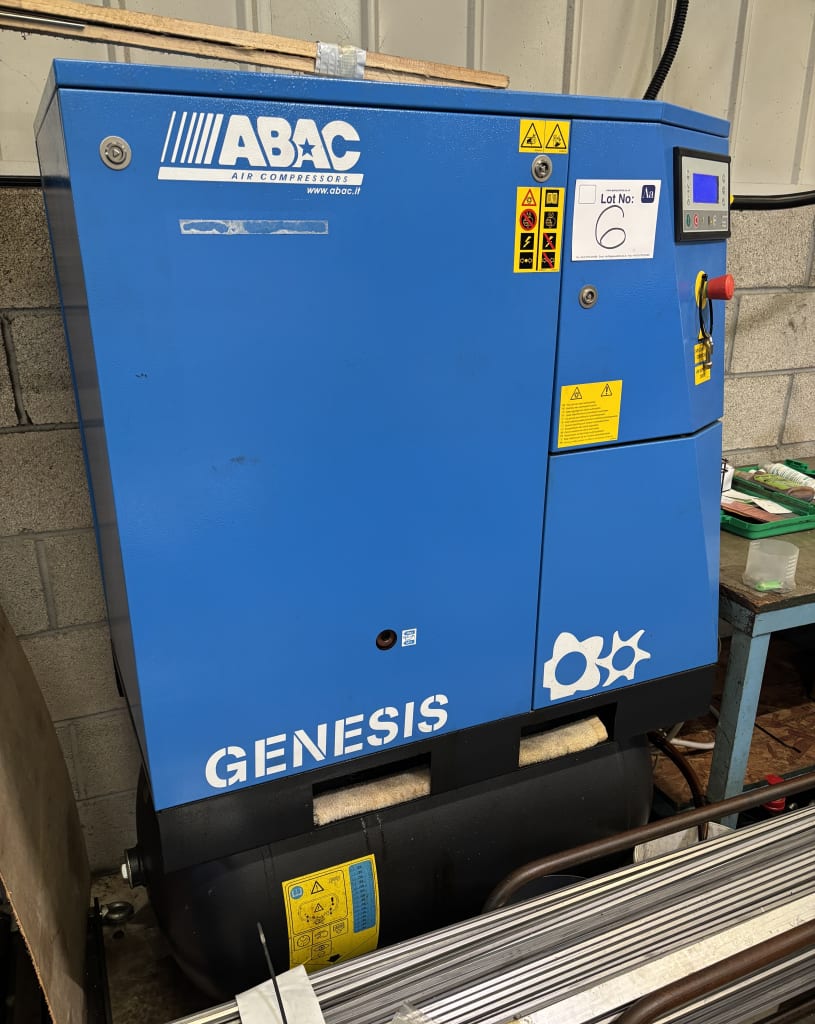

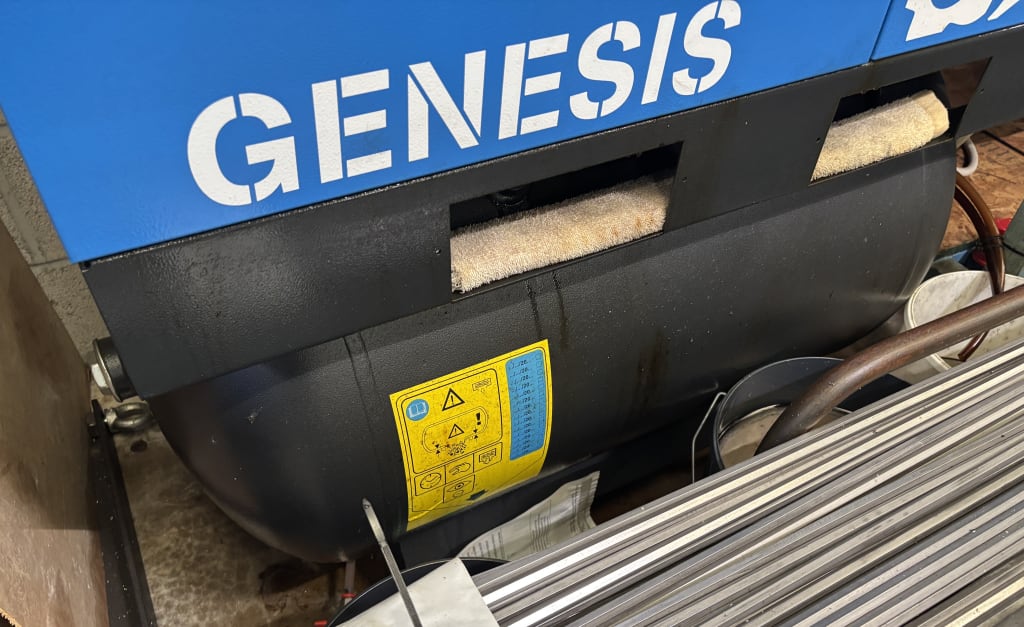

Abac Air Compressors Genesis 15* 270 Air Screw Compressor
Max Working Pressure 10 Bar. FAD Capacity 2,330 l/min. Vessel dimension 270 Litre. 15kW Motor. S/No. ITJ103651 (2017). - LOT 7

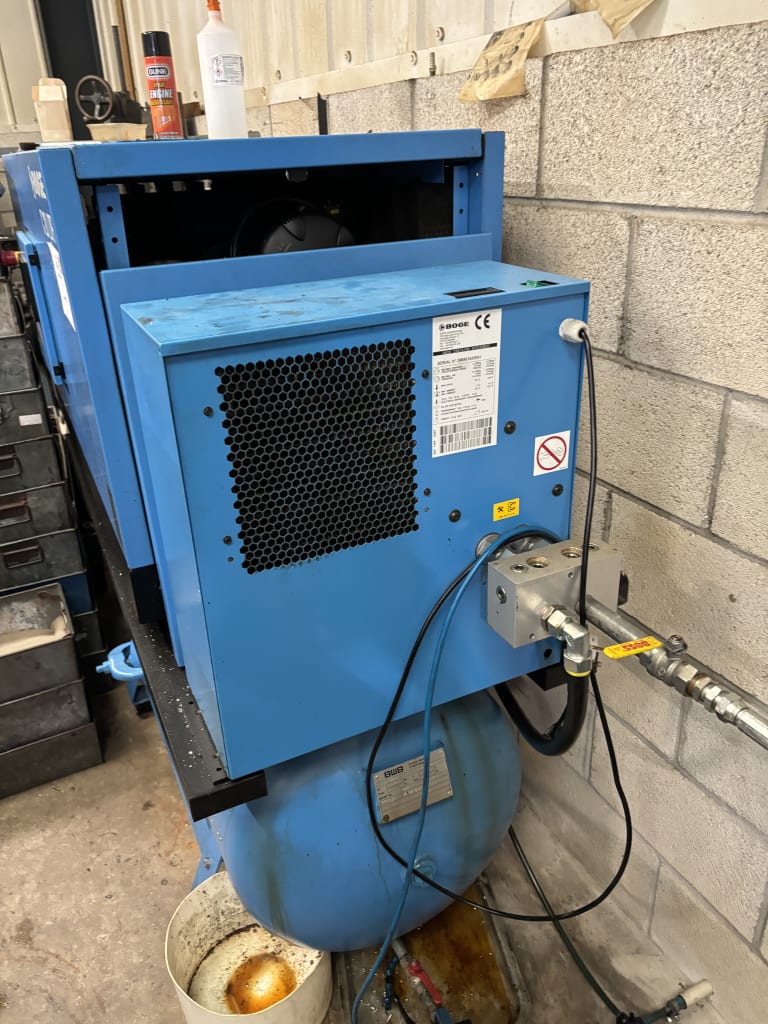

Boge C20 LDR Air Screw Compressor With Air Dryer & BWB Air Vessel
Maximum Working Pressure 10bar. 15kw Motor. FAD Flow Rate: 2,220 l/min. - LOT 8

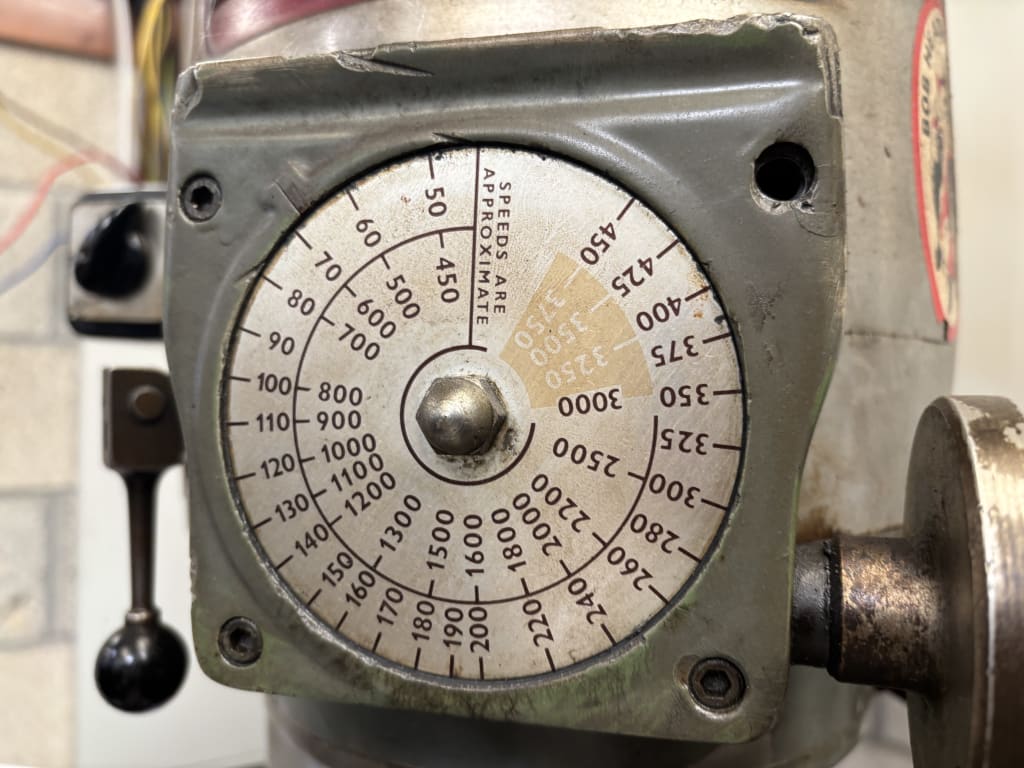

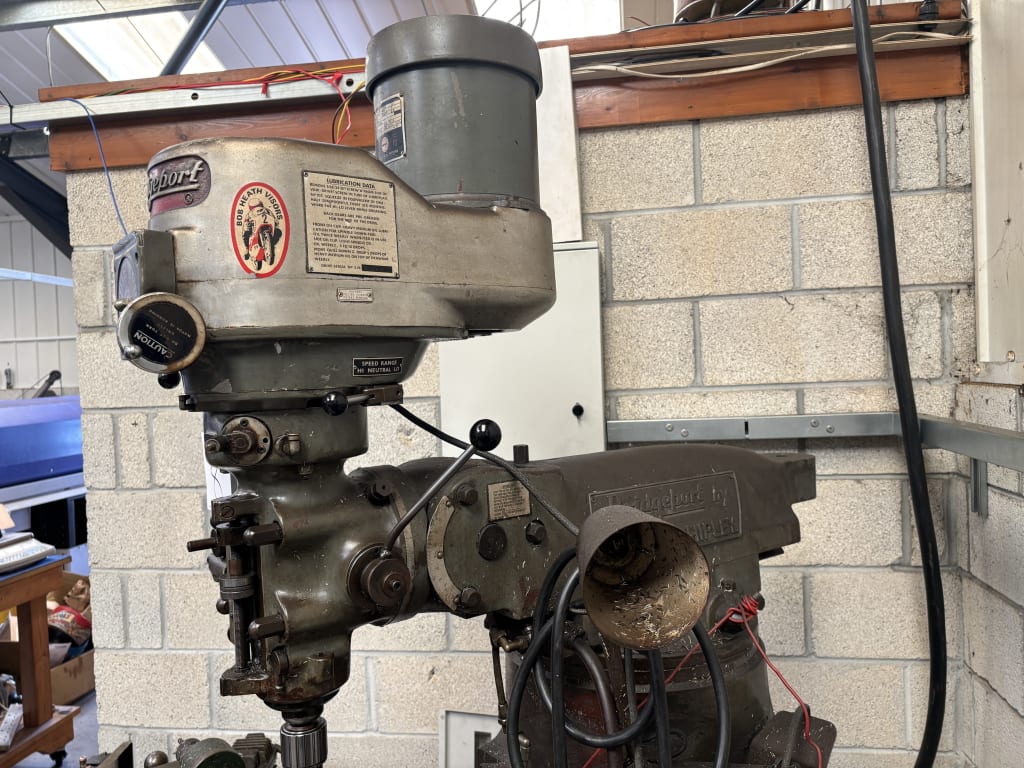

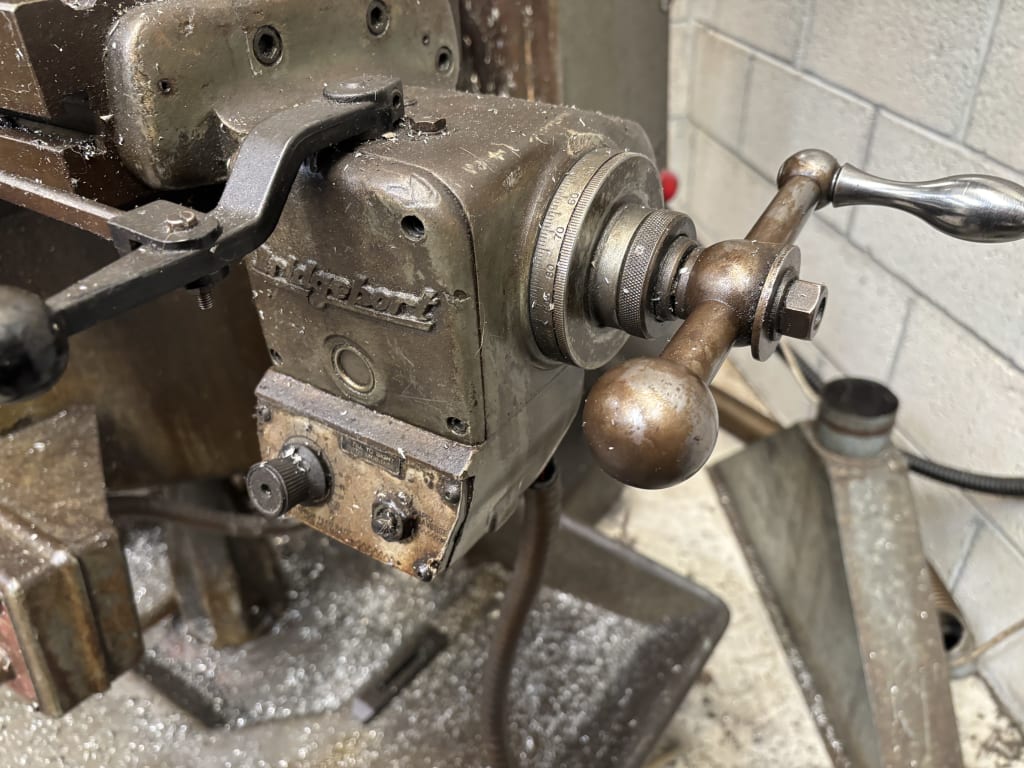

Bridgeport BR2J2 Turret Milling Machine
Table Dimension Approx 1,067mm x 227mm (3 'T' Slots). Longitudinal Table Travel Approx 736mm. Cross Travel Approx 304mm. Vertical Travel (Knee) Approx 400mm. Quill Travel 125mm. Ram Travel Approx 315mm. Spindle Centre to Column Face: Minimum Distance Approx 170mm - Max Approx 476mm. Spindle To Table Approx 64mm Min - 470mm Max. Table to Spindle Nose Gauge Line Approx 55mm. Max Workpiece Weight Approx 340kg. R8 Taper. High Range/Low Range Switch 70-3,750rpm. Right Hand & Left Hand Head Tilt = 90° Forward & Backward Head Tilt = 45°. - LOT 9
Colchester Bantam Capstan Lathe

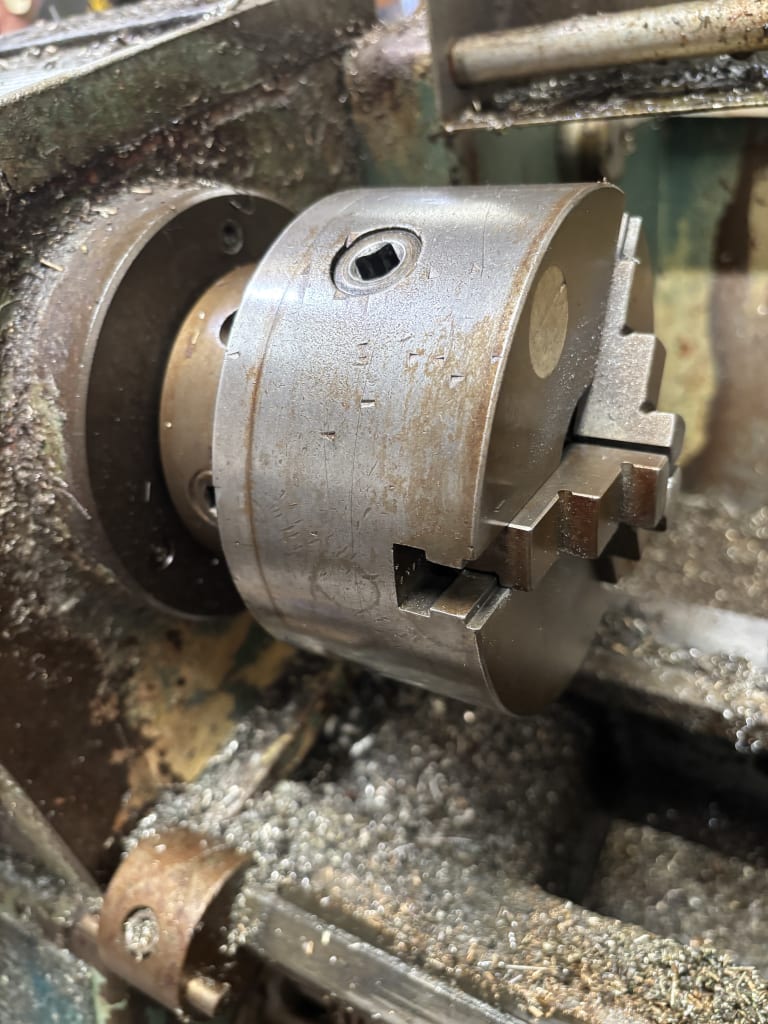

Ø130mm 3 Jaw Chuck. 300mm Turret Travel. Ø27mm Through Spindle Bore. Speed Range 36-800rpm. 5 Position Turret. QTC. - LOT 10
Jones & Shipman 540 Surface Grinder
Working Surface Of Table 457 x 152mm. Longitudinal Table Traverse 483mm. Cross Table Travel 168mm. Vertical Movement Of Wheel Head 280mm. Maximum Wheel Speed 3,000rpm (1.5kW Motor). Magnetic Chuck Dimension 355 x 152mm. With Extraction Unit, Toolmakers Vice, Angle Plate & Diamond Dresser. - LOT 11
- LOT 12

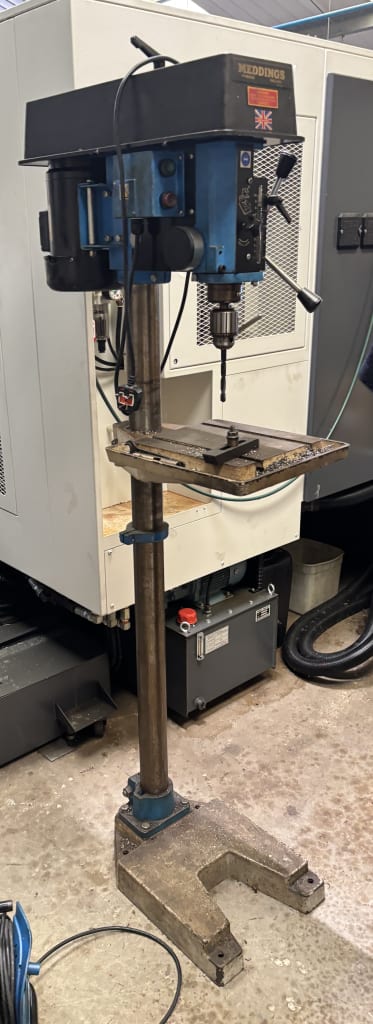

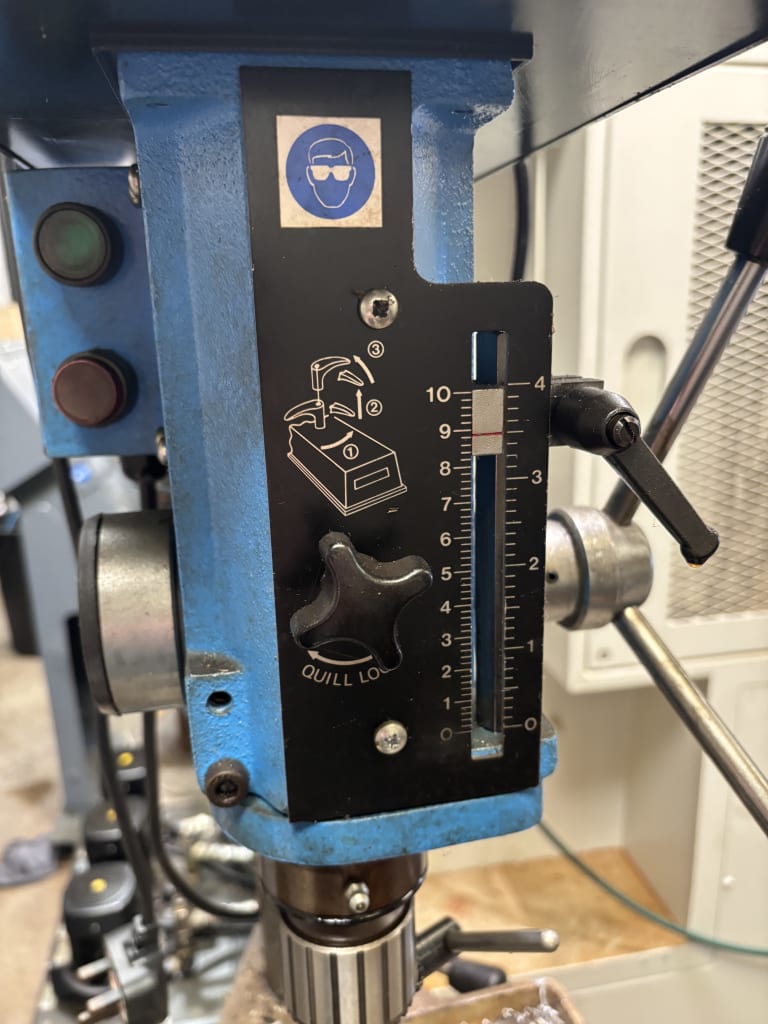

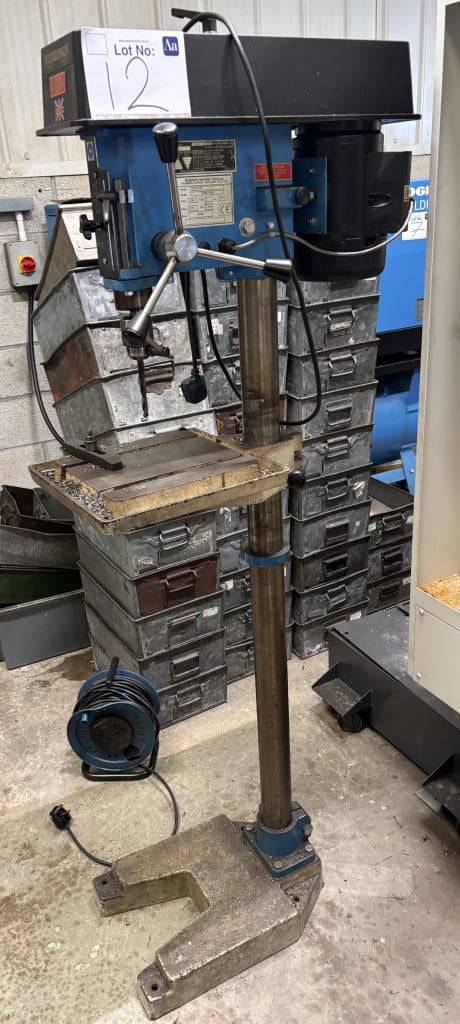

Medding L2/F/1PH Pedestal Drill
Rise & Fall Table Dimension 273 x 254mm. Throat Dimension 195mm. Speed Range 500-4,000rpm (0.37kW Motor). Voltage 230V. S/No. 535627. - LOT 13
- LOT 14
- LOT 15
- LOT 16
- LOT 17

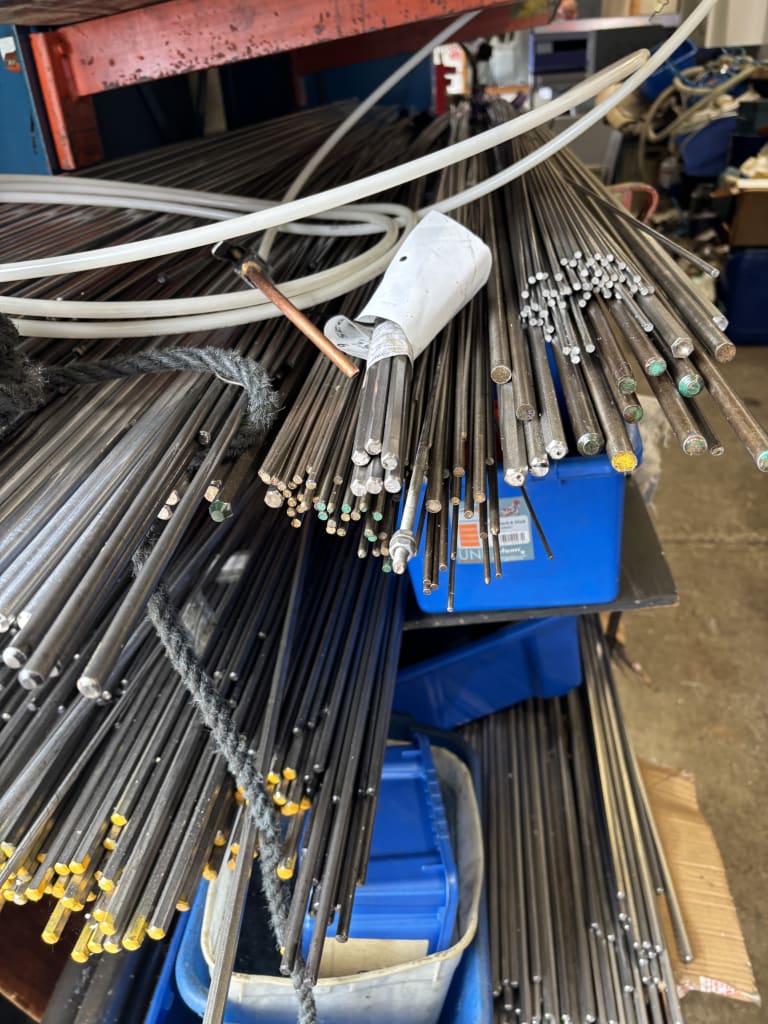

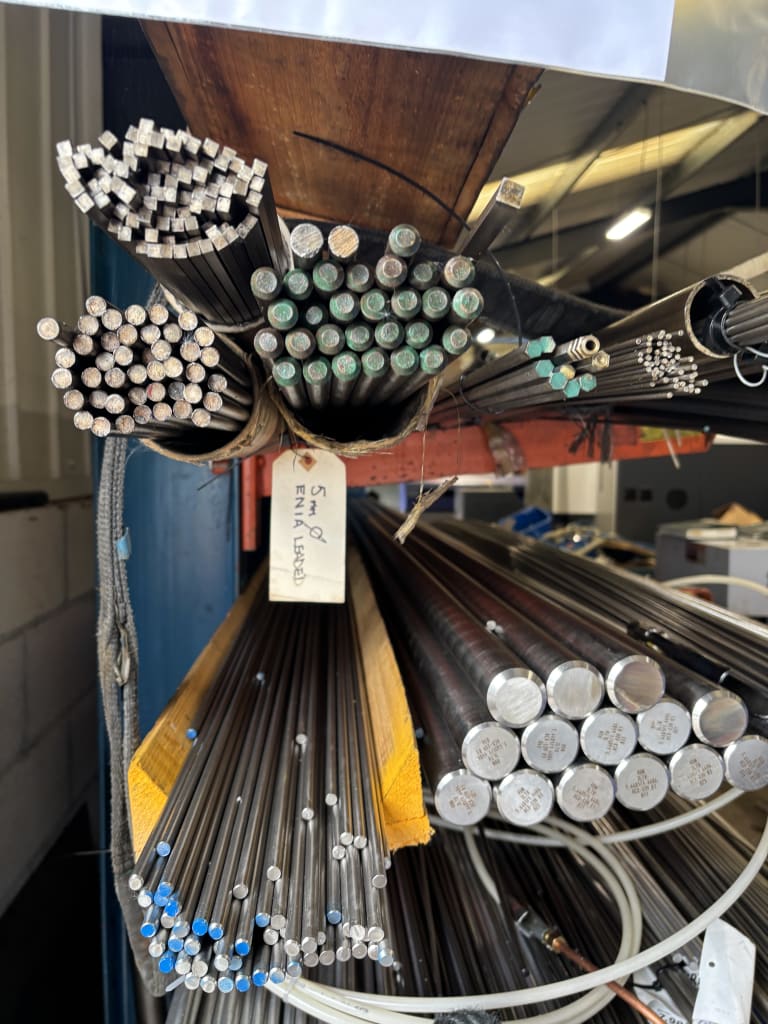

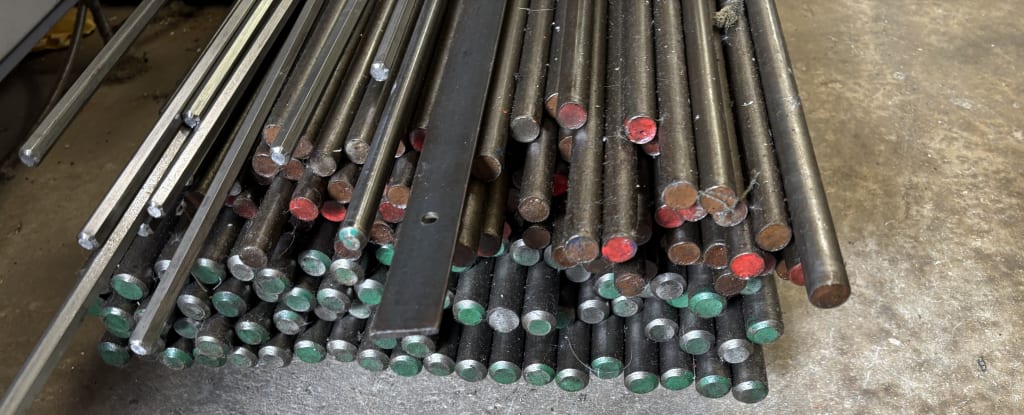

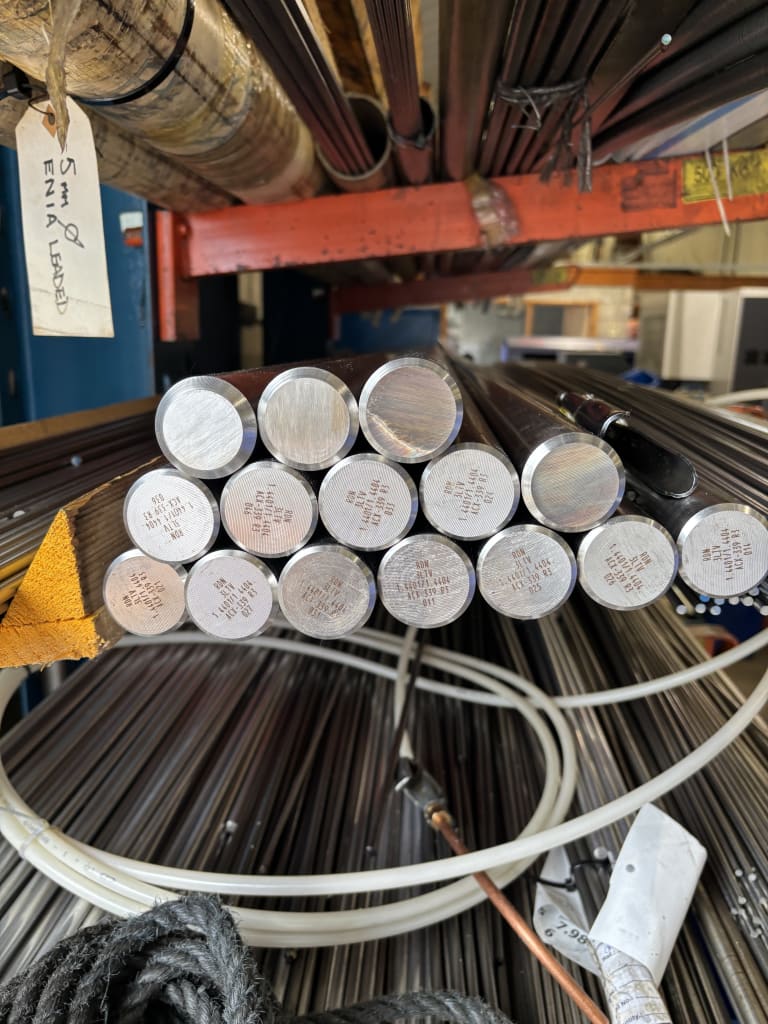

Heavy Duty Steel Material Rack With Contents Of Bar Stock
Overall Dimensions L1,600 x W2,000 x H1,000mm. Stock Bar Includes Aluminium, Stainless Steel, Mild Steel. Round Bar & Hexagon Bar In Various Sizes Ø3-50mm Upto 3m In Length. - LOT 18

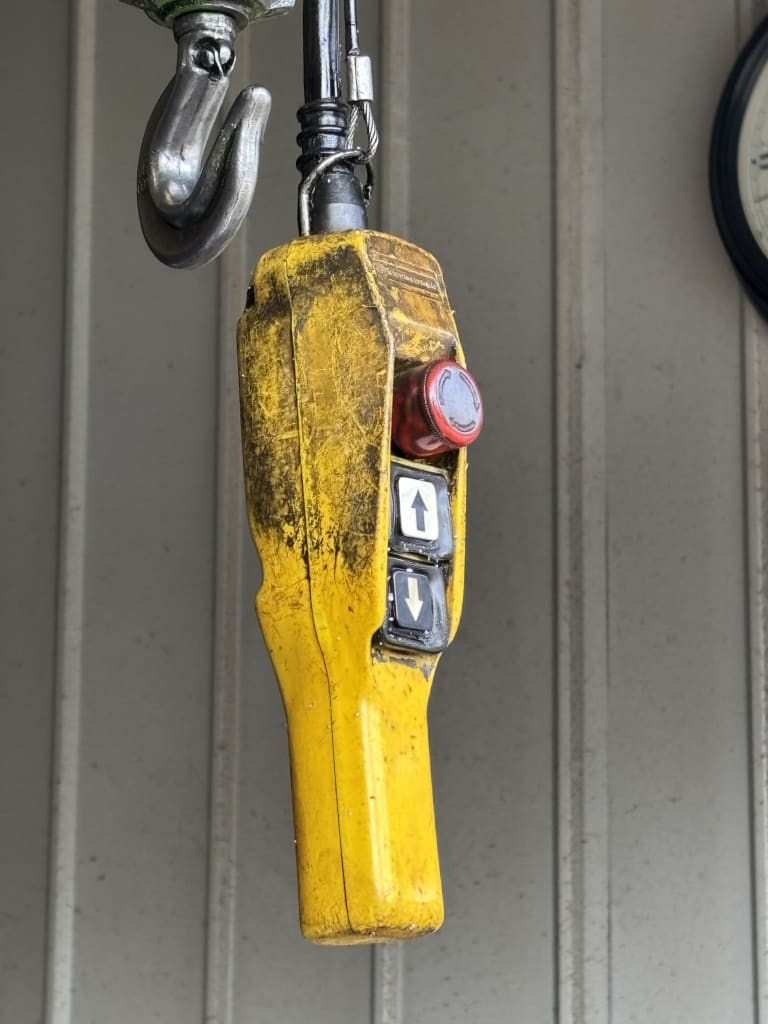

Floor Mounted Jib Crane With U-Mega UH-110 1 Ton Hoist
Approx Span 3,250mm. Approx Height Under Beam 3,330mm. With Pendant Control & Chain Hoist. - LOT 19
- LOT 21

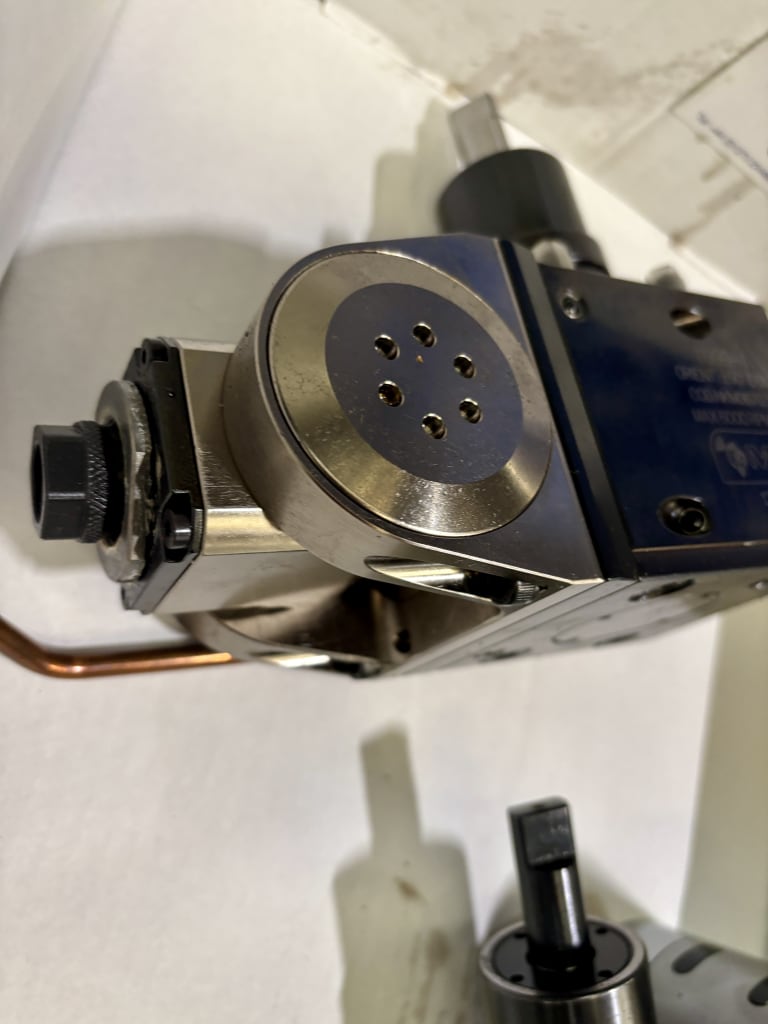

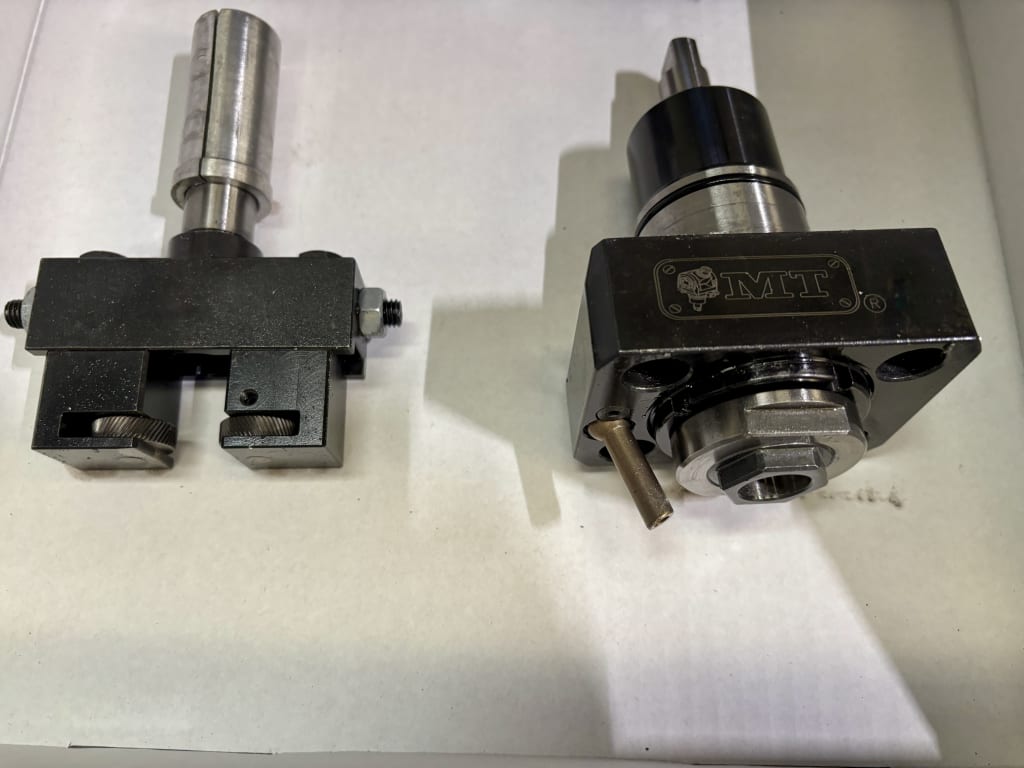

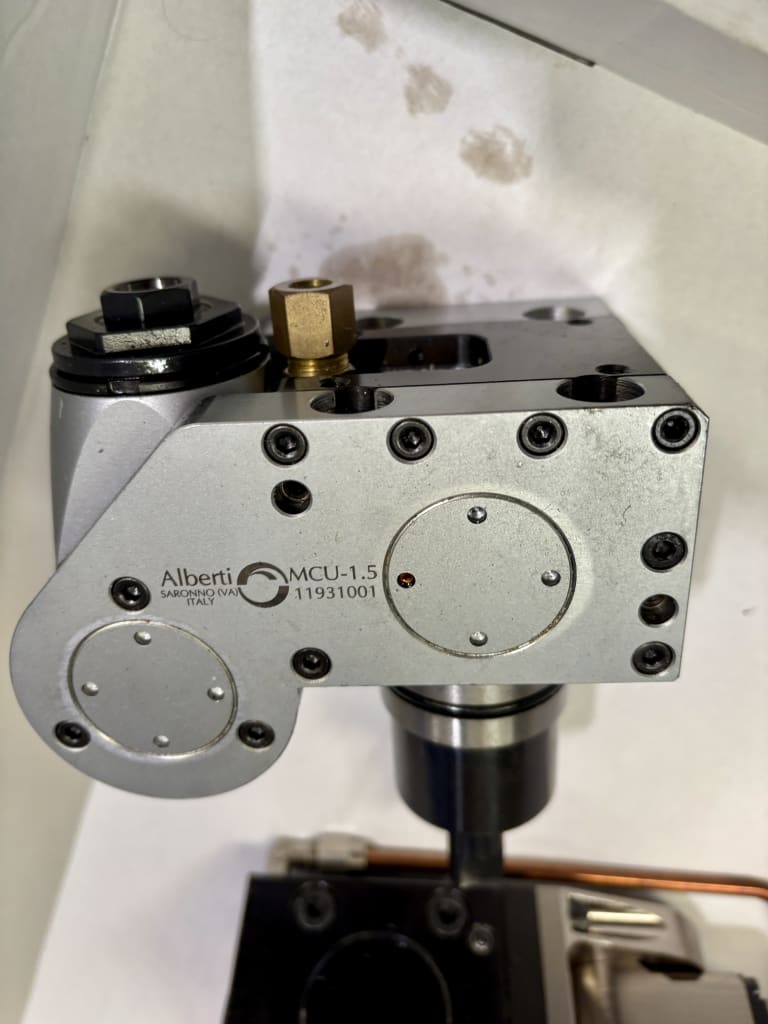

Alberti MCU-1.5 11931001 Adjustable Angle Driven Axial Toolholder With MT 11999-1 Adjustable Angle Driven Axial Toolholder
Maximum Speed 6,000rpm. Ratio 1:1. - LOT 22
- LOT 23

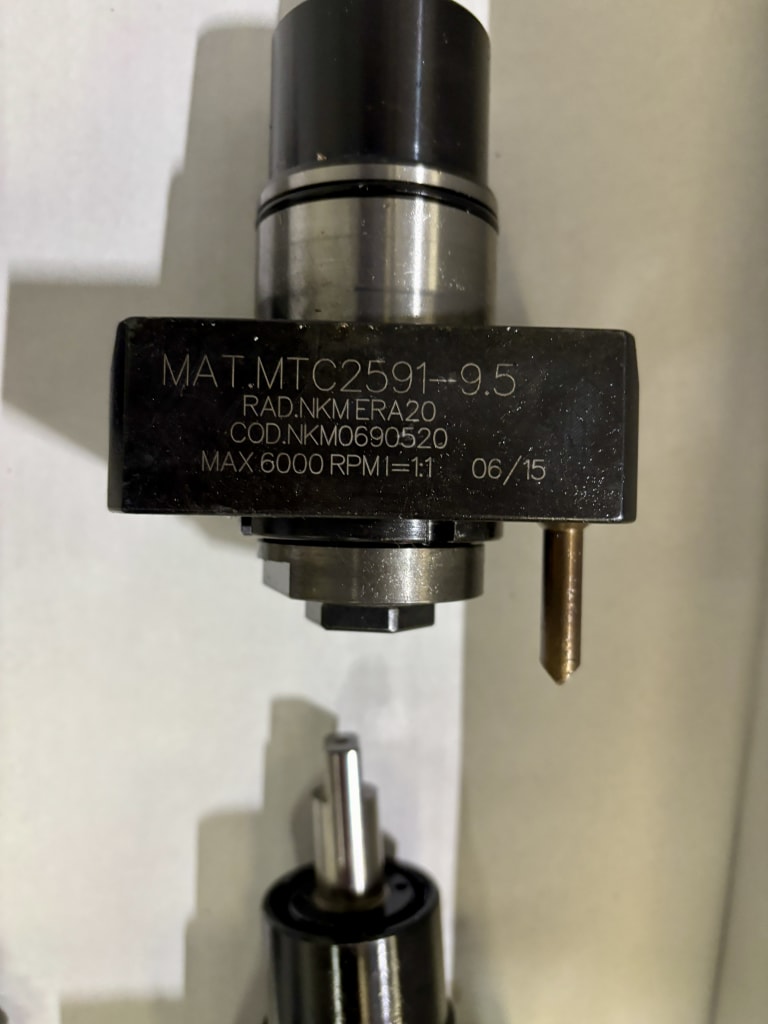

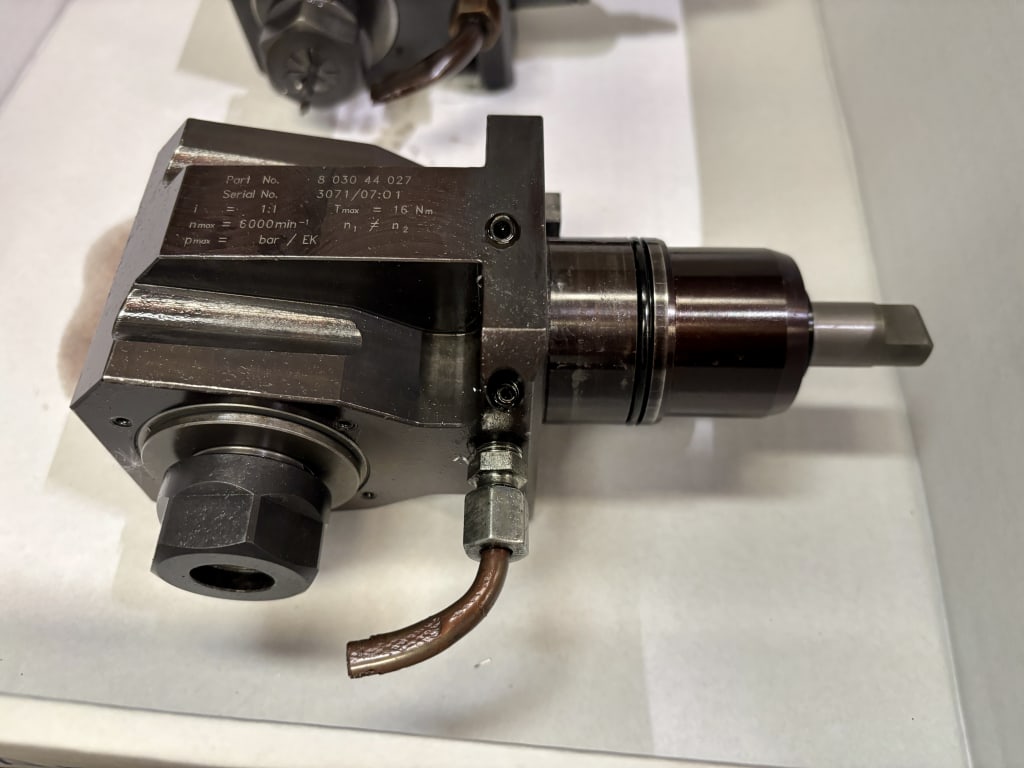

3 MT MTC2591-9.5 Radial Driven Toolholders With Knurling Tool
Maximum Speed 6,000rpm. Ratio 1:1. - LOT 25
- LOT 26
- LOT 35
- LOT 38
- LOT 41
- LOT 44
- LOT 50
- LOT 51
- LOT 52
- LOT 53

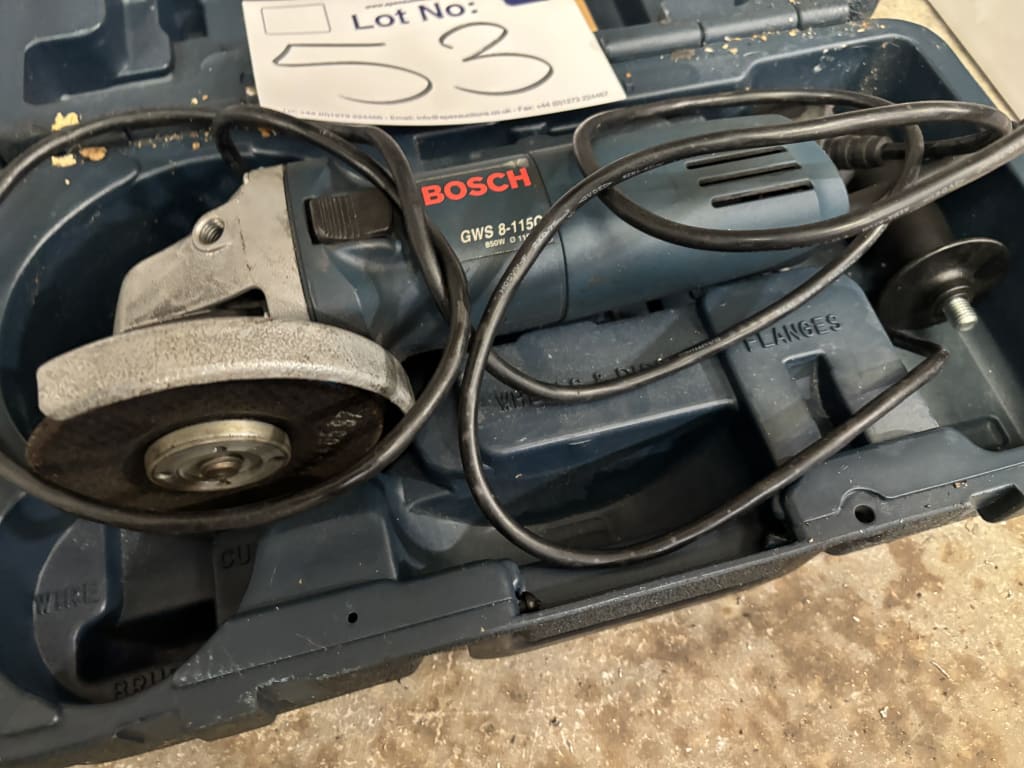

Bosch GWS-8-115C Electric Angle Grinder In Carry Case
Disc Ø115mm. Power 850W. Voltage 230V. - LOT 61
- LOT 62
- LOT 64
- LOT 67
- LOT 68

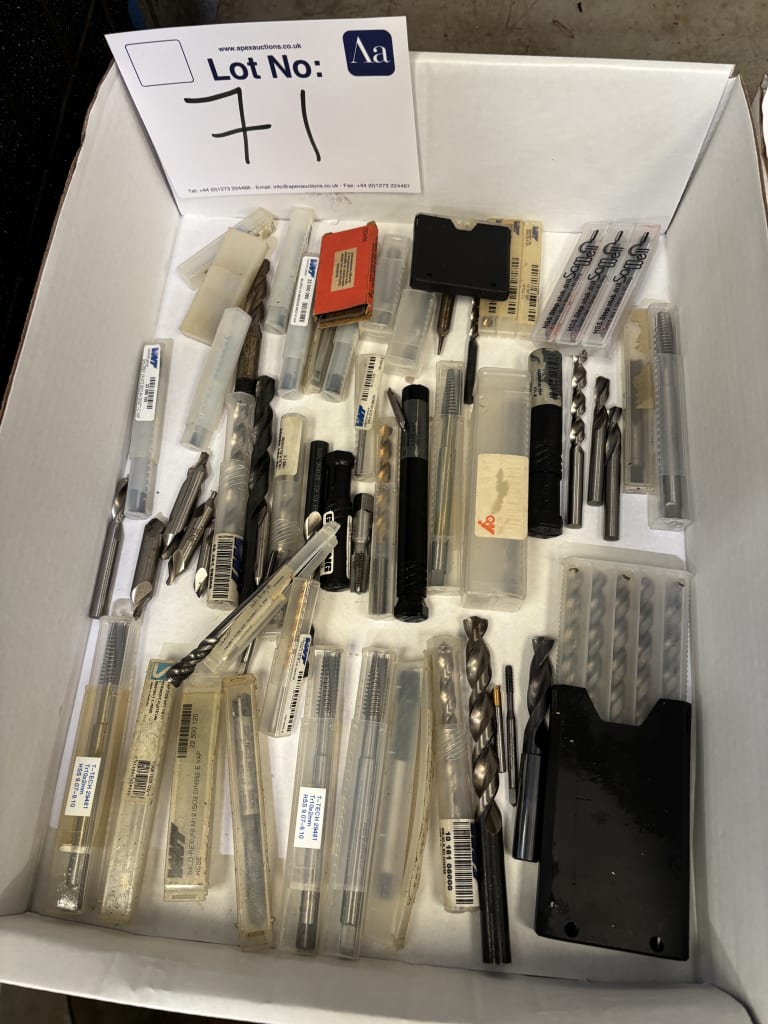

Tray Storage Unit With Contents Of Cutting Tools (Drills, End Mills & Taps)

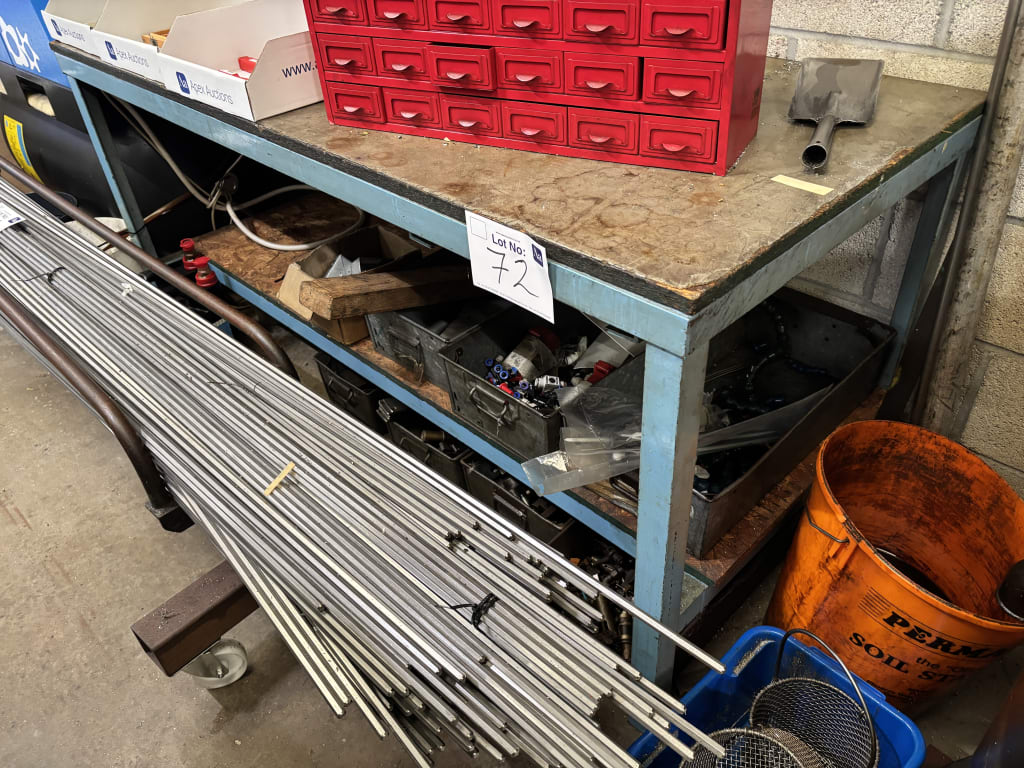

Overall Dimensions L640 x W170 x H430mm. - LOT 72
- LOT 76
- LOT 79
- LOT 87
