2023 Venjakob Ven Spray Smart Line Industrial Spray & Drying Line and CNC Woodworking Machineries

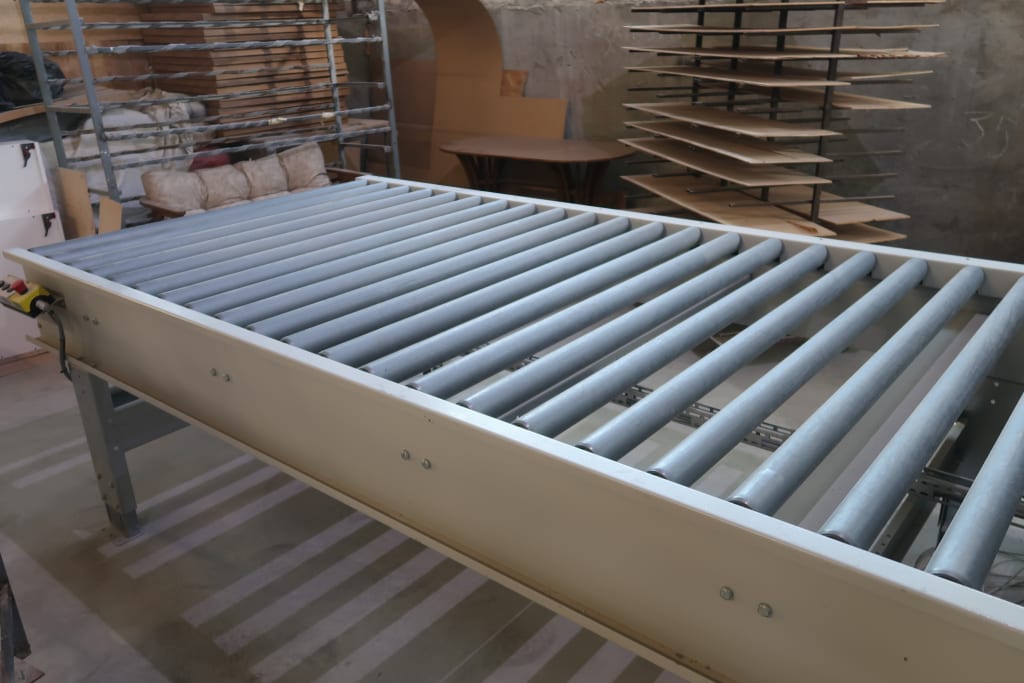

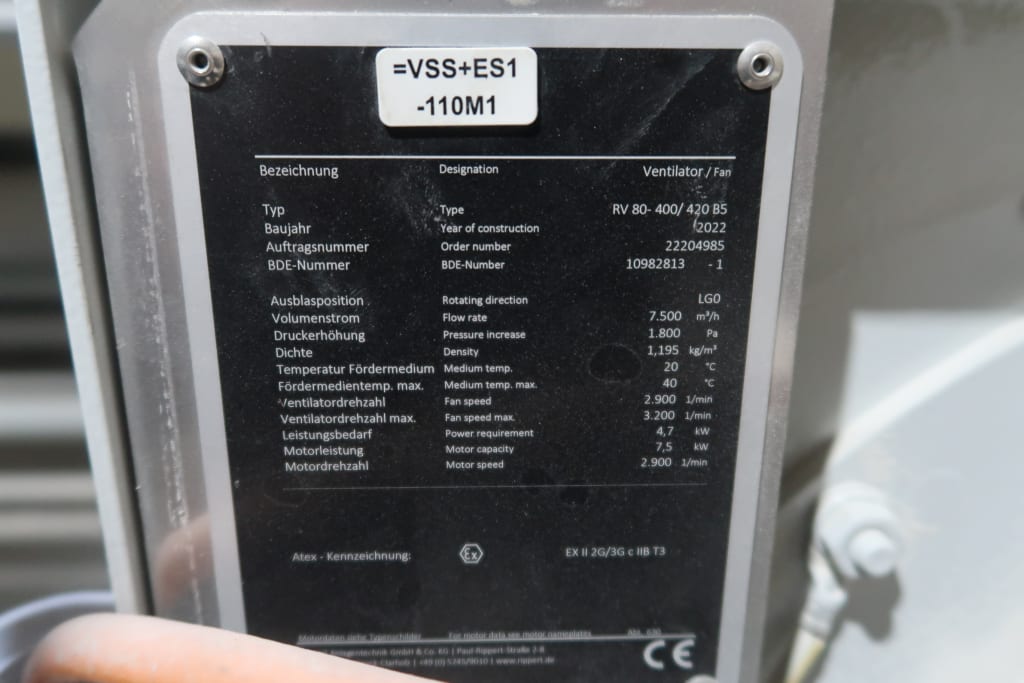

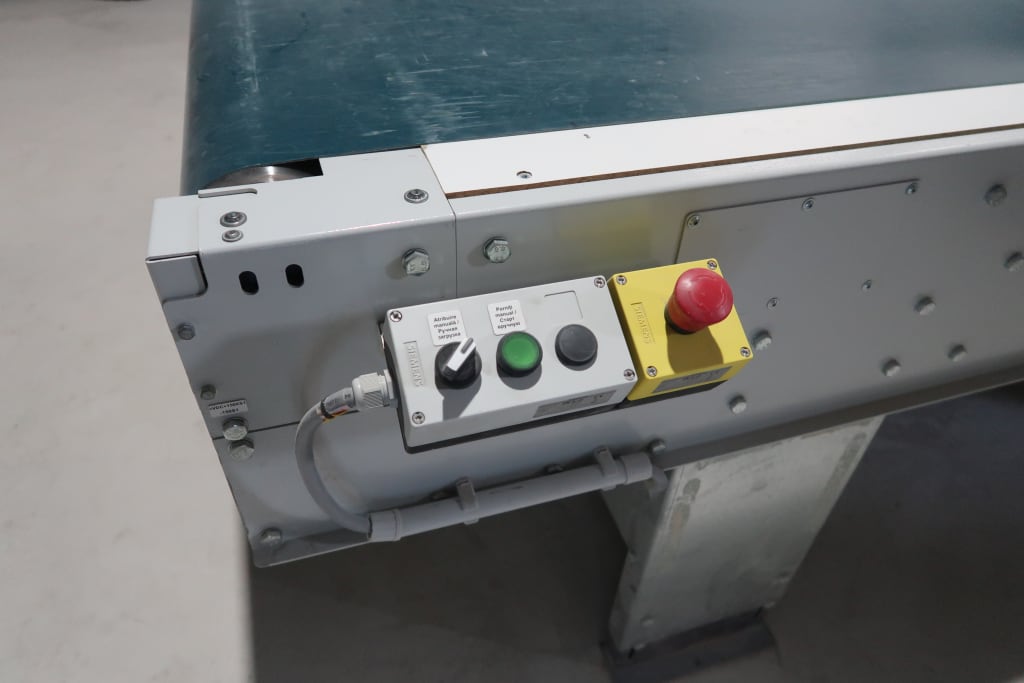

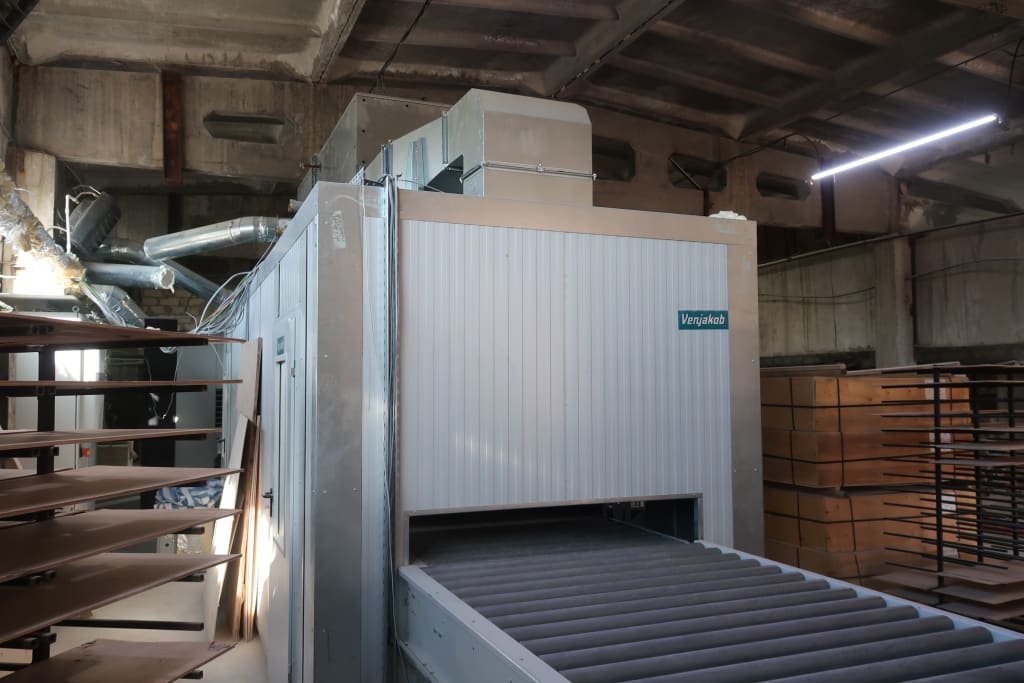

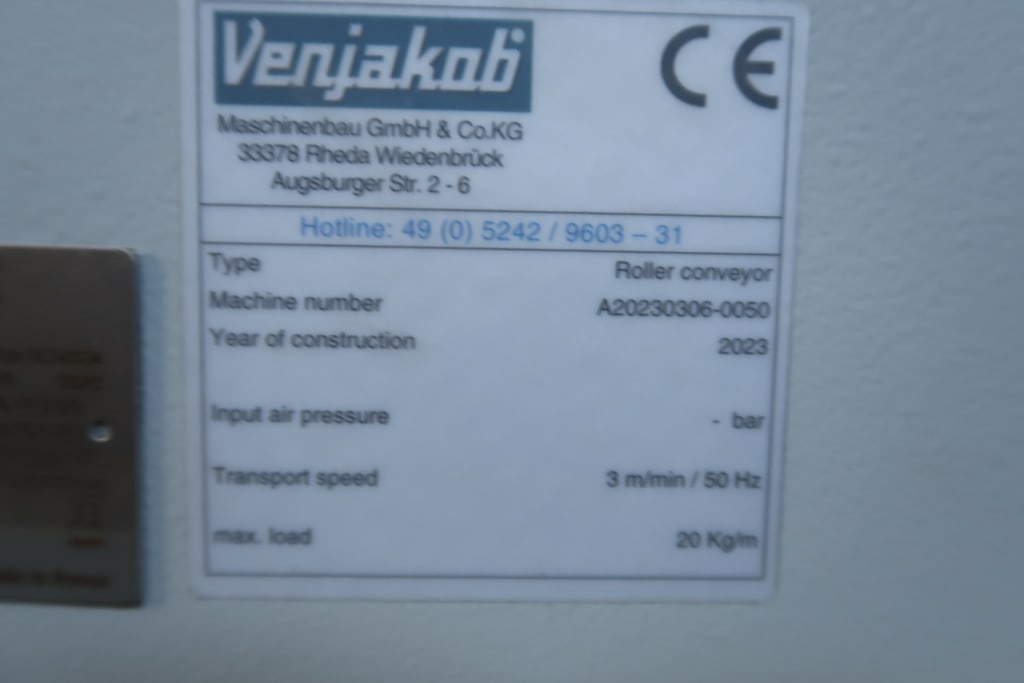

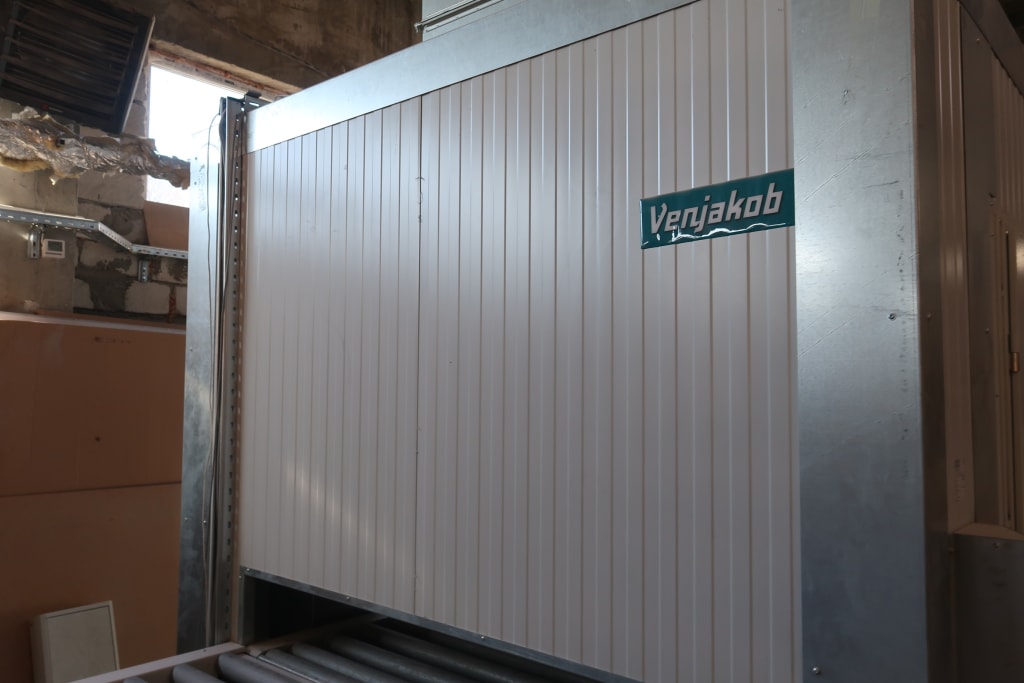

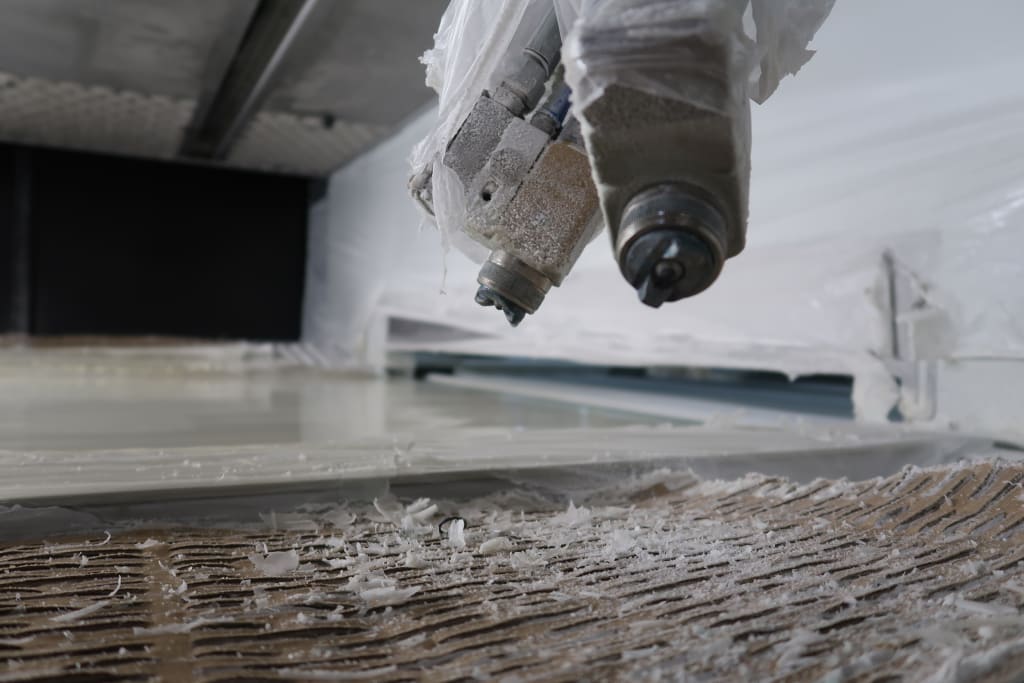

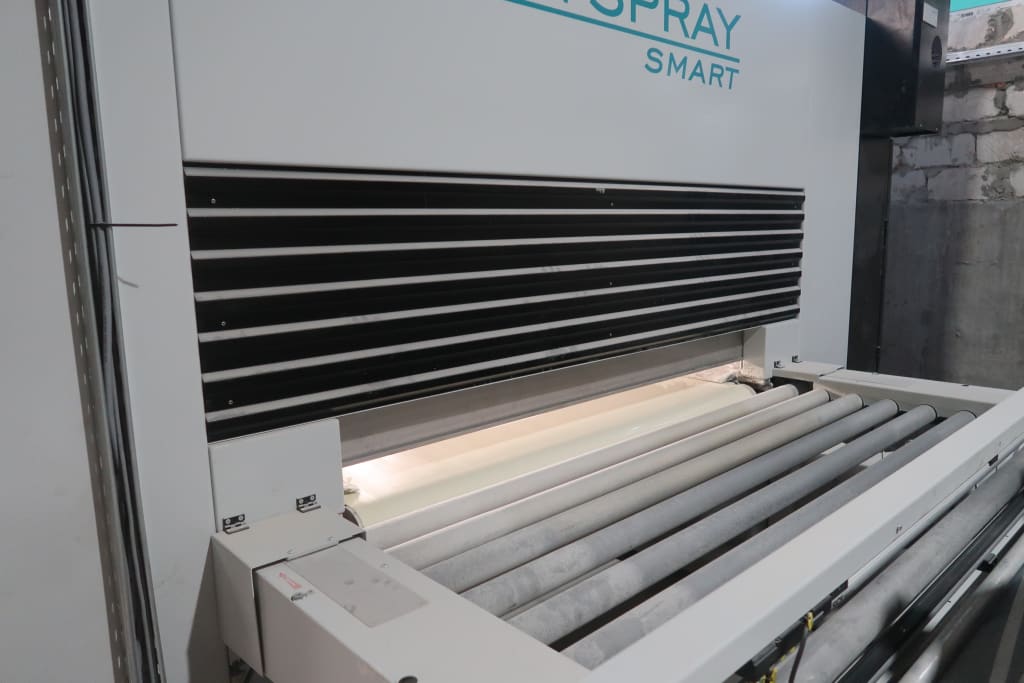

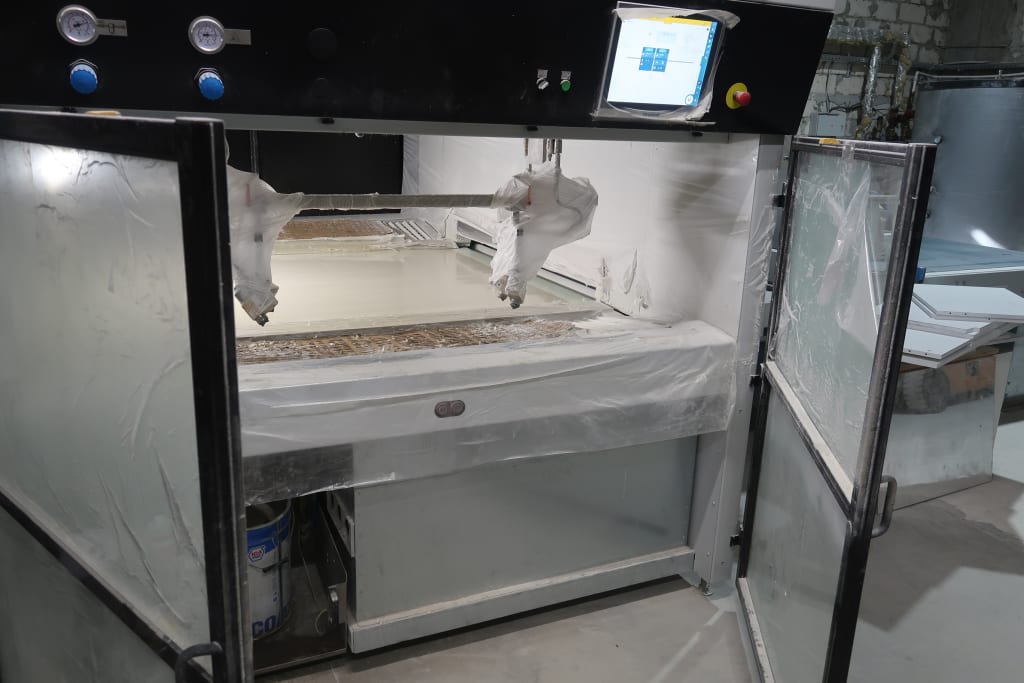

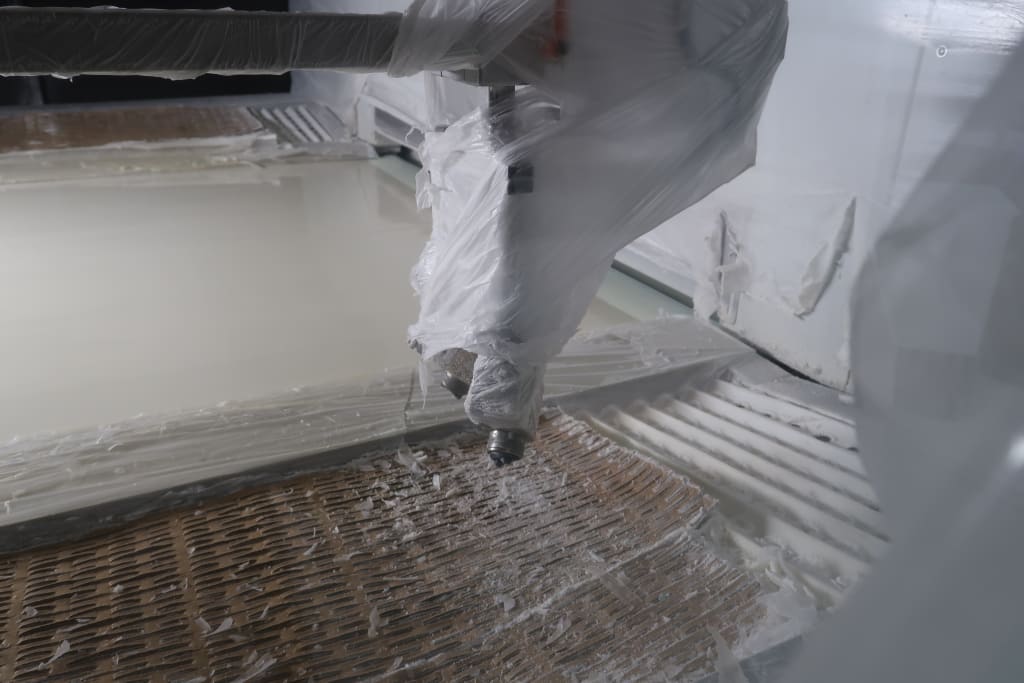

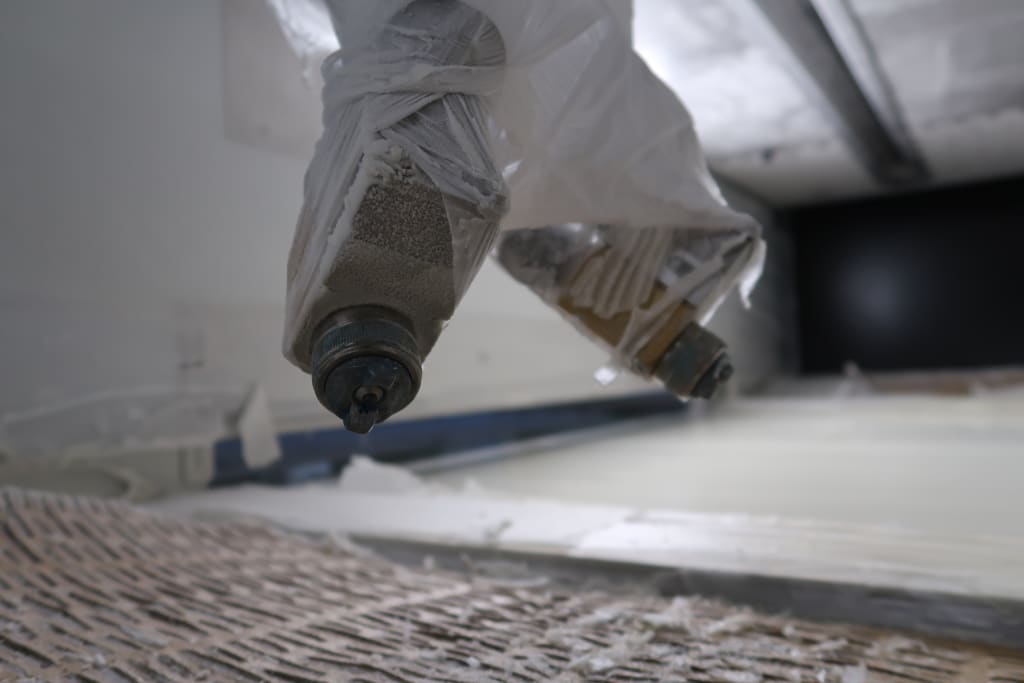

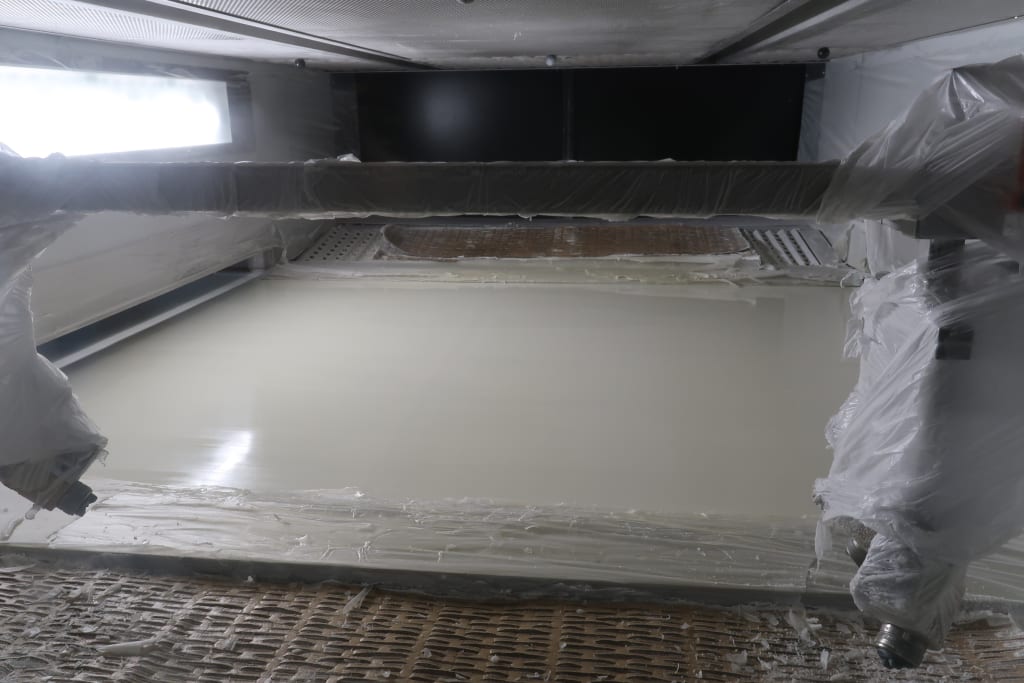

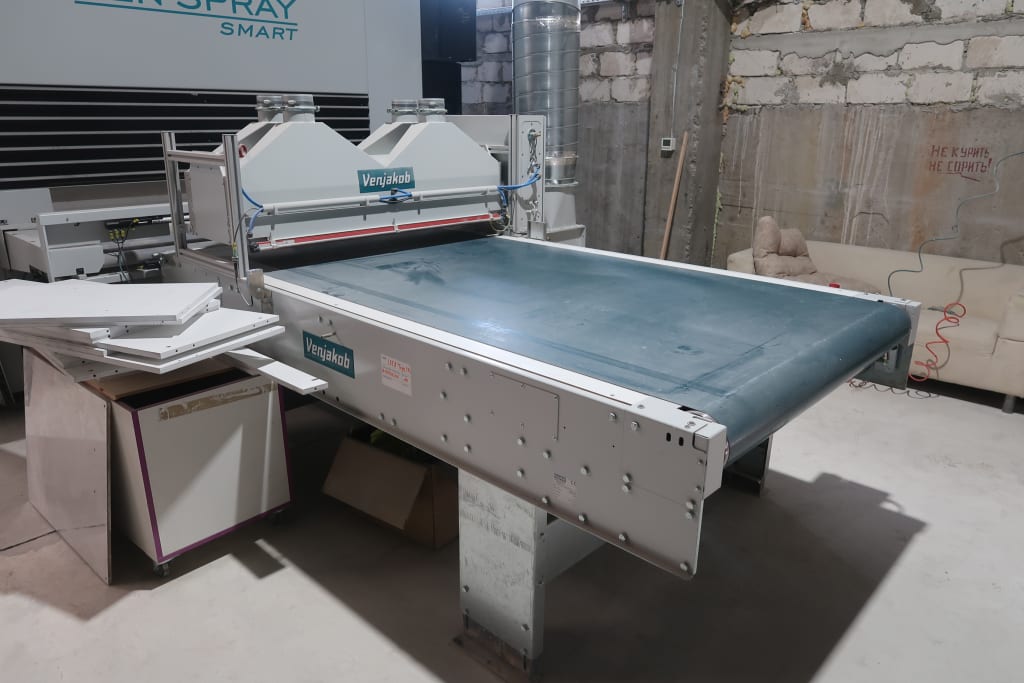

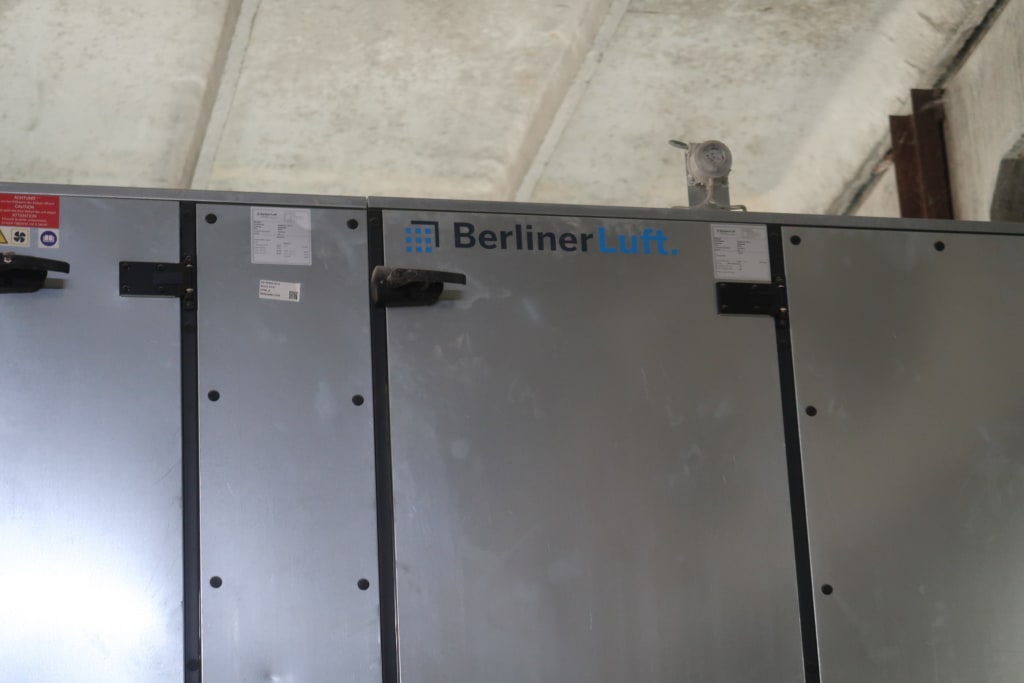

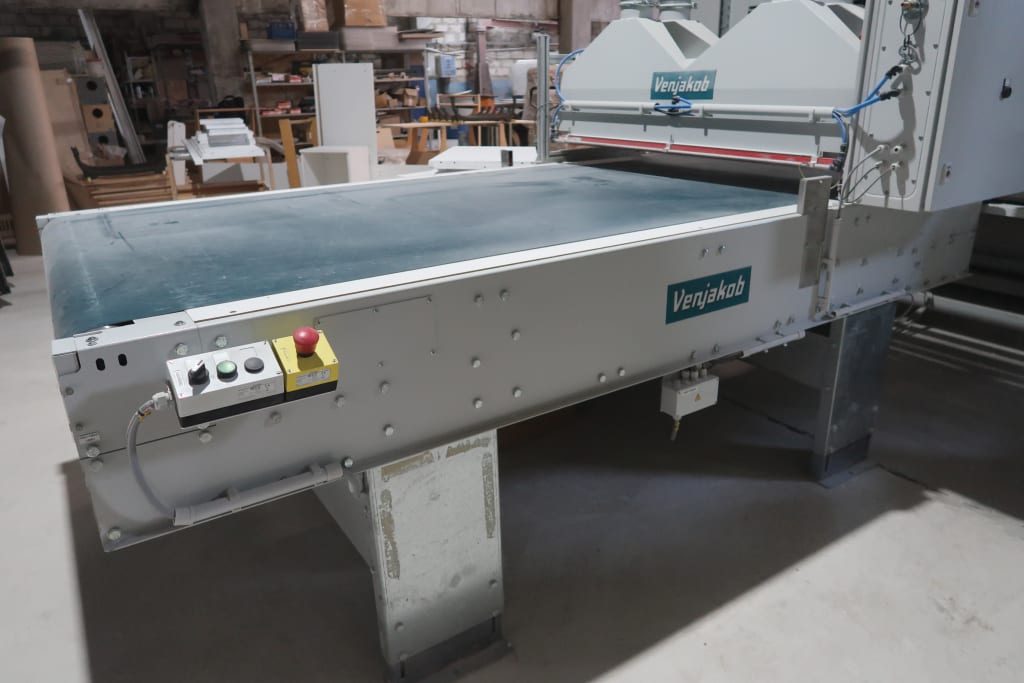

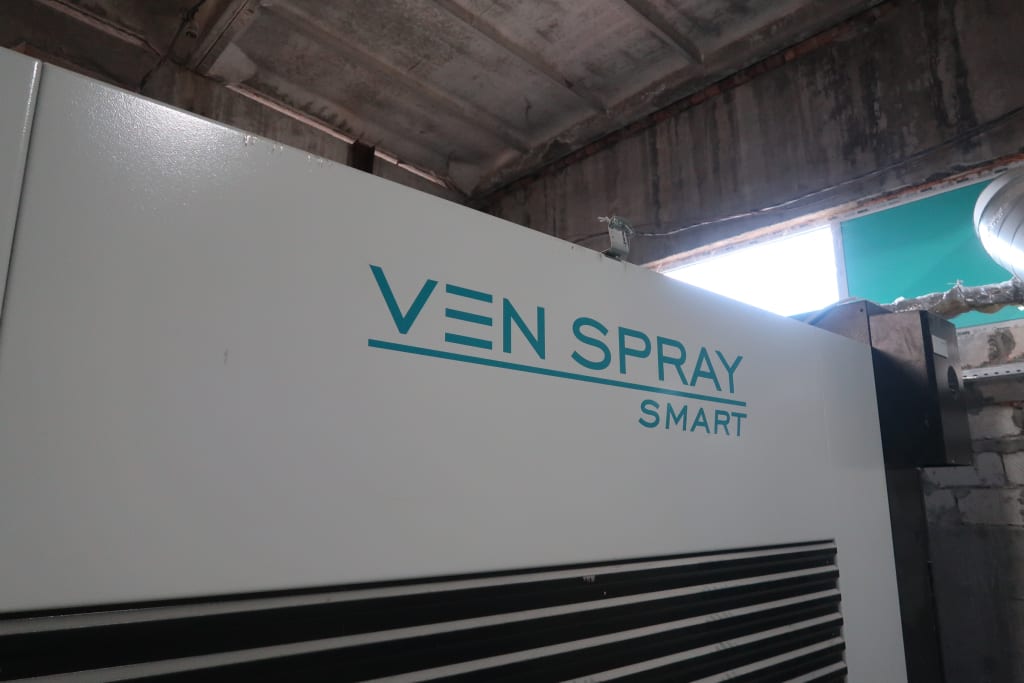

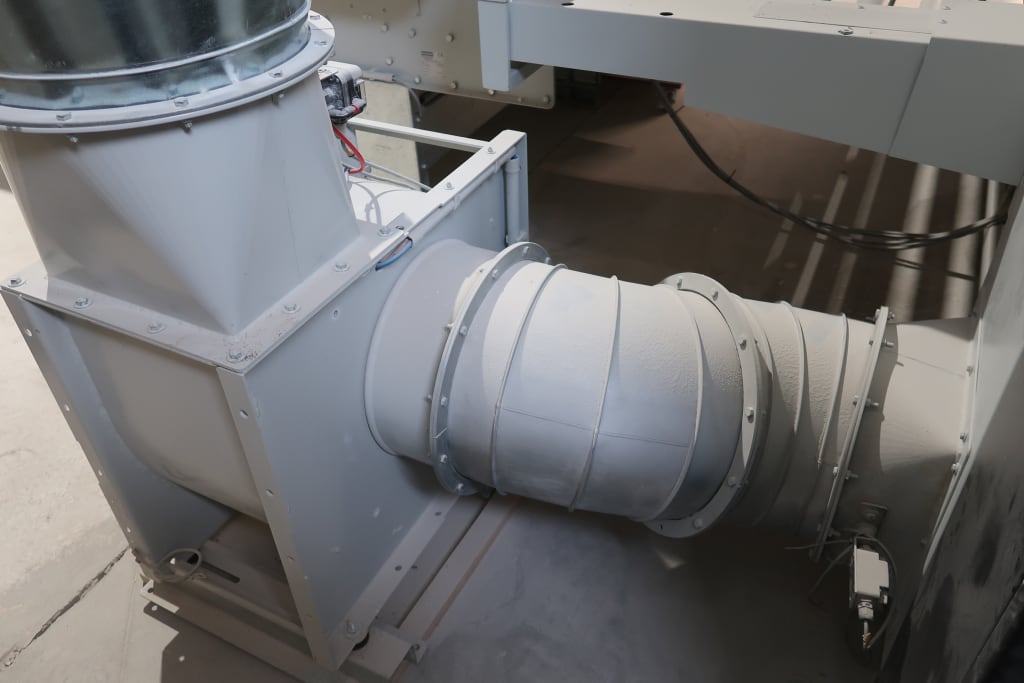

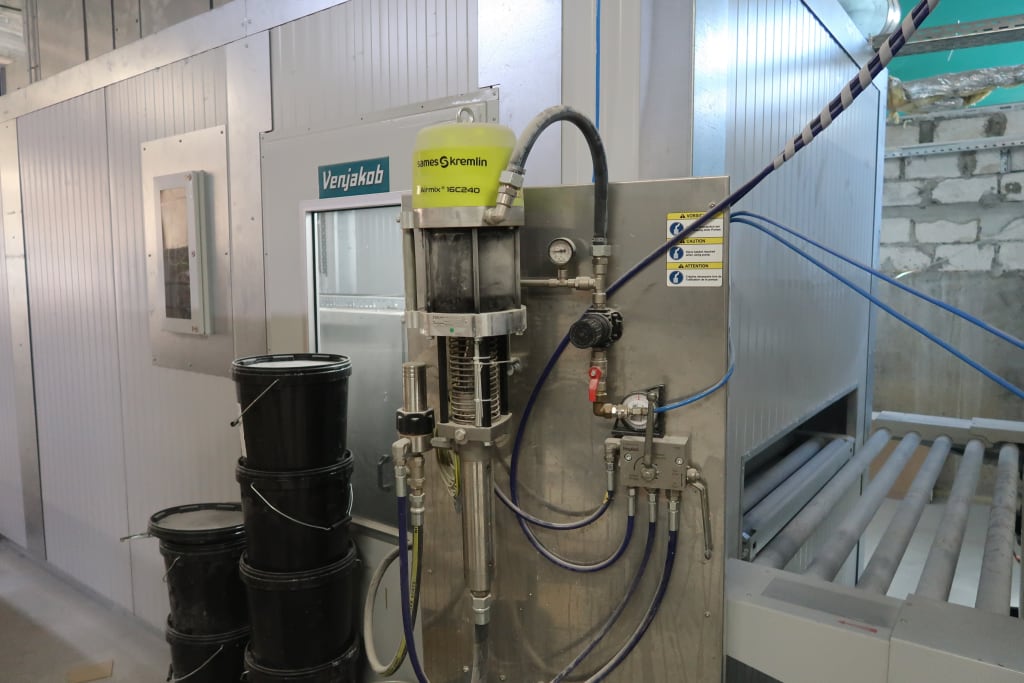

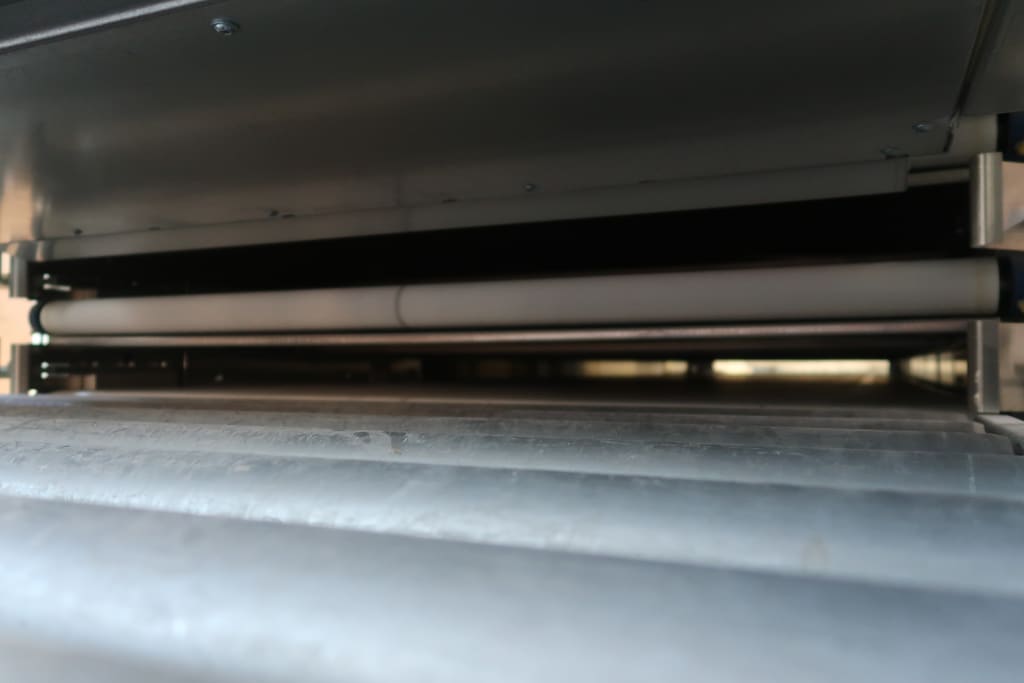

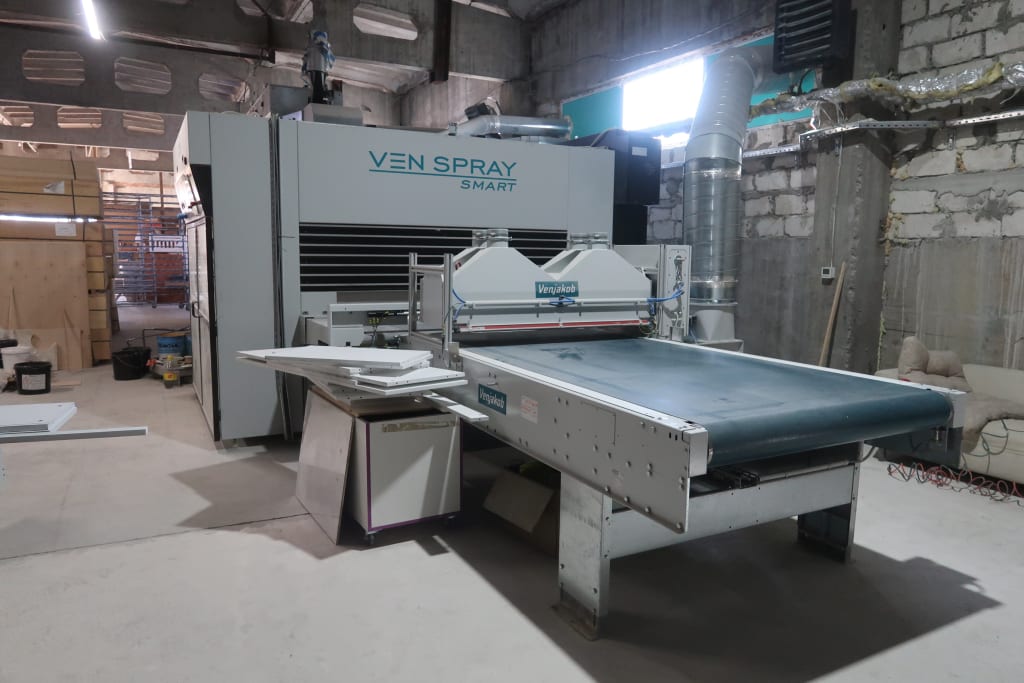

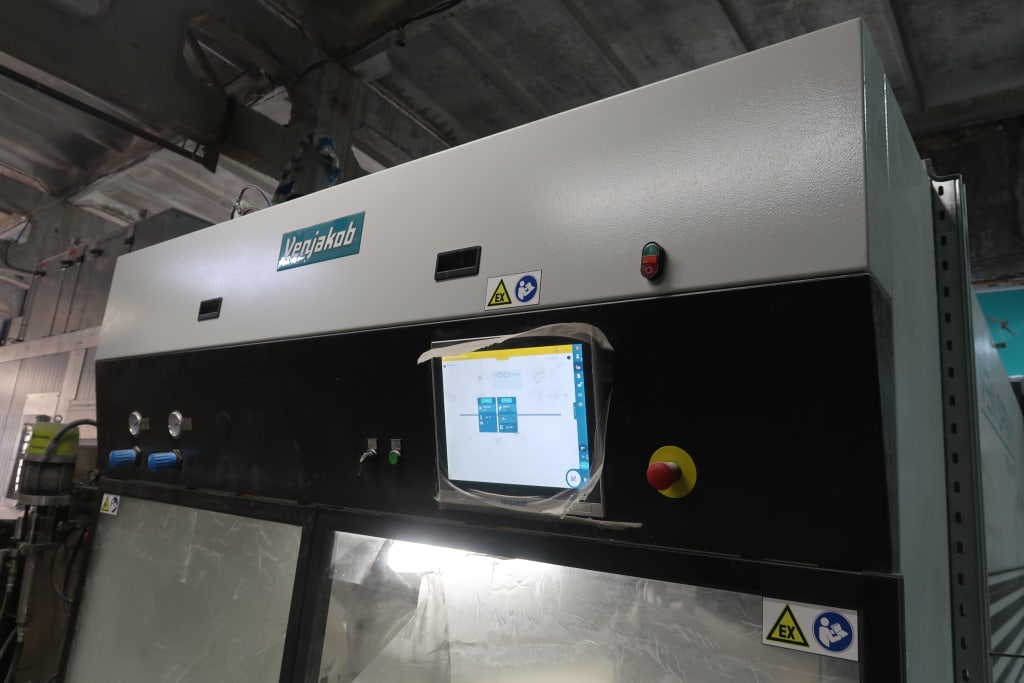

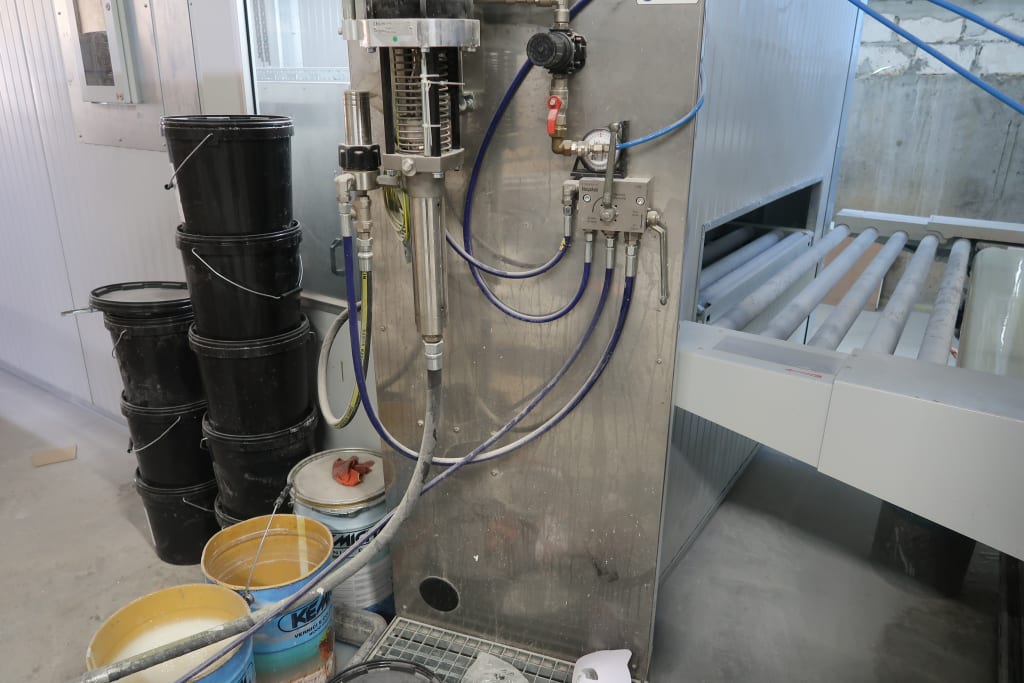

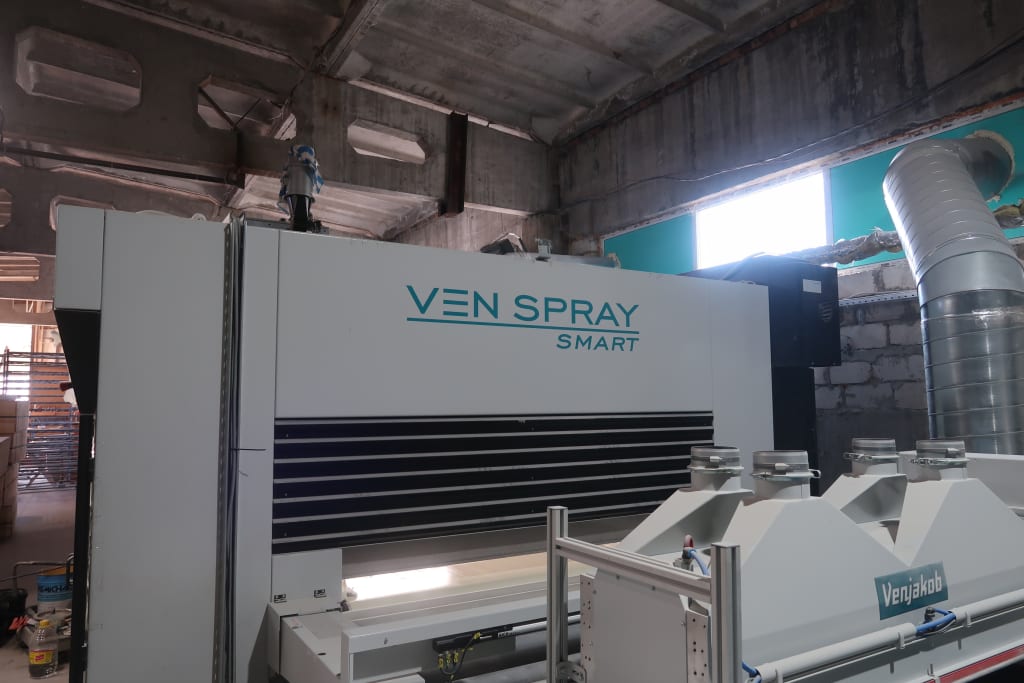

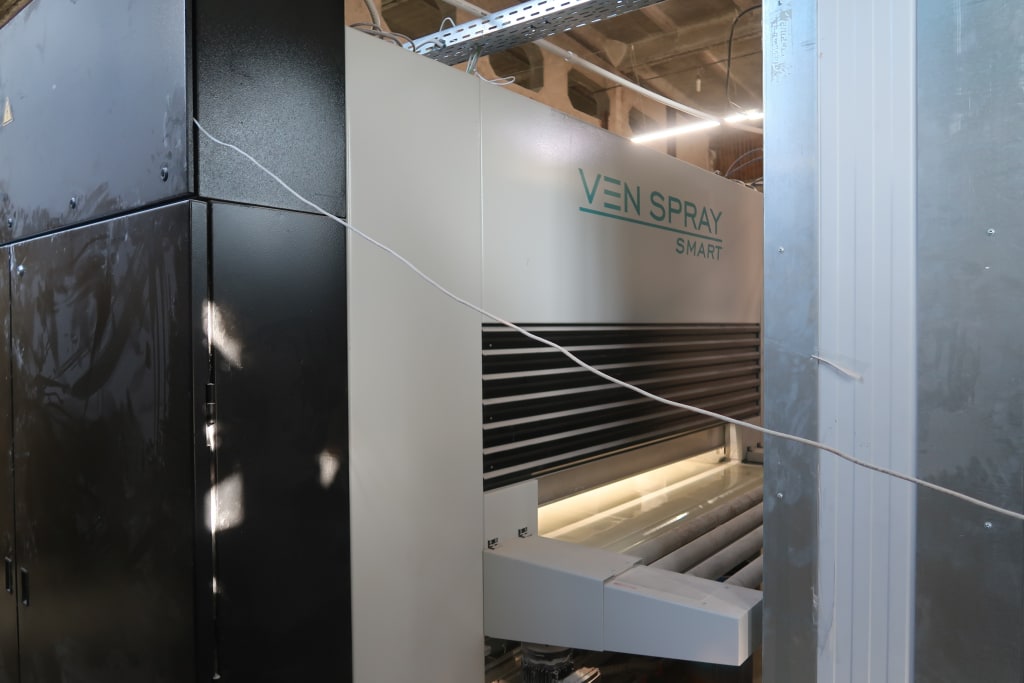

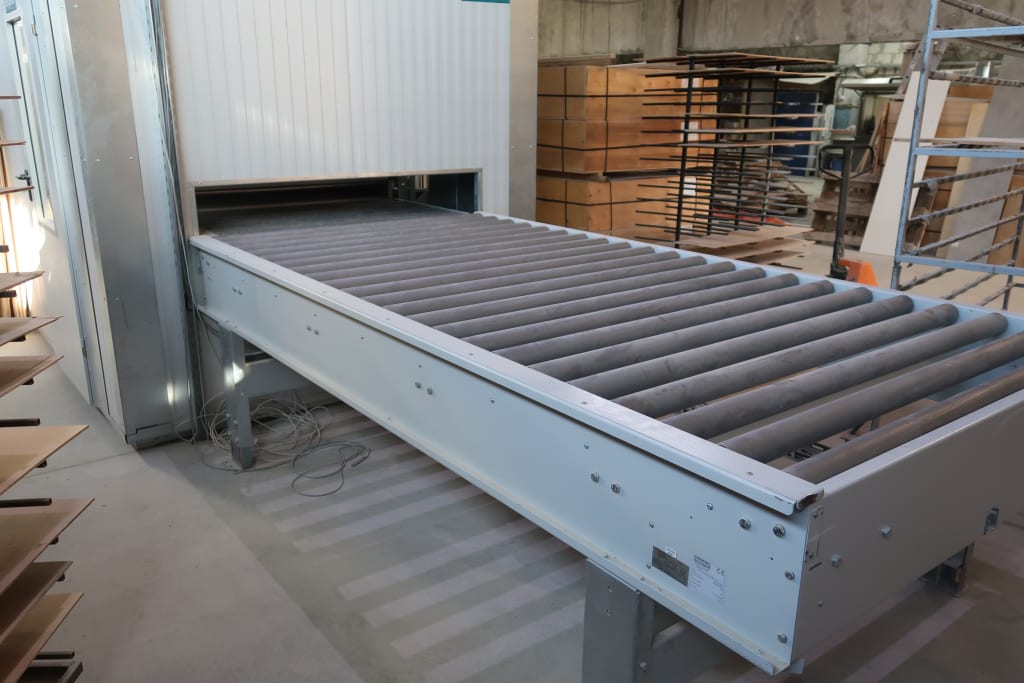

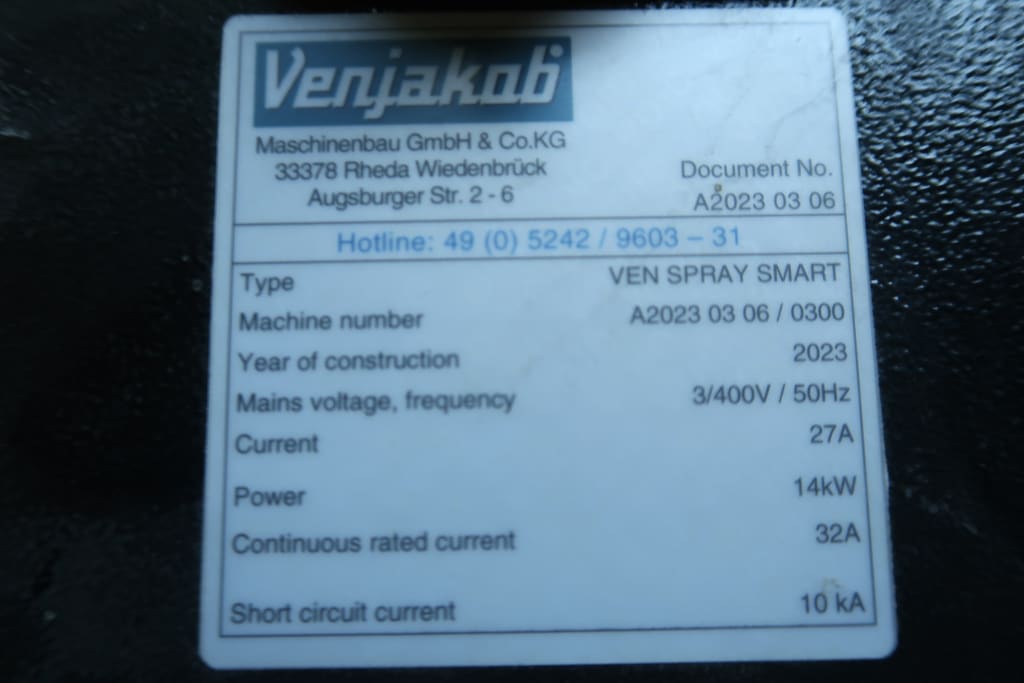

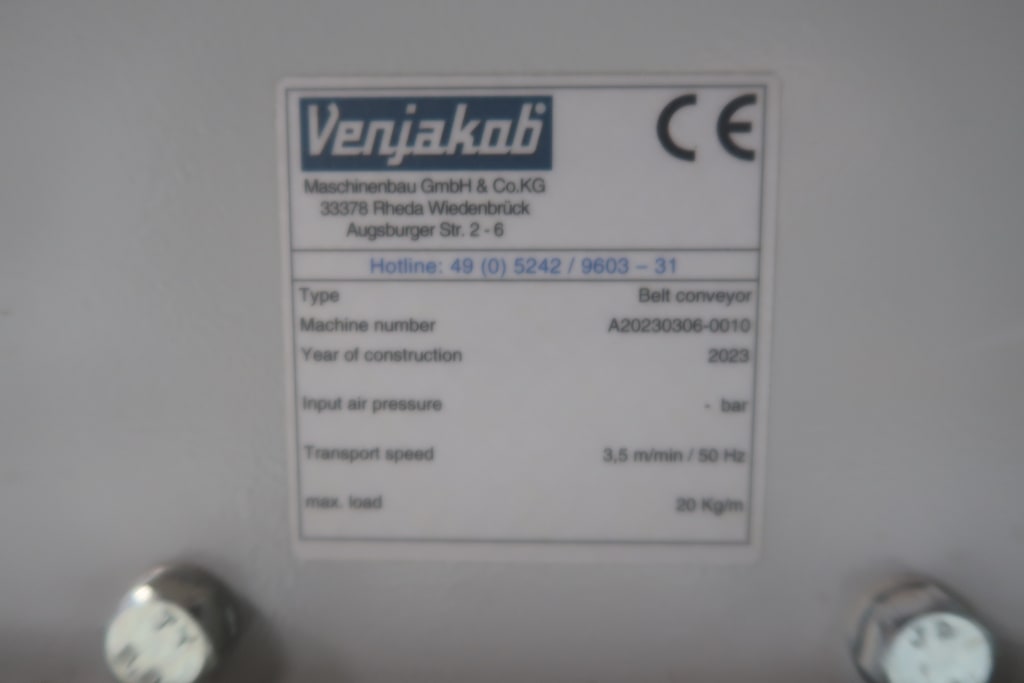

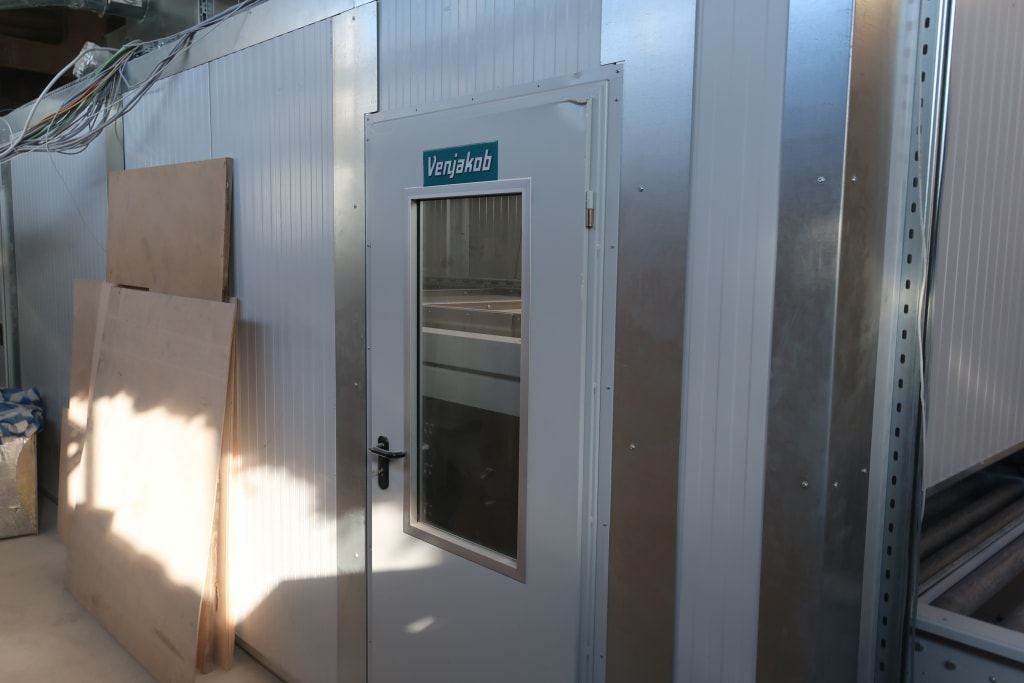

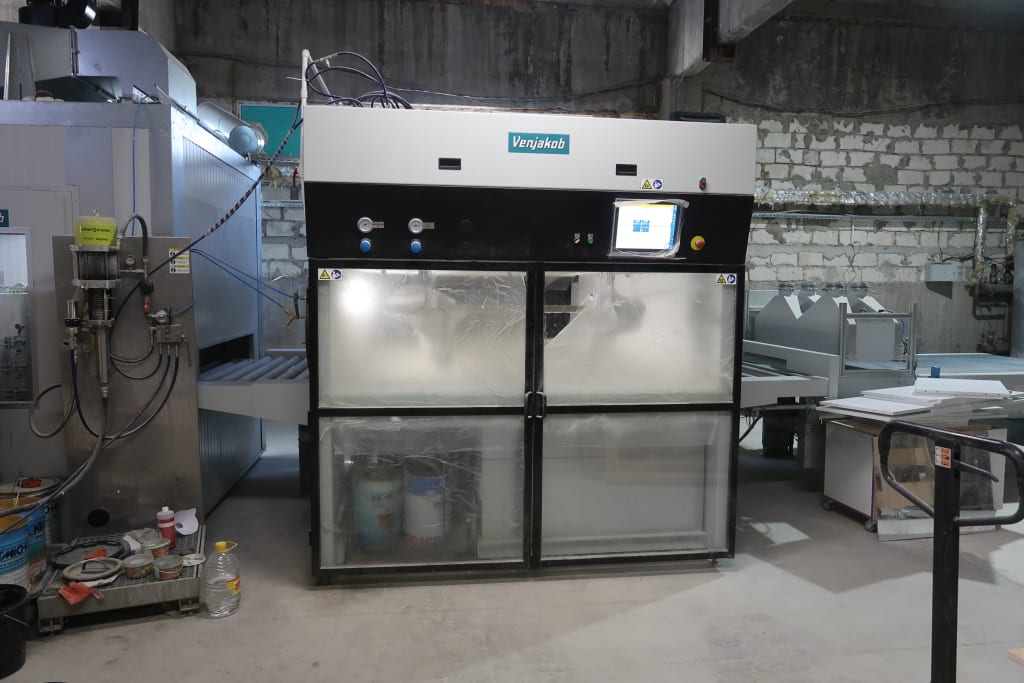

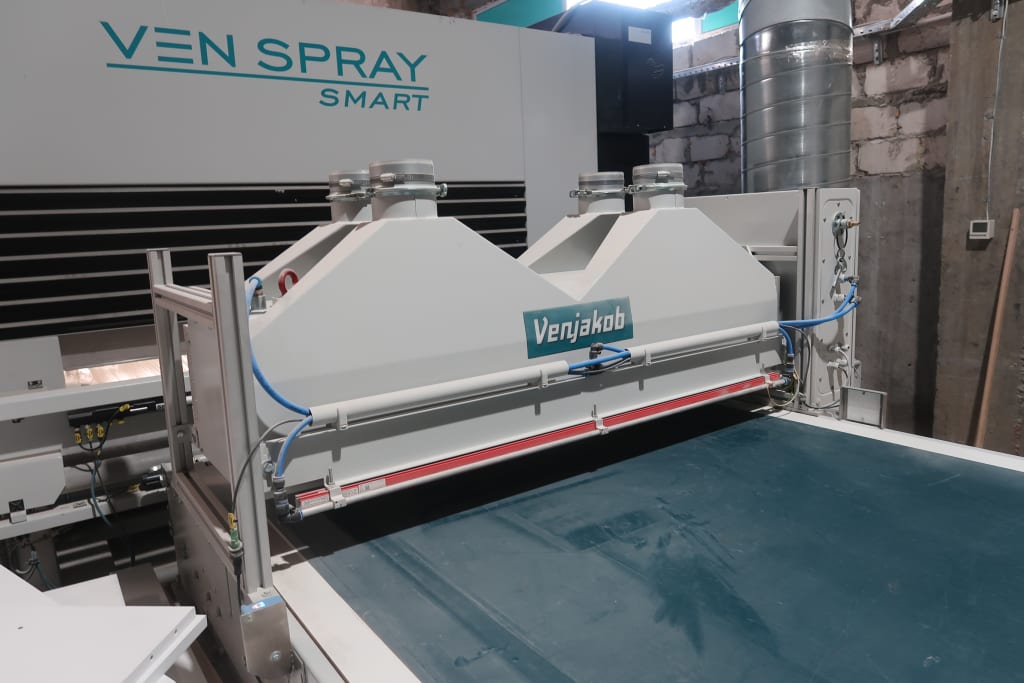

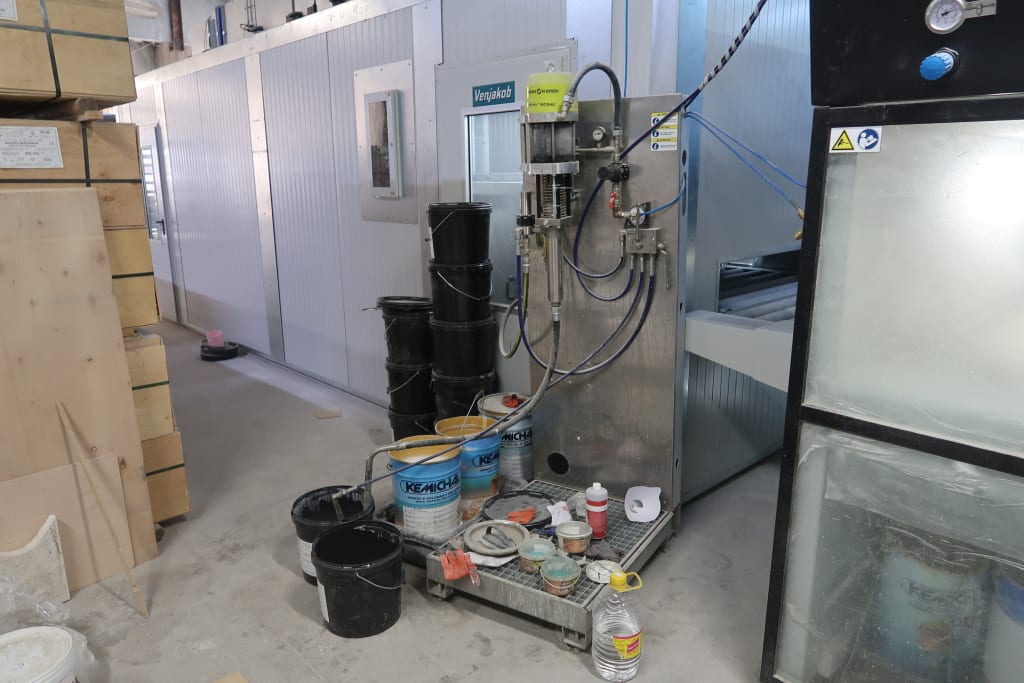

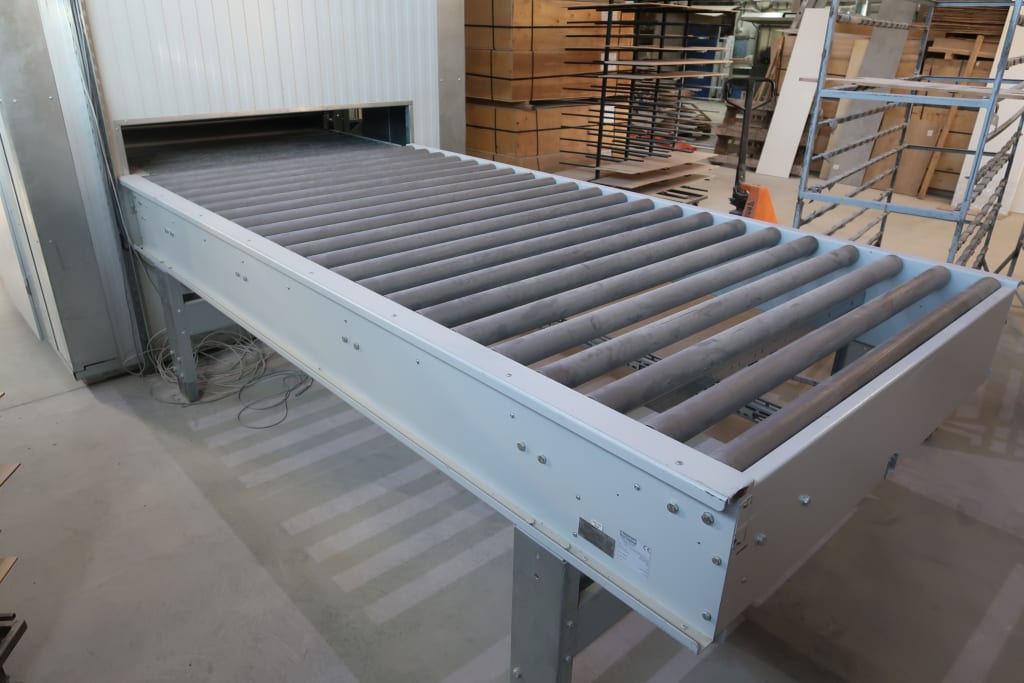

The system is used as a surface spraying installation for the coating and drying of workpieces. The system can be operated using water-based and solvent-based coating substances; The line includes a VEN TRANS BELT conveyor, VEN CLEAN ONE dedusting unit, VEN SPRAY SMART coating machine with explosion protection, VEN DRY COLLECT LL pallet dryer, and a VEN TRANS ROLL roller conveyor, all from 2023 (A20230306); Material transport is via belt and roller conveyors with a 1,300 mm working width and 920 ± 20 mm working height, feed speeds of 1.5–3.5 m/min, and a maximum load of 20 kg/m. Panels up to 2,600 x 1,300 x 50 mm are pre-cleaned in the VEN CLEAN ONE unit (6 bar air supply) before coating; The VEN SPRAY SMART applies water or solvent-based lacquers at 1.5–4.5 m/min, with full technical ventilation (supply 18,000 m³/h, exhaust 7,500 m³/h) and compressed air 700 Nl/min; Coated panels are dried on the VEN DRY COLLECT LL with 6 pallet levels, batch lengths up to 5,500 mm, heating capacity 80 kW, drying temperature 80°C, and air recirculation of 8,000 m³/h; This compact finishing line integrates transport, cleaning, coating, and drying for continuous panel processing.

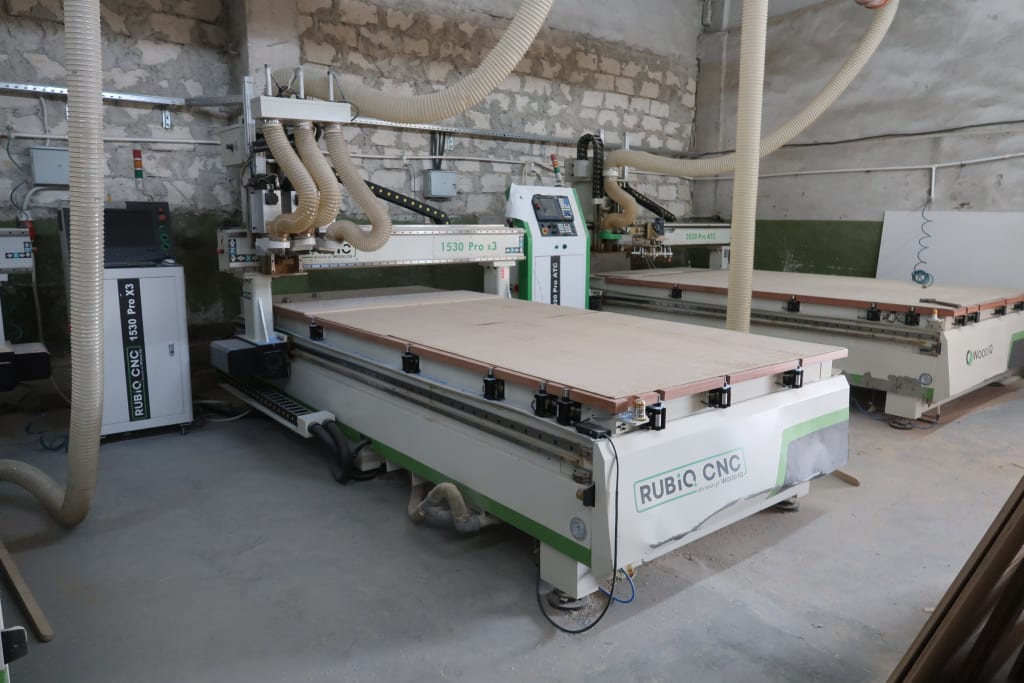

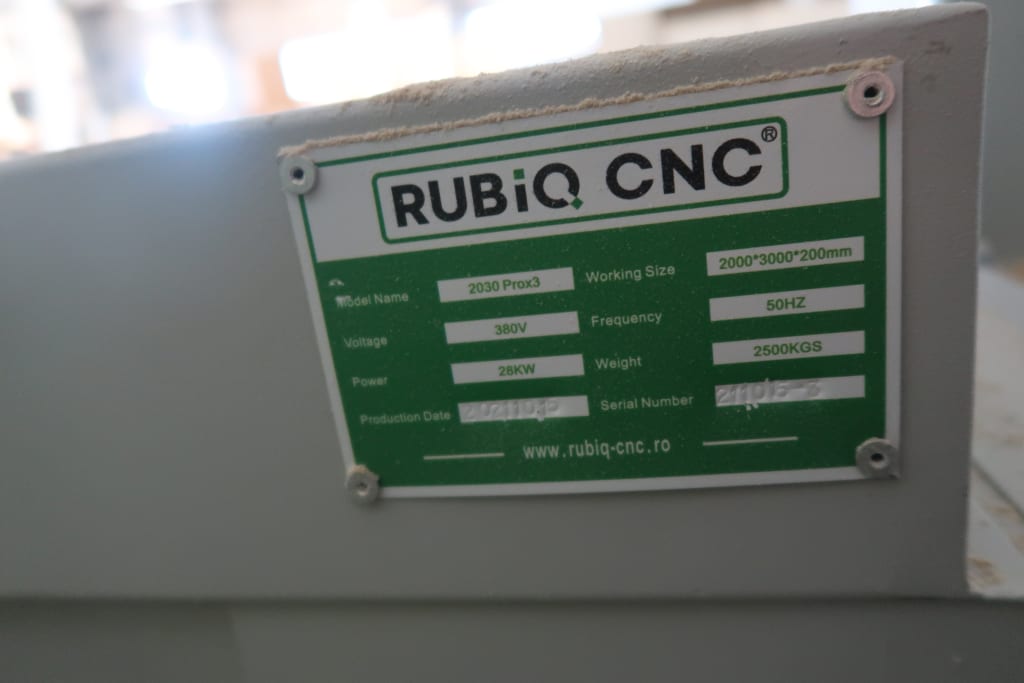

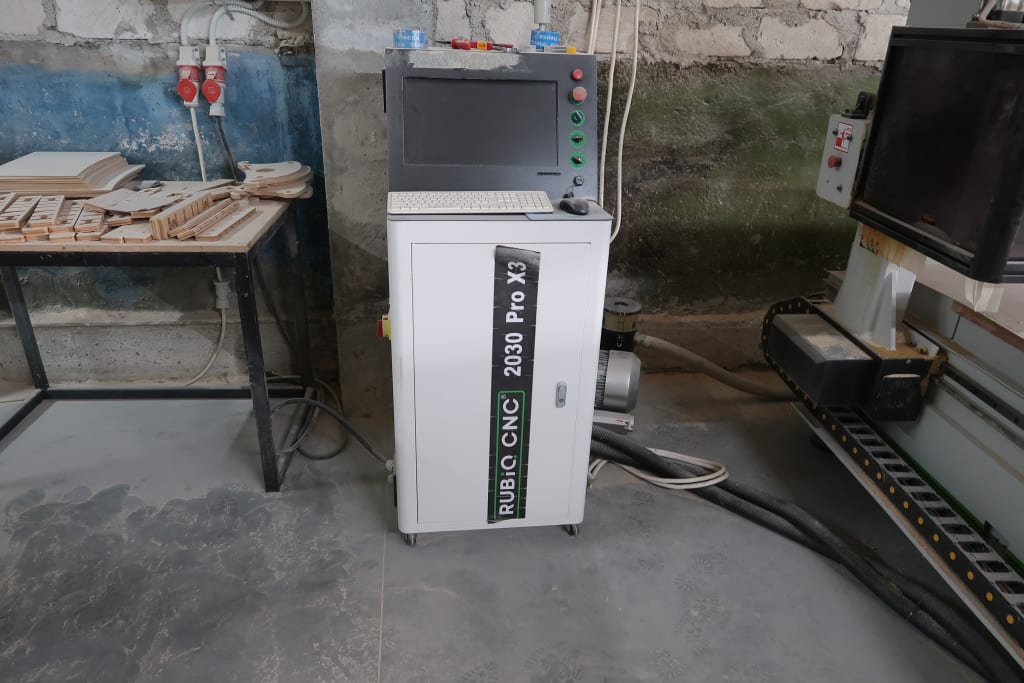

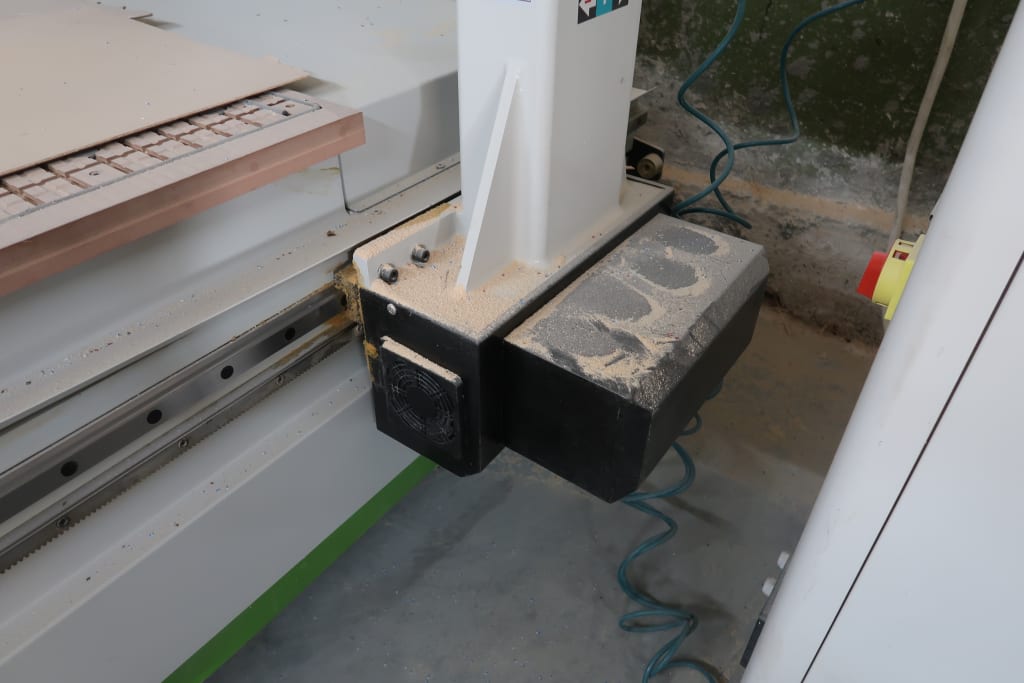

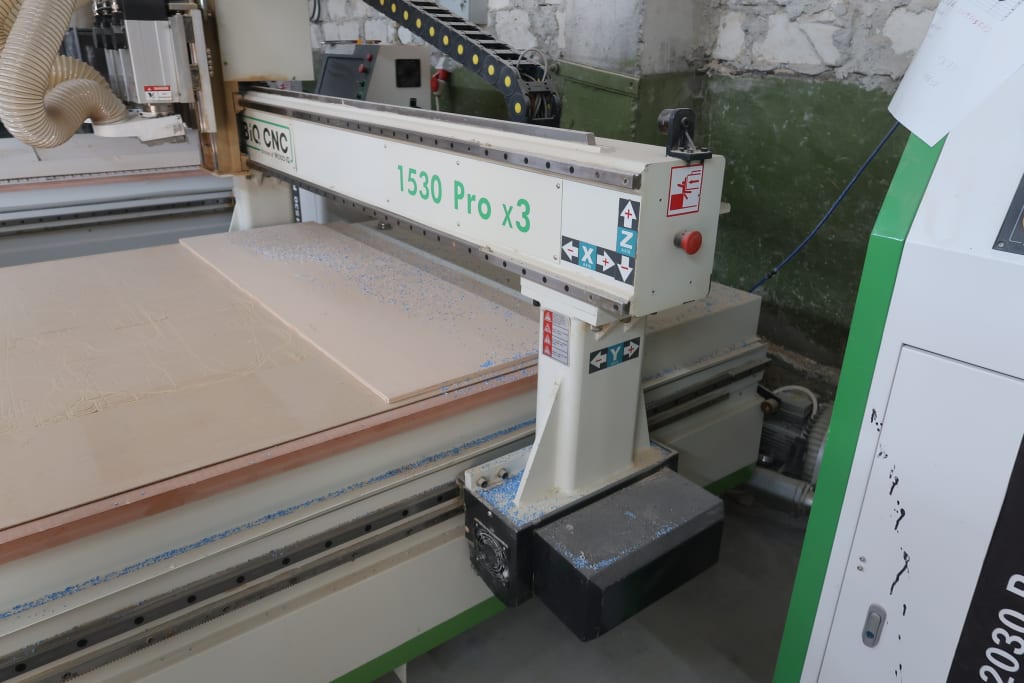

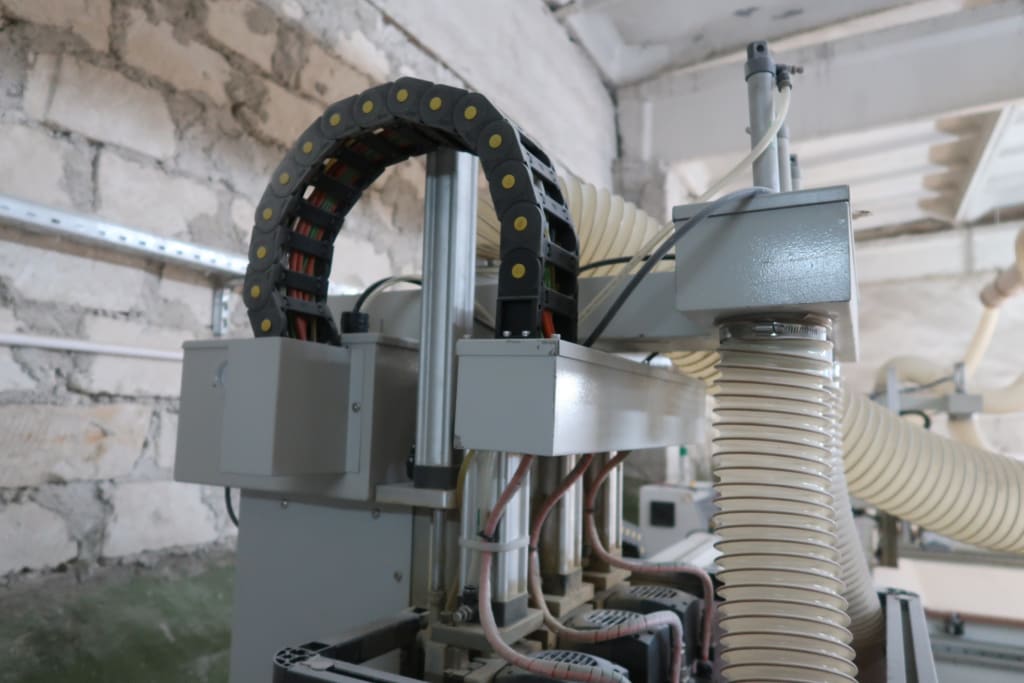

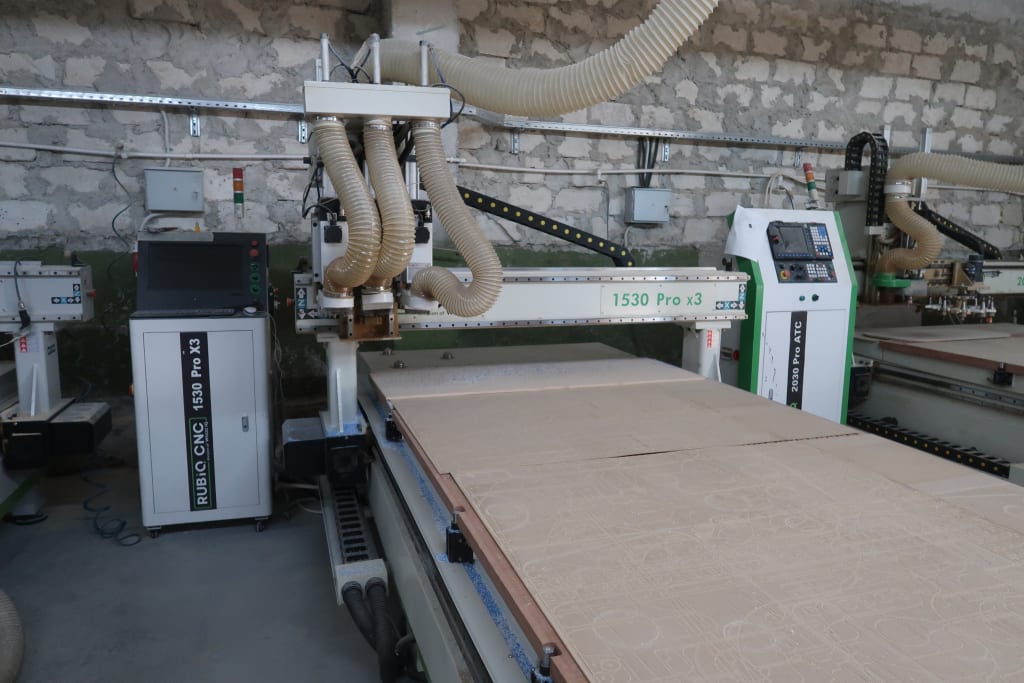

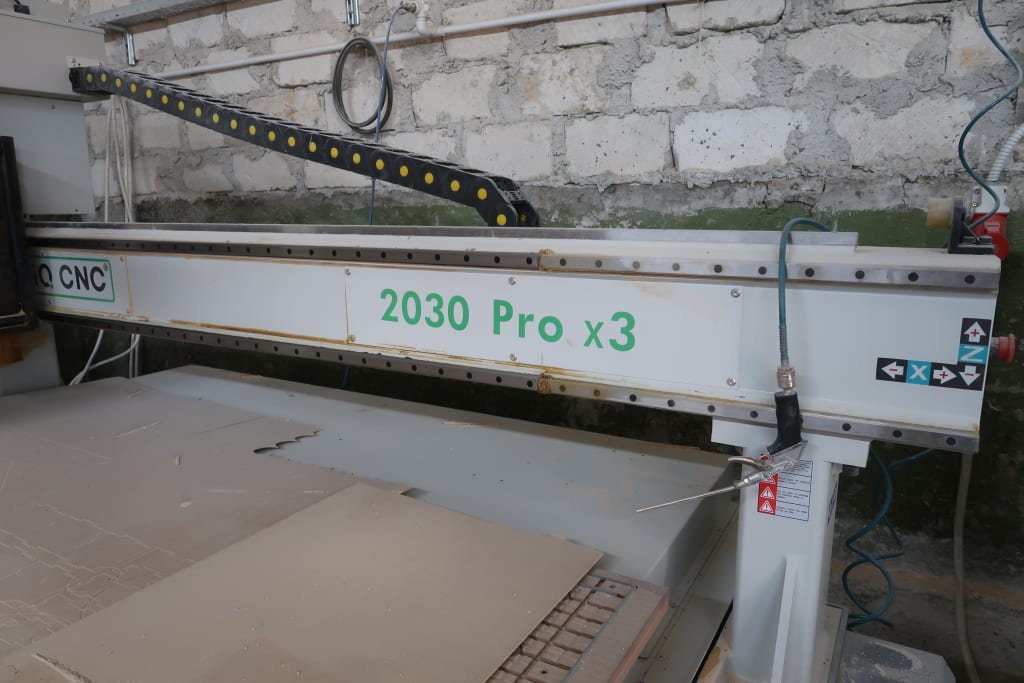

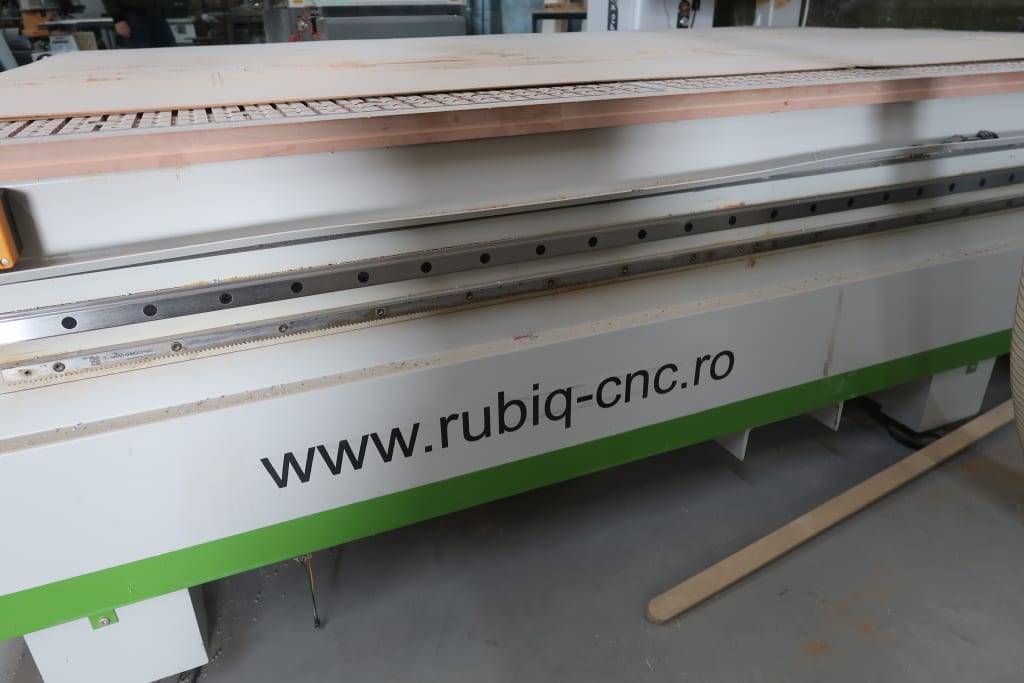

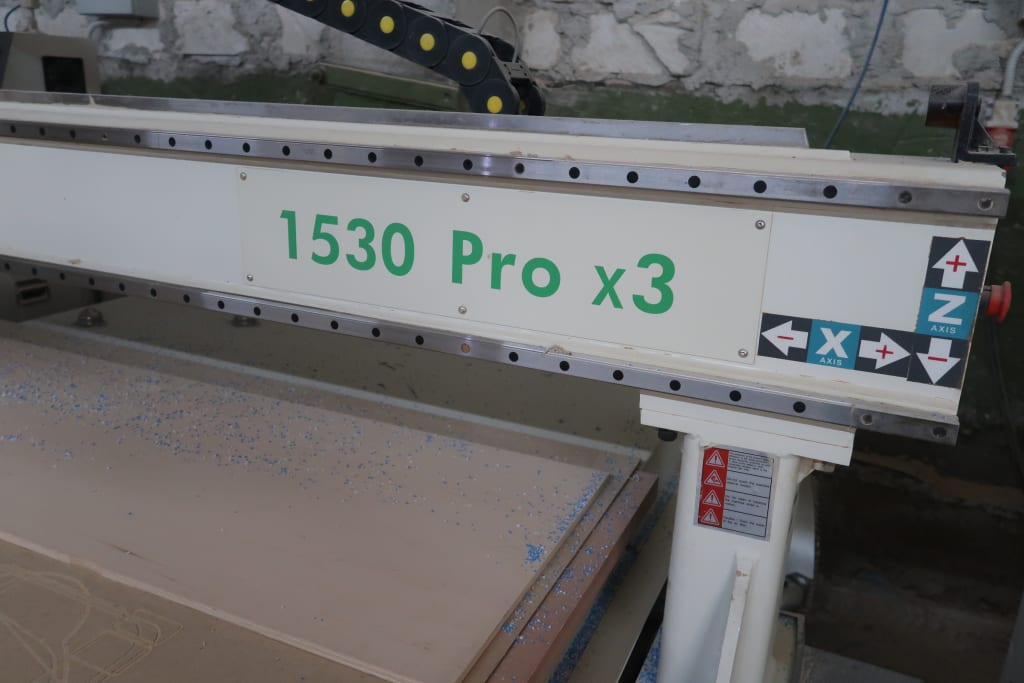

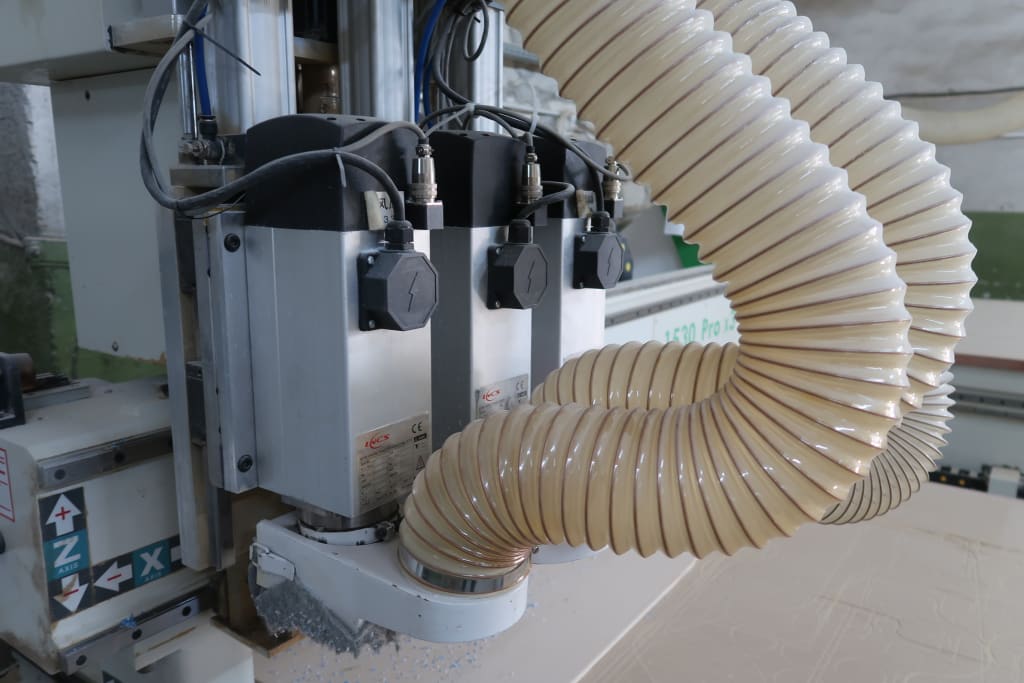

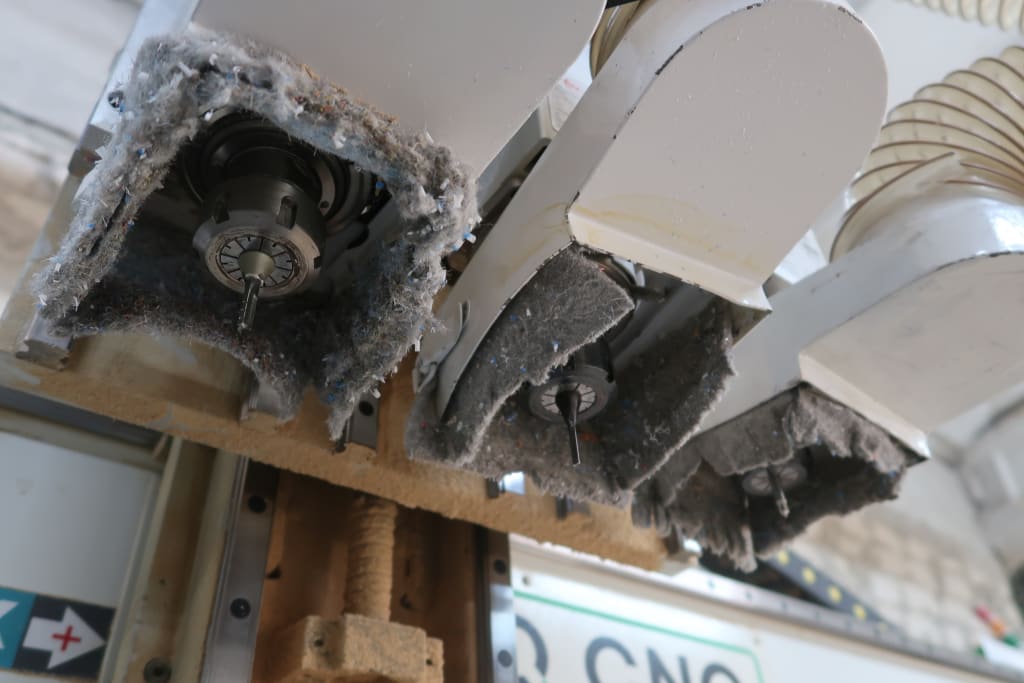

Working Dimensions Of 2,000 x 3,000mm On The 'X' And 'Y' Axes, With A 'Z' Axis Travel Of 200mm. And A Useful Working Height Of 150mm. Travel Speed On The 'X' And 'Y' Axes Is Up To 20 m/min, With A Maximum Working Speed Of 15m/min, While The 'Z' Axis Reaches 15m/min. Material Fixation Is Done By Vacuum, With A Table Divided Into 6 Working Zones, Each With 20 Holes, Supported By Vacuum Pumps With A Capacity Of 400mc/h. The Drive System Uses Four Delta Servo Motors With A Positioning Accuracy Of ±0.05/300mm. The Machine Is Equipped With Three 6kW Air Cooled Electro-Spindles Operating Between 0 And 24,000rpm, With ISO30 Spindle Cones And ER32 Tool Holders. Operating Voltage Is 400V And The Total Weight Is Approximately 2,500kg. Voltage 380V. Power 27 kW. Frequency 50Hz. S/No. 211015-3 (2021).

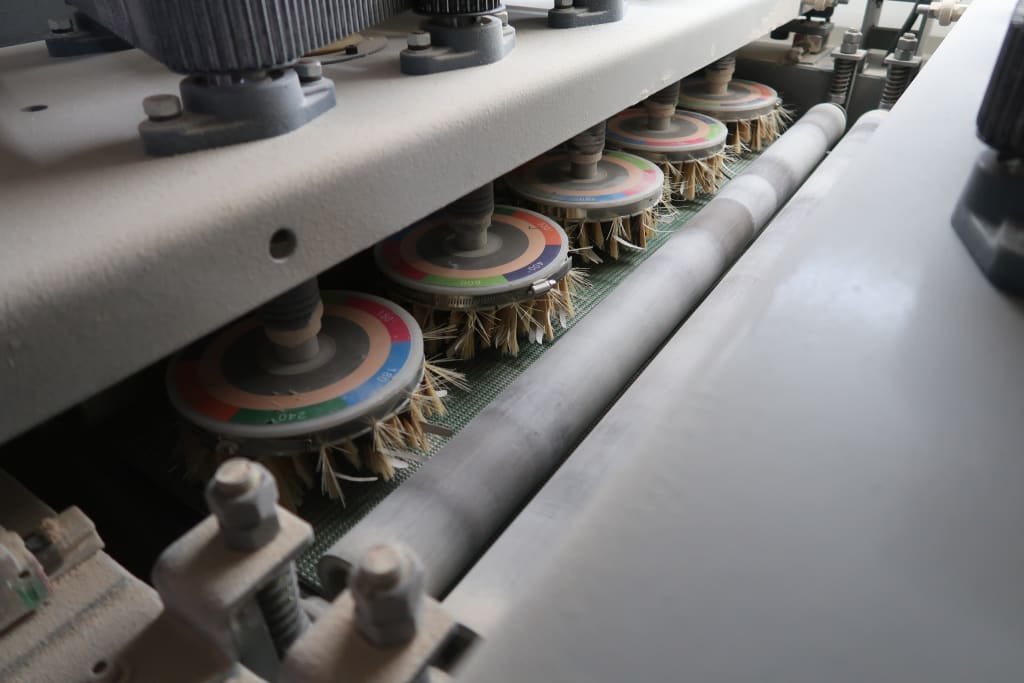

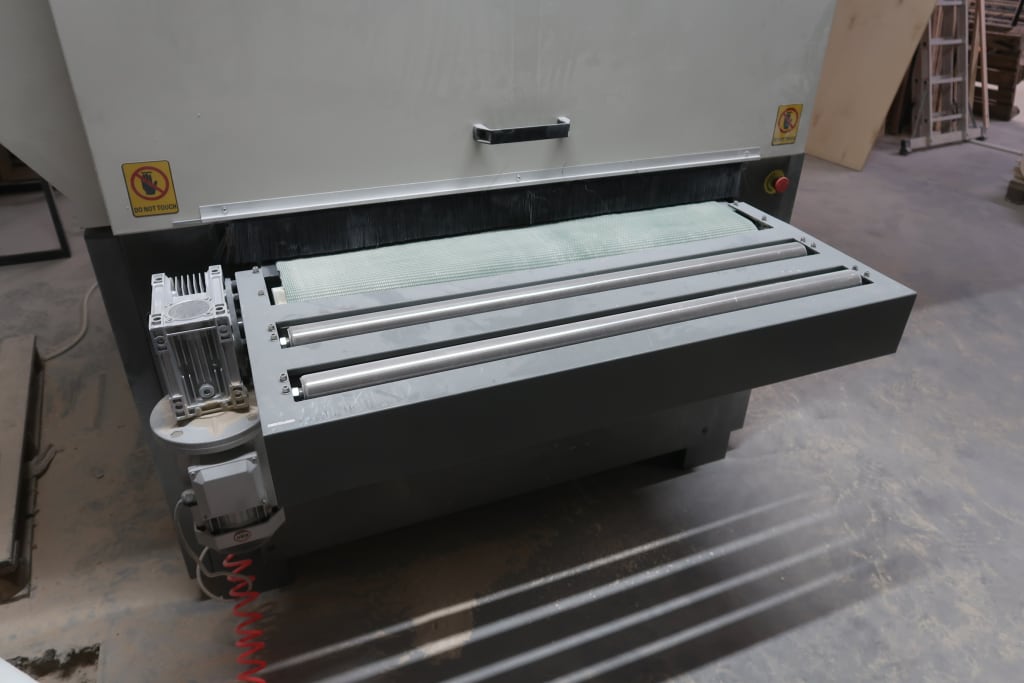

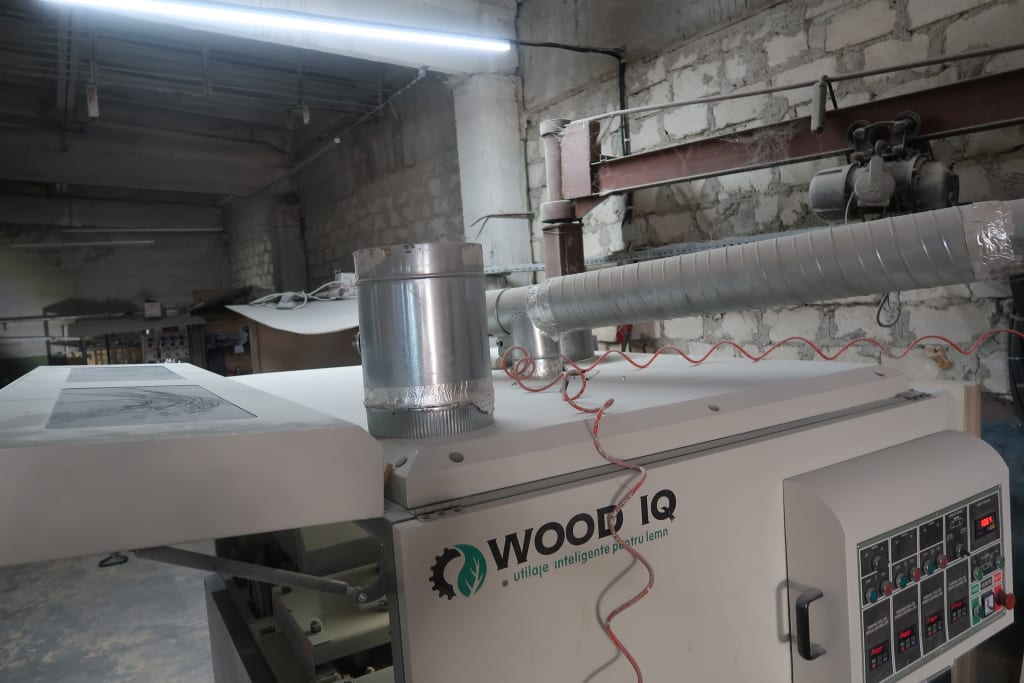

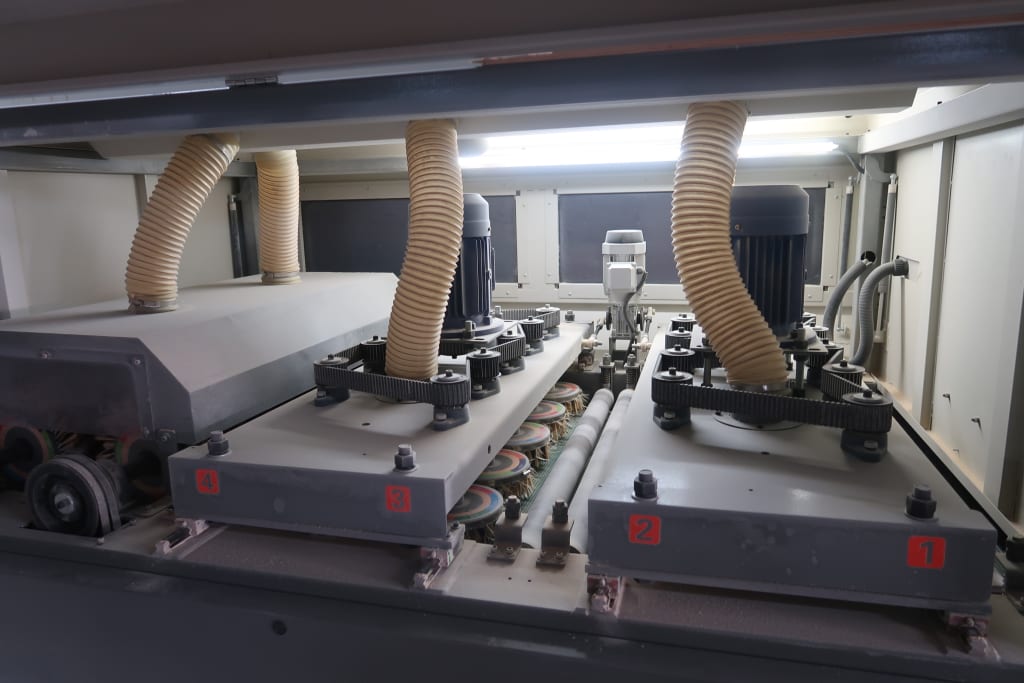

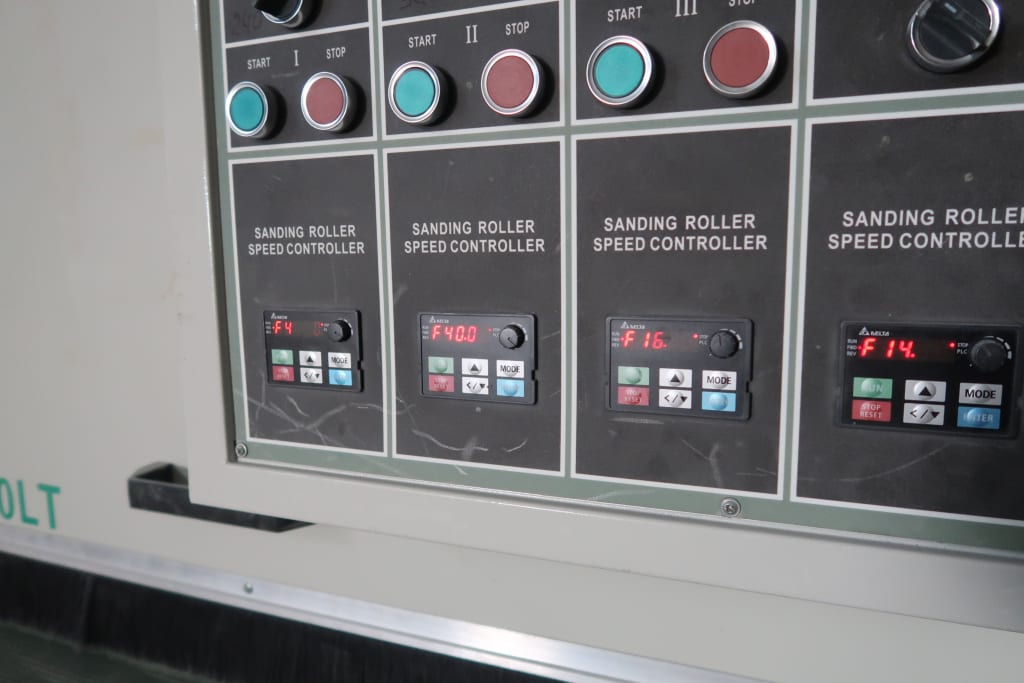

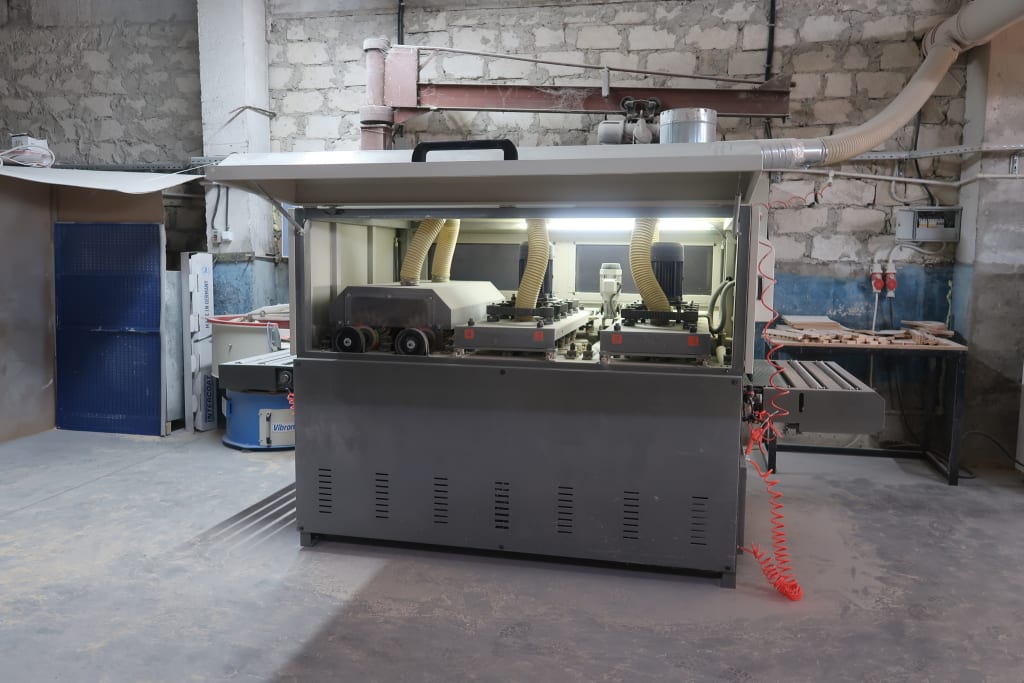

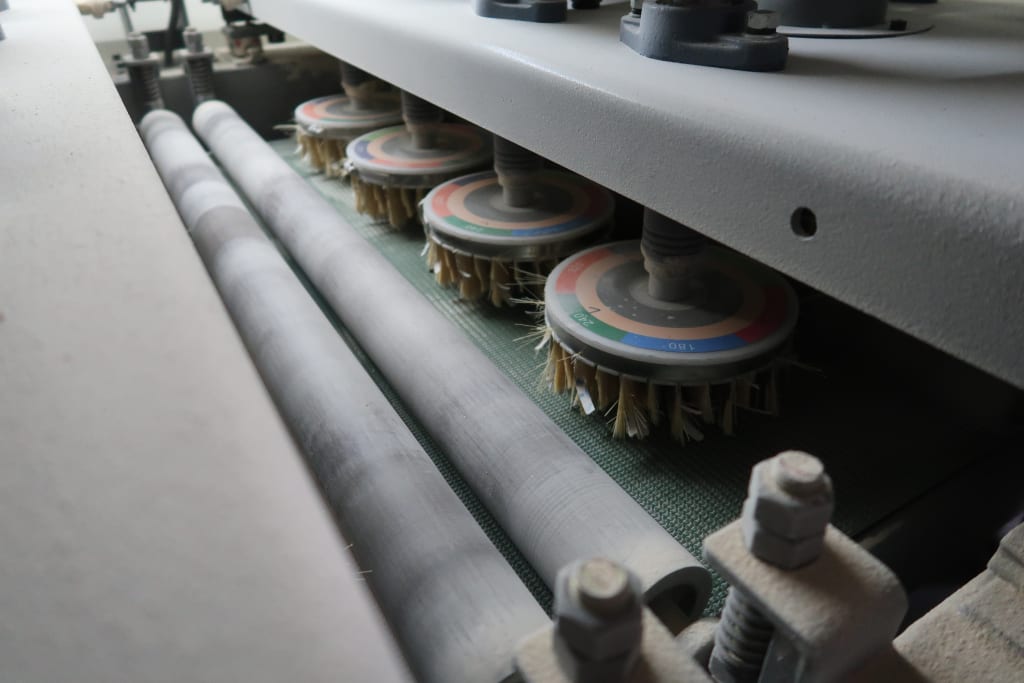

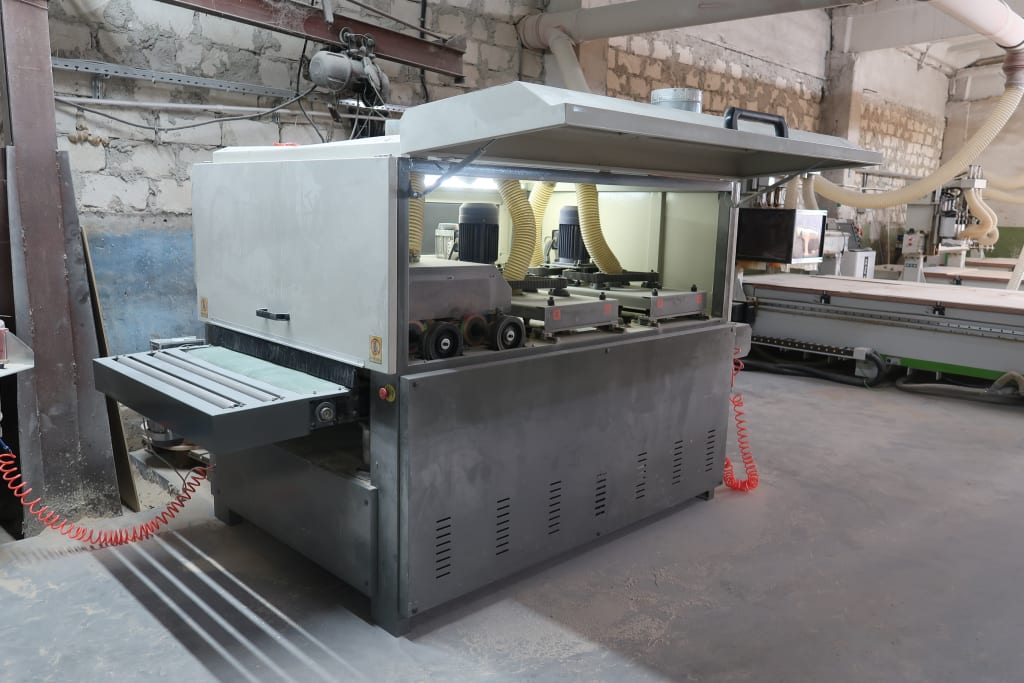

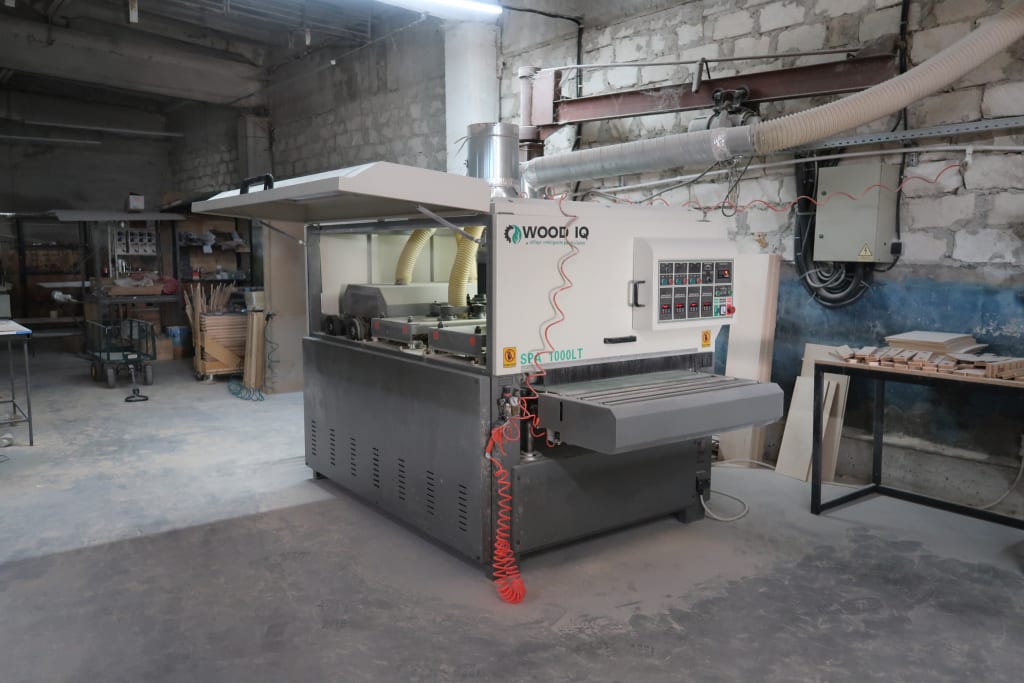

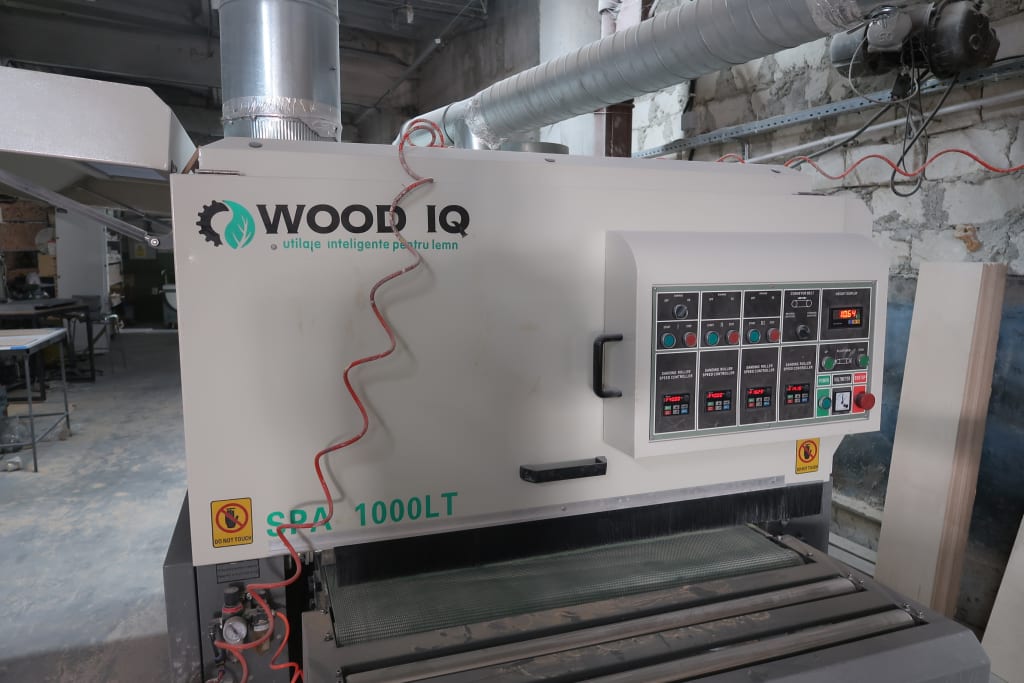

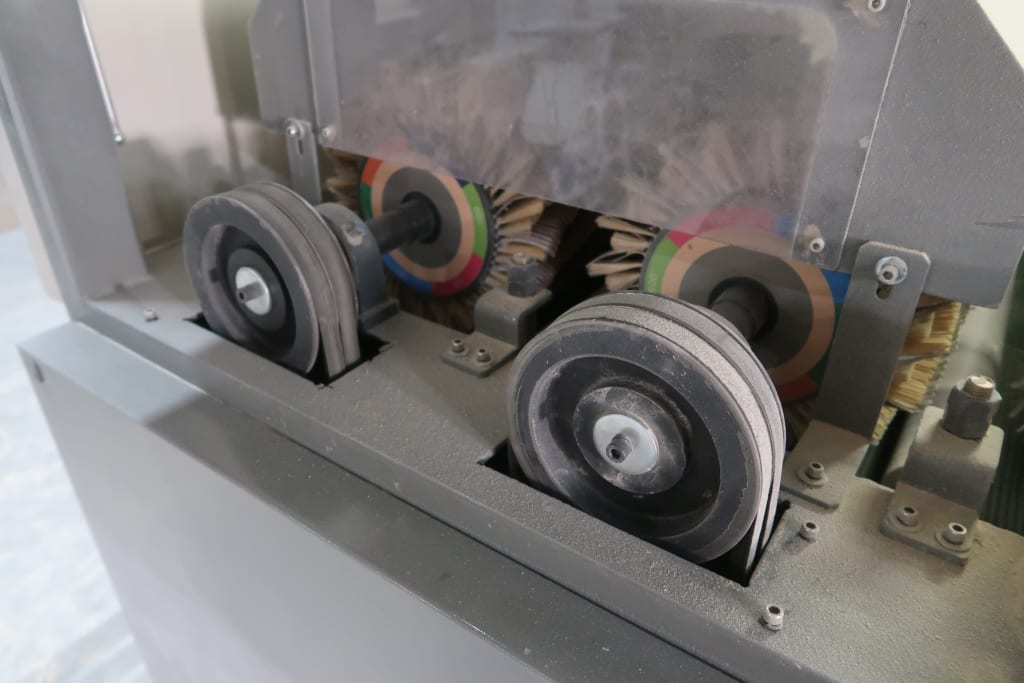

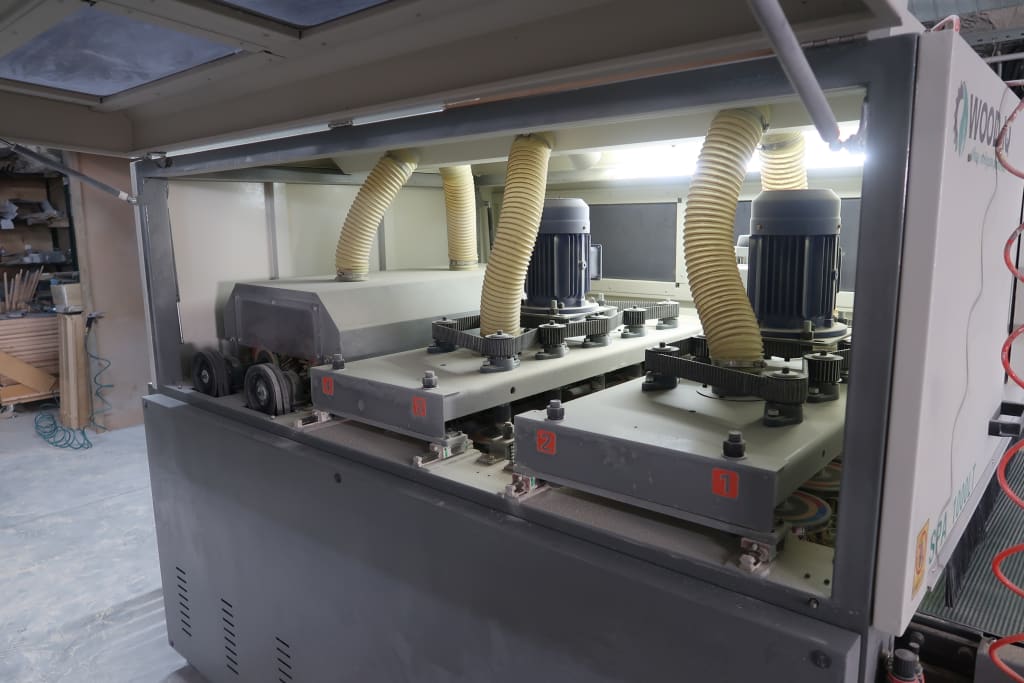

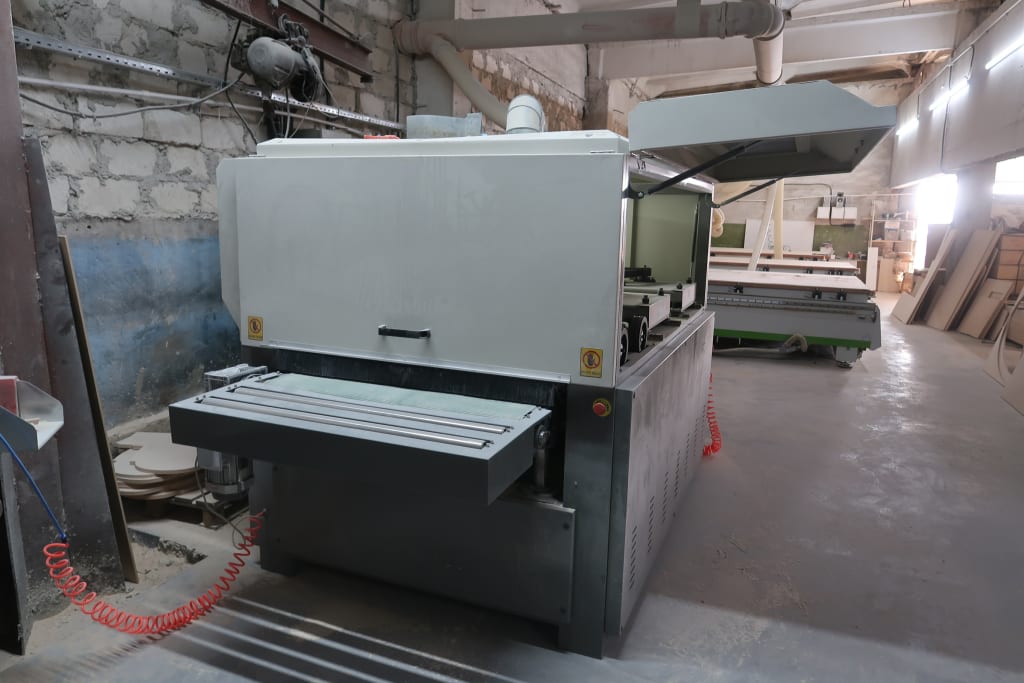

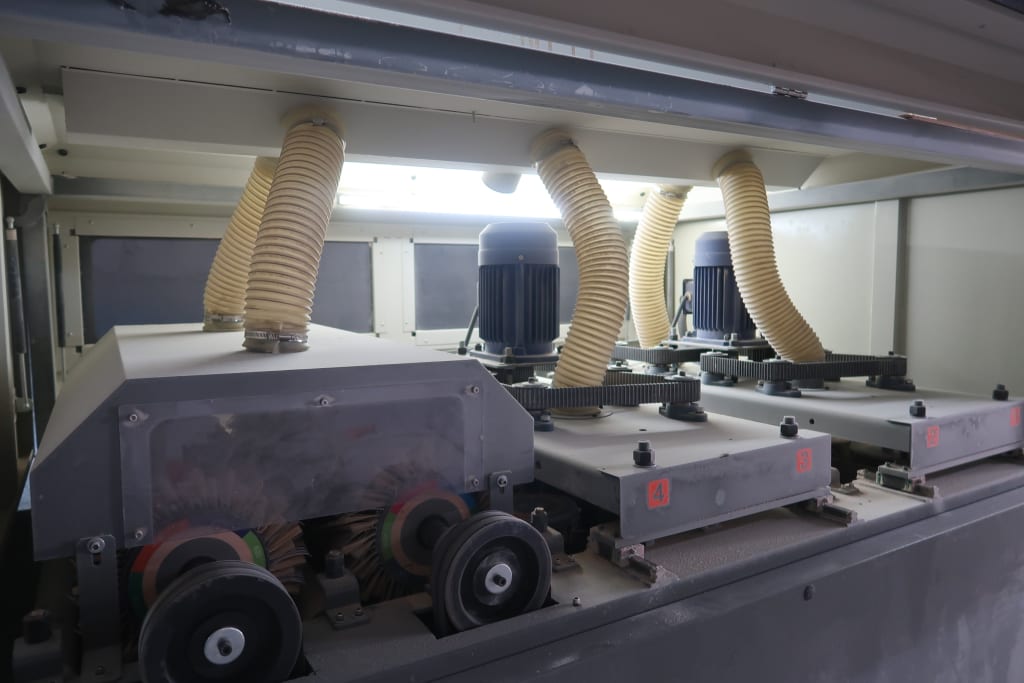

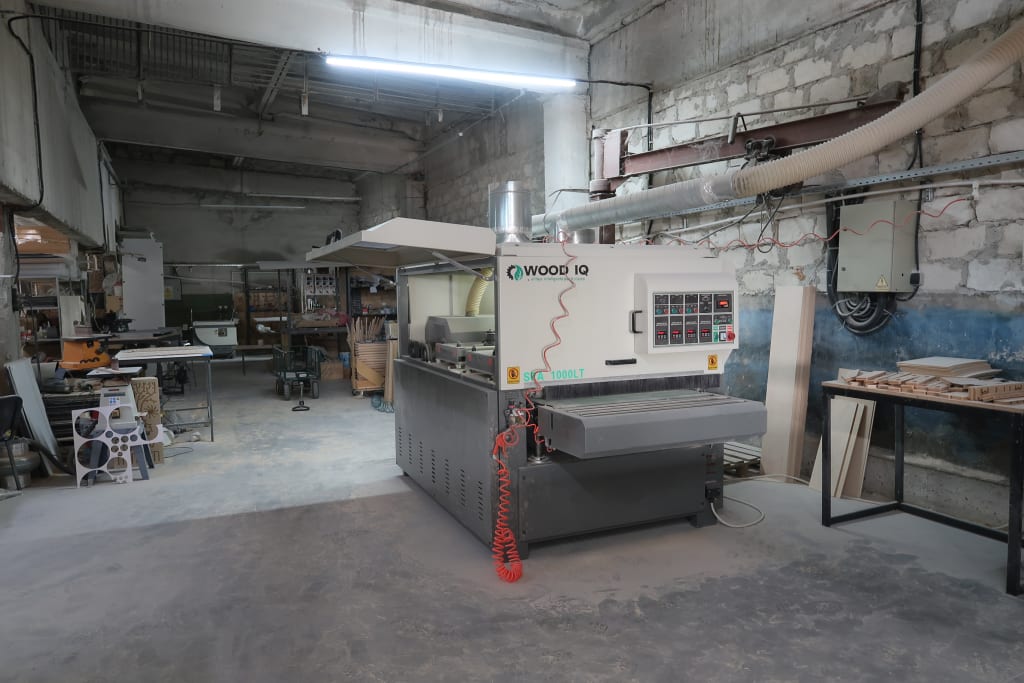

Equipped With Three Working Groups And Has A Useful Working Width Of 1000mm. It Processes Materials With A Thickness Between 10 And 160mm And A Minimum Length Of 350mm. The Feed Speed Is Adjustable Between 5 And 20m/min, While The Sanding Speed Is Controlled By A Delta Inverter. The Extraction System Includes Two Outlets Of 140mm Diameter With A Required Capacity Of 3,500M3/H. The Total Installed Power Is 9.6kW, Including A 1.5kW Feed Motor, A 0.55kW Thickness Adjustment Motor, Two 1.5kW Disc Brush Motors, A 0.55kW Oscillation Motor, And Two 1.5kW Drum Brush Motors. Overall Dimensions Are 1,800 x 3,200 x 1,900mm. And The Net Weight Is Approximately 1,500kg.

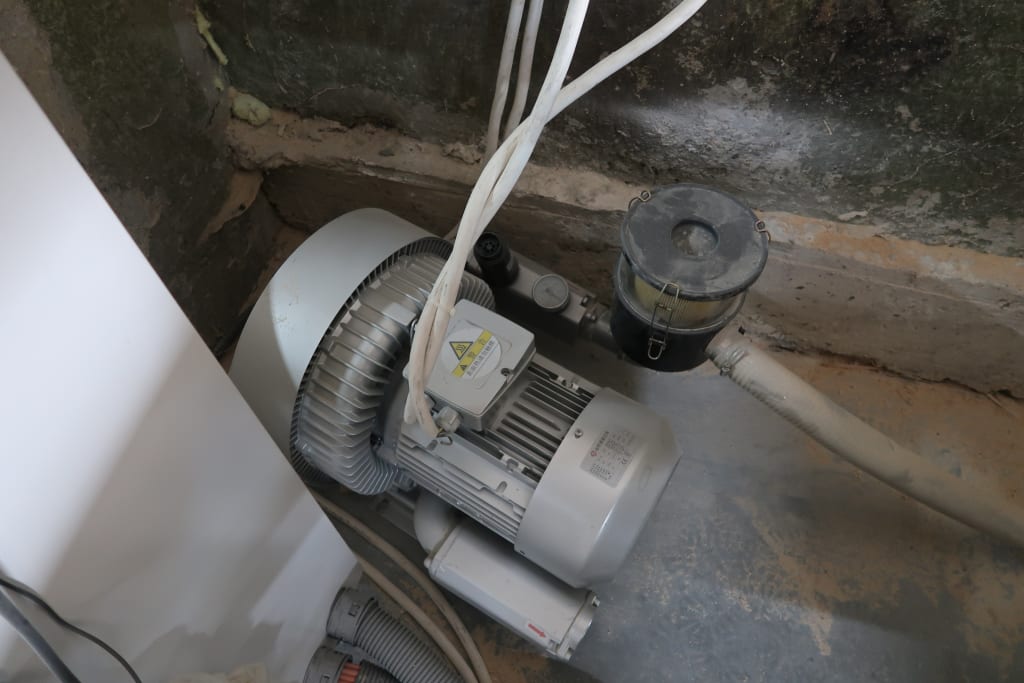

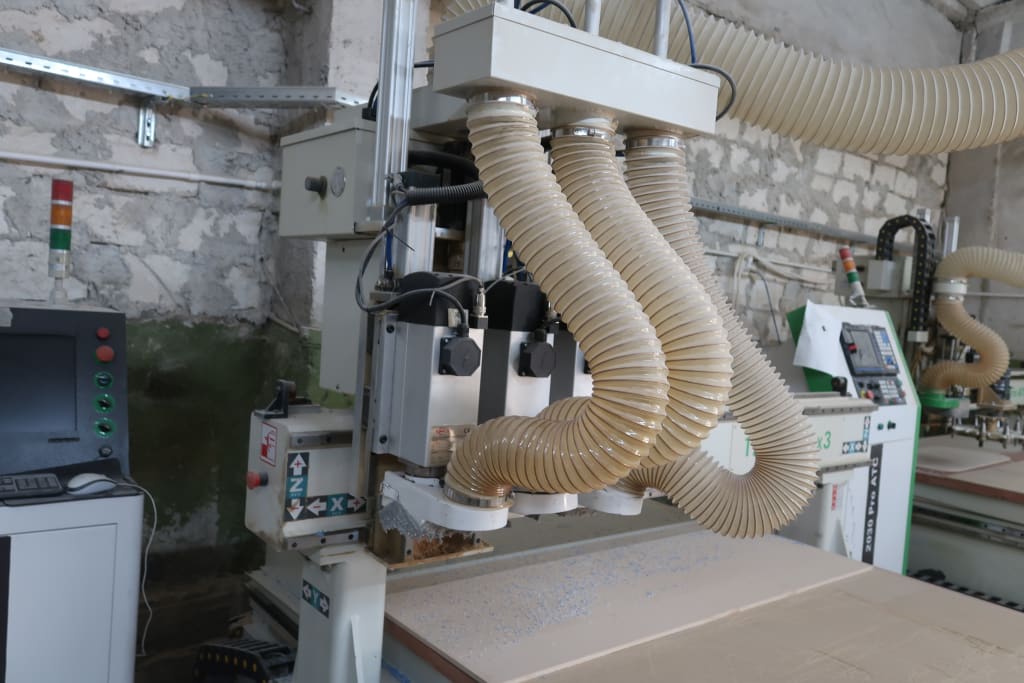

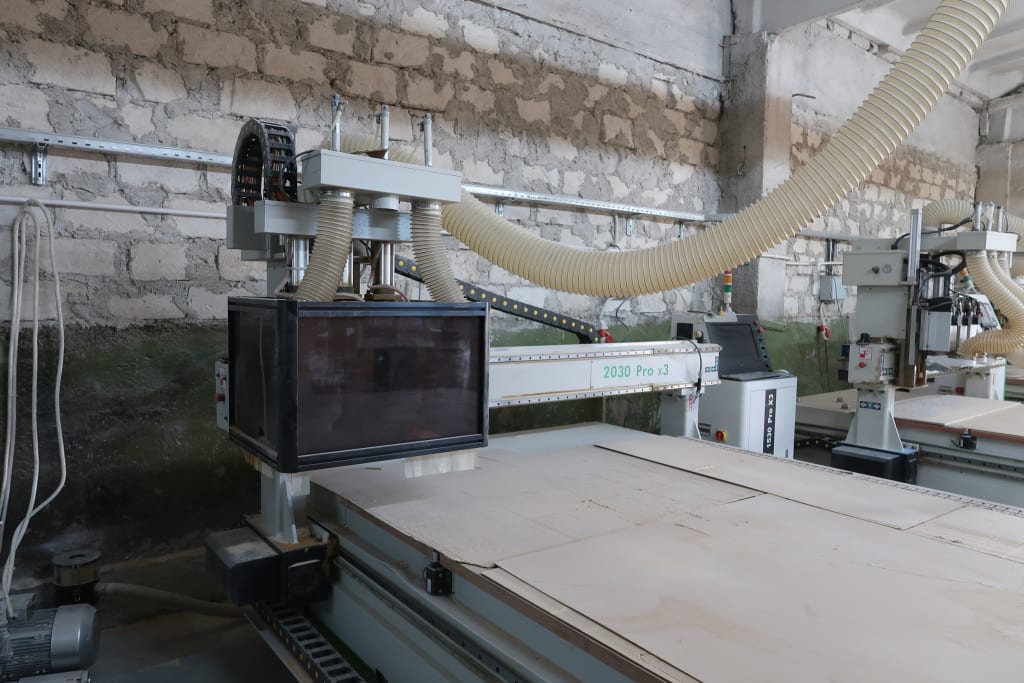

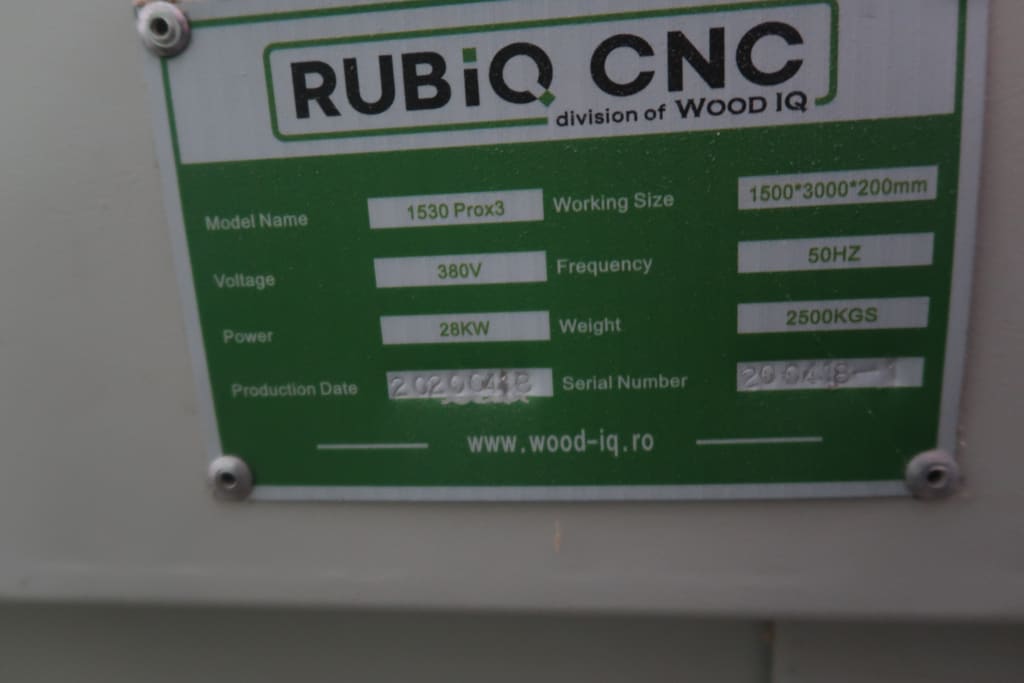

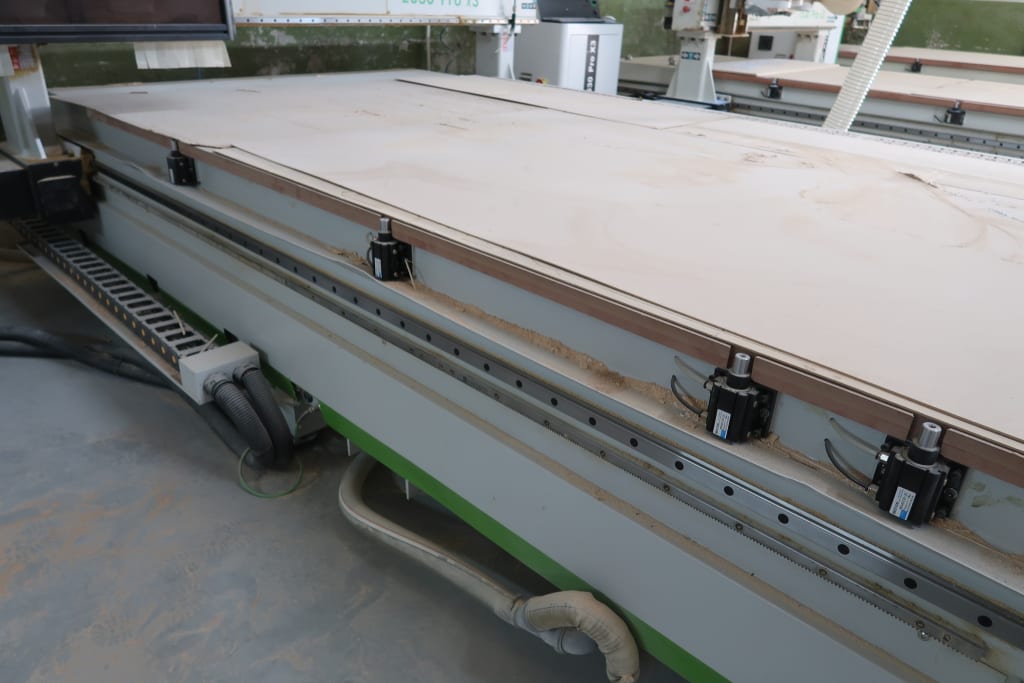

Working Area On The 'X'-'Y' Axes Is 1,500 x 3,000mm, With A 'Z'-Axis Travel Of 200mm. And A Useful 'Z' Working Height Of 150mm. Travel Speed Is 30m/min On 'X'-'Y' And 15m/min On 'Z', With A Maximum Working Speed Of 15m/min On 'X'-'Y'. Material Fixation Is Done By Vacuum, Each With 28 Holes, Supported By A 200Mc/H Vacuum Pump. The Machine Is Driven By Four Delta Servo Motors And Has A Positioning Accuracy Of ±0.05/300mm. It Is Equipped With An Air-Cooled Electrospindle With A Power Of 3 X 6kW And A Speed Range Of 0-24,000rpm, ISO30 Spindle Taper And ER32 Tool Holder Collet. Voltage 380V. Power 28kW. Frequency 50Hz. Weight 2,500kg. S/No. 204018-1.
